2013 TOYOTA VERSO S Owners Manual

345 3-5. Other interior features
3
Interior features
VERSO-S_EE

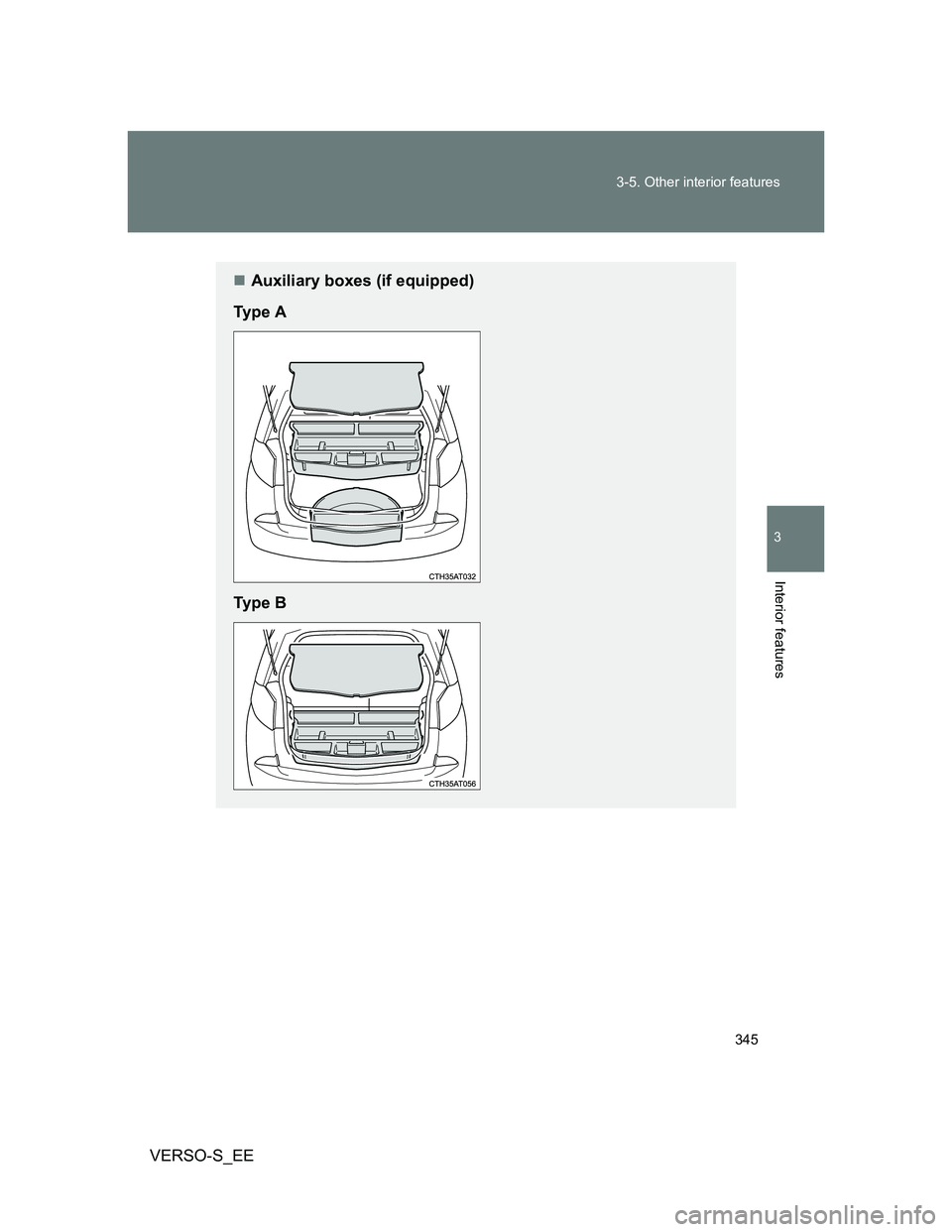

Auxiliary boxes (if equipped)
Ty p e A
Ty p e B

346 3-5. Other interior features
VERSO-S_EE

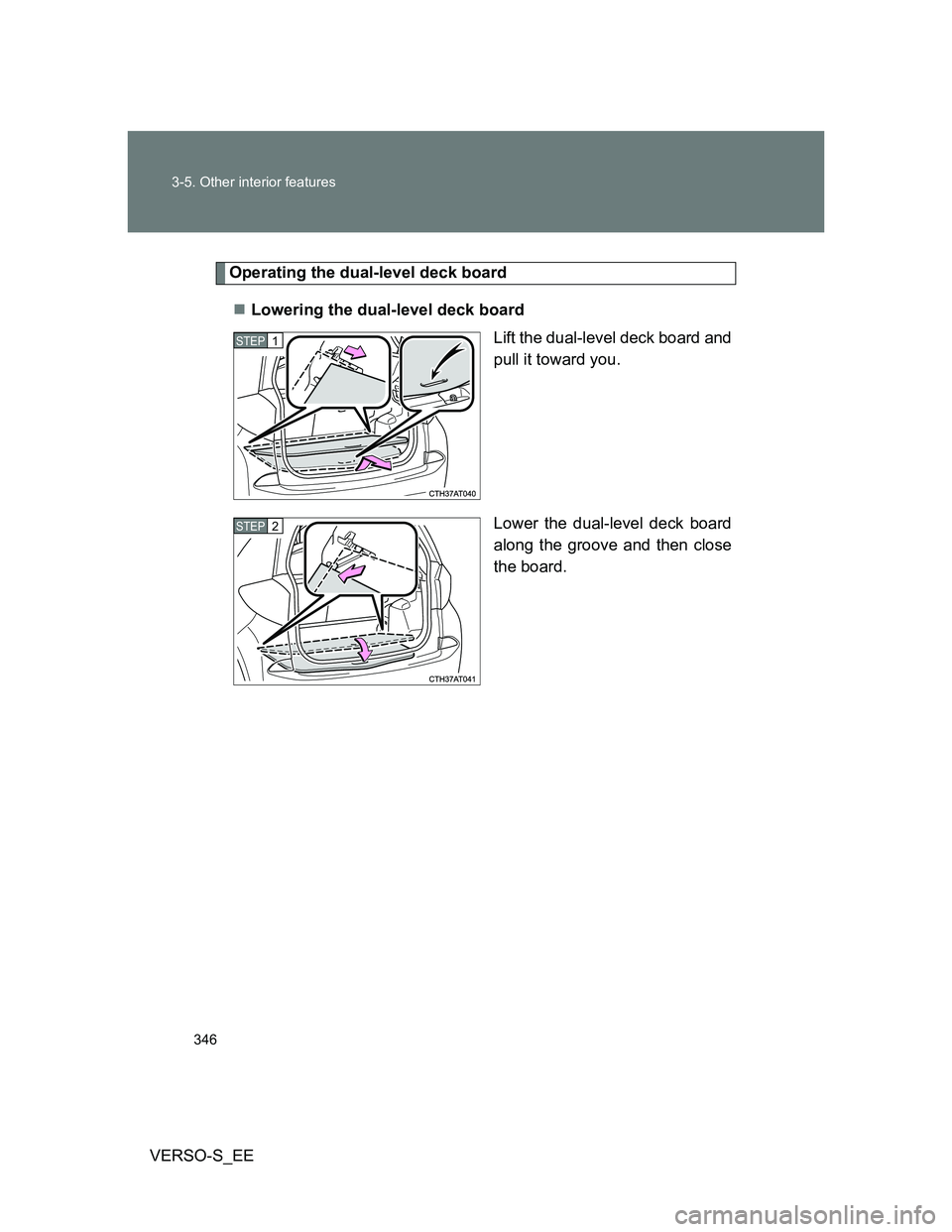

Operating the dual-level deck board
Lowering the dual-level deck board
Lift the dual-level deck board and
pull it toward you.
Lower the dual-level deck board
along the groove and then close
the board.
STEP1
STEP2

347 3-5. Other interior features
3
Interior features

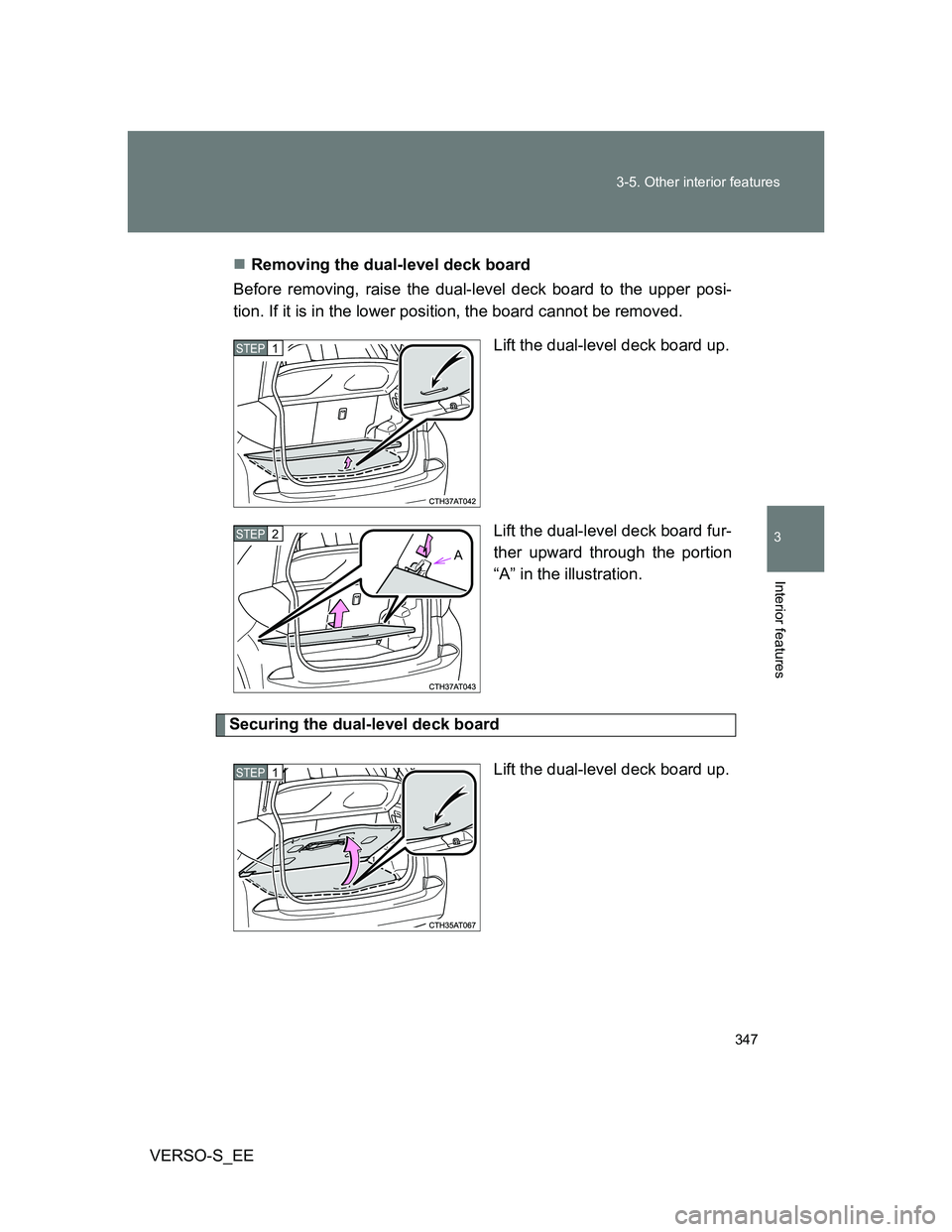

VERSO-S_EERemoving the dual-level deck board
Before removing, raise the dual-level deck board to the upper posi-
tion. If it is in the lower position, the board cannot be removed.
Lift the dual-level deck board up.
Lift the dual-level deck board fur-
ther upward through the portion
“A” in the illustration.
Securing the dual-level deck board
Lift the dual-level deck board up.
STEP1
STEP2
A
STEP1

348 3-5. Other interior features
VERSO-S_EERemove the hook on the back-
side of the dual-level deck
board.
Attach the hook to the upper
edge of the back door opening
as shown.
STEP2
Removing the luggage cover
The luggage cover can be removed by the following procedure:
Unhook the cords.
Remove the luggage cover out of the
retainers.
Unfasten the hook-and-loop fasteners
from the seatback and remove the lug-
gage cover.

349 3-5. Other interior features
3
Interior features
VERSO-S_EE

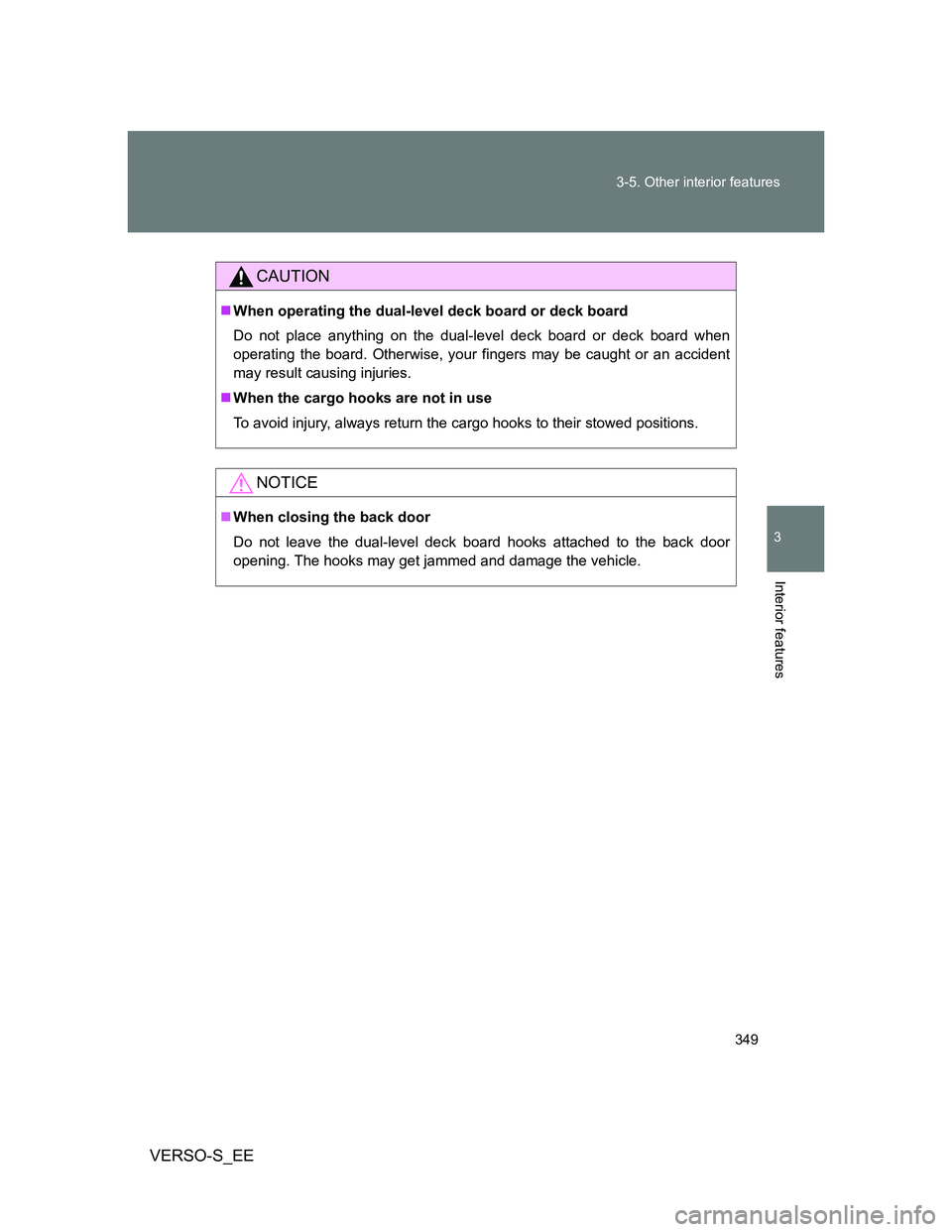

CAUTION
When operating the dual-level deck board or deck board
Do not place anything on the dual-level deck board or deck board when
operating the board. Otherwise, your fingers may be caught or an accident
may result causing injuries.
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
NOTICE
When closing the back door
Do not leave the dual-level deck board hooks attached to the back door
opening. The hooks may get jammed and damage the vehicle.

350 3-5. Other interior features
VERSO-S_EE

4Maintenance and care
351
VERSO-S_EE
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ......... 352
Cleaning and protecting
the vehicle interior .......... 356
4-2. Maintenance
Maintenance
requirements................... 359
4-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ..................... 362
Hood ................................. 365
Positioning a floor jack ...... 366
Engine compartment......... 368
Tires .................................. 383
Tire inflation pressure ....... 386
Wheels .............................. 388
Air conditioning filter ......... 390
Wireless remote control/
electronic key battery...... 393
Checking and replacing
fuses ............................... 397
Light bulbs ........................ 413

352
VERSO-S_EE
4-1. Maintenance and care

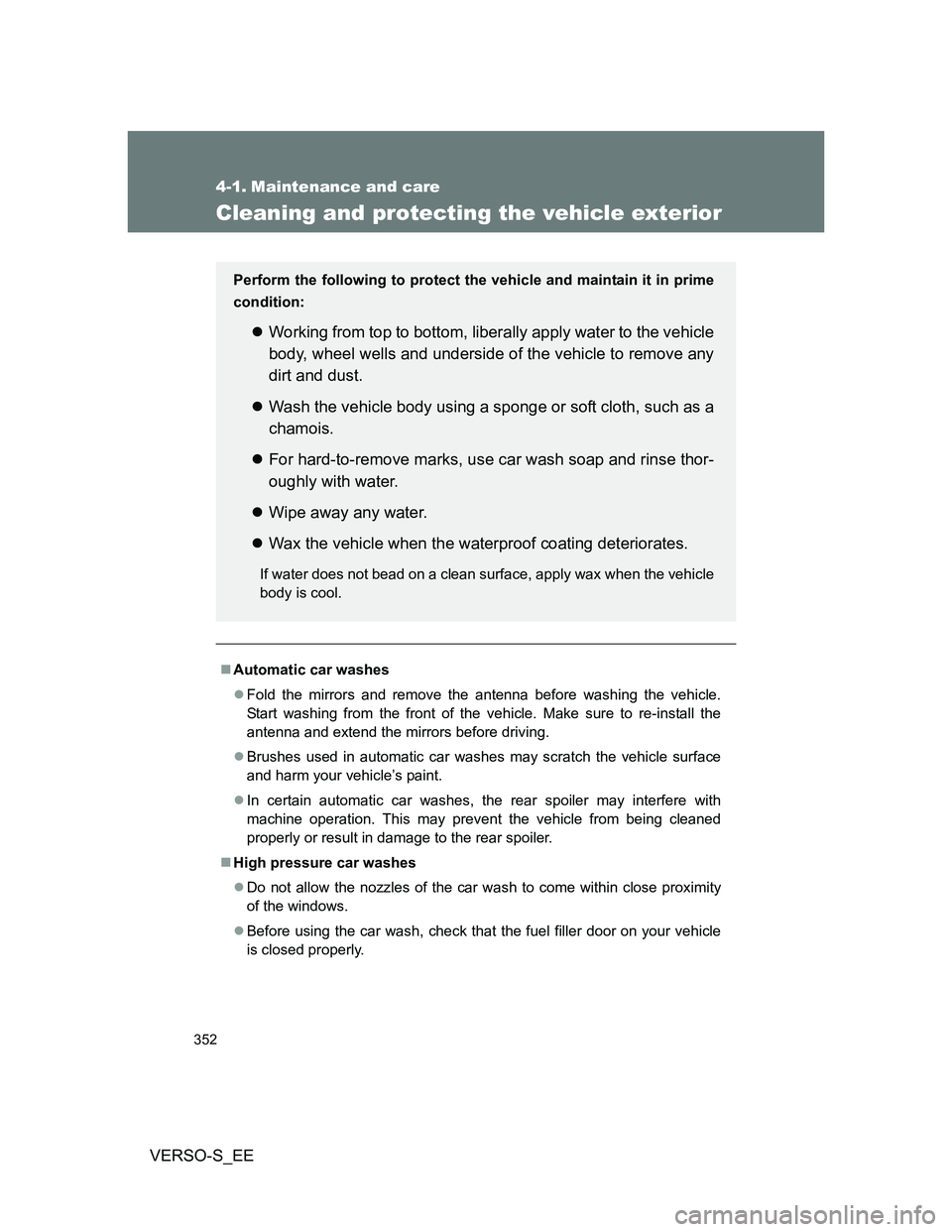

Cleaning and protecting the vehicle exterior
Automatic car washes
Fold the mirrors and remove the antenna before washing the vehicle.
Start washing from the front of the vehicle. Make sure to re-install the
antenna and extend the mirrors before driving.
Brushes used in automatic car washes may scratch the vehicle surface
and harm your vehicle’s paint.
In certain automatic car washes, the rear spoiler may interfere with
machine operation. This may prevent the vehicle from being cleaned
properly or result in damage to the rear spoiler.
High pressure car washes
Do not allow the nozzles of the car wash to come within close proximity
of the windows.
Before using the car wash, check that the fuel filler door on your vehicle
is closed properly.
Perform the following to protect the vehicle and maintain it in prime
condition:
Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust.
Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
Wipe away any water.
Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
