2013 TOYOTA VERSO S Owners Manual

409 4-3. Do-it-yourself maintenance
4
Maintenance and care

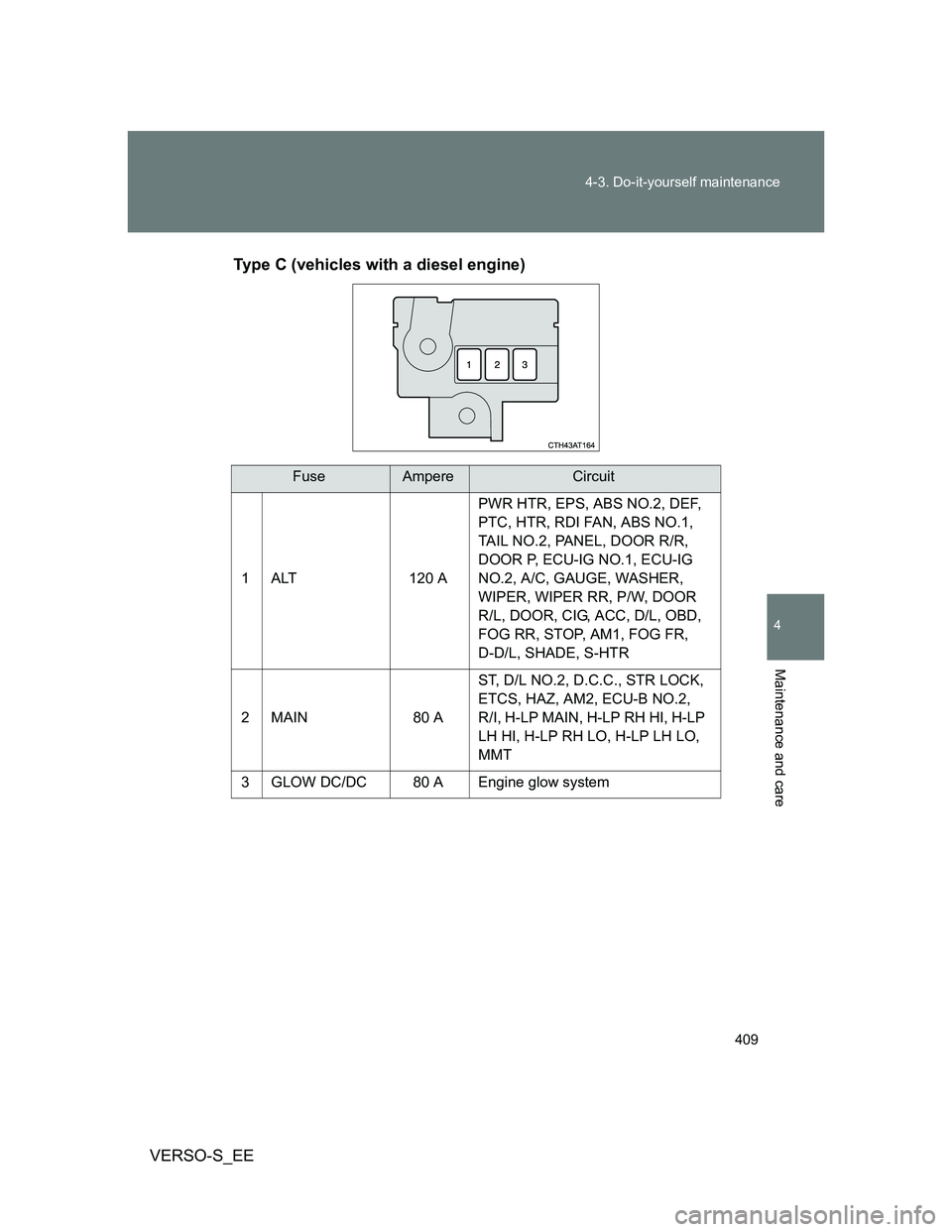

VERSO-S_EEType C (vehicles with a diesel engine)
FuseAmpereCircuit
1 ALT 120 APWR HTR, EPS, ABS NO.2, DEF,
PTC, HTR, RDI FAN, ABS NO.1,
TAIL NO.2, PANEL, DOOR R/R,
DOOR P, ECU-IG NO.1, ECU-IG
NO.2, A/C, GAUGE, WASHER,
WIPER, WIPER RR, P/W, DOOR
R/L, DOOR, CIG, ACC, D/L, OBD,
FOG RR, STOP, AM1, FOG FR,
D-D/L, SHADE, S-HTR
2MAIN 80 AST, D/L NO.2, D.C.C., STR LOCK,
ETCS, HAZ, AM2, ECU-B NO.2,
R/I, H-LP MAIN, H-LP RH HI, H-LP
LH HI, H-LP RH LO, H-LP LH LO,
MMT
3 GLOW DC/DC 80 A Engine glow system

410 4-3. Do-it-yourself maintenance

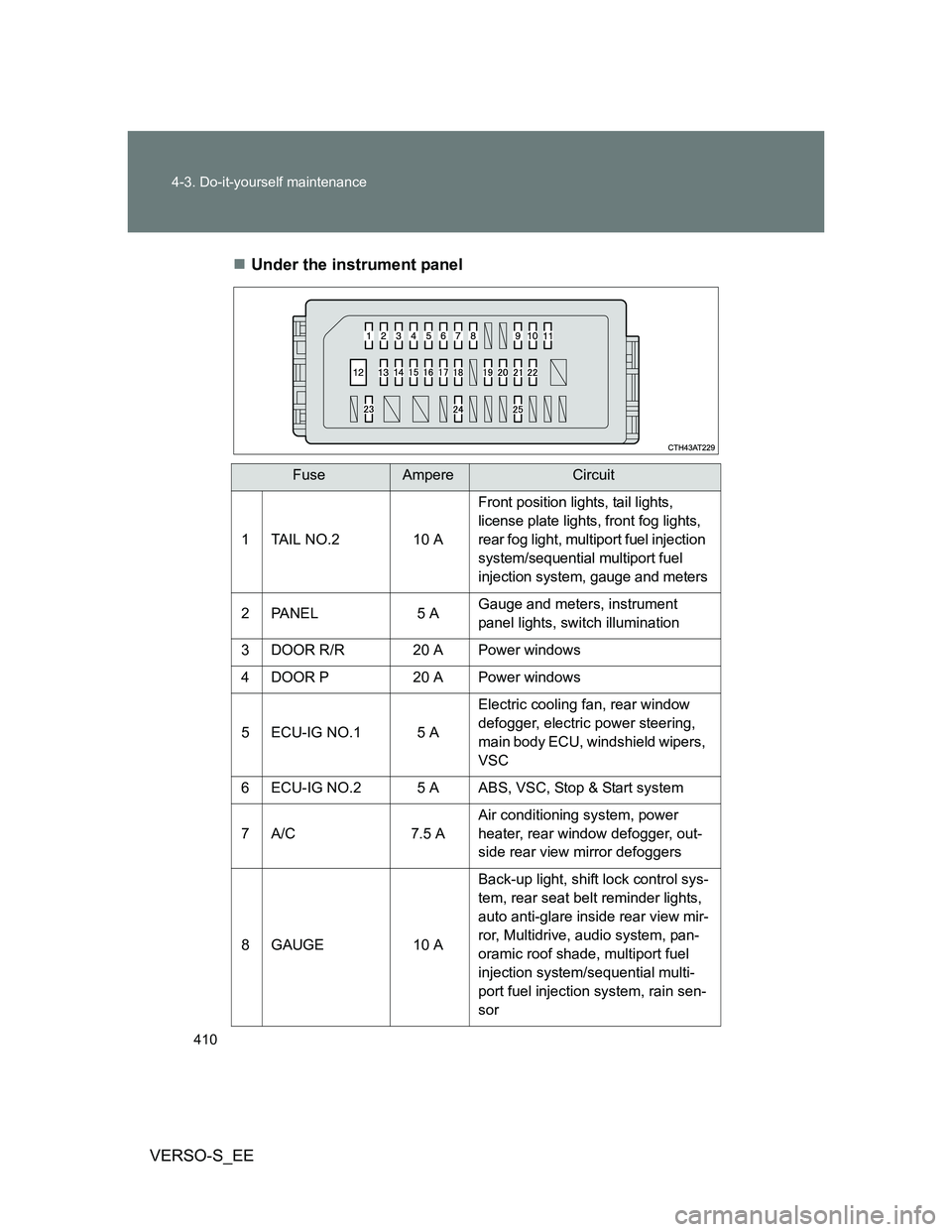

VERSO-S_EEUnder the instrument panel
FuseAmpereCircuit
1 TAIL NO.2 10 A
Front position lights, tail lights,
license plate lights, front fog lights,
rear fog light, multiport fuel injection
system/sequential multiport fuel
injection system, gauge and meters
2 PANEL 5 AGauge and meters, instrument
panel lights, switch illumination
3 DOOR R/R 20 A Power windows
4 DOOR P 20 A Power windows
5 ECU-IG NO.1 5 AElectric cooling fan, rear window
defogger, electric power steering,
main body ECU, windshield wipers,
VSC
6 ECU-IG NO.2 5 A ABS, VSC, Stop & Start system
7A/C 7.5 AAir conditioning system, power
heater, rear window defogger, out-
side rear view mirror defoggers
8 GAUGE 10 ABack-up light, shift lock control sys-
tem, rear seat belt reminder lights,
auto anti-glare inside rear view mir-
ror, Multidrive, audio system, pan-
oramic roof shade, multiport fuel
injection system/sequential multi-
port fuel injection system, rain sen-
sor

411 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EE
9 WASHER 15 A Windshield washer
10 WIPER 20 A Windshield wipers
11 WIPER RR 15 A Rear window wiper
12 P/W 30 A Power windows
13 DOOR R/L 20 A Power windows
14 DOOR 20 A Power windows
15 CIG 15 A Power outlets
16 ACC 5 AMain body ECU, outside rear view
mirrors, audio system, Stop & Start
system, shift lock control system
17 D/L 25 A Power door lock system
18 OBD 7.5 A On-board diagnosis system
19 FOG RR 7.5 A Rear fog light, gauge and meters
20 STOP 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system, smart entry & start system,
ABS, VSC, multi-mode manual
transmission, stop lights, high
mounted stoplight, shift lock control
system
21 AM1 7.5 A Starting system
22 FOG FR 15 A Front fog lights, gauge and meters
23 D-D/L 25 AMultiport fuel injection system/
sequential multiport fuel injection
system
24 SHADE 25 A Panoramic roof shade
25 S-HTR 15 A Seat heaters
FuseAmpereCircuit

412 4-3. Do-it-yourself maintenance
VERSO-S_EE
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 413)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle.
Because certain bulbs are connected to circuits designed to prevent over-
load, non-genuine parts or parts not designed for this vehicle may be unus-
able.
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle and possibly a fire or
injury.
Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
Do not modify the fuses or fuse boxes.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.

413
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EE
Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
For more information about replacing other light bulbs, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (P. 524)
Front bulb locations
Front position lights
Front fog lights
(if equipped)
Headlights
Front turn
signal lights

414 4-3. Do-it-yourself maintenance
VERSO-S_EE
Replacing light bulbs
Headlights
Unplug the connector and
remove the rubber cover.
Release the bulb retaining
spring.
Rear bulb locations
Rear fog light (for
left-hand traffic)/
Back-up light (for
right-hand traffic)
Rear fog light (for
right-hand traffic)/
Back-up light (for
left-hand traffic) Stop/tail lights
License plate
lights
Rear turn signal lights
STEP1
STEP2

415 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EERemove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
Front fog lights (if equipped)
Vehicles without a front
spoiler
Remove the 2 screws and a clip.
Vehicles with a front spoiler
Remove the 3 screws and a clip.
The front spoiler will come off on
that side when the screws are
removed.
*: Vehicles with a front
spoiler only
Remove the grommet.
STEP3
STEP1
*
STEP2

416 4-3. Do-it-yourself maintenance

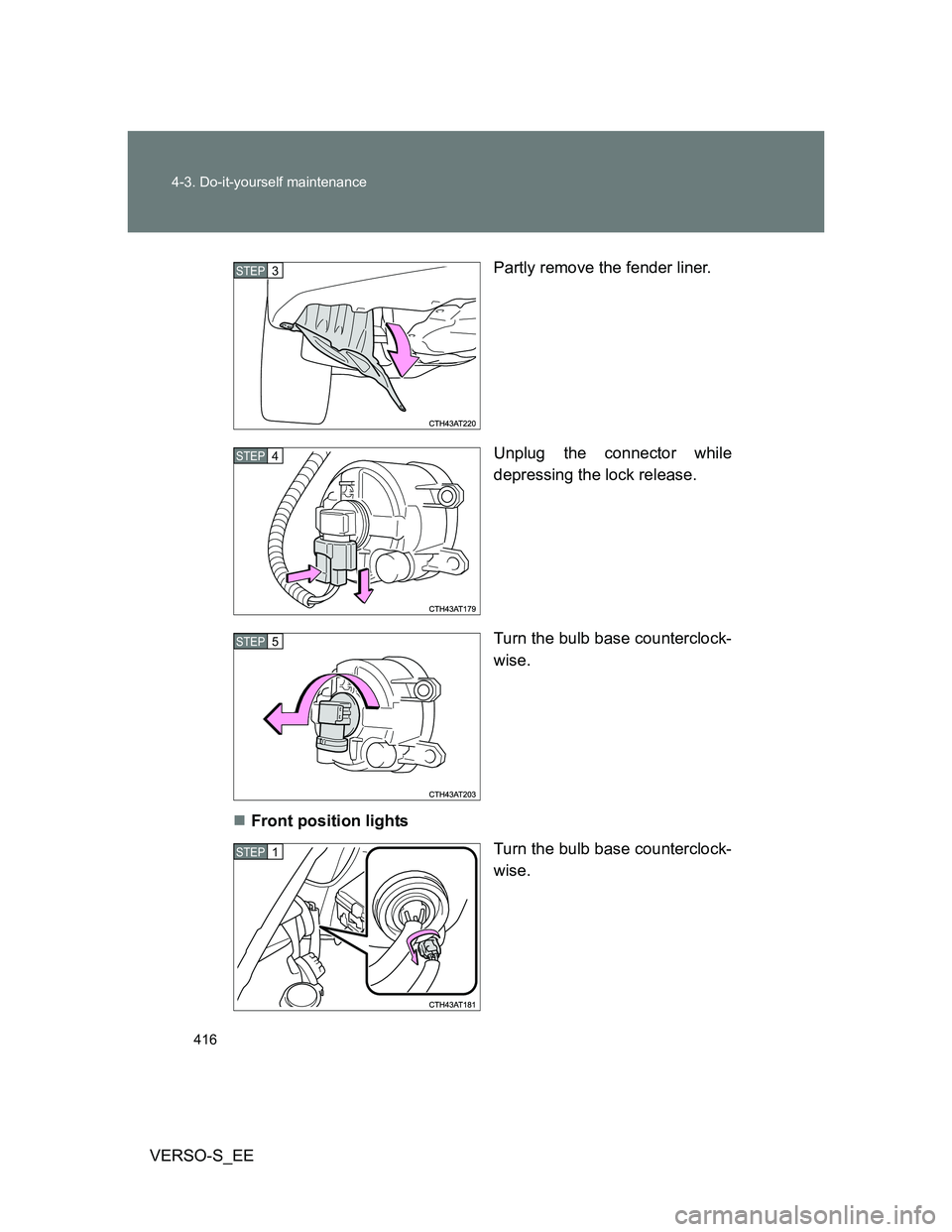

VERSO-S_EEPartly remove the fender liner.
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
Front position lights
Turn the bulb base counterclock-
wise.
STEP3
STEP4
STEP5
STEP1
