2013 TOYOTA VERSO S Owners Manual

5

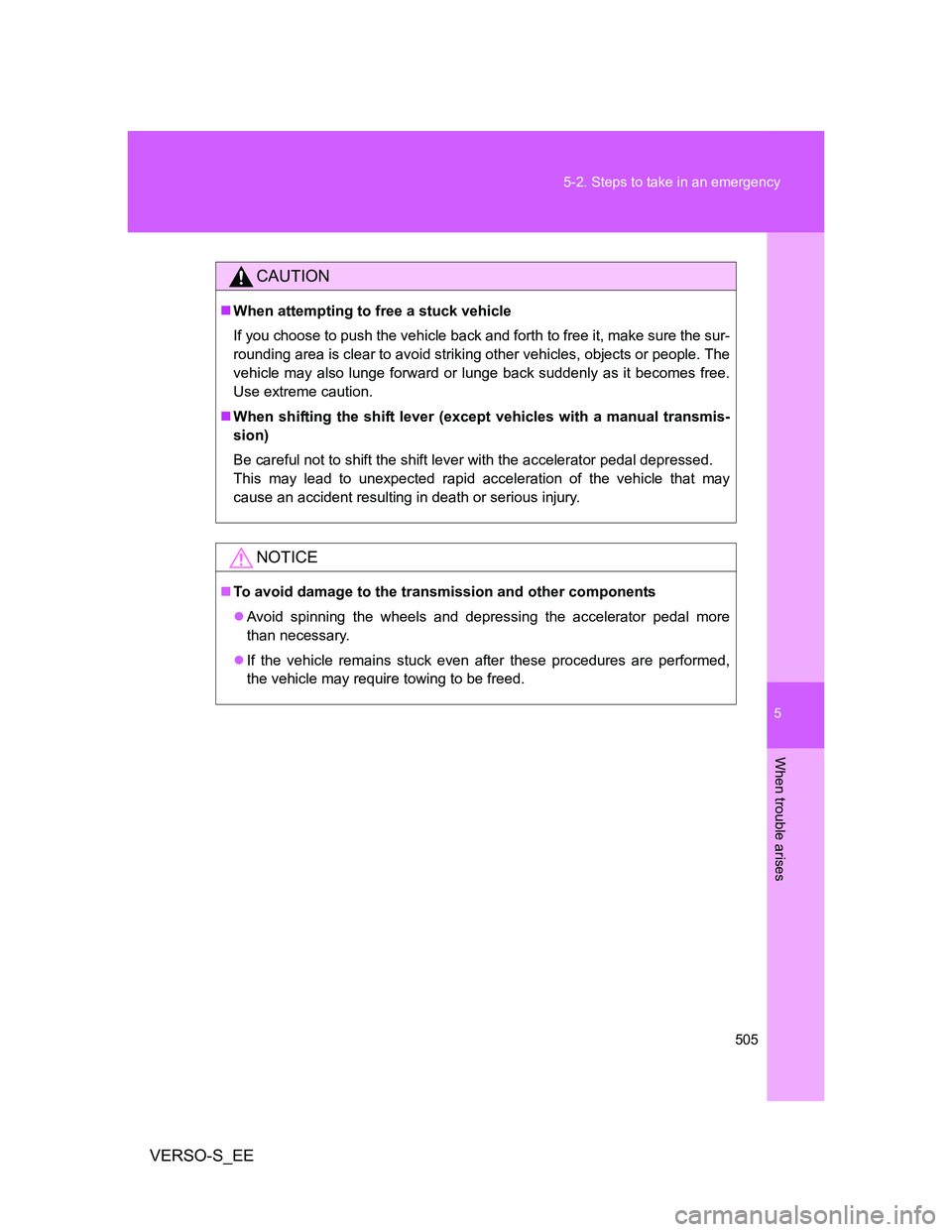

505 5-2. Steps to take in an emergency
When trouble arises
VERSO-S_EE
CAUTION
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.
When shifting the shift lever (except vehicles with a manual transmis-
sion)
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
To avoid damage to the transmission and other components
Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

506
5-2. Steps to take in an emergency
VERSO-S_EE
If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Vehicles without a smart entry
& start system: Stop the
engine by turning the engine
switch to the “ACC” position.
STEP1
STEP2
STEP3
STEP4
STEP3
STEP4

5

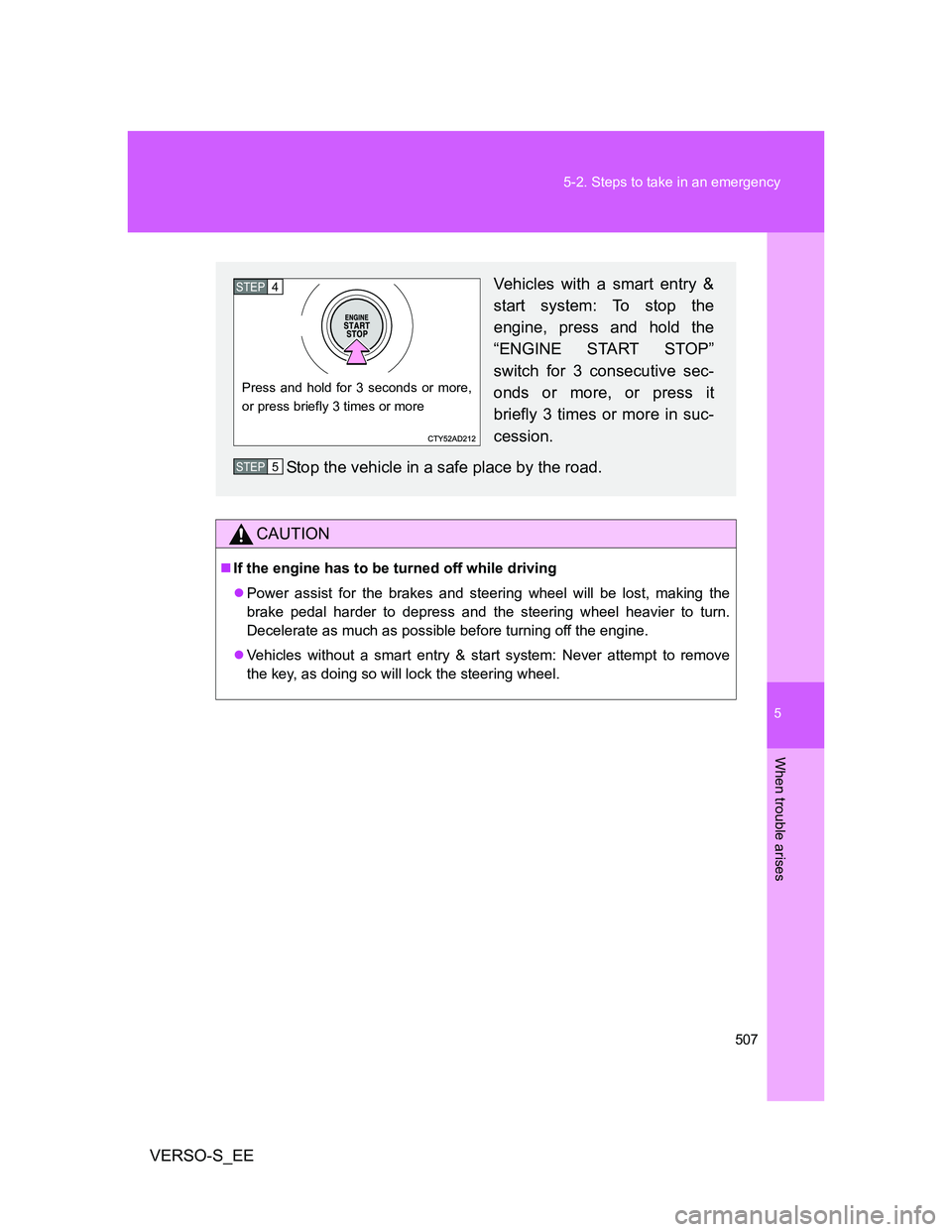

507 5-2. Steps to take in an emergency
When trouble arises
VERSO-S_EE
CAUTION
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Vehicles without a smart entry & start system: Never attempt to remove
the key, as doing so will lock the steering wheel.
Vehicles with a smart entry &
start system: To stop the
engine, press and hold the
“ENGINE START STOP”
switch for 3 consecutive sec-
onds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
Press and hold for 3 seconds or more,
or press briefly 3 times or more
STEP4
STEP5

508 5-2. Steps to take in an emergency
VERSO-S_EE

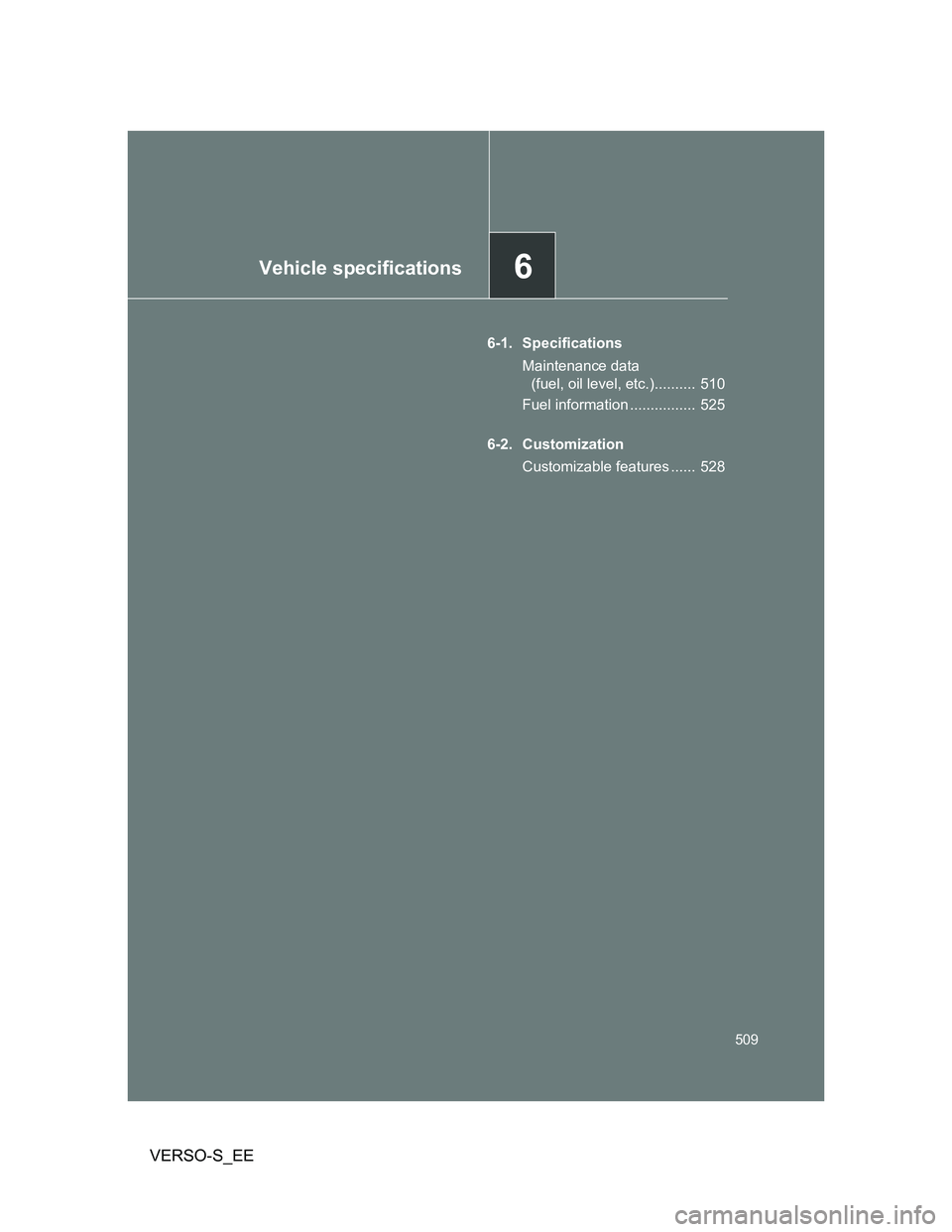

6Vehicle specifications
509
VERSO-S_EE
6-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 510
Fuel information ................ 525
6-2. Customization
Customizable features ...... 528

510
VERSO-S_EE
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 3990 mm (157.1 in.)
Overall width 1695 mm (66.7 in.)
Overall height*11595 mm (62.8 in.)
Wheelbase 2550 mm (100.4 in.)
TreadFront 1470 mm (57.9 in.)
Rear 1460 mm (57.5 in.)
Gross vehicle
mass
1NR-FE
engineLeft-hand drive vehicles
Manual transmission
1505 kg (3318 lb.)
*2,4
1535 kg (3384 lb.)*2,5
1515 kg (3340 lb.)*3,4
1545 kg (3406 lb.)*3,5
Multidrive
1540 kg (3395 lb.)
*2
1550 kg (3417 lb.)*3
Right-hand drive vehicles
Manual transmission
1515 kg (3340 lb.)
*4
1545 kg (3406 lb.)*5
Multidrive
1550 kg (3417 lb.)
1ND-TV
engineManual transmission
1575 kg (3472 lb.)*4
1600 kg (3527 lb.)*5
Multi-mode manual transmission
1605 kg (3538 lb.)

511 6-1. Specifications
6
Vehicle specifications
VERSO-S_EE
*1: Unladen vehicles
*2: Vehicles without Stop & Start system
*3: Vehicles with Stop & Start system
*4: Except vehicles with leather wrapped steering wheel
*5: Vehicles with leather wrapped steering wheel
Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
Maximum permissi-
ble axle capacityFront 900 kg (1985 lb.)
Rear 825 kg (1819 lb.)
Drawbar load 50 kg (110 lb.)
Towing capacity
with
brake800 kg (1764 lb.)
without
brake550 kg (1213 lb.)

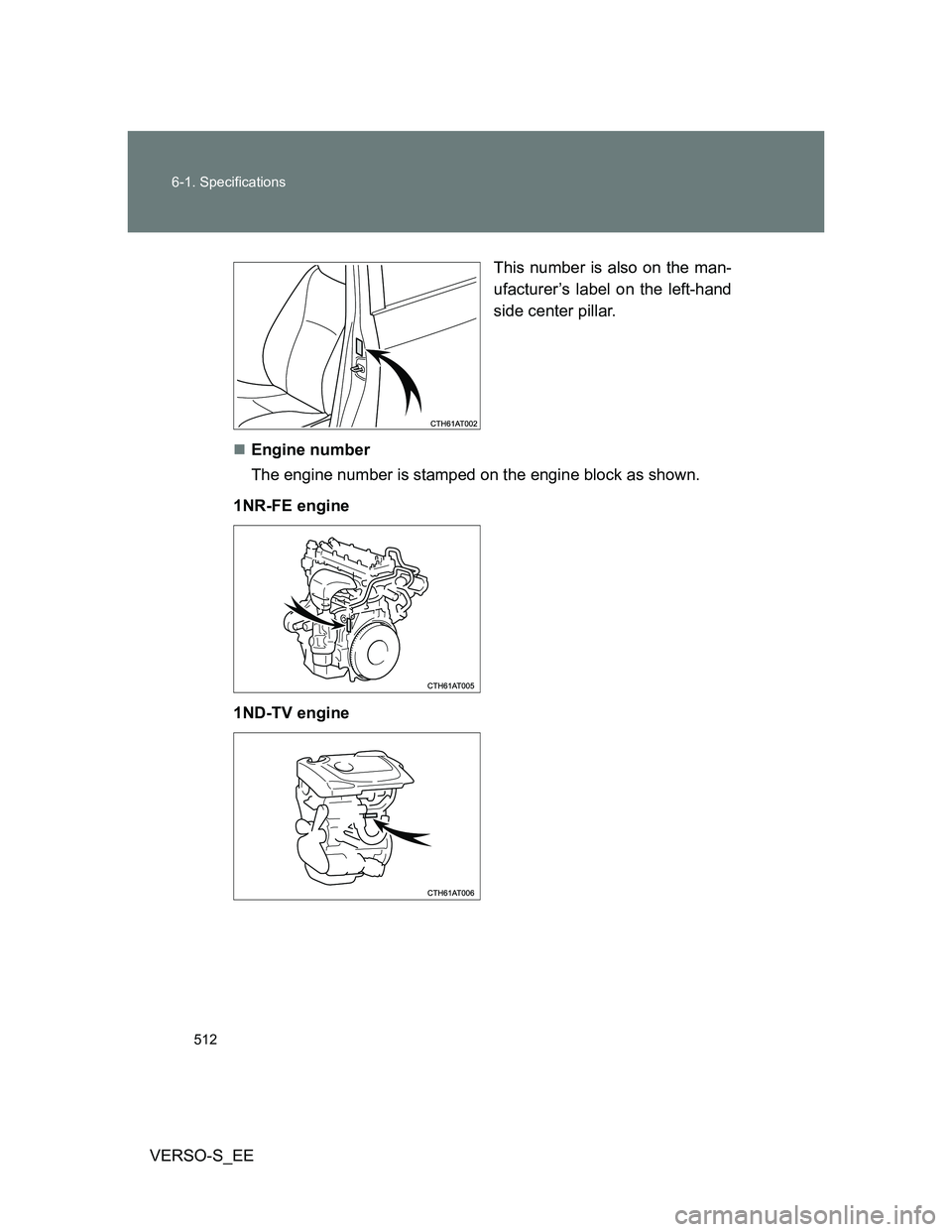

512 6-1. Specifications
VERSO-S_EEThis number is also on the man-
ufacturer’s label on the left-hand
side center pillar.
Engine number
The engine number is stamped on the engine block as shown.
1NR-FE engine
1ND-TV engine
