2013 TOYOTA VERSO S Owners Manual

417 4-3. Do-it-yourself maintenance
4
Maintenance and care

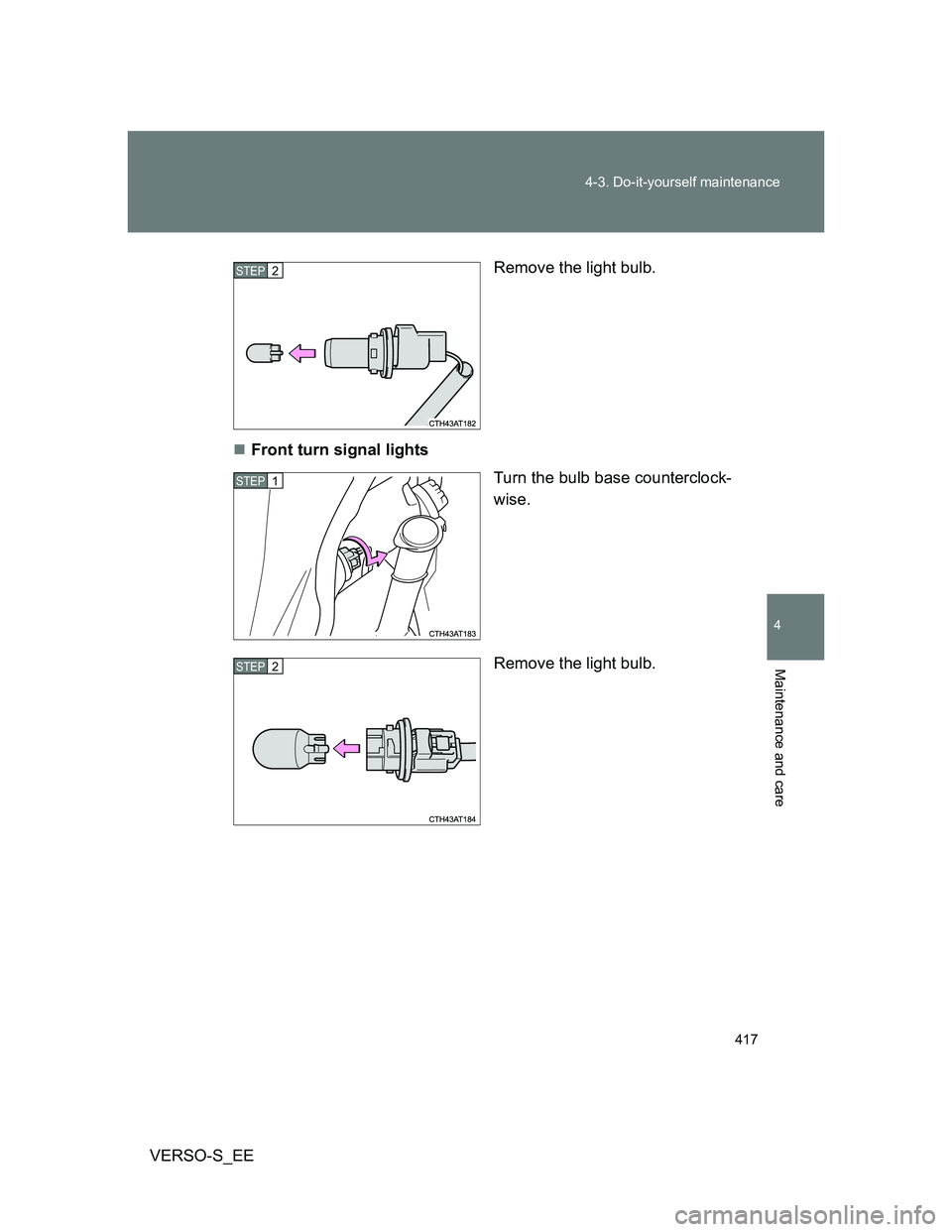

VERSO-S_EERemove the light bulb.
Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP2
STEP1
STEP2

418 4-3. Do-it-yourself maintenance

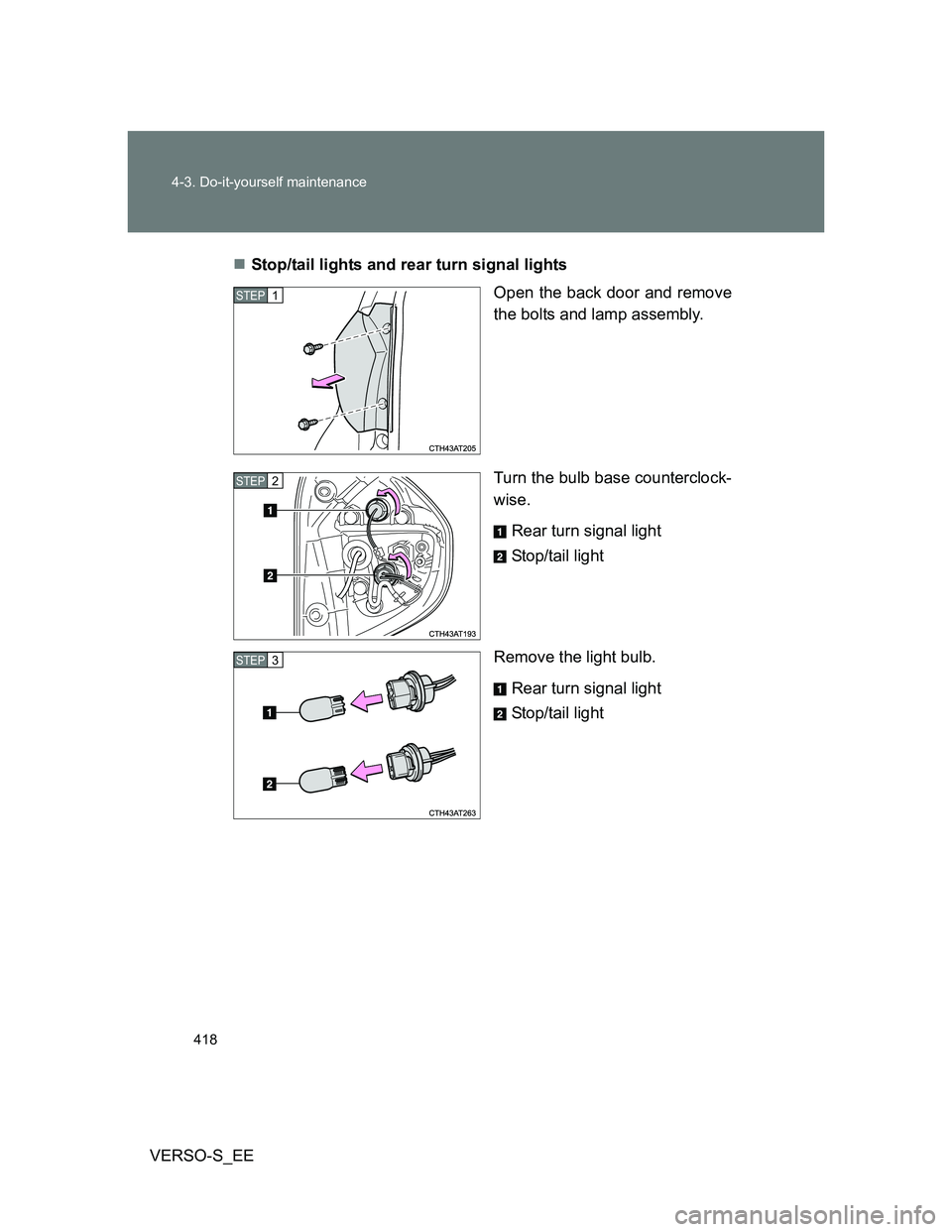

VERSO-S_EEStop/tail lights and rear turn signal lights
Open the back door and remove
the bolts and lamp assembly.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Stop/tail light
Remove the light bulb.
Rear turn signal light
Stop/tail light
STEP1
STEP2
STEP3

419 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EEBack-up light/rear fog light
Turn the bulb base counterclock-
wise.
Rear fog light
Remove the light bulb.
Back-up light
Remove the light bulb.
STEP1
STEP2
STEP2

420 4-3. Do-it-yourself maintenance

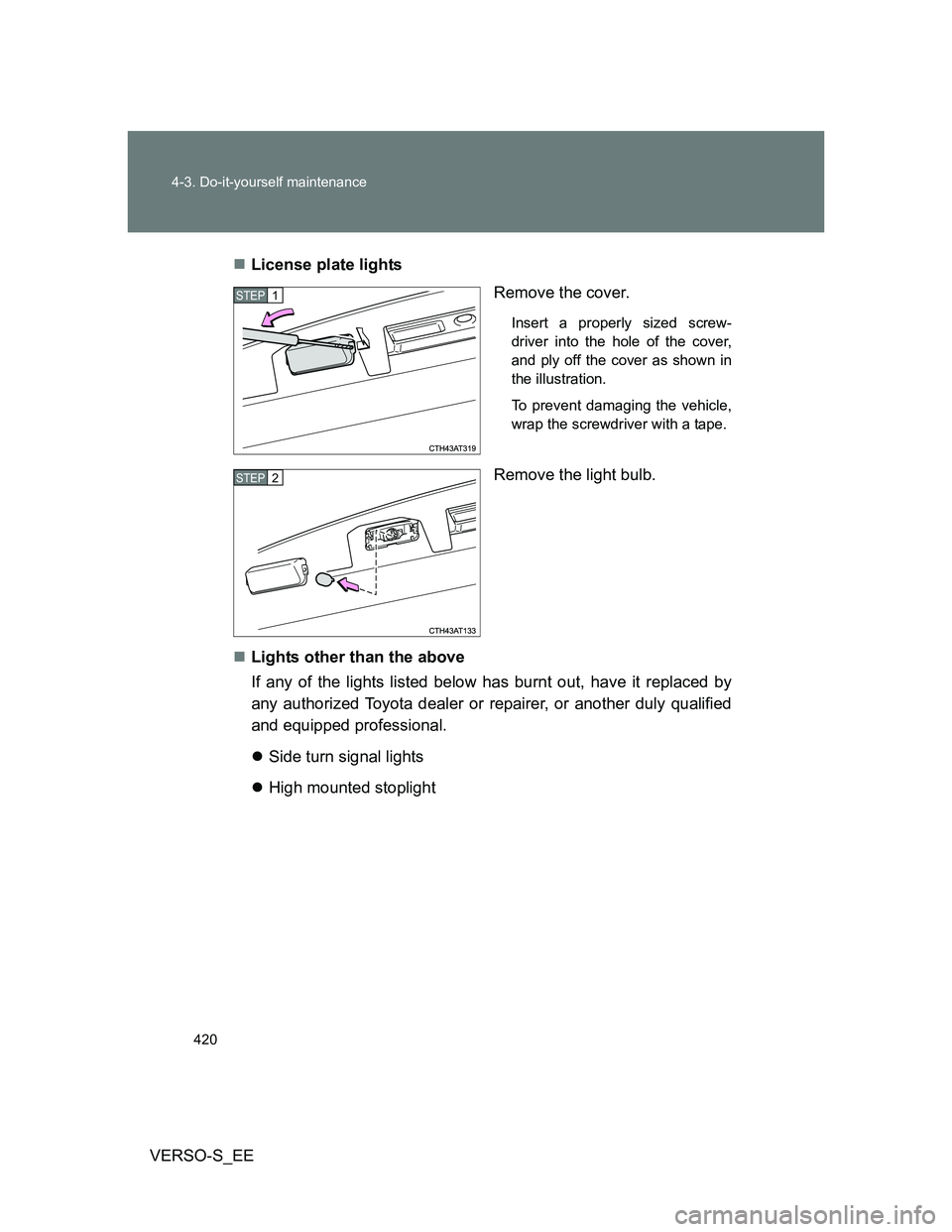

VERSO-S_EELicense plate lights
Remove the cover.
Insert a properly sized screw-
driver into the hole of the cover,
and ply off the cover as shown in
the illustration.
To prevent damaging the vehicle,
wrap the screwdriver with a tape.
Remove the light bulb.
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Side turn signal lights
High mounted stoplight
STEP1
STEP2

421 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EE

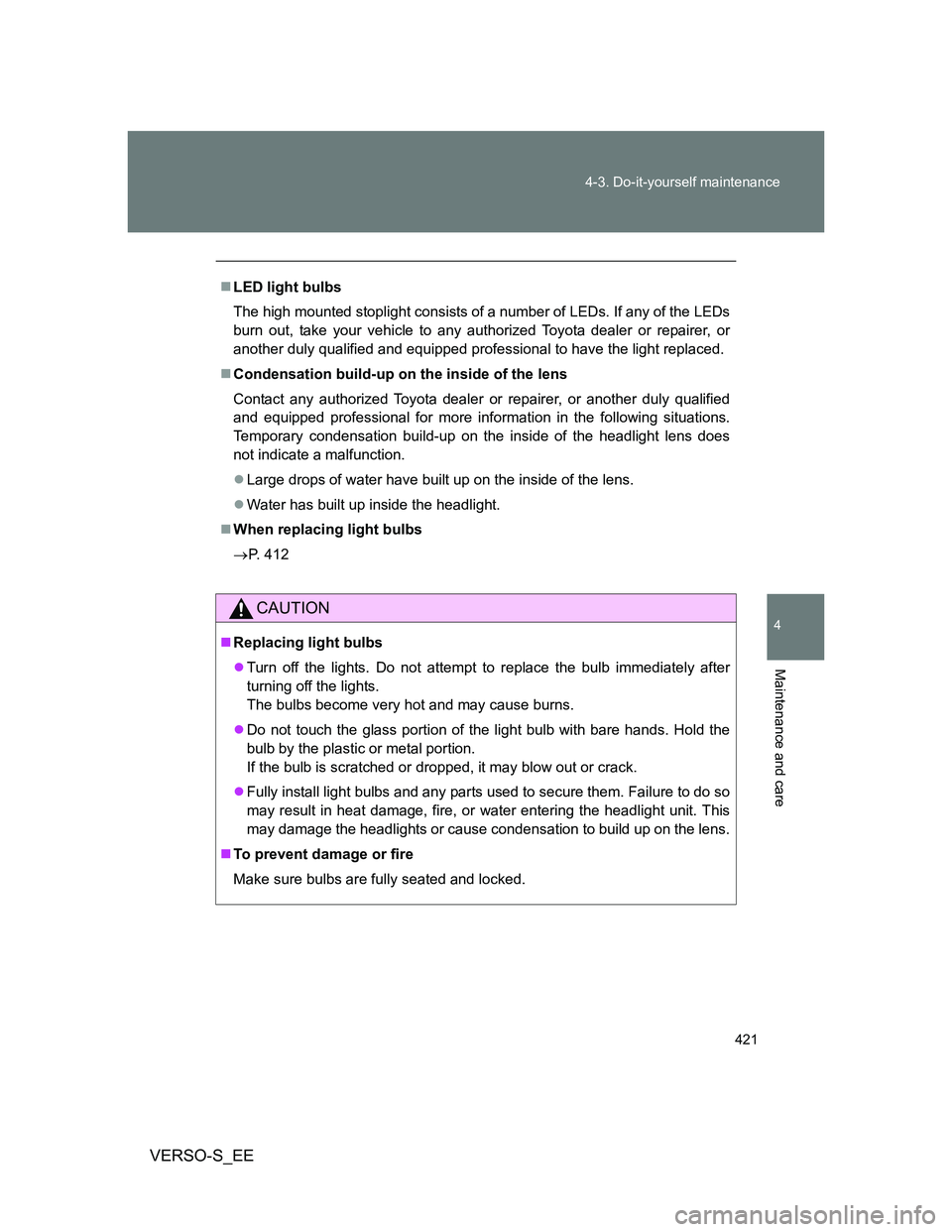

LED light bulbs
The high mounted stoplight consists of a number of LEDs. If any of the LEDs
burn out, take your vehicle to any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional to have the light replaced.
Condensation build-up on the inside of the lens
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Large drops of water have built up on the inside of the lens.
Water has built up inside the headlight.
When replacing light bulbs
P. 412
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
To prevent damage or fire
Make sure bulbs are fully seated and locked.

422 4-3. Do-it-yourself maintenance
VERSO-S_EE

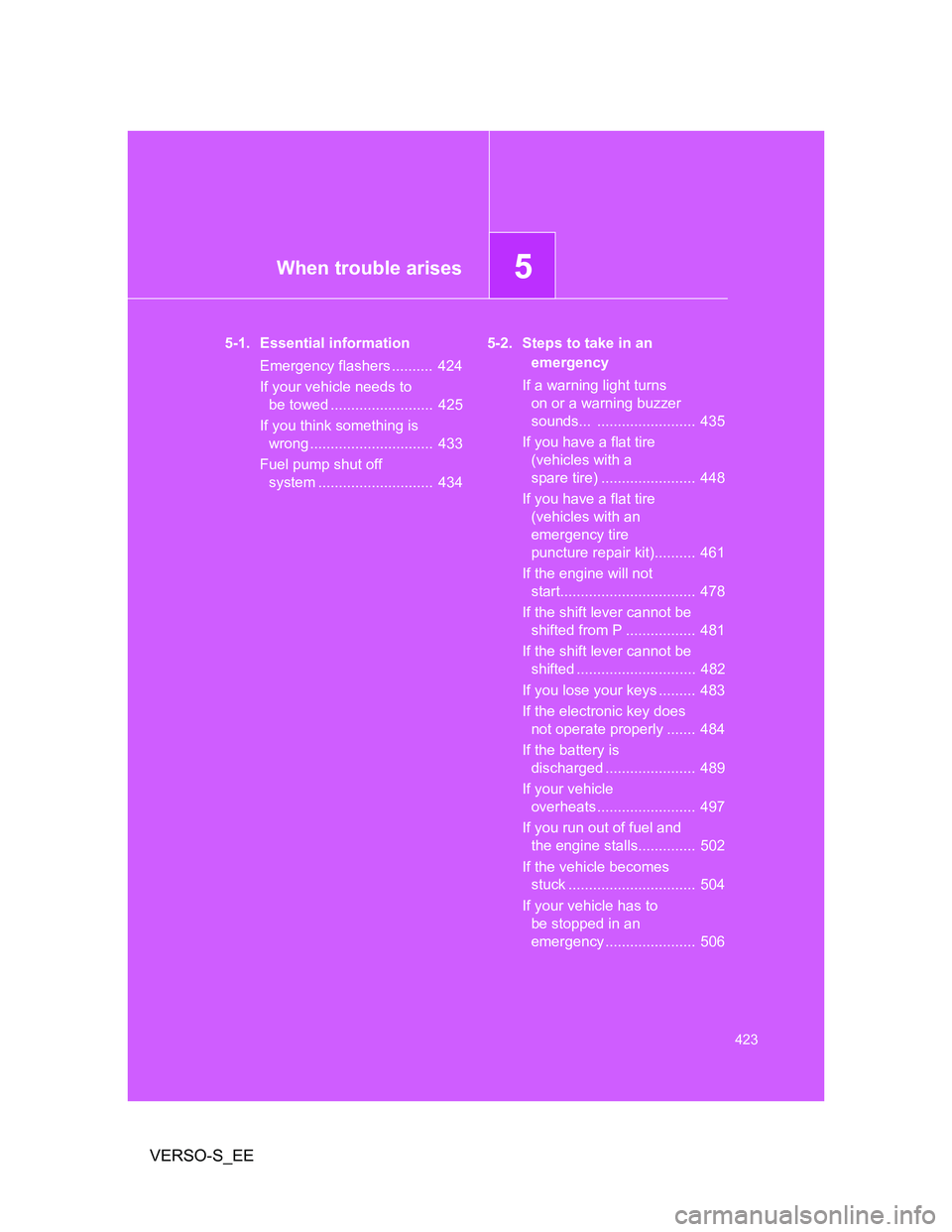

5When trouble arises
423
VERSO-S_EE
5-1. Essential information
Emergency flashers .......... 424
If your vehicle needs to
be towed ......................... 425
If you think something is
wrong .............................. 433
Fuel pump shut off
system ............................ 4345-2. Steps to take in an
emergency
If a warning light turns
on or a warning buzzer
sounds... ........................ 435
If you have a flat tire
(vehicles with a
spare tire) ....................... 448
If you have a flat tire
(vehicles with an
emergency tire
puncture repair kit).......... 461
If the engine will not
start................................. 478
If the shift lever cannot be
shifted from P ................. 481
If the shift lever cannot be
shifted ............................. 482
If you lose your keys ......... 483
If the electronic key does
not operate properly ....... 484
If the battery is
discharged ...................... 489
If your vehicle
overheats ........................ 497
If you run out of fuel and
the engine stalls.............. 502
If the vehicle becomes
stuck ............................... 504
If your vehicle has to
be stopped in an
emergency ...................... 506

424
VERSO-S_EE
5-1. Essential information

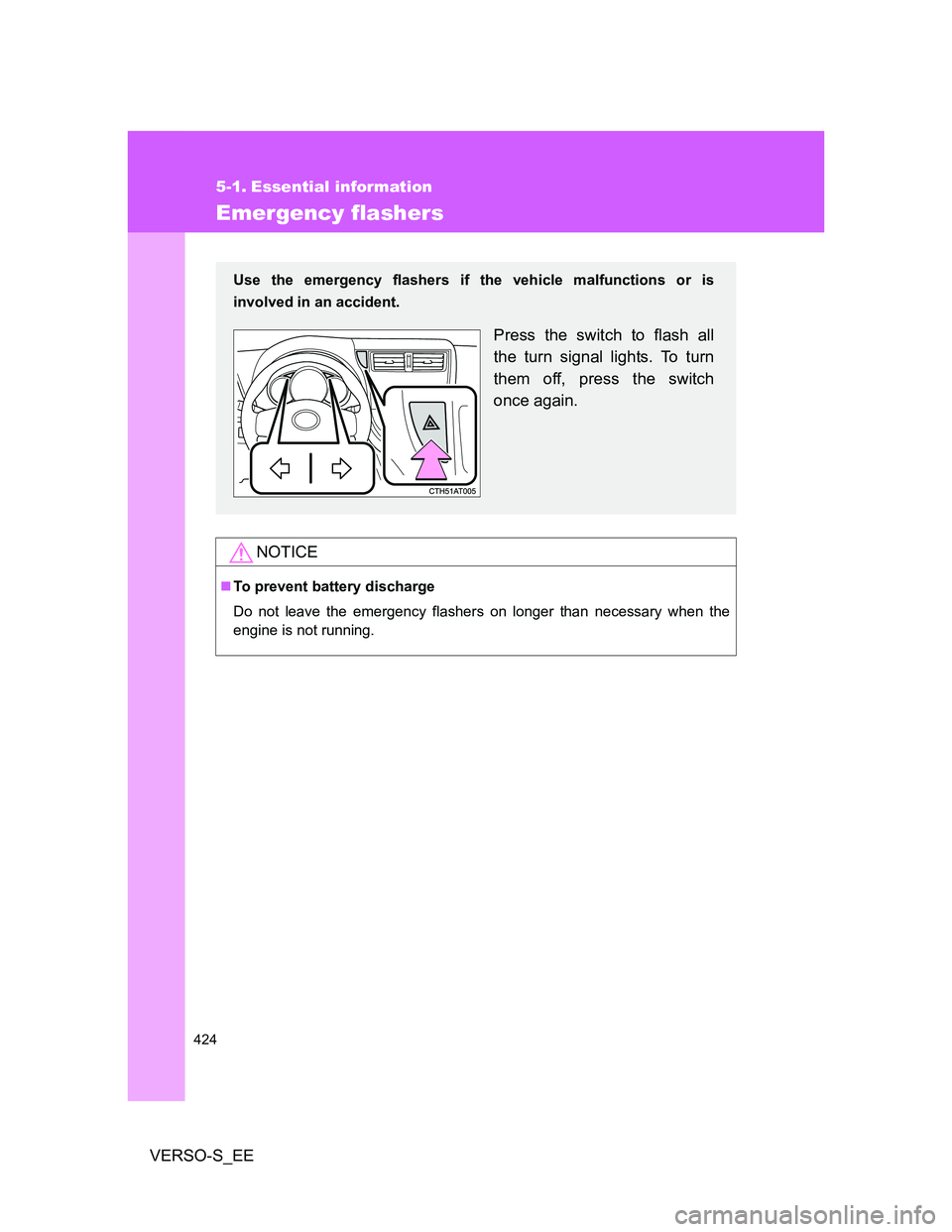

Emergency flashers
NOTICE
To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if the vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.
