2013 TOYOTA VERSO S Owners Manual

145 1-7. Safety information
1
Before driving
VERSO-S_EE
CAUTION
When installing a child restraint system
If child restraint system regulations exist in the country where you reside,
please contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional for the child restraint system installa-
tion.
When installing a child restraint system on the rear center seat, adjust both
seatbacks at the same angle. The seatbacks must be adjusted to the
same angle. Otherwise, the child restraint system cannot be securely
restrained and this may cause death or serious injuries in the event of sud-
den braking, sudden swerving or an accident.
When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child's shoulder. The belt should be
kept away from the child's neck, but not so that it could fall off the child's
shoulder. Failure to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
Push and pull the child restraint system from side to side and forward to be
sure it is secure.
After securing a child restraint system, never adjust the seat.
Follow all installation instructions provided by the child restraint system
manufacturer.
When using the right side seat for the
child restraint system, do not sit in the
center seat. Seat belt function may be
impaired, such as being positioned
overly high or loose-fitting, which may
result in death or serious injury in the
event of sudden braking or an accident.

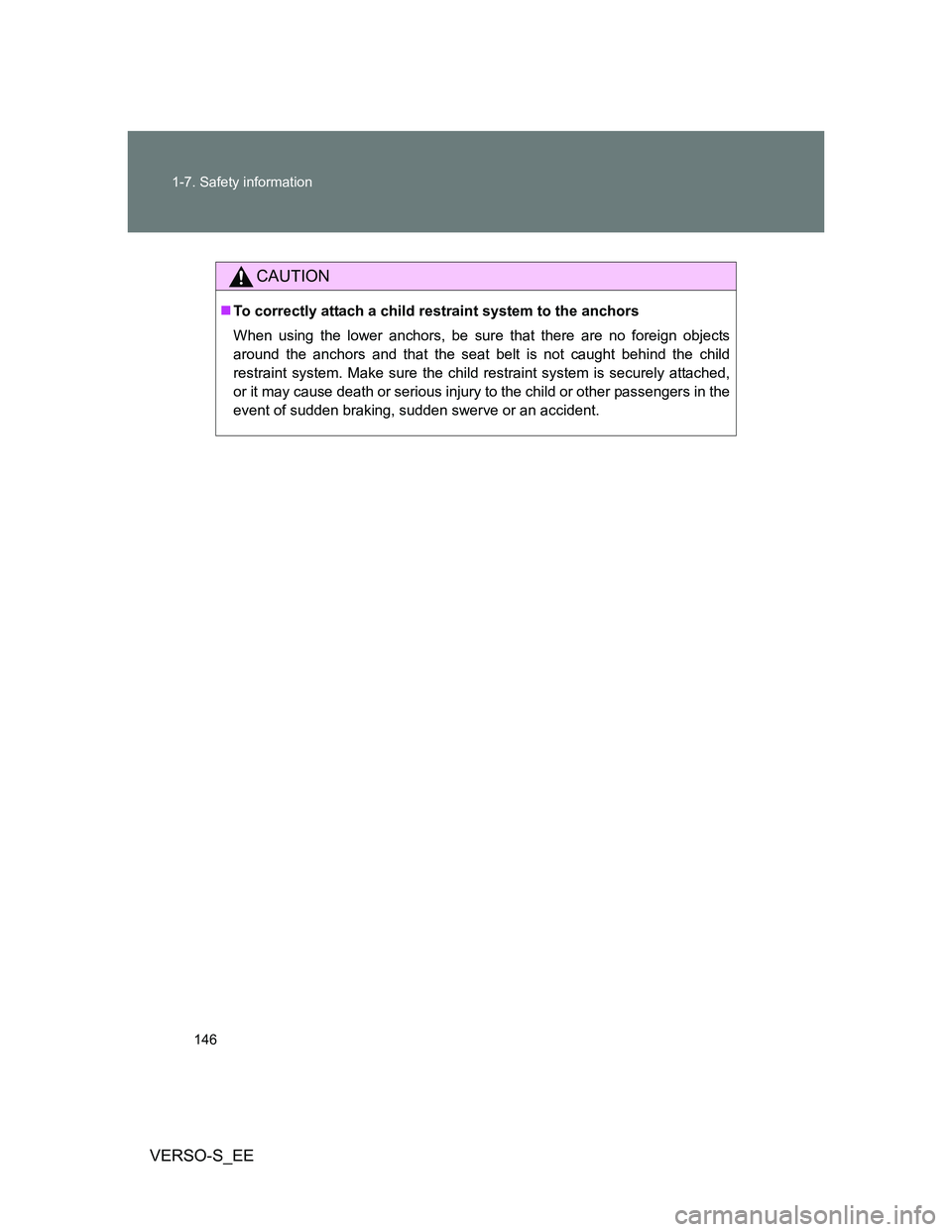

146 1-7. Safety information
VERSO-S_EE
CAUTION
To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in the
event of sudden braking, sudden swerve or an accident.

2When driving
147
VERSO-S_EE
2-1. Driving procedures
Driving the vehicle ............ 148
Engine (ignition) switch
(vehicles with a smart
entry & start system)....... 164
Engine (ignition) switch
(vehicles without a smart
entry & start system)....... 174
Multidrive .......................... 178
Multi-mode Manual
Transmission .................. 184
Manual Transmission ....... 189
Turn signal lever ............... 192
Parking brake ................... 193
Horn .................................. 194
2-2. Instrument cluster
Gauges and meters .......... 195
Indicators and warning
lights ............................... 201
Multi-information
display ............................ 2072-3. Operating the lights and
wipers
Headlight switch................ 210
Fog light switch ................. 216
Windshield wiper and
washer ............................ 218
Rear window wiper and
washer ............................ 224
2-4. Using other driving
systems
Stop & Start system .......... 226
Cruise control.................... 233
Driving assist systems ...... 237
Diesel particulate filter
system ............................ 243
2-5. Driving information
Cargo and luggage ........... 245
Winter driving tips ............. 247
Trailer towing .................... 251

148
VERSO-S_EE
2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing:
Starting the engine
P. 164, 174
Driving
Vehicles with a Multidrive
With the brake pedal depressed, shift the shift lever to D.
(P. 178)
Release the parking brake. (P. 193)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Vehicles with a multi-mode manual transmission
With the brake pedal depressed, shift the shift lever to E or
M. (P. 184)
When shifting the shift lever to E: Make sure that the display of the
gear position indicator shows E.
When shifting the shift lever to M: Make sure that the display of
the gear position indicator shows 1.
Release the parking brake. (P. 193)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Vehicles with a manual transmission
While depressing the clutch pedal, shift the shift lever to 1.
(P. 189)
Release the parking brake. (P. 193)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3

149 2-1. Driving procedures
2
When driving
VERSO-S_EE
Stopping
Vehicles with a Multidrive
With the shift lever in D, depress the brake pedal.
Vehicles with a Stop & Start system: If the Stop & Start system is
enabled, depressing the brake pedal will stop the engine.
(P. 226)
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to P or N. (
P. 178)
Vehicles with a multi-mode manual transmission
With the shift lever in E or M, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to N. (P. 184)
Vehicles with a manual transmission
While depressing the clutch pedal, depress the brake
pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to N. (
P. 189)
Vehicles with a Stop & Start system: If the Stop & Start system is
enabled, shifting the shift lever to N and releasing the clutch pedal
will stop the engine. (P. 226)
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

150 2-1. Driving procedures
VERSO-S_EE
Parking the vehicle
Vehicles with a Multidrive
With the shift lever in D, depress the brake pedal.
Set the parking brake. (P. 193)
Shift the shift lever to P. (P. 178)
If parking on a hill, block the wheels as needed.
Vehicles without a smart entry & start system:
Turn the engine switch to the “LOCK” position to stop the
engine.
Vehicles with a smart entry & start system:
Press the “ENGINE START STOP” switch to stop the
engine.
Lock the door, making sure that you have the key on your
person.
Vehicles with a multi-mode manual transmission
With the shift lever in E or M, depress the brake pedal.
Set the parking brake. (P. 193)
Shift the shift lever to E, M or R. (P. 184)
If parking on a hill, block the wheels as needed.
Vehicles without a smart entry & start system: Turn the
engine switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system: Press the
“ENGINE START STOP” switch to stop the engine.
Make sure that the display of the gear position indicator shows 1
or R.
Lock the door, making sure that you have the key on your
person.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP1
STEP2
STEP3
STEP4
STEP5

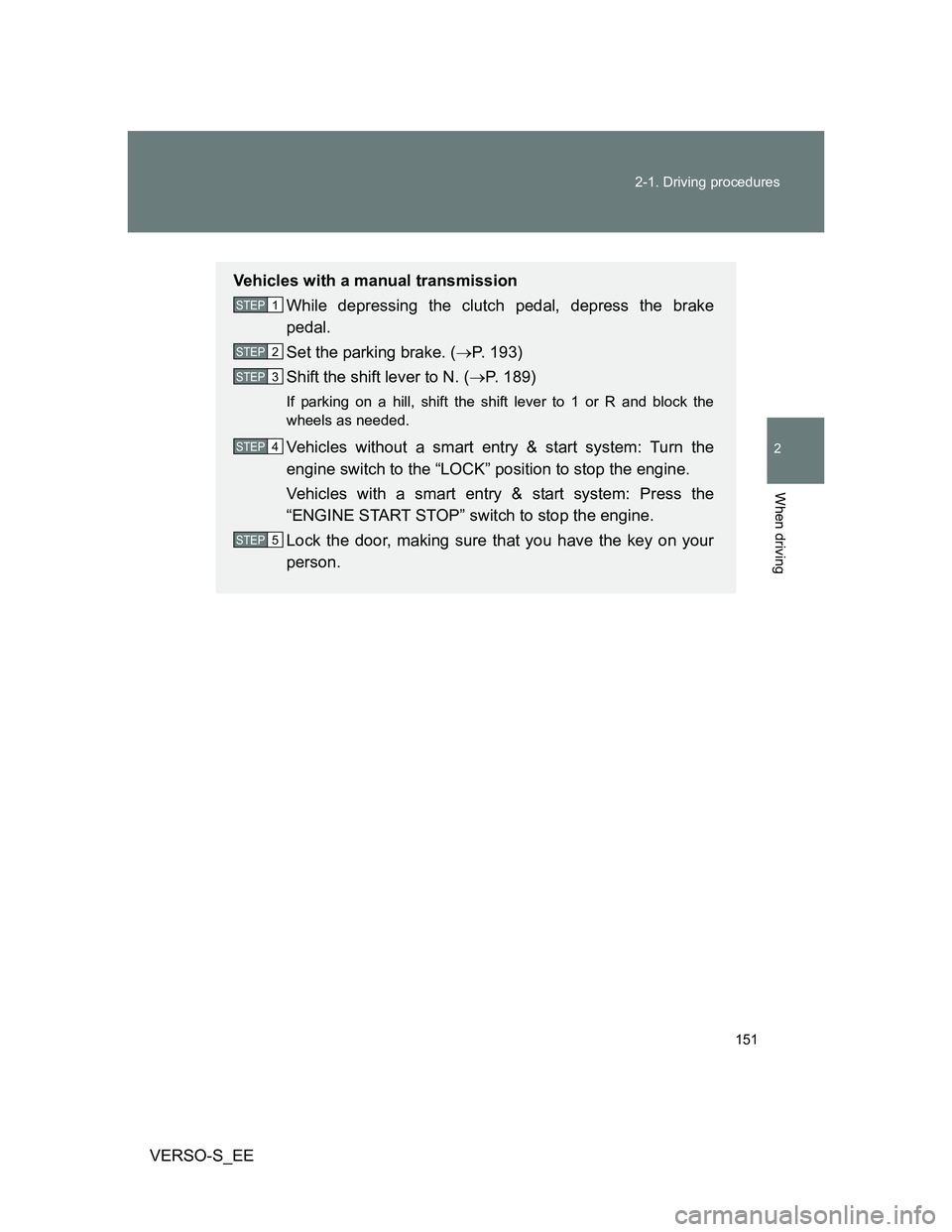

151 2-1. Driving procedures
2
When driving
VERSO-S_EE
Vehicles with a manual transmission
While depressing the clutch pedal, depress the brake
pedal.
Set the parking brake. (P. 193)
Shift the shift lever to N. (P. 189)
If parking on a hill, shift the shift lever to 1 or R and block the
wheels as needed.
Vehicles without a smart entry & start system: Turn the
engine switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system: Press the
“ENGINE START STOP” switch to stop the engine.
Lock the door, making sure that you have the key on your
person.
STEP1
STEP2
STEP3
STEP4
STEP5

152 2-1. Driving procedures
VERSO-S_EE
Starting off on a steep uphill
Vehicles with a Multidrive
Make sure that the parking brake is set and shift the shift lever
to D.
Gently depress the accelerator pedal.
Release the parking brake.
Vehicles with a multi-mode manual transmission
With the brake pedal depressed, firmly set the parking brake
and shift the shift lever to E or M.
Make sure that the display of the gear position indicator shows 1.
Gently depress the accelerator pedal.
Release the parking brake.
Vehicles with a manual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as
gradually releasing the clutch pedal.
Release the parking brake.
Driving in the rain
Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged-up, and the road will be slippery.
Drive carefully when it starts to rain, because the road surface will be
especially slippery.
Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road
surface, preventing the steering and brakes from operating properly.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
