Page 413 of 552
413
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EE
Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
For more information about replacing other light bulbs, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (P. 524)
Front bulb locations
Front position lights
Front fog lights
(if equipped)
Headlights
Front turn
signal lights
Page 414 of 552
414 4-3. Do-it-yourself maintenance
VERSO-S_EE
Replacing light bulbs
Headlights
Unplug the connector and
remove the rubber cover.
Release the bulb retaining
spring.
Rear bulb locations
Rear fog light (for
left-hand traffic)/
Back-up light (for
right-hand traffic)
Rear fog light (for
right-hand traffic)/
Back-up light (for
left-hand traffic) Stop/tail lights
License plate
lights
Rear turn signal lights
STEP1
STEP2
Page 415 of 552
415 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EERemove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
Front fog lights (if equipped)
Vehicles without a front
spoiler
Remove the 2 screws and a clip.
Vehicles with a front spoiler
Remove the 3 screws and a clip.
The front spoiler will come off on
that side when the screws are
removed.
*: Vehicles with a front
spoiler only
Remove the grommet.
STEP3
STEP1
*
STEP2
Page 419 of 552
419 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EEBack-up light/rear fog light
Turn the bulb base counterclock-
wise.
Rear fog light
Remove the light bulb.
Back-up light
Remove the light bulb.
STEP1
STEP2
STEP2
Page 524 of 552
524 6-1. Specifications
VERSO-S_EE
Light bulbs
A: H4 halogen bulbs B: H11 halogen bulbs
C: Wedge base bulbs (clear) D: Wedge base bulbs (amber)
E: Double end bulbs
*1: Vehicles without a panoramic roof shade
*2: Vehicles with a panoramic roof shade
Light bulbsWTy p e
ExteriorHeadlights 60/55 A
Front fog lights (if equipped) 55 B
Front position lights 5 C
Front turn signal lights 21 D
Back-up light 16 C
Rear fog light 21 C
Stop/tail lights 21/5 C
License plate lights 5 C
Rear turn signal lights 21 D
InteriorPersonal lights
*18C
Personal/interior lights
*28C
Interior light 8 E
Luggage compartment light 5 E
Page 539 of 552

539 Alphabetical index
VERSO-S_EE
Emergency tire puncture
repair kit ................................. 461
Engine
Compartment ........................ 368
Engine switch ................ 164, 174
Hood ..................................... 365
How to start the
engine ......................... 164, 174
Identification number............. 511
If the engine will not start ...... 478
If you run out of fuel and
the engine stalls.................. 502
Ignition switch ............... 164, 174
Overheating .......................... 497
Engine coolant
Capacity ................................ 519
Checking ............................... 375
Preparing and checking
before winter ....................... 247
Engine immobilizer system ...... 97
Engine oil
Capacity ................................ 515
Checking ............................... 370
Preparing and checking
before winter ....................... 247
“ENGINE START STOP”
switch light............................. 320
EPS............................................ 237Floor mat .................................. 342
Fluid
Washer ................................. 381
Fog lights
Replacing light bulbs............. 413
Switch ................................... 216
Wattage ................................ 524
Front fog lights
Replacing light bulbs............. 413
Switch ................................... 216
Wattage ................................ 524
Front passenger's seat belt
reminder light ........................ 439
Front position lights
Replacing light bulbs............. 413
Switch ................................... 210
Wattage ................................ 524F
Page 542 of 552

542 Alphabetical index
VERSO-S_EE
License plate lights
Replacing light bulbs ............. 413
Wattage................................. 524
Light bulbs
Replacing .............................. 413
Wattage................................. 524
Lights
Emergency flasher switch ..... 424
Fog light switch ..................... 216
Hazard light switch ................ 424
Headlights switch .................. 210
Interior light switch ................ 321
Personal light switch ............. 321
Replacing light bulbs ............. 413
Turn signal lever ................... 192
Wattage................................. 524
Lock steering column...... 171, 176Maintenance
Do-it-yourself maintenance ... 362
Maintenance data ................. 510
Maintenance requirements ... 359
Manual air conditioning
system .................................... 262
Manual headlight leveling
dial .......................................... 211
Manual transmission
Gear Shift Indicator ............... 190
Manual transmission ............. 189
Meter
Meter light control ................. 197
Meters ................................... 195
Microphone*
Mirrors
Inside rear view mirror ............ 86
Side mirror heater ................. 276
Side mirrors ............................ 88
Vanity mirrors........................ 330LM

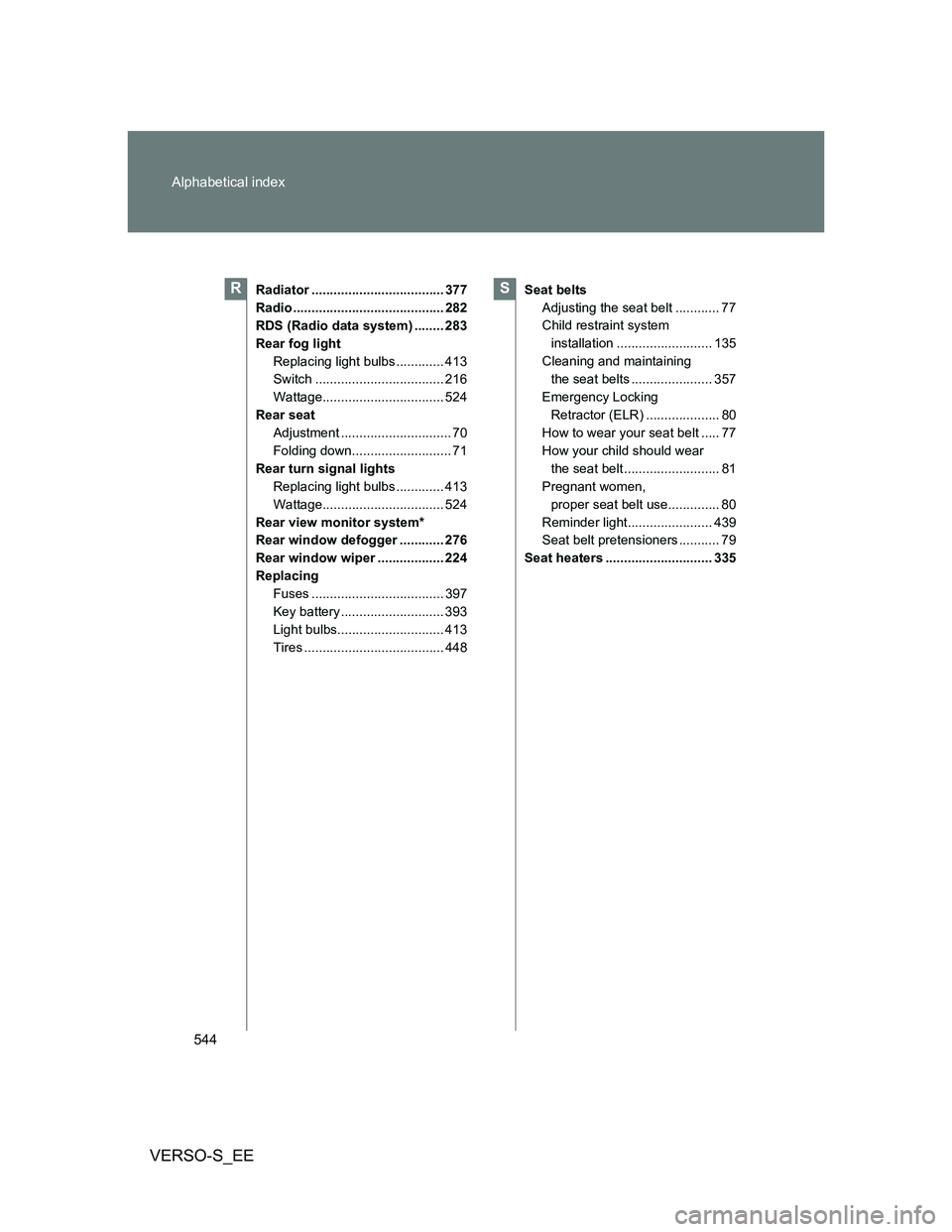

Page 544 of 552

544 Alphabetical index
VERSO-S_EE
Radiator .................................... 377
Radio ......................................... 282
RDS (Radio data system) ........ 283
Rear fog light
Replacing light bulbs ............. 413
Switch ................................... 216
Wattage................................. 524
Rear seat
Adjustment .............................. 70
Folding down........................... 71
Rear turn signal lights
Replacing light bulbs ............. 413
Wattage................................. 524
Rear view monitor system*
Rear window defogger ............ 276
Rear window wiper .................. 224
Replacing
Fuses .................................... 397
Key battery ............................ 393
Light bulbs............................. 413
Tires ...................................... 448Seat belts
Adjusting the seat belt ............ 77
Child restraint system
installation .......................... 135
Cleaning and maintaining
the seat belts ...................... 357
Emergency Locking
Retractor (ELR) .................... 80
How to wear your seat belt ..... 77
How your child should wear
the seat belt .......................... 81
Pregnant women,
proper seat belt use.............. 80
Reminder light....................... 439
Seat belt pretensioners ........... 79
Seat heaters ............................. 335RS
