2013 TOYOTA VERSO S child restraint

TABLE OF CONTENTSIndex
VERSO-S_EE
2
1-1. Key information
Keys ...................................... 30
1-2. Opening, closing and
locking the doors
Smart entry & start system ... 33
Wireless remote control ........ 53
Side doors............................. 58
Back door.............................. 64
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ............................ 69
Rear seats ............................ 70
Head restraints ..................... 75
Seat belts .............................. 77
Steering wheel ...................... 84
Anti-glare inside rear
view mirror .......................... 86
Outside rear view mirrors...... 881-4. Opening and closing the
windows
Power windows .................... 90
1-5. Refueling
Opening the fuel tank cap .... 93
1-6. Theft deterrent system
Engine immobilizer
system................................ 97
Double locking system ....... 105
Alarm .................................. 107
1-7. Safety information
Correct driving posture ....... 110
SRS airbags ....................... 112
Airbag manual on-off
system.............................. 123
Child restraint systems ....... 126
Installing child restraints ..... 135
1Before driving

VERSO-S_EE
22
Pictorial indexLuggage compartment
Child restraint anchor brackets P. 135
Dual-level deck board 
Deck board P. 344
P. 344

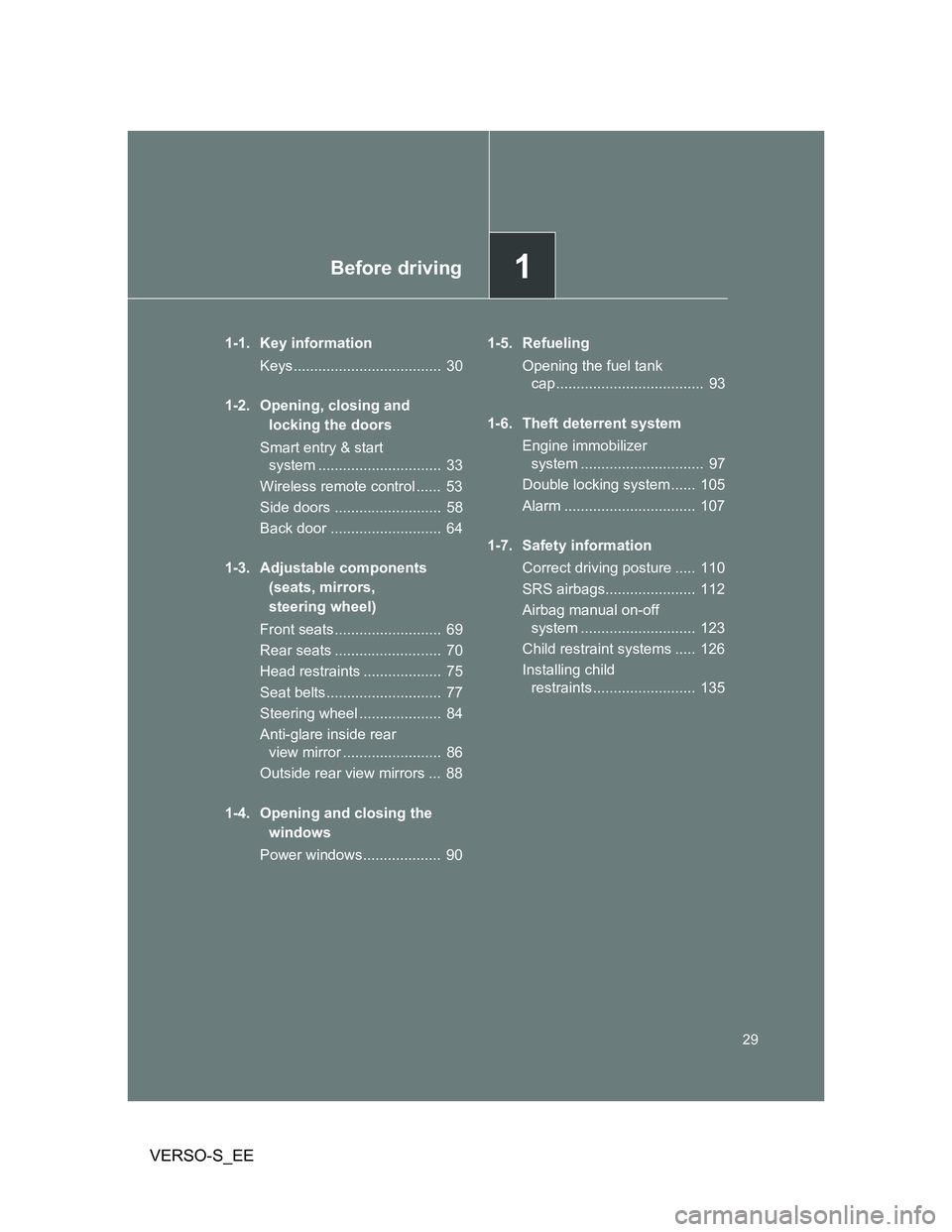

1Before driving
29
VERSO-S_EE
1-1. Key information
Keys.................................... 30
1-2. Opening, closing and
locking the doors
Smart entry & start
system .............................. 33
Wireless remote control ...... 53
Side doors .......................... 58
Back door ........................... 64
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats.......................... 69
Rear seats .......................... 70
Head restraints ................... 75
Seat belts............................ 77
Steering wheel .................... 84
Anti-glare inside rear
view mirror ........................ 86
Outside rear view mirrors ... 88
1-4. Opening and closing the
windows
Power windows................... 901-5. Refueling
Opening the fuel tank
cap .................................... 93
1-6. Theft deterrent system
Engine immobilizer
system .............................. 97
Double locking system ...... 105
Alarm ................................ 107
1-7. Safety information
Correct driving posture ..... 110
SRS airbags...................... 112
Airbag manual on-off
system ............................ 123
Child restraint systems ..... 126
Installing child
restraints ......................... 135

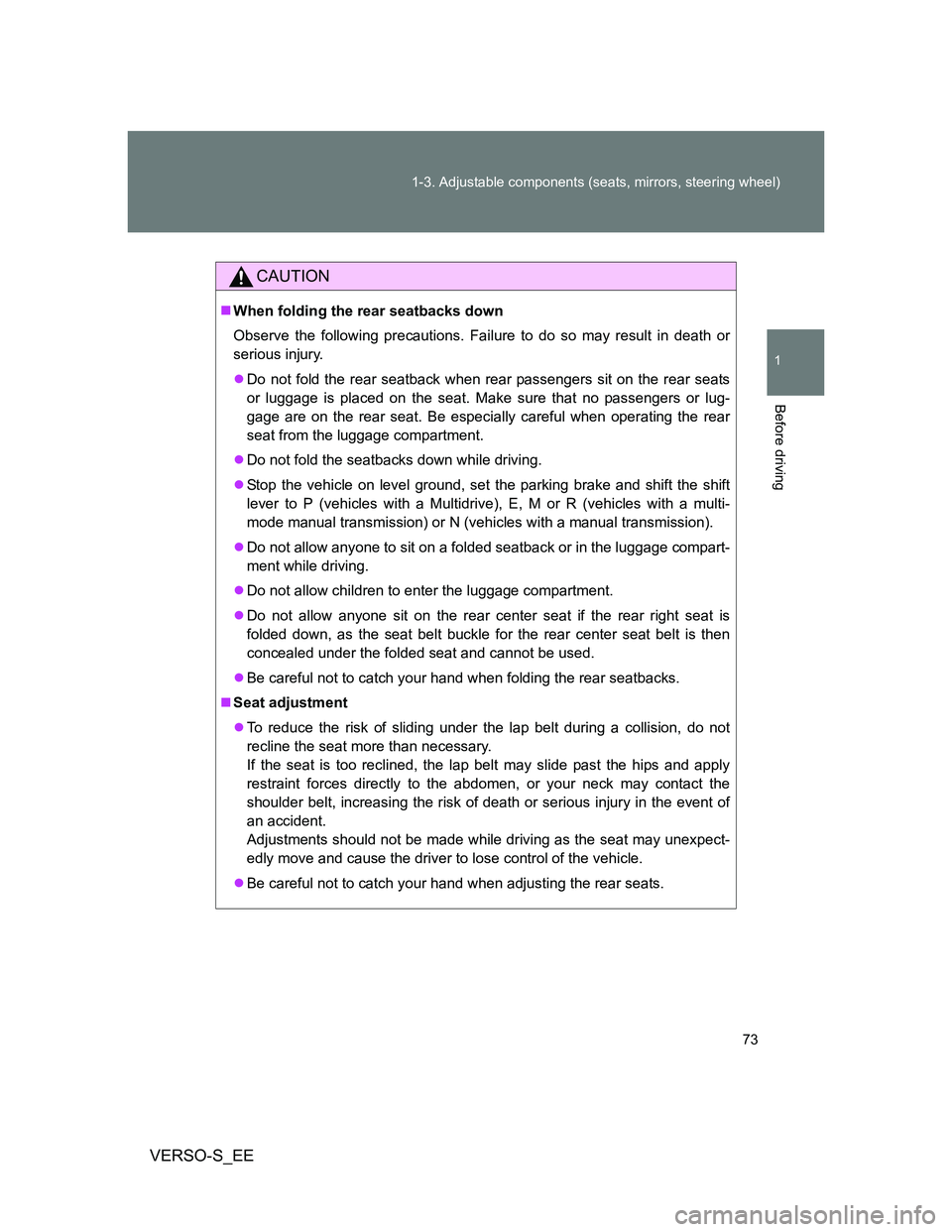

73 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO-S_EE
CAUTION
When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
Do not fold the rear seatback when rear passengers sit on the rear seats
or luggage is placed on the seat. Make sure that no passengers or lug-
gage are on the rear seat. Be especially careful when operating the rear
seat from the luggage compartment.
Do not fold the seatbacks down while driving.
Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (vehicles with a Multidrive), E, M or R (vehicles with a multi-
mode manual transmission) or N (vehicles with a manual transmission).
Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
Do not allow children to enter the luggage compartment.
Do not allow anyone sit on the rear center seat if the rear right seat is
folded down, as the seat belt buckle for the rear center seat belt is then
concealed under the folded seat and cannot be used.
Be careful not to catch your hand when folding the rear seatbacks.
Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
Be careful not to catch your hand when adjusting the rear seats.

81 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO-S_EE
Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle's seat belt. (P. 126)
When the child becomes large enough to properly wear the vehicle's seat
belt, follow the instructions on P. 77 regarding seat belt usage.
Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.
Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for seat belt replacement or installation.

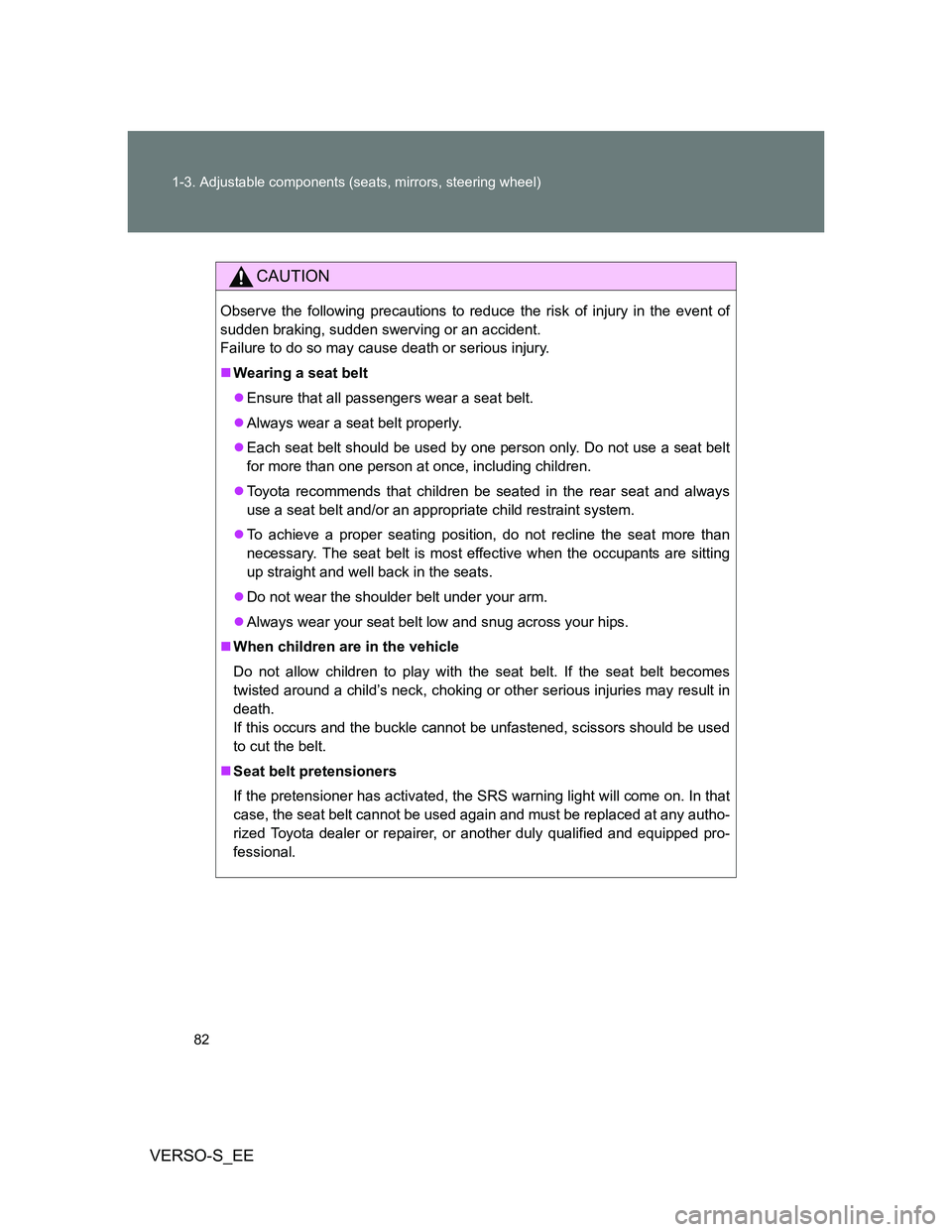

82 1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO-S_EE
CAUTION
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
Wearing a seat belt
Ensure that all passengers wear a seat belt.
Always wear a seat belt properly.
Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
Do not wear the shoulder belt under your arm.
Always wear your seat belt low and snug across your hips.
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, choking or other serious injuries may result in
death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that
case, the seat belt cannot be used again and must be replaced at any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.

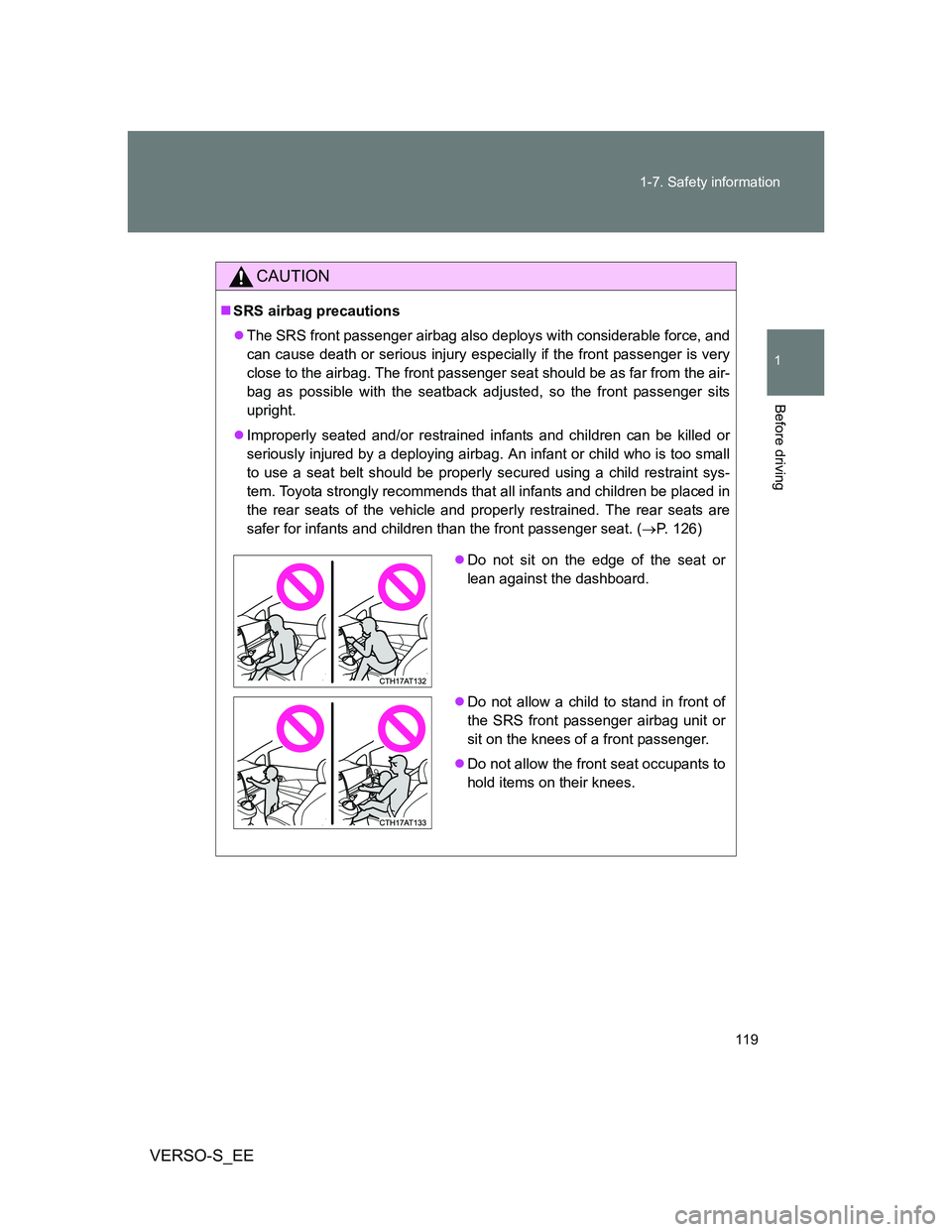

119 1-7. Safety information
1
Before driving
VERSO-S_EE
CAUTION
SRS airbag precautions
The SRS front passenger airbag also deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the air-
bag as possible with the seatback adjusted, so the front passenger sits
upright.
Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint sys-
tem. Toyota strongly recommends that all infants and children be placed in
the rear seats of the vehicle and properly restrained. The rear seats are
safer for infants and children than the front passenger seat. (P. 126)
Do not sit on the edge of the seat or
lean against the dashboard.
Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
Do not allow the front seat occupants to
hold items on their knees.

123
1
1-7. Safety information
Before driving
VERSO-S_EE
Airbag manual on-off system
This system deactivates the front passenger airbag.
Only deactivate the airbags when using a child restraint system on
the front passenger seat.
Airbag manual on-off indica-
tor
Vehicles without a smart
entry & start system
This indicator light turns on
when the airbag system is on
(only when the engine switch is
in the “ON” position).
Vehicles with a smart entry &
start system
This indicator light turns on
when the airbag system is on
(only when the “ENGINE
START STOP” switch is in
IGNITION ON mode).
Airbag manual on-off switch
