2013 TOYOTA VERSO S odometer

195
2
When driving
VERSO-S_EE
2-2. Instrument cluster
Gauges and meters
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Outside temperature display
P. 332
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Display change button
P. 196
Odometer, trip meter, Stop & Start system operation time, Stop &
Start system total operation time, meter light control and multi-
information display
P. 196, 207
Clock
P. 331
Clock adjusting buttons
P. 331

196 2-2. Instrument cluster
VERSO-S_EE
Changing the display
Items displayed can be switched
by pressing the display change
button.
Odometer
Tr ip m eter
Stop & Start system operation time (if equipped)
Displays the total distance the vehicle has been
driven.
Displays the distance the vehicle has been driven
since the meter was last reset. Trip meters A and
B can be used to record and display different dis-
tances independently.
Pressing and holding the display change button will
reset the trip meter that is currently displayed.
Displays the total amount of time the Stop & Start
system has operated (total engine stop time due to
the Stop & Start system) from the engine switch
being turned to “ON” until it is turned to “LOCK”
(vehicles without smart entry & start system) or from
the “ENGINE START STOP” switch being changed
to IGNITION ON mode until it is changed to off (vehi-
cles with a smart entry & start system).

198 2-2. Instrument cluster
VERSO-S_EE
Customization display
Changing the Eco Driving Indicator Light status (vehicles with
a Multidrive)
Eco Driving Indicator Light can
be activated or deactivated by
pressing the button when the
Eco Driving Indicator Light cus-
tomization display is displayed.
To display the Eco Driving Indica-
tor Light customization display,
display the odometer and press
and hold the display change but-
ton for 5 seconds or more.
When customization is complete,
press and hold the button for 2
seconds or more to return to the
odometer display.

207
2-2. Instrument cluster
2
When driving
VERSO-S_EE

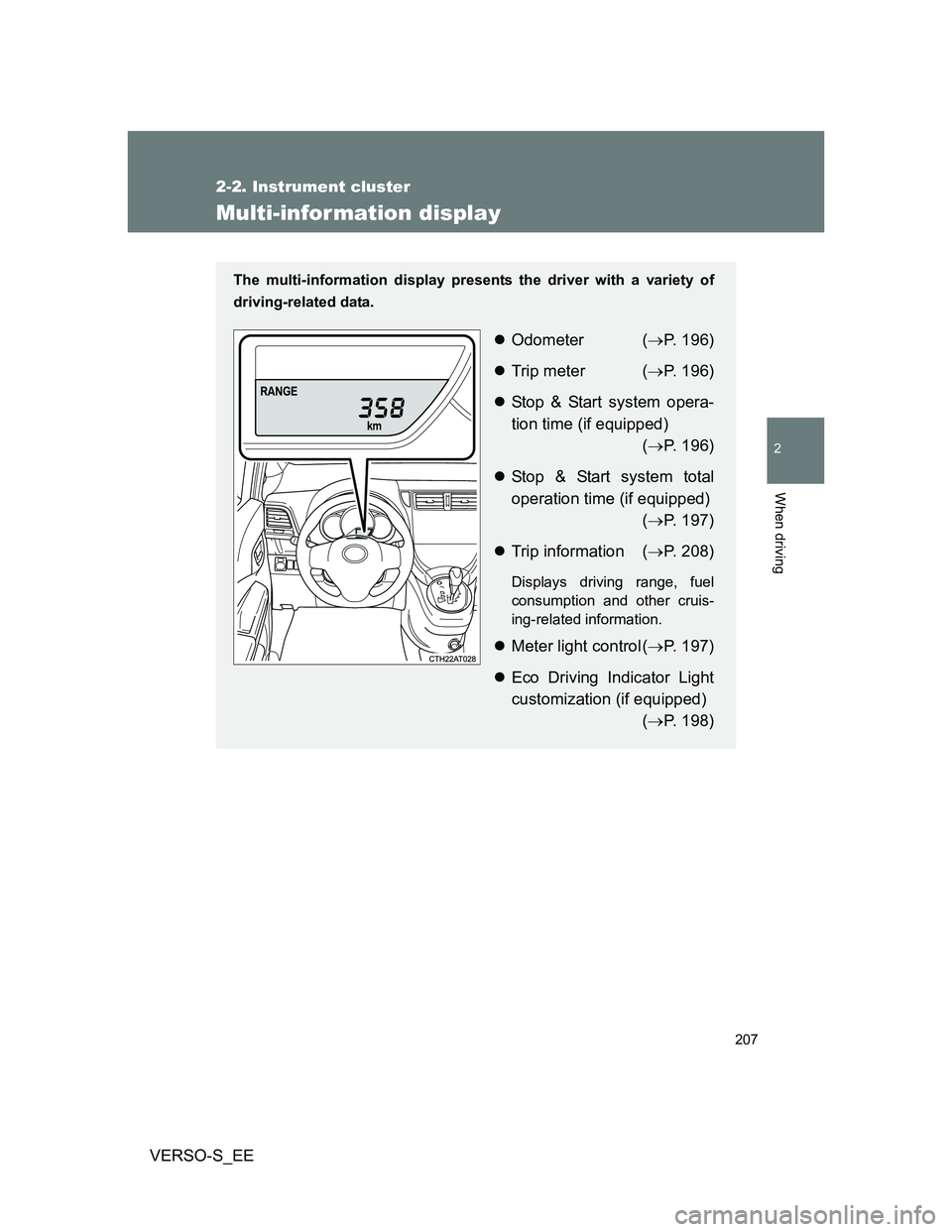

Multi-infor mation display
The multi-information display presents the driver with a variety of
driving-related data.
Odometer (P. 196)
Trip meter (P. 196)
Stop & Start system opera-
tion time (if equipped)
(P. 196)
Stop & Start system total
operation time (if equipped)
(P. 197)
Trip information (P. 208)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
Meter light control (P. 197)
Eco Driving Indicator Light
customization (if equipped)
(P. 198)

208 2-2. Instrument cluster
VERSO-S_EE
Changing the display
Items displayed can be switched
by pressing the display change
button.
Display items
Odometer
P. 196
Tr ip m eter
P. 196
Stop & Start system operation time (if equipped)
P. 196
Stop & Start system total operation time (if equipped)
P. 197
Instantaneous fuel consumption
Displays instantaneous fuel consumption.

543 Alphabetical index
VERSO-S_EE
MP3 disc ................................... 291
Multidrive
Multidrive............................... 178
Multi-information
display .................................... 207
Multi-mode manual
transmission
Easy (E) mode ...................... 186
Easy sports (Es) mode.......... 185
If the shift lever cannot be
shifted ................................. 482
Manual (M) mode .................. 185
Multi-mode manual
transmission ....................... 184Odometer.................................. 195
Oil
Engine oil .............................. 370
Opener
Back door................................ 64
Fuel filler door ......................... 93
Hood ..................................... 365
Outside rear view mirrors
Adjusting and folding .............. 88
Outside temperature
display .................................... 332
Overheating, Engine................ 497
Panoramic roof shade ............. 338
Parking brake ........................... 193
Personal lights
Switch ................................... 321
Wattage ................................ 524
Personal/interior lights
Switch ................................... 321
Wattage ................................ 524
Power heater ............................ 274
Power outlets ........................... 333
Power windows.......................... 90
*: Refer to ““touch screen” Owner’s manual”.
O
P
