2013 TOYOTA LAND CRUISER Owners Manual

489
3-7. Other interior features
3
Interior features
LC200_OM_OM60F57U_(U)
Seat heaters and ventilators
The seat heaters and ventilators heat the seats and maintain good
airflow by blowing air from the seats.
■Front seat heaters/ventilators
Press the knob to release it.
Press the knob back in when
finished adjusting the tempera-
ture or the seat air flow.
Off
Blows air from the seat
The indicator light comes on.
The further you turn the knob
counterclockwise, the stronger
the airflow becomes.
Turns the seat heater on
The indicator light comes on.
The further you turn the knob
clockwise, the warmer the seat
becomes.
■Second seat heaters (if equipped)
For left second seat
For right second seat
High heating temperature
Low heating temperature
Off
To turn on the seat heater, press
“HI” or “LO”.
To turn off, press “OFF”.
The indicator light on “HI” or “LO”
switch indicates that the seat
heater is on.
AUTO TEMP
OFFTEMP
HI
LOOFF
HI
LO4
12
3
5
4
3
5
ITY35C018

490 3-7. Other interior features
LC200_OM_OM60F57U_(U)
■The seat heaters and ventilators can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Replacing the air filters
Filters are installed in the seat ventilators. For replacement of the filters, con-
tact your Toyota dealer.
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
●Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
■To prevent damage to the seat heaters and ventilators
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
■To prevent battery discharge
Turn the seat heaters and ventilators off and observe that the indicator light
is off when the engine is not running.

491
3-7. Other interior features
3
Interior features
LC200_OM_OM60F57U_(U)
Armrest
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
Fold down the armrest while
pulling the strap.
ITY35C052

492
3-7. Other interior features
LC200_OM_OM60F57U_(U)
Assist grips
CAUTION
■Assist grip (Type A)
Do not use the assist grip (Type A) when getting in or out of the vehicle or
rising from your seat.
NOTICE
■To prevent damage of the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip (Type A) installed on the ceiling can be used to sup-
port your body while sitting on the seat.
An assist grip (Type B) installed on the pillar can be used when get-
ting in or out of the vehicle and others.
Assist grip (Type A)
Assist grip (Type B)

493
3-7. Other interior features
3
Interior features
LC200_OM_OM60F57U_(U)

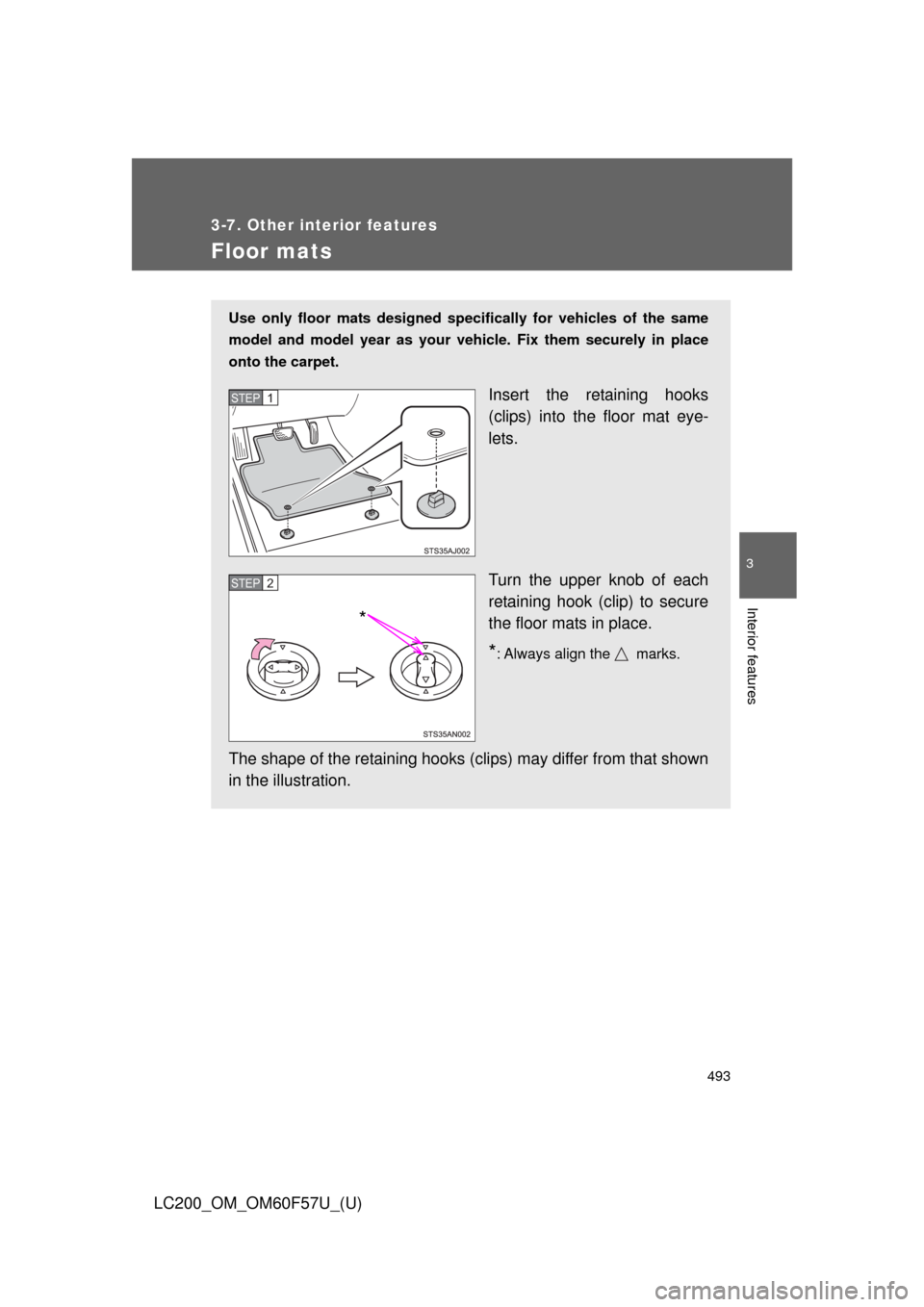

Floor mats
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown
in the illustration.
STEP1
STEP2
*

494 3-7. Other interior features
LC200_OM_OM60F57U_(U)
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
■Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
●With the engine stopped and the shift
lever in “P”, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

495
3-7. Other interior features
3
Interior features
LC200_OM_OM60F57U_(U)

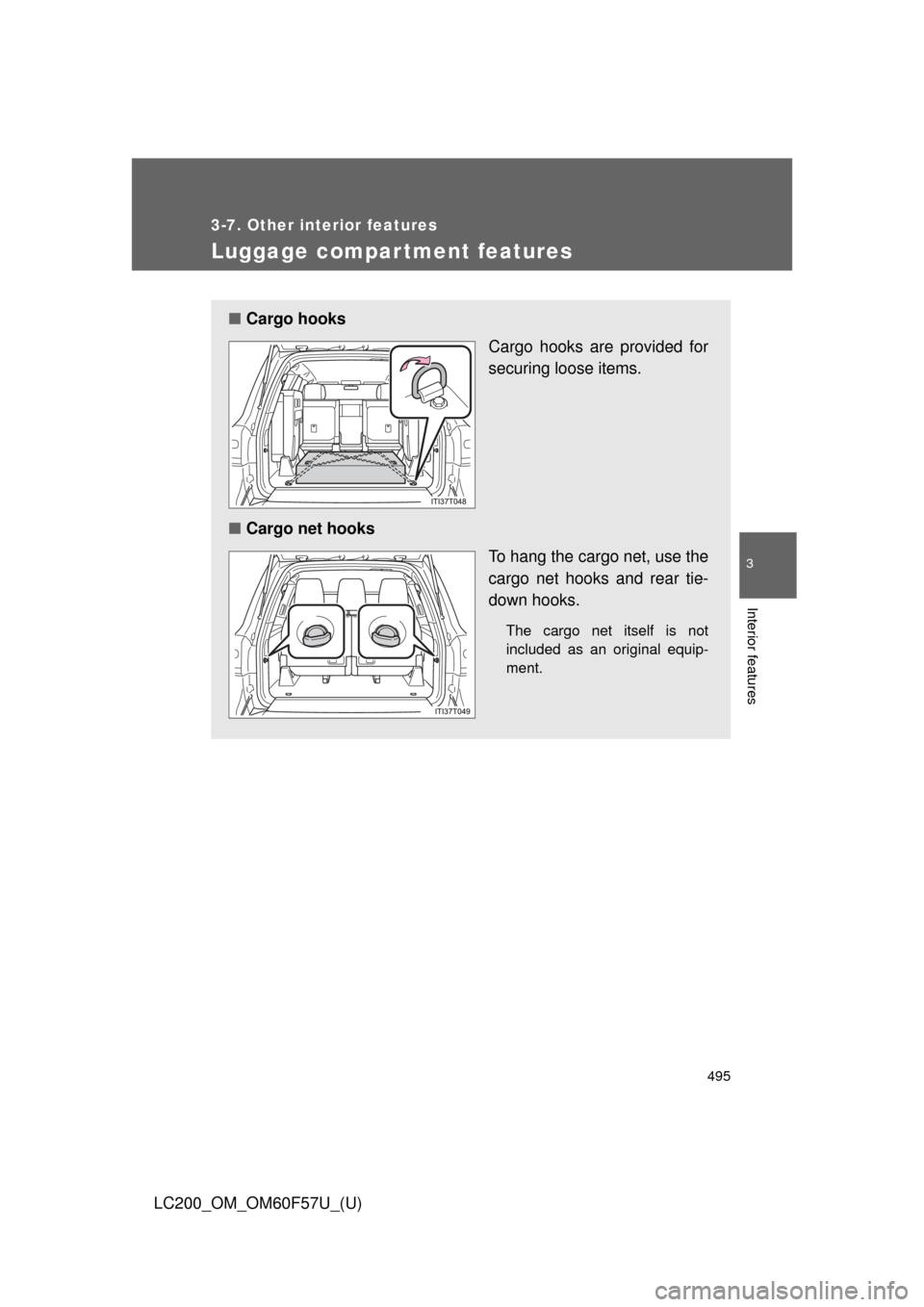

Luggage compar tment features
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■Cargo net hooks
To hang the cargo net, use the
cargo net hooks and rear tie-
down hooks.
The cargo net itself is not
included as an original equip-
ment.

496 3-7. Other interior features
LC200_OM_OM60F57U_(U)
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
NOTICE
■To prevent damage to the cargo net hooks
Avoid hanging things other than a cargo net on it.
■Warning reflector holder
Remove the cover. Hold the
warning reflector with the
bands.
The warning reflector itself is
not included as an original
equipment.
■First-aid kit holder
Remove the cover. Hold the
first-aid kit with a band.
The first-aid kit itself is not
included as an original equip-
ment.
