2013 TOYOTA LAND CRUISER Owners Manual

473 3-6. Using the storage features
3
Interior features
LC200_OM_OM60F57U_(U)
NOTICE
■Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders

474 3-6. Using the storage features
LC200_OM_OM60F57U_(U)
Card holders
Sun visor
Instrument panel
Auxiliary boxes
ITY34C023
Card holders and auxiliary boxes

475
3
Interior features
LC200_OM_OM60F57U_(U)
3-7. Other interior features

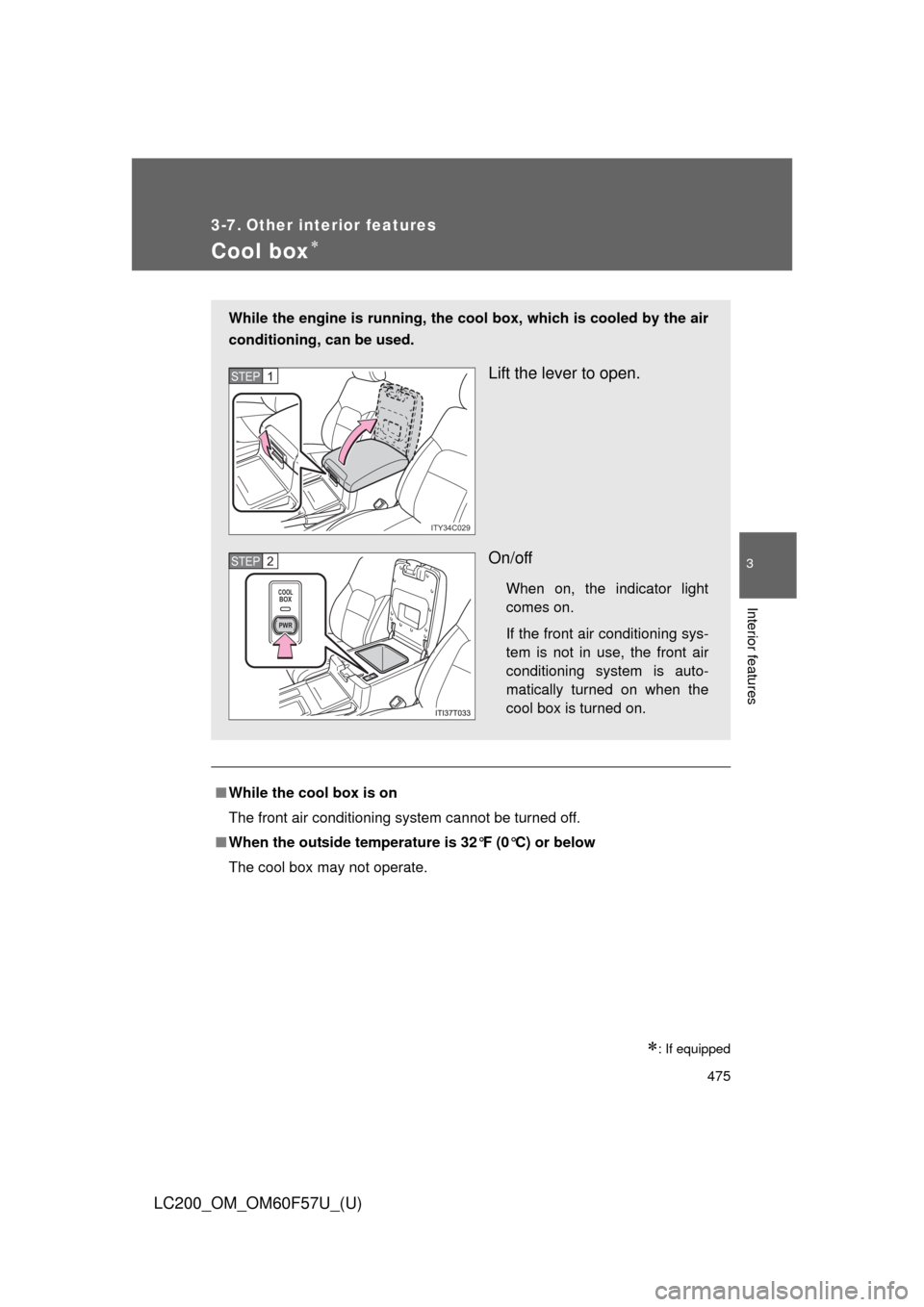

Cool box
: If equipped
■While the cool box is on
The front air conditioning system cannot be turned off.
■When the outside temperature is 32°F (0°C) or below
The cool box may not operate.
While the engine is running, the cool box, which is cooled by the air
conditioning, can be used.
Lift the lever to open.
On/off
When on, the indicator light
comes on.
If the front air conditioning sys-
tem is not in use, the front air
conditioning system is auto-
matically turned on when the
cool box is turned on.
ITY34C029
STEP1
COOLBOX
PWR
STEP2

476 3-7. Other interior features
LC200_OM_OM60F57U_(U)
CAUTION
■While driving
Keep the cool box closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
NOTICE
■To prevent battery discharge
Do not leave the cool box on longer than necessary when the engine is
stopped.

477
3-7. Other interior features
3
Interior features
LC200_OM_OM60F57U_(U)

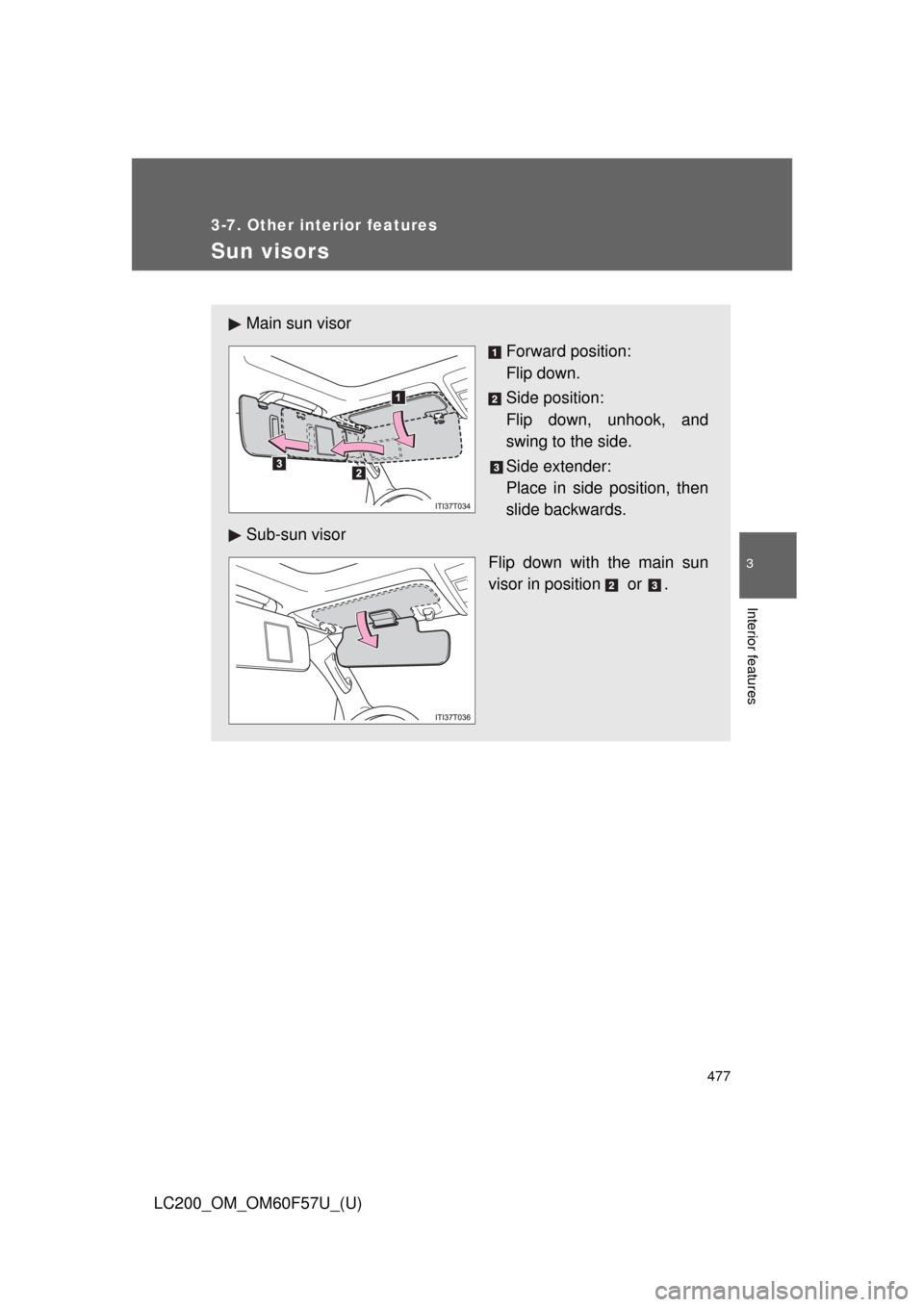

Sun visors
Main sun visor
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.
Side extender:
Place in side position, then
slide backwards.
Sub-sun visor
Flip down with the main sun
visor in position or .

478
3-7. Other interior features
LC200_OM_OM60F57U_(U)

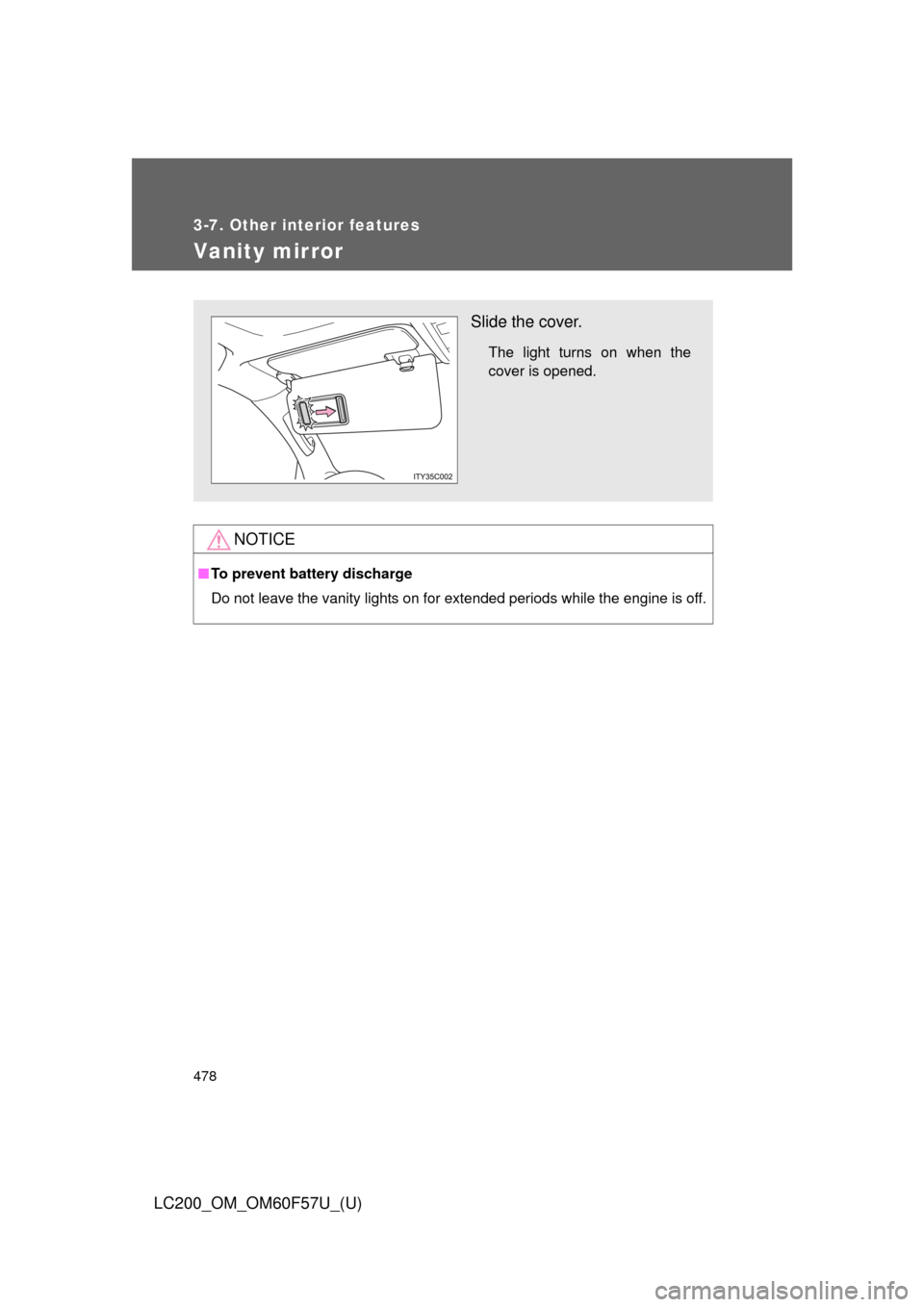

Vanity mirror
NOTICE
■To prevent battery discharge
Do not leave the vanity lights on for extended periods while the engine is off.
Slide the cover.
The light turns on when the
cover is opened.

479
3-7. Other interior features
3
Interior features
LC200_OM_OM60F57U_(U)
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
■When the battery is disconnected
The time display will automatically be set to 1:00.
With navigation system
Refer to “Navigation System Owner’s Manual”.
Without navigation system
The clock can be adjusted by pressing the buttons.
Adjust hours.
Adjust minutes.
Round the nearest hour.
*
*
:e.g. 1:00 to 1:291:00
1:30 to 1:592:00
2
1
3

480
3-7. Other interior features
LC200_OM_OM60F57U_(U)
Outside temperature display
The displayed temperature ranges from -22°F (-30°C) up to 122°F
(50°C).
Center panel (vehicles with navigation system)
Center panel (vehicles without navigation system)
