2013 TOYOTA HIGHLANDER Owners Manual

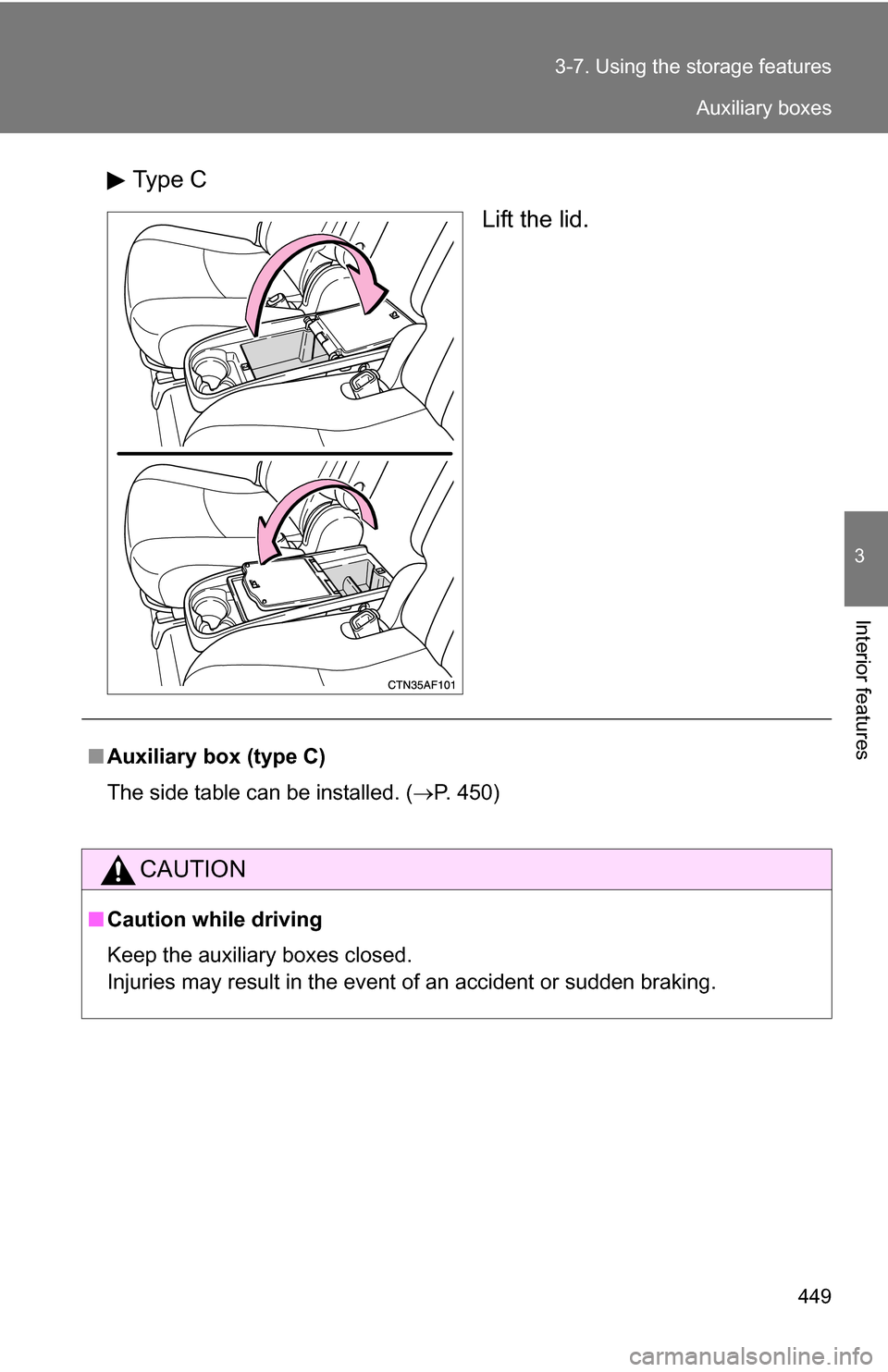

449
3-7. Using the
storage features
3
Interior features
Type C
Lift the lid.
■Auxiliary box (type C)
The side table can be installed. ( P. 450)
CAUTION
■Caution while driving
Keep the auxiliary boxes closed.
Injuries may result in the event of an accident or sudden braking.
Auxiliary boxes

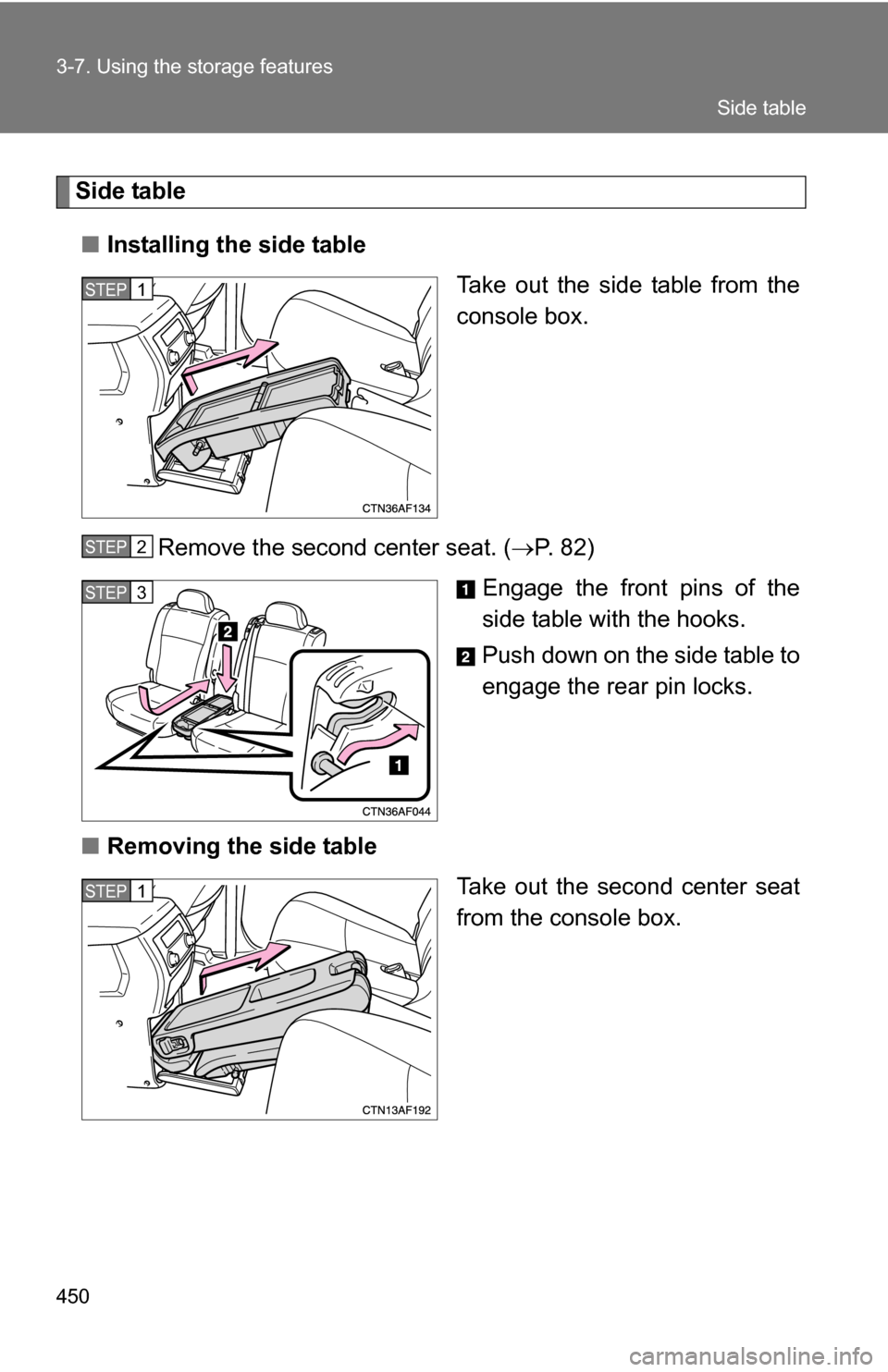

450 3-7. Using the storage features
Side table■ Installing the side table
Take out the side table from the
console box.
Remove the second center seat. ( P. 82)
Engage the front pins of the
side table with the hooks.
Push down on the side table to
engage the rear pin locks.
■ Removing the side table
Take out the second center seat
from the console box.
STEP1
STEP2
STEP3
STEP1
Side table

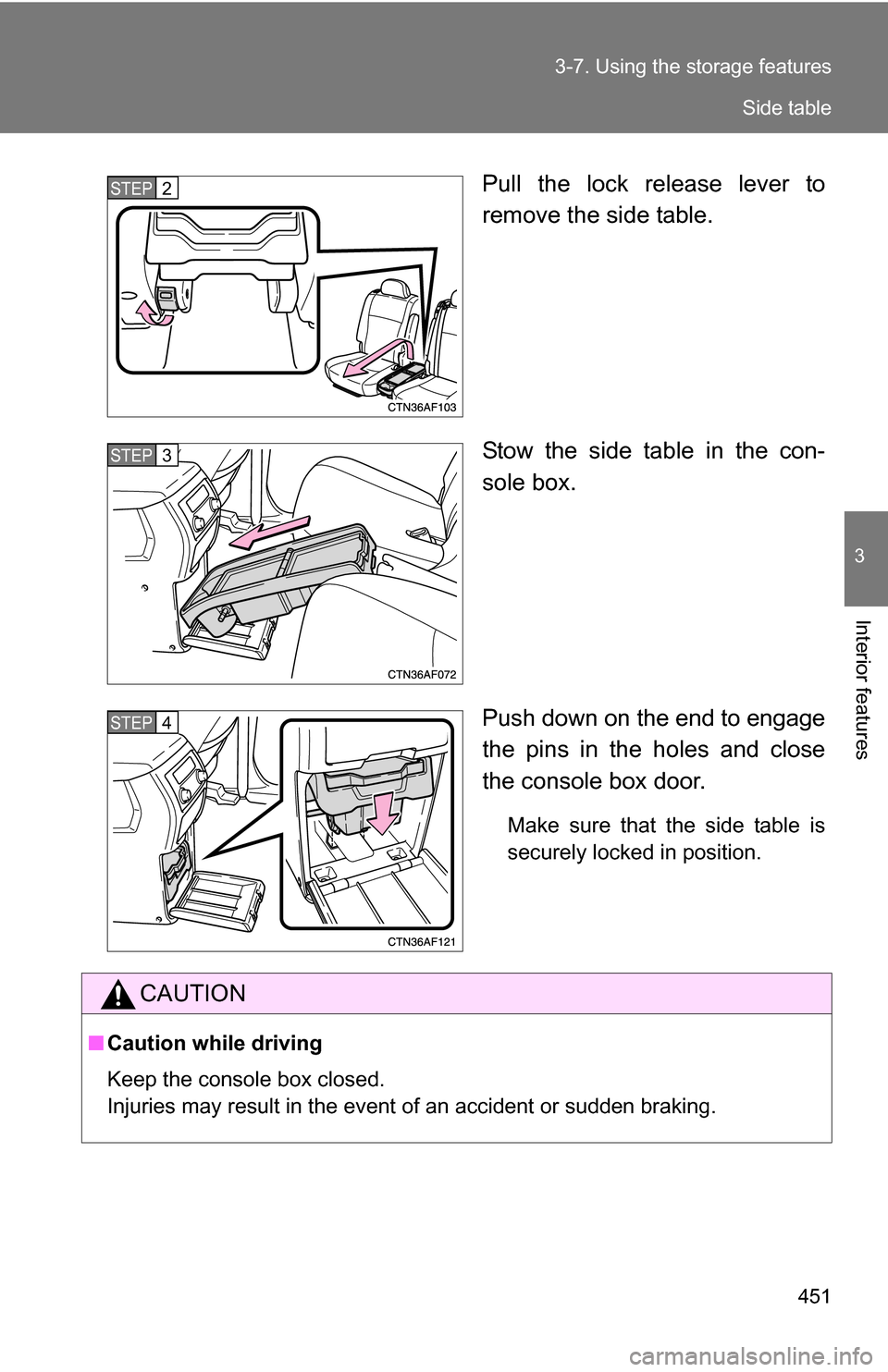

451
3-7. Using the
storage features
3
Interior features
Pull the lock release lever to
remove the side table.
Stow the side table in the con-
sole box.
Push down on the end to engage
the pins in the holes and close
the console box door.
Make sure that the side table is
securely locked in position.
STEP2
STEP3
STEP4
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
Side table

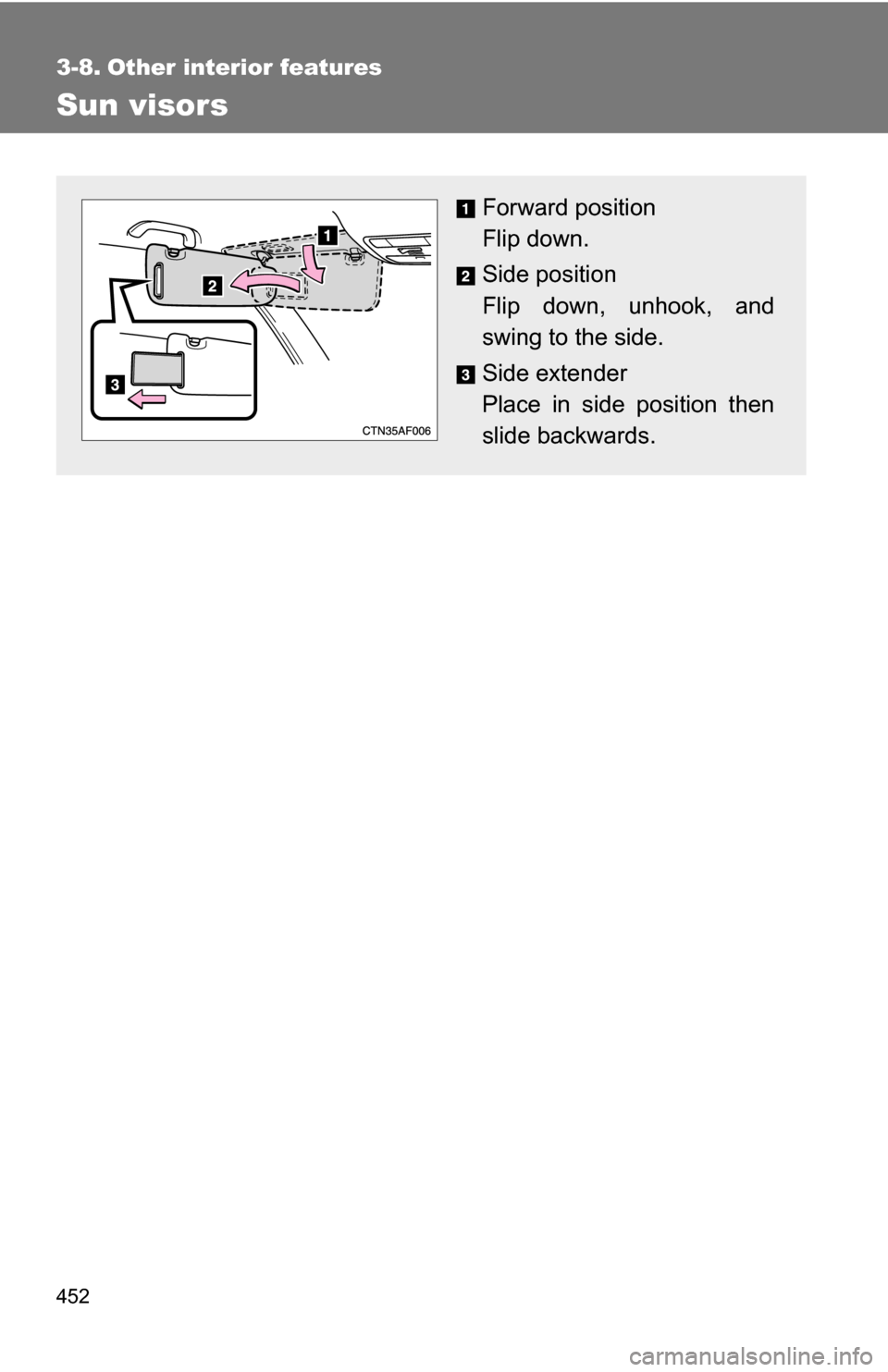

452
3-8. Other interior features
Sun visors
Forward position
Flip down.
Side position
Flip down, unhook, and
swing to the side.
Side extender
Place in side position then
slide backwards.

453
3-8. Other interior features
3
Interior features
Vanity mirrors
NOTICE
■To prevent the battery from being di scharged (vehicles with vanity mir-
ror light)
Do not leave the vanity lights on for extended periods while the engine is
stopped.
Slide the cover.
The light turns on when the
cover is opened. (Vehicles with
vanity mirror light)

454
3-8. Other interior features
Clock (vehicles without multi-infor mation display)
■The clock is displayed when
The engine switch is in the “ACC” or “ON” position.
Adjusts the hours.
Adjusts the minutes.

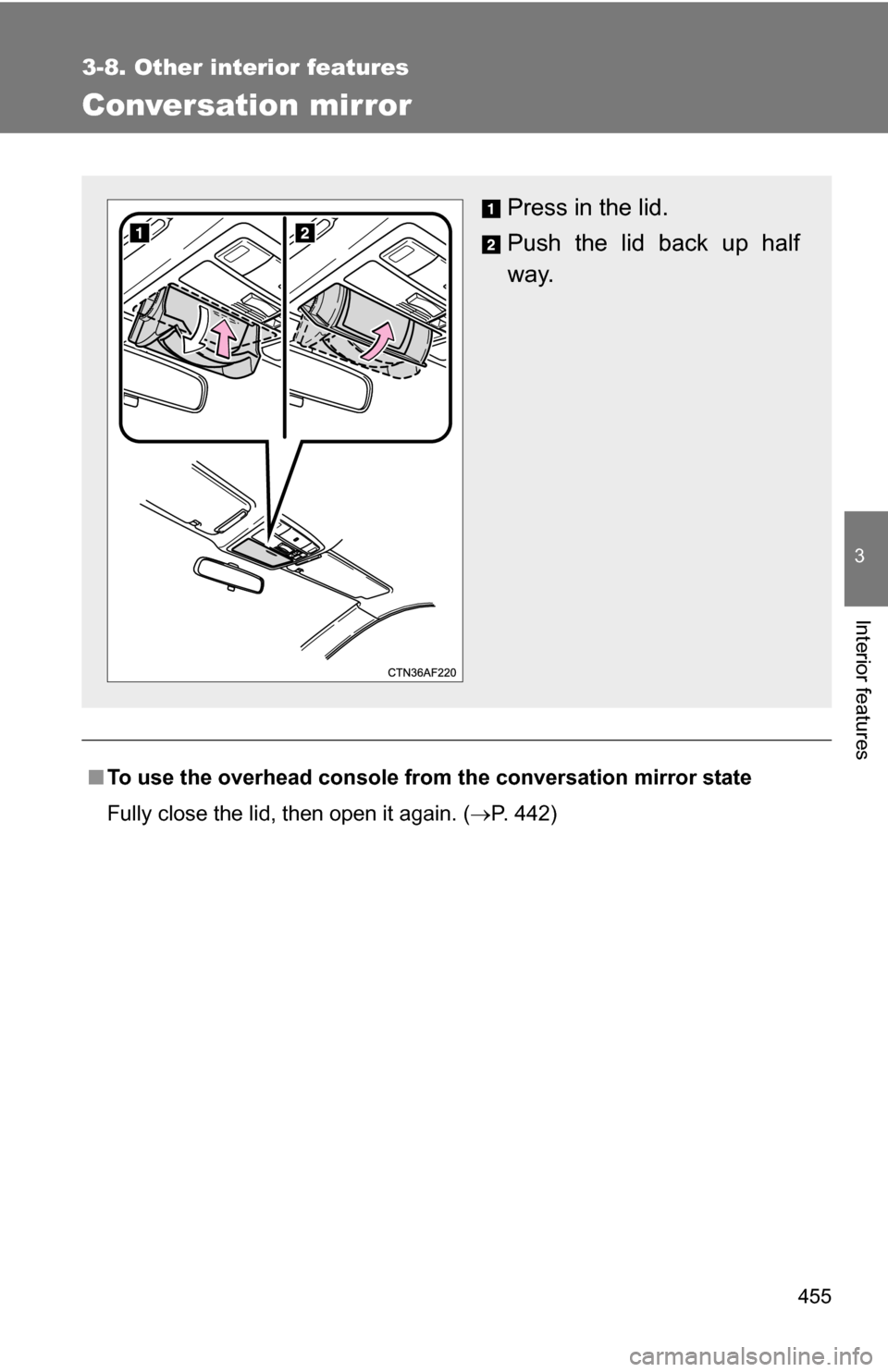

455
3-8. Other interior features
3
Interior features
Conversation mirror
■To use the overhead console from the conversation mirror state
Fully close the lid, then open it again. ( P. 442)
Press in the lid.
Push the lid back up half
way.

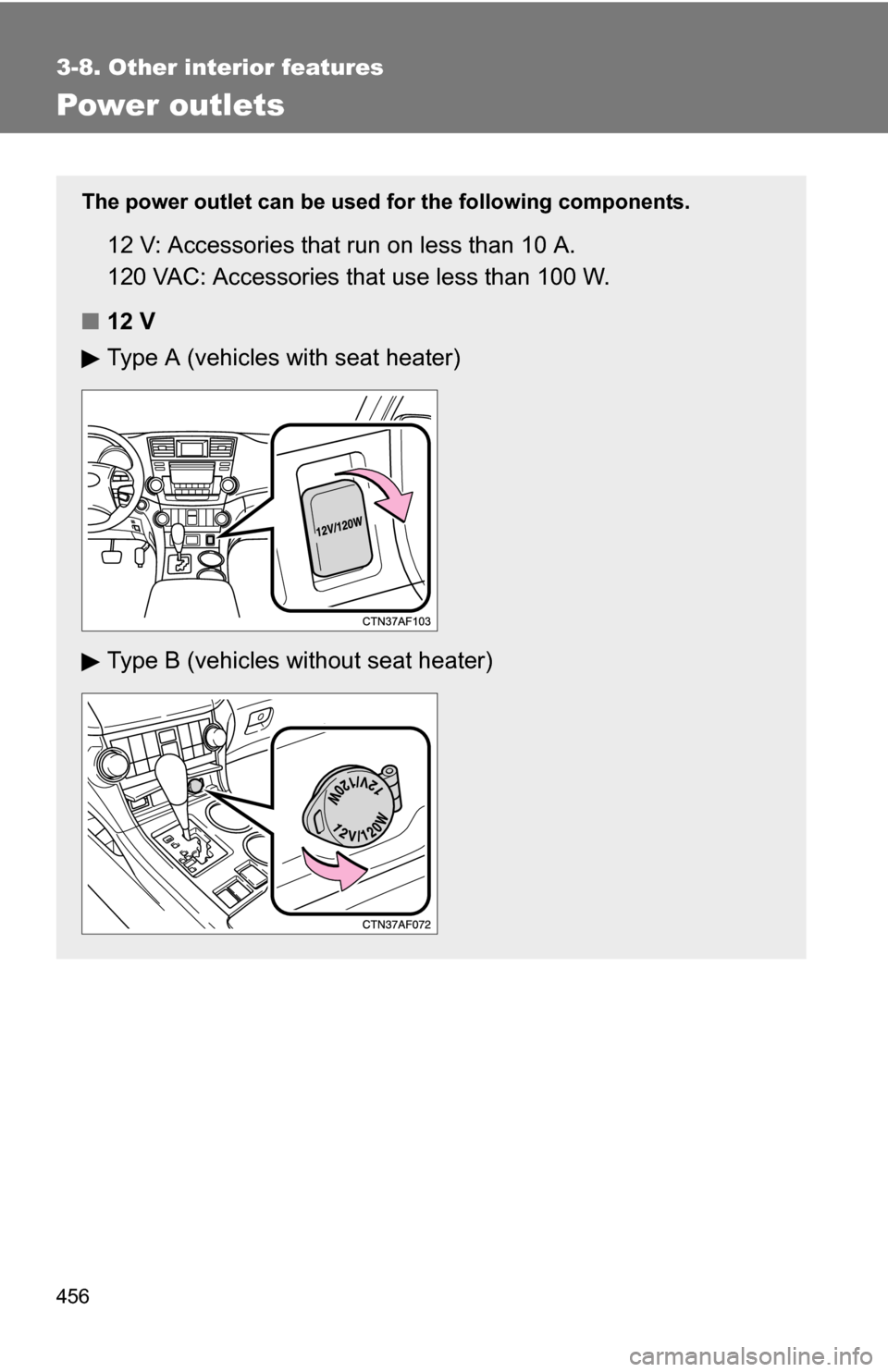

456
3-8. Other interior features
Power outlets
The power outlet can be used for the following components.
12 V: Accessories that run on less than 10 A.
120 VAC: Accessories that use less than 100 W.
■ 12 V
Type A (vehicles with seat heater)
Type B (vehicles without seat heater)
