2013 TOYOTA HIGHLANDER jacking

502 4-3. Do-it-yourself maintenance

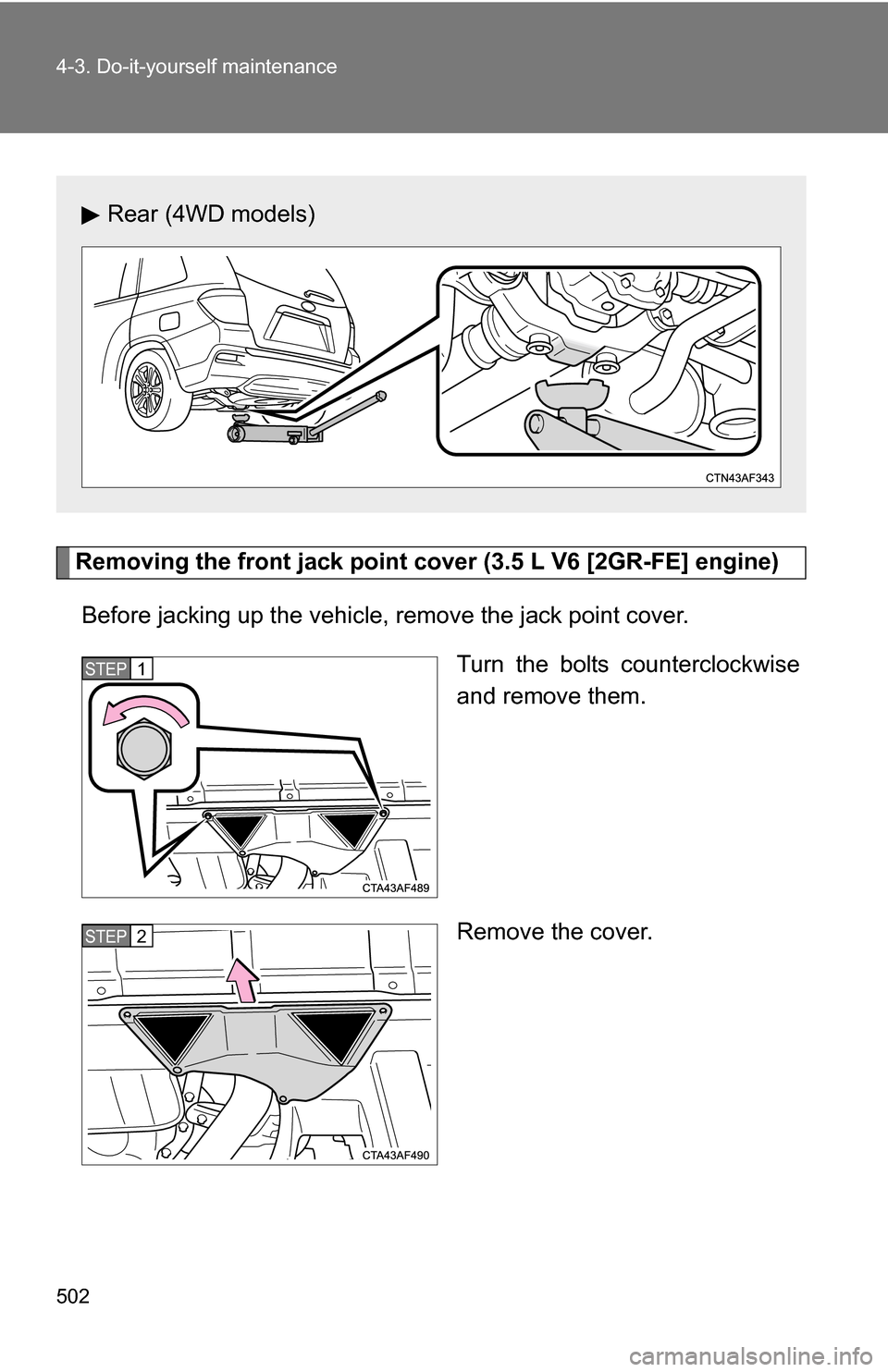

Removing the front jack point cover (3.5 L V6 [2GR-FE] engine)Before jacking up the vehicle, remove the jack point cover.
Turn the bolts counterclockwise
and remove them.
Remove the cover.
Rear (4WD models)
STEP1
STEP2

504 4-3. Do-it-yourself maintenance

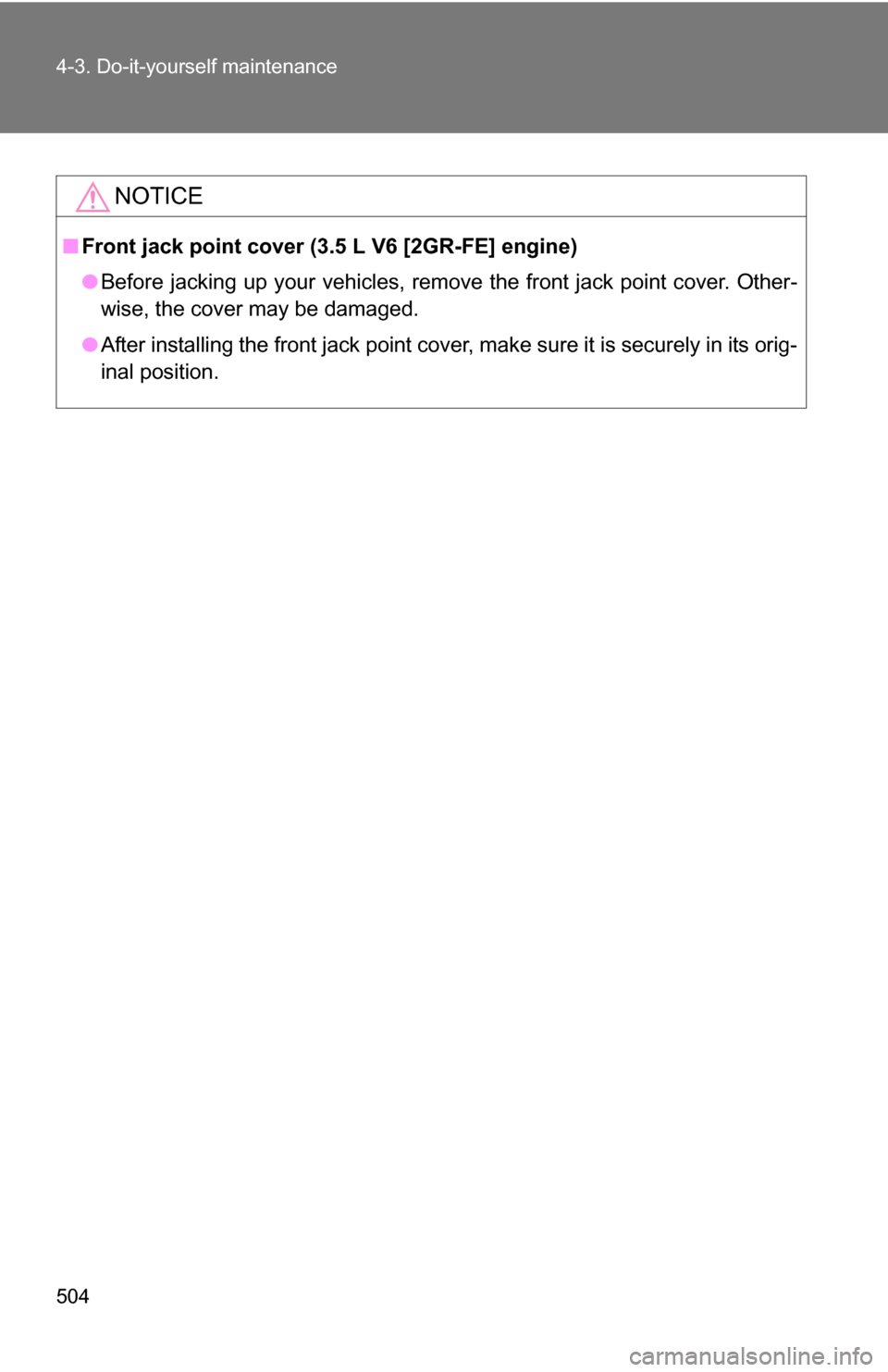

NOTICE
■Front jack point cover (3.5 L V6 [2GR-FE] engine)
●Before jacking up your vehicles, remove the front jack point cover. Other-
wise, the cover may be damaged.
● After installing the front jack point cover, make sure it is securely in its orig-
inal position.

586
5-2. Steps to take in an emergency

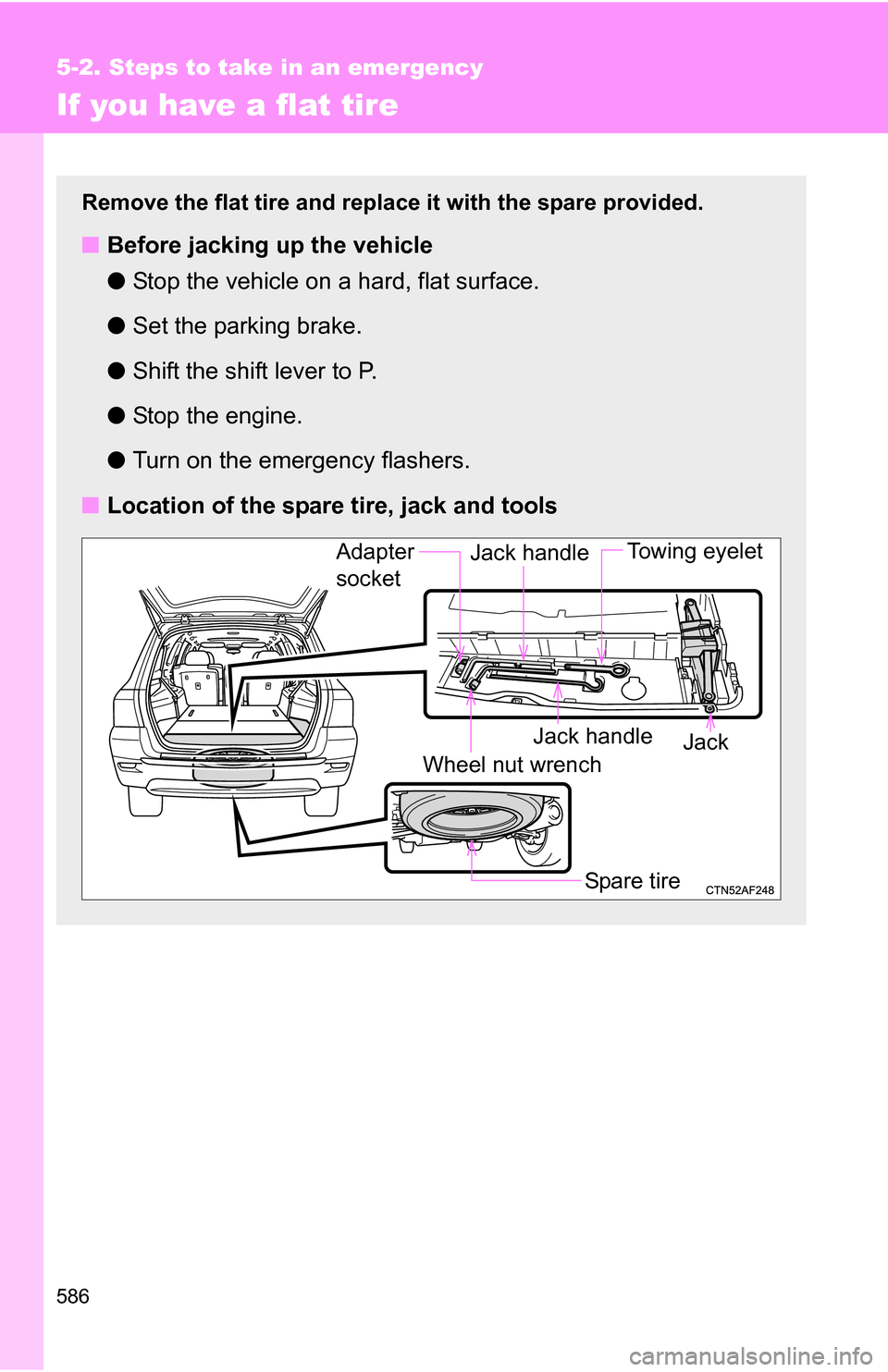

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Jack handle
Adapter
socket Towing eyelet
Jack handle
Wheel nut wrench
Spare tire
Jack
