2013 TOYOTA HIGHLANDER Owners Manual

505
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compar tment
2.7 L 4-cylinder (1AR-FE) engine
Washer fluid tank (P. 520)
Engine oil filler cap ( P. 509)
Engine oil level dipstick ( P. 508)
Engine coolant reservoir ( P. 512)Battery ( P. 516)
Brake fluid reservoir ( P. 515)
Fuse boxes ( P. 542)
Electric cooling fans
Condenser ( P. 514)
Radiator ( P. 514)

506 4-3. Do-it-yourself maintenance
3.5 L V6 (2GR-FE) engine
Washer fluid tank (P. 520)
Engine oil filler cap ( P. 509)
Engine oil level dipstick ( P. 508)
Engine coolant reservoir ( P. 512)Battery ( P. 516)
Brake fluid reservoir ( P. 515)
Fuse boxes ( P. 542)
Electric cooling fans
Condenser ( P. 514)
Radiator ( P. 514)

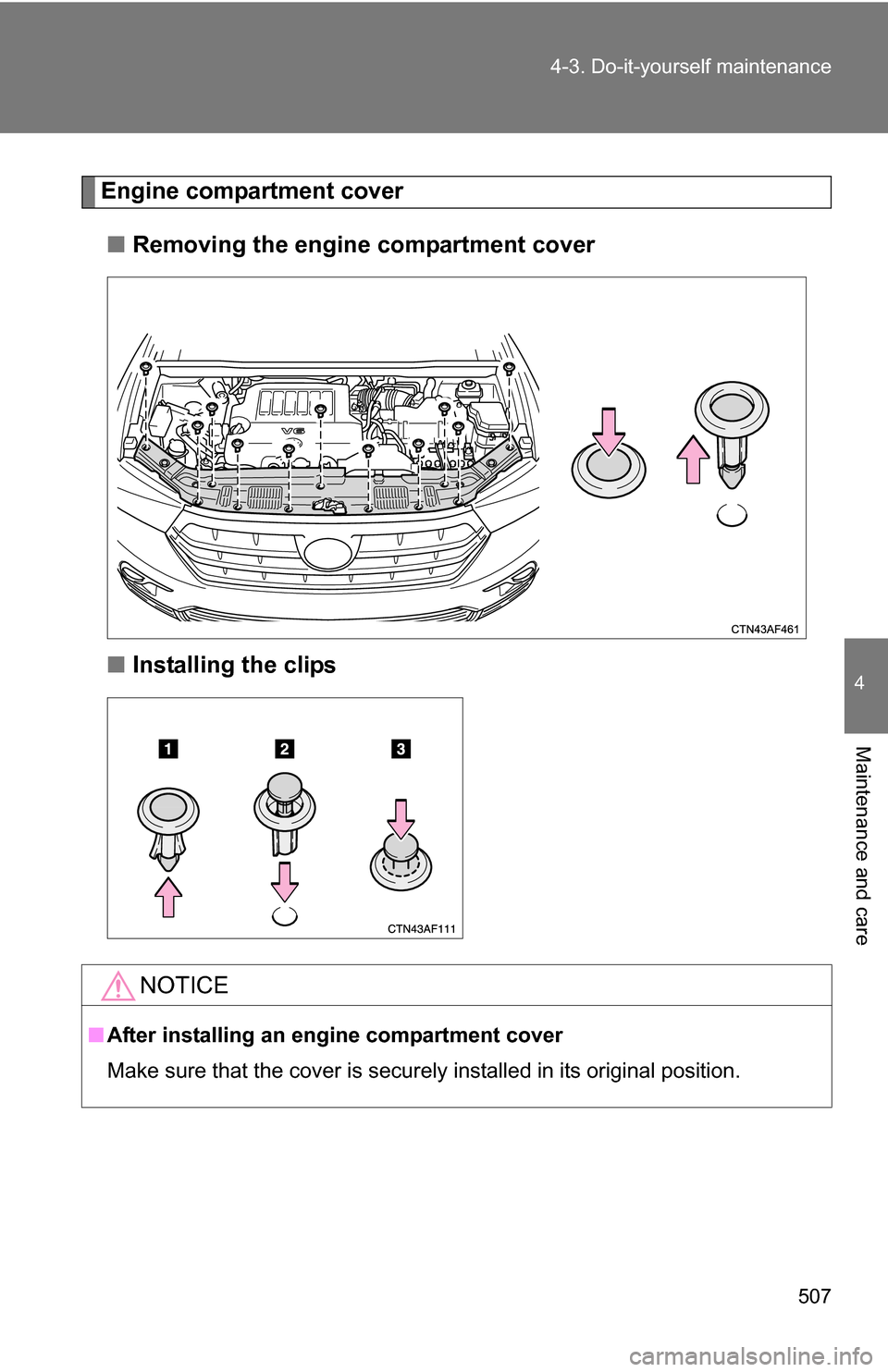

507
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compartment cover
■ Removing the engine compartment cover
■ Installing the clips
NOTICE
■After installing an engine compartment cover
Make sure that the cover is securely installed in its original position.

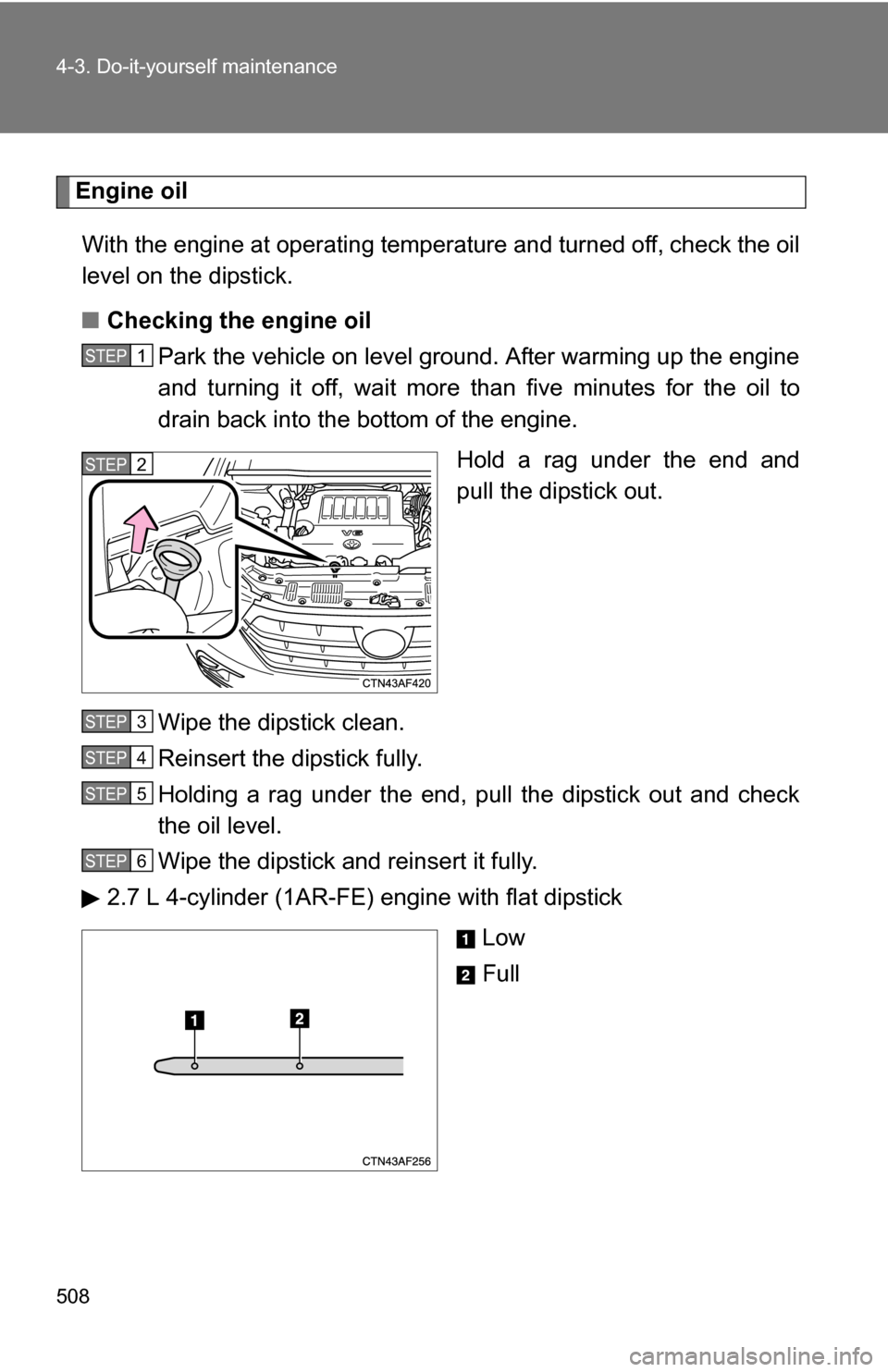

508 4-3. Do-it-yourself maintenance
Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than five minutes for the oil to
drain back into the bottom of the engine.
Hold a rag under the end and
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Wipe the dipstick and reinsert it fully.
2.7 L 4-cylinder (1AR-FE) engine with flat dipstick
Low
Full
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

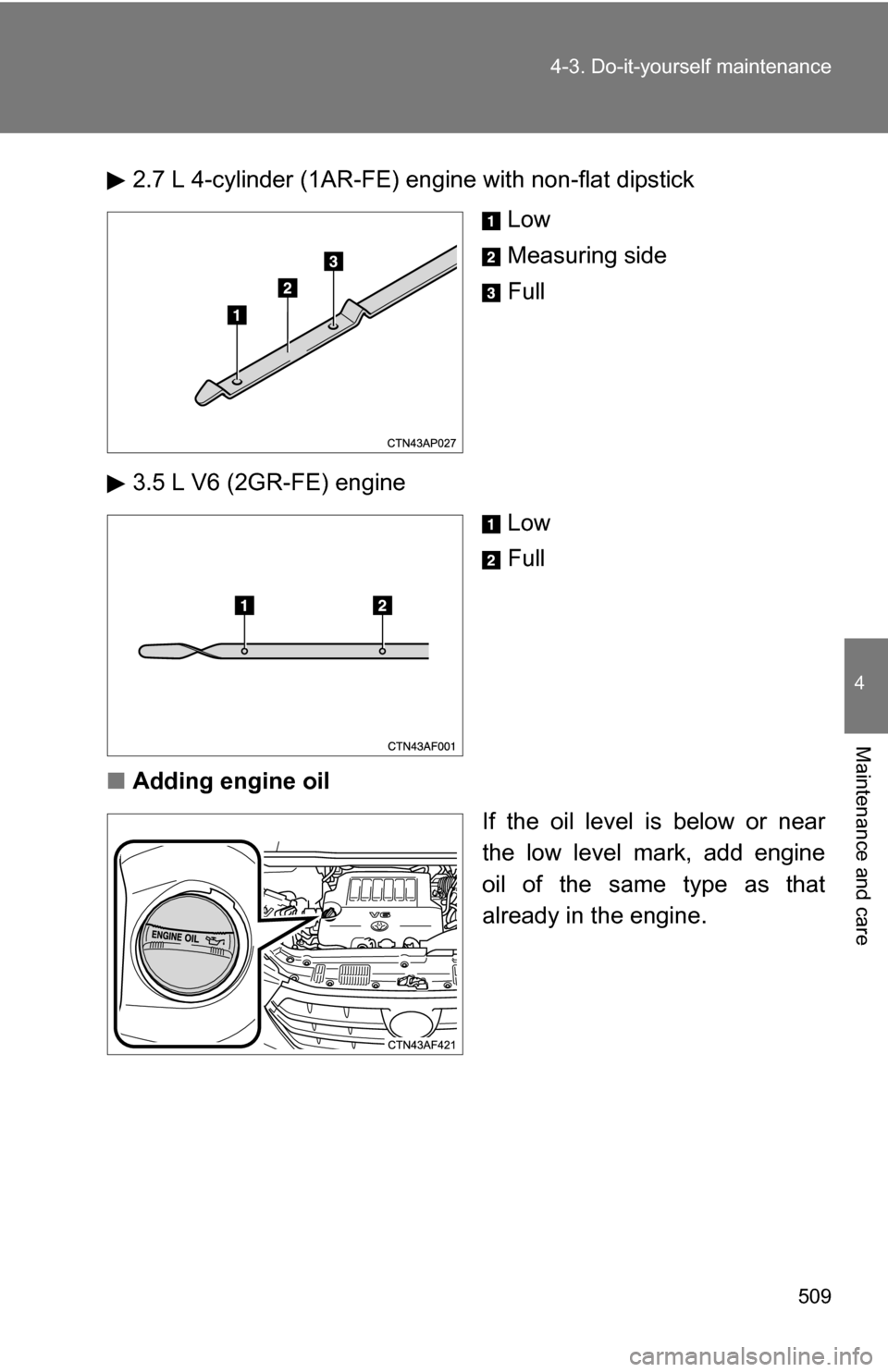

509
4-3. Do-it-yourself maintenance
4
Maintenance and care
2.7 L 4-cylinder (1AR-FE) engine with non-flat dipstick
Low
Measuring side
Full
3.5 L V6 (2GR-FE) engine Low
Full
■ Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.

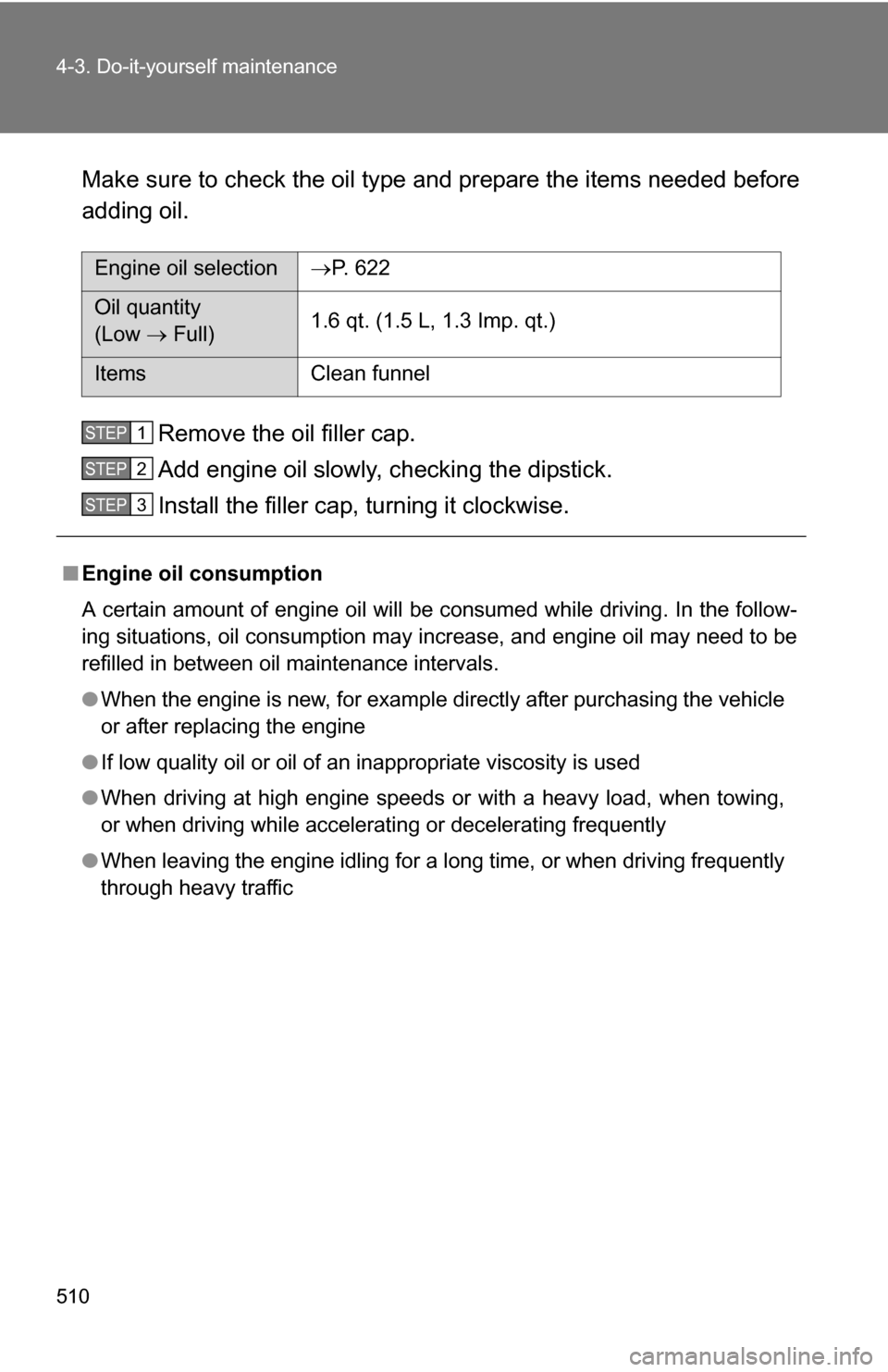

510 4-3. Do-it-yourself maintenance
Make sure to check the oil type and prepare the items needed before
adding oil.Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.
Engine oil selection P. 622
Oil quantity
(Low  Full)1.6 qt. (1.5 L, 1.3 Imp. qt.)
Items
Clean funnel
■ Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the follow-
ing situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle
or after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, when towing,
or when driving while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
STEP1
STEP2
STEP3

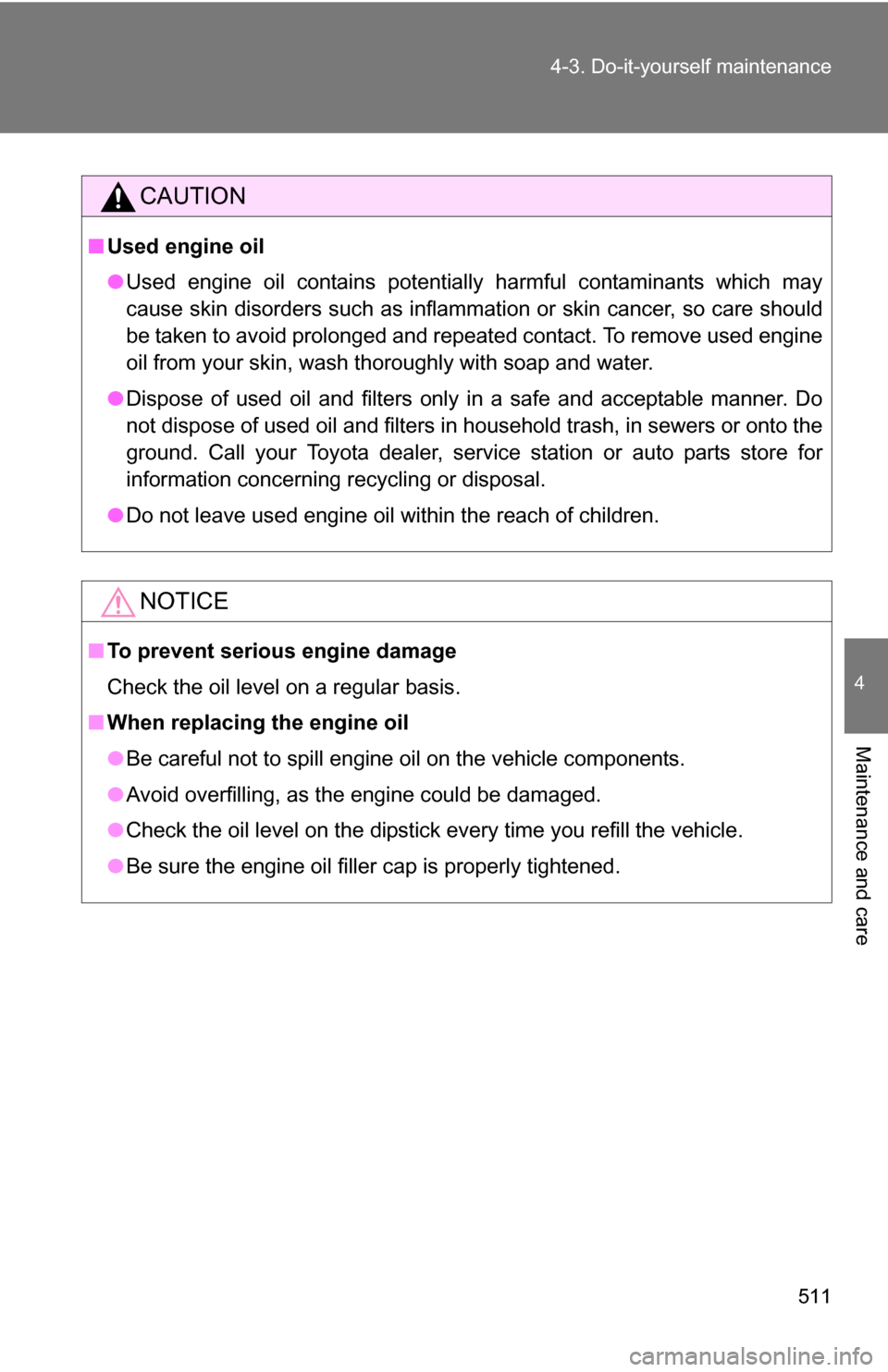

511
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■
Used engine oil
●Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation or skin cancer, so care should
be taken to avoid prolonged and repeated contact. To remove used engine
oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call your Toyota dealer, service station or auto parts store for
information concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, as the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.

512 4-3. Do-it-yourself maintenance
Engine coolantThe coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.
Reservoir cap
“FULL”
“LOW”
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line.
