2013 TOYOTA HIGHLANDER Owners Manual

649
6-2. Customization
6
Vehicle specifications

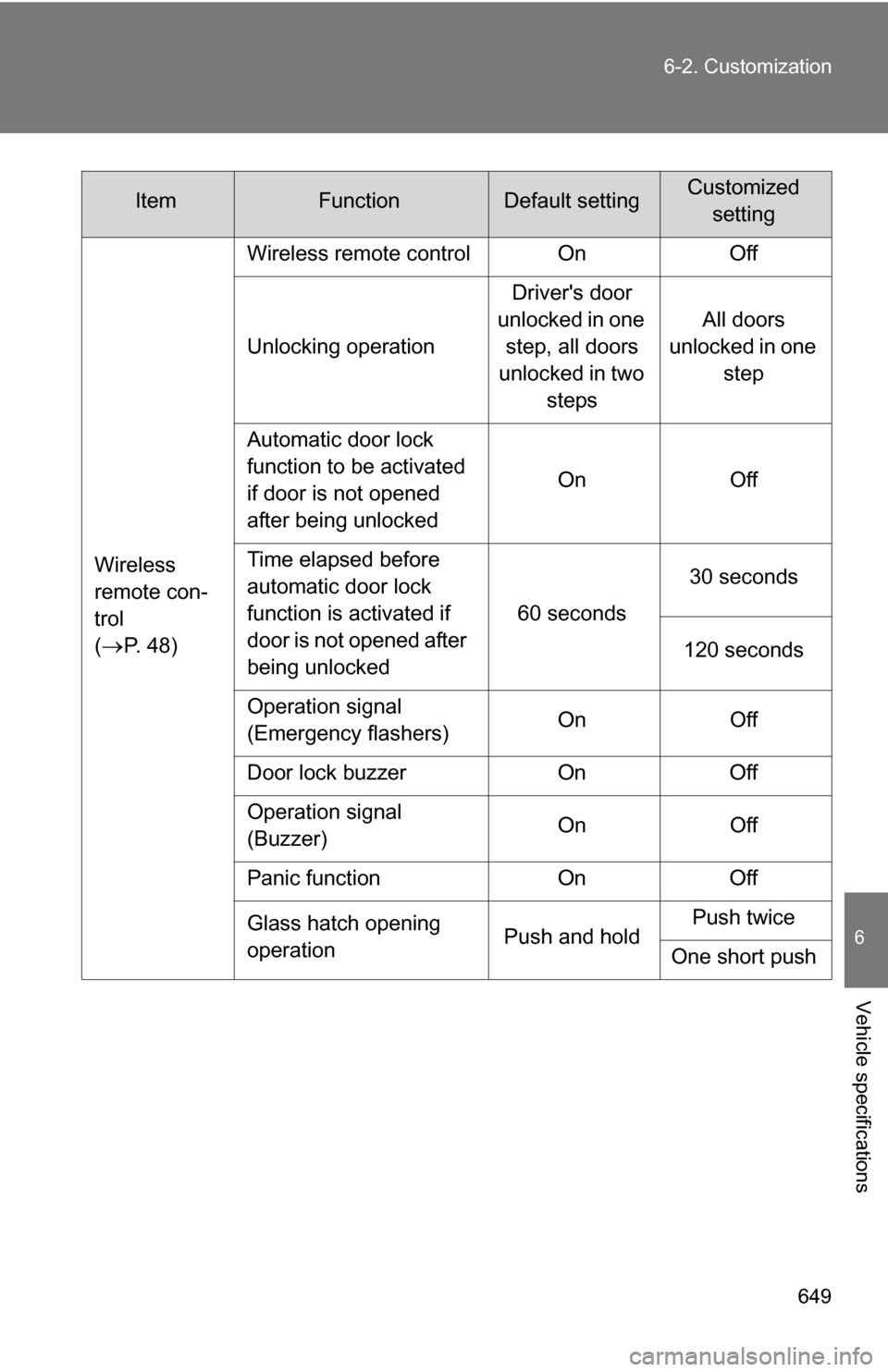

Wireless
remote con-
trol
(
P. 4 8 )
Wireless remote control On Off
Unlocking operation
Driver's door
unlocked in one step, all doors
unlocked in two steps All doors
unlocked in one step
Automatic door lock
function to be activated
if door is not opened
after being unlocked On Off
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked 60 seconds
30 seconds
120 seconds
Operation signal
(Emergency flashers) On Off
Door lock buzzer On Off
Operation signal
(Buzzer) On Off
Panic function On Off
Glass hatch opening
operation Push and holdPush twice
One short push
ItemFunctionDefault settingCustomized setting

650 6-2. Customization
Automatic
light control
system
(P. 203) Light sensor sensitivity Level 3 Level 1 to 5
Time elapsed before
headlights automati-
cally turn off after doors
are closed
30 seconds0 seconds
60 seconds
90 seconds
Ambient light level at
which instrument illumi-
nation begins to dim
(meter light etc.) Standard
-2 (darker) to
2 (brighter)
Ambient light level at
which instrument illumi-
nation begins to
brighten (meter light
etc.) Standard
-2 (darker) to
2 (brighter)
Lights
(
P. 203) Daytime running light
system (U.S.A. only)
On Off
Multi-infor-
mation dis-
play
( P. 193) Language selection English French
Spanish
Chinese
Illumination
(
P. 436) Time elapsed before
lights turn off
15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlocked On
Off
Operation after the
“ENGINE START
STOP” switch or the
engine switch is turned
OFF On
Off
ItemFunctionDefault settingCustomized
setting

651
6-2. Customization
6
Vehicle specifications

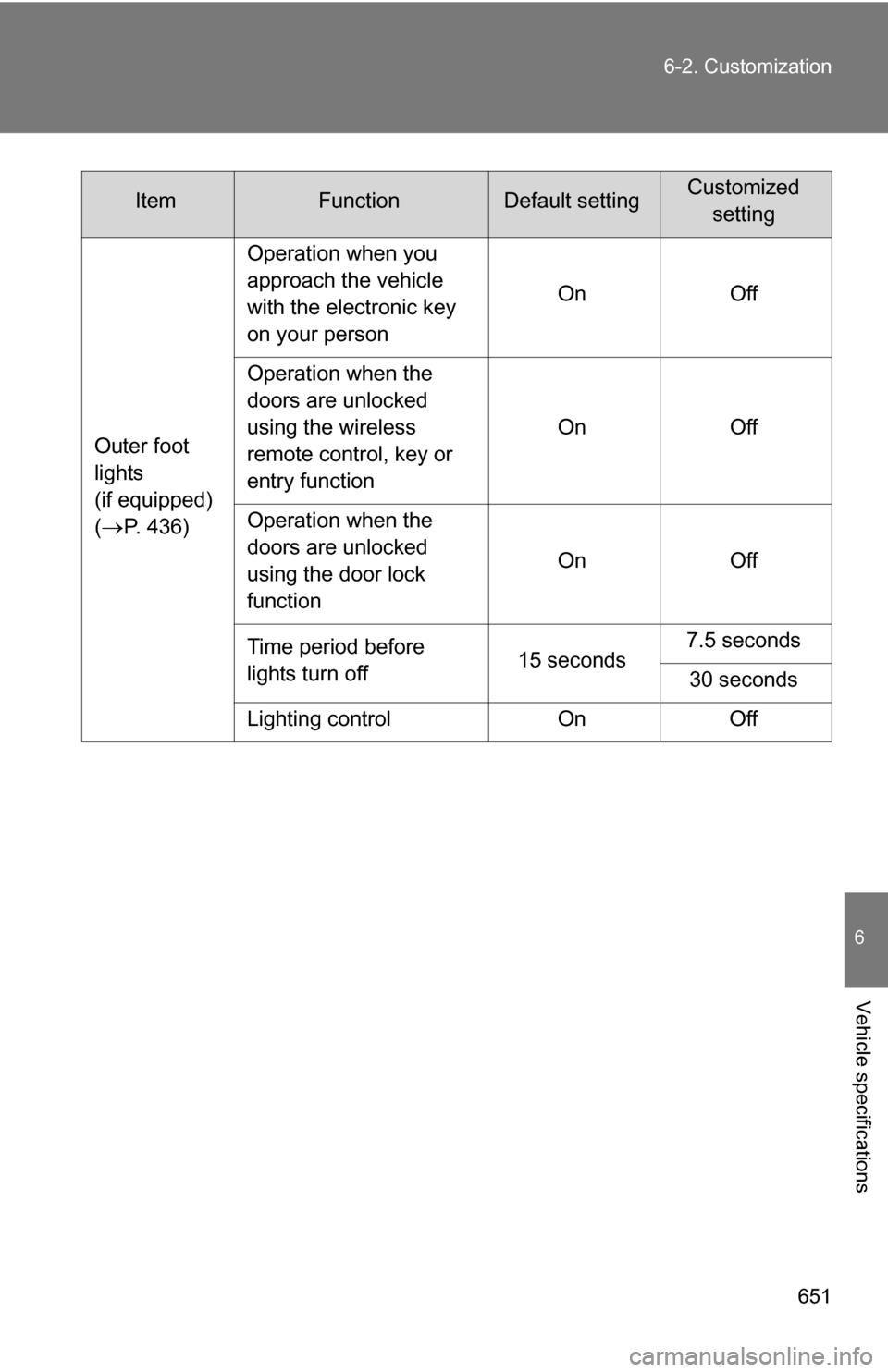

Outer foot
lights
(if equipped)
(
P. 436)
Operation when you
approach the vehicle
with the electronic key
on your person
On Off
Operation when the
doors are unlocked
using the wireless
remote control, key or
entry function On Off
Operation when the
doors are unlocked
using the door lock
function On Off
Time period before
lights turn off 15 seconds7.5 seconds
30 seconds
Lighting control On Off
ItemFunctionDefault settingCustomized setting

652
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Power back door • After reconnecting or changing the
battery
• After changing a fuse P. 6 0
Maintenance data
(U.S.A. only) After the maintenance is performed P. 489
Tire pressure warning
system When changing the tire inflation
pressure by changing traveling
speed or towing trailer, etc.
P. 521
The following items must be initia
lized for normal system operation
in cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.

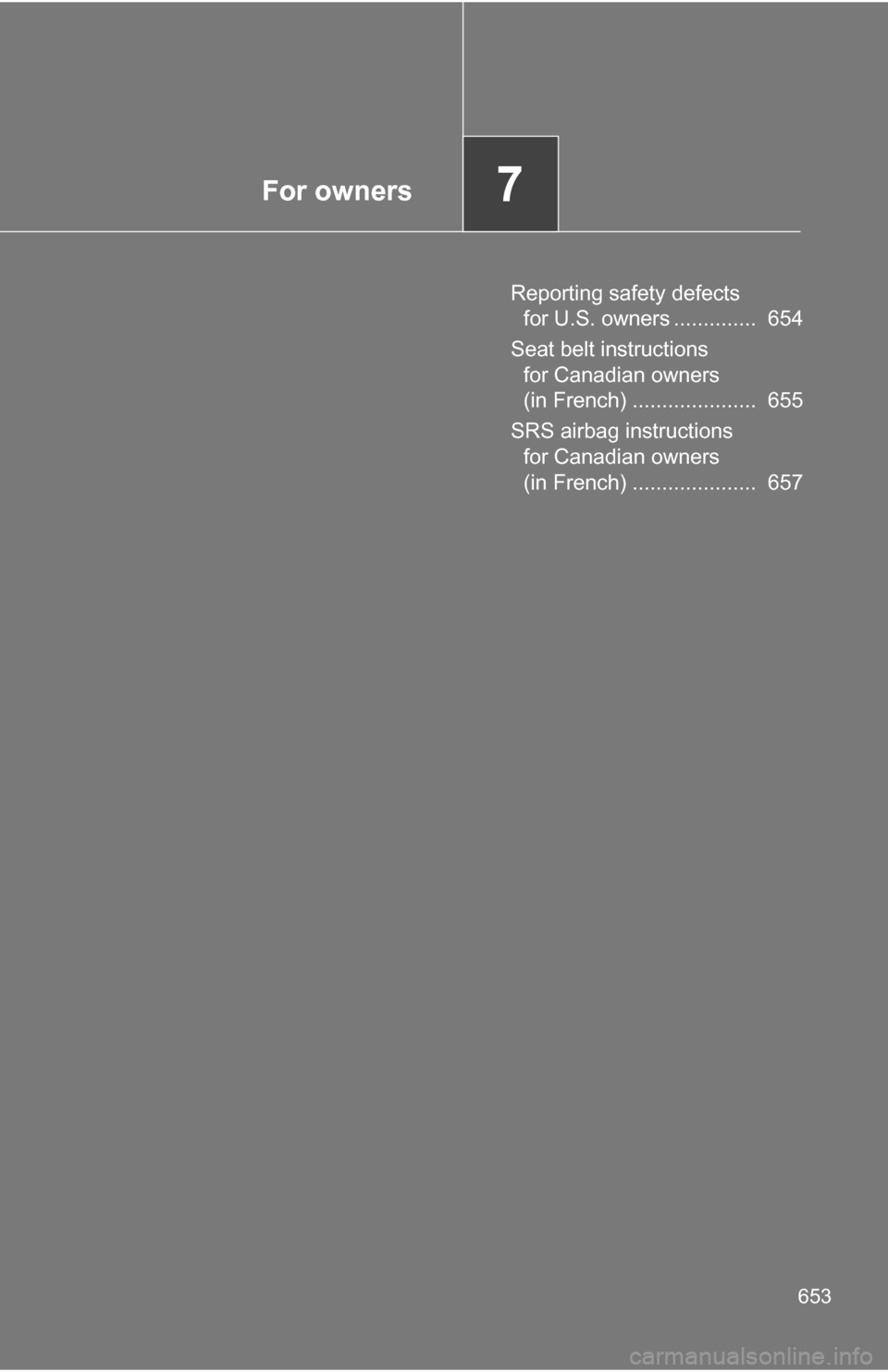

For owners7
653
Reporting safety defects for U.S. owners .............. 654
Seat belt instructions for Canadian owners
(in French) ..................... 655
SRS airbag instructions for Canadian owners
(in French) ..................... 657

654

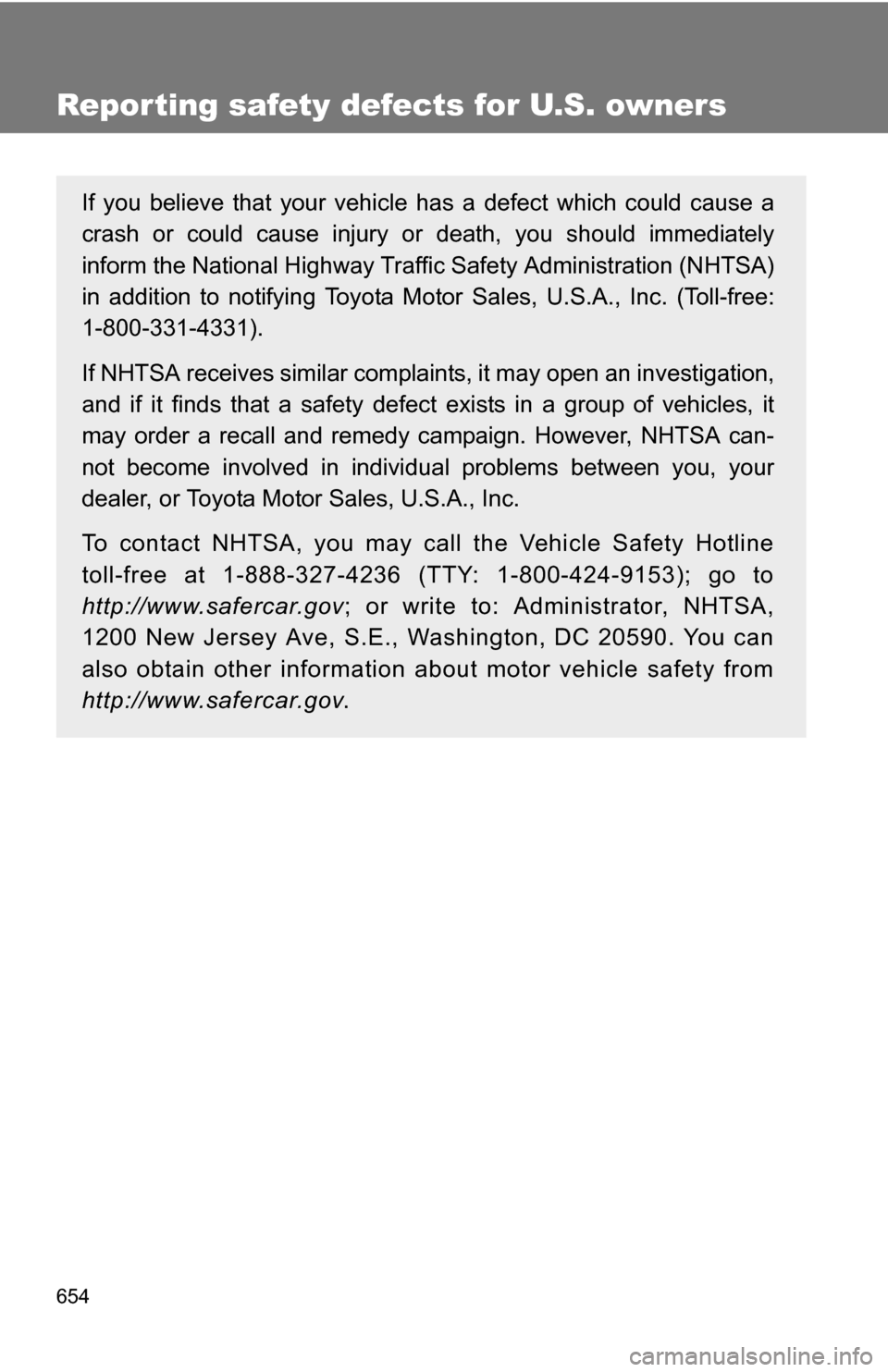

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffi c Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free:
1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defec t exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individ ual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., Washington, DC 20590. You can
also obtain other information about motor vehicle safety from
http://www.safercar.gov .

655
7
For owners
Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation correcte des ceintures de sécurité
●Tendez la sangle diagonale de
sorte qu'elle couvre
complètement l'épaule, sans
entrer en contact avec le cou
ou glisser de l'épaule.
● Placez la sangle abdominale
le plus bas possible sur les
hanches.
● Réglez la position du dossier
de siège. Asseyez-vous le dos
le plus droit possible et calez-
vous bien dans le siège.
● Ne vrillez pas la ceinture de
sécurité.

656

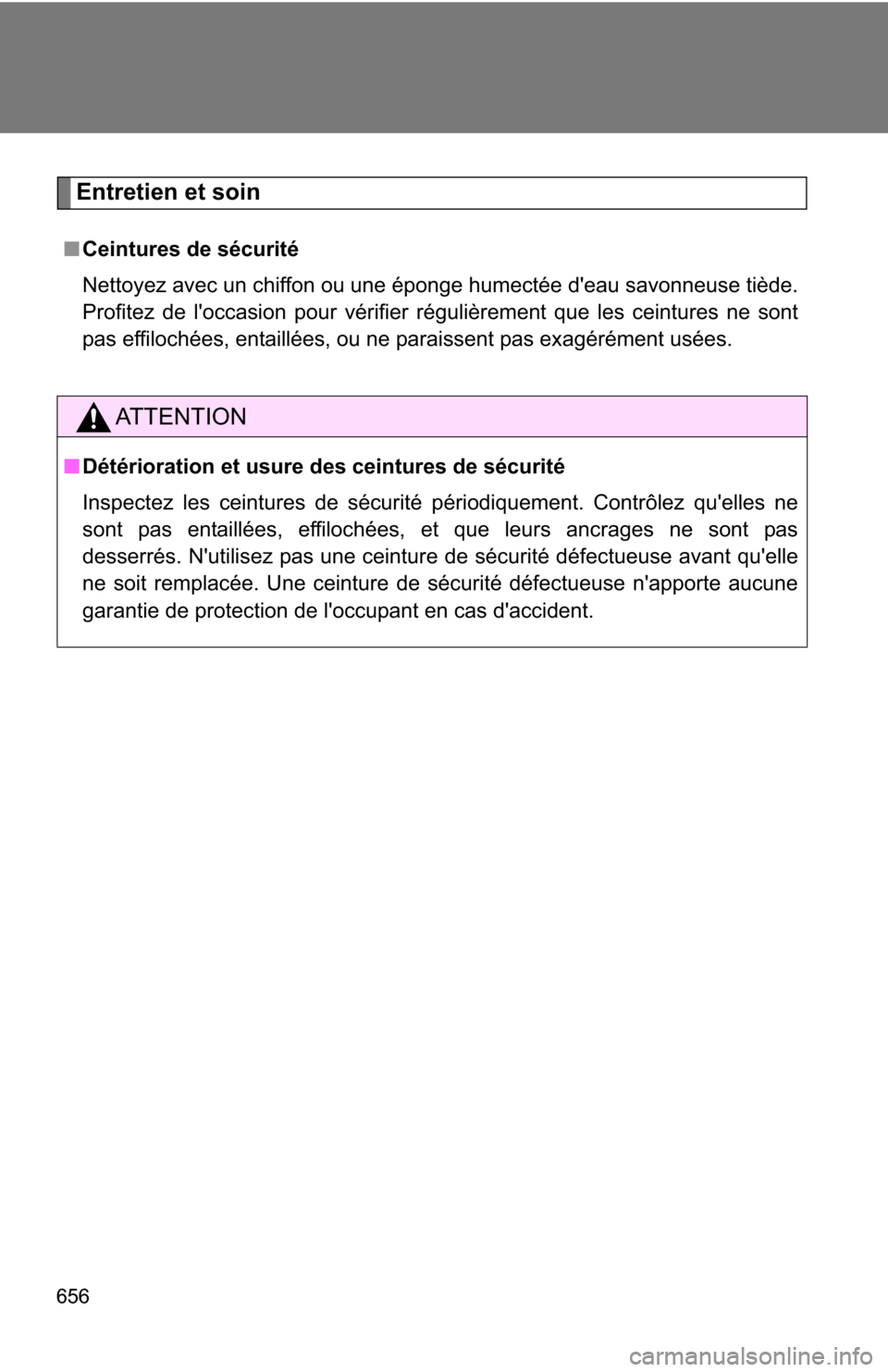

Entretien et soin
■Ceintures de sécurité
Nettoyez avec un chiffon ou une éponge humectée d'eau savonneuse tiède.
Profitez de l'occasion pour vérifier régulièrement que les ceintures ne sont
pas effilochées, entaillées, ou ne paraissent pas exagérément usées.
AT T E N T I O N
■Détérioration et usure des ceintures de sécurité
Inspectez les ceintures de sécurité périodiquement. Contrôlez qu'elles ne
sont pas entaillées, effilochées, et que leurs ancrages ne sont pas
desserrés. N'utilisez pas une ceinture de sécurité défectueuse avant qu'elle
ne soit remplacée. Une ceinture de sécurité défectueuse n'apporte aucune
garantie de protection de l'occupant en cas d'accident.
