4-3. Do-it-yourself maintenance
4
Maintenance and care

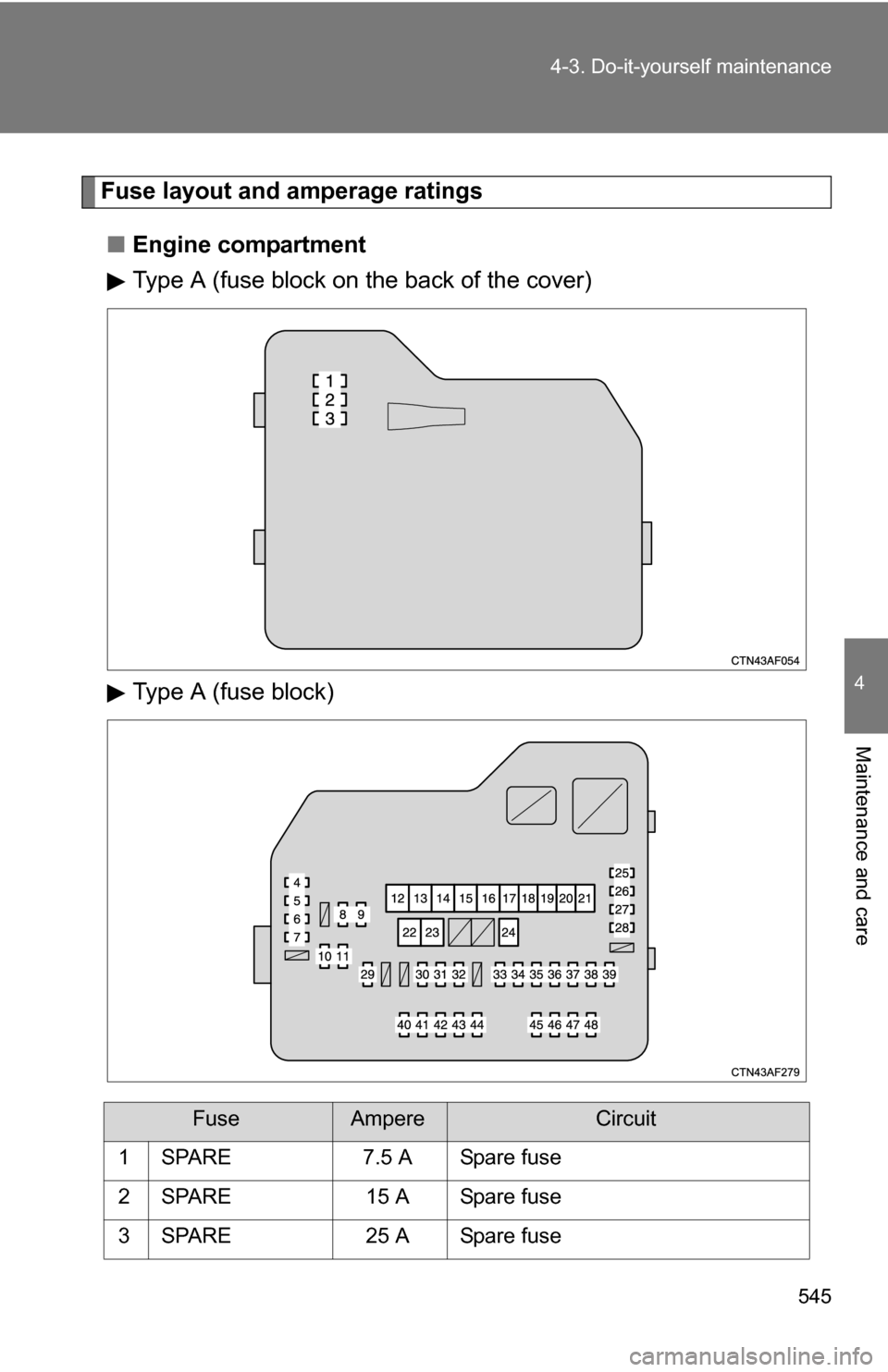

Fuse layout and amperage ratings
■ Engine compartment
Type A (fuse block on t he back of the cover)
Type A (fuse block)
FuseAmpereCircuit
1 SPARE 7.5 A Spare fuse
2 SPARE 15 A Spare fuse
3 SPARE 25 A Spare fuse

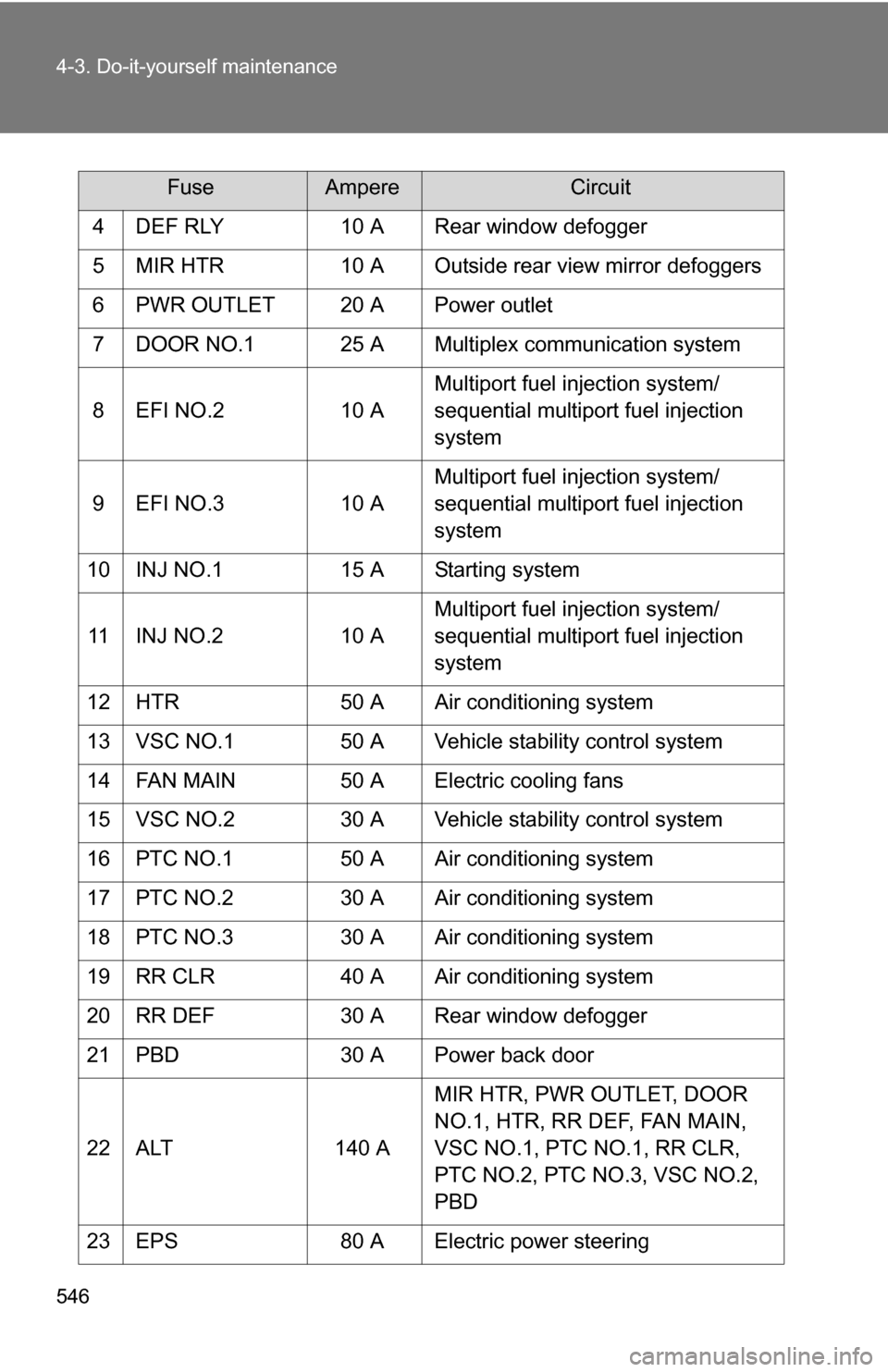

546 4-3. Do-it-yourself maintenance
4 DEF RLY10 A Rear window defogger
5 MIR HTR 10 A Outside rear view mirror defoggers
6 PWR OUTLET 20 A Power outlet
7 DOOR NO.1 25 A Multiplex communication system
8 EFI NO.2 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
9 EFI NO.3 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
10 INJ NO.1 15 A Starting system
11 INJ NO.2 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
12 HTR 50 A Air conditioning system
13 VSC NO.1 50 A Vehicle stability control system
14 FAN MAIN 50 A Electric cooling fans
15 VSC NO.2 30 A Vehicle stability control system
16 PTC NO.1 50 A Air conditioning system
17 PTC NO.2 30 A Air conditioning system
18 PTC NO.3 30 A Air conditioning system
19 RR CLR 40 A Air conditioning system
20 RR DEF 30 A Rear window defogger
21 PBD 30 A Power back door
22 ALT 140 AMIR HTR, PWR OUTLET, DOOR
NO.1, HTR, RR DEF, FAN MAIN,
VSC NO.1, PTC NO.1, RR CLR,
PTC NO.2, PTC NO.3, VSC NO.2,
PBD
23 EPS 80 A Electric power steering
FuseAmpereCircuit

547
4-3. Do-it-yourself maintenance
4
Maintenance and care
24 ST
30 A Starting system
25 CRT 10 ARear seat entertainment system,
audio system
26 RADIO NO.1 20 A Audio system
27 ECU-B NO.1 10 A Steering sensor, gauges and
meters, clock, main body ECU,
wireless remote control, smart key
system, power back door, multi-
information display, front passen-
ger occupant classification system
28 DOME 10 AVanity lights, personal lights, inte-
rior light, gauges and meters,
engine switch light, door courtesy
lights
29 TOWING 30 A Trailer lights
30 STR LOCK 20 A Steering lock system
31 EFI MAIN 25 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.2, EFI NO.3
32 HAZ 15 A Turn signal lights
33 IG2 25 AINJ NO.1, INJ NO.2, IGN, GAUGE
NO.2
34 AMP 15 A Audio system
35 RR FOG 7.5 A No circuit
36 DEICER 15 A Windshield wiper de-icer
37 G/H 10 AGlass hatch, multiplex communica-
tion system, outer foot lights
38 ALT-S 7.5 A Charging system
39 AM2 7.5 A Multiplex communication system
40 H-LP LH HI 15 A Left-hand headlight (high beam)
41 H-LP RH HI 15 A Right-hand headlight (high beam)
FuseAmpereCircuit

548 4-3. Do-it-yourself maintenance
Type B (if equipped)
42 H-LP LH LO 15 A Left-hand headlight (low beam)
43 H-LP RH LO 15 A Right-hand headlight (low beam)
44 HORN10 A Horn
45 EFI NO.1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, smart key system
46 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
47 A/F 20 A Air fuel ratio sensor
48 S-HORN 7.5 A S-HORN
FuseAmpereCircuit
1 INV-W/P 15 A No circuit
2 IGCT NO.2 7.5 A No circuit
3 A/C 10 A No circuit
FuseAmpereCircuit

549
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Under the instrument panel
Front side of the fuse block
Fuse block
FuseAmpereCircuit
1 P/SEAT 30 A Power seat
2 POWER 30 A Power windows
3 RR DOOR RH 25 A Power windows
4 RR DOOR LH 25 A Power windows
5 FR FOG 10 A Fog lights
6 OBD 7.5 A On-board diagnosis system
7 A/C W/PMP 7.5 A No circuit
8 STOP 10 AVehicle stability control system,
multiplex communication system,
multiport fuel injection system/
sequential multiport fuel injection
system, shift lock system, stop
lights

550 4-3. Do-it-yourself maintenance
9 DOOR NO.2 25 A Power windows
10 AM1 7.5 A Starting system
11 P/SEAT (PS) 30 A Power seat
12 A/C NO.1 10 A Air conditioning system
13 FUEL OPN 7.5 A No circuit
14 S/ROOF 20 A Electric moon roof
15 TAIL 15 AParking lights, tail lights, license
plate lights, fog lights, trailer lights
16 PANEL 7.5 AGlove box light, instrument panel
lights, switch illumination
17 ECU IG NO.1 10 A Multiplex communication system,
electric moon roof, electronically
controlled automatic transmission
system, power back door, seat
heaters, tire pressure warning sys-
tem, electric power steering, anti-
glare inside rear view mirror, shift
lock system, tire pressure warning
system
18 ECU IG NO.2 7.5 A Vehicle stability control system
19 A/C NO.2 10 A Air conditioning system
20 WASH 20 AWindshield and rear window
washer
21 S-HTR 20 A Seat heaters
22 GAUGE NO.1 10 A Audio system, back-up lights,
charging system, emergency flash-
ers, traction control system, wind-
shield wiper de-icer, air
conditioning system, charging sys-
tem, rear view monitor system,
trailer lights, multiport fuel injection
system/sequential multiport fuel
injection system
FuseAmpereCircuit

551
4-3. Do-it-yourself maintenance
4
Maintenance and care

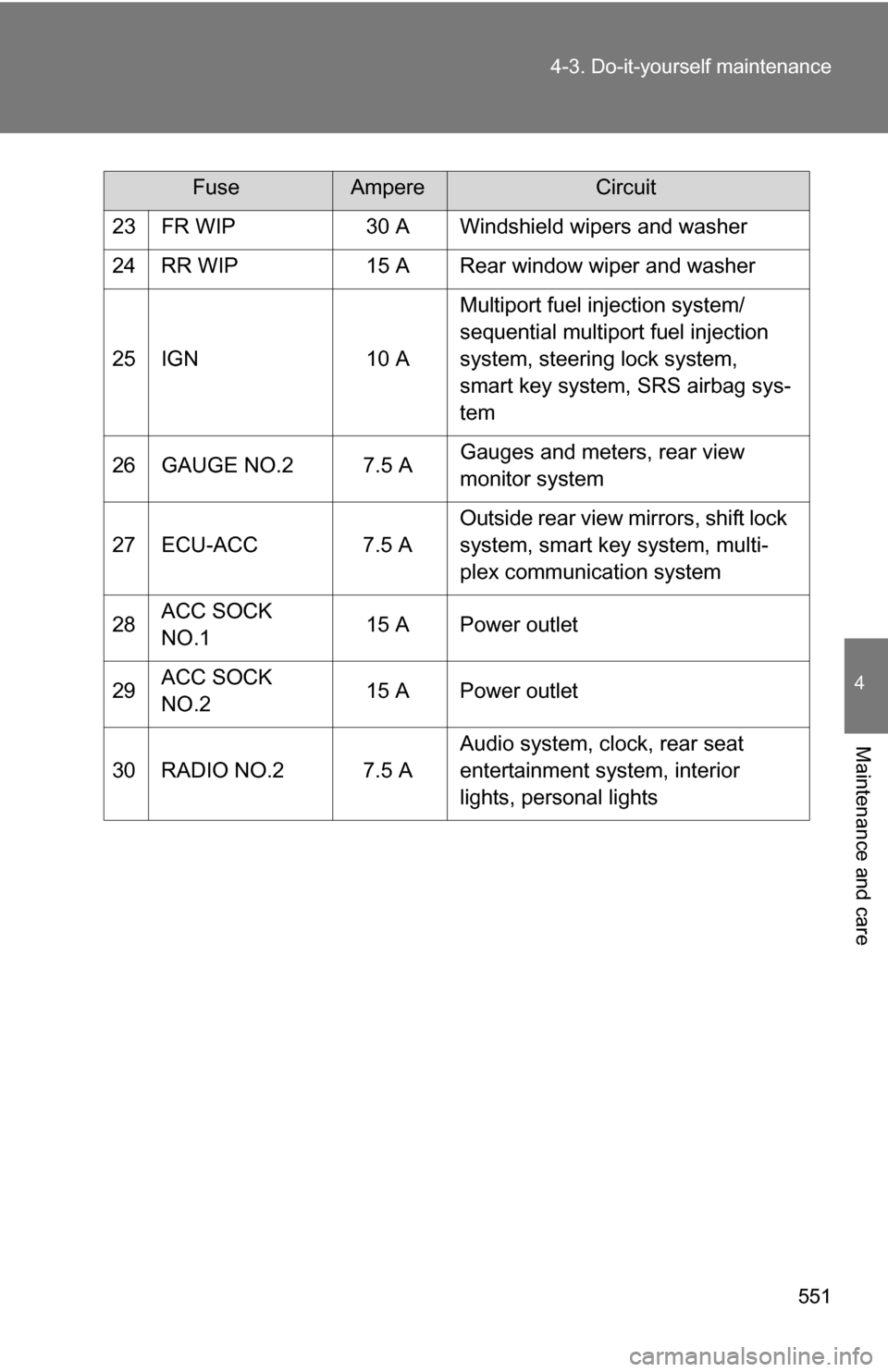

23 FR WIP
30 A Windshield wipers and washer
24 RR WIP 15 A Rear window wiper and washer
25 IGN 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, steering lock system,
smart key system, SRS airbag sys-
tem
26 GAUGE NO.2 7.5 A Gauges and meters, rear view
monitor system
27 ECU-ACC 7.5 A Outside rear view mirrors, shift lock
system, smart key system, multi-
plex communication system
28 ACC SOCK
NO.1 15 A Power outlet
29 ACC SOCK
NO.2 15 A Power outlet
30 RADIO NO.2 7.5 A Audio system, clock, rear seat
entertainment system, interior
lights, personal lights
FuseAmpereCircuit

552 4-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 553)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
