2013 SUBARU BRZ Owners Manual

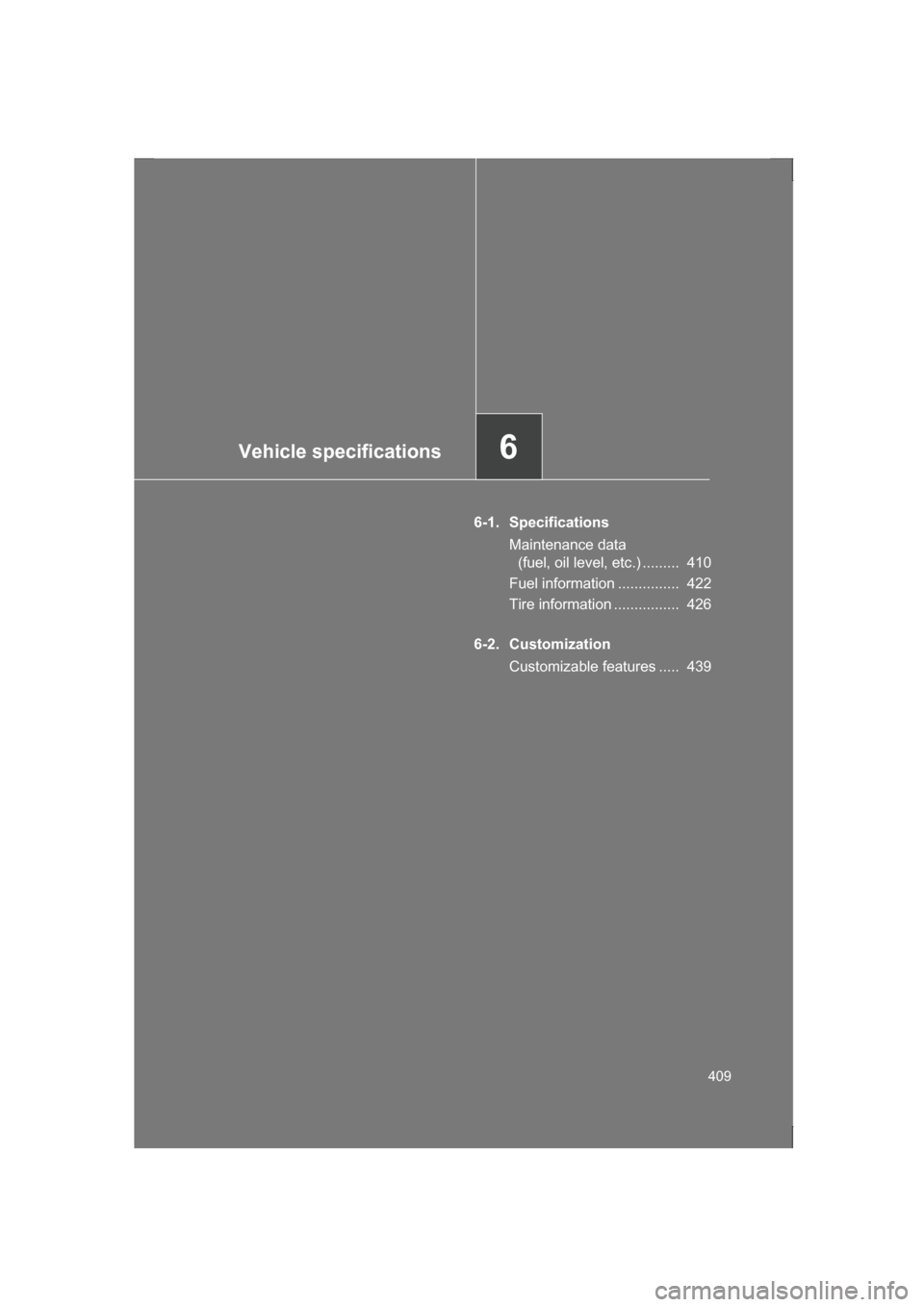

Vehicle specifications6
409
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 410
Fuel information ............... 422
Tire information ................ 426
6-2. Customization Customizable features ..... 439

410
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
* : Unladen vehicle
Overall length 166.7 in. (4235 mm)
Overall width 69.9 in. (1775 mm)
Overall height
* U.S.A. 56.3 in. (1430 mm)
Canada56.1 in. (1425 mm)
Wheelbase 101.2 in. (2570 mm)
TreadFront 59.8 in. (1520 mm)
Rear 60.6 in. (1540 mm)
Vehicle capacity weight
(Occupants + luggage)
Details are described on the tire and load-
ing information label. (
→P. 315)

411
6-1. Specifications
6
Vehicle specifications

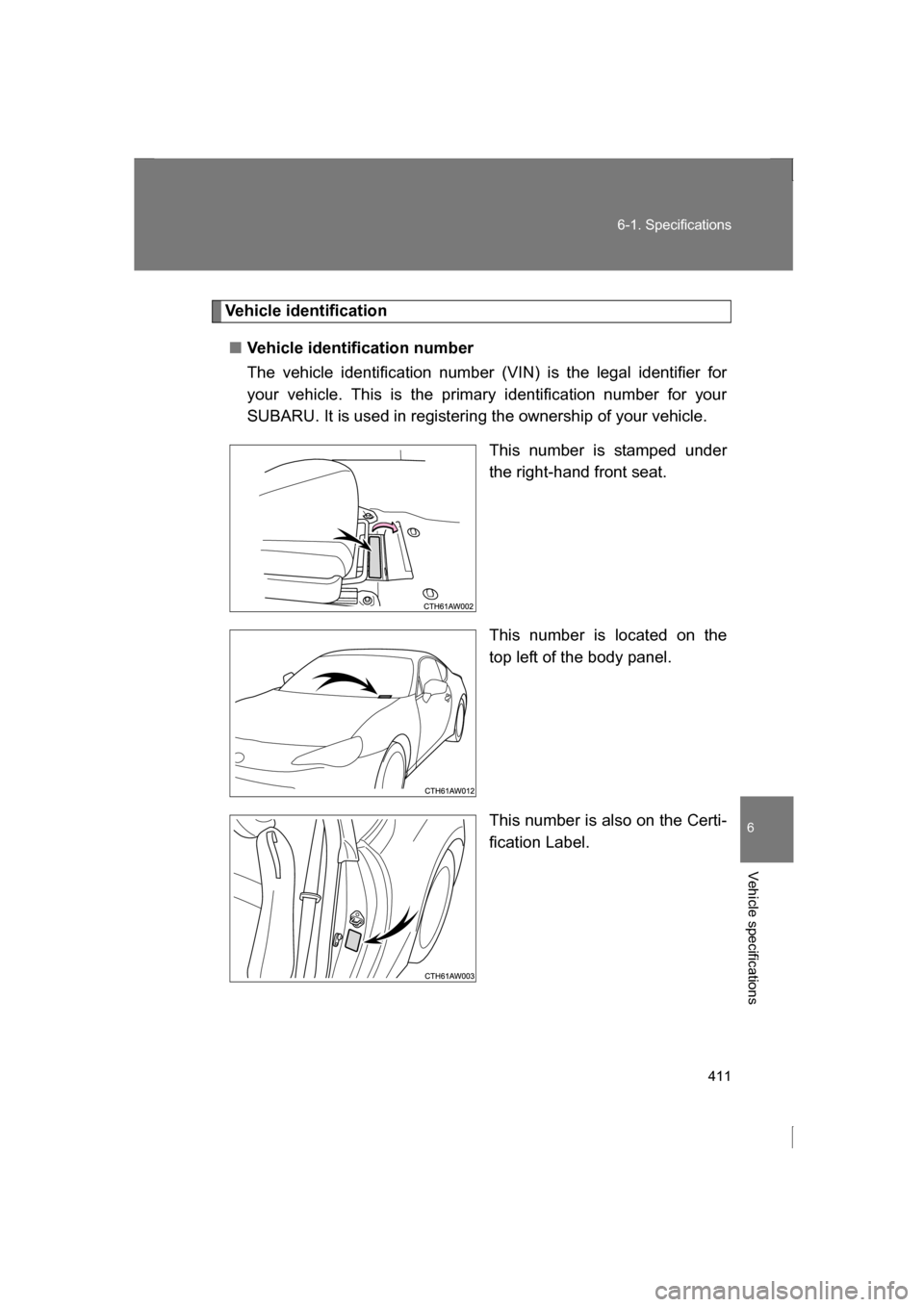

Vehicle identification
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
SUBARU. It is used in registering the ownership of your vehicle.This number is stamped under
the right-hand front seat.
This number is located on the
top left of the body panel.
This number is also on the Certi-
fication Label.

412
6-1. Specifications

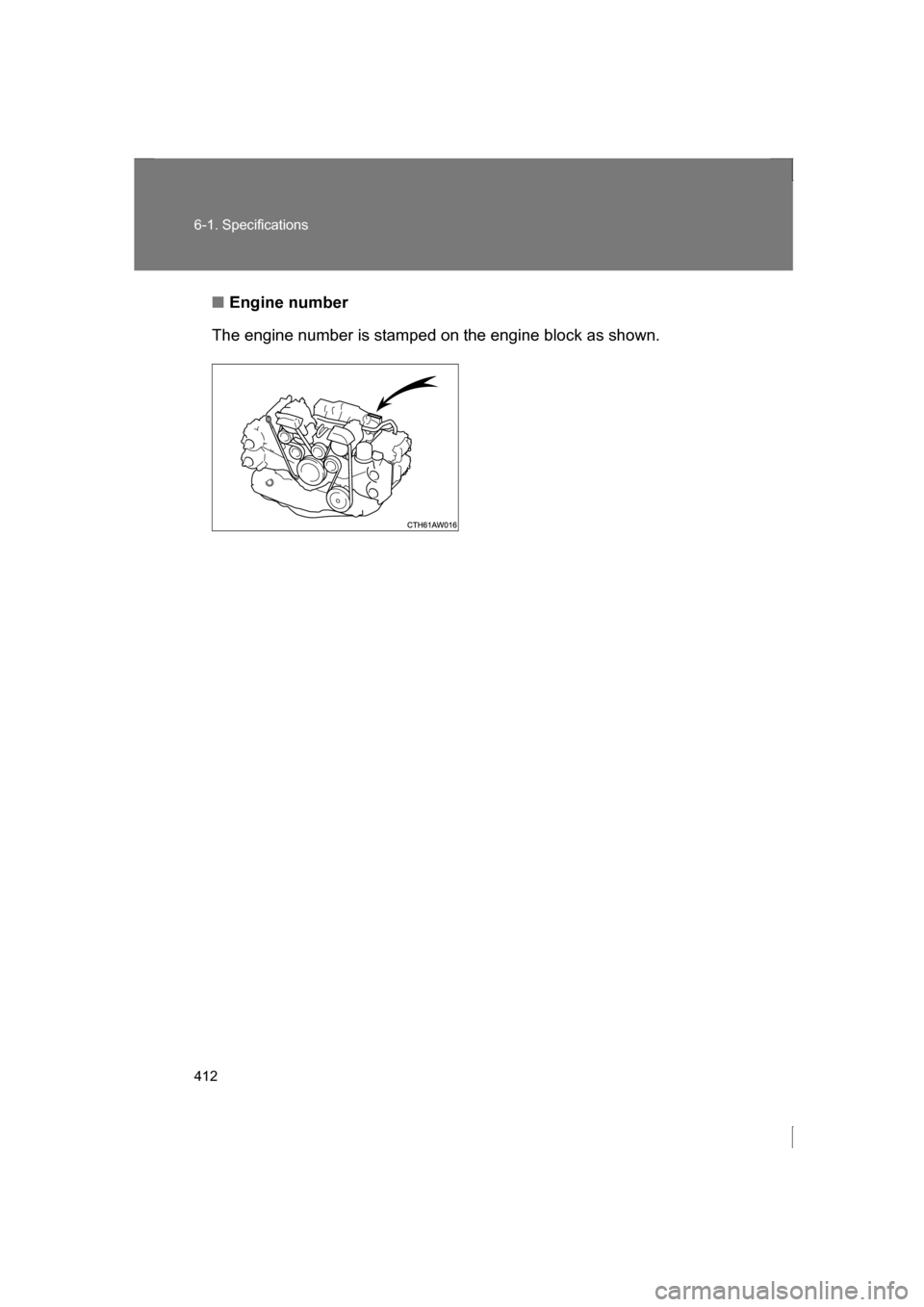

■Engine number
The engine number is stamped on the engine block as shown.

413
6-1. Specifications
6
Vehicle specifications

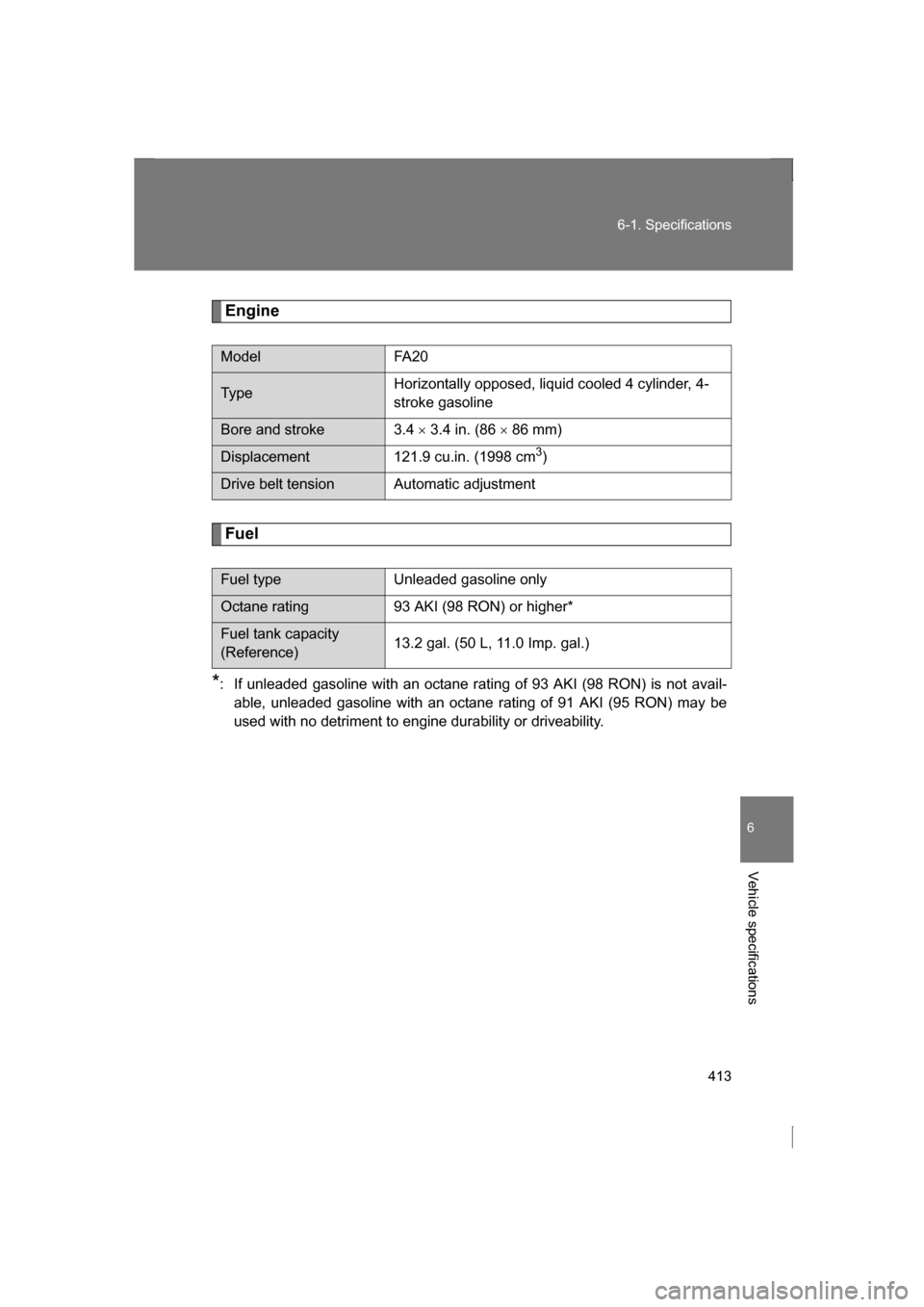

Engine
Fuel
* : If unleaded gasoline with an octane rating of 93 AKI (98 RON) is not avail-
able, unleaded gasoline with an octane rating of 91 AKI (95 RON) may be
used with no detriment to engine durability or driveability.
Model FA20
Ty p e Horizontally opposed, liquid cooled 4 cylinder, 4-
stroke gasoline
Bore and stroke 3.4
× 3.4 in. (86 × 86 mm)
Displacement 121.9 cu.in. (1998 cm 3
)
Drive belt tension Automatic adjustment
Fuel type Unleaded gasoline only
Octane rating 93 AKI (98 RON) or higher*
Fuel tank capacity
(Reference) 13.2 gal. (50 L, 11.0 Imp. gal.)

414
6-1. Specifications

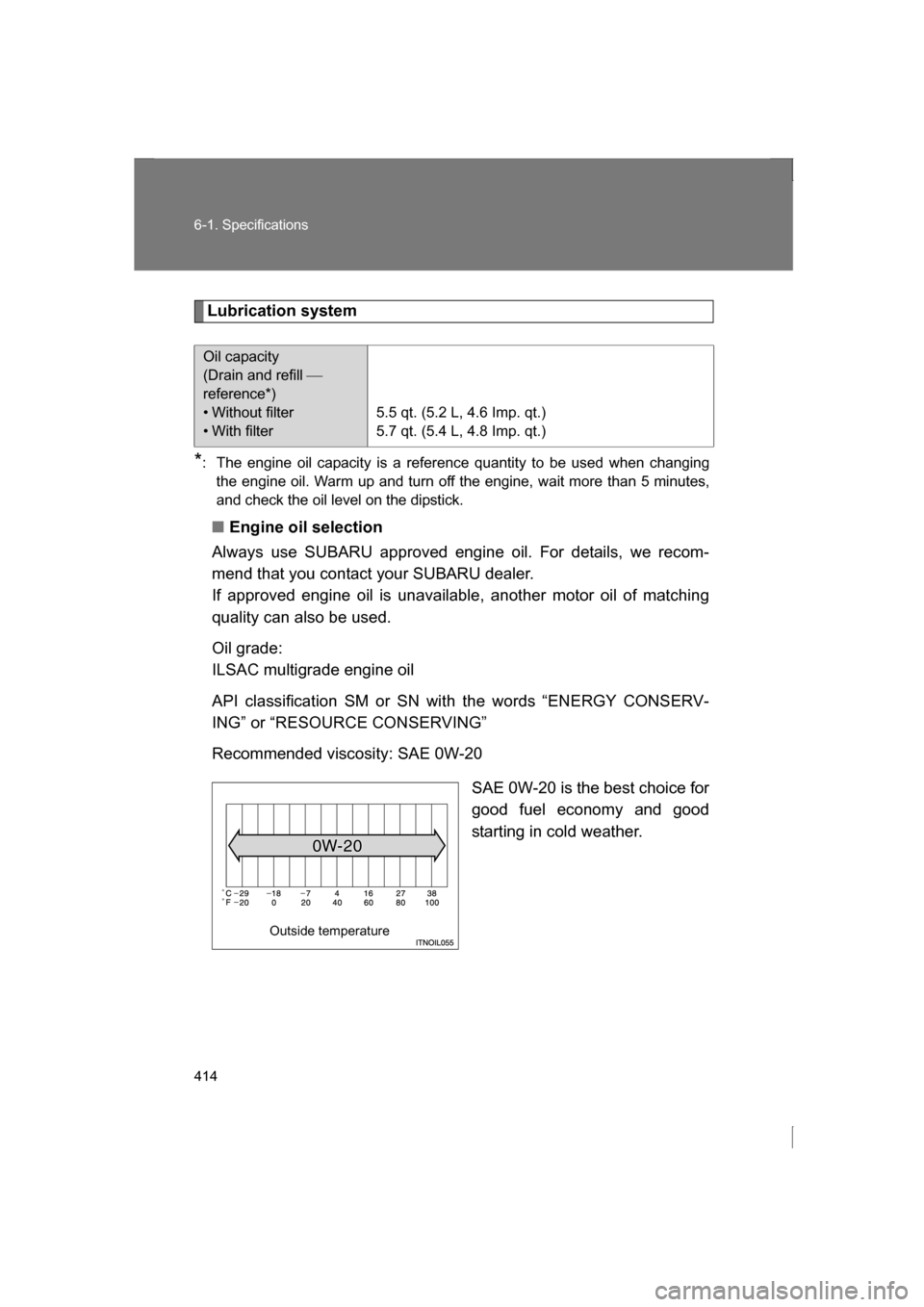

Lubrication system
* : The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■Engine oil selection
Always use SUBARU approved engine oil. For details, we recom-
mend that you contact your SUBARU dealer.
If approved engine oil is unavailable, another motor oil of matching
quality can also be used.
Oil grade:
ILSAC multigrade engine oil
API classification SM or SN with the words “ENERGY CONSERV-
ING” or “RESOURCE CONSERVING”
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
Oil capacity
(Drain and refill 
reference*)

415
6-1. Specifications
6
Vehicle specifications
Oil viscosity (0W-20 is explained here as an example):

416
6-1. Specifications

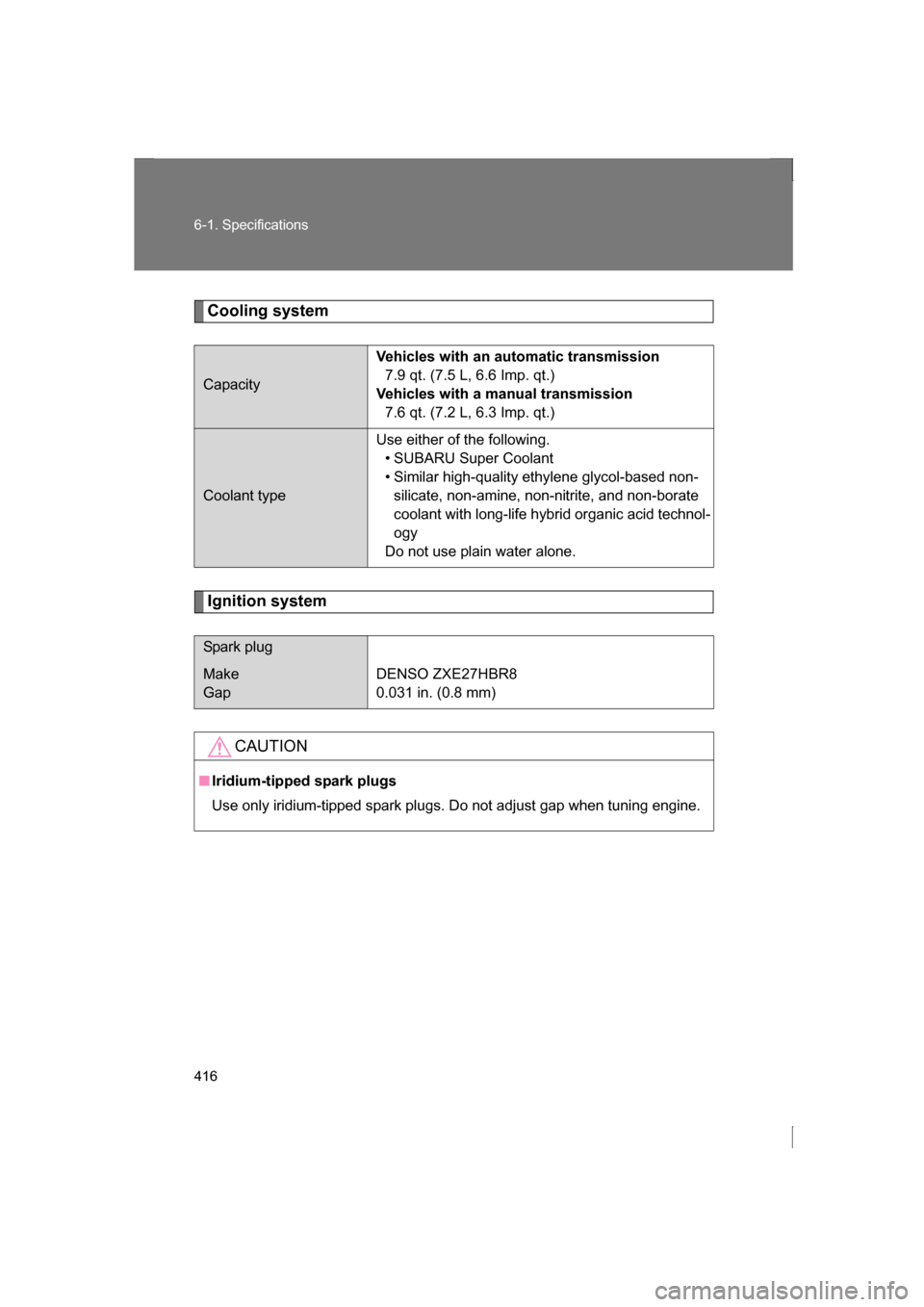

Cooling system
Ignition system
CapacityVehicles with an automatic transmission
7.9 qt. (7.5 L, 6.6 Imp. qt.)
Vehicles with a manual transmission 7.6 qt. (7.2 L, 6.3 Imp. qt.)
Coolant type Use either of the following.
