1-7. Safety information
1
Before driving

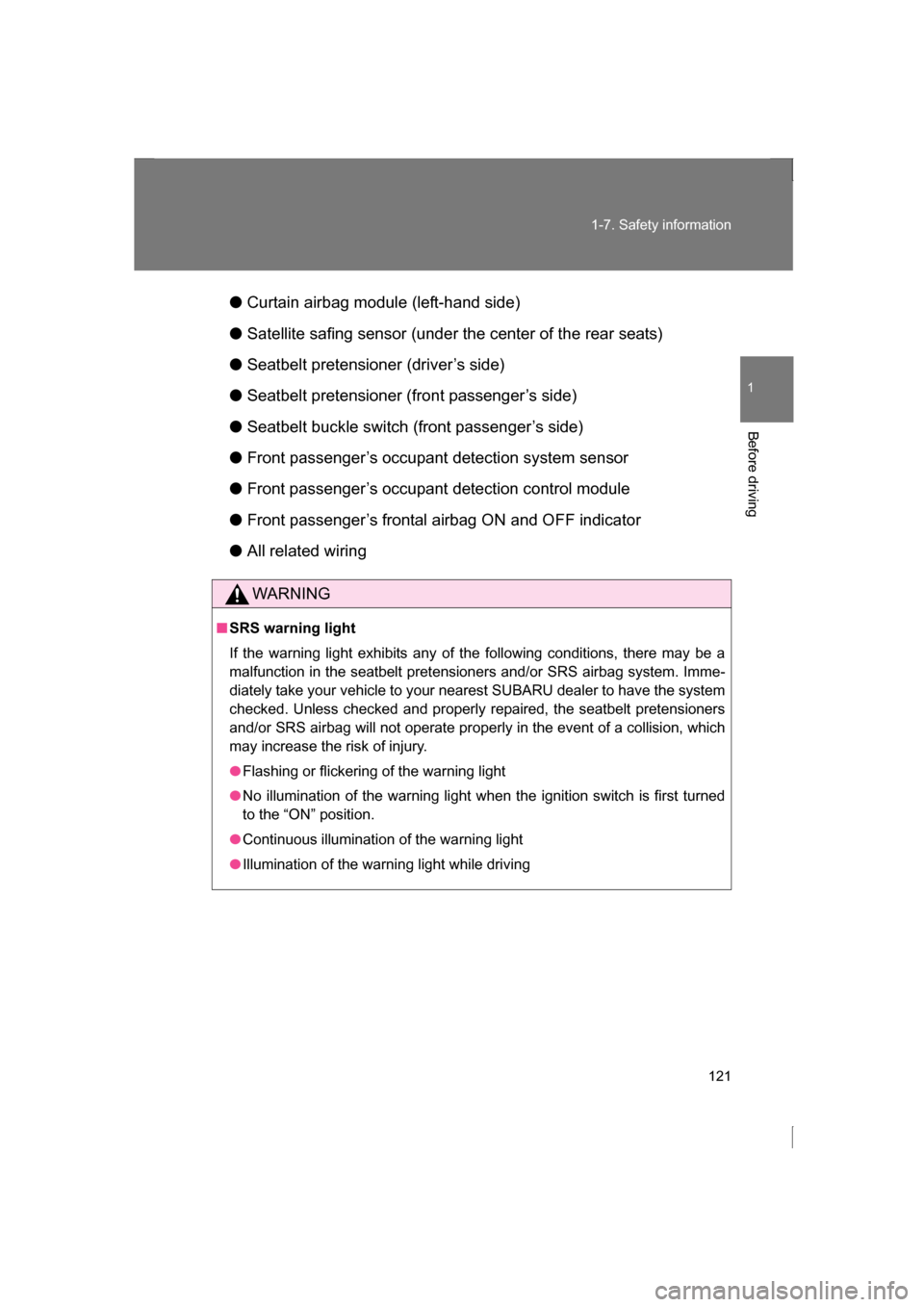

●Curtain airbag module (left-hand side)
● Satellite safing sensor (under the center of the rear seats)
● Seatbelt pretensioner (driver’s side)
● Seatbelt pretensioner (front passenger’s side)
● Seatbelt buckle switch (front passenger’s side)
● Front passenger’s occupant detection system sensor
● Front passenger’s occupant detection control module
● Front passenger’s frontal airbag ON and OFF indicator
● All related wiring
WARNING
■SRS warning light
If the warning light exhibits any of the following conditions, there may be a
malfunction in the seatbelt pretensioners and/or SRS airbag system. Imme-
diately take your vehicle to your nearest SUBARU dealer to have the system
checked. Unless checked and properly repaired, the seatbelt pretensioners
and/or SRS airbag will not operate properly in the event of a collision, which
may increase the risk of injury.
●Flashing or flickering of the warning light
●No illumination of the warning light when the ignition switch is first turned
to the “ON” position.
●Continuous illumination of the warning light
●Illumination of the warning light while driving

122
1-7. Safety information

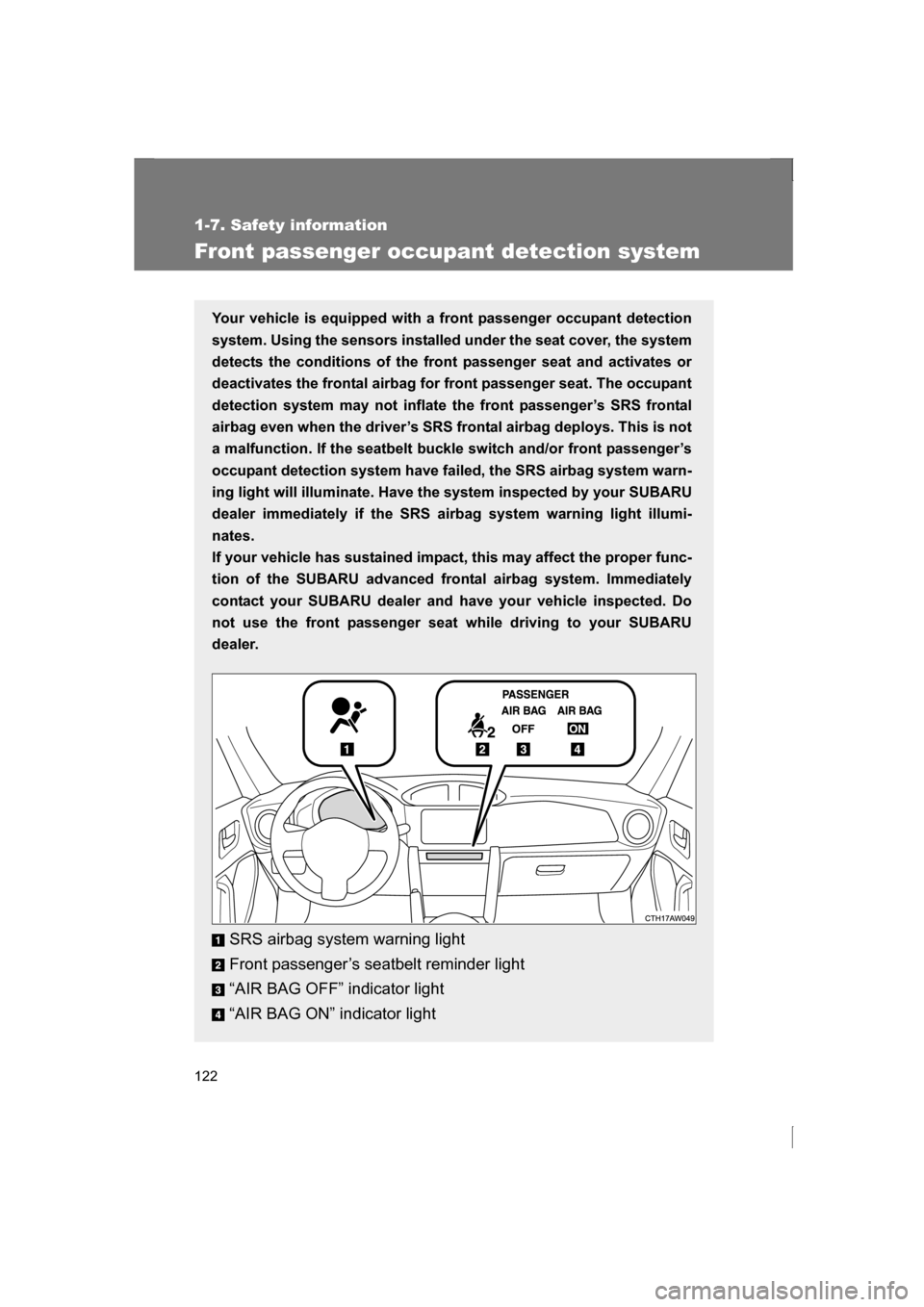

Front passenger occupant detection system
Your vehicle is equipped with a front passenger occupant detection
system. Using the sensors installed under the seat cover, the system
detects the conditions of the front passenger seat and activates or
deactivates the frontal airbag for front passenger seat. The occupant
detection system may not inflate the front passenger’s SRS frontal
airbag even when the driver’s SRS frontal airbag deploys. This is not
a malfunction. If the seatbelt buckl e switch and/or front passenger’s
occupant detection system have fa iled, the SRS airbag system warn-
ing light will illuminate. Have the system inspected by your SUBARU
dealer immediately if the SRS airbag system warning light illumi-
nates.
If your vehicle has sustained impact , this may affect the proper func-
tion of the SUBARU advanced front al airbag system. Immediately
contact your SUBARU dealer a nd have your vehicle inspected. Do
not use the front passenger seat while driving to your SUBARU
dealer.
SRS airbag system warning light
Front passenger’s seatbelt reminder light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light

123
1-7. Safety information
1
Before driving

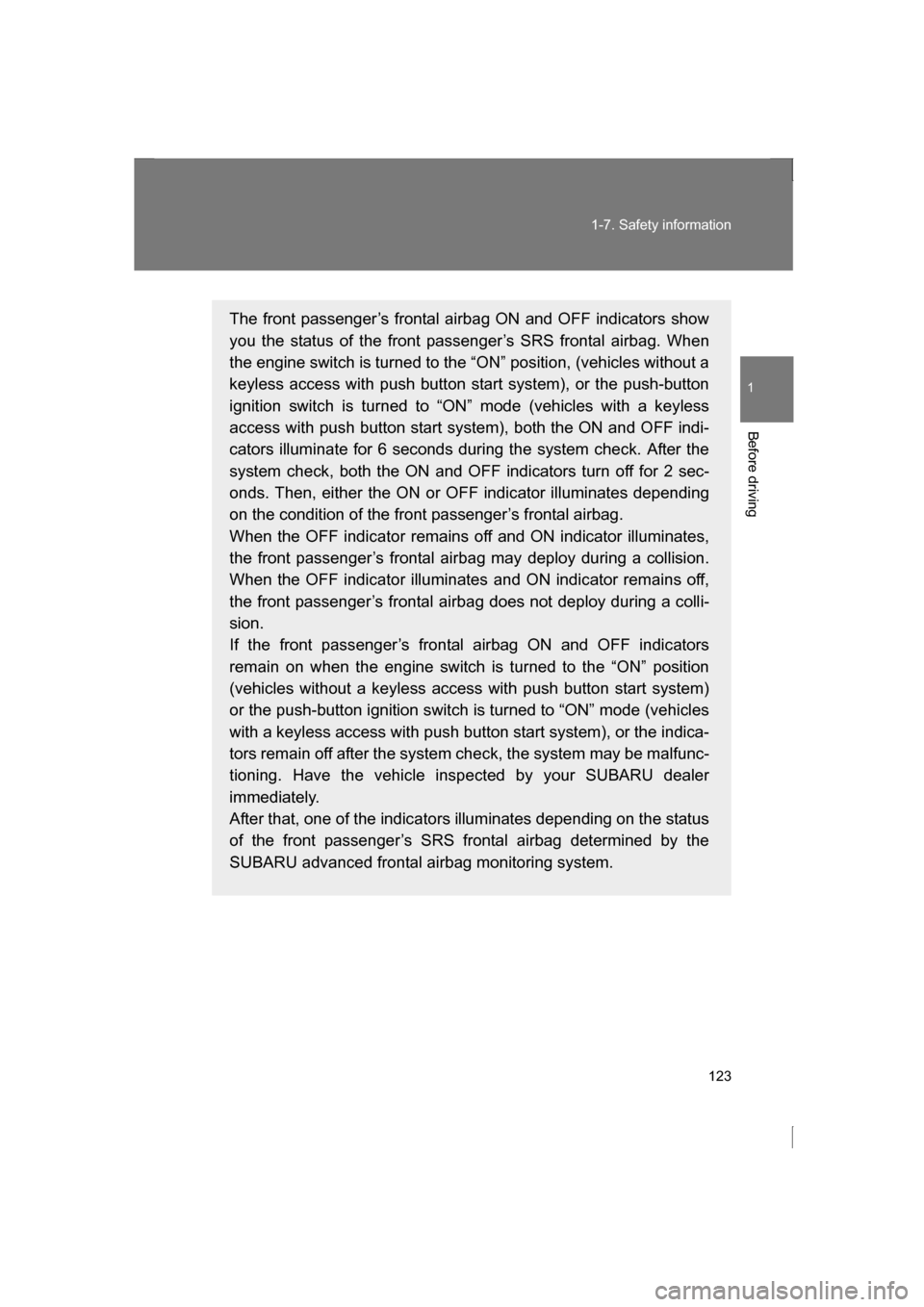

The front passenger’s frontal airbag ON and OFF indicators show
you the status of the front passenger’s SRS frontal airbag. When
the engine switch is turned to the “ON” position, (vehicles without a
keyless access with push button start system), or the push-button
ignition switch is turned to “ON” mode (vehicles with a keyless
access with push button start system), both the ON and OFF indi-
cators illuminate for 6 seconds during the system check. After the
system check, both the ON and OFF indicators turn off for 2 sec-
onds. Then, either the ON or OFF indicator illuminates depending
on the condition of the front passenger’s frontal airbag.
When the OFF indicator remains off and ON indicator illuminates,
the front passenger’s frontal airbag may deploy during a collision.
When the OFF indicator illuminates and ON indicator remains off,
the front passenger’s frontal airbag does not deploy during a colli-
sion.
If the front passenger’s frontal airbag ON and OFF indicators
remain on when the engine switch is turned to the “ON” position
(vehicles without a keyless access with push button start system)
or the push-button ignition switch is turned to “ON” mode (vehicles
with a keyless access with push button start system), or the indica-
tors remain off after the system check, the system may be malfunc-
tioning. Have the vehicle inspected by your SUBARU dealer
immediately.
After that, one of the indicators illuminates depending on the status
of the front passenger’s SRS frontal airbag determined by the
SUBARU advanced frontal airbag monitoring system.

124
1-7. Safety information

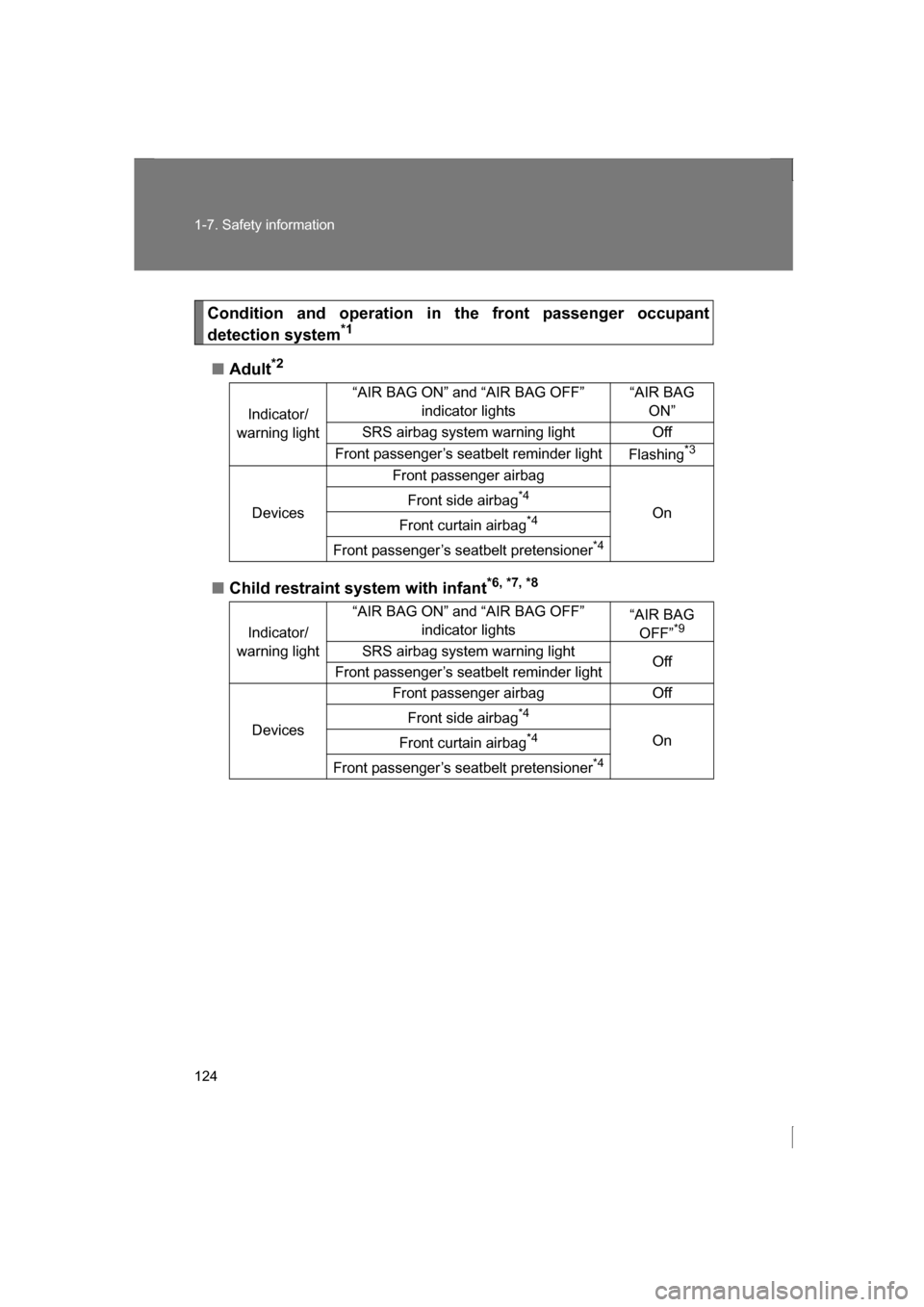

Condition and operation in the front passenger occupant
detection system*1
■Adult*2
■Child restraint system with infant *6, *7, *8
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
ON”
SRS airbag system warning light Off
Front passenger’s seatbelt reminder light Flashing*3
Devices Front passenger airbag
On
Front side airbag
*4
Front curtain airbag *4
Front passenger’s seatbelt pretensioner *4
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
OFF” *9
SRS airbag system warning light Off
Front passenger’s seatbelt reminder light
Devices Front passenger airbag Off
Front side airbag *4
On
Front curtain airbag *4
Front passenger’s seatbelt pretensioner *4

125
1-7. Safety information
1
Before driving

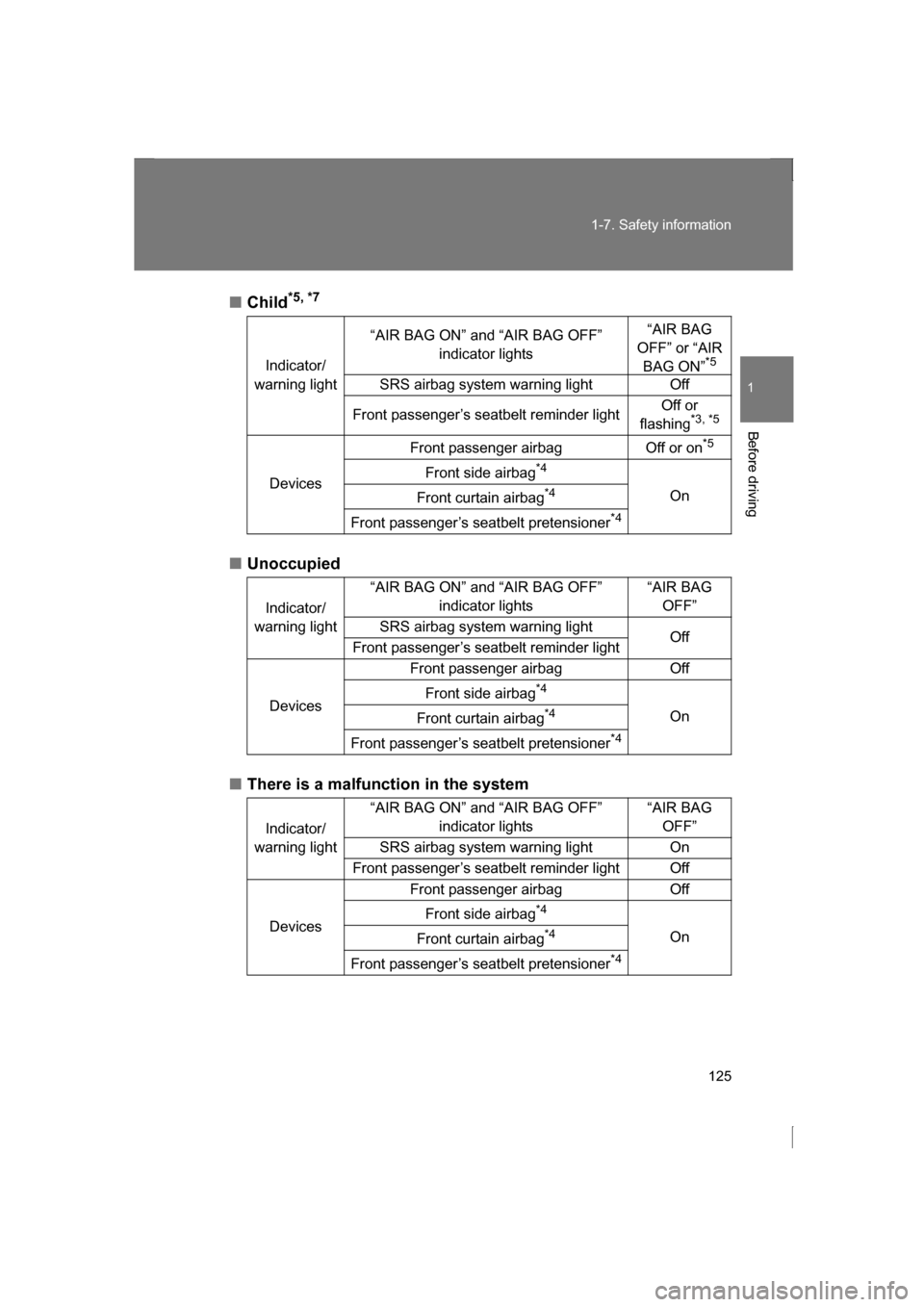

■Child*5, *7
■Unoccupied
■There is a malfunction in the systemIndicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
OFF” or “AIR BAG ON” *5
SRS airbag system warning light Off
Front passenger’s seatbelt reminder light Off or
flashing *3, *5
Devices Front passenger airbag Off or on
*5
Front side airbag *4
On
Front curtain airbag *4
Front passenger’s seatbelt pretensioner *4
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
OFF”
SRS airbag system warning light Off
Front passenger’s seatbelt reminder light
Devices Front passenger airbag Off
Front side airbag *4
On
Front curtain airbag *4
Front passenger’s seatbelt pretensioner *4
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
OFF”
SRS airbag system warning light On
Front passenger’s seatbelt reminder light Off
Devices Front passenger airbag Off
Front side airbag *4
On
Front curtain airbag *4
Front passenger’s seatbelt pretensioner *4

126
1-7. Safety information

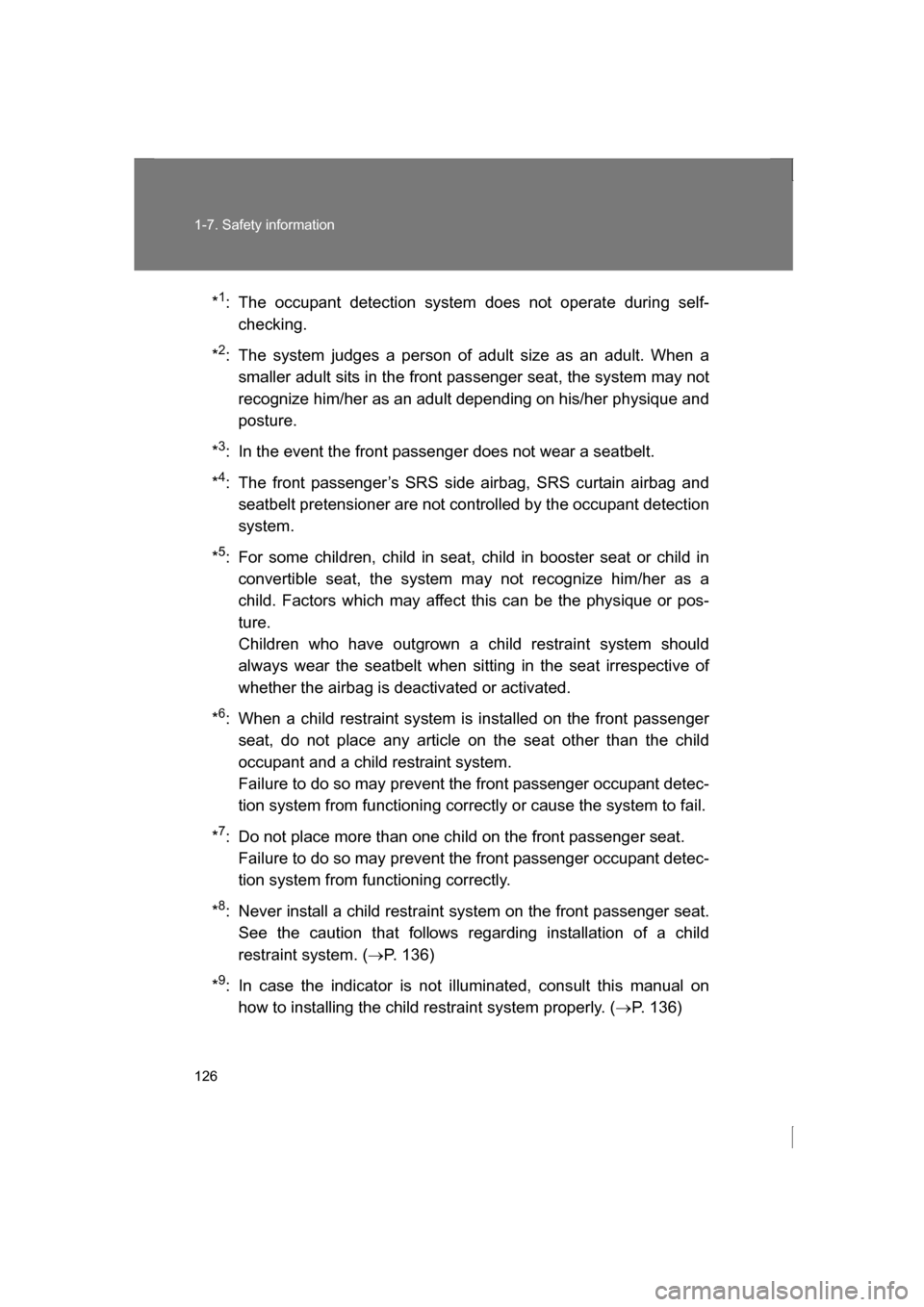

*1
: The occupant detection system does not operate during self-
checking.
* 2
: The system judges a person of adult size as an adult. When a
smaller adult sits in the front passenger seat, the system may not
recognize him/her as an adult depending on his/her physique and
posture.
* 3
: In the event the front passenger does not wear a seatbelt.
* 4
: The front passenger’s SRS side airbag, SRS curtain airbag and
seatbelt pretensioner are not controlled by the occupant detection
system.
* 5
: For some children, child in seat, child in booster seat or child in
convertible seat, the system may not recognize him/her as a
child. Factors which may affect this can be the physique or pos-
ture.
Children who have outgrown a child restraint system should
always wear the seatbelt when sitting in the seat irrespective of
whether the airbag is deactivated or activated.
* 6
: When a child restraint system is installed on the front passenger
seat, do not place any article on the seat other than the child
occupant and a child restraint system.
Failure to do so may prevent the front passenger occupant detec-
tion system from functioning correctly or cause the system to fail.
* 7
: Do not place more than one child on the front passenger seat.
Failure to do so may prevent the front passenger occupant detec-
tion system from functioning correctly.
* 8
: Never install a child restraint system on the front passenger seat.
See the caution that follows regarding installation of a child
restraint system. ( →P. 136)
* 9
: In case the indicator is not illuminated, consult this manual on
how to installing the child restraint system properly. ( →P. 136)

127
1-7. Safety information
1
Before driving
If the passenger’s frontal airbag OFF indicator illuminates and the ON indicator
turns off even when the front passenger’s seat is occupied by an adult
This can be caused by an adult incorrectly sitting in the front passen-
ger’s seat. Perform the following.Vehicles without a keyless access with push button start sys-
tem:
The engine switch is turned to the “LOCK” position.
Vehicles with a keyless access with push button start system:
Turn the push-button ignition switch off.
Ask the front passenger to set the seatback to the upright
position, sit up straight in the center of the seat cushion, cor-
rectly wear the seatbelt, position his/her legs out forward, and
adjust the seat to the rearmost position.
Vehicles without a keyless access with push button start sys-
tem:
The engine switch is turned to the “ON” position.
Vehicles with a keyless access with push button start system:
The push-button ignition switch is turned to “ON” mode.
Turn the OFF indicator remains illuminated while the ON indi-
cator remains off, perform the following.

128
1-7. Safety information

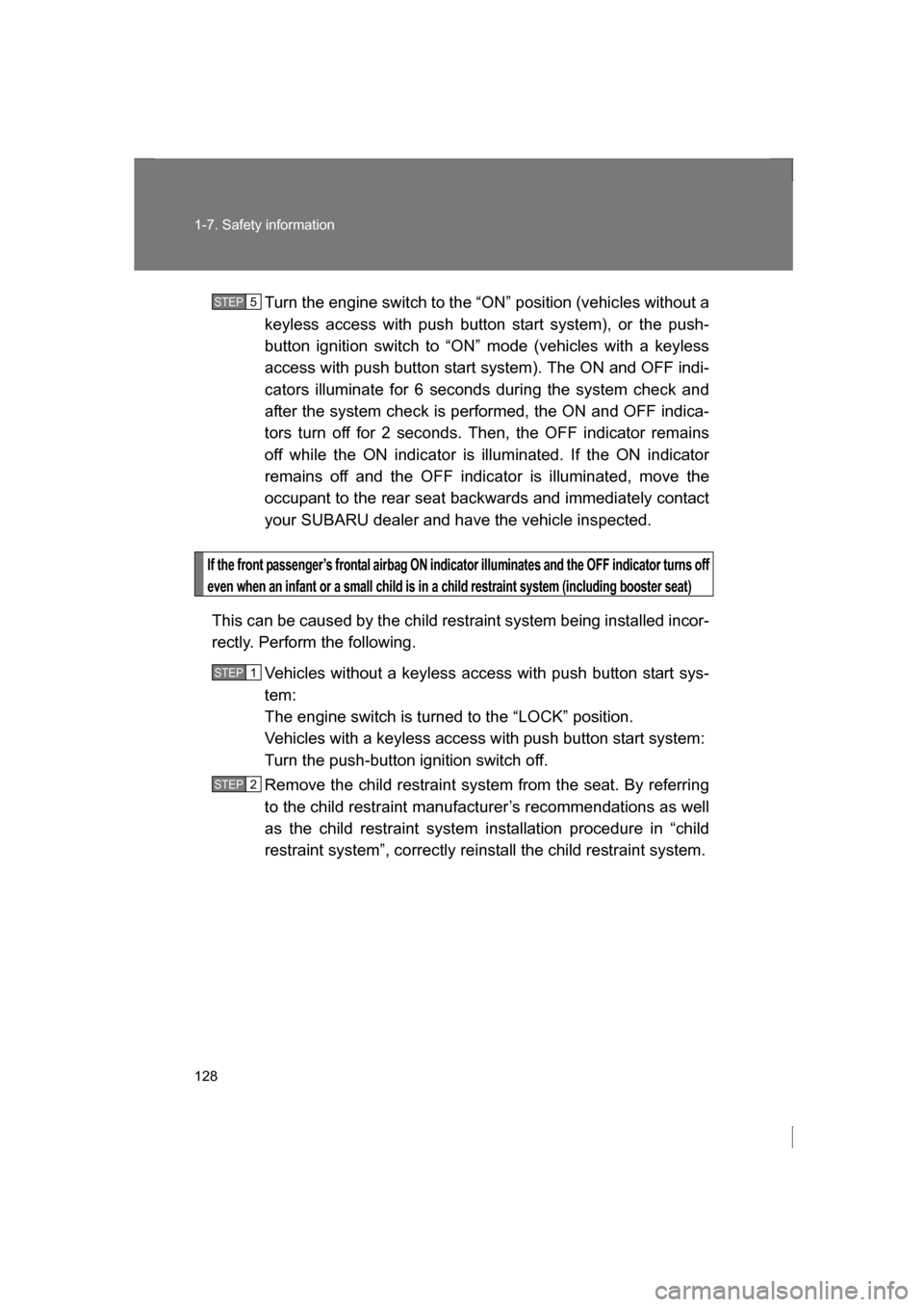

Turn the engine switch to the “ON” position (vehicles without a
keyless access with push button start system), or the push-
button ignition switch to “ON” mode (vehicles with a keyless
access with push button start system). The ON and OFF indi-
cators illuminate for 6 seconds during the system check and
after the system check is performed, the ON and OFF indica-
tors turn off for 2 seconds. Then, the OFF indicator remains
off while the ON indicator is illuminated. If the ON indicator
remains off and the OFF indicator is illuminated, move the
occupant to the rear seat backwards and immediately contact
your SUBARU dealer and have the vehicle inspected.
If the front passenger’s frontal airbag ON indicator illuminates and the OFF indicator turns off
even when an infant or a small child is in a child restraint system (including booster seat)
This can be caused by the child restraint system being installed incor-
rectly. Perform the following.
Vehicles without a keyless access with push button start sys-
tem:
The engine switch is turned to the “LOCK” position.
Vehicles with a keyless access with push button start system:
Turn the push-button ignition switch off.
Remove the child restraint system from the seat. By referring
to the child restraint manufacturer’s recommendations as well
as the child restraint system installation procedure in “child
restraint system”, correctly reinstall the child restraint system.
STEP 5
STEP 1
STEP 2
