2013 SUBARU BRZ Owners Manual

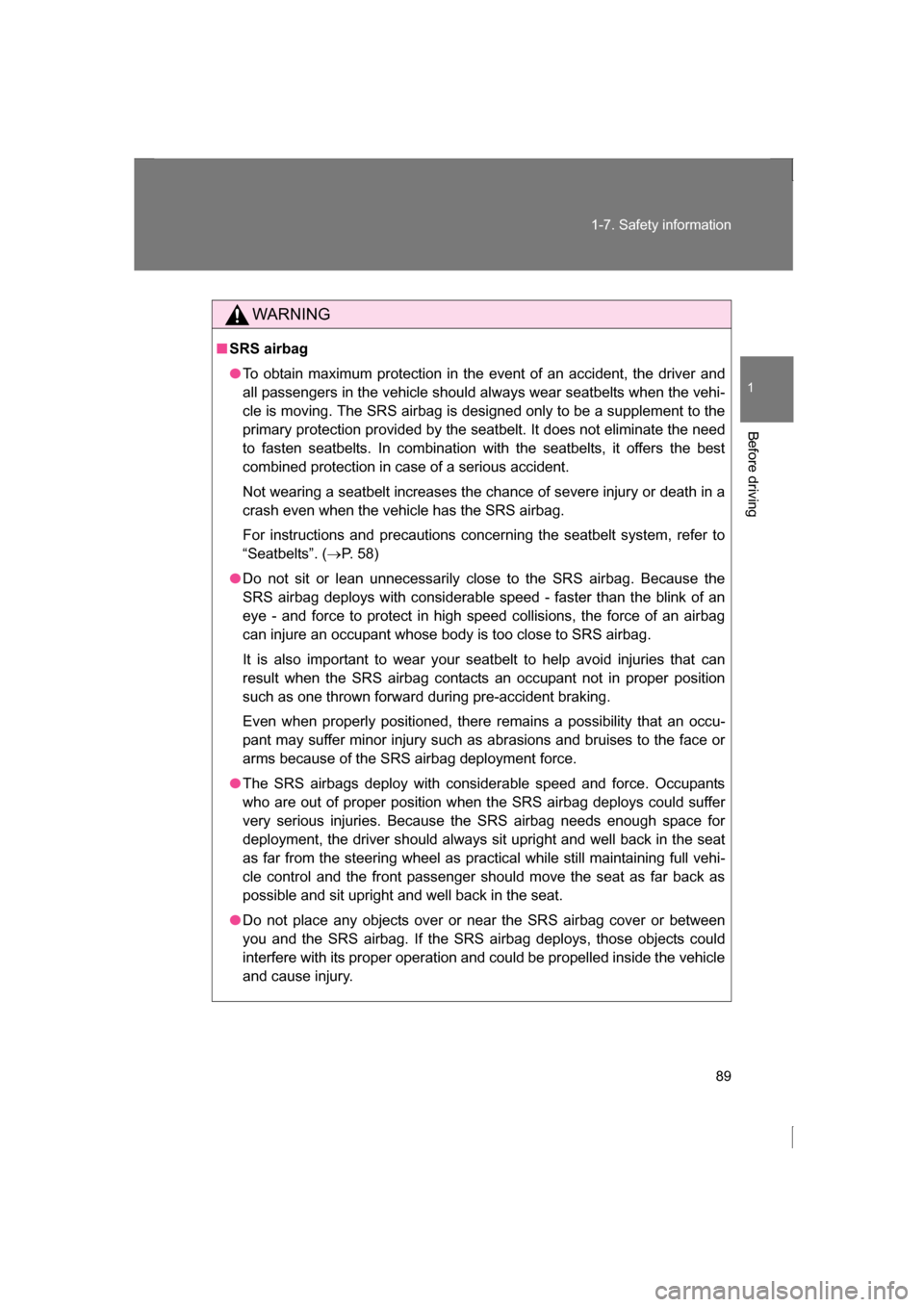

89
1-7. Safety information
1
Before driving
WARNING
■SRS airbag
●To obtain maximum protection in the event of an accident, the driver and
all passengers in the vehicle should always wear seatbelts when the vehi-
cle is moving. The SRS airbag is designed only to be a supplement to the
primary protection provided by the seatbelt. It does not eliminate the need
to fasten seatbelts. In combination with the seatbelts, it offers the best
combined protection in case of a serious accident.
Not wearing a seatbelt increases the chance of severe injury or death in a
crash even when the vehicle has the SRS airbag.
For instructions and precautions concerning the seatbelt system, refer to
“Seatbelts”. (→P. 58)
●Do not sit or lean unnecessarily close to the SRS airbag. Because the
SRS airbag deploys with considerable speed - faster than the blink of an
eye - and force to protect in high speed collisions, the force of an airbag
can injure an occupant whose body is too close to SRS airbag.
It is also important to wear your seatbelt to help avoid injuries that can
result when the SRS airbag contacts an occupant not in proper position
such as one thrown forward during pre-accident braking.
Even when properly positioned, there remains a possibility that an occu-
pant may suffer minor injury such as abrasions and bruises to the face or
arms because of the SRS airbag deployment force.
●The SRS airbags deploy with considerable speed and force. Occupants
who are out of proper position when the SRS airbag deploys could suffer
very serious injuries. Because the SRS airbag needs enough space for
deployment, the driver should always sit upright and well back in the seat
as far from the steering wheel as practical while still maintaining full vehi-
cle control and the front passenger should move the seat as far back as
possible and sit upright and well back in the seat.
●Do not place any objects over or near the SRS airbag cover or between
you and the SRS airbag. If the SRS airbag deploys, those objects could
interfere with its proper operation and could be propelled inside the vehicle
and cause injury.

90
1-7. Safety information
WARNING
■SRS airbag
●Put children aged 12 and under in the
rear seat properly restrained at all
times. The SRS airbag deploys with
considerable speed and force and can
injure or even kill children, especially if
they are 12 years of age and under and
are not restrained or improperly
restrained. Because children are lighter
and weaker than adults, their risk of
being injured from deployment is
greater.
For that reason, we strongly recom-
mend that ALL children (including those
in child seats and those that have out-
grown child restraint devices) sit in the
REAR seat properly restrained at all
times in a child restraint device or in a
seatbelt, whichever is appropriate for
the child's age, height and weight.
Secure ALL types of child restraint
devices (including forward facing child
seats) in the REAR seats at all times.
According to accident statistics, chil-
dren are safer when properly restrained
in the rear seating positions than in the
front seating positions.
For instructions and precautions con-
cerning the child restraint system, refer
to “Child restraint systems”. (→P. 132)

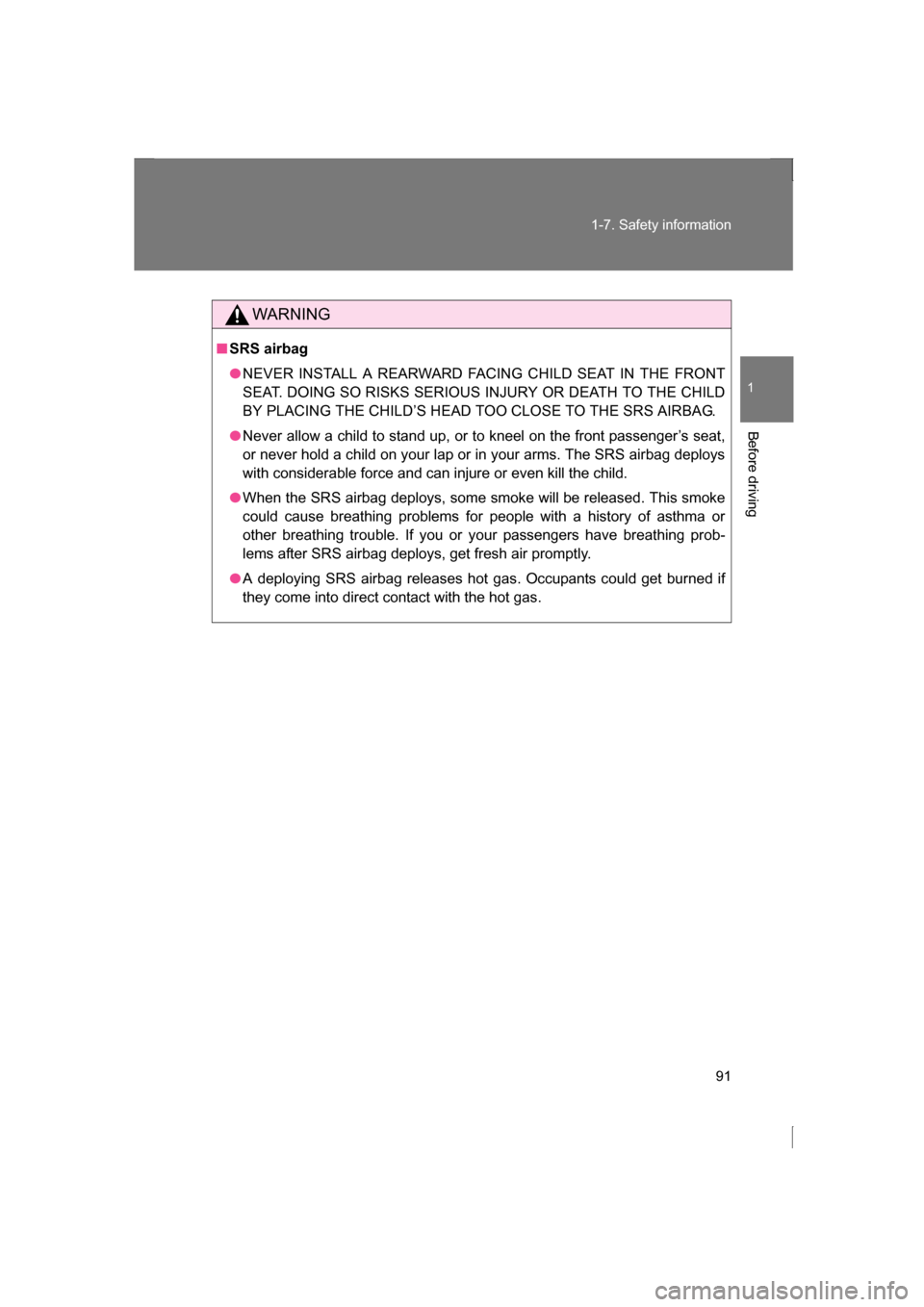

91
1-7. Safety information
1
Before driving
WARNING
■SRS airbag
●NEVER INSTALL A REARWARD FACING CHILD SEAT IN THE FRONT
SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE CHILD
BY PLACING THE CHILD’S HEAD TOO CLOSE TO THE SRS AIRBAG.
●Never allow a child to stand up, or to kneel on the front passenger’s seat,
or never hold a child on your lap or in your arms. The SRS airbag deploys
with considerable force and can injure or even kill the child.
●When the SRS airbag deploys, some smoke will be released. This smoke
could cause breathing problems for people with a history of asthma or
other breathing trouble. If you or your passengers have breathing prob-
lems after SRS airbag deploys, get fresh air promptly.
●A deploying SRS airbag releases hot gas. Occupants could get burned if
they come into direct contact with the hot gas.

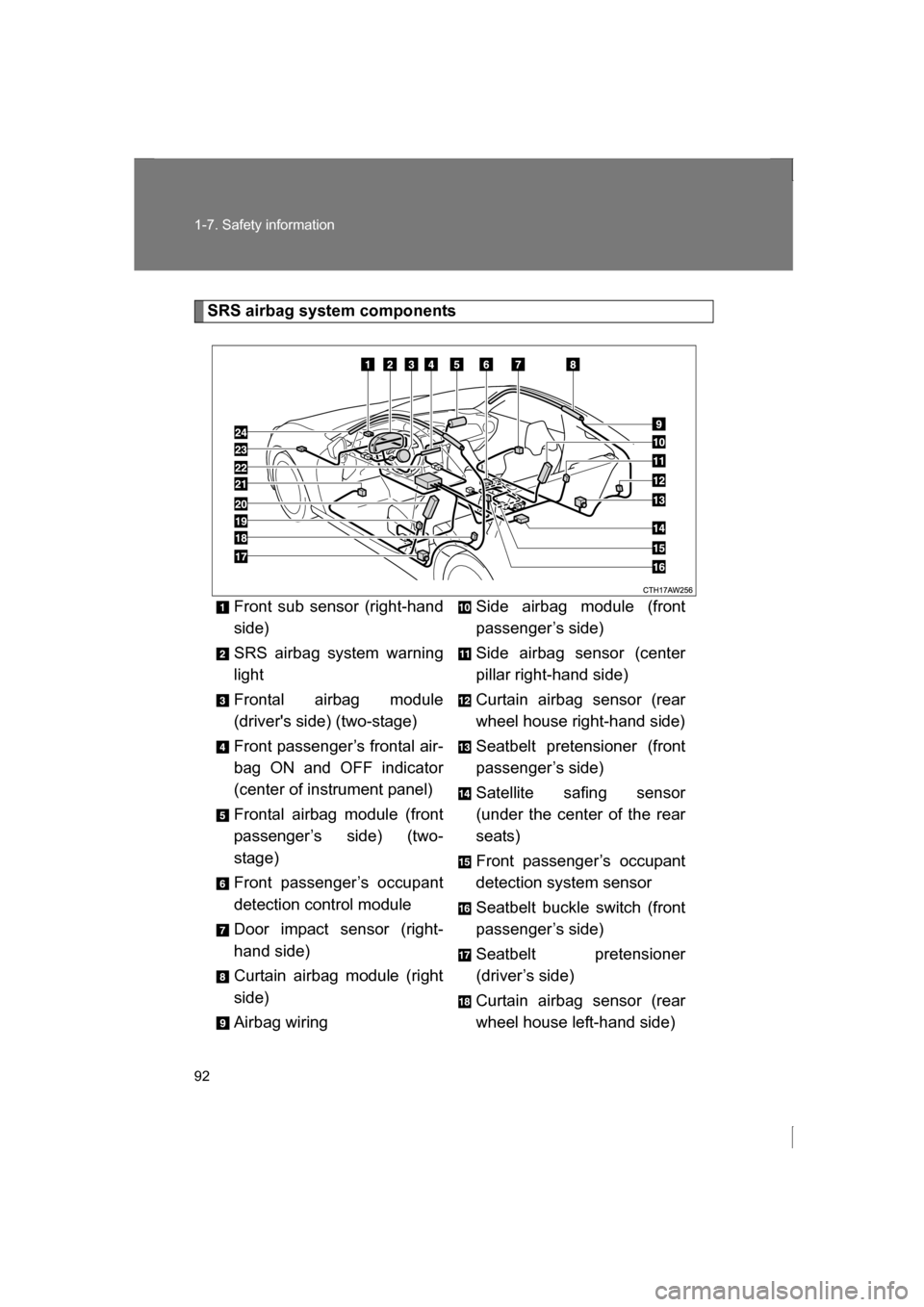

92
1-7. Safety information
SRS airbag system componentsFront sub sensor (right-hand
side)
SRS airbag system warning
light
Frontal airbag module
(driver's side) (two-stage)
Front passenger’s frontal air-
bag ON and OFF indicator
(center of instrument panel)
Frontal airbag module (front
passenger’s side) (two-
stage)
Front passenger ’s occupant
detection control module
Door impact sensor (right-
hand side)
Curtain airbag module (right
side)
Airbag wiring Side airbag module (front
passenger ’s side)
Side airbag sensor (center
pillar right-hand side)
Curtain airbag sensor (rear
wheel house right-hand side)
Seatbelt pretensioner (front
passenger ’s side)
Satellite safing sensor
(under the center of the rear
seats)
Front passenger’s occupant
detection system sensor
Seatbelt buckle switch (front
passenger ’s side)
Seatbelt pretensioner
(driver’s side)
Curtain airbag sensor (rear
wheel house left-hand side)

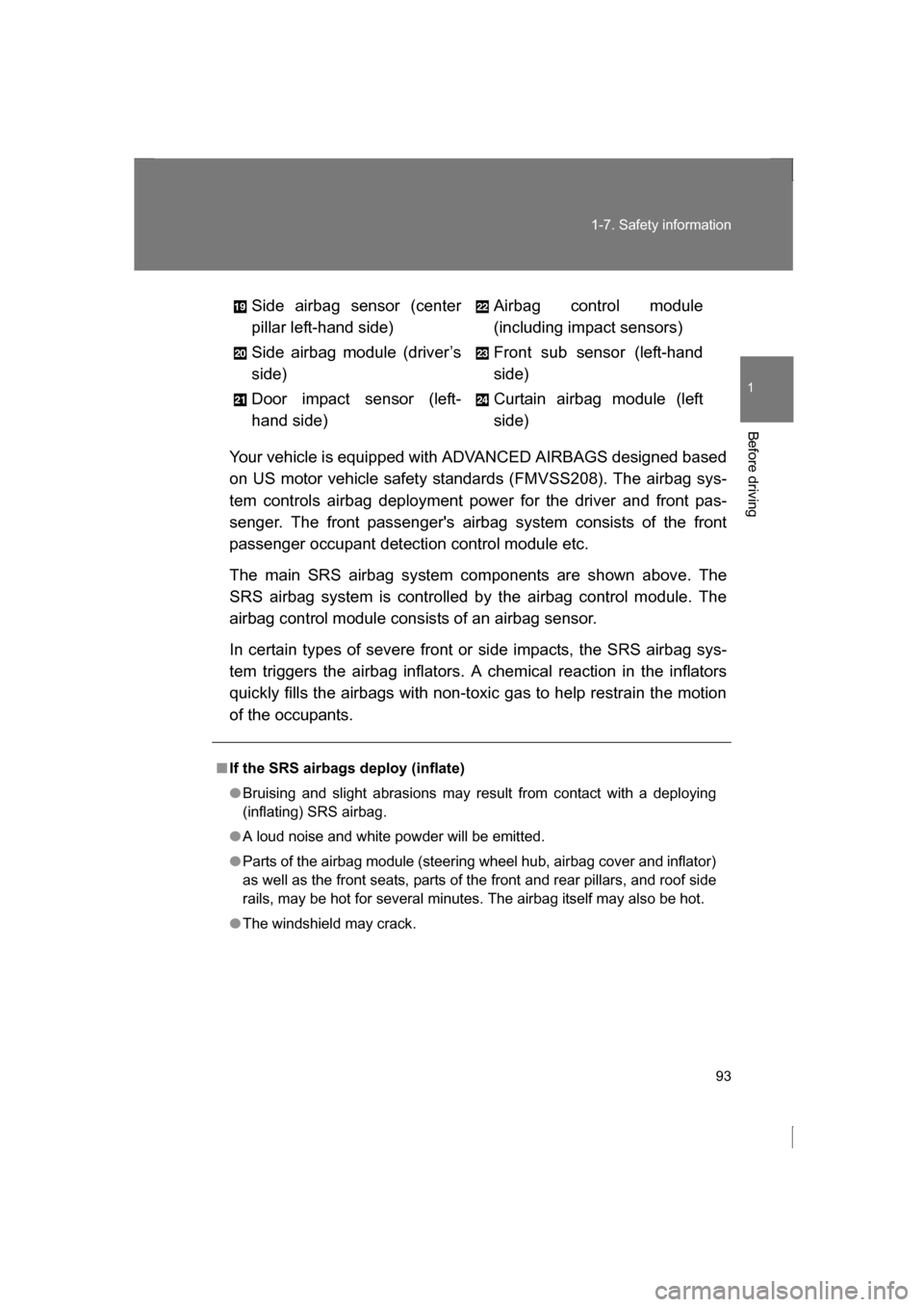

93
1-7. Safety information
1
Before driving
Your vehicle is equipped with ADVANCED AIRBAGS designed based
on US motor vehicle safety standards (FMVSS208). The airbag sys-
tem controls airbag deployment power for the driver and front pas-
senger. The front passenger's airbag system consists of the front
passenger occupant detection control module etc.
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag control module. The
airbag control module consists of an airbag sensor.
In certain types of severe front or side impacts, the SRS airbag sys-
tem triggers the airbag inflators. A chemical reaction in the inflators
quickly fills the airbags with non-toxic gas to help restrain the motion
of the occupants.
Side airbag sensor (center
pillar left-hand side)
Side airbag module (driver’s
side)
Door impact sensor (left-
hand side)Airbag control module
(including impact sensors)
Front sub sensor (left-hand
side)
Curtain airbag module (left
side)
■If the SRS airbags deploy (inflate)
●Bruising and slight abrasions may result from contact with a deploying
(inflating) SRS airbag.
●A loud noise and white powder will be emitted.
●Parts of the airbag module (steering wheel hub, airbag cover and inflator)
as well as the front seats, parts of
the front and rear pillars, and roof side
rails, may be hot for several minutes. The airbag itself may also be hot.
●The windshield may crack.

94
1-7. Safety information
SUBARU advanced frontal airbag systemYour vehicle is equipped with a SUBARU advanced frontal airbag
system that complies with the new advanced frontal airbag require-
ments in the amended Federal Motor Vehicle Safety Standard
(FMVSS) No. 208.
The SUBARU advanced frontal airbag system automatically deter-
mines the deployment force of the driver’s SRS frontal airbag at the
time of deployment as well as whether or not to activate the front pas-
senger’s SRS frontal airbag and, if activated, the deployment force of
the SRS frontal airbag at the time of deployment.
Your vehicle has warning labels on the driver’s and front passenger’s
sun visors beginning with the phrase “EVEN WITH ADVANCED AIR
BAGS” and a tag attached to the glove box lid beginning with the
phrase “Even with Advanced Air Bags”. Make sure that you carefully
read the instructions on the warning labels and tag.
Always wear your seatbelt. The SUBARU advanced frontal airbag
system is a supplemental restraint system and must be used in com-
bination with a seatbelt. All occupants should wear a seatbelt or be
seated in an appropriate child restraint system.
The driver’s SRS frontal airbag is stowed in the center portion of the
steering wheel. The front passenger’s SRS frontal airbag is stowed
near the top of the dashboard under an “SRS AIRBAG” mark.
In a moderate to severe frontal collision, the following components
deploy. ● SRS frontal airbag for driver
● SRS frontal airbag for front passenger
These components supplement the seatbelts by reducing the impact
to the occupant’s head and chest.

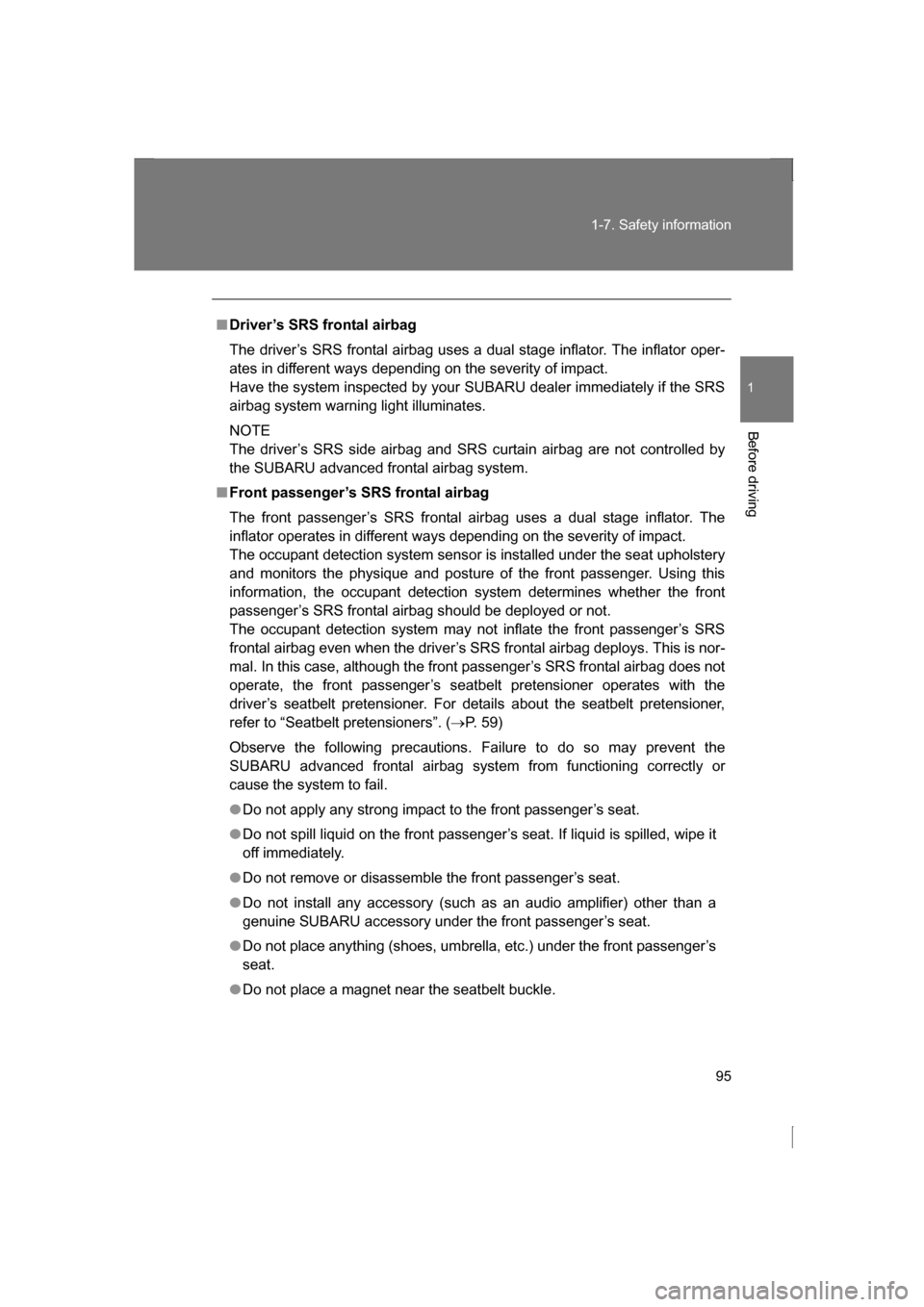

95
1-7. Safety information
1
Before driving
■Driver’s SRS frontal airbag
The driver’s SRS frontal airbag uses a dual stage inflator. The inflator oper-
ates in different ways depending on the severity of impact.
Have the system inspected by your SUBARU dealer immediately if the SRS
airbag system warning light illuminates.
NOTE
The driver’s SRS side airbag and SRS curtain airbag are not controlled by
the SUBARU advanced frontal airbag system.
■Front passenger’s SRS frontal airbag
The front passenger’s SRS frontal airbag uses a dual stage inflator. The
inflator operates in different ways depending on the severity of impact.
The occupant detection system sensor is installed under the seat upholstery
and monitors the physique and posture of the front passenger. Using this
information, the occupant detection system determines whether the front
passenger’s SRS frontal airbag should be deployed or not.
The occupant detection system may not inflate the front passenger’s SRS
frontal airbag even when the driver’s SRS frontal airbag deploys. This is nor-
mal. In this case, although the front passenger’s SRS frontal airbag does not
operate, the front passenger’s seatbelt pretensioner operates with the
driver’s seatbelt pretensioner. For details about the seatbelt pretensioner,
refer to “Seatbelt pretensioners”. ( →P. 59)
Observe the following precautions. Failure to do so may prevent the
SUBARU advanced frontal airbag system from functioning correctly or
cause the system to fail.
●Do not apply any strong impact to the front passenger’s seat.
●Do not spill liquid on the front passenger’s seat. If liquid is spilled, wipe it
off immediately.
●Do not remove or disassemble the front passenger’s seat.
●Do not install any accessory (such as an audio amplifier) other than a
genuine SUBARU accessory under the front passenger’s seat.
●Do not place anything (shoes, umbrella, etc.) under the front passenger’s
seat.
●Do not place a magnet near the seatbelt buckle.

96
1-7. Safety information
If the seatbelt buckle switch and/or front passenger’s occupant detection
system have failed, the SRS airbag system warning light will illuminate.
Have the system inspected by your SUBARU dealer immediately if the SRS
airbag system warning light illuminates.
If your vehicle has sustained impact, this may affect the proper function of
the SUBARU advanced frontal airbag system. Have your vehicle inspected
at your SUBARU dealer. Do not use the front passenger’s seat while driving
the vehicle to your SUBARU dealer.
NOTE
The front passenger’s SRS side airbag and SRS curtain airbag are not con-
trolled by the SUBARU advanced frontal airbag system.
■Passenger’s frontal airbag ON and OFF indicators
→ P. 122
■Occupant detection system
The occupant detection system sensor is installed under the seat upholstery
and monitors the physique and posture of the front passenger. Using this
information, the occupant detection system determines whether the front
passenger’s SRS frontal airbag should be deployed or not.
If the front passenger’s seat cushion is wet, this may adversely affect the
ability of the system to determine deployment. If the seat cushion is wet, the
front passenger should stop sitting on the front passenger’s seat. Wipe off
liquid from the seat immediately, let the seat dry naturally and then check the
SRS airbag system warning light as follows.
●If the SRS airbag system warning light illuminates, keep the seat dry until
the warning light turns off. If the SRS airbag system warning light stays
on even when the seat has dried, do not allow anyone to sit on the front
passenger’s seat and have the system checked by your SUBARU dealer.
●If the SRS airbag system warning light does not illuminate, check that the
front passenger’s frontal airbag ON and OFF indicators work properly. If
the indicators do not work properly, do not allow anyone to sit on the front
passenger’s seat and have the system checked by your SUBARU dealer.
