2013 SUBARU BRZ Owners Manual

265
3-5. Other interior features
3
Interior features

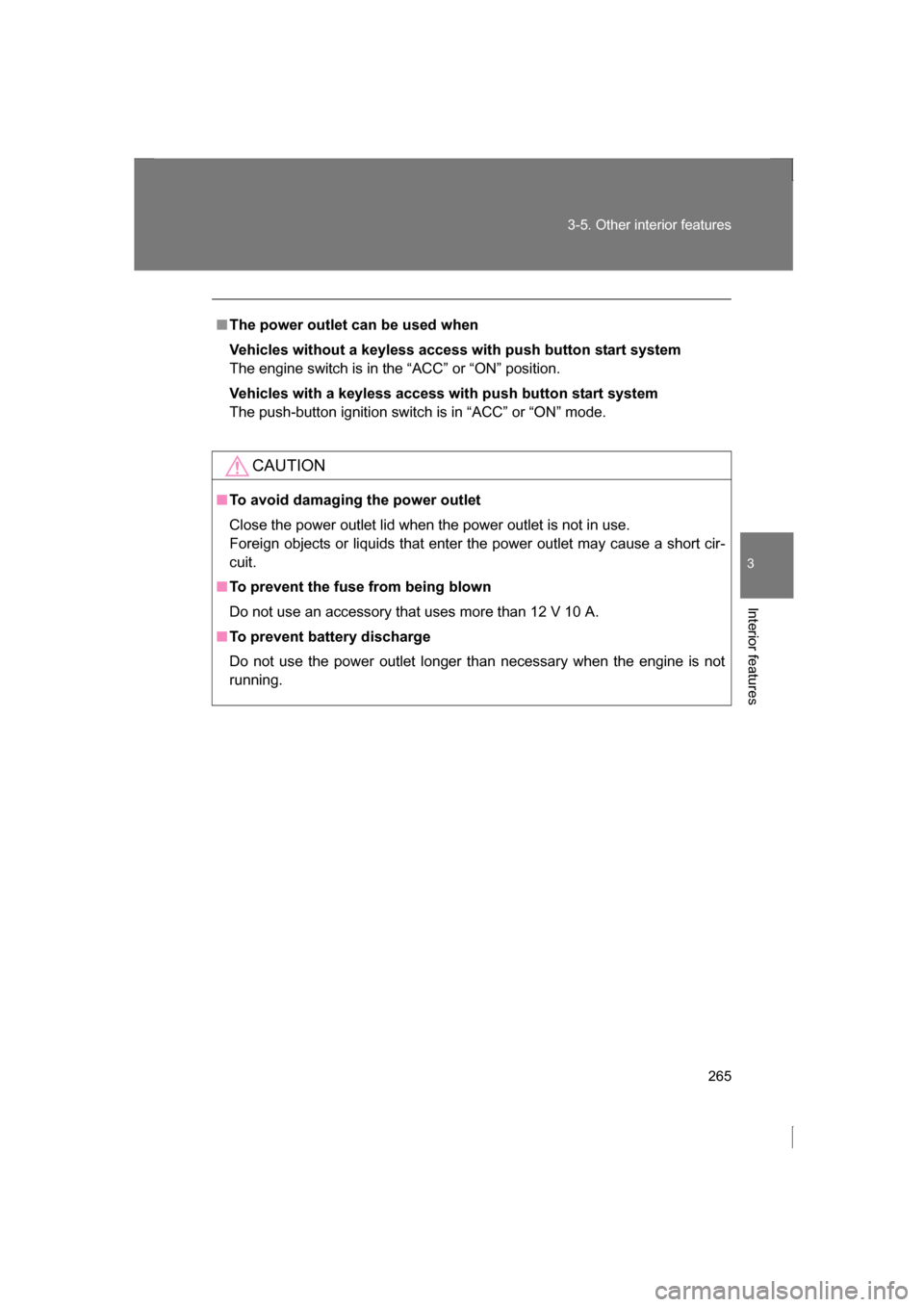

■The power outlet can be used when
Vehicles without a keyless access with push button start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a keyless access with push button start system
The push-button ignition switch is in “ACC” or “ON” mode.
CAUTION
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.

266
3-5. Other interior features
Seat heaters∗
■The seat heaters can be used when
The push-button ignition switch is in “ON” mode.
■When not in use
Turn the seat heater off. The indicator light goes off.
∗
: If equipped
Press the switch to warm the
seats.
The indicator light comes on
when a seat heater is turnedon.
Rapid heating
Normal heating

267
3-5. Other interior features
3
Interior features

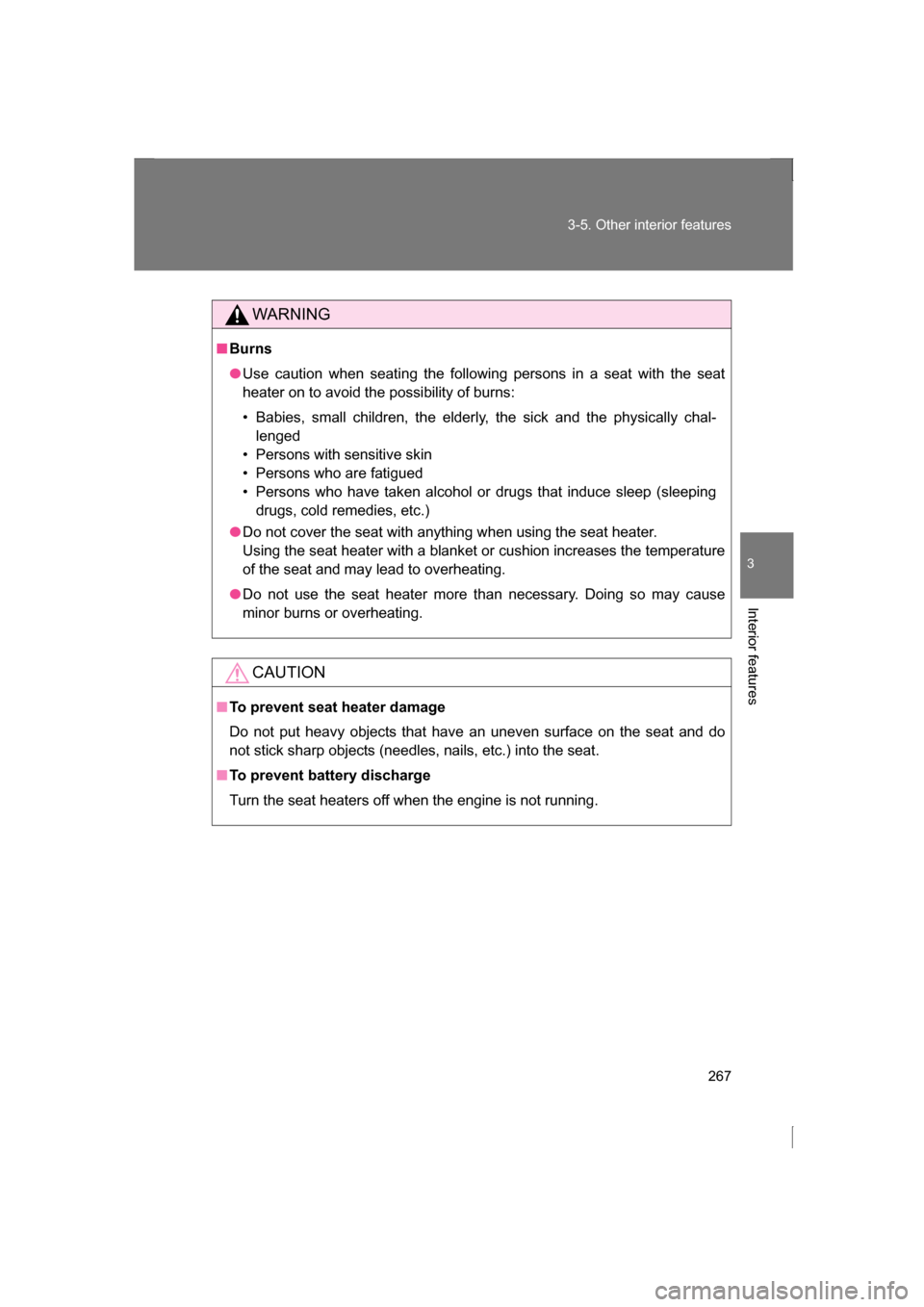

WARNING
■Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:

268
3-5. Other interior features

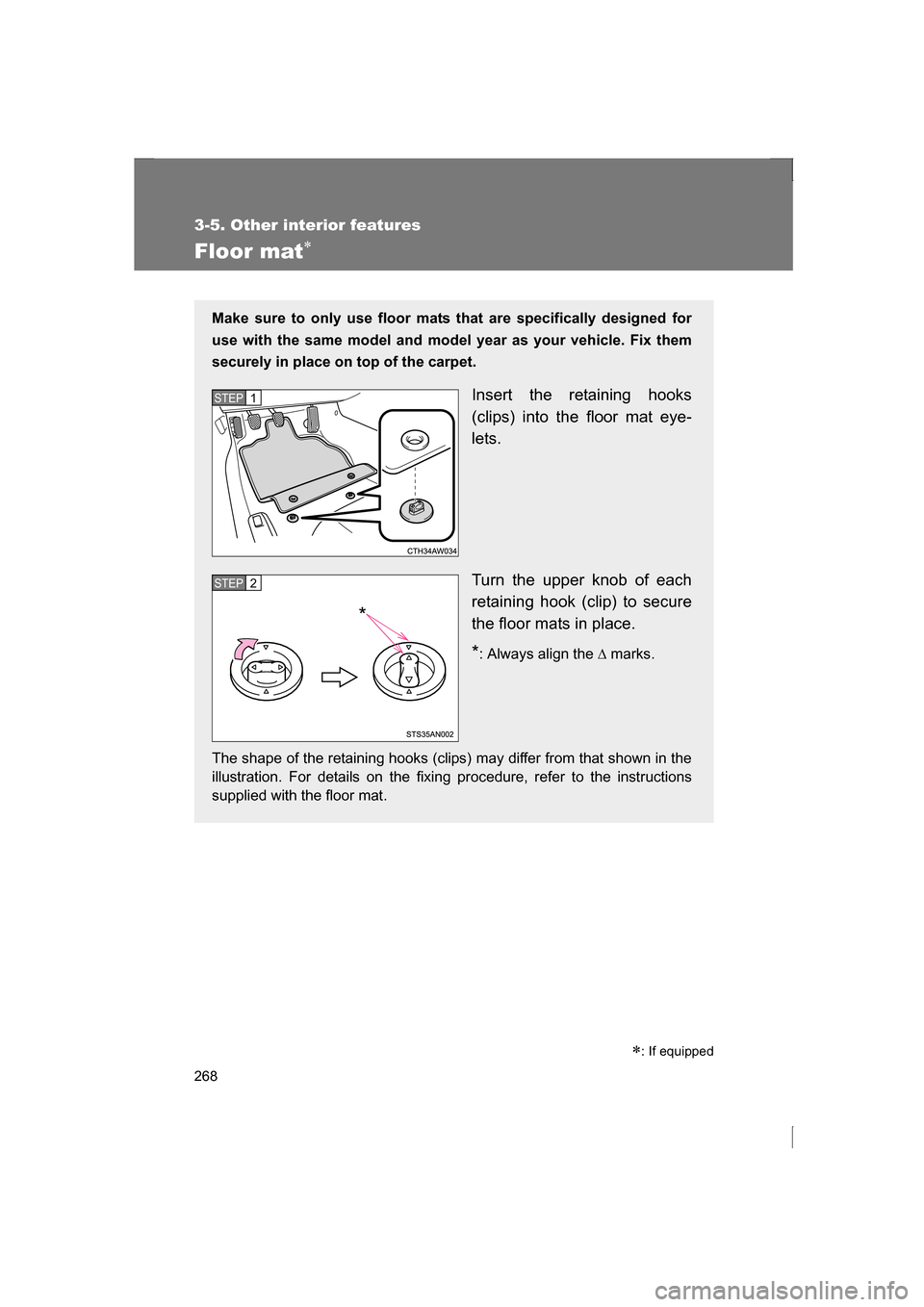

Floor mat∗
∗
: If equipped
Make sure to only use floor mats
that are specifically designed for
use with the same model and model year as your vehicle. Fix them
securely in place on top of the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place. *: Always align the ∆ marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration. For details on the fixing procedure, refer to the instructions
supplied with the floor mat.
STEP 1
STEP 2
*

269
3-5. Other interior features
3
Interior features

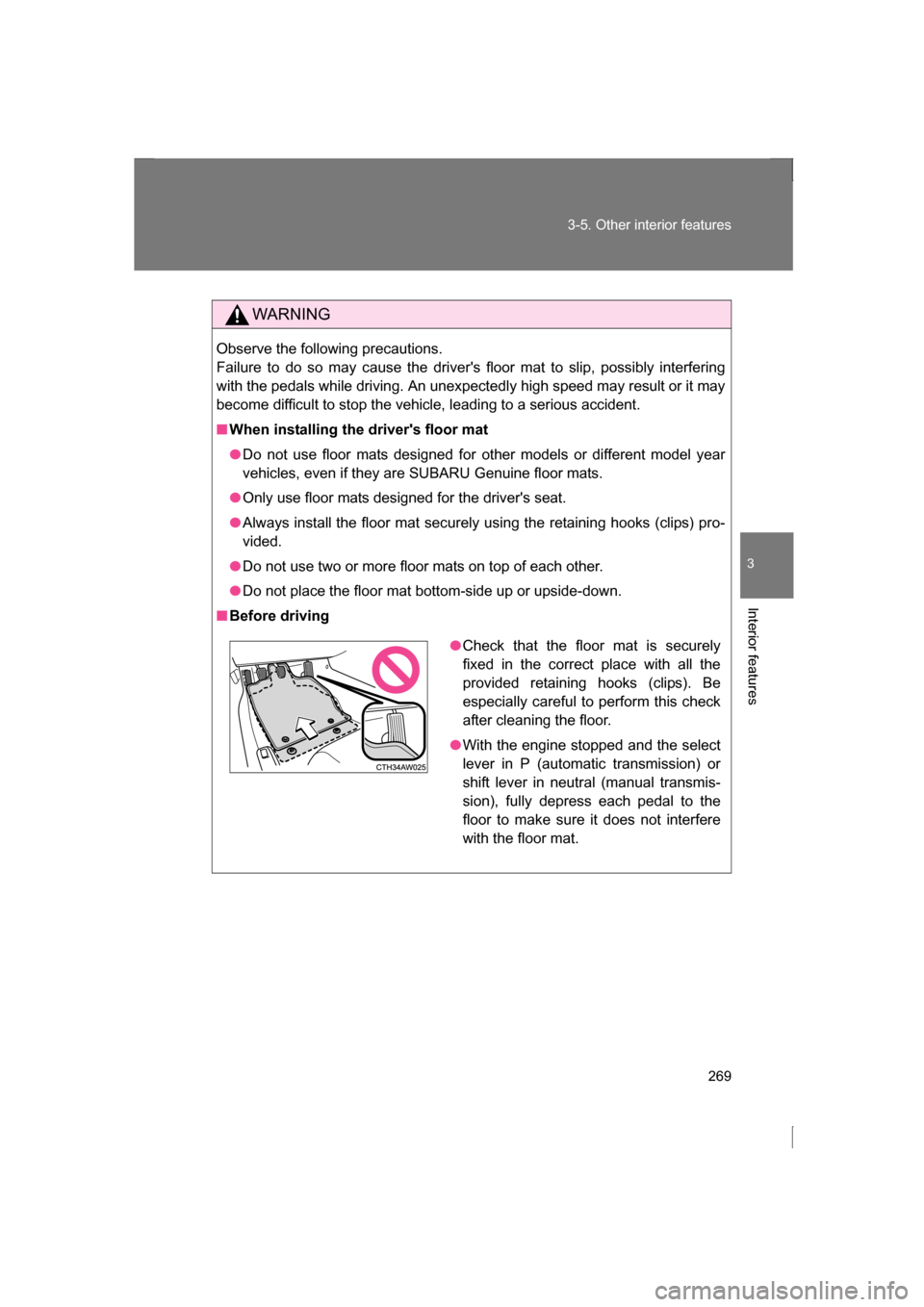

WARNING
Observe the following precautions.
Failure to do so may cause the driver's floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
■When installing the driver's floor mat
●Do not use floor mats designed for ot her models or different model year
vehicles, even if they are SUBARU Genuine floor mats.
●Only use floor mats designed for the driver's seat.
●Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
■Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
●With the engine stopped and the select
lever in P (automatic transmission) or
shift lever in neutral (manual transmis-
sion), fully depress each pedal to the
floor to make sure it does not interfere
with the floor mat.

270
3-5. Other interior features

Maintenance and care4
271
4-1. Maintenance and careCleaning and protecting the vehicle exterior......... 272
Cleaning and protecting the vehicle interior.......... 276
Cleaning and protecting the Alcantara ®
area ....... 280
4-2. Maintenance Maintenance requirements .................. 282
General maintenance....... 285
Emission inspection and maintenance (I/M)
programs........................ 288 4-3. Do-it-yourself
maintenance
Do-it-yourself service precautions .................... 289
Engine hood ..................... 292
Engine compartment ........ 294
Tires ................................. 308
Tire inflation pressure ...... 315
Wheels ............................. 319
Air conditioning filter......... 322
Transmitter/access key battery ............................ 325
Checking and replacing fuses .............................. 329
Light bulbs........................ 337

272
4-1. Maintenance and care

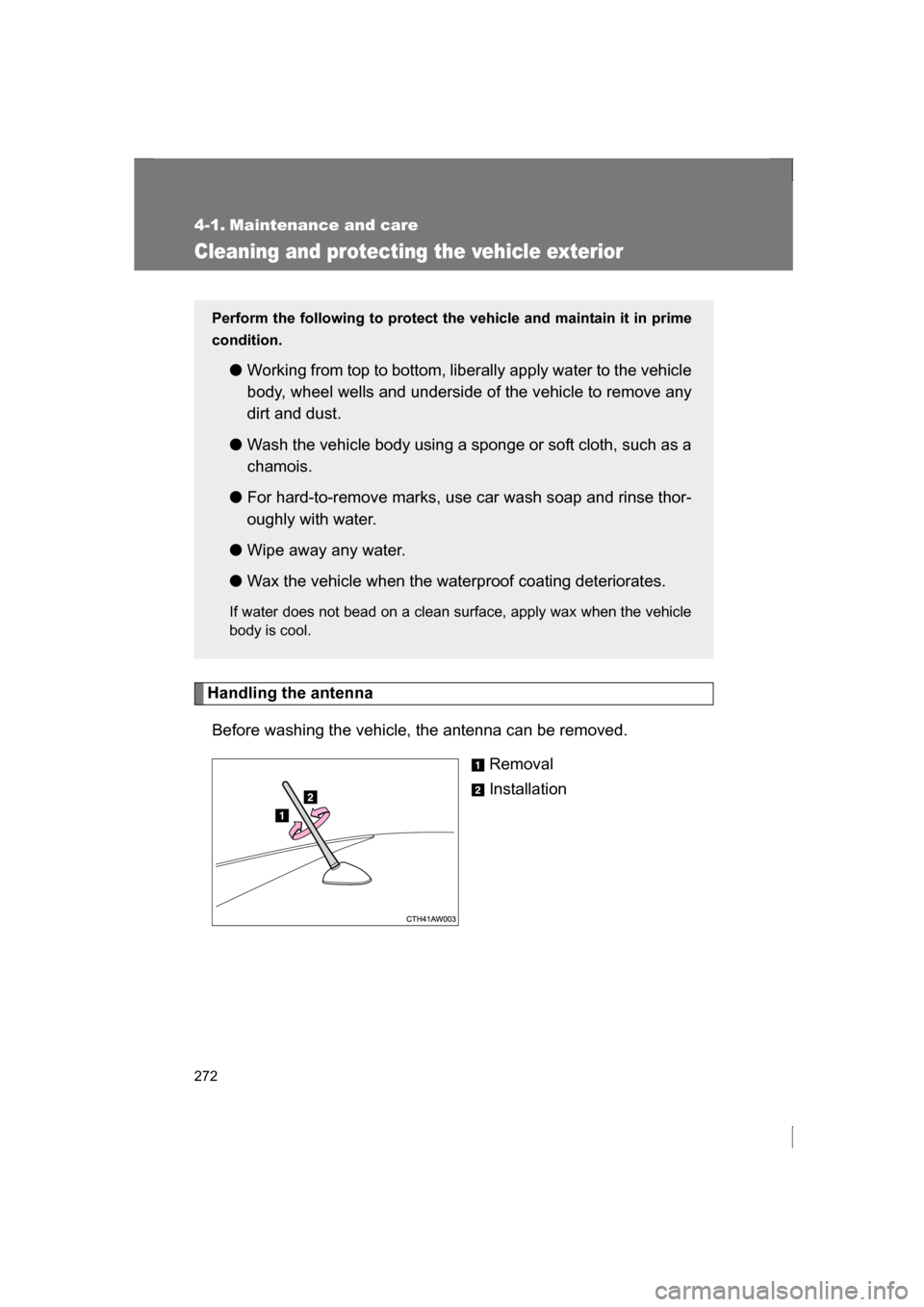

Cleaning and protecting the vehicle exterior
Handling the antennaBefore washing the vehicle, the antenna can be removed. Removal
Installation
Perform the following to protect the vehicle and maintain it in prime
condition.
● Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust.
● Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
