2013 SUBARU BRZ Owners Manual

57
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
■Adjusting the height of the head restraints
WARNING
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure
they are locked in position.
●Do not drive with the head restraints removed.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

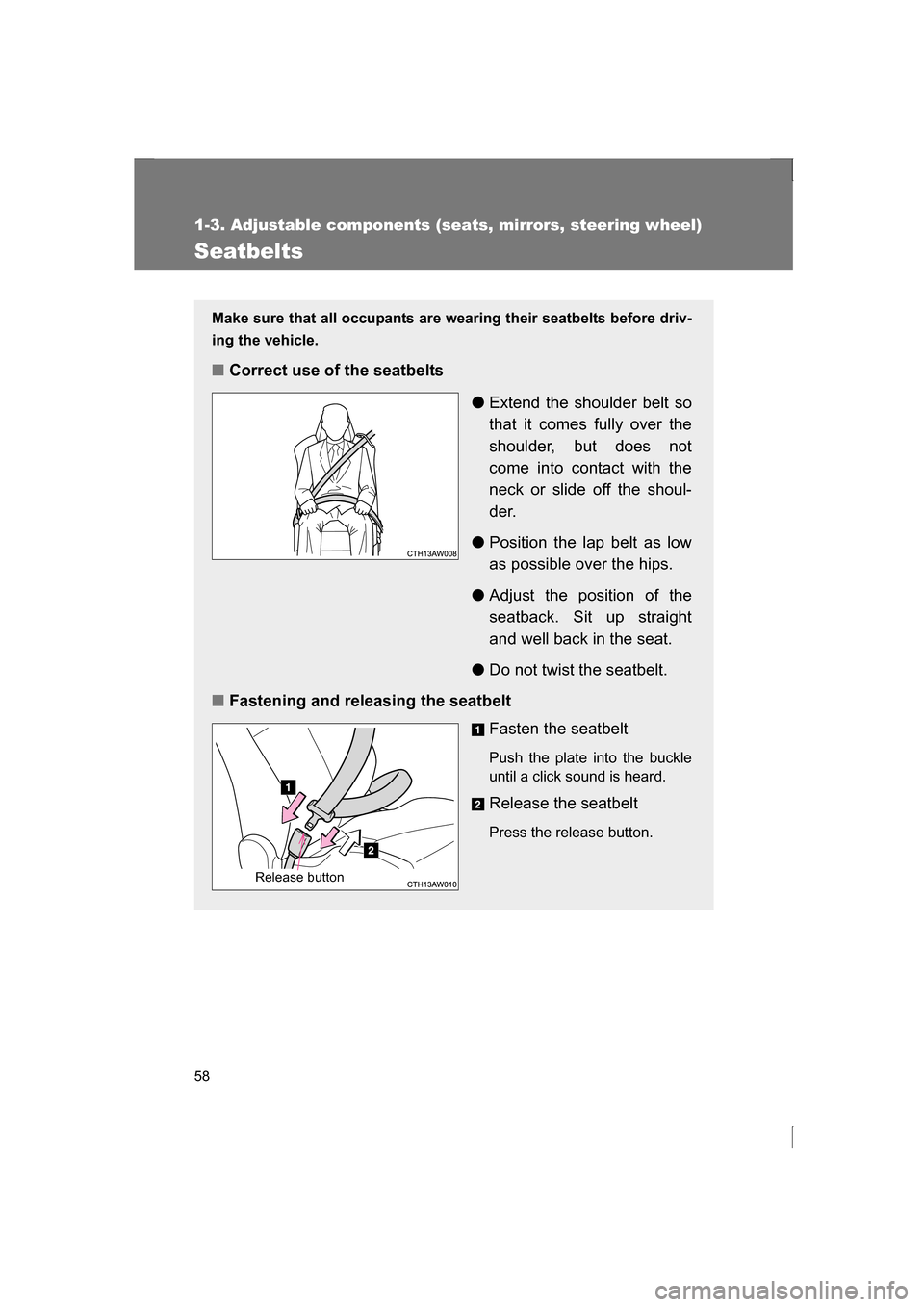

58
1-3. Adjustable components (seats, mirrors, steering wheel)
Seatbelts
Make sure that all occupants are wearing their seatbelts before driv-
ing the vehicle.
■Correct use of the seatbelts●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
● Position the lap belt as low
as possible over the hips.
● Adjust the position of the
seatback. Sit up straight
and well back in the seat.
● Do not twist the seatbelt.
■Fastening and releasing the seatbelt
Fasten the seatbelt
Push the plate into the buckle
until a click sound is heard.
Release the seatbelt
Press the release button.
Release button

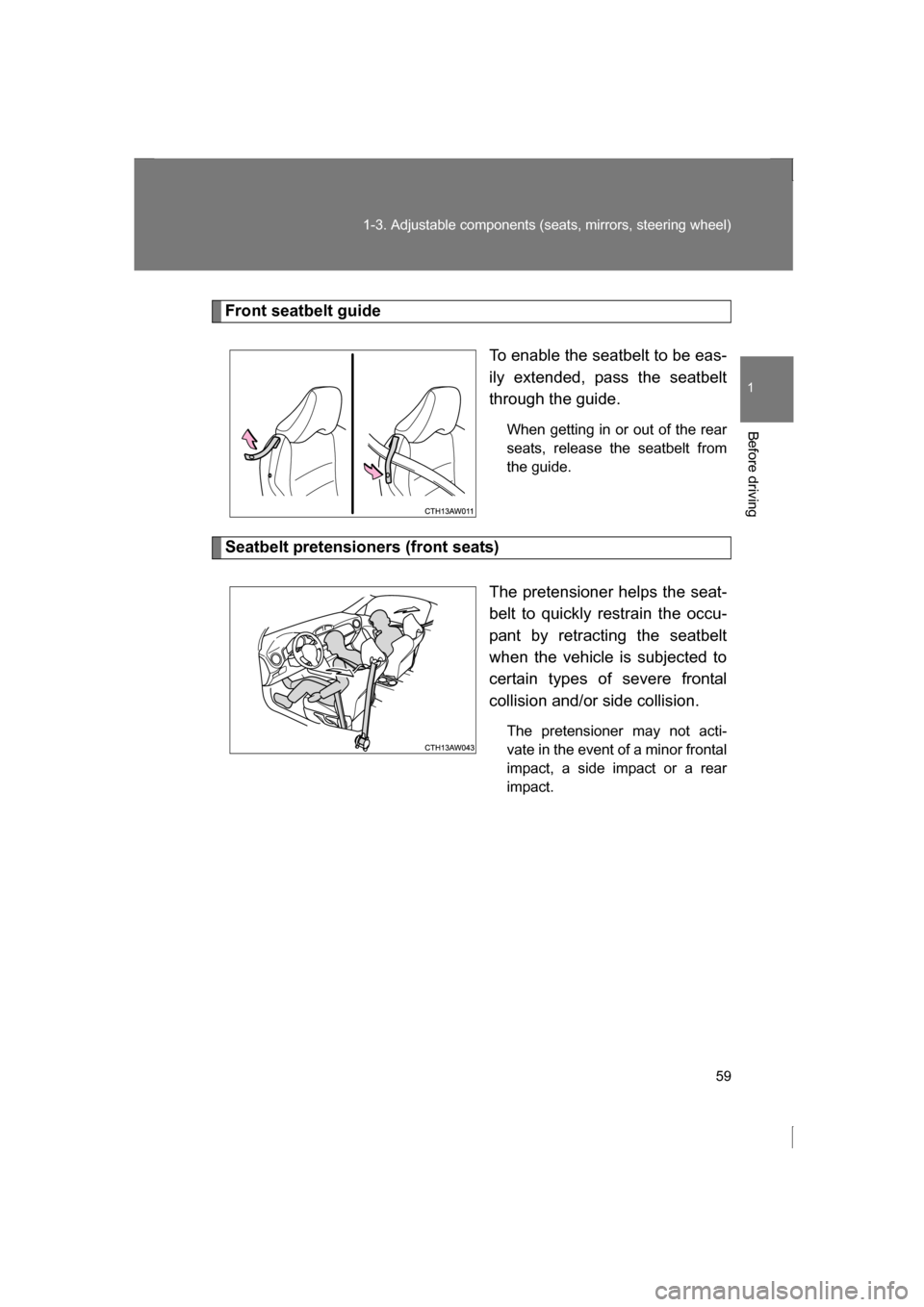

59
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Front seatbelt guideTo enable the seatbelt to be eas-
ily extended, pass the seatbelt
through the guide.When getting in or out of the rear
seats, release the seatbelt from
the guide.
Seatbelt pretensioners (front seats)
The pretensioner helps the seat-
belt to quickly restrain the occu-
pant by retracting the seatbelt
when the vehicle is subjected to
certain types of severe frontal
collision and/or side collision.The pretensioner may not acti-
vate in the event of a minor frontal
impact, a side impact or a rear
impact.

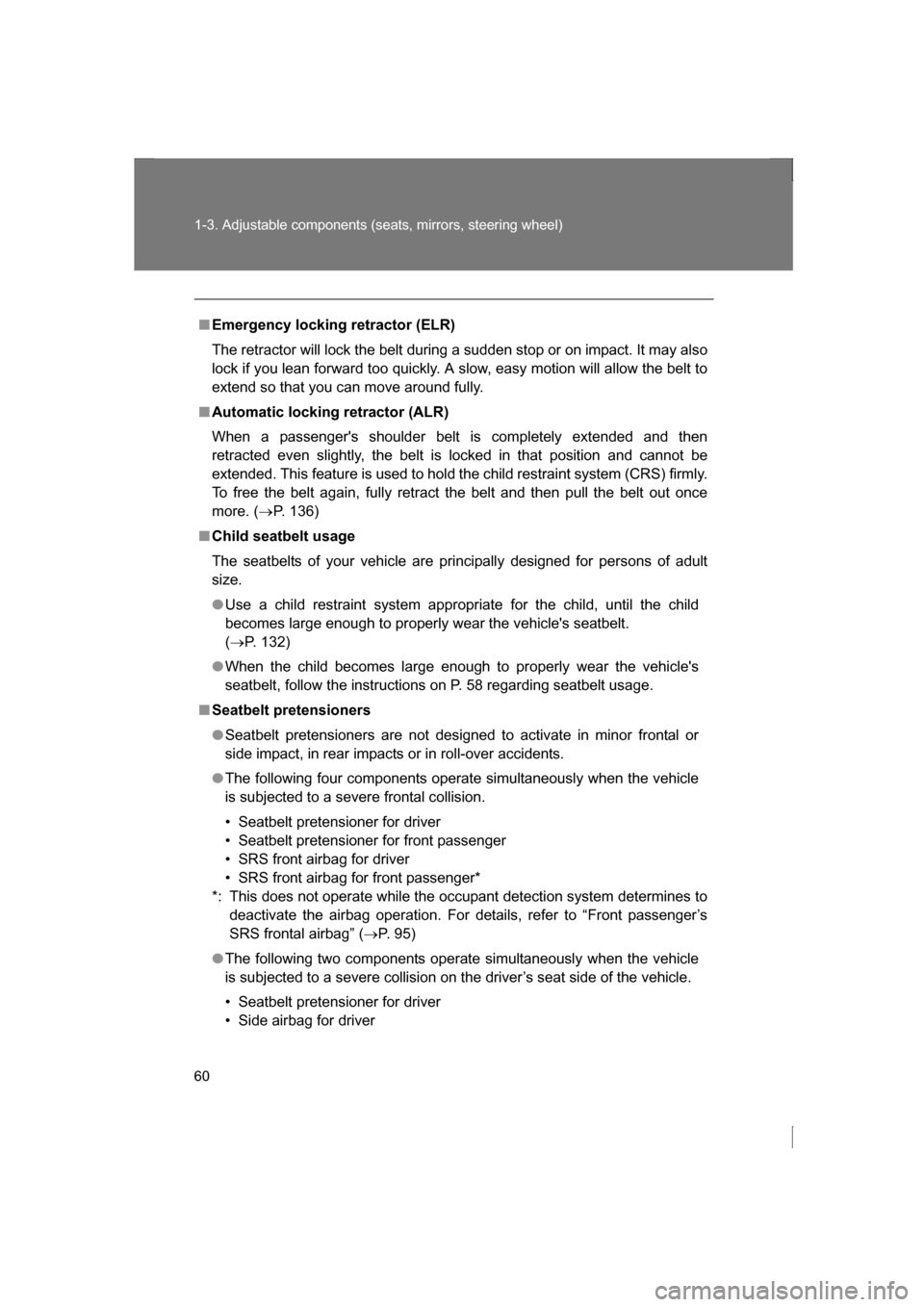

60
1-3. Adjustable components (seats, mirrors, steering wheel)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■Automatic locking retractor (ALR)
When a passenger's shoulder belt is completely extended and then
retracted even slightly, the belt is locked in that position and cannot be
extended. This feature is used to hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt and then pull the belt out once
more. (→P. 136)
■Child seatbelt usage
The seatbelts of your vehicle are principally designed for persons of adult
size.
●Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle's seatbelt. (→ P. 132)
●When the child becomes large enough to properly wear the vehicle's
seatbelt, follow the instructions on P. 58 regarding seatbelt usage.
■Seatbelt pretensioners
●Seatbelt pretensioners are not designed to activate in minor frontal or
side impact, in rear impacts or in roll-over accidents.
●The following four components operate simultaneously when the vehicle
is subjected to a severe frontal collision.

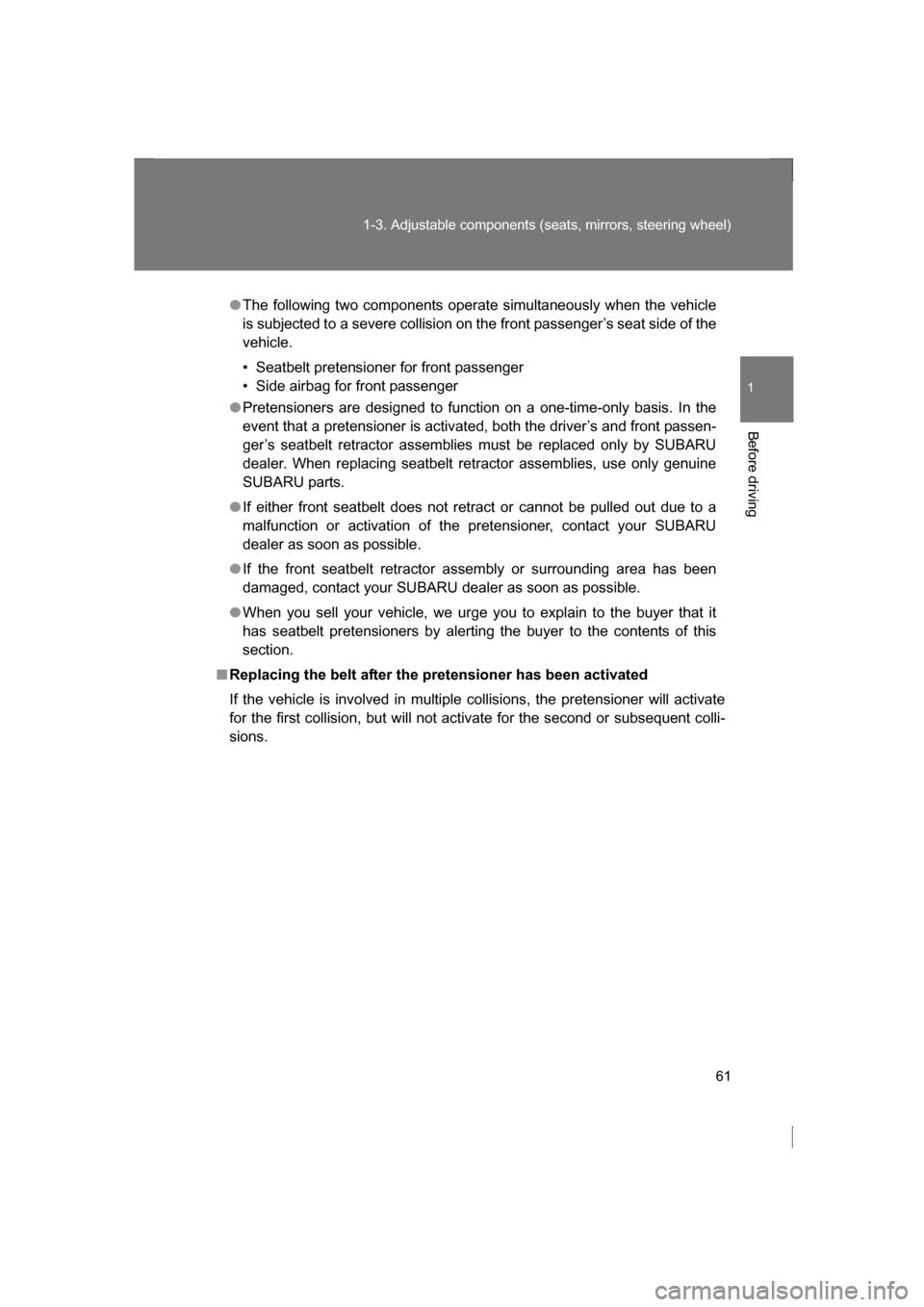

61
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
●The following two components operate simultaneously when the vehicle
is subjected to a severe collision on the front passenger’s seat side of the
vehicle.

62
1-3. Adjustable components (seats, mirrors, steering wheel)
WARNING
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■Wearing a seatbelt
●Ensure that all passengers wear a seatbelt.
●Always wear a seatbelt properly.
●Each seatbelt should be used by one person only. Do not use a seatbelt
for more than one person at once, including children.
●SUBARU recommends that children be seated in the rear seat and always
use a seatbelt and/or an appropriate child restraint system.
●To achieve a proper seating position, do not recline the seat more than
necessary. The seatbelt is most effective when the occupants are sitting
up straight and well back in the seats.
●Do not wear the shoul der belt under your arm.
●Always wear your seatbelt low and snug across your hips.
■Pregnant women
Obtain medical advice and wear the seat-
belt in the proper way. ( →P. 58)
Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu-
pants. Extend the shoulder belt com-
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.
If the seatbelt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.

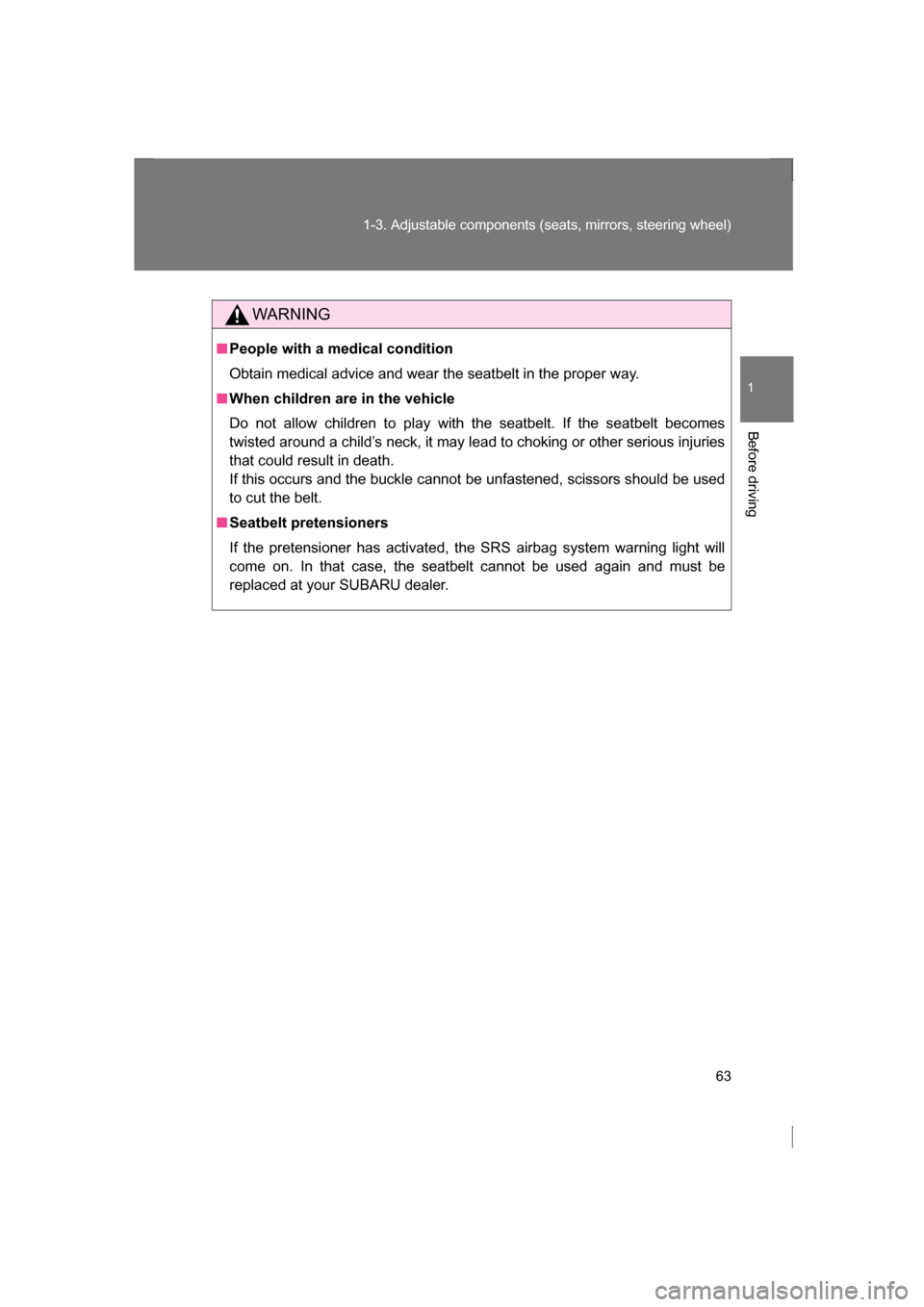

63
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
WARNING
■People with a medical condition
Obtain medical advice and wear the seatbelt in the proper way.
■When children are in the vehicle
Do not allow children to play with the seatbelt. If the seatbelt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■Seatbelt pretensioners
If the pretensioner has activated, the SRS airbag system warning light will
come on. In that case, the seatbelt cannot be used again and must be
replaced at your SUBARU dealer.

64
1-3. Adjustable components (seats, mirrors, steering wheel)
WARNING
■Seatbelt damage and wear
●Do not damage the seatbelts by allowing the belt, plate, or buckle to be
jammed in the door.
●Inspect the seatbelt system periodically. Check for cuts, fraying, and loose
parts. Replace a damaged seatbelt immediately. Damaged seatbelts can-
not protect an occupant from death or serious injury.
●Ensure that the belt and plate are locked and the belt is not twisted.
If the seatbelt does not function correctly, immediately contact your
SUBARU dealer.
●Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there's no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the
seatbelts. Have any necessary repairs carried out by your SUBARU
dealer. Inappropriate handling of the pretensioner may prevent it from
operating properly, resulting in death or serious injury.
■When using the seatbelt guide
●Always make sure that the belt is not twisted, and runs freely through the
guide.
●Regardless of whether the guide is used or not, always secure the seatbelt
guide button.
●Do not hang from or pull the guide forcefully.
■Before using the rear seatbelts
●Always make sure that the seatbelt is
not caught in the seatback or twisted in
one of the hooks that secure the seat-
back. Failure to do so may cause the
seatbelt to not be fastened correctly or
to become ineffective in a collision,
resulting in serious injury.
