Mobility warranty and ŠKODA extendedwarranty
Mobility warranty
The mobility warranty provides a sense of security when travelling in your vehicle.
As part of the mobility warranty, if your car breaks down when you are on the
move as a result of an unexpected fault, you can access services to ensure your
continued mobility. These services include the following: Breakdown service at
the breakdown location and towing to the ŠKODA Service Partner, technical as-
sistance by phone or on-site operation.
If your vehicle is not repaired on the same day, the ŠKODA Service Partner may
provide further services as required, such as replacement transportation (bus,
train etc.) or a courtesy vehicle etc.
More information regarding terms and conditions for the provision of a mobility
warranty for your vehicle can be obtained from your ŠKODA Partner. They will also
provide you with detailed terms and conditions for the mobility warranty with re-
spect to your vehicle. In the event that there is no mobility warranty coverage
available for your vehicle, you should check with any ŠKODA Service Partnerabout the possibility of a subsequent agreement.
Note
The mobility warranty is only available for some countries.
Optional ŠKODA extended warranty
If you received a ŠKODA extended warranty when purchasing your new car, the
two-year ŠKODA warranty for damages to your ŠKODA vehicle will be extended to your chosen duration or until the specified mileage limit has been reached, which-
ever occurs first.
The previously mentioned paint warranty and the warranty against rust perfora-
tion are unaffected by the extended warranty.
Detailed conditions for the extended warranty are included in the extended war- ranty terms and conditions, which your ŠKODA Partner will have given to you
upon purchasing your new car.
NoteThe mobility warranty and optional ŠKODA extended warranty are only available
for some countries.
6Mobility warranty and ŠKODA extended warranty

AbbreviationsAbbreviationDefinitionrpmEngine revolutions per minuteABSAnti-lock brake systemAFMulti-purpose vehiclesAPNAccess Point Name - the name of an access point for the WiFinetworkTCSTraction controlCO 2 in g/kmdischarged quantity of carbon dioxide in grams per driven kilo-
meterDPFDiesel particle filterDSGAutomatic double clutch gearboxDSRActive driver-steering recommendationEDLElectronic differential lockECEEconomic Commission for EuropeEPCEPC fault lightESCElectronic Stability ControlEUEuropean UnionGSMGroupe Spécial Mobile - a digital network of mobile devices for the transmission of voice and dataHFPHands-free profile - connection of a mobile device by means of
its Bluetooth ®
profilekWKilowatt, measuring unit for the engine outputMGManual gearboxMFDMultifunction displayN1Panel van intended exclusively or mainly for the transporta-
tion of goodsNmNewton meter, measuring unit for the engine torquePINPersonal Identification Number - personal identification num- ber for the connection of electronic devices using Bluetooth ®
or WiFirSAPRemote SIM Access Profile - remote transmission of SIM dataAbbreviationDefinitionSSPsimple security pairing - connection of two devices using Blue-
tooth ®
profileTDI CRDiesel engine with turbocharging and common rail injection
systemTSATrailer stabilisationTSIPetrol engine with turbocharging and direct injectionUMTSUniversal Mobile Telecommunication System - the next evolu- tion of the GSM network (3G)WLANWireless Local Area Network - wireless connection of elec-
tronic devices for data transfer (WiFi)
7Abbreviations

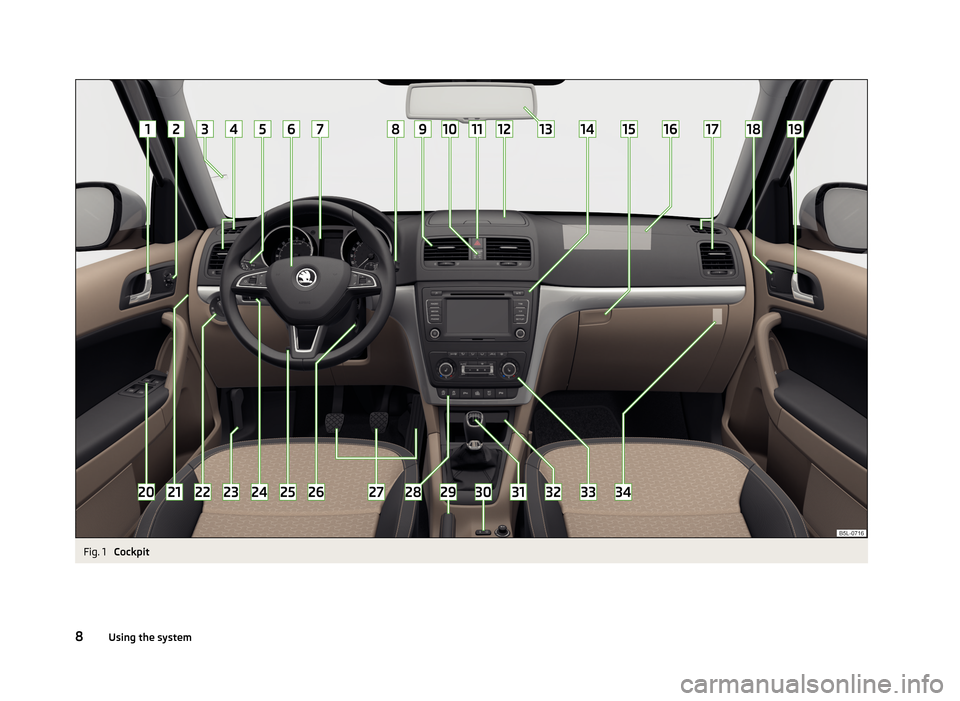

Fig. 1
