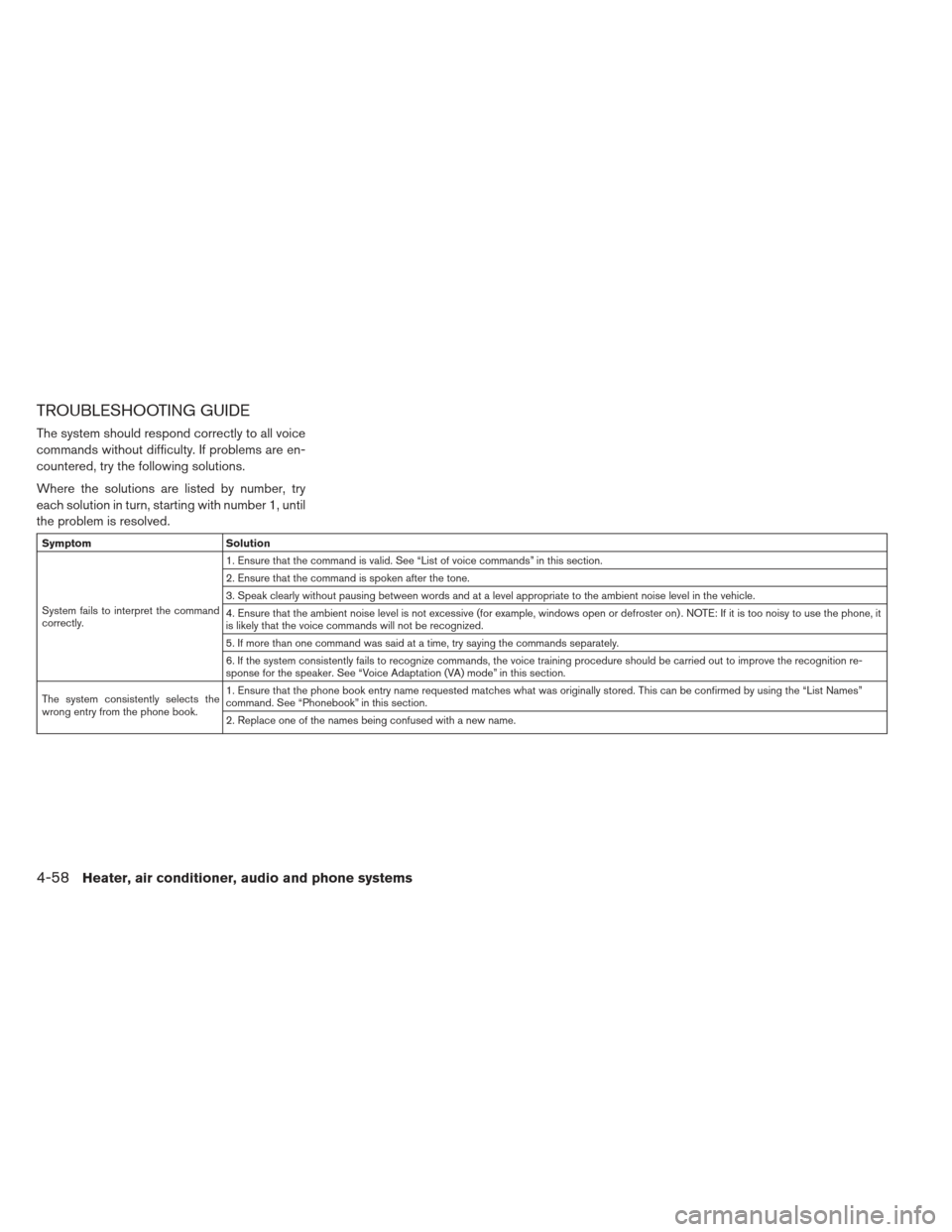

TROUBLESHOOTING GUIDE
The system should respond correctly to all voice
commands without difficulty. If problems are en-
countered, try the following solutions.
Where the solutions are listed by number, try
each solution in turn, starting with number 1, until
the problem is resolved.
SymptomSolution
System fails to interpret the command
correctly. 1. Ensure that the command is valid. See “List of voice commands” in this section.
2. Ensure that the command is spoken after the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on) . NOTE: If it is too noisy to use the phone, it
is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
6. If the system consistently fails to recognize commands, the voice training procedure should be carried out to improve the recognition re-
sponse for the speaker. See “Voice Adaptation (VA) mode” in this section.
The system consistently selects the
wrong entry from the phone book. 1. Ensure that the phone book entry name requested matches what was originally stored. This can be confirmed by using the “List Names”
command. See “Phonebook” in this section.
2. Replace one of the names being confused with a new name.
4-58Heater, air conditioner, audio and phone systems
CAUTION
The TPMS may not function properly when the wheels are equipped with
tire chains or the wheels are buried in
snow.
Do not place metalized film or any metal parts (antenna, etc.) on the win-
dows. This may cause poor reception
of the signals from the tire pressure
sensors, and the TPMS will not func-
tion properly.
Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to illu-
minate. Some examples are:
Facilities or electric devices using similar radio frequencies that are near the vehicle.
If a transmitter set to similar frequencies is being used in or near the vehicle.
If a computer (or similar equipment) or a DC/AC converter is being used in or near the vehicle. FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada:
This device complies with RSS-210 of In-
dustry Canada. Operation is subject to the
following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference, in-
cluding interference that may cause unde-
sired operation of the device.
TPMS with Easy Fill Tire Alert
When tire pressure is low, the low tire pressure
warning light illuminates.
This vehicle provides visual and audible signals to
help you inflate the tires to the recommended
COLD tire pressure.
Vehicle set-up:
1. Park the vehicle in a safe and level place.
2. Apply the parking brake and push the P (Park)
position switch on the shift lever.
3. Place the power switch in the ON position. Do not place in the READY to drive mode.
Operation:
1. Add air to the tire.
2. After a few seconds, the hazard indicators will start flashing.
3. When the designated pressure is reached, the horn beeps once and the hazard indica-
tors stop flashing.
4. Perform the above steps for each tire.
If the tire is over-inflated more than approxi- mately 4 psi (30 kPa) , the horn beeps and the
hazard indicators flash 3 times. To correct the
pressure, push the core of the valve stem on the
5-4Starting and driving

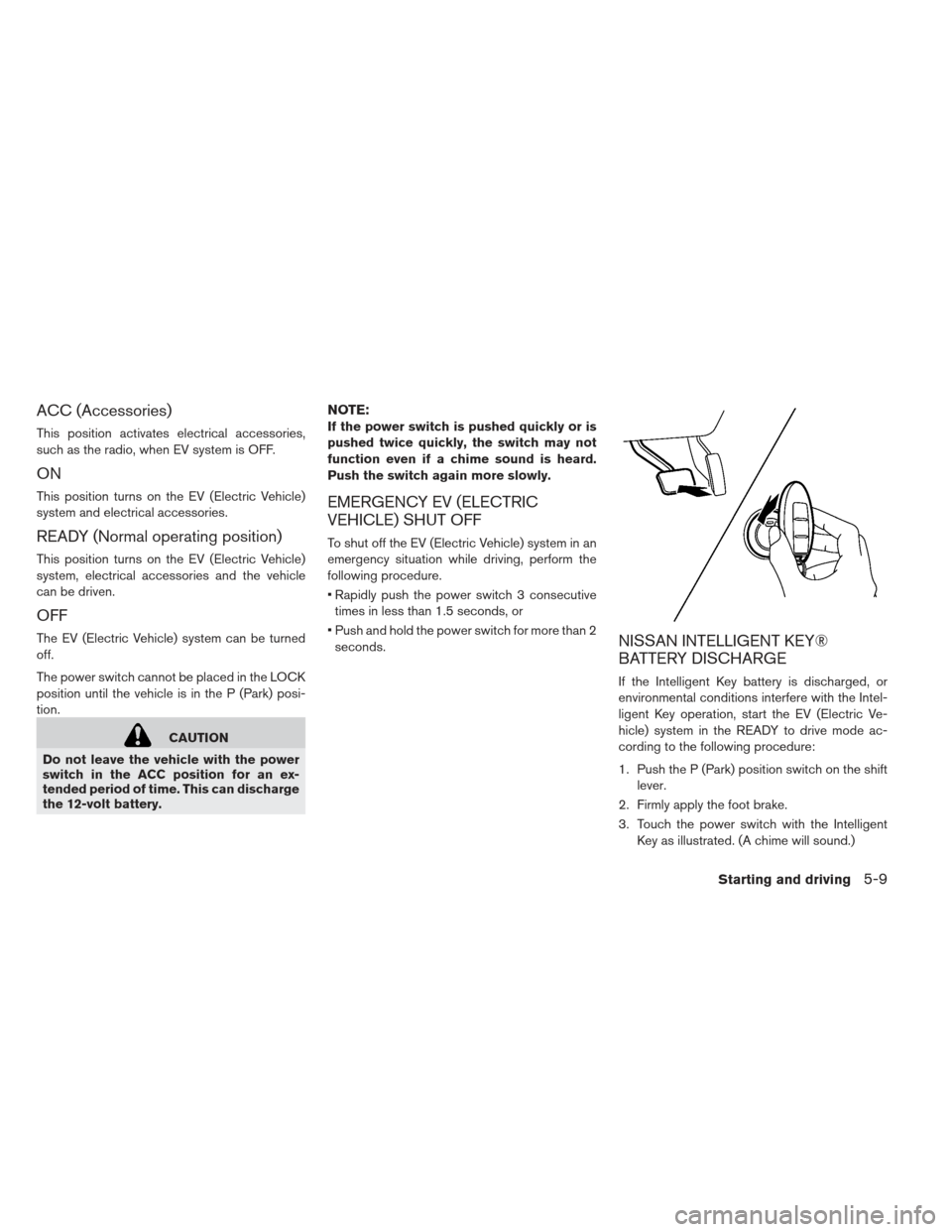

ACC (Accessories)
This position activates electrical accessories,
such as the radio, when EV system is OFF.
ON
This position turns on the EV (Electric Vehicle)
system and electrical accessories.
READY (Normal operating position)
This position turns on the EV (Electric Vehicle)
system, electrical accessories and the vehicle
can be driven.
OFF
The EV (Electric Vehicle) system can be turned
off.
The power switch cannot be placed in the LOCK
position until the vehicle is in the P (Park) posi-
tion.
CAUTION
Do not leave the vehicle with the power
switch in the ACC position for an ex-
tended period of time. This can discharge
the 12-volt battery.
NOTE:
If the power switch is pushed quickly or is
pushed twice quickly, the switch may not
function even if a chime sound is heard.
Push the switch again more slowly.
EMERGENCY EV (ELECTRIC
VEHICLE) SHUT OFF
To shut off the EV (Electric Vehicle) system in an
emergency situation while driving, perform the
following procedure.
Rapidly push the power switch 3 consecutive times in less than 1.5 seconds, or
Push and hold the power switch for more than 2 seconds.
NISSAN INTELLIGENT KEY®
BATTERY DISCHARGE
If the Intelligent Key battery is discharged, or
environmental conditions interfere with the Intel-
ligent Key operation, start the EV (Electric Ve-
hicle) system in the READY to drive mode ac-
cording to the following procedure:
1. Push the P (Park) position switch on the shift lever.
2. Firmly apply the foot brake.
3. Touch the power switch with the Intelligent Key as illustrated. (A chime will sound.)
Starting and driving5-9
4. Push the power switch while depressing thebrake pedal within 10 seconds after the
chime sounds. The power switch position
changes to READY to drive mode.
After step 3 is performed, if the power switch is
pushed without depressing the brake pedal, the
power switch position will change to ACC.
NOTE:
When the power switch is pushed to the
ACC or ON position or READY to drive
mode by the above procedure, the Intelli-
gent Key battery discharge indicator ap-
pears on the dot matrix liquid crystal dis-
play even if the Intelligent Key is inside
the vehicle. This is not a malfunction. To
stop the warning indicator from blinking,
touch the power switch with the Intelli-
gent Key again.
If the Intelligent Key system battery dis-
charge indicator appears on the dot ma-
trix liquid crystal display, replace the bat-
tery as soon as possible. See Intelligent
key battery replacement in theMainte-
nance and do-it-yourself section. Make sure that the area around the vehicle is
clear.
Check fluid levels such as coolant, brake fluid, and window washer fluid as frequently as pos-
sible.
Check that all windows and lights are clean.
Visually inspect tires for their appearance and condition. Also check tires for proper inflation.
Check that all doors are closed.
Position the seat and adjust the head restraints.
Adjust the inside and outside mirrors.
Fasten seat belts and ask all passengers to do likewise.
Check the operation of the warning lights when the power switch is pushed to the ON position.
(See Warning/indicator lights and audible re-
minders in theInstruments and controls sec-
tion.) 1. Confirm the parking brake is applied.
2. Confirm that the vehicle is in the P (Park)
position.
The EV (Electric Vehicle) is designed not to
operate unless the shift lever is in the P (Park)
or N (Neutral) positions.
The Intelligent Key must be carried with
you when operating the power switch.
3. Depress the brake pedal and push the power switch to place the EV (Electric Vehicle) sys-
tem in the READY to drive position.
To place the vehicle in the READY to drive
position immediately, push and release the
power switch while depressing the brake
pedal with the power switch in any position.
The READY to drive indicator light
in the
meter illuminates.
4. To stop the EV (Electric Vehicle) system, push the P (Park) position switch on the shift lever,
and push the power switch to the OFF
position.
BEFORE STARTING THE EV
(ELECTRIC VEHICLE) SYSTEM STARTING THE EV (ELECTRIC
VEHICLE) SYSTEM
5-10Starting and driving
N (Neutral):
Neither forward nor reverse gear is engaged. The
vehicle can be placed in READY to drive position
in this position.
Do not shift to the N (Neutral) position while
driving. The regenerative brake system does not
operate in the N (Neutral) position. However, the
vehicle brakes will still stop the car.
D (Drive):
Use this position for all normal forward driving.If
the vehicle is placed in the D (Drive) posi-
tion while reversing, the chime will sound
and the vehicle will switch into the N (Neu-
tral) position.
B-mode:
Engages the regenerative braking system more
aggressively on downhill slopes, and helps re-
duce brake use. Activated by moving the shift
lever left and down. The shift lever will then return
to the center position. ECO mode:
Use ECO in order to help extend the driving
range.
In comparison to the D (Drive) position, ECO
consumes less power for the traction motor and
heater and air conditioner operations and en-
ables the range of the vehicle to be extended.
ECO can be selected from the D (Drive) or
B-mode position.
WARNING
Be sure the parking brake is released before driving. Failure to do so could
cause brake failure and lead to an ac-
cident.
Do not release the parking brake from outside the vehicle.
Do not leave children unattended in a vehicle. They could release the parking
brake and cause an accident.
When leaving the vehicle, apply the parking brake and push the P (Park)
position switch on the shift lever.
PARKING BRAKE
5-14Starting and driving
Vehicle range depends on a number of factors.
Actual vehicle range will vary depending upon:
speed,
vehicle load,
electrical load from vehicle accessories,
traffic and road conditions,
NISSAN recommends the following driving
habits to help maximize vehicle range:
Before driving:
Follow recommended periodic maintenance.
Keep tires inflated to correct pressure.
Keep wheels in correct alignment.
Pre-heat or pre-cool the interior cabin while thevehicle is charging.
Remove unnecessary cargo from the vehicle.
While driving:
Drive in ECO mode – In the ECO position more regenerativebrake is applied when the accelerator pedal
is released in comparison to the D (Drive)
position and more power is provided to the
Li-ion battery.
– The ECO position helps reduce power con- sumption by reducing acceleration when compared to the same accelerator pedal
position in the D (Drive ) position.
– The ECO position reduces the power pro- vided to the heater and air conditioner sys-
tem.
Drive at a constant speed. Maintain cruising speeds with a constant accelerator positions or
by using cruise control when appropriate.
Accelerate slowly and smoothly. Gently press and release the accelerator pedal for accelera-
tion and deceleration.
Drive at moderate speeds on the highway.
Avoid frequent stopping and braking. Maintain a safe distance behind other vehicles.
Turn off the air conditioner/heater when it is not necessary.
Select a moderate temperature setting for heat- ing or cooling to help reduce power consump-
tion.
Use the air conditioner/heater and close win- dows to reduce drag when cruising at highway
speed.
Release the accelerator pedal to slow down and do not apply the brakes when traffic and
road conditions allow. – This vehicle is equipped with a regenerative
brake system. The primary purpose of re-
generative brake system is to provide some
power to recharge the Li-ion battery and
extend driving range. A secondary benefit is
“engine braking” that operates based on
Li-ion battery conditions. In the D (Drive)
position, when the accelerator pedal is re-
leased, the regenerative brake system pro-
vides some deceleration and some power to
the Li-ion battery.
INCREASING POWER ECONOMY
Starting and driving5-17
WARNING
Do not stop or park the vehicle over flammable materials such as dry grass,
waste paper or rags. They may ignite
and cause a fire.
Never leave the vehicle in the READY to drive mode while the vehicle is un-
attended. Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls. Un-
attended children could become
involved in serious accidents.
Safe parking procedures require that both the parking brake be applied and
the vehicle placed in the park position.
Failure to do so could cause the ve-
hicle to move unexpectedly or roll
away and result in an accident.
1. Firmly apply the parking brake.
2. Push the P position switch on the shift lever. 3. To help prevent the vehicle from rolling into
the street when parked on a slope, it is a good
practice to turn the wheels as illustrated.
HEADED DOWNHILL WITH CURB:
1
Turn the wheels into the curb and move the vehicle forward until the curb side wheel
gently touches the curb.
HEADED UPHILL WITH CURB:
2
Turn the wheels away from the curb and move the vehicle back until the curb side
wheel gently touches the curb.
HEADED UPHILL OR DOWNHILL, NO CURB:
3
Turn the wheels toward the side of the roadso the vehicle will move away from the center
of the road if it moves.
4. Place the power switch in the OFF position.
PARKING/PARKING ON HILLS
5-18Starting and driving
Carefully read and follow the manufacturer’s in-
structions before using air fresheners.
FLOOR MATS
WARNING
To avoid potential pedal interference that
may result in a collision or injury:
NEVER place a floor mat on top of another floor mat in the driver front
position.
Use only genuine NISSAN floor mats specifically designed for use in your
vehicle model. See your NISSAN certi-
fied LEAF dealer for more information.
Properly position the mats in the floor- well using the floor mat positioning
aid. See Floor mat positioning aid
(driver’s side only).
The use of genuine NISSAN floor mats can ex-
tend the life of your vehicle carpet and make it
easier to clean the interior. Mats should be main-
tained with regular cleaning and replaced if they
become excessively worn.
Floor mat positioning aid (driver’s side
only)
This vehicle includes front floor mat brackets to
act as a floor mat positioning aid. NISSAN floor
mats have been specially designed for your ve-
hicle model. The driver’s side floor mat has grom-
met holes incorporated in it. Position the mat by
placing the floor mat bracket hook through the
floor mat grommet hole while centering the mat in
the floorwell.
Periodically check to make certain the mats are
properly positioned. The illustration shows the location of floor mat
brackets.
SEAT BELTS
The seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap solution.
Allow the belts to dry completely in the shade
before using them.
See
Seat belts in theSafety-Seats seat belts
and supplemental restraint system section.
Bracket position
Appearance and care7-5
