2013 NISSAN LEAF headrest

1. Rear headrests (P 1-4)
2. Child restraint anchor points (for top tetherstrap child restraint) (P 1-30)
3. Roof-mounted curtain side-impact supple- mental air bags (P 1-34)
4. Seat belts (P 1-7) 5. Front head restraints (P 1-4)
6. Seat belt pretensioners (P 1-47)
7. Front seats (P 1-3)
8. Supplemental front-impact air bags (P 1-34)
9. LATCH (Lower Anchors and Tethers for
CHildren) system (P 1-19) 10. Rear seats (P 1-4)
11. Front seat-mounted side-impact supple-
mental air bags (P 1-34)
12. Occupant classification sensors (weight sensors)
— Advanced Air Bag System (P 1-40)
13. Front passenger air bag status light (P 2-19)
SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
0-2Illustrated table of contents

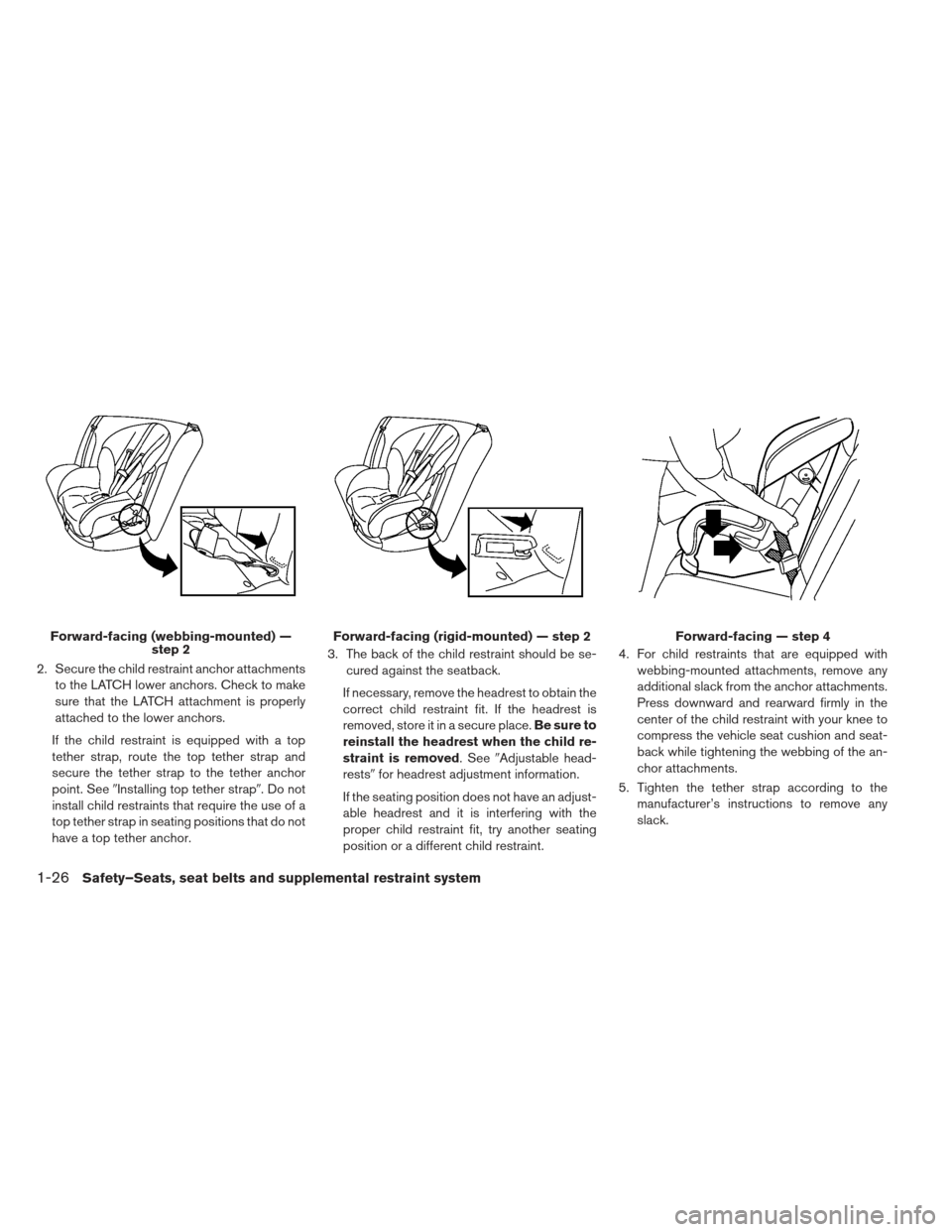

2. Secure the child restraint anchor attachmentsto the LATCH lower anchors. Check to make
sure that the LATCH attachment is properly
attached to the lower anchors.
If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point. See Installing top tether strap.Donot
install child restraints that require the use of a
top tether strap in seating positions that do not
have a top tether anchor. 3. The back of the child restraint should be se-
cured against the seatback.
If necessary, remove the headrest to obtain the
correct child restraint fit. If the headrest is
removed, store it in a secure place. Be sure to
reinstall the headrest when the child re-
straint is removed. See Adjustable head-
rests for headrest adjustment information.
If the seating position does not have an adjust-
able headrest and it is interfering with the
proper child restraint fit, try another seating
position or a different child restraint. 4. For child restraints that are equipped with
webbing-mounted attachments, remove any
additional slack from the anchor attachments.
Press downward and rearward firmly in the
center of the child restraint with your knee to
compress the vehicle seat cushion and seat-
back while tightening the webbing of the an-
chor attachments.
5. Tighten the tether strap according to the manufacturer’s instructions to remove any
slack.
Forward-facing (webbing-mounted) — step 2Forward-facing (rigid-mounted) — step 2Forward-facing — step 4
1-26Safety–Seats, seat belts and supplemental restraint system

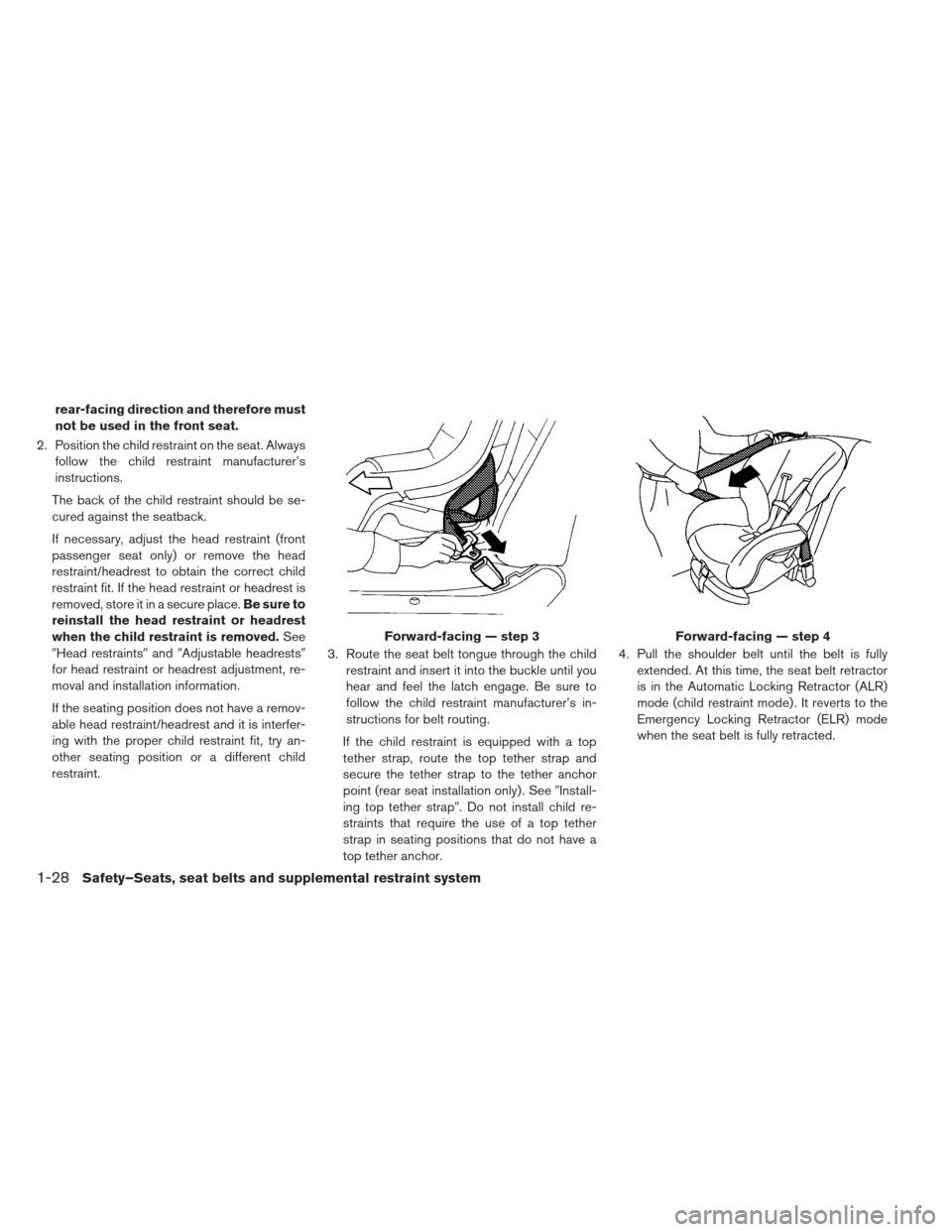

rear-facing direction and therefore must
not be used in the front seat.
2. Position the child restraint on the seat. Always follow the child restraint manufacturer’s
instructions.
The back of the child restraint should be se-
cured against the seatback.
If necessary, adjust the head restraint (front
passenger seat only) or remove the head
restraint/headrest to obtain the correct child
restraint fit. If the head restraint or headrest is
removed, store it in a secure place. Be sure to
reinstall the head restraint or headrest
when the child restraint is removed. See
Head restraints andAdjustable headrests
for head restraint or headrest adjustment, re-
moval and installation information.
If the seating position does not have a remov-
able head restraint/headrest and it is interfer-
ing with the proper child restraint fit, try an-
other seating position or a different child
restraint. 3. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s in-
structions for belt routing.
If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point (rear seat installation only) . See Install-
ing top tether strap. Do not install child re-
straints that require the use of a top tether
strap in seating positions that do not have a
top tether anchor. 4. Pull the shoulder belt until the belt is fully
extended. At this time, the seat belt retractor
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode) . It reverts to the
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.
Forward-facing — step 3Forward-facing — step 4
1-28Safety–Seats, seat belts and supplemental restraint system

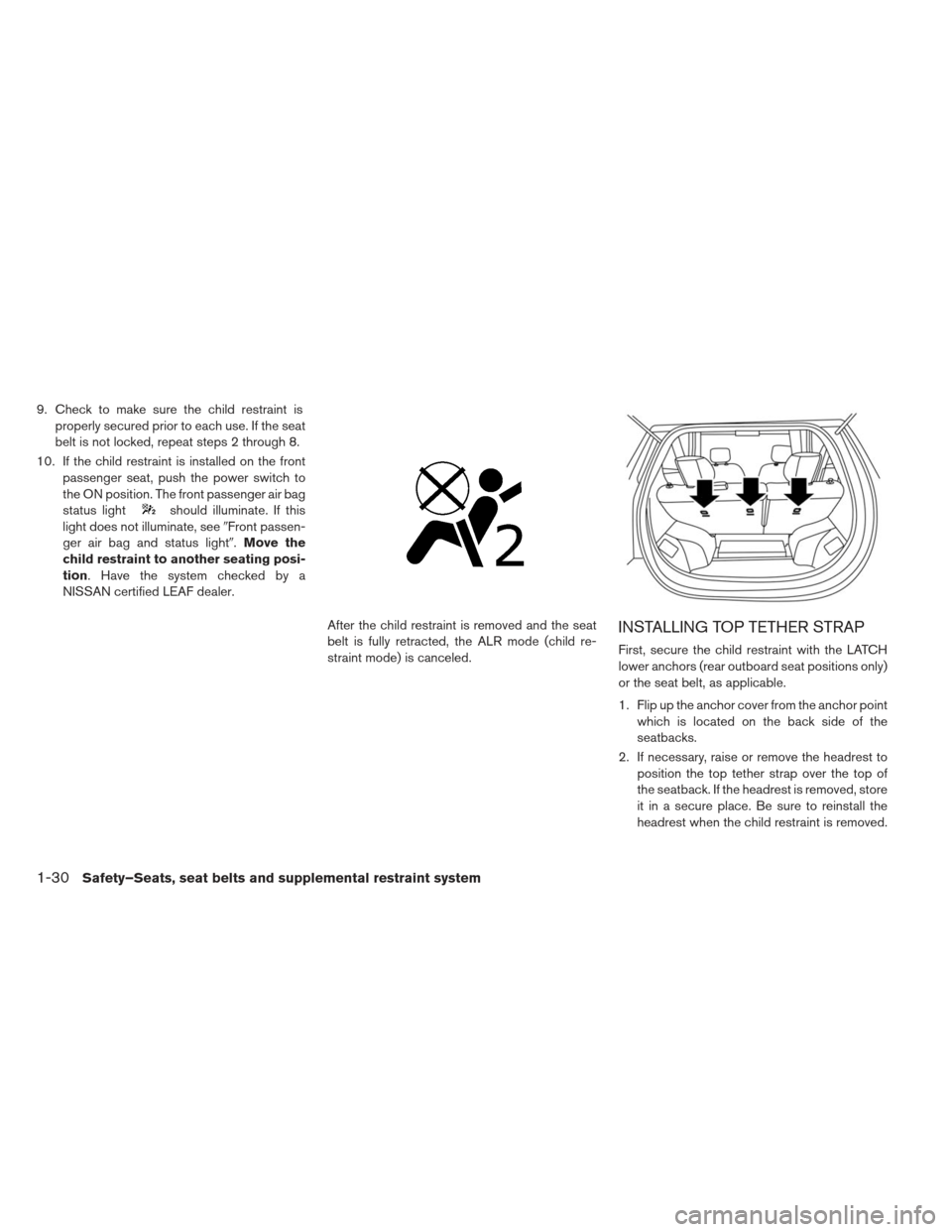

9. Check to make sure the child restraint isproperly secured prior to each use. If the seat
belt is not locked, repeat steps 2 through 8.
10. If the child restraint is installed on the front passenger seat, push the power switch to
the ON position. The front passenger air bag
status light
should illuminate. If this
light does not illuminate, see Front passen-
ger air bag and status light. Move the
child restraint to another seating posi-
tion. Have the system checked by a
NISSAN certified LEAF dealer.
After the child restraint is removed and the seat
belt is fully retracted, the ALR mode (child re-
straint mode) is canceled.
INSTALLING TOP TETHER STRAP
First, secure the child restraint with the LATCH
lower anchors (rear outboard seat positions only)
or the seat belt, as applicable.
1. Flip up the anchor cover from the anchor pointwhich is located on the back side of the
seatbacks.
2. If necessary, raise or remove the headrest to position the top tether strap over the top of
the seatback. If the headrest is removed, store
it in a secure place. Be sure to reinstall the
headrest when the child restraint is removed.
1-30Safety–Seats, seat belts and supplemental restraint system

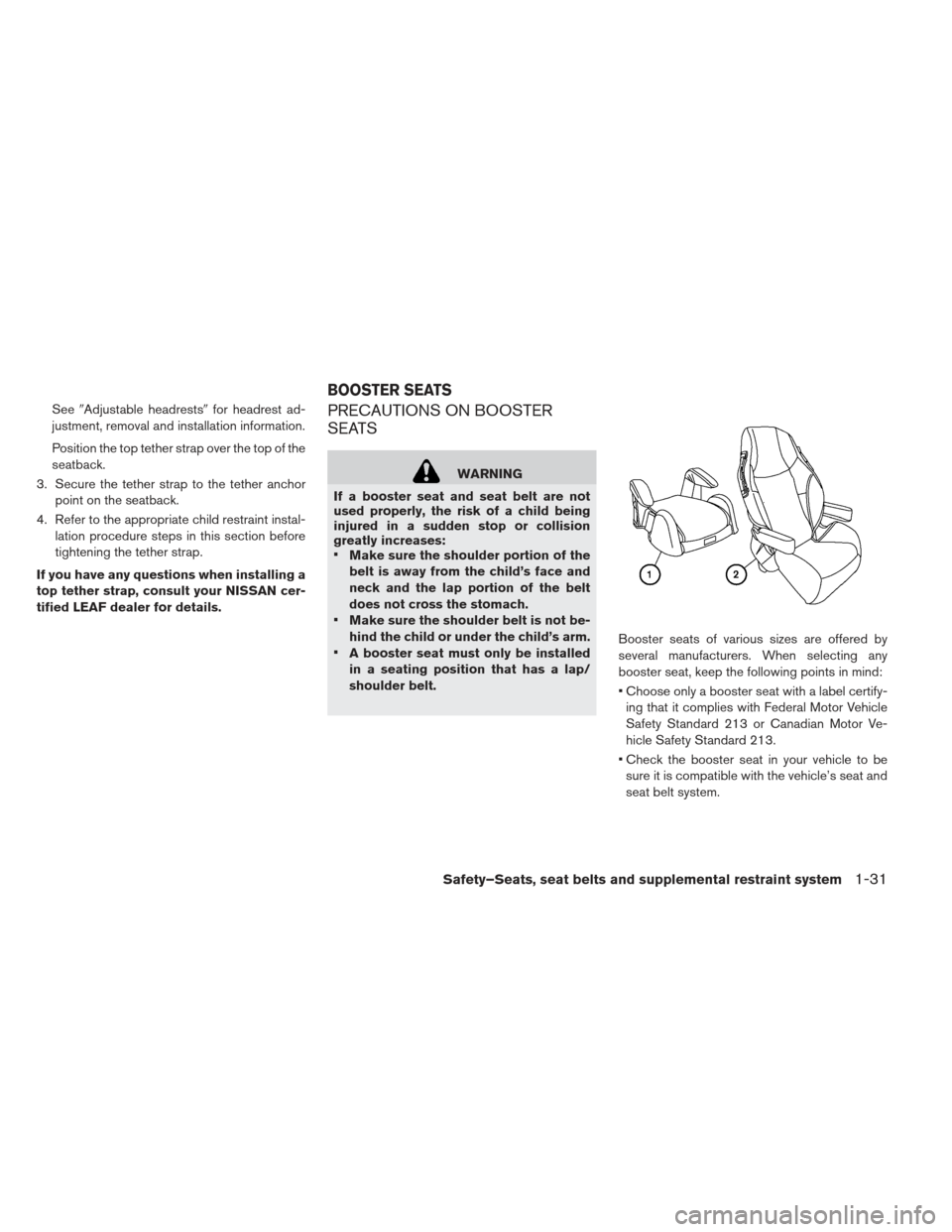

SeeAdjustable headrests for headrest ad-
justment, removal and installation information.
Position the top tether strap over the top of the
seatback.
3. Secure the tether strap to the tether anchor point on the seatback.
4. Refer to the appropriate child restraint instal- lation procedure steps in this section before
tightening the tether strap.
If you have any questions when installing a
top tether strap, consult your NISSAN cer-
tified LEAF dealer for details.PRECAUTIONS ON BOOSTER
SEATS
WARNING
If a booster seat and seat belt are not
used properly, the risk of a child being
injured in a sudden stop or collision
greatly increases:
Make sure the shoulder portion of the
belt is away from the child’s face and
neck and the lap portion of the belt
does not cross the stomach.
Make sure the shoulder belt is not be-
hind the child or under the child’s arm.
A booster seat must only be installed
in a seating position that has a lap/
shoulder belt. Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:
Choose only a booster seat with a label certify-
ing that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor Ve-
hicle Safety Standard 213.
Check the booster seat in your vehicle to be sure it is compatible with the vehicle’s seat and
seat belt system.
BOOSTER SEATS
Safety–Seats, seat belts and supplemental restraint system1-31

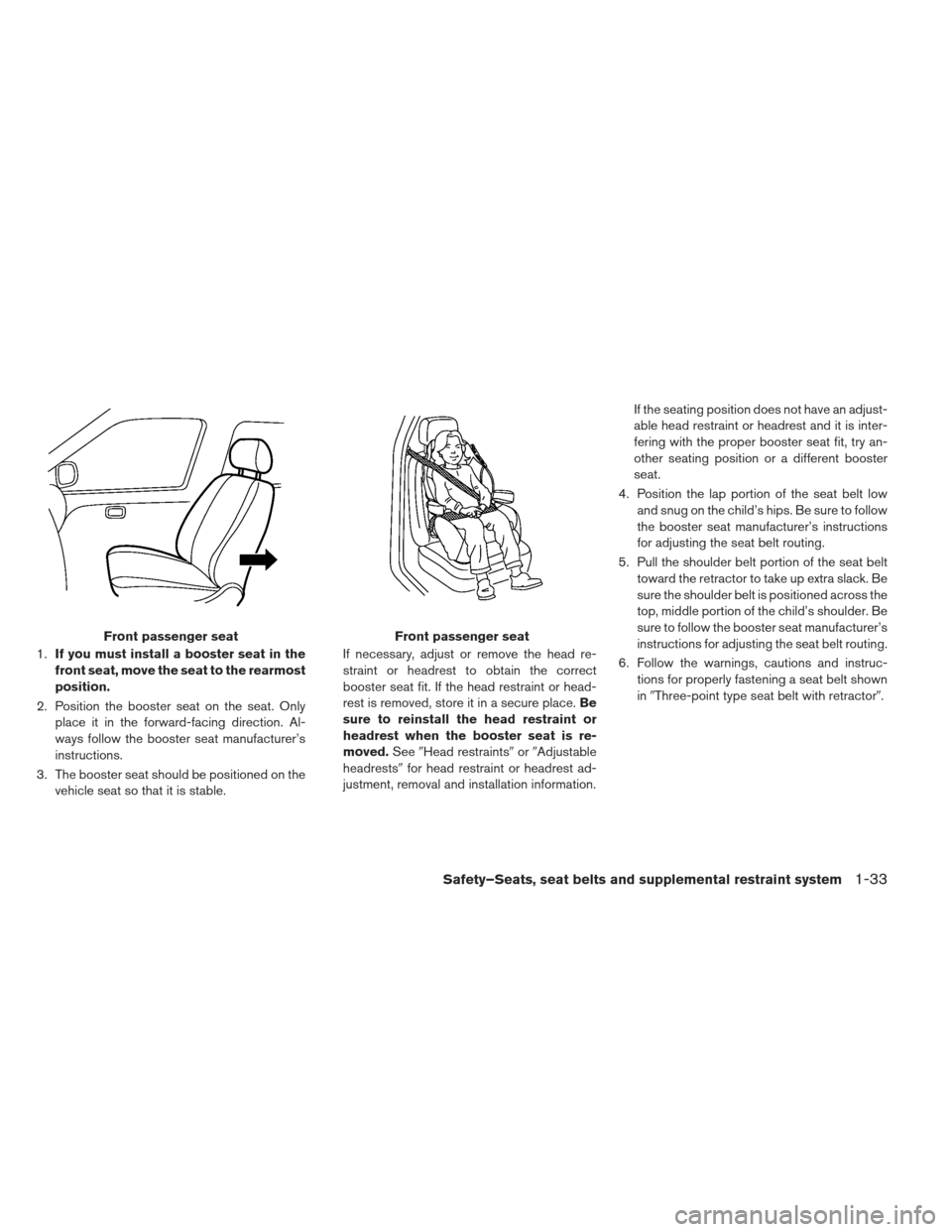

1.If you must install a booster seat in the
front seat, move the seat to the rearmost
position.
2. Position the booster seat on the seat. Only place it in the forward-facing direction. Al-
ways follow the booster seat manufacturer’s
instructions.
3. The booster seat should be positioned on the vehicle seat so that it is stable. If necessary, adjust or remove the head re-
straint or headrest to obtain the correct
booster seat fit. If the head restraint or head-
rest is removed, store it in a secure place.
Be
sure to reinstall the head restraint or
headrest when the booster seat is re-
moved. SeeHead restraints orAdjustable
headrests for head restraint or headrest ad-
justment, removal and installation information. If the seating position does not have an adjust-
able head restraint or headrest and it is inter-
fering with the proper booster seat fit, try an-
other seating position or a different booster
seat.
4. Position the lap portion of the seat belt low and snug on the child’s hips. Be sure to follow
the booster seat manufacturer’s instructions
for adjusting the seat belt routing.
5. Pull the shoulder belt portion of the seat belt toward the retractor to take up extra slack. Be
sure the shoulder belt is positioned across the
top, middle portion of the child’s shoulder. Be
sure to follow the booster seat manufacturer’s
instructions for adjusting the seat belt routing.
6. Follow the warnings, cautions and instruc- tions for properly fastening a seat belt shown
inThree-point type seat belt with retractor.
Front passenger seatFront passenger seat
Safety–Seats, seat belts and supplemental restraint system1-33

When driving in areas using road salt or other
corrosive materials, check lubrication frequently.
Lights*:Clean the headlights on a regular basis.
Make sure that the headlights, stop lights, tail
lights, turn signal lights and other lights are all
operating properly and installed securely. Also
check the aim of the headlights.
Road wheel nuts (lug nuts)*: When checking
the tires, make sure that no wheel nuts are miss-
ing, and check for any loose wheel nuts. Tighten
if necessary.
Tire rotation*: Tires should be rotated every
7,500 miles (12,000 km) .
Tires*: Check the pressure with a gauge often
and always prior to long distance trips. If neces-
sary, adjust the pressure in all tires to the pres-
sure specified. Check carefully for damage, cuts
or excessive wear.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the TPMS
transmitter grommet seal, valve core and cap
when the tires are replaced due to wear or age.
Wheel alignment and balance: If the vehicle
pulls to either side while driving on a straight and
level road, or if you detect uneven or abnormal tire
wear, there may be a need for wheel alignment. If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer to
“Important Tire Safety Information” (US) or “Tire
Safety Information” (Canada) in the Warranty In-
formation Booklet.
Windshield:
Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a dam-
aged windshield repaired by a qualified repair
facility.
Windshield wiper blades*: Check for cracks
or wear if they do not wipe properly.
Inside vehicle
The maintenance items listed here should be
checked on a regular basis, such as when per-
forming scheduled maintenance, cleaning the ve-
hicle, etc.
Accelerator pedal: Check the pedal for smooth
operation and make sure that the pedal does not
catch or require uneven effort. Keep the floor mat
away from the pedal.
Brake pedal: Check the pedal for smooth op-
eration and make sure that it has the proper distance under it when depressed fully. Check
the brake booster function. If the brake pedal
suddenly goes down further than normal, the
pedal feels spongy or the vehicle seems to take
longer to stop, contact a NISSAN certified LEAF
dealer immediately. Keep the floor mat away from
the pedal.
Brakes:
Check that the brakes do not pull the
vehicle to one side when applied.
Electric shift P (Park) position mechanis-
m:On a steep hill, check that the vehicle is held
securely while the vehicle is in the P (Park) posi-
tion without applying the brakes.
Parking brake: Check the parking brake opera-
tion regularly. The vehicle should be securely held
on a steep hill with only the parking brake applied.
If the parking brake cannot keep a vehicle posi-
tion contact a NISSAN certified LEAF dealer.
Seat: Check seat position controls such as the
seat adjusters, seatback recliners, etc. to ensure
that they operate smoothly and that all latches
lock securely in every position. Check that the
head restraints/headrests move up and down
smoothly and that the locks (if so equipped) hold
securely in all latched positions.
Maintenance and do-it yourself8-3
