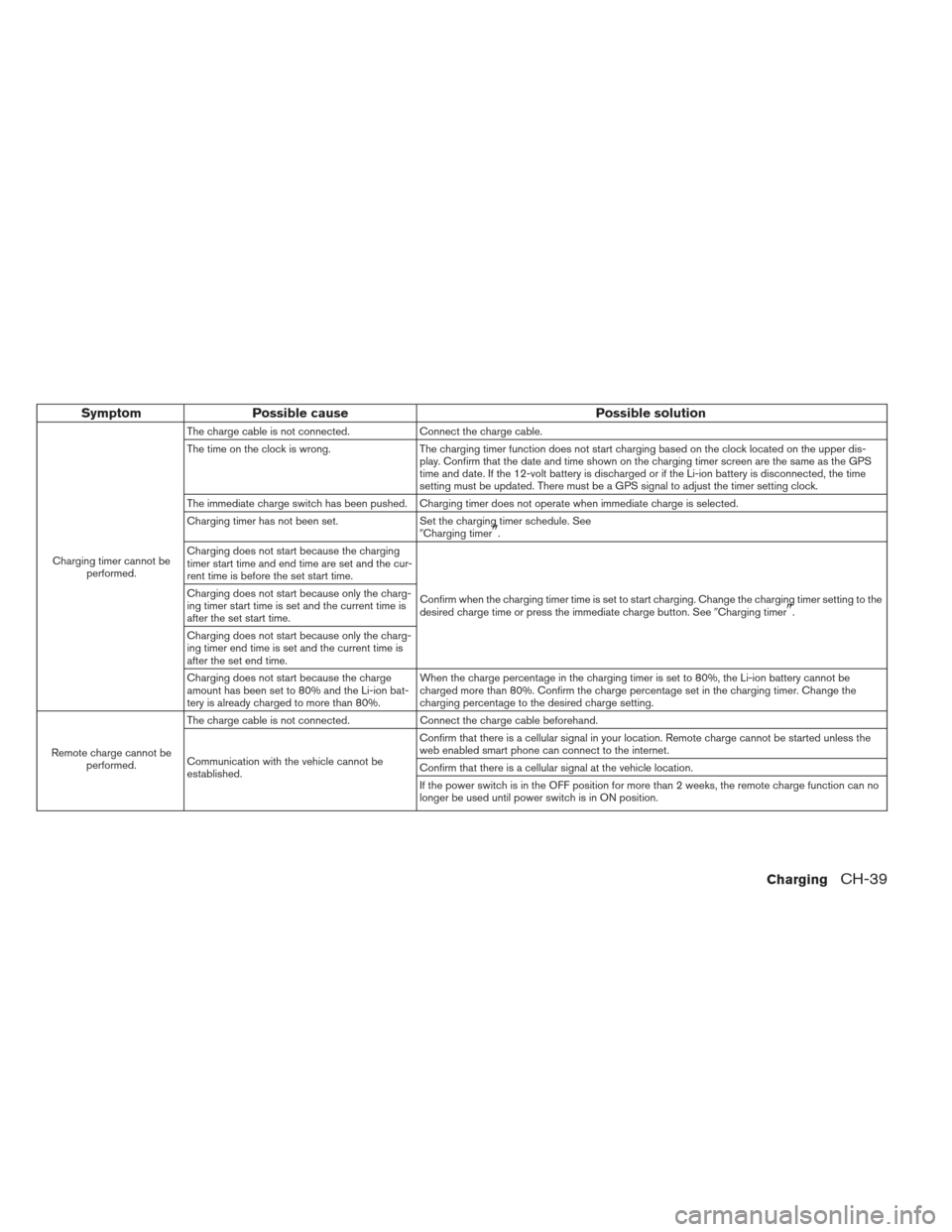

SymptomPossible cause Possible solution
Charging timer cannot be
performed. The charge cable is not connected. Connect the charge cable.
The time on the clock is wrong. The charging timer function does not start charging based on the clock located on the upper dis-
play. Confirm that the date and time shown on the charging timer screen are the same as the GPS
time and date. If the 12-volt battery is discharged or if the Li-ion battery is disconnected, the time
setting must be updated. There must be a GPS signal to adjust the timer setting clock.
The immediate charge switch has been pushed. Charging timer does not operate when immediate charge is selected.
Charging timer has not been set. Set the charging timer schedule. See
Charging timer
.
Charging does not start because the charging
timer start time and end time are set and the cur-
rent time is before the set start time.
Confirm when the charging timer time is set to start charging. Change the charging timer setting to the
desired charge time or press the immediate charge button. See Charging timer
.
Charging does not start because only the charg-
ing timer start time is set and the current time is
after the set start time.
Charging does not start because only the charg-
ing timer end time is set and the current time is
after the set end time.
Charging does not start because the charge
amount has been set to 80% and the Li-ion bat-
tery is already charged to more than 80%. When the charge percentage in the charging timer is set to 80%, the Li-ion battery cannot be
charged more than 80%. Confirm the charge percentage set in the charging timer. Change the
charging percentage to the desired charge setting.
Remote charge cannot be performed. The charge cable is not connected.
Connect the charge cable beforehand.
Communication with the vehicle cannot be
established. Confirm that there is a cellular signal in your location. Remote charge cannot be started unless the
web enabled smart phone can connect to the internet.
Confirm that there is a cellular signal at the vehicle location.
If the power switch is in the OFF position for more than 2 weeks, the remote charge function can no
longer be used until power switch is in ON position.
ChargingCH-39

Time the vehicle is not moving while the vehicleis in the READY to drive mode and accessories
are on.
Instant ECO driving level
The instant ECO driving level
1is displayed by
the number of bars that increase (more economi-
cal driving) or decrease (less economical driving)
depending on vehicle operation.
Long term ECO driving level
Long term ECO driving is indicated by ECO
TREE symbols. The longer the vehicle is operated
economically, the more segments of the large
ECO TREE symbol
2are displayed. When all of
the segments of the large ECO TREE symbol are
displayed, a small ECO TREE indicator
3is also
displayed, and the large ECO TREE symbol dis-
play is reset. The longer the vehicle is operated
economically, the more small ECO TREE sym-
bols are displayed. The ECO TREE symbols that
were illuminated while driving will turn off when
the vehicle power is turned off. The ECO TREE
symbols are stored in the navigation system to
show long term efficient vehicle operation.
To increase the ECO driving level and for information
about driving the vehicle efficiently, see
Improve
driving range in theEV overview section.

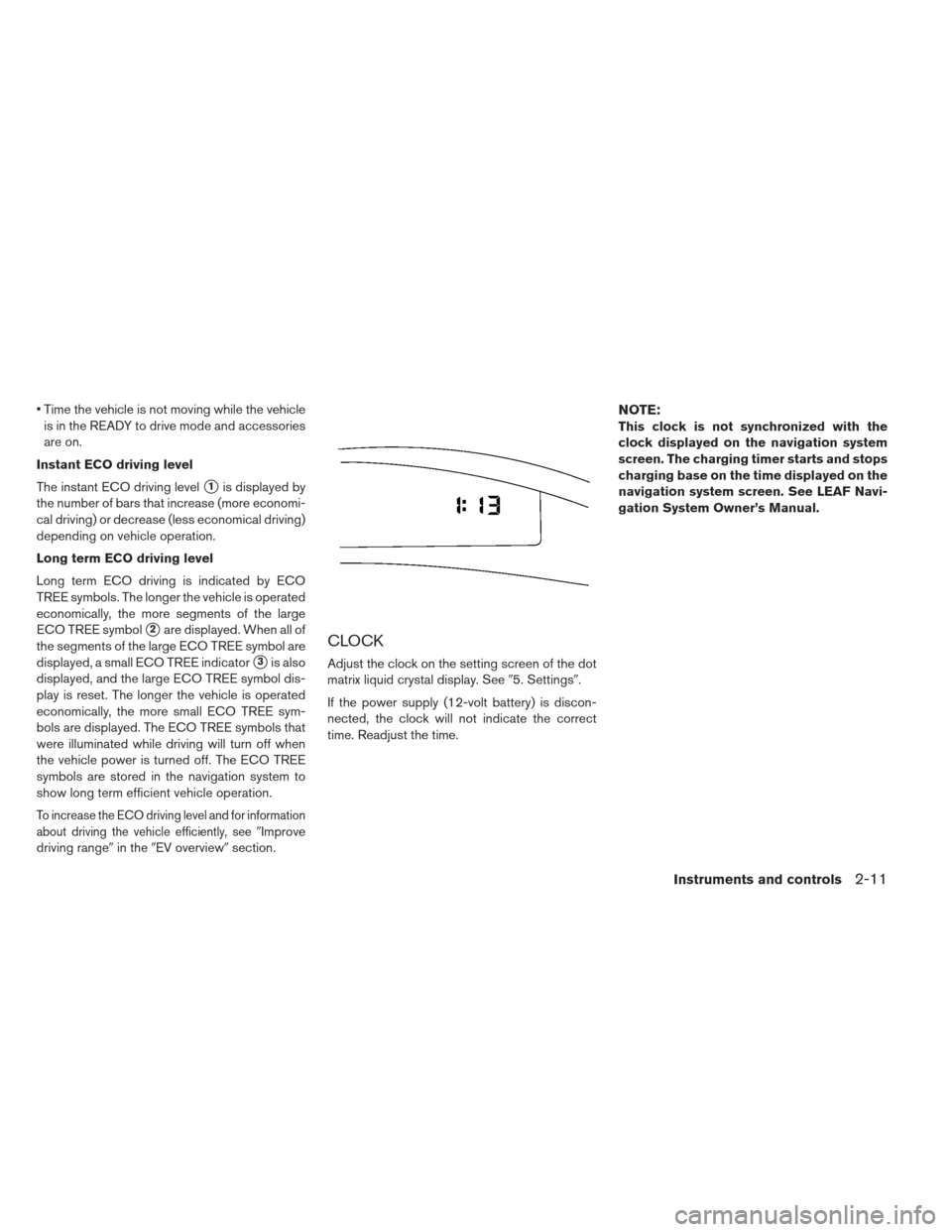

CLOCK
Adjust the clock on the setting screen of the dot
matrix liquid crystal display. See 5. Settings.
If the power supply (12-volt battery) is discon-
nected, the clock will not indicate the correct
time. Readjust the time.
NOTE:
This clock is not synchronized with the
clock displayed on the navigation system
screen. The charging timer starts and stops
charging base on the time displayed on the
navigation system screen. See LEAF Navi-
gation System Owner’s Manual.
Instruments and controls2-11

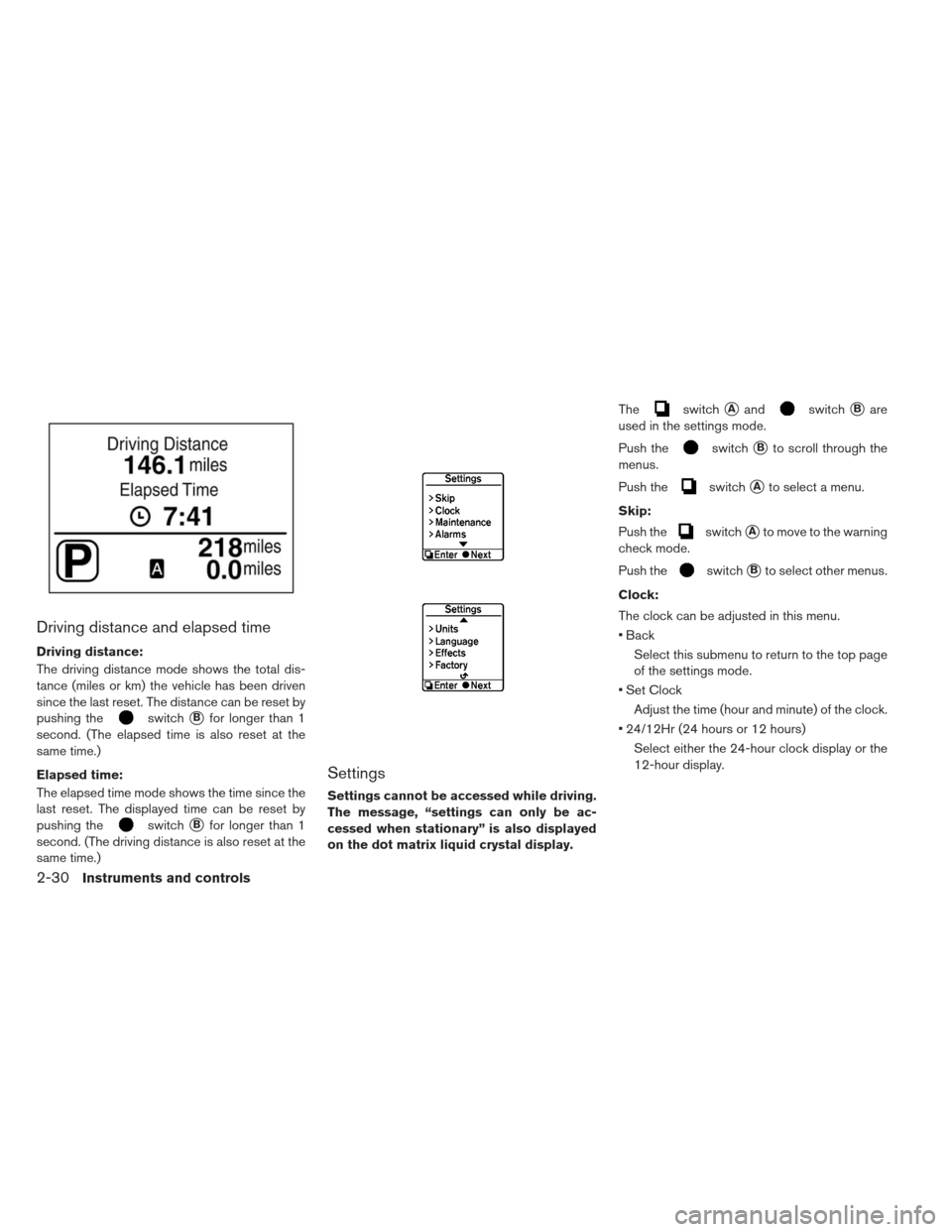

Driving distance and elapsed time
Driving distance:
The driving distance mode shows the total dis-
tance (miles or km) the vehicle has been driven
since the last reset. The distance can be reset by
pushing the
switchBfor longer than 1
second. (The elapsed time is also reset at the
same time.)
Elapsed time:
The elapsed time mode shows the time since the
last reset. The displayed time can be reset by
pushing the
switchBfor longer than 1
second. (The driving distance is also reset at the
same time.)
Settings
Settings cannot be accessed while driving.
The message, “settings can only be ac-
cessed when stationary” is also displayed
on the dot matrix liquid crystal display. The
switchAandswitchBare
used in the settings mode.
Push the
switchBto scroll through the
menus.
Push the
switchAto select a menu.
Skip:
Push the
switchAto move to the warning
check mode.
Push the
switchBto select other menus.
Clock:
The clock can be adjusted in this menu.
Back Select this submenu to return to the top page
of the settings mode.
Set Clock Adjust the time (hour and minute) of the clock.
24/12Hr (24 hours or 12 hours) Select either the 24-hour clock display or the
12-hour display.
2-30Instruments and controls

available channel list will be automatically up-
dated in the radio. Place the power switch from
LOCK to ACC to update the channel list.

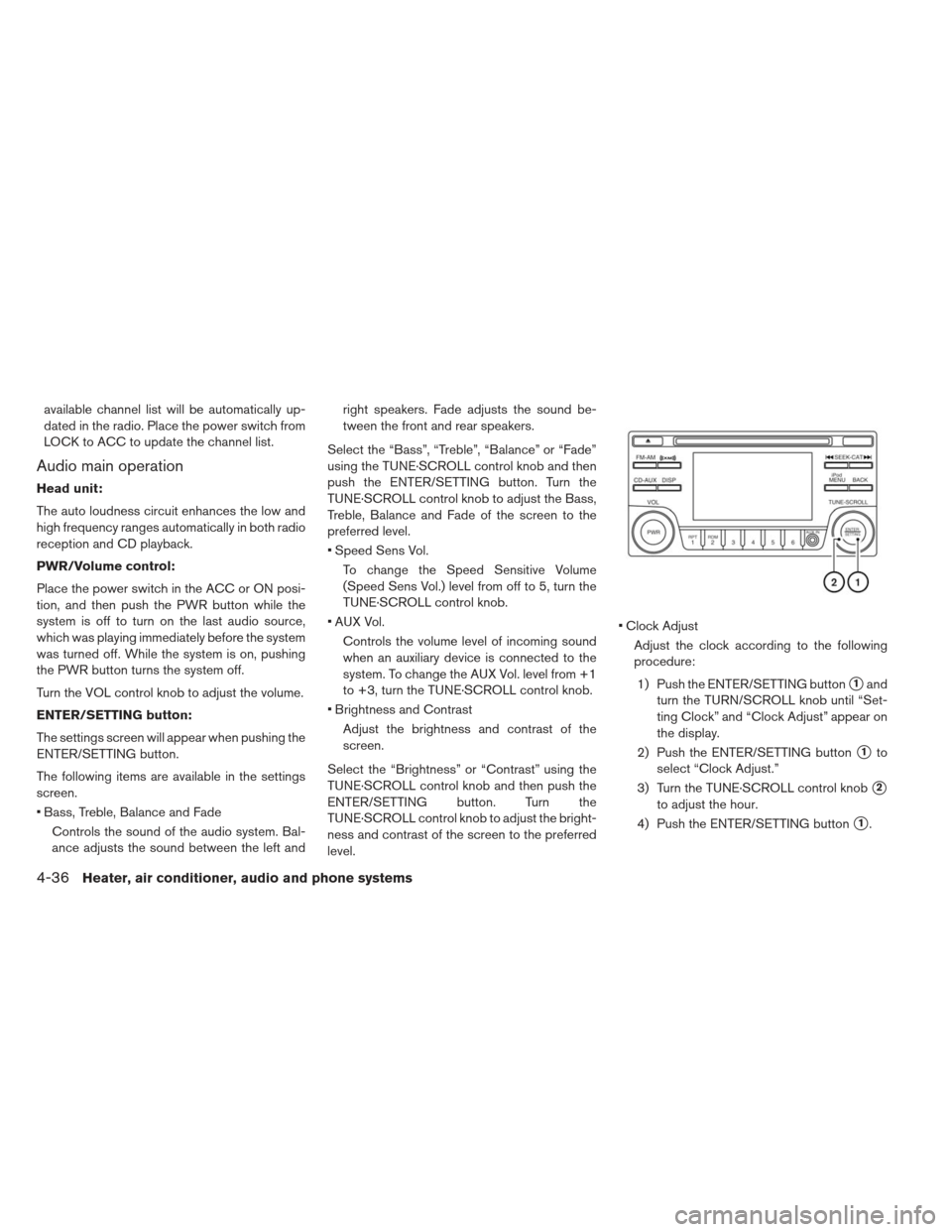

Audio main operation
Head unit:
The auto loudness circuit enhances the low and
high frequency ranges automatically in both radio
reception and CD playback.
PWR/Volume control:
Place the power switch in the ACC or ON posi-
tion, and then push the PWR button while the
system is off to turn on the last audio source,
which was playing immediately before the system
was turned off. While the system is on, pushing
the PWR button turns the system off.
Turn the VOL control knob to adjust the volume.
ENTER/SETTING button:
The settings screen will appear when pushing the
ENTER/SETTING button.
The following items are available in the settings
screen.
Bass, Treble, Balance and FadeControls the sound of the audio system. Bal-
ance adjusts the sound between the left and right speakers. Fade adjusts the sound be-
tween the front and rear speakers.
Select the “Bass”, “Treble”, “Balance” or “Fade”
using the TUNE·SCROLL control knob and then
push the ENTER/SETTING button. Turn the
TUNE·SCROLL control knob to adjust the Bass,
Treble, Balance and Fade of the screen to the
preferred level.
Speed Sens Vol. To change the Speed Sensitive Volume
(Speed Sens Vol.) level from off to 5, turn the
TUNE·SCROLL control knob.
AUX Vol. Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. To change the AUX Vol. level from +1
to +3, turn the TUNE·SCROLL control knob.
Brightness and Contrast Adjust the brightness and contrast of the
screen.
Select the “Brightness” or “Contrast” using the
TUNE·SCROLL control knob and then push the
ENTER/SETTING button. Turn the
TUNE·SCROLL control knob to adjust the bright-
ness and contrast of the screen to the preferred
level. Clock Adjust
Adjust the clock according to the following
procedure:
1) Push the ENTER/SETTING button
1and
turn the TURN/SCROLL knob until “Set-
ting Clock” and “Clock Adjust” appear on
the display.
2) Push the ENTER/SETTING button
1to
select “Clock Adjust.”
3) Turn the TUNE·SCROLL control knob
2
to adjust the hour.
4) Push the ENTER/SETTING button
1.
4-36Heater, air conditioner, audio and phone systems

5) Turn the TUNE·SCROLL control knob2
to adjust the minute.
6) Push the ENTER/SETTING button
1.
On-Screen Clock When this item is turned on, a clock is always
displayed in the upper right corner of the
screen.
Select the “On-Screen Clock” using the
TUNE·SCROLL control knob and then push the
ENTER/SETTING button. You can toggle be-
tween ON and OFF using the TUNE·SCROLL
control knob.
RDS Display When this has been set to ON, RDS (radio
data system) information will be shown on the
display. Select RDS display and then push the
ENTER/SETTING button. You can toggle be-
tween ON and OFF using the TUNE·SCROLL
control knob.
iPod® Menu language The iPod® menu language can be set to Eng-
lish, French or Spanish.
Select iPod® menu language and then push the
ENTER/SETTING button. Use the
TUNE·SCROLL control knob to select the pre-
ferred language. DISP button:
Display of the screen can be canceled by push-
ing the DISP button. You can then listen to music
that is being played back. If you want to display
the screen again, either push the DISP button
once more or push the FM·AM, SiriusXM Satellite
Radio or CD·AUX button.
CD·AUX button:
Pushing the CD·AUX button will switch the dis-
plays as follows:
CD→iPod®/USB→AUX→CD
BACK button:
When the BACK button is pushed, it returns to
the previous display.
FM-AM-SAT radio operation
FM/AM band select:
Pushing the radio band select button will change
the band as follows:
AM→FM1→FM2→AM
SiriusXM (SAT) band select:
Pushing the XM band select button will change
the band as follows:
XM1→XM2→XM3→XM1 When the XM band select button is pushed while
the power switch is in the ACC or ON position,
the radio will come on at the channel last played.
The last channel played will also come on when
the PWR button is pushed to ON.
The satellite radio is not available in Alaska, Ha-
waii and Guam.
If another audio source is playing when the radio
select band button is turned to ON, the audio
source will automatically be turned off and the
last radio channel played will come on.
When the stereo broadcast signal is weak, the
radio automatically changes from stereo to mon-
aural reception.
TUNE (Tuning):
For AM and FM radio
Turn the radio TUNE/SCROLL control knob
for manual tuning.
For SiriusXM Satellite Radio Turn the radio TUNE/SCROLL control knob to
seek channels from all of the categories when
any category is not selected.
Heater, air conditioner, audio and phone systems4-37
