2013 NISSAN LEAF ECO mode

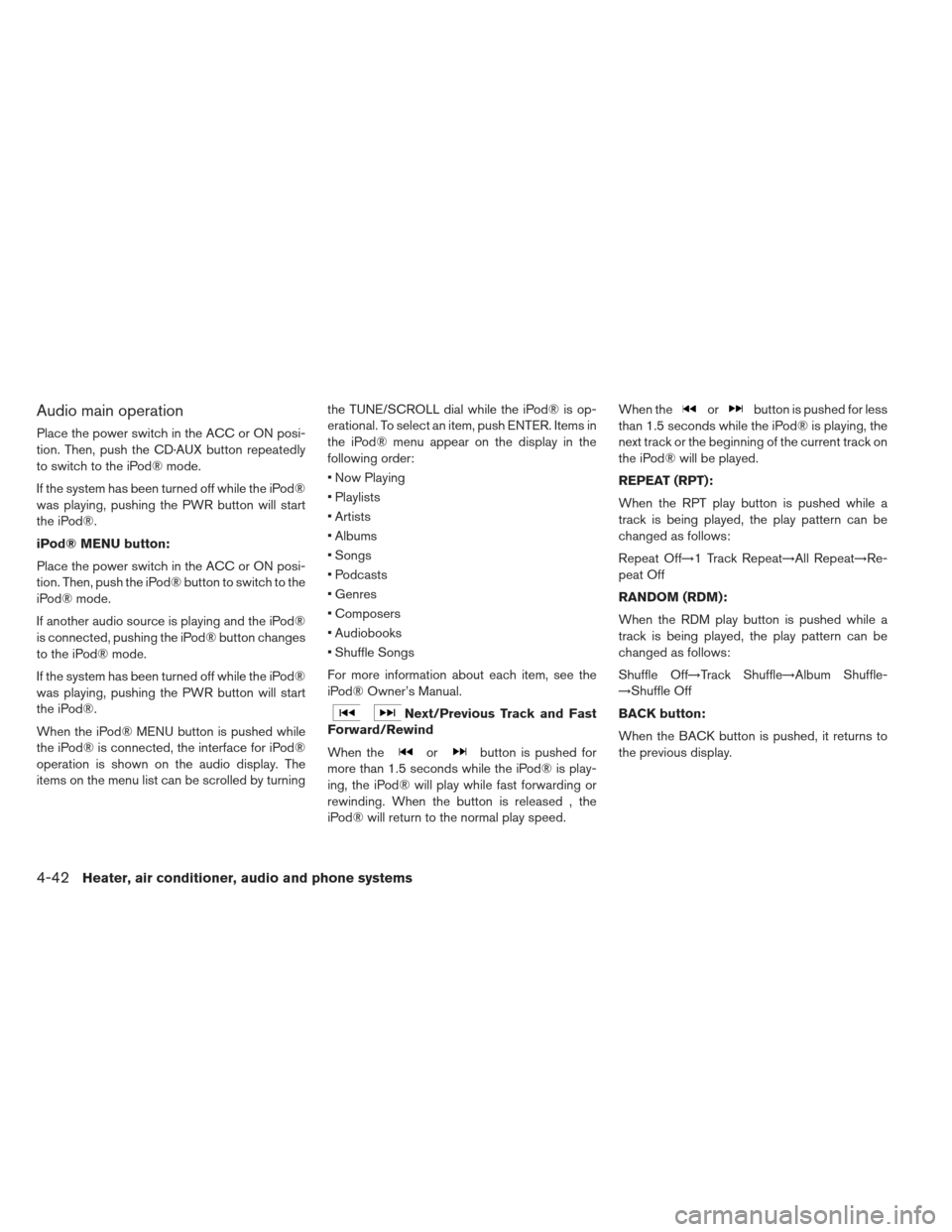

Audio main operation
Place the power switch in the ACC or ON posi-
tion. Then, push the CD·AUX button repeatedly
to switch to the iPod® mode.
If the system has been turned off while the iPod®
was playing, pushing the PWR button will start
the iPod®.
iPod® MENU button:
Place the power switch in the ACC or ON posi-
tion. Then, push the iPod® button to switch to the
iPod® mode.
If another audio source is playing and the iPod®
is connected, pushing the iPod® button changes
to the iPod® mode.
If the system has been turned off while the iPod®
was playing, pushing the PWR button will start
the iPod®.
When the iPod® MENU button is pushed while
the iPod® is connected, the interface for iPod®
operation is shown on the audio display. The
items on the menu list can be scrolled by turningthe TUNE/SCROLL dial while the iPod® is op-
erational. To select an item, push ENTER. Items in
the iPod® menu appear on the display in the
following order:
Now Playing
Playlists
Artists
Albums
Songs
Podcasts
Genres
Composers
Audiobooks
Shuffle Songs
For more information about each item, see the
iPod® Owner’s Manual.
Next/Previous Track and Fast
Forward/Rewind
When the
orbutton is pushed for
more than 1.5 seconds while the iPod® is play-
ing, the iPod® will play while fast forwarding or
rewinding. When the button is released , the
iPod® will return to the normal play speed. When the
orbutton is pushed for less
than 1.5 seconds while the iPod® is playing, the
next track or the beginning of the current track on
the iPod® will be played.
REPEAT (RPT):
When the RPT play button is pushed while a
track is being played, the play pattern can be
changed as follows:
Repeat Off→1 Track Repeat→All Repeat→Re-
peat Off
RANDOM (RDM):
When the RDM play button is pushed while a
track is being played, the play pattern can be
changed as follows:
Shuffle Off→Track Shuffle→Album Shuffle-
→Shuffle Off
BACK button:
When the BACK button is pushed, it returns to
the previous display.
4-42Heater, air conditioner, audio and phone systems

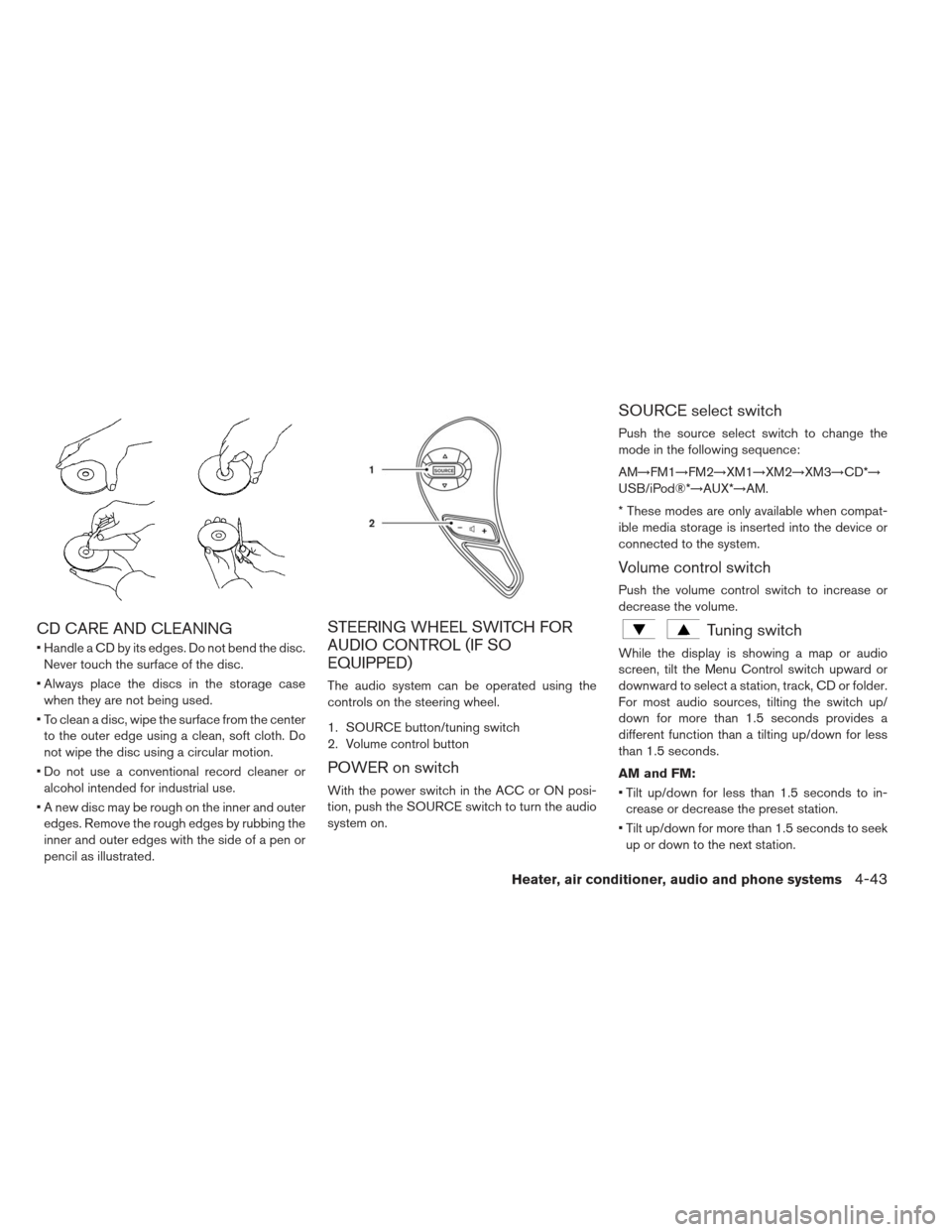

CD CARE AND CLEANING
Handle a CD by its edges. Do not bend the disc.Never touch the surface of the disc.
Always place the discs in the storage case when they are not being used.
To clean a disc, wipe the surface from the center to the outer edge using a clean, soft cloth. Do
not wipe the disc using a circular motion.
Do not use a conventional record cleaner or alcohol intended for industrial use.
A new disc may be rough on the inner and outer edges. Remove the rough edges by rubbing the
inner and outer edges with the side of a pen or
pencil as illustrated.
STEERING WHEEL SWITCH FOR
AUDIO CONTROL (IF SO
EQUIPPED)
The audio system can be operated using the
controls on the steering wheel.
1. SOURCE button/tuning switch
2. Volume control button
POWER on switch
With the power switch in the ACC or ON posi-
tion, push the SOURCE switch to turn the audio
system on.
SOURCE select switch
Push the source select switch to change the
mode in the following sequence:
AM→FM1→FM2→XM1→XM2→XM3→CD*→
USB/iPod®*→AUX*→AM.
* These modes are only available when compat-
ible media storage is inserted into the device or
connected to the system.
Volume control switch
Push the volume control switch to increase or
decrease the volume.
Tuning switch
While the display is showing a map or audio
screen, tilt the Menu Control switch upward or
downward to select a station, track, CD or folder.
For most audio sources, tilting the switch up/
down for more than 1.5 seconds provides a
different function than a tilting up/down for less
than 1.5 seconds.
AM and FM:
Tilt up/down for less than 1.5 seconds to in- crease or decrease the preset station.
Tilt up/down for more than 1.5 seconds to seek up or down to the next station.
Heater, air conditioner, audio and phone systems4-43

– The vehicle is covered with a carcover.
Always properly tighten the antenna rod during installation. Otherwise, the
antenna rod may break during vehicle
operation.
CAR PHONE OR CB RADIO
When installing a CB, ham radio or car phone in
your vehicle, be sure to observe the following
precautions; otherwise, the new equipment may
adversely affect the engine control system and
other electronic parts.
WARNING
A cellular phone should not be used for any purpose while driving so full
attention may be given to vehicle op-
eration. Some jurisdictions prohibit
the use of cellular phones while driv-
ing.
If you must make a call while your vehicle is in motion, the hands free
cellular phone operational mode is
highly recommended. Exercise ex-
treme caution at all times so full atten-
tion may be given to vehicle operation. If you are unable to devote full atten-
tion to vehicle operation while talking
on the phone, pull off the road to a safe
location and stop your vehicle.
CAUTION
Keep the antenna as far away as pos- sible from the electronic control mod-
ules.
Keep the antenna wire more than 8 in (20 cm) away from the electronic con-
trol system harnesses. Do not route
the antenna wire next to any harness.
Adjust the antenna standing-wave ra- tio as recommended by the manufac-
turer.
Connect the ground wire from the CB radio chassis to the body.
For details, consult a NISSAN dealer.
WARNING
Use a phone after stopping your ve- hicle in a safe location. If you have to
use a phone while driving, exercise
extreme caution at all times so full
attention may be given to vehicle op-
eration.
If you are unable to devote full atten- tion to vehicle operation while talking
on the phone, pull off the road to a safe
location and stop your vehicle.
CAUTION
To avoid draining the vehicle battery, use
a phone after the READY to drive indica-
tor light is on.
Your NISSAN is equipped with the Bluetooth®
Hands-Free Phone System. If you have a com-
patible Bluetooth® enabled cellular phone, you
can set up the wireless connection between your
cellular phone and the in-vehicle phone module.
With Bluetooth® wireless technology, you can
make or receive a hands-free telephone call with
your cellular phone in the vehicle.
BLUETOOTH® HANDS-FREE PHONE
SYSTEM WITHOUT NAVIGATION
SYSTEM
Heater, air conditioner, audio and phone systems4-45

mode or press the PHONE/END ()
button to select a different language.”
3. Press the
button.
For information on voice adaptation, see
“Voice Adaptation (VA) mode” in this section.
4. The system announces the current language and gives you the option to change the lan-
guage to Spanish (in Spanish) or French (in
French) . To select the current language, press
the PHONE/SEND (
) button. To select
a different language, tilt the tuning switch (
or) up or down.
NOTE:
You must press thebutton within 5
seconds to change the language.
5. If you decide not to change the language, do not press either button. After 5 seconds, the
VR session will end, and the language will not
be changed.
Connecting procedure
NOTE:
The connecting procedure must be per-
formed when the vehicle is stationary. If the
vehicle starts moving during the procedure,
the procedure will be cancelled.
Main Menu
“Add phone”
A
Initiate from handsetB
Name phoneC
1. Press thebutton on the steering wheel.
The system announces the available
commands.
2. Say: “Add phone”
A. The system acknowl-
edges the command and asks you to initiate
connecting from the phone handset
B.
The connecting procedure of the cellular
phone varies according to each cellular phone
model. See the cellular phone Owner’s
Manual for details. You can also visit
www.NissanUSA.com/bluetooth for instruc-
tions on connecting NISSAN recommended
cellular phones.
When prompted for a Passkey code, enter
“1234” from the handset. The Passkey code
“1234” has been assigned by NISSAN and
cannot be changed.
3. The system asks you to say a name for the phone
C.
If the name is too long or too short, the system
tells you, then prompts you for a name again. Also, if more than one phone is connected and
the name sounds too much like a name already
used, the system tells you, then prompts you
for a name again.
Making a call by entering a phone
number
Main Menu
“Call”
A
“Phone number”B
Speak the digitsC
DialD
1. Press thebutton on the steering wheel.
A tone will sound.
2. Say: “Call”
A. The system acknowledges the
command and announces the next set of
available commands.
3. Say “Phone Number”
B. The system ac-
knowledges the command and announces
the next set of available commands.
4. Say the number you wish to call starting with the area code in single digit format
C.Ifthe
system has trouble recognizing the correct
phone number, try entering the number in the
following groups: 3-digit area code, 3-digit
4-50Heater, air conditioner, audio and phone systems

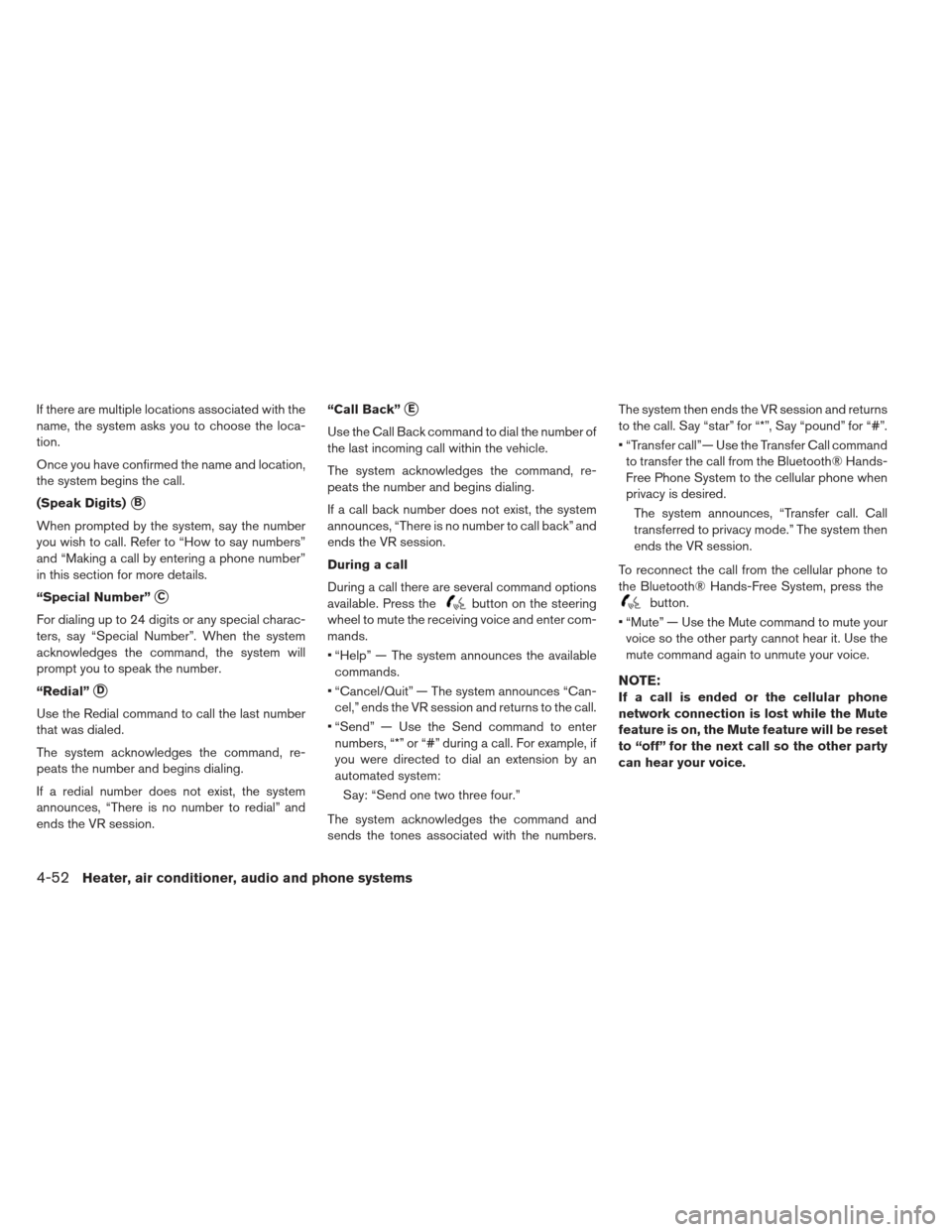

If there are multiple locations associated with the
name, the system asks you to choose the loca-
tion.
Once you have confirmed the name and location,
the system begins the call.
(Speak Digits)
B
When prompted by the system, say the number
you wish to call. Refer to “How to say numbers”
and “Making a call by entering a phone number”
in this section for more details.
“Special Number”
C
For dialing up to 24 digits or any special charac-
ters, say “Special Number”. When the system
acknowledges the command, the system will
prompt you to speak the number.
“Redial”
D
Use the Redial command to call the last number
that was dialed.
The system acknowledges the command, re-
peats the number and begins dialing.
If a redial number does not exist, the system
announces, “There is no number to redial” and
ends the VR session.“Call Back”
E
Use the Call Back command to dial the number of
the last incoming call within the vehicle.
The system acknowledges the command, re-
peats the number and begins dialing.
If a call back number does not exist, the system
announces, “There is no number to call back” and
ends the VR session.
During a call
During a call there are several command options
available. Press the
button on the steering
wheel to mute the receiving voice and enter com-
mands.
“Help” — The system announces the available commands.
“Cancel/Quit” — The system announces “Can- cel,” ends the VR session and returns to the call.
“Send” — Use the Send command to enter numbers, “*” or “#” during a call. For example, if
you were directed to dial an extension by an
automated system:
Say: “Send one two three four.”
The system acknowledges the command and
sends the tones associated with the numbers. The system then ends the VR session and returns
to the call. Say “star” for “*”, Say “pound” for “#”.
“Transfer call”— Use the Transfer Call command
to transfer the call from the Bluetooth® Hands-
Free Phone System to the cellular phone when
privacy is desired.
The system announces, “Transfer call. Call
transferred to privacy mode.” The system then
ends the VR session.
To reconnect the call from the cellular phone to
the Bluetooth® Hands-Free System, press thebutton.
“Mute” — Use the Mute command to mute your voice so the other party cannot hear it. Use the
mute command again to unmute your voice.
NOTE:
If a call is ended or the cellular phone
network connection is lost while the Mute
feature is on, the Mute feature will be reset
to “off” for the next call so the other party
can hear your voice.
4-52Heater, air conditioner, audio and phone systems

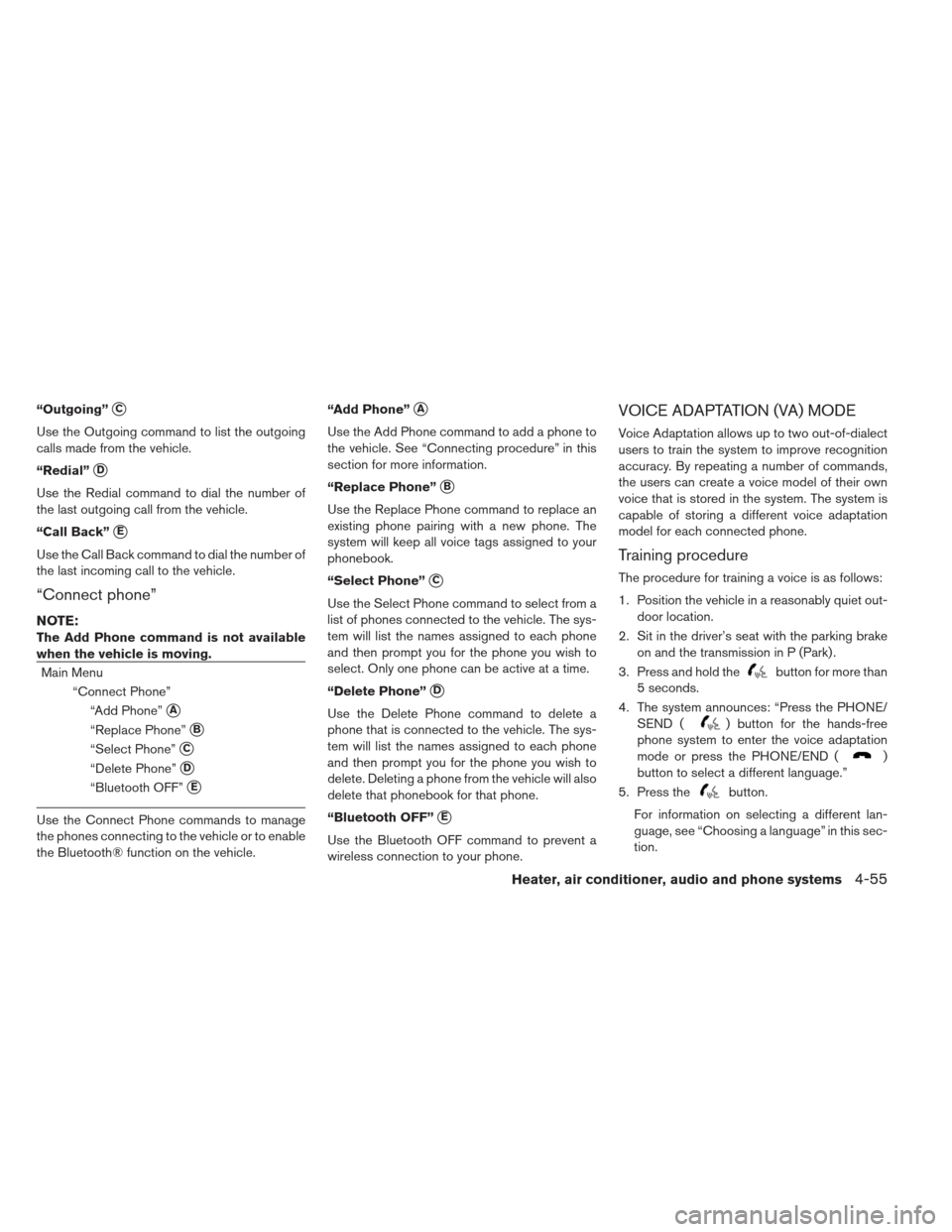

“Outgoing”C
Use the Outgoing command to list the outgoing
calls made from the vehicle.
“Redial”
D
Use the Redial command to dial the number of
the last outgoing call from the vehicle.
“Call Back”
E
Use the Call Back command to dial the number of
the last incoming call to the vehicle.
“Connect phone”
NOTE:
The Add Phone command is not available
when the vehicle is moving.
Main Menu“Connect Phone”“Add Phone”
A
“Replace Phone”B
“Select Phone”C
“Delete Phone”D
“Bluetooth OFF”E
Use the Connect Phone commands to manage
the phones connecting to the vehicle or to enable
the Bluetooth® function on the vehicle. “Add Phone”
A
Use the Add Phone command to add a phone to
the vehicle. See “Connecting procedure” in this
section for more information.
“Replace Phone”
B
Use the Replace Phone command to replace an
existing phone pairing with a new phone. The
system will keep all voice tags assigned to your
phonebook.
“Select Phone”
C
Use the Select Phone command to select from a
list of phones connected to the vehicle. The sys-
tem will list the names assigned to each phone
and then prompt you for the phone you wish to
select. Only one phone can be active at a time.
“Delete Phone”
D
Use the Delete Phone command to delete a
phone that is connected to the vehicle. The sys-
tem will list the names assigned to each phone
and then prompt you for the phone you wish to
delete. Deleting a phone from the vehicle will also
delete that phonebook for that phone.
“Bluetooth OFF”
E
Use the Bluetooth OFF command to prevent a
wireless connection to your phone.
VOICE ADAPTATION (VA) MODE
Voice Adaptation allows up to two out-of-dialect
users to train the system to improve recognition
accuracy. By repeating a number of commands,
the users can create a voice model of their own
voice that is stored in the system. The system is
capable of storing a different voice adaptation
model for each connected phone.
Training procedure
The procedure for training a voice is as follows:
1. Position the vehicle in a reasonably quiet out-
door location.
2. Sit in the driver’s seat with the parking brake on and the transmission in P (Park) .
3. Press and hold the
button for more than
5 seconds.
4. The system announces: “Press the PHONE/ SEND (
) button for the hands-free
phone system to enter the voice adaptation
mode or press the PHONE/END (
)
button to select a different language.”
5. Press the
button.
For information on selecting a different lan-
guage, see “Choosing a language” in this sec-
tion.
Heater, air conditioner, audio and phone systems4-55

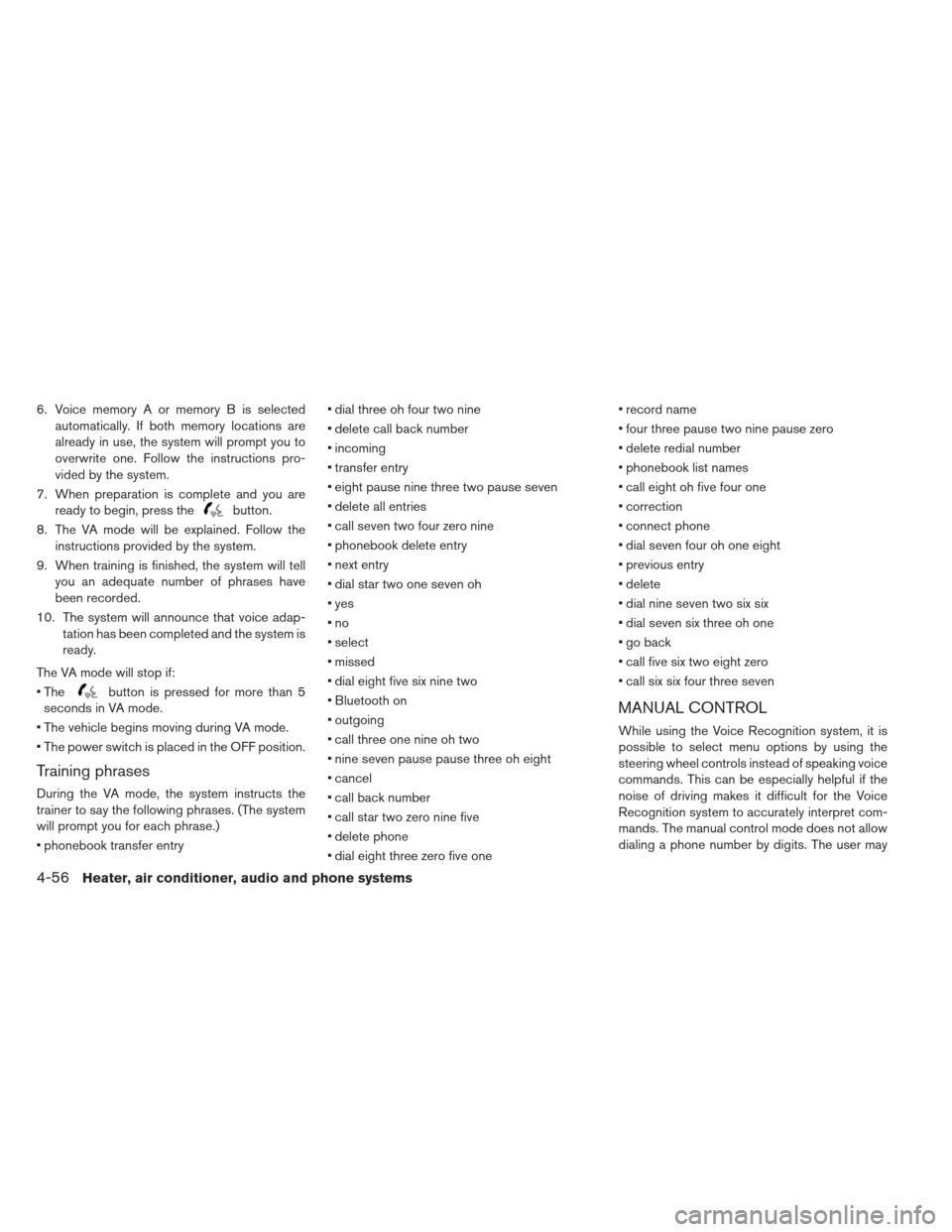

6. Voice memory A or memory B is selectedautomatically. If both memory locations are
already in use, the system will prompt you to
overwrite one. Follow the instructions pro-
vided by the system.
7. When preparation is complete and you are ready to begin, press the
button.
8. The VA mode will be explained. Follow the instructions provided by the system.
9. When training is finished, the system will tell you an adequate number of phrases have
been recorded.
10. The system will announce that voice adap- tation has been completed and the system is
ready.
The VA mode will stop if:
The
button is pressed for more than 5
seconds in VA mode.
The vehicle begins moving during VA mode.
The power switch is placed in the OFF position.
Training phrases
During the VA mode, the system instructs the
trainer to say the following phrases. (The system
will prompt you for each phrase.)
phonebook transfer entry dial three oh four two nine
delete call back number
incoming
transfer entry
eight pause nine three two pause seven
delete all entries
call seven two four zero nine
phonebook delete entry
next entry
dial star two one seven oh
yes

select
missed
dial eight five six nine two
Bluetooth on
outgoing
call three one nine oh two
nine seven pause pause three oh eight
cancel
call back number
call star two zero nine five
delete phone
dial eight three zero five one record name
four three pause two nine pause zero
delete redial number
phonebook list names
call eight oh five four one
correction
connect phone
dial seven four oh one eight
previous entry
delete
dial nine seven two six six
dial seven six three oh one
go back
call five six two eight zero
call six six four three seven
MANUAL CONTROL
While using the Voice Recognition system, it is
possible to select menu options by using the
steering wheel controls instead of speaking voice
commands. This can be especially helpful if the
noise of driving makes it difficult for the Voice
Recognition system to accurately interpret com-
mands. The manual control mode does not allow
dialing a phone number by digits. The user may

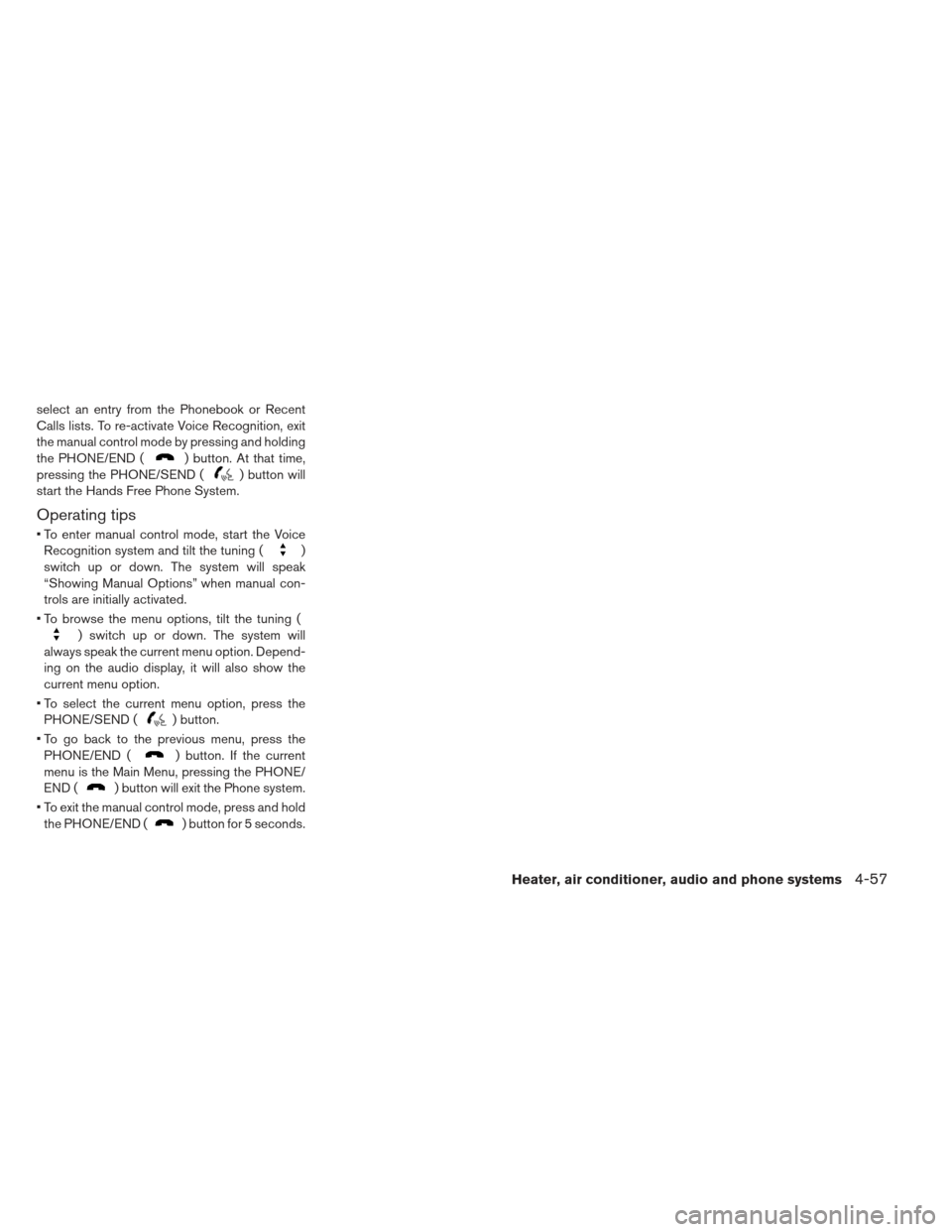

4-56Heater, air conditioner, audio and phone systems

select an entry from the Phonebook or Recent
Calls lists. To re-activate Voice Recognition, exit
the manual control mode by pressing and holding
the PHONE/END (
) button. At that time,
pressing the PHONE/SEND (
) button will
start the Hands Free Phone System.
Operating tips
To enter manual control mode, start the Voice Recognition system and tilt the tuning (
)
switch up or down. The system will speak
“Showing Manual Options” when manual con-
trols are initially activated.
To browse the menu options, tilt the tuning (
) switch up or down. The system will
always speak the current menu option. Depend-
ing on the audio display, it will also show the
current menu option.
To select the current menu option, press the PHONE/SEND (
) button.
To go back to the previous menu, press the PHONE/END (
) button. If the current
menu is the Main Menu, pressing the PHONE/
END (
) button will exit the Phone system.
To exit the manual control mode, press and hold the PHONE/END (
) button for 5 seconds.
Heater, air conditioner, audio and phone systems4-57
