If you have a flat tire, seeFlat tirein theIn
case of emergency section.

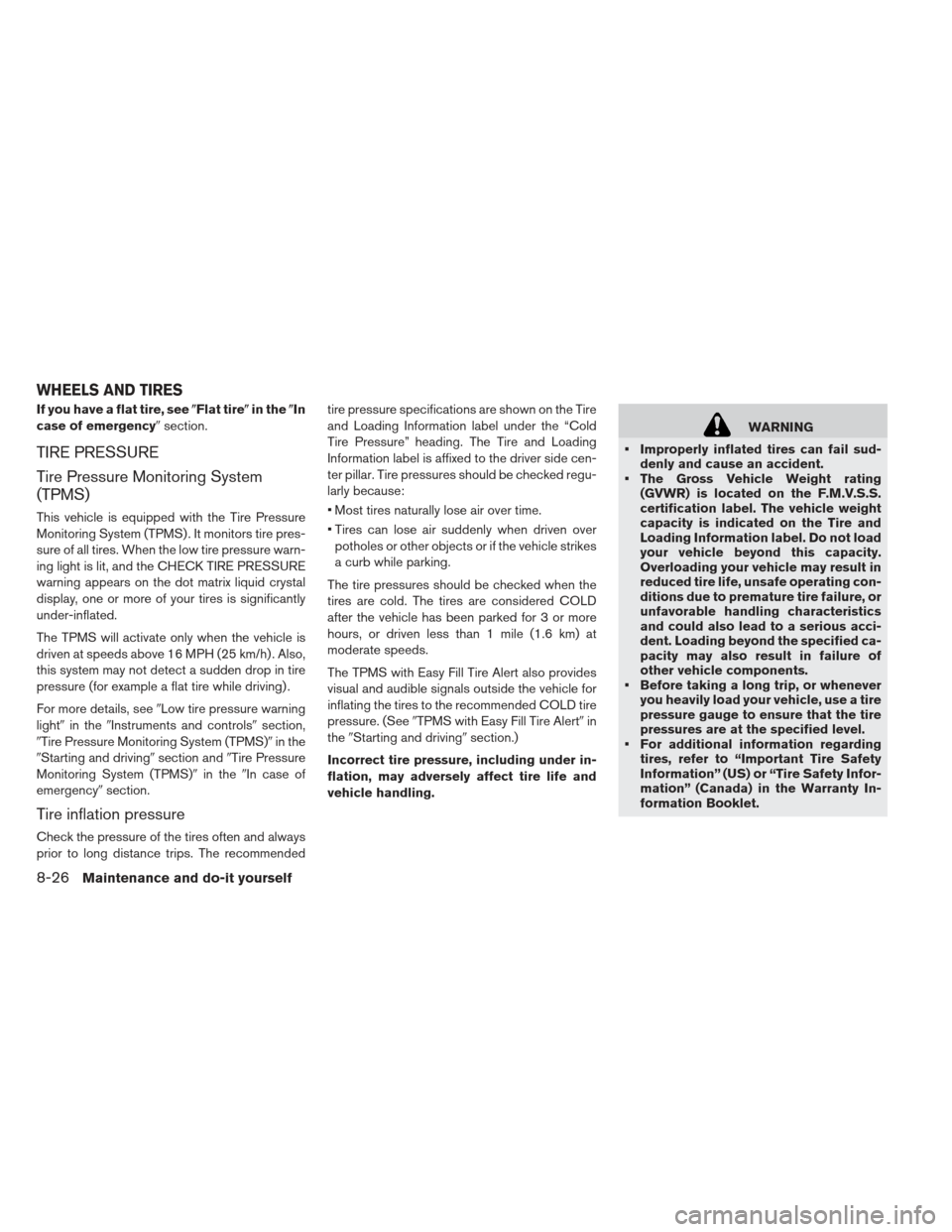

TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire pres-
sure of all tires. When the low tire pressure warn-
ing light is lit, and the CHECK TIRE PRESSURE
warning appears on the dot matrix liquid crystal
display, one or more of your tires is significantly
under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h) . Also,
this system may not detect a sudden drop in tire
pressure (for example a flat tire while driving) .
For more details, seeLow tire pressure warning
light in the Instruments and controls section,
Tire Pressure Monitoring System (TPMS) in the
Starting and driving section andTire Pressure
Monitoring System (TPMS) in theIn case of
emergency section.
Tire inflation pressure
Check the pressure of the tires often and always
prior to long distance trips. The recommended tire pressure specifications are shown on the Tire
and Loading Information label under the “Cold
Tire Pressure” heading. The Tire and Loading
Information label is affixed to the driver side cen-
ter pillar. Tire pressures should be checked regu-
larly because:
Most tires naturally lose air over time.
Tires can lose air suddenly when driven over
potholes or other objects or if the vehicle strikes
a curb while parking.
The tire pressures should be checked when the
tires are cold. The tires are considered COLD
after the vehicle has been parked for 3 or more
hours, or driven less than 1 mile (1.6 km) at
moderate speeds.
The TPMS with Easy Fill Tire Alert also provides
visual and audible signals outside the vehicle for
inflating the tires to the recommended COLD tire
pressure. (See TPMS with Easy Fill Tire Alert in
the Starting and driving section.)
Incorrect tire pressure, including under in-
flation, may adversely affect tire life and
vehicle handling.
WARNING
Improperly inflated tires can fail sud- denly and cause an accident.
The Gross Vehicle Weight rating (GVWR) is located on the F.M.V.S.S.
certification label. The vehicle weight
capacity is indicated on the Tire and
Loading Information label. Do not load
your vehicle beyond this capacity.
Overloading your vehicle may result in
reduced tire life, unsafe operating con-
ditions due to premature tire failure, or
unfavorable handling characteristics
and could also lead to a serious acci-
dent. Loading beyond the specified ca-
pacity may also result in failure of
other vehicle components.
Before taking a long trip, or whenever you heavily load your vehicle, use a tire
pressure gauge to ensure that the tire
pressures are at the specified level.
For additional information regarding tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.
WHEELS AND TIRES
8-26Maintenance and do-it yourself

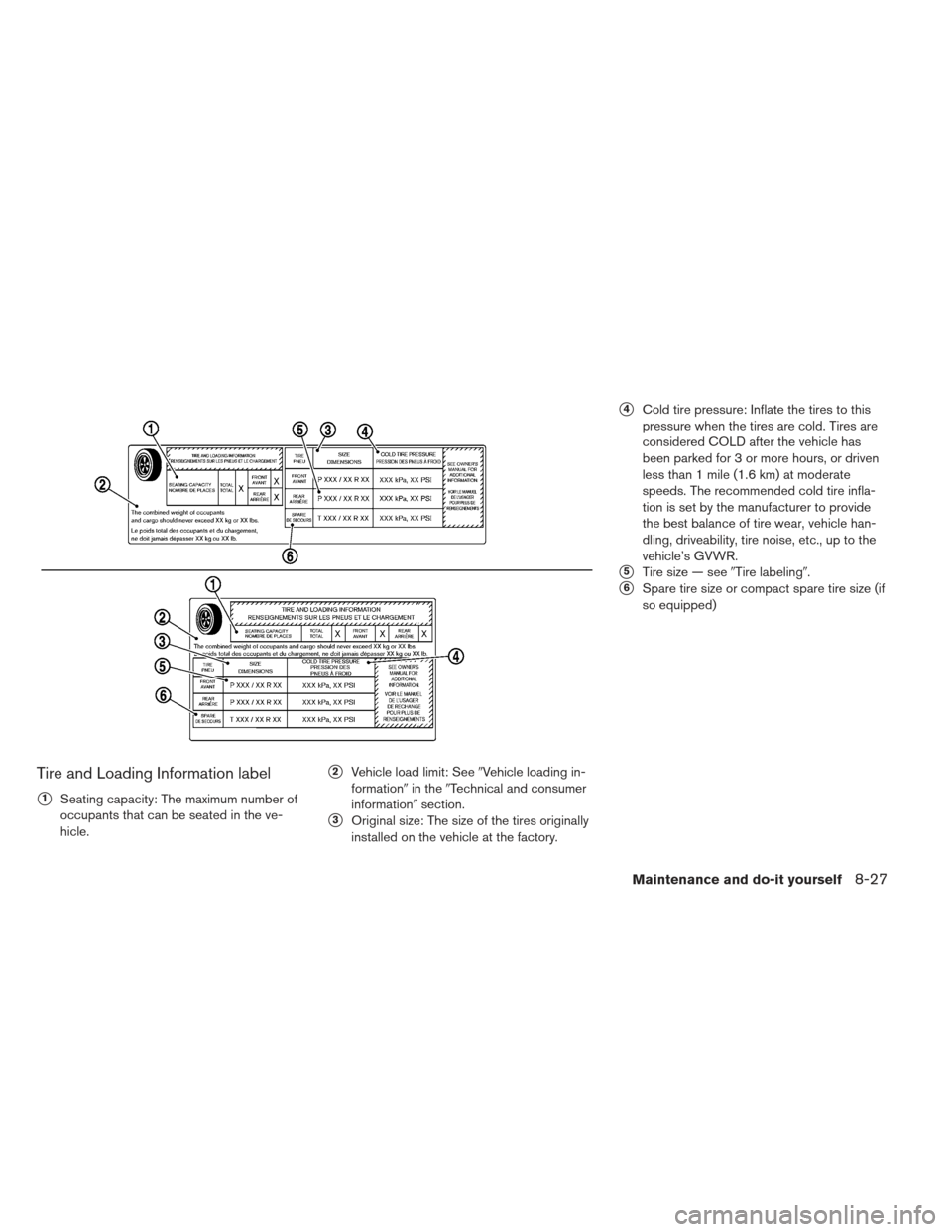

Tire and Loading Information label
1Seating capacity: The maximum number of
occupants that can be seated in the ve-
hicle.
2Vehicle load limit: See Vehicle loading in-
formation in theTechnical and consumer
information section.
3Original size: The size of the tires originally
installed on the vehicle at the factory.
4Cold tire pressure: Inflate the tires to this
pressure when the tires are cold. Tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds. The recommended cold tire infla-
tion is set by the manufacturer to provide
the best balance of tire wear, vehicle han-
dling, driveability, tire noise, etc., up to the
vehicle’s GVWR.
5Tire size — see Tire labeling.
6Spare tire size or compact spare tire size (if
so equipped)
Maintenance and do-it yourself8-27

This vehicle is equipped with an Event Data Re-
corder (EDR) . The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in understand-
ing how a vehicle’s systems performed. The EDR
is designed to record data related to vehicle
dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this
vehicle is designed to record such data as:
How various systems in your vehicle were oper-ating;
Whether or not the driver and passenger safety belts were buckled/fastened;
How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
How fast the vehicle was traveling.
Sounds are not recorded.
These data can help provide a better understand-
ing of the circumstances in which crashes and
injuries occur.NOTE:
EDR data are recorded by your vehicle only
if a nontrivial crash situation occurs; no
data are recorded by the EDR under normal
driving conditions and no personal data
(for example, name, gender, age and crash
location) are recorded. However, other par-
ties, such as law enforcement, could com-
bine the EDR data with the type of person-
ally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the
vehicle or the EDR is needed. In addition
to the vehicle manufacturer and NISSAN
certified LEAF dealer, other parties, such
as law enforcement, that have the special
equipment, can read the information if
they have access to the vehicle or the
EDR. EDR data will only be accessed with
the consent of the vehicle owner or lessee
or as otherwise required or permitted by
law. Genuine NISSAN Service Manuals for this model
year and prior can be purchased. A genuine
NISSAN Service Manual is the best source of
service and repair information for your vehicle.
This manual is the same one used by the factory
trained technicians working at a NISSAN certi-
fied LEAF dealer. Genuine NISSAN Owner’s
Manuals can also be purchased.
In the USA:
For current pricing and availability of genuine
NISSAN Service Manuals
contact:
1-800-450-9491
www.nissan-techinfo.com
For current pricing and availability of genuine
NISSAN Owner’s Manuals contact:
1-800-247-5321
In Canada:
To purchase a copy of a genuine NISSAN Ser-
vice Manual or Owner’s Manual for this model
year and prior please contact a NISSAN certified
LEAF dealer. For the phone number and location
of a NISSAN certified LEAF dealer in your area
call the NISSAN Information Center at
1-800-387-0122 and a bilingual NISSAN repre-
sentative will assist you.
