Front passenger air bag:
The front passenger air bag is designed to auto-
matically turn OFF when the vehicle is operated
under some conditions as described below as
permitted by U.S. regulations. If the front passen-
ger air bag is OFF, it will not inflate in a crash. The
driver air bag and other air bags in your vehicle
are not part of this system.
The purpose of the regulation is to help reduce
the risk of injury or death from an inflating air bag
to certain front passenger seat occupants, such
as children, by requiring the air bag to be auto-
matically turned OFF.
The occupant classification sensors (weight sen-
sors) are on the seat cushion frame under the
front passenger seat and are designed to detect
an occupant and objects on the seat. For ex-
ample, if a child is in the front passenger seat, the
Advanced Air Bag System is designed to turn the
passenger air bag OFF in accordance with the
regulations. Also, if a child restraint of the type
specified in the regulations is on the seat, the
occupant classification sensors can detect it and
cause the air bag to turn OFF.
Front passenger seat adult occupants who are
properly seated and using the seat belt as out-
lined in this manual should not cause the passen-ger air bag to be automatically turned OFF. For
small adults it may be turned OFF, however, if the
occupant does not sit in the seat properly (for
example, by not sitting upright, by sitting on an
edge of the seat, or by otherwise being out of
position) , this could cause the sensors to turn the
air bag OFF. Always be sure to be seated and
wearing the seat belt properly for the most effec-
tive protection by the seat belt and supplemental
air bag.
NISSAN recommends that pre-teens and chil-
dren be properly restrained in a rear seat.
NISSAN also recommends that appropriate child
restraints and booster seats be properly installed
in a rear seat. If this is not possible, the occupant
classification sensors are designed to operate as
described above to turn the front passenger air
bag OFF for specified child restraints. Failing to
properly secure child restraints and to use the
Automatic Locking Retractor (ALR) mode (child
restraint mode) may allow the restraint to tip or
move in an accident or sudden stop. This can
also result in the passenger air bag inflating in a
crash instead of being OFF. See
Child re-
straints for proper use and installation.
If the front passenger seat is not occupied, the
passenger air bag is designed not to inflate in a crash. However, heavy objects placed on the
seat could result in air bag inflation, because of
the object being detected by the occupant clas-
sification sensors. Other conditions could also
result in air bag inflation, such as if a child is
standing on the seat, or if two children are on the
seat, contrary to the instructions in this manual.
Always be sure that you and all vehicle occupants
are seated and restrained properly.
Using the passenger air bag status light, you can
monitor when the front passenger air bag is au-
tomatically turned OFF with the seat occupied.
The light will not illuminate when the front pas-
senger seat is unoccupied.
If an adult occupant is in the seat but the passen-
ger air bag status light is illuminated (indicating
that the air bag is OFF) , it could be that the
person is a small adult, or is not sitting on the seat
properly.
If a child restraint must be used in the front seat,
the passenger air bag status light may or may not
be illuminated, depending on the size of the child
and the type of child restraint being used. If the air
bag status light is not illuminated (indicating that
the air bag might inflate in a crash) , it could be
that the child restraint or seat belt is not being
used properly. Make sure that the child restraint is
Safety–Seats, seat belts and supplemental restraint system1-43

Time the vehicle is not moving while the vehicleis in the READY to drive mode and accessories
are on.
Instant ECO driving level
The instant ECO driving level
1is displayed by
the number of bars that increase (more economi-
cal driving) or decrease (less economical driving)
depending on vehicle operation.
Long term ECO driving level
Long term ECO driving is indicated by ECO
TREE symbols. The longer the vehicle is operated
economically, the more segments of the large
ECO TREE symbol
2are displayed. When all of
the segments of the large ECO TREE symbol are
displayed, a small ECO TREE indicator
3is also
displayed, and the large ECO TREE symbol dis-
play is reset. The longer the vehicle is operated
economically, the more small ECO TREE sym-
bols are displayed. The ECO TREE symbols that
were illuminated while driving will turn off when
the vehicle power is turned off. The ECO TREE
symbols are stored in the navigation system to
show long term efficient vehicle operation.
To increase the ECO driving level and for information
about driving the vehicle efficiently, see
Improve
driving range in theEV overview section.
CLOCK
Adjust the clock on the setting screen of the dot
matrix liquid crystal display. See 5. Settings.
If the power supply (12-volt battery) is discon-
nected, the clock will not indicate the correct
time. Readjust the time.
NOTE:
This clock is not synchronized with the
clock displayed on the navigation system
screen. The charging timer starts and stops
charging base on the time displayed on the
navigation system screen. See LEAF Navi-
gation System Owner’s Manual.
Instruments and controls2-11

If the 12-volt warning light illuminatescontinuously when the power switch is
in the READY to drive position. Do not
charge the 12-volt battery while this
warning light is illuminated. It may
lead to a malfunction of the DC/DC
converter system. Contact a NISSAN
certified LEAF dealer.
NOTE:
If the vehicle does not go into the READY
to drive position (when the power switch
is pushed with the brake pedal is de-
pressed) , jump-start the vehicle to place
the power switch in the READY to drive
position. See Jump starting in theIn
case of emergency section.
Do not jump-start the vehicle and contact
a NISSAN certified LEAF dealer for in-
spection: – If the 12-volt charge warning light turns off when the vehicle is in the
READY to drive mode, the 12-volt bat-
tery may be discharged or there may
be a malfunction in the 12-volt battery
related system. – If the 12-volt charge warning light con-
tinues to illuminate when the vehicle is
in the READY to drive mode, there may
be a malfunction in the DC/DC con-
verter. Contact a NISSAN certified
LEAF dealer for inspection.
orAnti-lock Braking
System (ABS)
warning light
When the power switch is in the ON or READY to
drive position, the Anti-lock Braking System
(ABS) warning light illuminates and then turns off.
This indicates the ABS is operational.
If the ABS warning light illuminates while the
power switch is in READY to drive position, or
while driving, it may indicate the ABS is not
functioning properly. Have the system checked
by a NISSAN certified LEAF dealer.
If an ABS malfunction occurs, the anti-lock func-
tion is turned off. The brake system then operates
normally, but without anti-lock assistance. (See
Brake system in theStarting and driving sec-
tion.)
Approaching Vehicle Sound
for Pedestrians (VSP) system
warning light
The Approaching Vehicle Sound for Pedestrians
(VSP) system warning light is located on the
instrument panel.
This light comes on if there is a malfunction in the
VSP system.
If the VSP system warning light illuminates while
the power switch is in ON position, or in the
READY to drive position, it may indicate the VSP
system is not functioning properly. Have the sys-
tem checked by a NISSAN certified LEAF dealer.
See Approaching Vehicle Sound for Pedestri-
ans (VSP) in theEV overview section.
BRAKE system warning light
(yellow)
This light functions for both the cooperative re-
generative brake and the electronically driven
intelligent brake systems. When the power
switch is placed in the ON position or in the
READY to drive position, the light remains illumi-
nated for about 2 or 3 seconds. If the light illumi-
nates at any other time, it may indicate that the
2-14Instruments and controls

bag, curtain side-impact air bag systems and/or
pretensioner seat belt are operational.
If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and preten-
sioner systems need servicing and your vehicle
must be taken to your nearest NISSAN certified
LEAF dealer.
The supplemental air bag warning light remainson after approximately 7 seconds.
The supplemental air bag warning light flashes intermittently.
The supplemental air bag warning light does not illuminate at all.
Unless checked and repaired, the Supplemental
Restraint Systems and/or the pretensioners may
not function properly.
For additional information, see Supplemental re-
straint system in theSafety — Seats seat belts
and supplemental restraint system section.
WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or pre-
tensioner systems will not operate in an
accident. To help avoid injury to yourself or others, have your vehicle checked by a
NISSAN certified LEAF dealer as soon as
possible.
Vehicle Dynamic Control
(VDC) warning light
The light will blink when the Vehicle Dynamic
Control (VDC) system is operating, thus alerting
the driver that the vehicle is nearing its traction
limits. The road surface may be slippery.
When the VDC warning light illuminates with
VDC system turned on, this light alerts the driver
to the fact that the VDC system’s fail-safe mode
is operating, for example the VDC system may
not be functioning properly. Have the system
checked by a NISSAN certified LEAF dealer. If a
malfunction occurs in the system, the VDC sys-
tem function will be canceled but the vehicle is
still driveable. For additional information, see
Ve-
hicle Dynamic Control (VDC) system in the5
Starting and driving of this manual.
INDICATOR LIGHTS
Exterior light
indicator
This indicator illuminates when the headlight
switch is turned to the AUTO (if so equipped) ,
orposition and the front parking
lights, side maker lights, tail and license plate
lights are on. The indicator turns off when these
lights are turned off.
Front fog light indicator light (if
so equipped)
The front fog light indicator light illuminates when
the front fog lights are on. See Fog light switch (if
so equipped).
Front passenger air bag status
light
The front passenger air bag status light (located
on the center of the instrument panel) will be lit
and the passenger front air bag will be turned
OFF depending on how the front passenger seat
is being used.
For front passenger air bag status light operation,
see NISSAN Advanced Air Bag System (front
seats) in theSafety — Seats seat belts and
supplemental restraint system section of this
manual.
Instruments and controls2-19

High beam indicator light
(blue)
This light illuminates when the headlight high
beam is on and goes out when the low beam is
selected.
Plug in indicator
light
This light illuminates while charge connector is
connected to the vehicle and blinks during charg-
ing.
NOTE:
If the charge connector is connected to the
vehicle, the power switch can not be placed
in the READY to drive position.
Power limitation indicator light
When the power limitation indicator light is illu-
minated, the power provided to the traction motor
is reduced. Therefore the vehicle is not as re-
sponsive when the accelerator is depressed
while the power limitation light is illuminated.
When this light comes on, the warning display
appears on the navigation display and the dot
matrix liquid crystal display. Follow the instruc-
tions provided on the navigation display.This light illuminates in the following conditions.
Li-ion battery available charge is extremely low
Li-ion battery temperature is very low (approxi-
mately 4°F (20°C)
When the temperature of EV system is high (motor, inverter, coolant system, Li-ion battery
etc.)
When the EV system has a malfunction.
If the low battery charge warning light is illumi-
nated, charge the Li-ion battery as soon as pos-
sible.
If this indicator illuminates because the Li-ion
battery is cold due to low outside temperatures,
move the vehicle to a warmer location. The Li-ion
battery temperature may be increased by charg-
ing the Li-ion battery.
If the light illuminates when the EV system be-
comes hot due to continuous hill climbing either
continue driving at a slower safe speed, or stop
the vehicle in a safe location. If this indicator does
not turn off, contact a NISSAN certified dealer.
If the indicator illuminate when a part in the EV
system has malfunctioned. If the indicator illumi-
nates in a situation other than those described
above, or if it does not turn off, there may be a system malfunction. Contact a NISSAN certified
LEAF dealer.
WARNING
Power limitation mode can result in re-
duced power and vehicle speed. The re-
duced speed may be lower than other
traffic, which could increase the chance
of a collision. Be especially careful when
driving. If the vehicle cannot maintain a
safe driving speed, pull to the side of the
road in a safe area. Charge the Li-ion
battery if the charge is low or allow the
Li-ion battery to cool.
READY to drive indicator
light
The READY to drive indicator light illuminates
when the EV (Electric Vehicle) System is pow-
ered and the vehicle may be driven.
The READY to drive indicator light will turn off in
the following conditions.
Certain EV (Electric Vehicle) system malfunc- tions.
The READY to drive indicator light turns off immediately before the Li-ion battery is com-
pletely discharged If the Li-ion battery becomes
completely discharged, the vehicle must be
2-20Instruments and controls

23. SHIFTPwarning (if so
equipped)
This warning appears alternating with door/rear
hatch open warning when the driver’s door is
opened with the shift position in any position
other than the P (Park) position. See Door/rear
hatch open warning (power switch is in the ON
position). If this warning appears, push the P
(Park) position switch and place in the P (Park)
position.
TRIP COMPUTER
Switches for the trip computer are located on the
left side of the combination meter panel. To op-
erate the trip computer, push the following
switches:
Aswitch
Bswitch When the power switch is pushed to the ON
position, modes of the trip computer can be
selected by pushing the
switchA.
Each time the
switchAis pushed, the
display will change as follows:
Charging time →Energy economy →State of
charge →Average speed →Driving distance and
elapsed time→ Setting→Warning check
Instruments and controls2-27

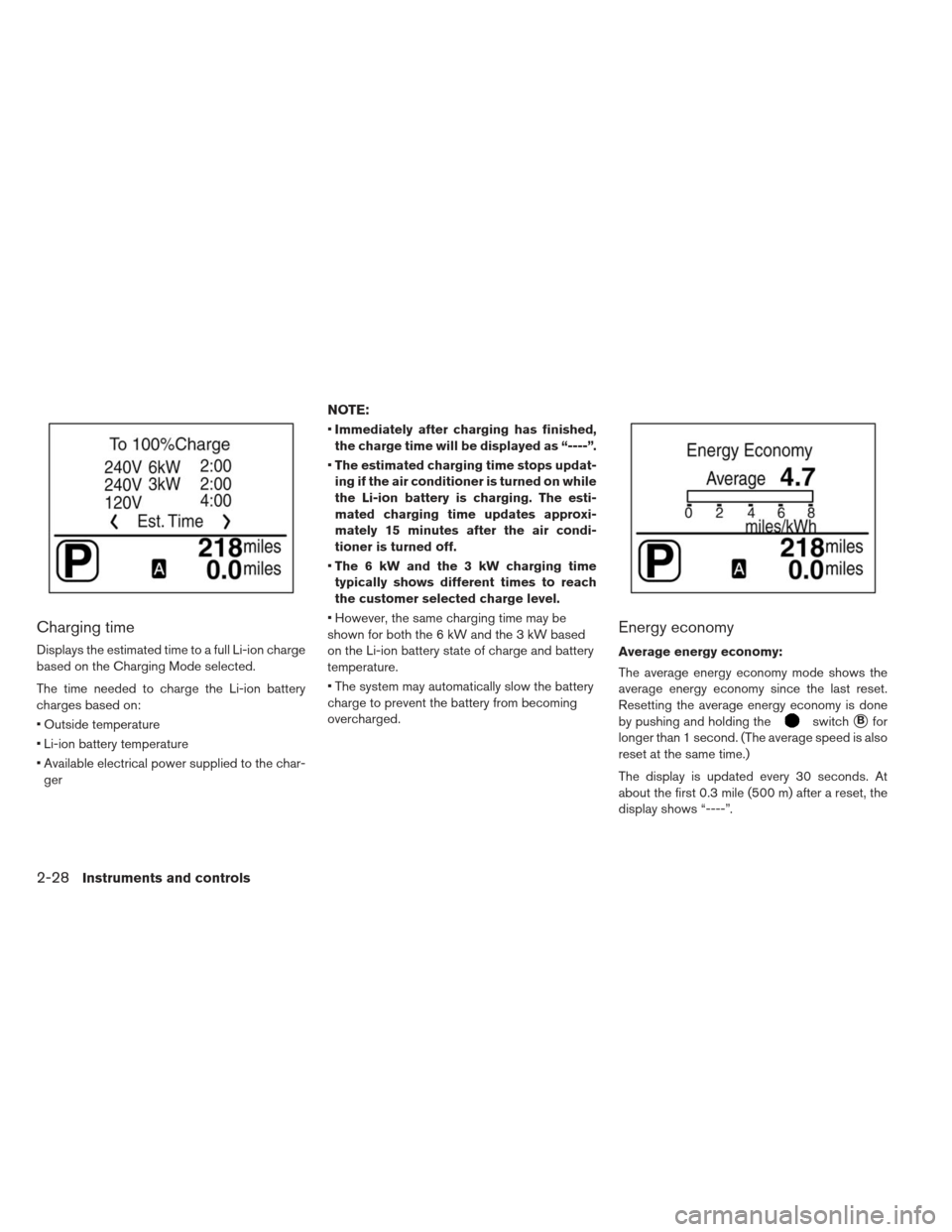

Charging time
Displays the estimated time to a full Li-ion charge
based on the Charging Mode selected.
The time needed to charge the Li-ion battery
charges based on:
Outside temperature
Li-ion battery temperature
Available electrical power supplied to the char-ger
NOTE:
Immediately after charging has finished,
the charge time will be displayed as “----”.
The estimated charging time stops updat-
ing if the air conditioner is turned on while
the Li-ion battery is charging. The esti-
mated charging time updates approxi-
mately 15 minutes after the air condi-
tioner is turned off.
The 6 kW and the 3 kW charging time
typically shows different times to reach
the customer selected charge level.
However, the same charging time may be
shown for both the 6 kW and the 3 kW based
on the Li-ion battery state of charge and battery
temperature.
The system may automatically slow the battery
charge to prevent the battery from becoming
overcharged.
Energy economy
Average energy economy:
The average energy economy mode shows the
average energy economy since the last reset.
Resetting the average energy economy is done
by pushing and holding the
switchBfor
longer than 1 second. (The average speed is also
reset at the same time.)
The display is updated every 30 seconds. At
about the first 0.3 mile (500 m) after a reset, the
display shows “----”.
2-28Instruments and controls

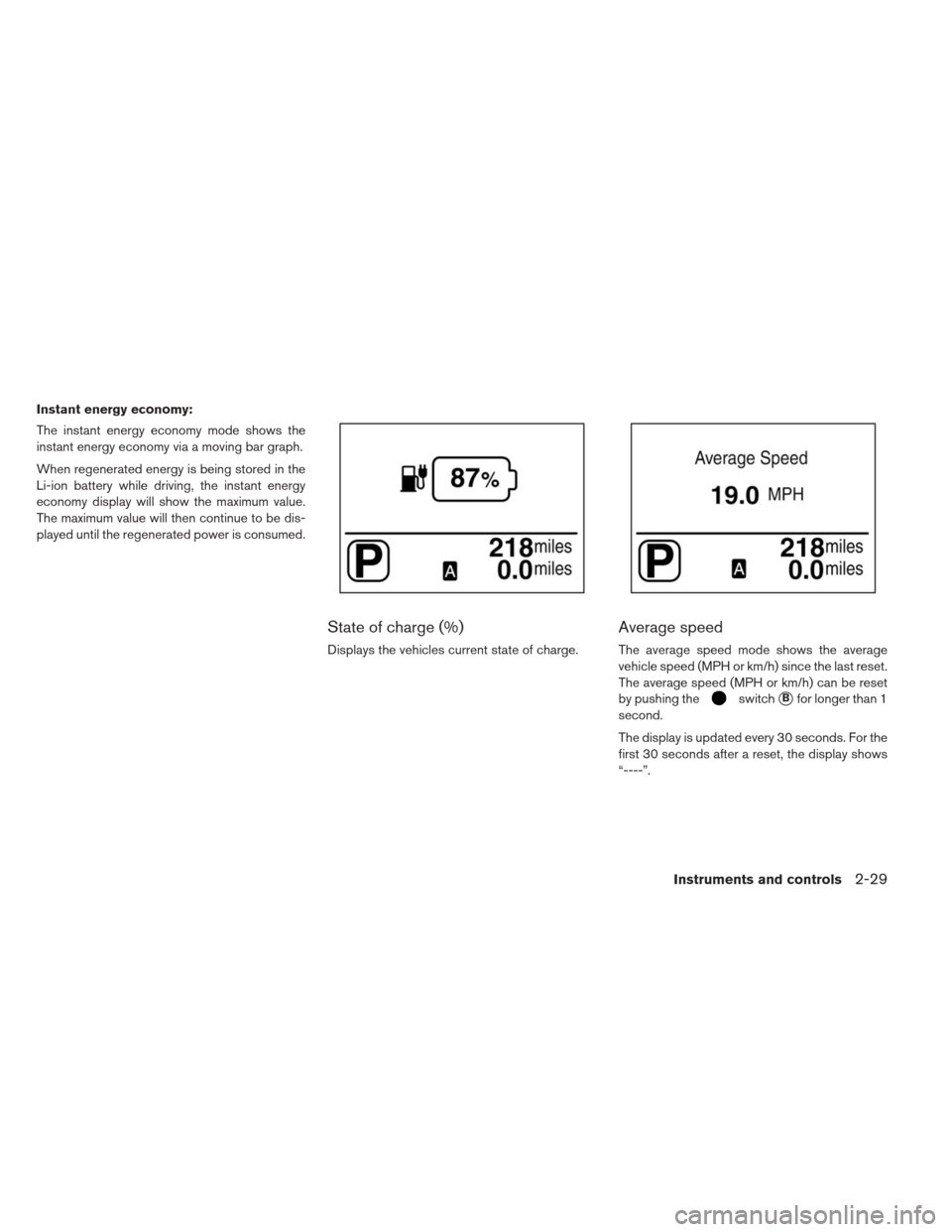

Instant energy economy:
The instant energy economy mode shows the
instant energy economy via a moving bar graph.
When regenerated energy is being stored in the
Li-ion battery while driving, the instant energy
economy display will show the maximum value.
The maximum value will then continue to be dis-
played until the regenerated power is consumed.
State of charge (%)
Displays the vehicles current state of charge.
Average speed
The average speed mode shows the average
vehicle speed (MPH or km/h) since the last reset.
The average speed (MPH or km/h) can be reset
by pushing the
switchBfor longer than 1
second.
The display is updated every 30 seconds. For the
first 30 seconds after a reset, the display shows
“----”.
Instruments and controls2-29
