2013 NISSAN LEAF service

Welcome to the growing family of new NISSAN
owners. This vehicle is delivered to you with
confidence. It was produced using the latest
techniques and strict quality control.
This manual was prepared to help you under-
stand the operation and maintenance of your
vehicle so that you may enjoy many miles of
driving pleasure. Please read through this manual
before operating your vehicle.
A separate Warranty Information Booklet
explains details about the warranties cov-
ering your vehicle. The NISSAN Service and
Maintenance Guide explains details about
maintaining and servicing your vehicle. Ad-
ditionally, a separate Customer Care/
Lemon Law Booklet (U.S. only) will explain
how to resolve any concerns you may have
with your vehicle, as well as clarify your
rights under your state’s lemon law.
In additional factory installed options, your ve-
hicle may also be equipped with additional ac-
cessories installed by NISSAN or by your
NISSAN certified LEAF dealer prior to delivery. It
is important that you familiarize yourself with all
disclosures, warnings, cautions, and instructions
concerning proper use of such accessories prior
to operating the vehicle and/or accessory. See aNISSAN certified LEAF dealer for details con-
cerning the particular accessories with which
your vehicle is equipped.
Your NISSAN certified LEAF dealer knows your
vehicle best. When you require any service or
have any questions, we will be glad to assist you
with the extensive resources available to us.
READ FIRST — THEN DRIVE SAFELY
Before driving your vehicle, read your Owner’s
Manual carefully. This will ensure familiarity with
controls and maintenance requirements, assist-
ing you in the safe operation of your vehicle.
WARNING
IMPORTANT SAFETY INFORMATION RE-
MINDERS FOR SAFETY!
Follow these important driving rules to
help ensure a safe and comfortable trip
for you and your passengers!
NEVER drive under the influence of alcohol or drugs.
ALWAYS observe posted speed limits and never drive too fast for conditions.
ALWAYS give your full attention to driving and avoid using vehicle fea-
tures or taking other actions that could
distract you. ALWAYS use your seat belts and ap-
propriate child restraint systems. Pre-
teen children should be seated in the
rear seat.
ALWAYS provide information about the proper use of vehicle safety fea-
tures to all occupants of the vehicle.
ALWAYS review this Owner’s Manual for important safety information.
MODIFICATION OF YOUR VEHICLE
This vehicle should not be modified. Modi-
fication could affect its performance,
safety or durability, and may even violate
governmental regulations. In addition,
damage or performance problems result-
ing from modification may not be covered
under NISSAN warranties.
WHEN READING THE MANUAL
This manual includes information for all
options available on this model. Therefore,
you may find some information that does
not apply to your vehicle.
All information, specifications and illustrations in this
manual are those in effect at the time of printing.
NISSAN reserves the right to change specifications
or design at any time without notice.
FOREWORD

NISSAN CUSTOMER CARE PROGRAM
NISSAN CARES ...
Both NISSAN and your NISSAN certified LEAF dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your
NISSAN certified LEAF dealer are our primary concerns. Your NISSAN certified LEAF dealer is always available to assist you with all your automobile sales
and service needs.
However, if there is something that your NISSAN
certified LEAF dealer cannot assist you with or
you would like to provide NISSAN directly with
comments or questions, please contact the
NISSAN Consumer Affairs Department using our
toll-free number:For U.S. customers1-877-NOGASEV
(1-877-664-2738)
For Canadian customers 1-800-387-0122 The Consumer Affairs Department will ask for the
following information:
Your name, address, and telephone number
Vehicle identification number (attached to the
top of the instrument panel on the driver’s side)
Date of purchase
Current odometer reading
Your NISSAN certified LEAF dealer’s name
Your comments or questions
OR You can write to NISSAN with the information at:
For U.S. customersNissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
[email protected] Canadian customersNissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
information.centre@nissancanada. com
If you prefer, visit us at:
www.nissanusa.com (for U.S. customer) or
www.nissan.ca (for Canadian customers)
We appreciate your interest in NISSAN and
thank you for buying a quality NISSAN vehicle.

NOTE:
If the outside temperature is 13°F
(25°C) or less, the Li-ion battery may
freeze and it cannot be charged or provide
power to run the vehicle. Move the vehicle
to a warm location.
The capacity of the Li-ion battery in your
vehicle to hold a charge will, like all such
batteries, decrease with time and usage.
As the battery ages and capacity de-
creases, this will result in a decrease from
the vehicle’s initial mileage range. This is
normal, expected, and not indicative of
any defect in your Li-ion battery. NISSAN
estimates that battery capacity will be ap-
proximately 80% of original capacity after
five years, although this is only an esti-
mate, and this percentage may vary (and
could be significantly lower) depending
on individual vehicle and Li-ion battery
usage.
The Li-ion battery has limited service life,
and when its charging capacity falls be-
low a specific level, the EV system warn-
ing light will illuminate. Owners should
bring their vehicle in for inspection and
possible battery replacement.
The Li-ion battery has a limited service
life. Contact a NISSAN certified LEAF
dealer for information about recycling or
disposal of the Li-ion battery. Do not at-
tempt to recycle or dispose of the Li-ion
battery yourself.
DRIVING WITH A DISCHARGED
LI-ION BATTERY
When a destination is set in the navigation sys-
tem that exceeds the available vehicle range, the
navigation system automatically searches the lo-
cation of nearby charging stations. When the
nearby charging station locations are displayed,
charge the Li-ion battery as soon as possible
(models with navigation system) .
Warning lights illuminate on the instrument panel
and messages are displayed on the dot matrix
liquid crystal display to inform you that the Li-ion
battery charge is low. Instructions are also dis-
played on the navigation system screen to direct
you to nearby charging stations (models with
navigation system) .
The vehicle’s range is very limited when these
warning lights illuminate and messages are dis-
played. Follow the instructions on the navigation
screen (models with navigation system) and im- mediately charge the vehicle at the nearest
charging station.
EV OverviewEV-3

there is no power available to drive the ve-
hicle. Contact Roadside assistance service
shown in your NISSAN Warranty Information
Booklet. SeeIf the Li-ion battery becomes
completely discharged in theIn case of
emergency section.
CHARGING THE 12-VOLT BATTERY
The 12-volt battery is charged automatically us-
ing electricity stored in the Li-ion battery.
When the 12-volt battery is being charged, the
charge status indicator light on the instrument
panel flashes. (except when charging the Li-ion
battery or the power switch is in the READY to
drive position.) See Charge status indicator
light in the Charge section.
While vehicle is driven
The Li-ion battery charges the 12-volt battery as
necessary when the power switch is in the
READY to drive position or ON position.
The 12-volt battery is not charged in the following
conditions.
When the power switch is in ACC position.
When the power switch is in ON position and
shift position is in the N (Neutal) position.
While the vehicle is not in use
When the EV (Electric Vehicle) system is off for
an extended time, the 12-volt battery may be
automatically charged for a short period of time
on a regular basis.
LI-ION BATTERY WARMER
CAUTION
The Li-ion battery warmer does not oper-
ate if the available Li-ion battery charge
is less than approximately 30% and the
charger is not connected to the vehicle.
To help prevent the Li-ion battery from
freezing, do not leave the vehicle in an
environment if temperatures may go be-
low -1°F (-17°C) unless the vehicle is con-
nected to a charger.
The Li-ion battery warmer helps to prevent the
Li-ion battery from freezing and helps to prevent
significant reductions in the Li-ion battery output
when the temperature is cold. The Li-ion battery
warmer automatically turns on when the Li-ion
battery temperature is approximately -1°F
(-17°C) or colder. The Li-ion battery warmer au-
tomatically turns off when the Li-ion battery tem-
perture is approximately 14°F (-10°C) or higher. The Li-ion battery warmer uses electrical power
from an external source when a charger is con-
nected to the vehicle. The Li-ion battery warmer
uses electrical power from the Li-ion battery
when the charger is not connected to the vehicle.
NOTE:

Connect the charger to the vehicle and
place the power switch in the OFF posi-
tion when parking the vehicle if tempera-
tures may go below -1°F (-17°C) . This pro-
vides external power to the Li-ion battery
warmer when it operates and does not
discharge the Li-ion battery.
The charging status indicator lights illu-
minate in a specific pattern when the Li-
ion battery warmer operates. The charg-
ing status indicator lights use the same
pattern to indicate 12-volt battery charg-
ing, Climate Ctrl. Timer operation or Re-
mote Climate Control operation (models
with navigation system) . The charging
status indicator lights do not change if the
Li-ion battery warmer operates at the
same time as the above features. See
Charge status indicator light in the
Charging section.
EV OverviewEV-5

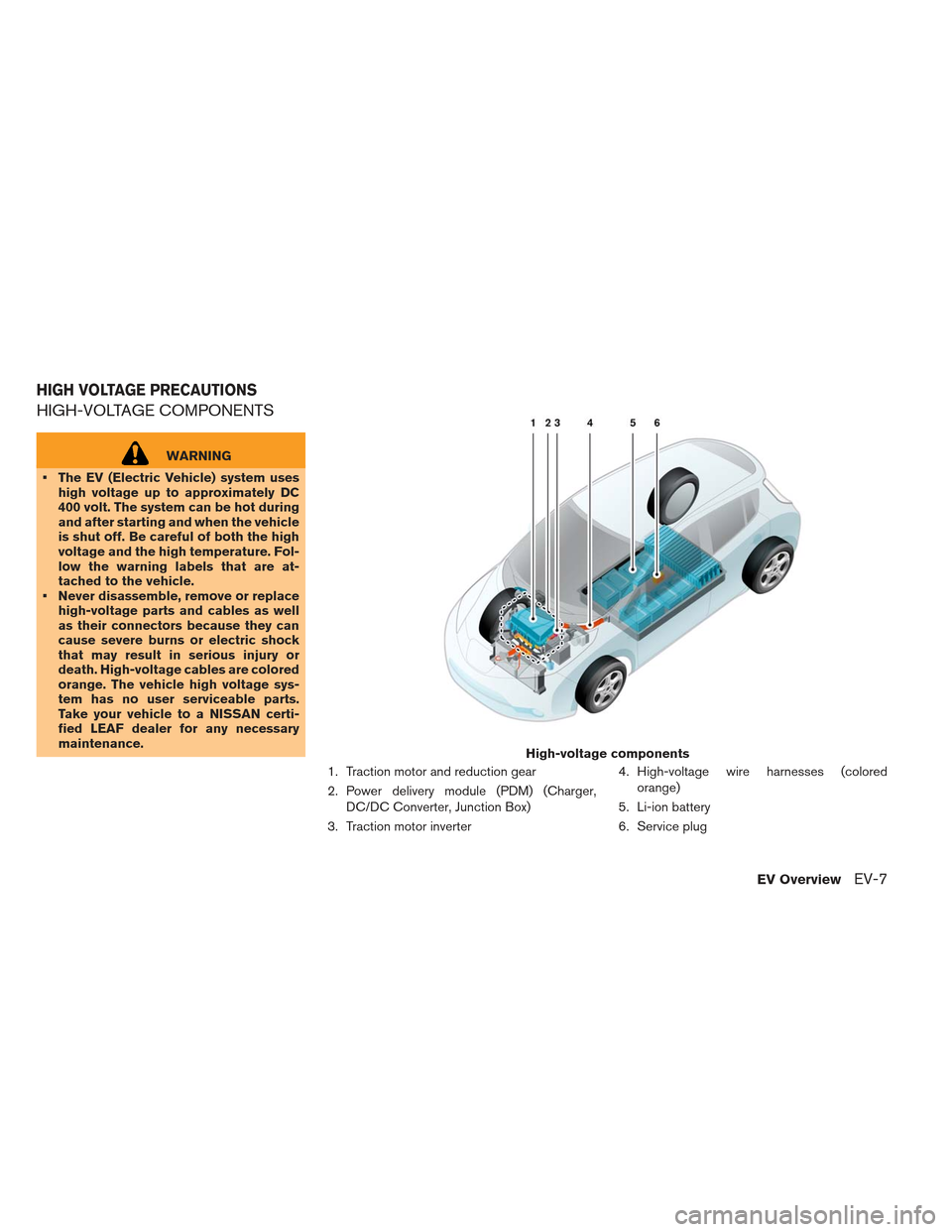

HIGH-VOLTAGE COMPONENTS
WARNING
The EV (Electric Vehicle) system uses high voltage up to approximately DC
400 volt. The system can be hot during
and after starting and when the vehicle
is shut off. Be careful of both the high
voltage and the high temperature. Fol-
low the warning labels that are at-
tached to the vehicle.
Never disassemble, remove or replace high-voltage parts and cables as well
as their connectors because they can
cause severe burns or electric shock
that may result in serious injury or
death. High-voltage cables are colored
orange. The vehicle high voltage sys-
tem has no user serviceable parts.
Take your vehicle to a NISSAN certi-
fied LEAF dealer for any necessary
maintenance.
1. Traction motor and reduction gear
2. Power delivery module (PDM) (Charger,DC/DC Converter, Junction Box)
3. Traction motor inverter 4. High-voltage wire harnesses (colored
orange)
5. Li-ion battery
6. Service plug
High-voltage components
HIGH VOLTAGE PRECAUTIONS
EV OverviewEV-7

WARNING
In case of a collision:
If your vehicle is drivable, pull your vehicle off the road, push the P (Park)
position switch on the selector lever,
apply the parking brake and turn the
EV (Electric Vehicle) system off.
Check your vehicle to see if there are exposed high-voltage parts or cables.
For their locations, see High voltage
components
. To avoid personal injury,
never touch high-voltage wiring, con-
nectors, and other high-voltage parts,
such as inverter unit and Li-ion battery.
An electric shock may occur if exposed
electric wires are visible when viewed
from inside or outside of your vehicle.
Therefore, never touch exposed elec-
tric wires.
If the vehicle receives a strong impact to the floor while driving, stop the ve-
hicle in a safe location and check the
floor. Leaks or damage to the Li-ion battery
may result in a fire. If you discover
them, contact emergency services im-
mediately. Since the fluid leak may be
lithium manganate from the Li-ion bat-
tery, never touch the fluid leak inside
or outside the vehicle. If the fluid con-
tacts your skin or eyes, wash it off
immediately with a large amount of
water and receive immediate medical
attention to help avoid serious injury.
If a fire occurs in the EV (Electric Ve- hicle) , leave the vehicle as soon as
possible. Only use a type ABC, BC or C
fire extinguisher that is meant for use
on electrical fires. Using a small
amount of water or the incorrect fire
extinguisher can result in serious in-
jury or death from electrical shock.
If your vehicle needs to be towed, do it with the front wheels raised. If the
front wheels are on the ground when
towing, the traction motor may gener-
ate electricity. This may damage the
components of the EV (Electric Ve-
hicle) system and cause a fire. If you are not able to safely assess the
vehicle due to vehicle damage, do not
touch the vehicle. Leave the vehicle
and contact emergency services. Ad-
vise 1st responders that this is an elec-
tric vehicle.
In the event of an accident that re- quires body repair and painting, the
vehicle should be delivered to a
NISSAN certified LEAF dealer to have
the Li-ion battery pack and high volt-
age parts such as the inverter, includ-
ing the wiring harness, removed prior
to painting. Li-ion battery packs ex-
posed to heat in the paint booth will
experience capacity loss. Damaged Li-
ion battery packs may also pose safety
risks to untrained mechanics and re-
pair personnel.
ROAD ACCIDENT PRECAUTIONS
EV-8EV Overview

failure to have these necessary inspections, re-
pairs and/or adjustments performed.
See the NISSAN Service and Maintenance Guide for a detailed explanation of the Li-ion
battery inspection and intervals.METERS AND INDICATORS
The vehicle has two displays to provide informa-
tion regarding vehicle operation:
Upper display
Lower display
Upper display
Master warning lights:
The master warning lights are located in the
upper display.
The master warning lights illuminate when any
warning lights or indicators illuminate in the lower
display or when messages are displayed on the
dot matrix liquid crystal display.
For additional information, see Master warning
light in the Instruments and controls section.
EV UNIQUE INFORMATION
EV OverviewEV-25

NOTE:
Establishing the CARWINGS™ service is
necessary before using this service. See
LEAF Navigation System Owner’s Manual.
To check the Li-ion battery charging sta-
tus using an internet enabled smart phone
or personal computer, the following con-
ditions must be met: – The vehicle must be located in a cellu- lar phone coverage area.
– The cellular phone must be located in an area with cellular phone coverage.
– If using a computer, the computer must be connected to the internet.
– Some cellular phones are not compat- ible and cannot be used to check the
Li-ion battery charging status. Please
confirm beforehand.
Certain remote functions required a com-
patible smart phone, which is not in-
cluded with vehicle.
CARWINGS™ information system features
are included through a subscription ser-
vice which requires owner consent to ac-
tivate. The subscription must be active to
use these features.
CARWINGS™ communications may be re-
ceived at a verified e-mail address or by
SMS/text messaging-enabled mobile
phone.
Standard text rates and/or data usage
may apply depending on your carrier.
CH-32Charging
