3-58Navigation
.[Concise]:
The system announces voice guidance
once: "1 Guide".
. [Turning Point]:
Turns on the sound that chimes when a
maneuver should be performed.

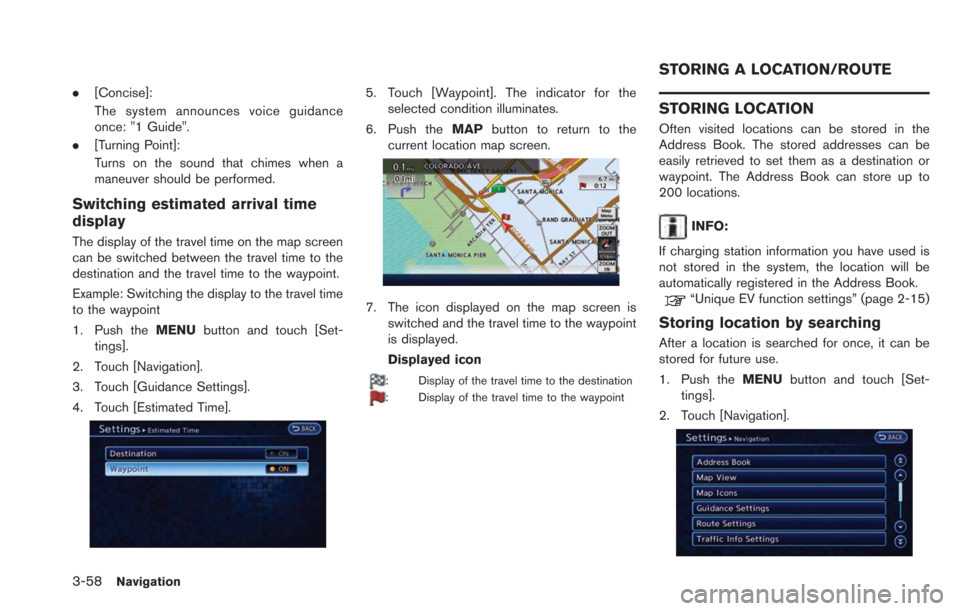

Switching estimated arrival time
display
The display of the travel time on the map screen
can be switched between the travel time to the
destination and the travel time to the waypoint.
Example: Switching the display to the travel time
to the waypoint
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
3. Touch [Guidance Settings].
4. Touch [Estimated Time].
5. Touch [Waypoint]. The indicator for the selected condition illuminates.
6. Push the MAPbutton to return to the
current location map screen.
7. The icon displayed on the map screen is
switched and the travel time to the waypoint
is displayed.
Displayed icon
: Display of the travel time to the destination
: Display of the travel time to the waypoint
STORING LOCATION
Often visited locations can be stored in the
Address Book. The stored addresses can be
easily retrieved to set them as a destination or
waypoint. The Address Book can store up to
200 locations.
INFO:
If charging station information you have used is
not stored in the system, the location will be
automatically registered in the Address Book.
“Unique EV function settings” (page 2-15)
Storing location by searching
After a location is searched for once, it can be
stored for future use.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
STORING A LOCATION/ROUTE

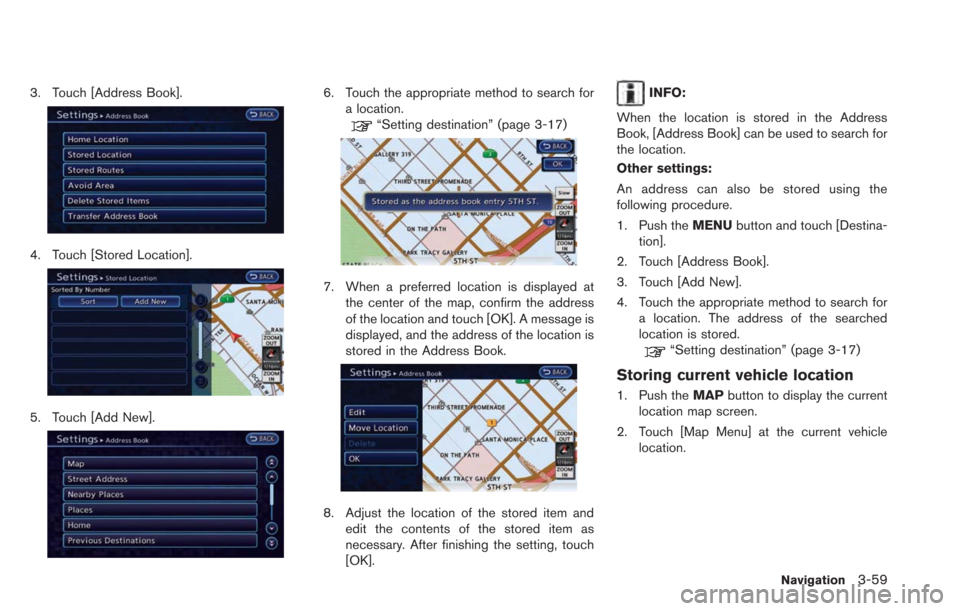

3. Touch [Address Book].
4. Touch [Stored Location].
5. Touch [Add New].
6. Touch the appropriate method to search fora location.
“Setting destination” (page 3-17)
7. When a preferred location is displayed atthe center of the map, confirm the address
of the location and touch [OK]. A message is
displayed, and the address of the location is
stored in the Address Book.
8. Adjust the location of the stored item and
edit the contents of the stored item as
necessary. After finishing the setting, touch
[OK].
INFO:
When the location is stored in the Address
Book, [Address Book] can be used to search for
the location.
Other settings:
An address can also be stored using the
following procedure.
1. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Address Book].
3. Touch [Add New].
4. Touch the appropriate method to search for a location. The address of the searched
location is stored.
“Setting destination” (page 3-17)
Storing current vehicle location
1. Push the MAPbutton to display the current
location map screen.
2. Touch [Map Menu] at the current vehicle location.
Navigation3-59

3-60Navigation
3. Touch [Store Location]. A message isdisplayed, and the current vehicle location
is stored in the Address Book.
4. The icon representing the stored location isdisplayed on the map.
Push the MAPbutton to return to the
current location map screen.
INFO:
The location is stored in the first available
position number in the Address Book list.
Storing location by moving map
1. Move to the preferred location on the map and touch [Map Menu].
2. Touch [Store Location]. A message isdisplayed, and the address of the location
is stored in the Address Book.
3. The icon representing the stored location isdisplayed on the map. Push the MAPbutton
to return to the current location map screen.
INFO:
The address is stored in the first available
position number in the Address Book list.
STORING ROUTE
A maximum of 5 calculated routes can be
stored. Stored routes can be easily retrieved
and set as the suggested route.
INFO:
Stored route includes only locations (destination
and waypoints) and route calculation conditions,
not the route itself.
1. Push the MENUbutton and touch [Route].

2. Touch [Route Info].
3. Touch [Store Route]. A confirmation mes-sage is displayed.
4. Confirm the contents of the message thentouch [Yes]. The current route is stored.
Other settings
A route can also be stored using the following
procedure.
1. Push the MENUbutton and touch [Set-
tings]. 2. Touch [Navigation].
3. Touch [Address Book].
4. Touch [Stored Routes].
5. Touch [Store Current Route]. A confirmation
message is displayed.
6. Confirm the contents of the message then touch [Yes]. The current route is stored.
INFO:
. The route is stored in the first available
position number in the store current route
list.
. A maximum of 5 routes can be stored. When
5 routes are stored in the Address Book, a
new route cannot be stored until a route is
deleted.
“Deleting stored item” (page 3-68)
. If any waypoints are not set on the route, the
route cannot be stored.
STORING AVOID AREA
An Avoid Area can be stored. The Avoid Area is
an area that can be excluded from a route, such
as a road that is always congested. Once Avoid
Areas are stored, the system avoids those areas
when calculating a route. Up to 10 Avoid Areas
can be stored. 1. Push the
MENUand touch [Settings].
2. Touch [Navigation].
3. Touch [Address Book].
4. Touch [Avoid Area].
Navigation3-61

dress book” (page 3-70)
Editing stored home and address
1. Touch [Home Location] or [Stored Location].
2. Touch the preferred stored address from thelist.
INFO:
.When [Home Location] is touched, it isnot necessary to be perform "step 2".
.Touching [Sort] displays a list of varioussort functions. To use the sort functions,
stored addresses must be set in ad-
vance.
“Minor adjustment of home or
stored address” (page 3-63)
3. Touch the item you would like to set.
Available settings
.[Edit]:Edits the stored address information.
.[Move Location]:Adjusts the location of the stored ad-
dress.
.[Delete]:
Deletes the stored address.
.[OK]:Applies the settings.
Minor adjustment of home or stored
address
When [Edit] is selected, you can edit the
following items of the home or stored address
can be edited. Show Icon on Map:
Displays the home icon or the stored address
icon on the map.
1. Touch [Show Icon on Map].
2. The indicator illuminates when the item is
set. Then the system displays the icon on
the map.
Name (only for stored addresses):
Changes the name of a stored address.
Navigation3-63

3-64Navigation
1. Touch [Name]. A character input screen isdisplayed.
2. Enter the preferred name for the stored address.
“Character (letters and numbers) input
screen” (page 1-7)
3. After finishing the entry, Touch [OK]. The name is stored.
Charging Sta. Att. (only for stored ad-
dresses):
The attributes for the charging station located in
the area that is registered can be set.
1. Touch [ChargingSta.Att.].
2. Touch the item you would like to set. The indicator illuminates when the item is set.
Available settings
.[Quick Charge Station]:
The location is a charging station that is
equipped with quick charging equipment.
.[Normal Charge Station]:The location is a charging station that is
equipped with normal charging equip-
ment.
.[Not a Charge Station]:
The location is not charging station.
Icon:
Changes the icon of the home or stored address
to the preferred one. By changing the icons, the
usage of the [Sorted By Icon] option of the sort
function can be optimized more effectively
([Sort] menu situation) .
1. Touch [Icon]. A list of icons is displayed.
2. Touch the preferred icon from the list. The icon is changed.
Sound:
Sets the tone of the alarm that sounds when the
vehicle approaches the home or a stored
address.
1. Touch [Sound]. A sound list is displayed.
2. Touch the preferred alarm tone. The indica- tor of the selected alarm tone illuminates.
Direction:
Sets the alarm to sound when approaching from
a specific direction.
1. Touch [Direction]. A map screen with the home or stored address located on the map
center is displayed.

2. Set the direction that sounds the alarm bytouching []or[].
3. Touch [OK]. The selected direction is set.
INFO:
After the direction is set and [Direction] is
selected and set again, a confirmation message
is displayed. Confirm the contents of the
message then touch [Yes]. The set direction is
overwritten.
Distance:
Sets the alarm to sound when reaching a
specific distance to the home or stored address.
1. Touch [Distance].
2. Touch the preferred distance option. The indicator of the selected distance illumi-
nates. Available distance options:
.
150 feet (50 m)
. 300 feet (100 m)
. 1000 feet (300 m)
. 1500 feet (500 m)
INFO:
Once the direction and the distance to sound an
alarm are set, the system will sound the alarm
when the vehicle enters the triggering zone.
Phone number:
Stores the telephone number of the home or a
stored address.
1. Touch [Phone No.]. The telephone number entry screen is displayed.
2. Enter the telephone number of the home or stored address.
“Phone number input screen”
(page 1-8) 3. Touch [OK]. The telephone number is
stored.
Group (only for stored addresses):
This groups the stored addresses. By grouping
the stored addresses, the [Sorted By Group]
option of the sort function can be used more
effectively in the [Sort] mode.
1. Touch [Group].
2. Touch the preferred group. When the indicator of the selected group illuminates,
the stored address is classified into the
applicable group.
Entry Numbers (only for stored addresses):
Index the position numbers of any two stored
addresses in the list.
Navigation3-65

3-66Navigation
1. Touch [Entry Numbers]. A list of storedaddresses is displayed.
2. Touch the stored addresses that you want to change. The position numbers of the se-
lected stored addresses are changed.
Editing stored route
1. Touch [Stored Routes]. A list screen isdisplayed.
2. Touch the preferred stored route from thelist. The edit screen of the selected route is
displayed.
3. Touch the preferred item to edit from the liston the right side of the screen.
4. After finishing the editing, touch [OK].
INFO:
If [Store Current Route] is selected, the system
stores the current route.
Available settings
. [Rename]:
Changes the name.
“Character (letters and numbers) input
screen” (page 1-7)
. [Replace]:
Overwrites the stored route to the current
route.
. [Delete]:
Deletes the stored route. .
[OK]:
Applies the settings.
Editing avoid area
1. Touch [Avoid Area]. A list screen is dis-
played.
2. Touch the preferred Avoid Area from the list.
The edit screen of the selected Avoid Area is
displayed.
3. Touch the item you would like to set.
