2013 NISSAN ALTIMA COUPE Navigation Manual

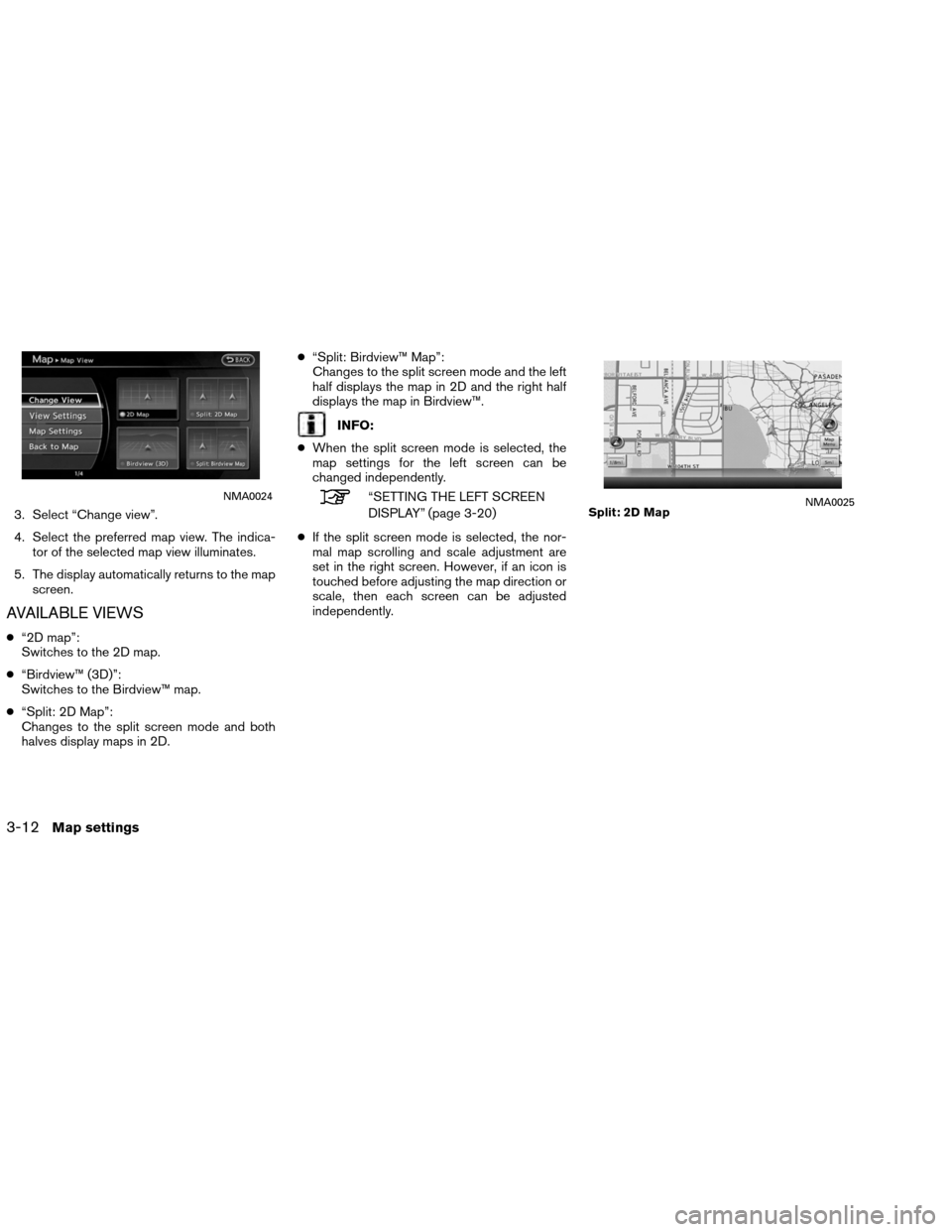

3. Select “Change view”.
4. Select the preferred map view. The indica-tor of the selected map view illuminates.
5. The display automatically returns to the map screen.
AVAILABLE VIEWS
●“2D map”:
Switches to the 2D map.
● “Birdview™ (3D)”:
Switches to the Birdview™ map.
● “Split: 2D Map”:
Changes to the split screen mode and both
halves display maps in 2D. ●
“Split: Birdview™ Map”:
Changes to the split screen mode and the left
half displays the map in 2D and the right half
displays the map in Birdview™.
INFO:
● When the split screen mode is selected, the
map settings for the left screen can be
changed independently.
“SETTING THE LEFT SCREEN
DISPLAY” (page 3-20)
● If the split screen mode is selected, the nor-
mal map scrolling and scale adjustment are
set in the right screen. However, if an icon is
touched before adjusting the map direction or
scale, then each screen can be adjusted
independently.NMA0024
Split: 2D MapNMA0025
3-12Map settings

OTHER SETTINGS
The map view can also be set using the following
procedure.1. Press SETTING.
2. Select “Navigation”.
3. Select “Map View”.
4. Select “Change View”.
5. Select the preferred item.
Voice command
1. Press
button located on the steering
wheel switch.
2. After the tone sounds, speak a command. ●To display the 2D map:
“Plan View map” (Alternate command
mode)
● To display the Birdview™ map:
“Birdview™ map” (Alternate command
mode) Other settings are also available for the map
screen, such as changing the map direction,
map color, Birdview™ angle, etc.
Split: Birdview™NMA0026NMA0027
SETTING THE MAP VIEW
Map settings3-13

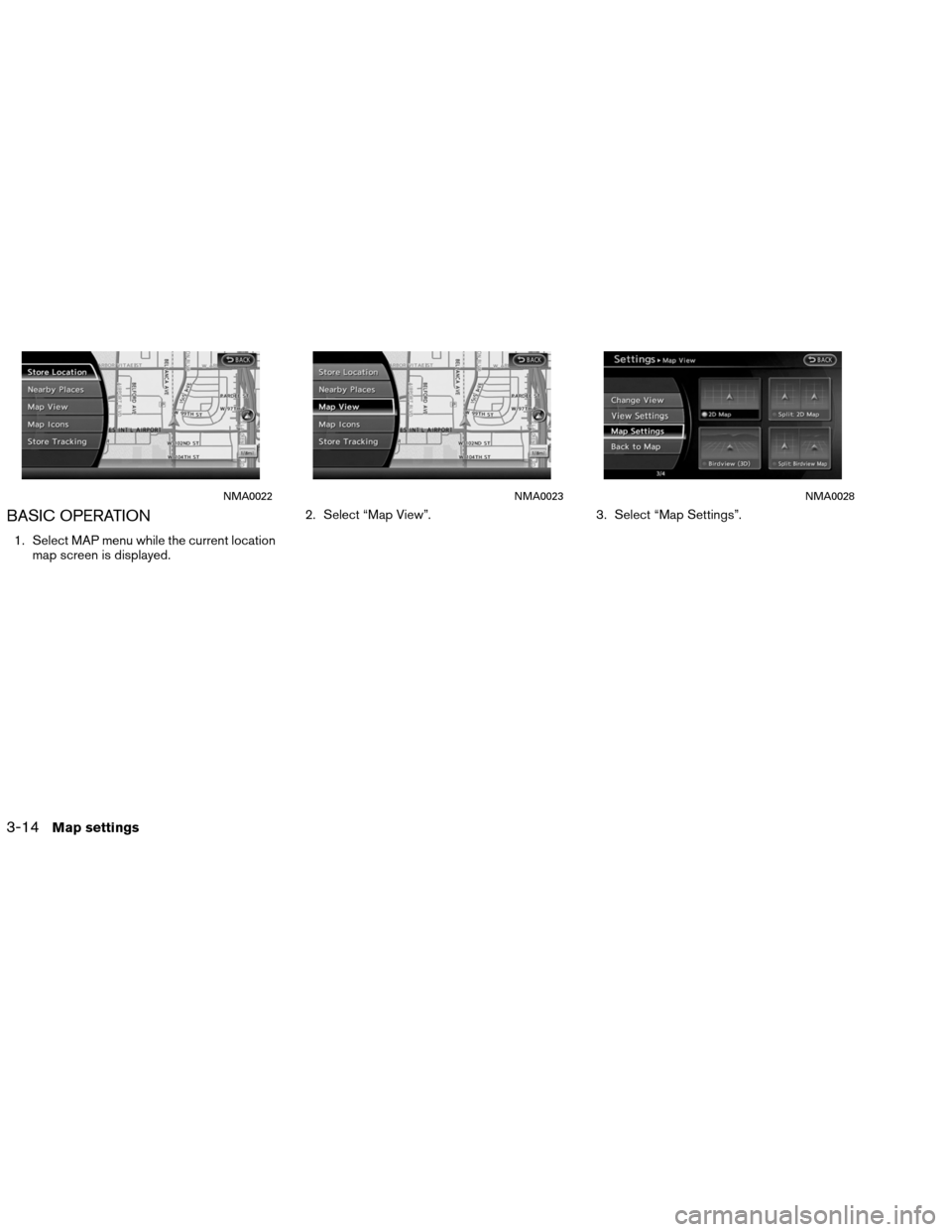

BASIC OPERATION
1. Select MAP menu while the current locationmap screen is displayed. 2. Select “Map View”.
3. Select “Map Settings”.
NMA0022NMA0023NMA0028
3-14Map settings

4. Select the preferred item.
Available setting items
● “Map Orientation”:
Set the map direction to North up or Heading
Up.
“SETTING THE MAP ORIENTA-
TION” (page 3-15)
● “Long Range”:
Set the long range map view display ON/
OFF.
“SETTING THE LONG RANGE
MAP VIEW” (page 3-17)
● “Map Color”:
Change the map color.
“SETTING THE MAP COLOR”
(page 3-18) ●
“Birdview™ Angle”:
Change the Birdview™ angle.
“CHANGING THE Birdview™
ANGLE” (page 3-19)
● “Left Split Map Settings”:
Set the map settings for the left screen of the
split map.
“SETTING THE LEFT SCREEN
DISPLAY” (page 3-20)
● “Show all Freeway Exits on Route”/“Show all
Freeway Exits without Route”:
Set the display of the freeway exit information
ON/OFF.
“Show exit information on free-
ways” (page 5-12)
Other settings
The orientation of the map can also be set using
the following procedure. 1. Press SETTING.
2. Select “Navigation”.
3. Select “Map Settings”.SETTING THE MAP ORIENTATION
The map direction (orientation) can also be
changed in the 2D map. These settings are avail-
able only in the 2D Map or 2D/2D split map.
NMA0029NMA0027
Map settings3-15

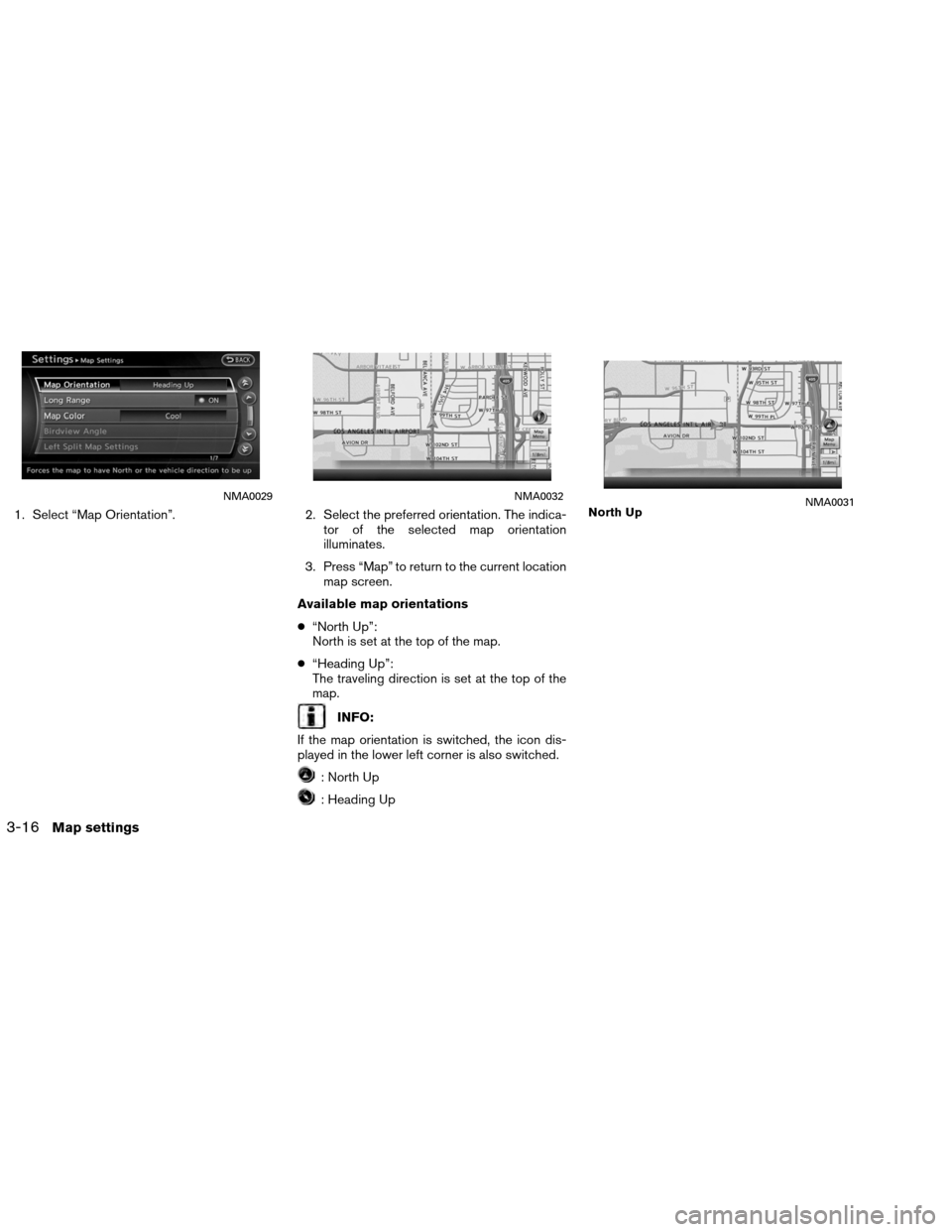

1. Select “Map Orientation”.2. Select the preferred orientation. The indica-
tor of the selected map orientation
illuminates.
3. Press “Map” to return to the current location map screen.
Available map orientations
● “North Up”:
North is set at the top of the map.
● “Heading Up”:
The traveling direction is set at the top of the
map.
INFO:
If the map orientation is switched, the icon dis-
played in the lower left corner is also switched.
: North Up
: Heading Up
NMA0029NMA0032
North UpNMA0031
3-16Map settings

INFO:
Touching the icon on the map screen can also
change the direction of the map.
Voice command
1. Press
button located on the steering
wheel switch.
2. After the tone sounds, speak a command. To charge the map direction:
“North Up” (Alternate command mode)
“Heading Up” (Alternate command mode)
SETTING THE LONG RANGE MAP
VIEW
The position of the vehicle icon can be changed
to view a wider area in the traveling direction. If
this function is activated, the vehicle icon is lo-
cated slightly lower than the center of the
screen.
1. While in 2D or split 2D mode, select “LongRange”. The indicator illuminates.
2. Press MAP to return to the current location map screen.
Heading UpNMA0033NMA0034
Map settings3-17

INFO:
While in 2D or split 2D mode, “Long Range” is
displayed only when “Heading Up” is selected.
SETTING THE MAP COLOR
The map color can be changed to a warm or cool
color, or a light color to emphasize the traffic
information. 1. Select “Map Color”.
2. Select the preferred map color. The indica-
tor light of the selected color illuminates.
Available map colors
● “Warm”:
Set warm colors for the map coloring.
● “Cool”:
Set cool colors for the map coloring.
● “Traffic Emphasis”:
Set light colors for the map coloring to em-
phasize the traffic information.
INFO:
The effect of setting changes can be confirmed
on the preview displayed on the right side of the
screen.
Long Range Map ViewNMA0035NMA0036NMA0037
3-18Map settings

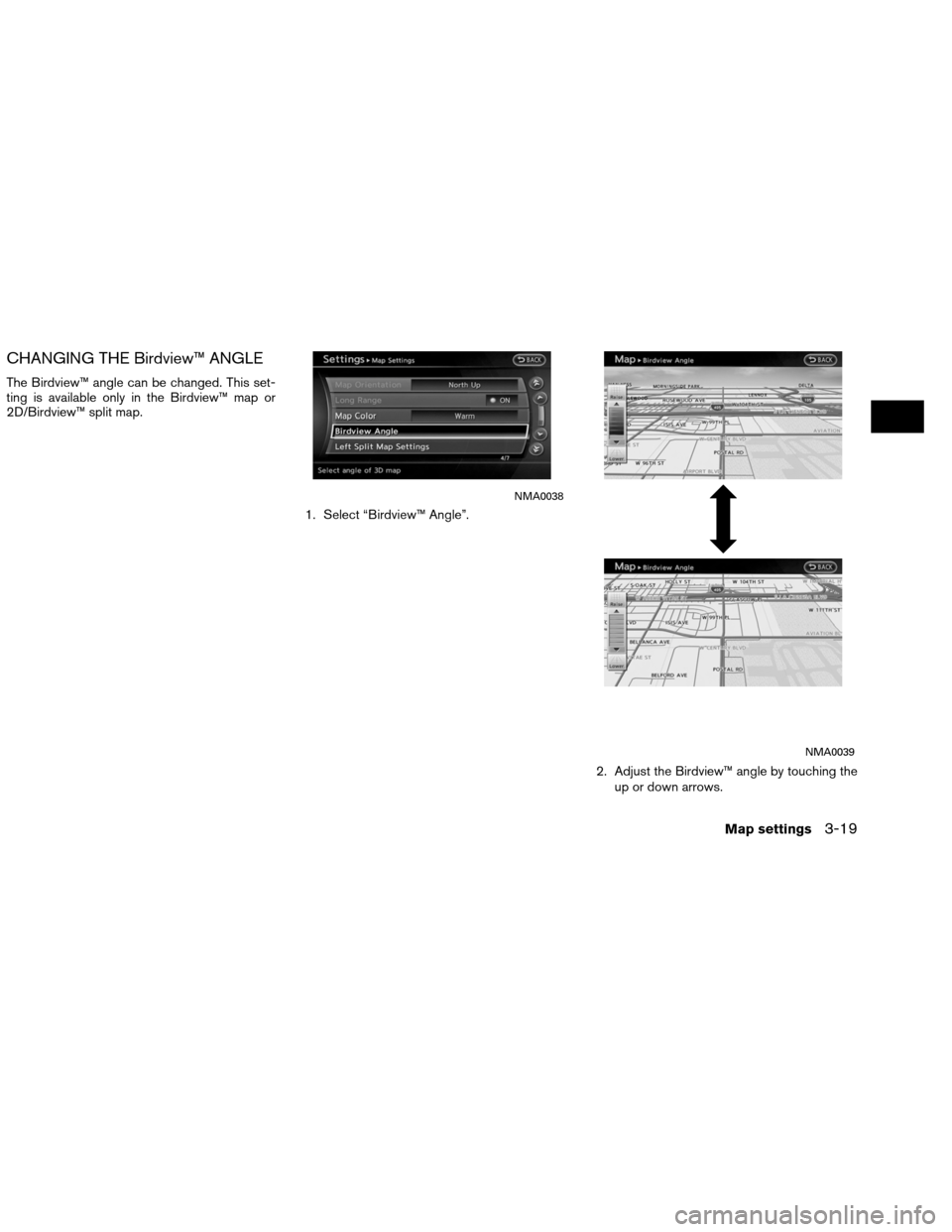

CHANGING THE Birdview™ ANGLE
The Birdview™ angle can be changed. This set-
ting is available only in the Birdview™ map or
2D/Birdview™ split map.1. Select “Birdview™ Angle”.
2. Adjust the Birdview™ angle by touching theup or down arrows.
NMA0038
NMA0039
Map settings3-19
