2013 NISSAN ALTIMA COUPE change time

CONTROL PANEL
1MAP:
Press to display the map. While following
programmed route, press multiple times to
change the type of route information.
2DEST: Press to enter a destination. Various meth-
ods for entering a destination are available.
“4. Setting a destination”.
3ROUTE/VOICE:Press and hold to hear the current route
guidance (guidance cancellation, route
priority, way point setting on the route, etc.) .
4INFO:Press to display the vehicle, traffic, weather
or voice recognition information.
5SETTING:Press to access the system settings.
6DAY/NIGHT:
Press to switch between the day screen
(bright) and the night screen (dark) . Press
and hold to turn off the display. Press again
to turn on the display.
INFO:
If the “Back” key needs to be touched to apply
the setting on a settings screen, this manual will
explicitly include a step for this procedure.
Otherwise, touching the “Back” key returns the
display to the previous screen.
The layout of the control panel switches may vary
depending on the vehicle model and equipment.
LNV2016
CONTROL BUTTONS AND FUNC-
TIONS
2-2Getting started

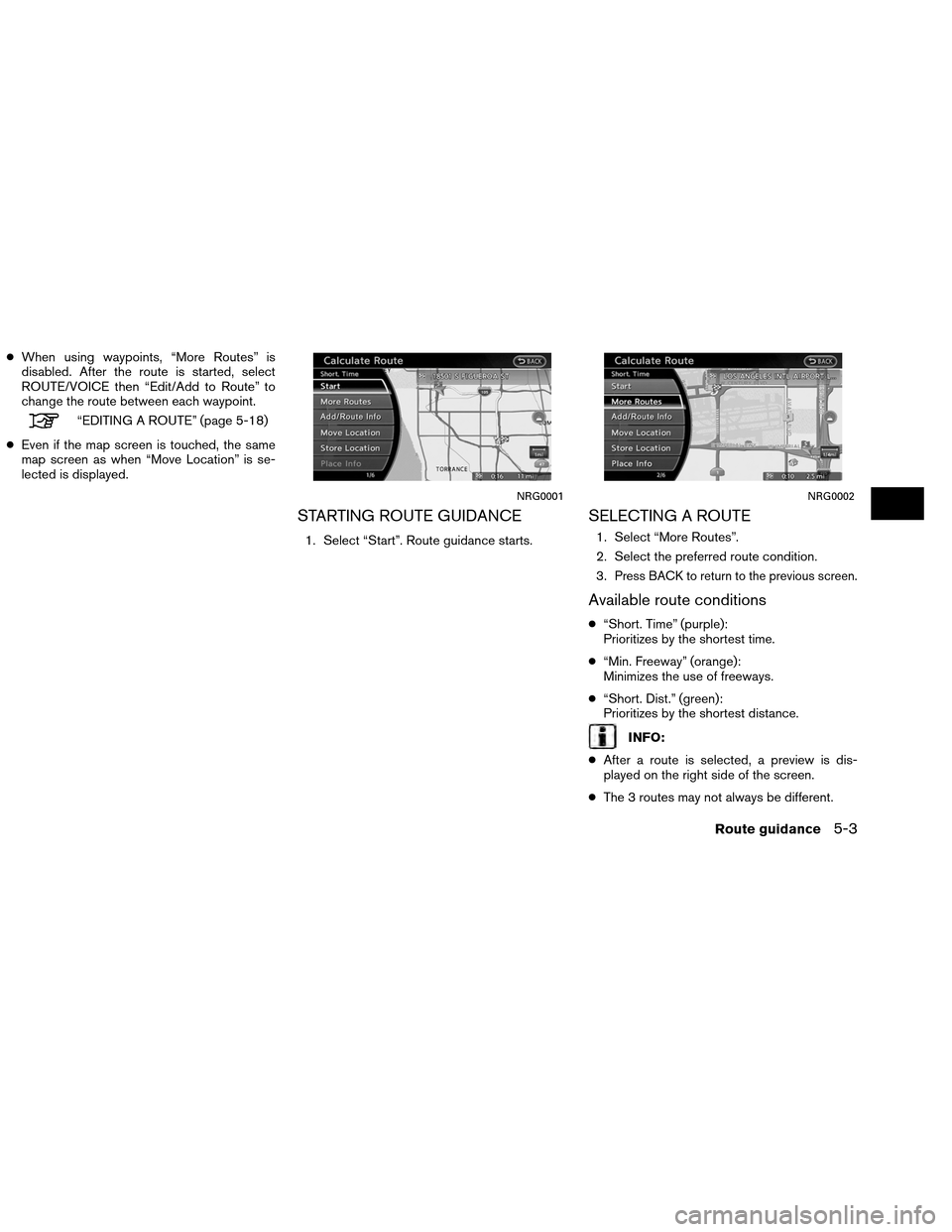

●When using waypoints, “More Routes” is
disabled. After the route is started, select
ROUTE/VOICE then “Edit/Add to Route” to
change the route between each waypoint.
“EDITING A ROUTE” (page 5-18)
● Even if the map screen is touched, the same
map screen as when “Move Location” is se-
lected is displayed.
STARTING ROUTE GUIDANCE
1. Select “Start”. Route guidance starts.
SELECTING A ROUTE
1. Select “More Routes”.
2. Select the preferred route condition.
3.
Press BACK to return to the previous screen.
Available route conditions
●“Short. Time” (purple):
Prioritizes by the shortest time.
● “Min. Freeway” (orange):
Minimizes the use of freeways.
● “Short. Dist.” (green):
Prioritizes by the shortest distance.
INFO:
● After a route is selected, a preview is dis-
played on the right side of the screen.
● The 3 routes may not always be different.
NRG0001NRG0002
Route guidance5-3

Junction guidance
While driving on a freeway, when the vehicle is
approximately 1 mile (approximately 2 km) from a
junction, the system automatically switches to
the split screen and displays an enlarged view of
the junction (3D) in the left screen. After passing
the junction, the system automatically returns to
the full screen mode. To switch to the full screen
mode while the enlarged junction view is
displayed, press MAP.
Turn list
Depending on the setting, the system can con-
stantly display the split screen and show the turn
list in the left screen. When approaching a guide
point, the left screen automatically switches to
an enlarged view of the intersection. To switch to
the full screen mode, press MAP. Pressing MAP
again displays the turn list. When approaching a
guide point, the enlarged view of the intersection
is automatically displayed. To display the turn list,
press MAP. To display the map screen, press
MAP again.
GUIDANCE SCREEN SETTINGS
The guidance screen can be displayed at all
times even when the vehicle is located away
from the guide point. The screen to be displayed
can be set.
Split screen settings
The display setting on the left-hand side screen
shown during route guidance can be changed.
NRG0011NRG0012NRG0016
5-10Route guidance

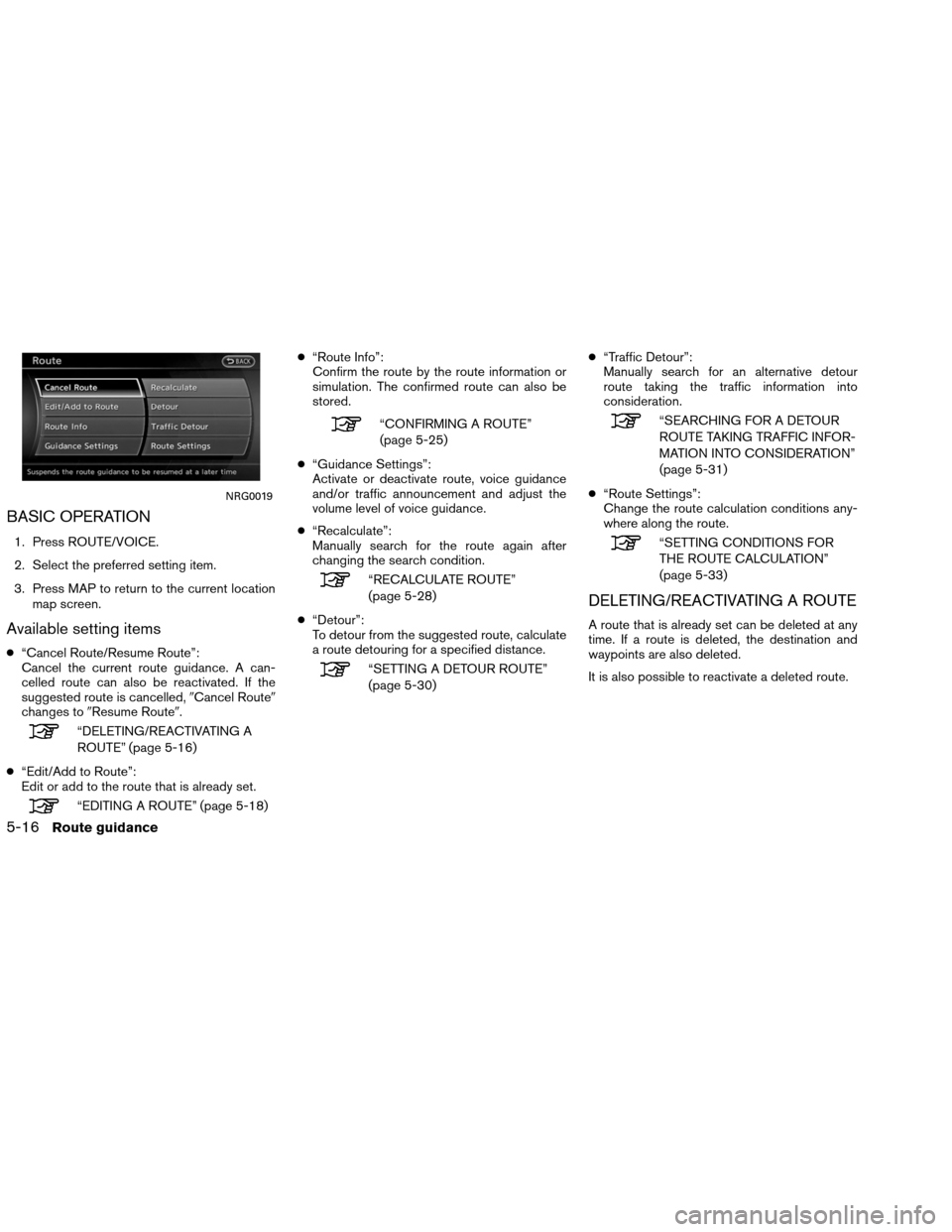

BASIC OPERATION
1. Press ROUTE/VOICE.
2. Select the preferred setting item.
3. Press MAP to return to the current locationmap screen.
Available setting items
●“Cancel Route/Resume Route”:
Cancel the current route guidance. A can-
celled route can also be reactivated. If the
suggested route is cancelled, Cancel Route
changes to Resume Route.
“DELETING/REACTIVATING A
ROUTE” (page 5-16)
● “Edit/Add to Route”:
Edit or add to the route that is already set.
“EDITING A ROUTE” (page 5-18) ●
“Route Info”:
Confirm the route by the route information or
simulation. The confirmed route can also be
stored.
“CONFIRMING A ROUTE”
(page 5-25)
● “Guidance Settings”:
Activate or deactivate route, voice guidance
and/or traffic announcement and adjust the
volume level of voice guidance.
● “Recalculate”:
Manually search for the route again after
changing the search condition.
“RECALCULATE ROUTE”
(page 5-28)
● “Detour”:
To detour from the suggested route, calculate
a route detouring for a specified distance.
“SETTING A DETOUR ROUTE”
(page 5-30) ●
“Traffic Detour”:
Manually search for an alternative detour
route taking the traffic information into
consideration.
“SEARCHING FOR A DETOUR
ROUTE TAKING TRAFFIC INFOR-
MATION INTO CONSIDERATION”
(page 5-31)
● “Route Settings”:
Change the route calculation conditions any-
where along the route.
“SETTING CONDITIONS FOR
THE ROUTE CALCULATION”
(page 5-33)
DELETING/REACTIVATING A ROUTE
A route that is already set can be deleted at any
time. If a route is deleted, the destination and
waypoints are also deleted.
It is also possible to reactivate a deleted route.
NRG0019
5-16Route guidance

1. Press ROUTE/VOICE.
2. Select “Traffic Detour”.3. When the detour search is successful, de-
tailed information about the detour route
(left screen) and the comparison screen of
the two routes (right screen) are displayed.
1Original route (yellow)
2Detour route (pink)
3The change of distance and estimated
travel time to destination when the de-
tour route is taken.
4. To accept the suggested detour route, se- lect “Yes”.
INFO:
● If no route is set, or “Use Real Time Traffic In-
formation” is turned off, this function cannot
be operated. ●
If no detour route is selected and no further
action is provided, the detour route will be au-
tomatically cancelled.
● The detour suggestion may be retrieved even
after the message disappears by manually se-
lecting “Traffic Detour”. The system will then
search for the detour again and suggest a de-
tour if one is available at that time.
● Without a subscription to a NavTraffic
broadcast, it will not be possible to get a traf-
fic detour or apply settings for traffic informa-
tion related functions. A message appears
when a related menu item is selected.
● See “NOTES ON NavTraffic INFORMATION”
for further information.
Automatic detour guidance
When Auto Reroute andUse Real Time Traffic
Information are turned on, a message will auto-
matically pop up when the system finds a detour.
NRG0057NRG0058
5-32Route guidance

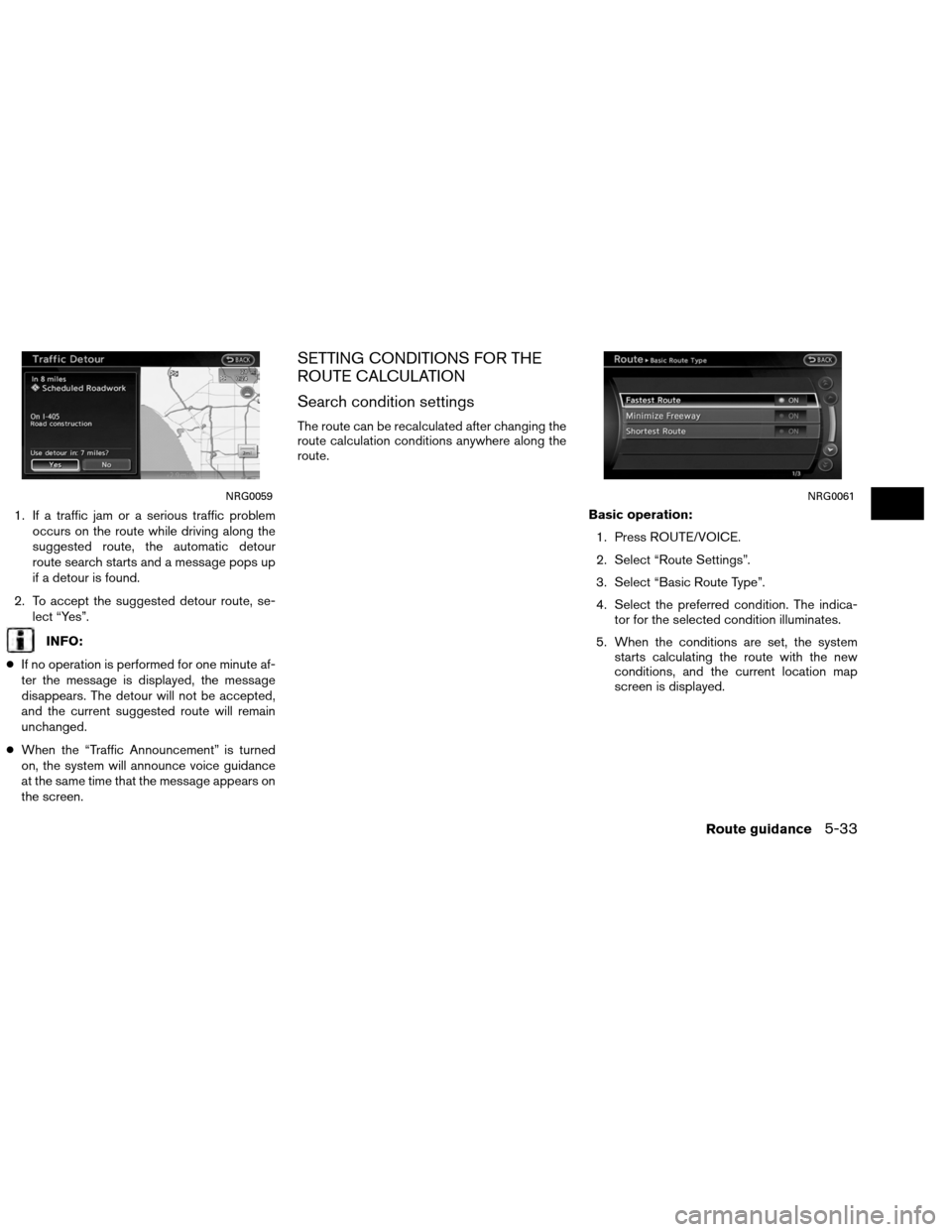

1. If a traffic jam or a serious traffic problemoccurs on the route while driving along the
suggested route, the automatic detour
route search starts and a message pops up
if a detour is found.
2. To accept the suggested detour route, se- lect “Yes”.
INFO:
● If no operation is performed for one minute af-
ter the message is displayed, the message
disappears. The detour will not be accepted,
and the current suggested route will remain
unchanged.
● When the “Traffic Announcement” is turned
on, the system will announce voice guidance
at the same time that the message appears on
the screen.
SETTING CONDITIONS FOR THE
ROUTE CALCULATION
Search condition settings
The route can be recalculated after changing the
route calculation conditions anywhere along the
route.
Basic operation:1. Press ROUTE/VOICE.
2. Select “Route Settings”.
3. Select “Basic Route Type”.
4. Select the preferred condition. The indica- tor for the selected condition illuminates.
5. When the conditions are set, the system starts calculating the route with the new
conditions, and the current location map
screen is displayed.
NRG0059NRG0061
Route guidance5-33

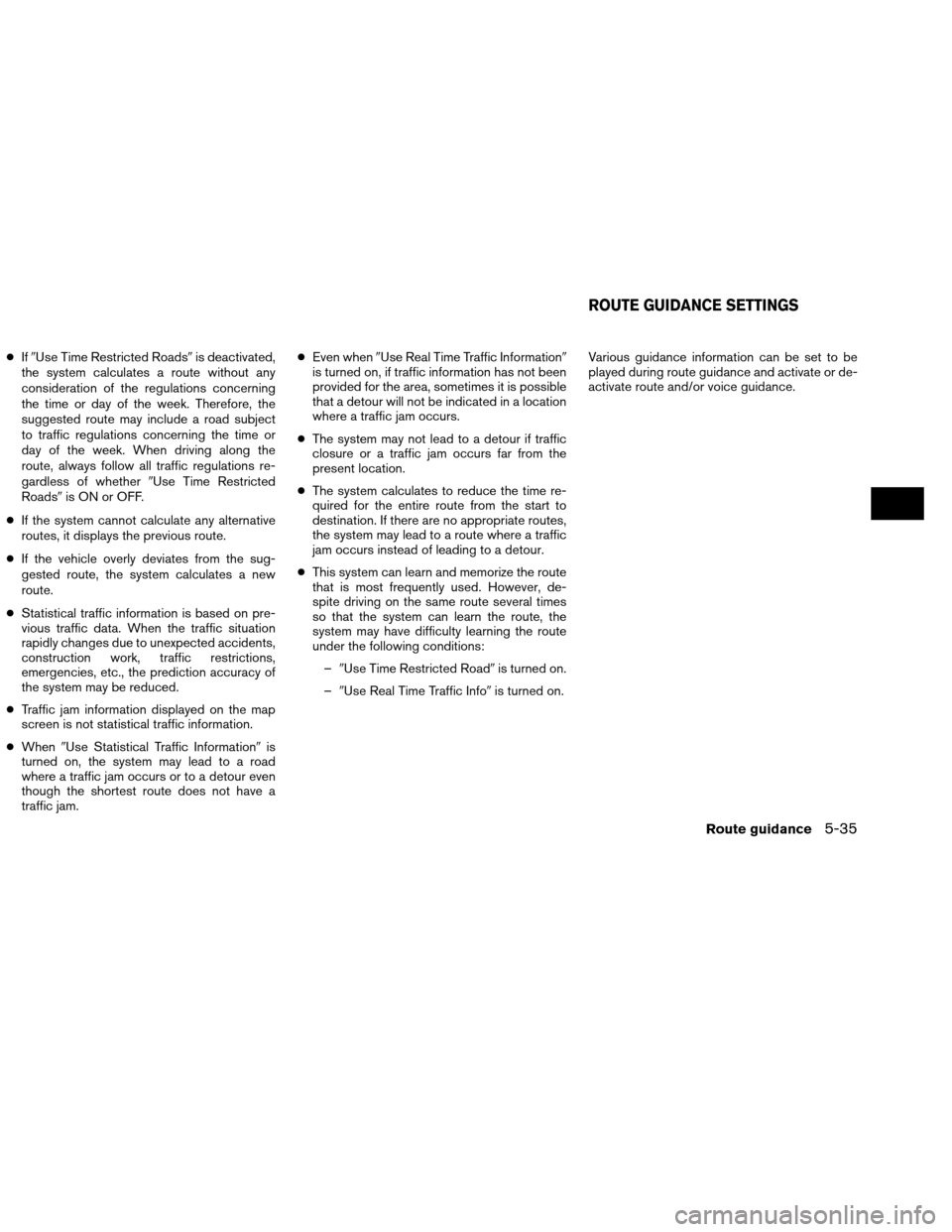

●IfUse Time Restricted Roads is deactivated,
the system calculates a route without any
consideration of the regulations concerning
the time or day of the week. Therefore, the
suggested route may include a road subject
to traffic regulations concerning the time or
day of the week. When driving along the
route, always follow all traffic regulations re-
gardless of whether Use Time Restricted
Roads is ON or OFF.
● If the system cannot calculate any alternative
routes, it displays the previous route.
● If the vehicle overly deviates from the sug-
gested route, the system calculates a new
route.
● Statistical traffic information is based on pre-
vious traffic data. When the traffic situation
rapidly changes due to unexpected accidents,
construction work, traffic restrictions,
emergencies, etc., the prediction accuracy of
the system may be reduced.
● Traffic jam information displayed on the map
screen is not statistical traffic information.
● When Use Statistical Traffic Information is
turned on, the system may lead to a road
where a traffic jam occurs or to a detour even
though the shortest route does not have a
traffic jam. ●
Even when Use Real Time Traffic Information
is turned on, if traffic information has not been
provided for the area, sometimes it is possible
that a detour will not be indicated in a location
where a traffic jam occurs.
● The system may not lead to a detour if traffic
closure or a traffic jam occurs far from the
present location.
● The system calculates to reduce the time re-
quired for the entire route from the start to
destination. If there are no appropriate routes,
the system may lead to a route where a traffic
jam occurs instead of leading to a detour.
● This system can learn and memorize the route
that is most frequently used. However, de-
spite driving on the same route several times
so that the system can learn the route, the
system may have difficulty learning the route
under the following conditions:
– Use Time Restricted Road is turned on.
– Use Real Time Traffic Info is turned on.Various guidance information can be set to be
played during route guidance and activate or de-
activate route and/or voice guidance.
ROUTE GUIDANCE SETTINGS
Route guidance5-35

– “Concise”:The system announces two kinds of
voice guidance: “Turning Point” and “1
Guide”.
– “Turning Point”: Turns on the sound that chimes when a
maneuver is supposed to be occurring.
DISPLAYING SMALL TURN ARROW
ON MAP
The guidance screen displayed when the vehicle
passes through an intersection can be changed. 1. Press SETTING.
2. Select “Navigation”.
3. Select “Guidance Settings”.
4. Select “Guidance Display Settings”.5. Select “Small Turn Arrow on Map to activate
or deactivate Small Turn Arrow on the Map
(simplified turn indicator) displayed in the
upper left corner of the map screen. The in-
dicator illuminates if the Small Turn Arrow
on the Map is displayed.
SWITCHING ESTIMATED ARRIVAL
TIME DISPLAY
The display of the travel time on the map screen
can be switched between the travel time to the
destination and the travel time to the waypoint.
NRG0065NRG0066
5-38Route guidance
