2013 NISSAN ALTIMA COUPE Navigation Manual

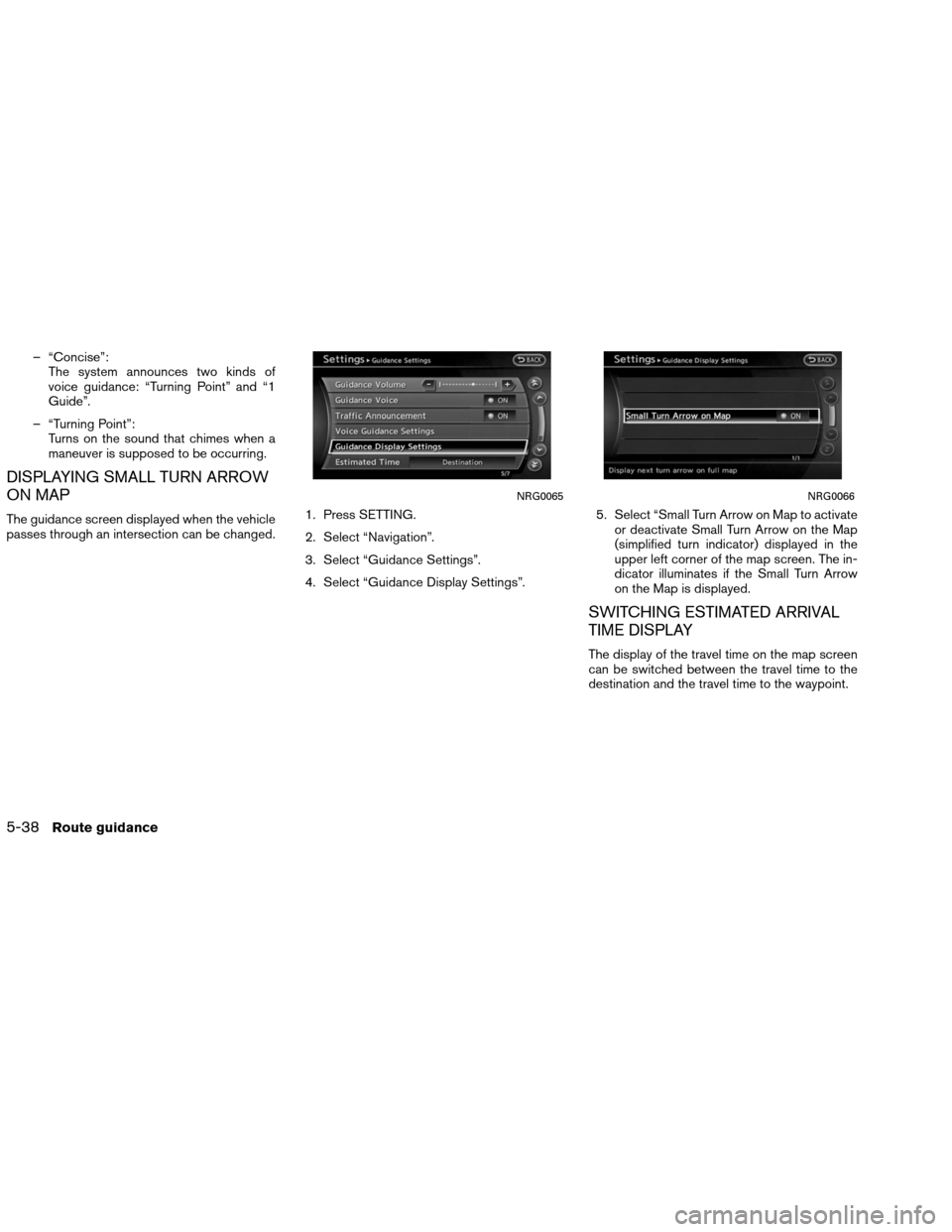

– “Concise”:The system announces two kinds of
voice guidance: “Turning Point” and “1
Guide”.
– “Turning Point”: Turns on the sound that chimes when a
maneuver is supposed to be occurring.
DISPLAYING SMALL TURN ARROW
ON MAP
The guidance screen displayed when the vehicle
passes through an intersection can be changed. 1. Press SETTING.
2. Select “Navigation”.
3. Select “Guidance Settings”.
4. Select “Guidance Display Settings”.5. Select “Small Turn Arrow on Map to activate
or deactivate Small Turn Arrow on the Map
(simplified turn indicator) displayed in the
upper left corner of the map screen. The in-
dicator illuminates if the Small Turn Arrow
on the Map is displayed.
SWITCHING ESTIMATED ARRIVAL
TIME DISPLAY
The display of the travel time on the map screen
can be switched between the travel time to the
destination and the travel time to the waypoint.
NRG0065NRG0066
5-38Route guidance

Example: Switching the display to the travel time
to the waypoint1. Press SETTING.
2. Select “Navigation”.
3. Select “Guidance Settings”.
4. Select “Estimated Time”. 5. Select “Waypoint”. The indicator for the se-
lected condition illuminates.
6. Press MAP to return to the current location map screen. 7. The icon displayed on the map screen is
switched, and the travel time to the way-
point is displayed.
Displayed icon
: Display of the travel time to the des-
tination
: Display of the travel time to the way-
point
SET AVERAGE SPEEDS
The required time to the destination can be cal-
culated based on the set vehicle speeds.
NRG0068NRG0069NRG0070
Route guidance5-39

Basic operation
1. Press SETTING.
2. Select “Navigation”.
3. Select “Guidance Settings”.
4. Select “Others”.
5. Select “Set Average Speeds”.
6. Select the preferred item.
7. Use the on-screen keys to make anadjustment. The speed can be
increased/decreased by 5 MPH (5 km/h) .
8. After finishing the setting, press ENTER or BACK to activate the setting.
9. Press BACK to return to the previous screen. Press MAP to return to the current
location map screen. Available setting items:
●
“Auto”:
If set to ON, the system automatically calcu-
lates the required time to the destination, the
indicator illuminates and the speed settings
cannot be changed.
● “Freeway”:
Adjust the average vehicle speed on a free-
way by touching [+] or [].
● “Main Road”:
Adjust the average vehicle speed on a main
road by touching [+] or [].
● “Town Road”:
Adjust the average vehicle speed on a town
road by touching [+] or []. ●
“Residential”:
Adjust the average vehicle speed in a residen-
tial area by touching [+] or [].
● “Reset”:
Sets the average vehicle speeds to the de-
fault values.
NRG0071NRG0084
5-40Route guidance

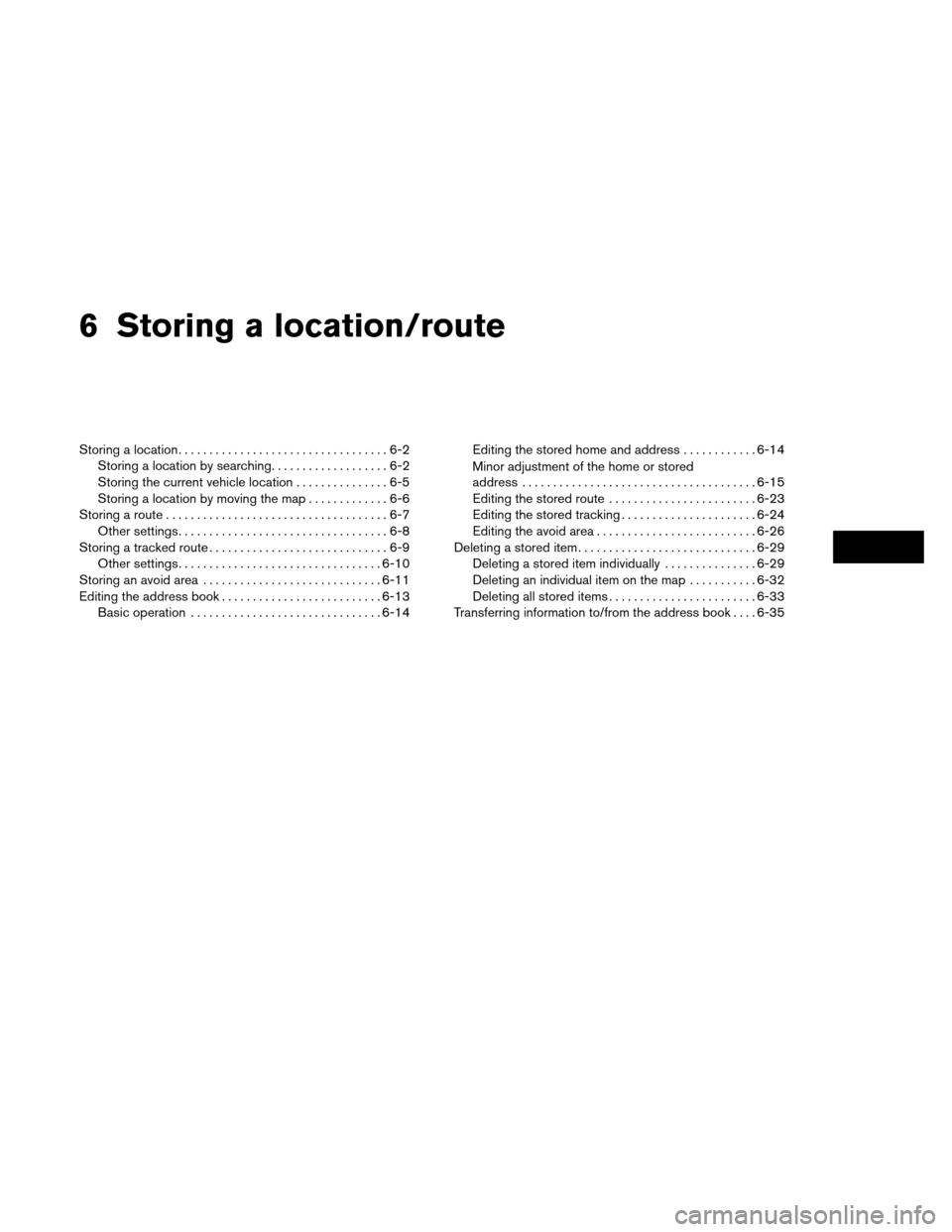

6 Storing a location/route
Storing a location..................................6-2
Storing a location by searching ...................6-2
Storing the current vehicle location ...............6-5
Storing a location by moving the map .............6-6
Storing a route ....................................6-7
Other settings ..................................6-8
Storing a tracked route .............................6-9
Other settings ................................. 6-10
Storing an avoid area . . ........................... 6-11
Editing the address book .......................... 6-13
Basic operation ............................... 6-14Editing the stored home and address
............6-14
Minor adjustment of the home or stored
address ...................................... 6-15
Editing the stored route ........................ 6-23
Editing the stored tracking ......................6-24
Editing the avoid area .......................... 6-26
Deleting a stored item ............................. 6-29
Deleting a stored item individually ...............6-29
Deleting an individual item on the map ...........6-32
Deleting all stored items ........................ 6-33
Transferring information to/from the address book ....6-35

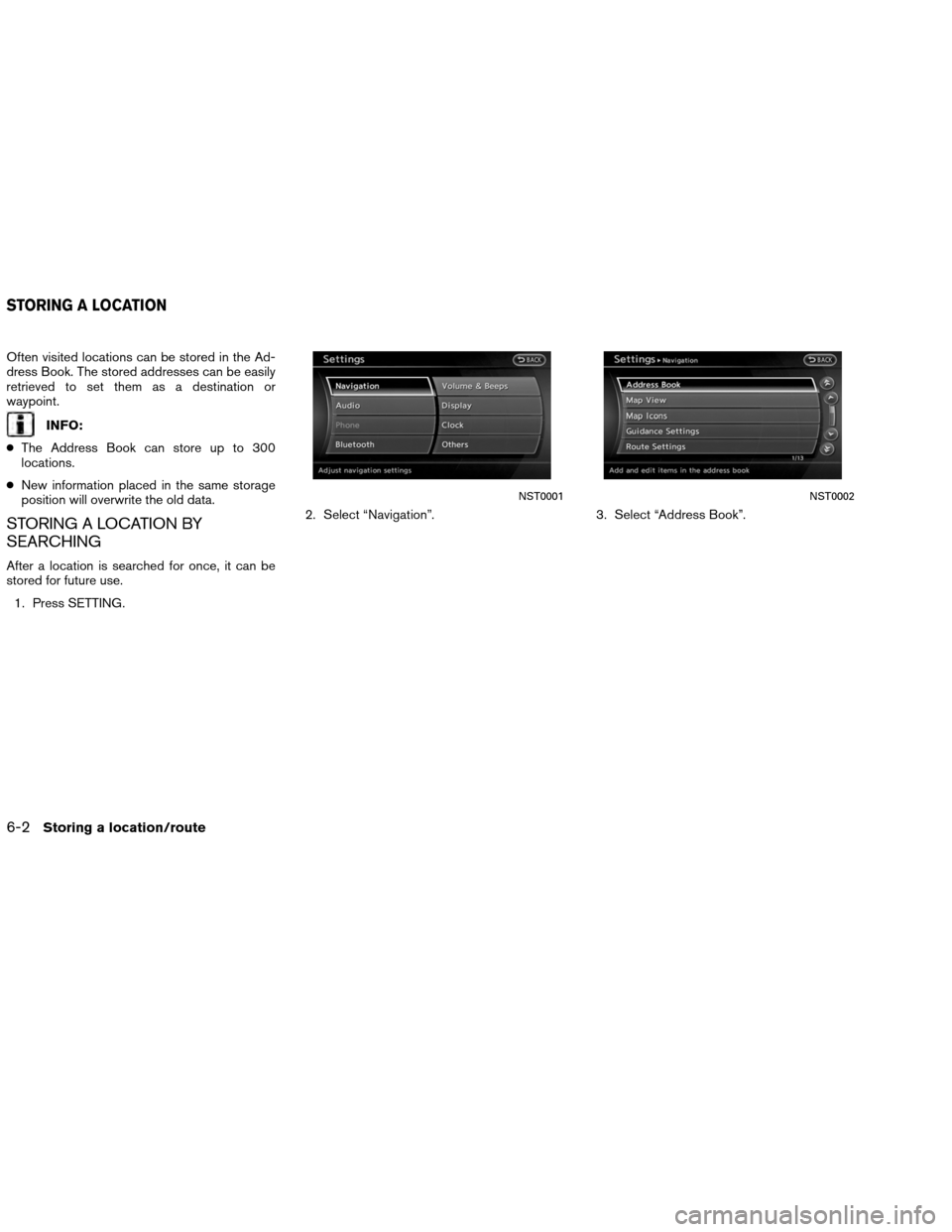

Often visited locations can be stored in the Ad-
dress Book. The stored addresses can be easily
retrieved to set them as a destination or
waypoint.
INFO:
● The Address Book can store up to 300
locations.
● New information placed in the same storage
position will overwrite the old data.
STORING A LOCATION BY
SEARCHING
After a location is searched for once, it can be
stored for future use.
1. Press SETTING. 2. Select “Navigation”.
3. Select “Address Book”.
NST0001NST0002
STORING A LOCATION
6-2Storing a location/route

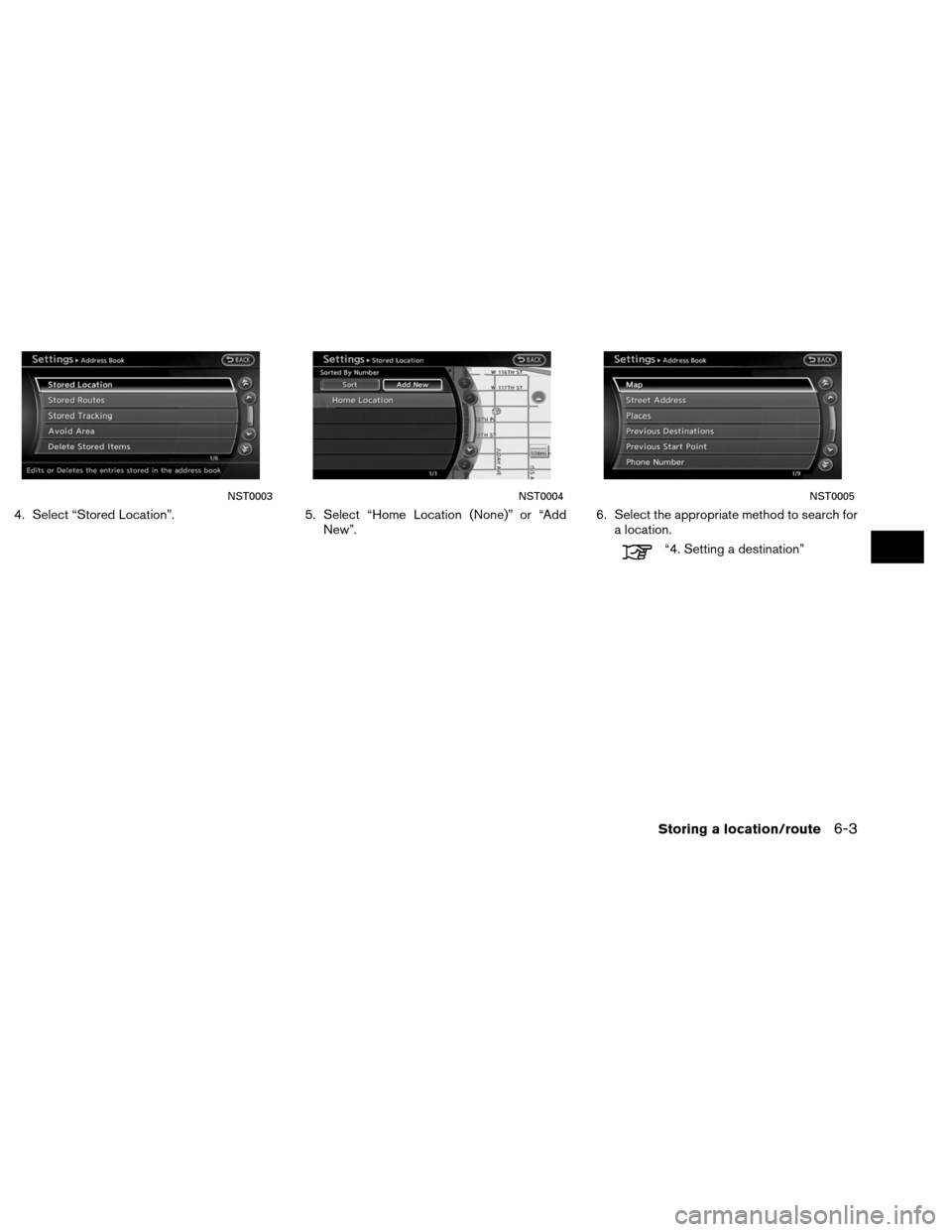

4. Select “Stored Location”.5. Select “Home Location (None)” or “Add
New”. 6. Select the appropriate method to search for
a location.
“4. Setting a destination”
NST0003NST0004NST0005
Storing a location/route6-3

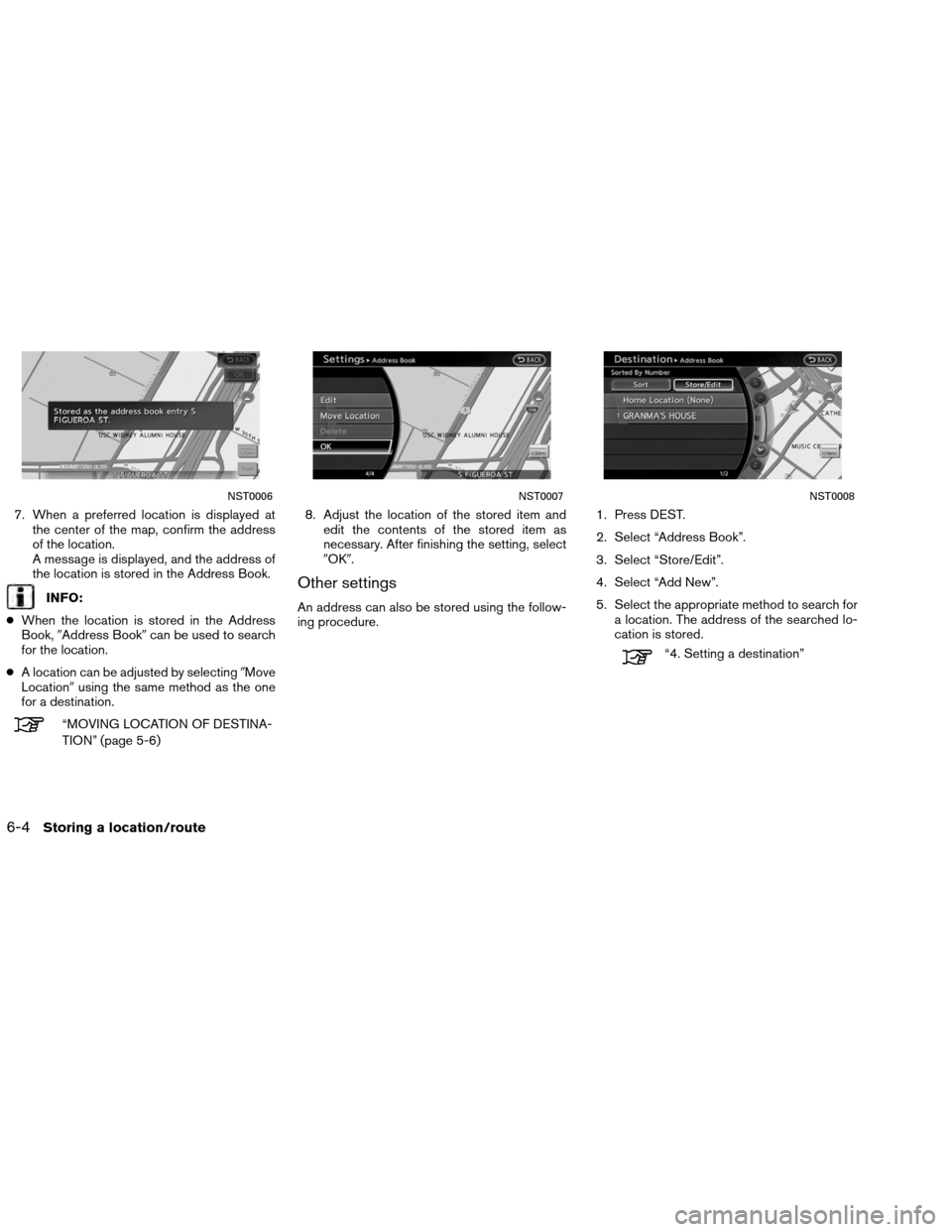

7. When a preferred location is displayed atthe center of the map, confirm the address
of the location.
A message is displayed, and the address of
the location is stored in the Address Book.
INFO:
● When the location is stored in the Address
Book, Address Book can be used to search
for the location.
● A location can be adjusted by selecting Move
Location using the same method as the one
for a destination.
“MOVING LOCATION OF DESTINA-
TION” (page 5-6) 8. Adjust the location of the stored item and
edit the contents of the stored item as
necessary. After finishing the setting, select
OK.
Other settings
An address can also be stored using the follow-
ing procedure. 1. Press DEST.
2. Select “Address Book”.
3. Select “Store/Edit”.
4. Select “Add New”.
5. Select the appropriate method to search for
a location. The address of the searched lo-
cation is stored.
“4. Setting a destination”
NST0006NST0007NST0008
6-4Storing a location/route

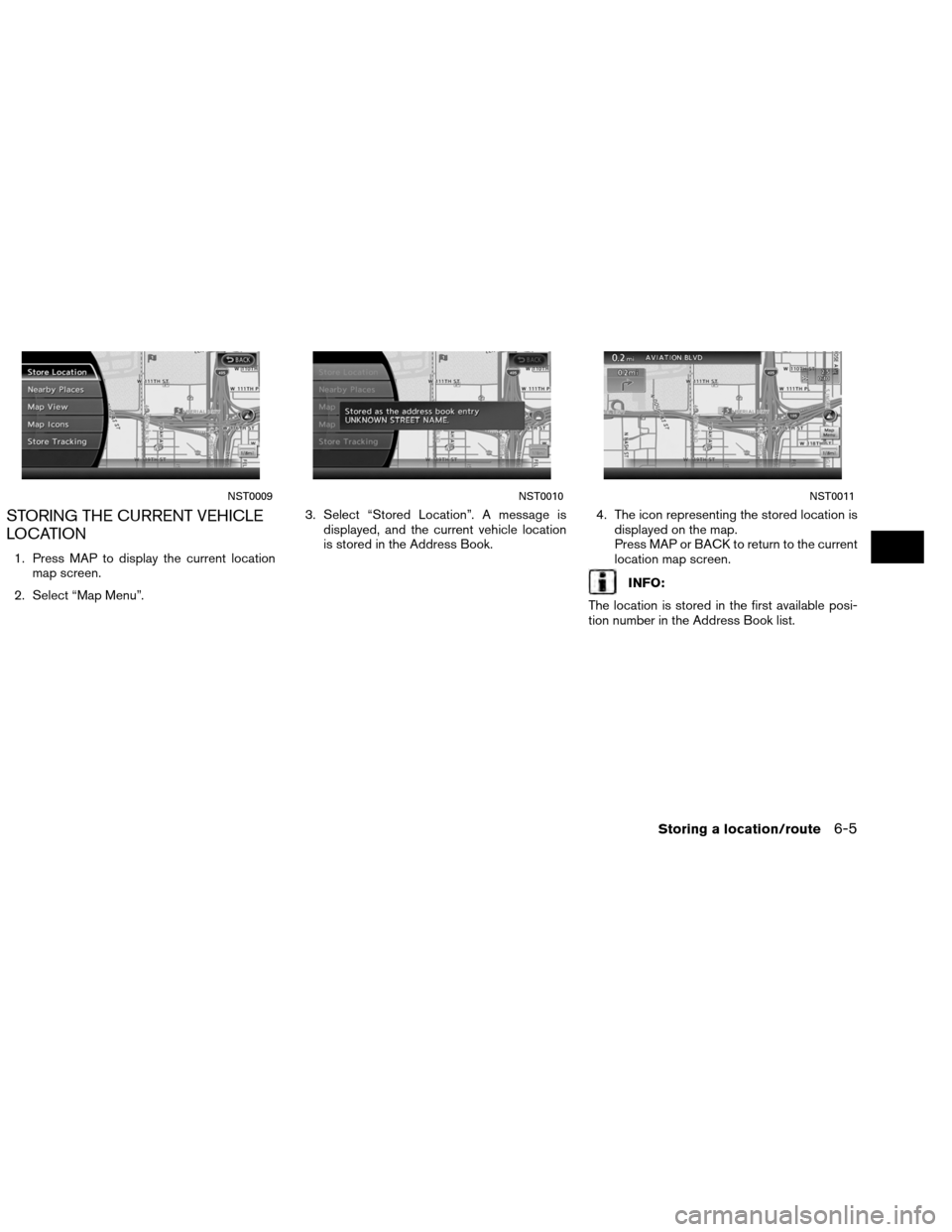

STORING THE CURRENT VEHICLE
LOCATION
1. Press MAP to display the current locationmap screen.
2. Select “Map Menu”. 3. Select “Stored Location”. A message is
displayed, and the current vehicle location
is stored in the Address Book. 4. The icon representing the stored location is
displayed on the map.
Press MAP or BACK to return to the current
location map screen.
INFO:
The location is stored in the first available posi-
tion number in the Address Book list.
NST0009NST0010NST0011
Storing a location/route6-5
