2013 NISSAN ALTIMA COUPE Navigation Manual

INFO:

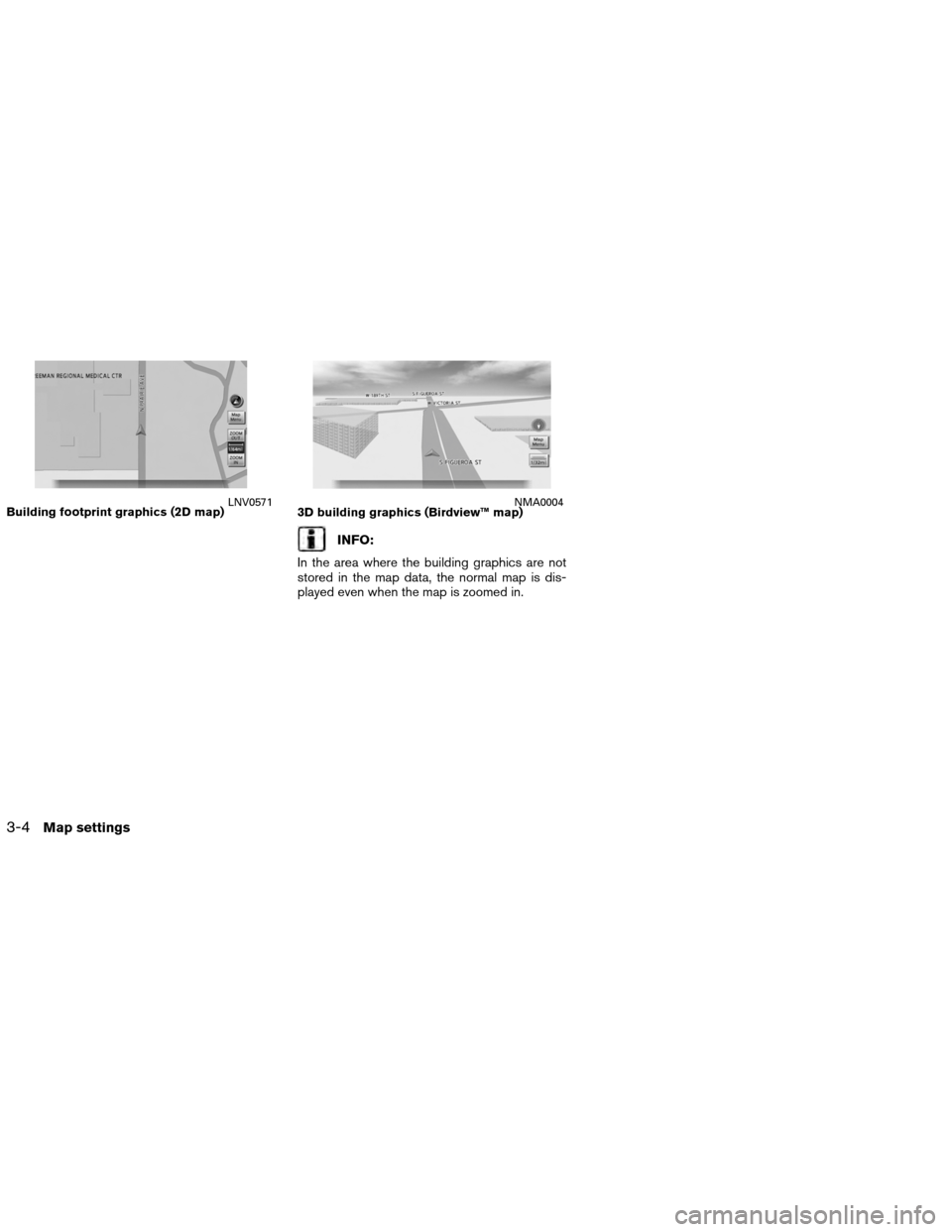

In the area where the building graphics are not
stored in the map data, the normal map is dis-
played even when the map is zoomed in.
Building footprint graphics (2D map)LNV05713D building graphics (Birdview™ map)NMA0004
3-4Map settings

OPERATION WITH BUTTONS ON
CONTROL PANEL
The basic map screen displays the current loca-
tion (the position where the vehicle mark is
located) . Press MAP to display the current loca-
tion on the map while on any screen.
INFO:
Depending on the menu selected, pressing MAP
may not return the display to the current location
map screen.
OPERATING WITH THE TOUCH OP-
ERATION
After moving the map, touch “Back” on the map
screen to display the current location map
screen.
NMA0005NMA0006
DISPLAYING THE CURRENT VEHICLE
LOCATION
Map settings3-5

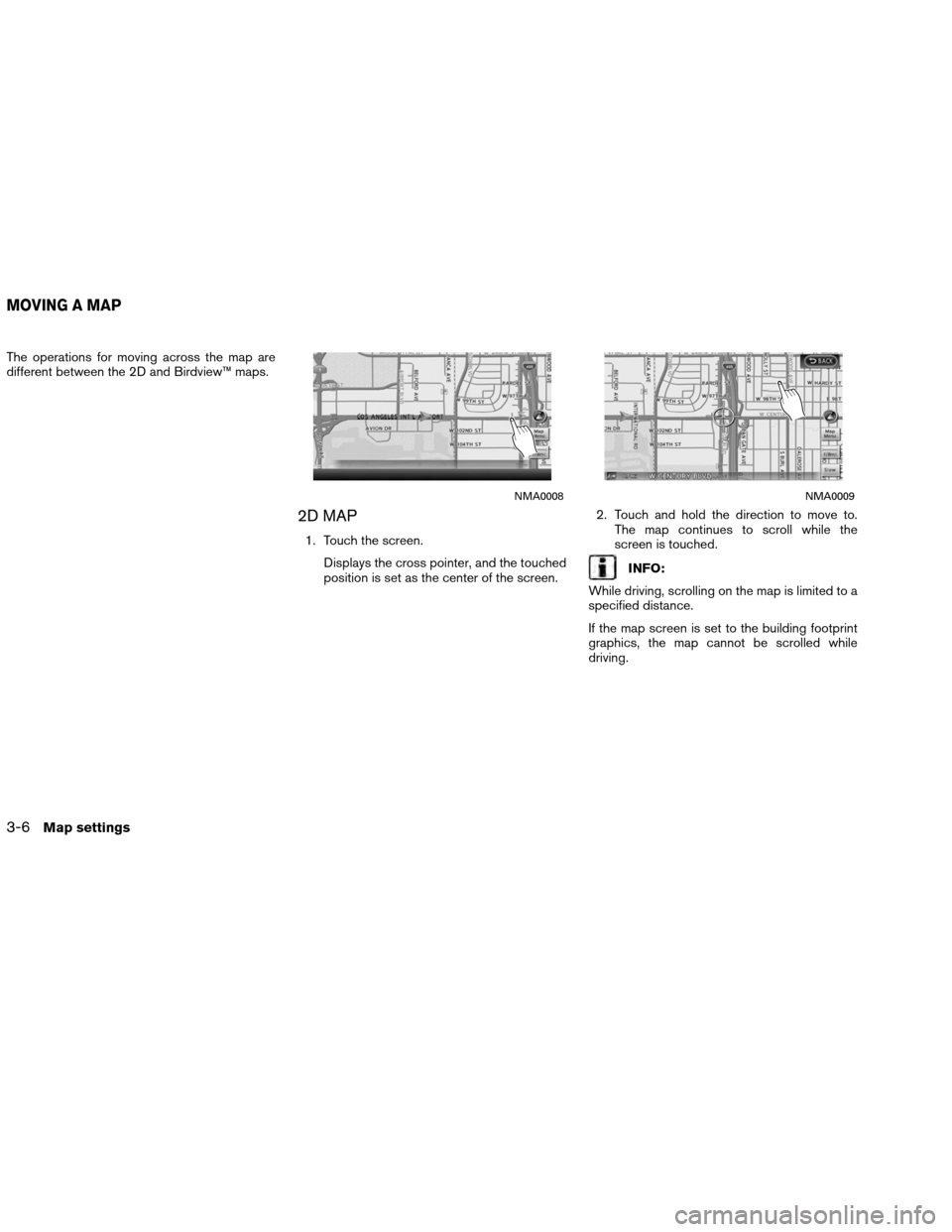

The operations for moving across the map are
different between the 2D and Birdview™ maps.
2D MAP
1. Touch the screen.Displays the cross pointer, and the touched
position is set as the center of the screen. 2. Touch and hold the direction to move to.
The map continues to scroll while the
screen is touched.
INFO:
While driving, scrolling on the map is limited to a
specified distance.
If the map screen is set to the building footprint
graphics, the map cannot be scrolled while
driving.
NMA0008NMA0009
MOVING A MAP
3-6Map settings

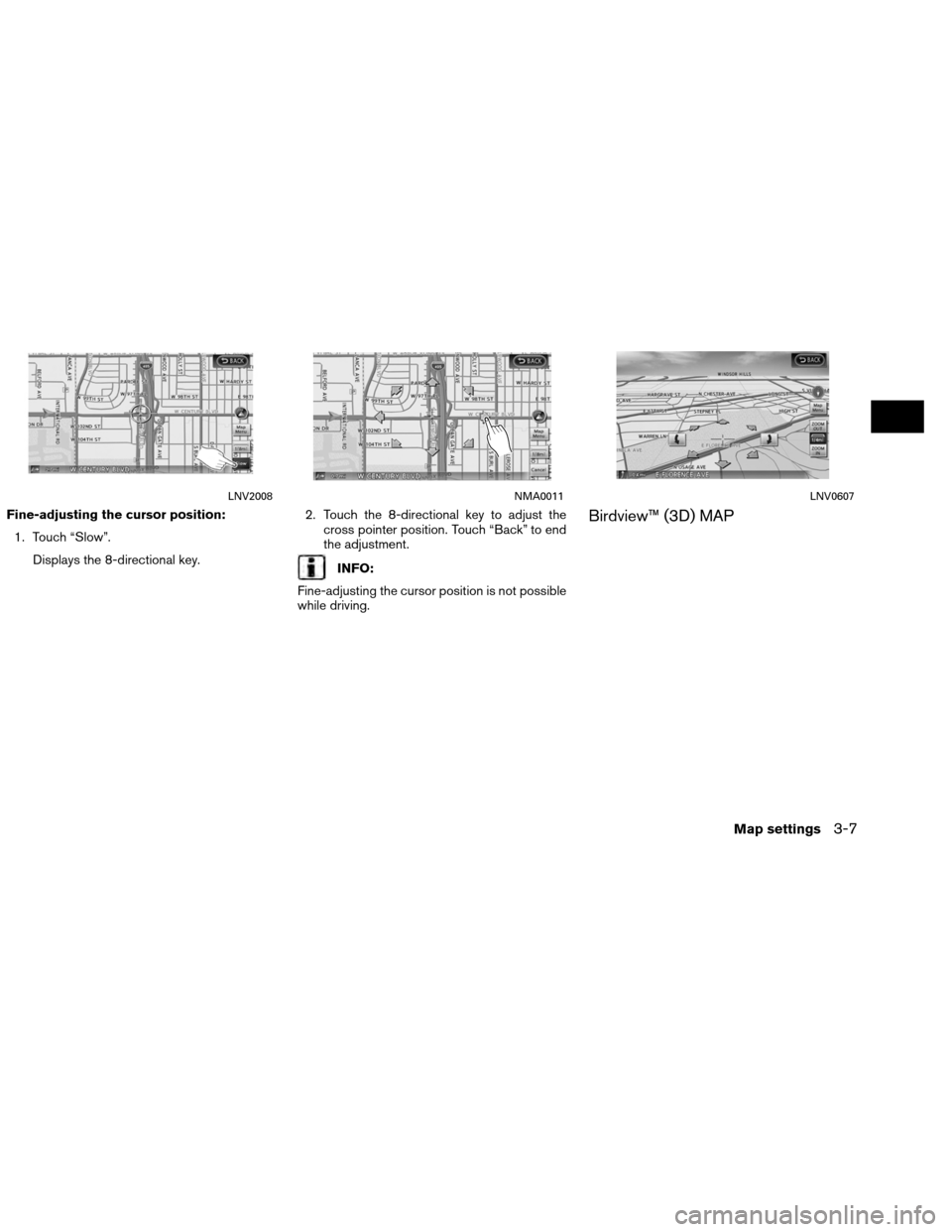

Fine-adjusting the cursor position:1. Touch “Slow”. Displays the 8-directional key. 2. Touch the 8-directional key to adjust the
cross pointer position. Touch “Back” to end
the adjustment.
INFO:
Fine-adjusting the cursor position is not possible
while driving.
Birdview™ (3D) MAP
LNV2008NMA0011LNV0607
Map settings3-7

1. Touch the screen.Displays the cross pointer and 8-directional
key. 2. Touch the direction to move to. The map
continues to scroll while the screen is
touched. 3. Touchorto change the di-
rection of the map.
Rotates the map clockwise.
Rotates the map counterclockwise.
INFO:
While driving, scrolling on the map is limited to a
specified distance.
LNV0572LNV0573LNV0574
3-8Map settings

1. Touch “ZOOM IN” or “ZOOM OUT” tochange the scale.
Voice command
1. Press
button located on the steering
wheel switch.
2. After the tone sounds, speak a command. To change the map scale:
“Zoom In <1 to 13>” (Alternate command
mode)
“ALTERNATE COMMAND
MODE” (page 9-16)
“Zoom Out <1 to 13>” (Alternate com-
mand mode)
MAP SCALE
Any required map scale (map coverage) be-
tween 320 miles (640 km) and 1/32 of a mile
(50 m) can be selected. If a destination has been
set, one-touch operation can be used to switch
to a scale at which the complete route to the next
destination can be viewed.
Scale level for 2D map and Birdview™
map (3D) display
Normal Map English Units Metric Units
320 Miles 640 km80 miles 160 km
32 miles 64 km
8 miles 16 km
5 miles 10 km
2 miles 4 km
1 mile 2 km
1/2 mile 1 km
1/4 mile 500 m
1/8 mile 200 m
1/16 mile 100 m
1/32 mile 50 m
Shows building
footprint graph- ics 1/32 mile
50 m
1/64 mile 25 m
LNV0576
Example: The most detailed level (2D map)LNV0577
CHANGING THE SCALE OF A MAP
Map settings3-9

INFO:
The traffic information icons are not displayed on
the map screen when the map scale is set to 32
miles (64 km) or higher.
“Traffic information display and scale
levels” (page 7-8)

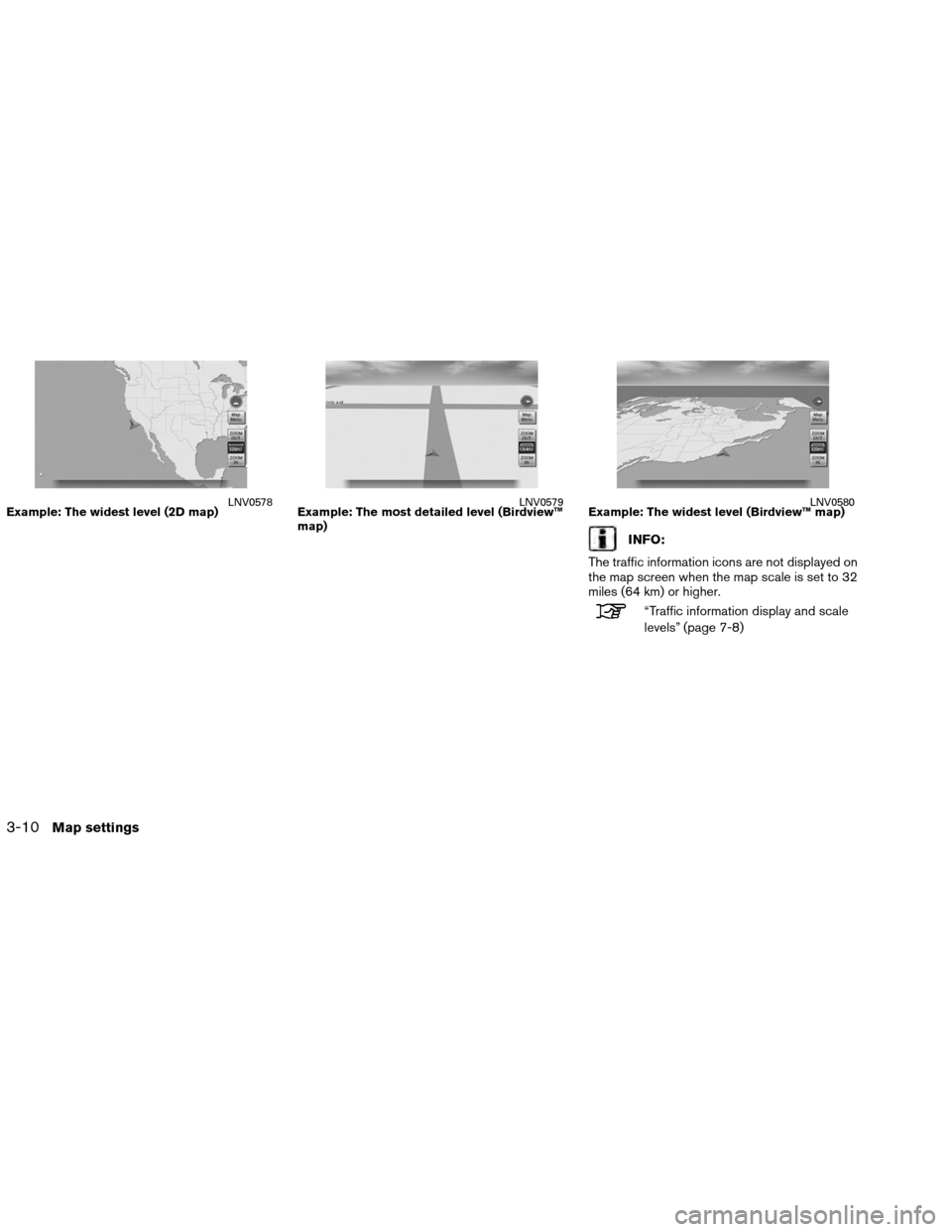

Example: The widest level (2D map)LNV0578Example: The most detailed level (Birdview™
map)LNV0579Example: The widest level (Birdview™ map)LNV0580
3-10Map settings

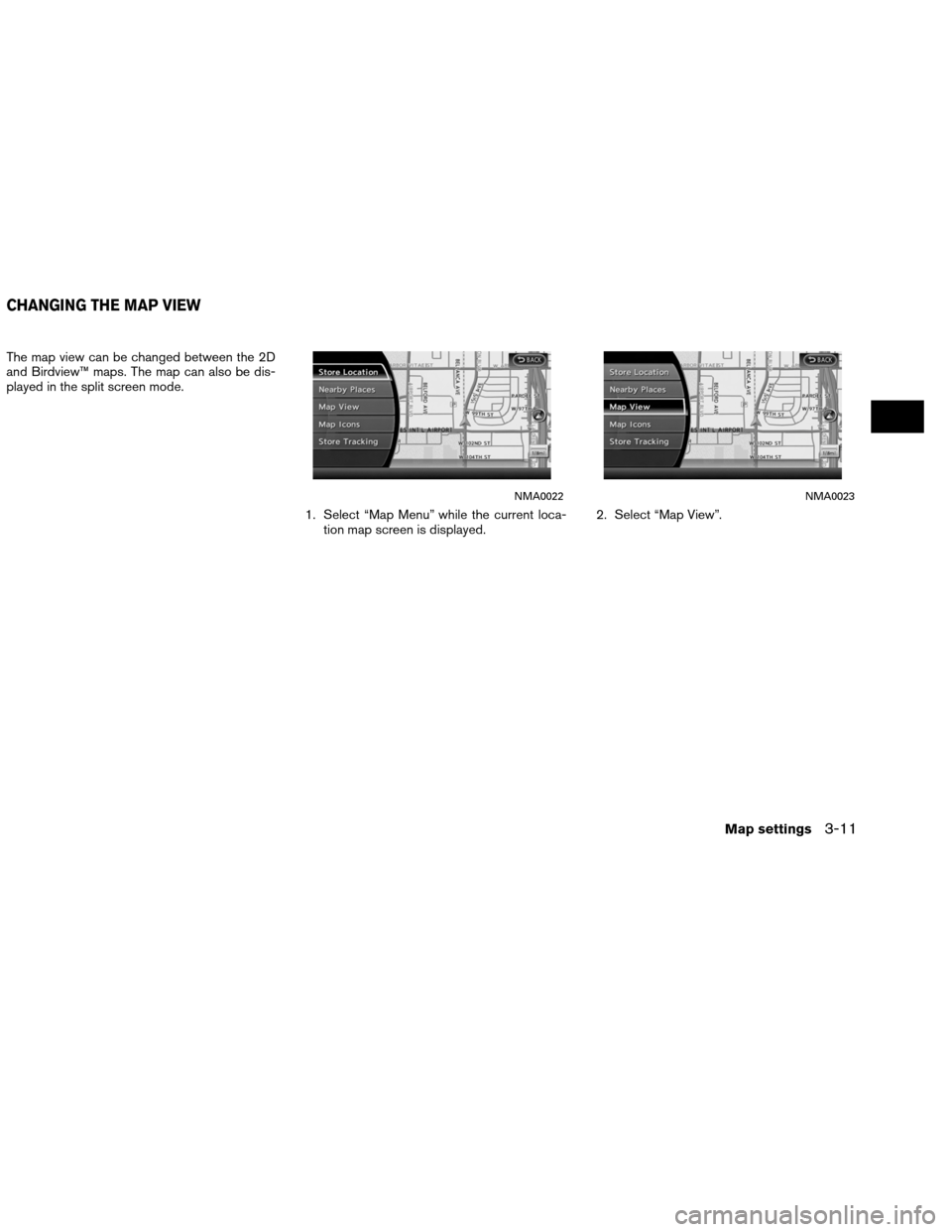

The map view can be changed between the 2D
and Birdview™ maps. The map can also be dis-
played in the split screen mode.1. Select “Map Menu” while the current loca-tion map screen is displayed. 2. Select “Map View”.
NMA0022NMA0023
CHANGING THE MAP VIEW
Map settings3-11
