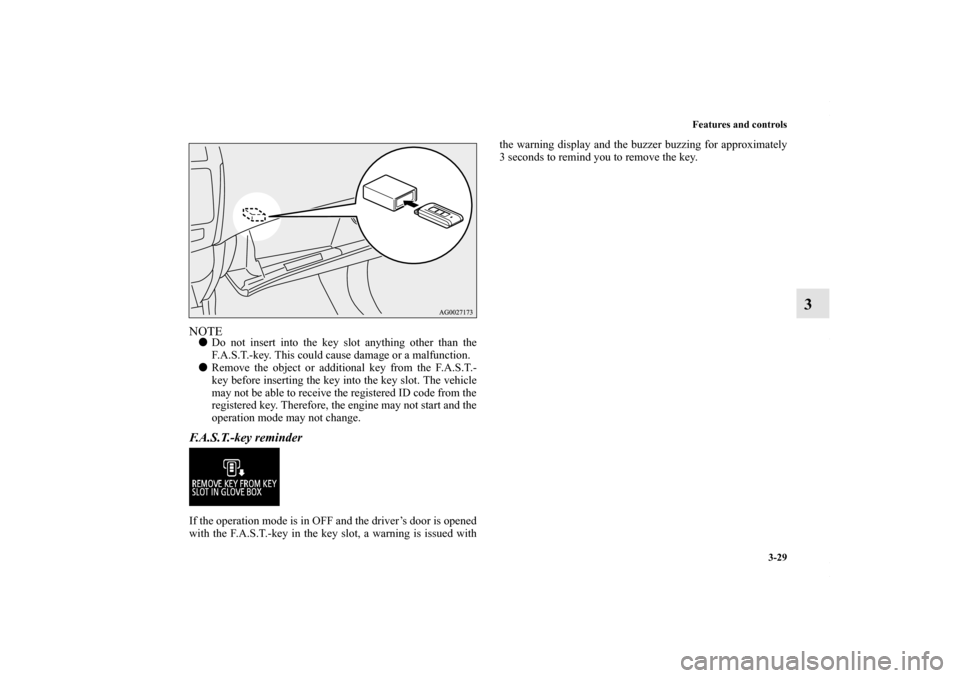

Page 126 of 602
Features and controls3-29
3
NOTEDo not insert into the key slot anything other than the
F.A.S.T.-key. This could cause damage or a malfunction.
Remove the object or additional key from the F.A.S.T.-
key before inserting the key into the key slot. The vehicle
may not be able to receive the registered ID code from the
registered key. Therefore, the engine may not start and the
operation mode may not change. F.A.S.T.-key reminderIf the operation mode is in OFF and the driver’s door is opened
with the F.A.S.T.-key in the key slot, a warning is issued with the warning display and the buzzer buzzing for approximately
3 seconds to remind you to remove the key.
BK0150700US.book 29 ページ
２０１２年３月２２日 木曜日 午後６時４６分
Page 129 of 602
3-32 Features and controls
3
Customer F.A.S.T.-key programming (Except for vehi-
cles sold in Canada)
N00561200161
You can program new F.A.S.T.-keys to the system if you have
two valid (already registered) F.A.S.T.-keys and blank (not reg-
istered) F.A.S.T.-key.
For F.A.S.T.-key programming, follow the procedures below.1. Open the driver’s door.NOTE Keep the driver’s door open until F.A.S.T.-key program-
ming is finished. Do not open or close other doors.
2. While carrying the first valid F.A.S.T.-key, put the opera- tion mode in ON. (Perform the following procedure
within 30 seconds.)
3. Insert the new F.A.S.T.-key into the key slot. 4. With the first valid F.A.S.T.-key, press the UNLOCK but-
ton for 4 to 10 seconds and press the LOCK button during
this time.
5. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 4.
(Perform the following procedure within 30 seconds.)
6. With the second valid F.A.S.T.-key, press the UNLOCK button for 4 to 10 seconds and press the LOCK button
during this time.
7. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 6.
The immobilizer display on the information screen in the
multi-information display will blink.
When registration of ID code is complete, the buzzer will
sound 3 times and the immobilizer display will come on
for 30 seconds.
If an error occurs, F.A.S.T.-key programming will be ter-
minated and the buzzer will sound for 3 seconds.
NOTE F.A.S.T.-key programming will be terminated if the opera-
tion mode is put in OFF before the immobilizer display
starts blinking.
BK0150700US.book 32 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 130 of 602
Features and controls3-33
3
8. If you wish to register another F.A.S.T.-key, repeat theprocess from step 1 after the operation mode is put in
OFF.NOTE The immobilizer display will go off immediately if the
operation mode is put in OFF.
Perform the operation when the interrupt display screen is
not showing. The interrupt display screen may prevent
you from seeing the immobilizer display.
It is not possible to register a F.A.S.T.-key if the immobi-
lizer display goes off during the procedure.
Keyless entry system
N00515500200
Press the remote control transmitter buttons to lock or unlock
the doors and the liftgate.
It can also help you signal for attention by setting off the panic
alarm.1-
LOCK ( ) button
2- UNLOCK ( ) button
3- PANIC button
4- Operation indicator light
BK0150700US.book 33 ページ ２０１２年３月２２日 木曜日 午後６時４６分

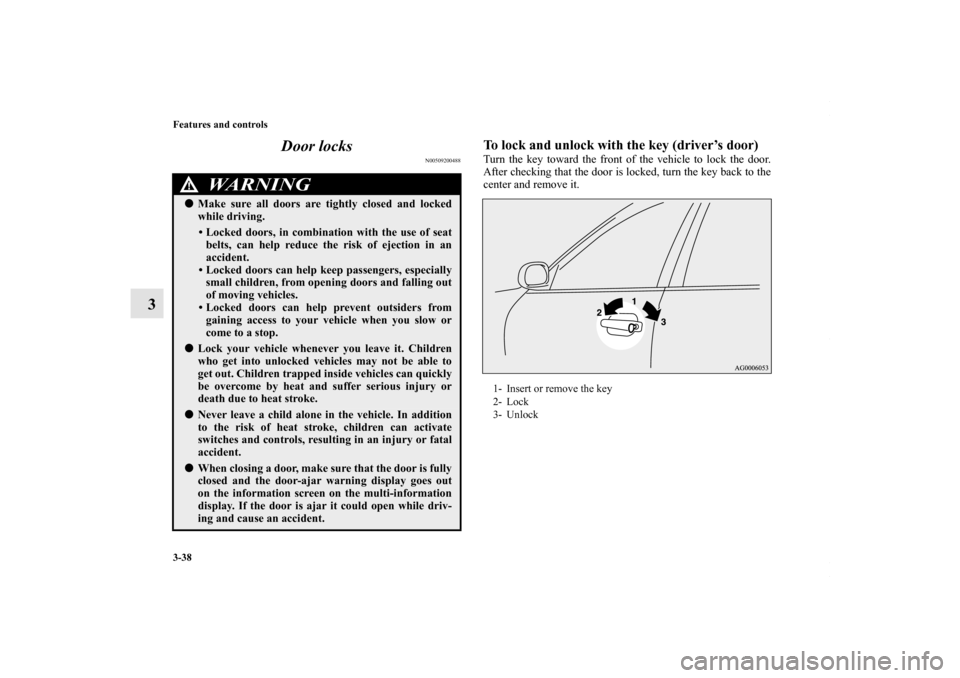

Page 135 of 602
3-38 Features and controls
3Door locks
N00509200488
To lock and unlock with the key (driver’s door)Turn the key toward the front of the vehicle to lock the door.
After checking that the door is locked, turn the key back to the
center and remove it.
WARNING
!
Make sure all doors are tightly closed and locked
while driving.
• Locked doors, in combination with the use of seat
belts, can help reduce the risk of ejection in an
accident.
• Locked doors can help keep passengers, especially small children, from opening doors and falling out
of moving vehicles.
• Locked doors can help prevent outsiders from gaining access to your vehicle when you slow or
come to a stop.
Lock your vehicle whenever you leave it. Children
who get into unlocked vehicles may not be able to
get out. Children trapped inside vehicles can quickly
be overcome by heat and suffer serious injury or
death due to heat stroke.Never leave a child alone in the vehicle. In addition
to the risk of heat stroke, children can activate
switches and controls, resulting in an injury or fatal
accident.When closing a door, make sure that the door is fully
closed and the door-ajar warning display goes out
on the information screen on the multi-information
display. If the door is ajar it could open while driv-
ing and cause an accident.
1- Insert or remove the key
2- Lock
3- Unlock
BK0150700US.book 38 ページ ２０１２年３月２２日 木曜日 午後６時４６分

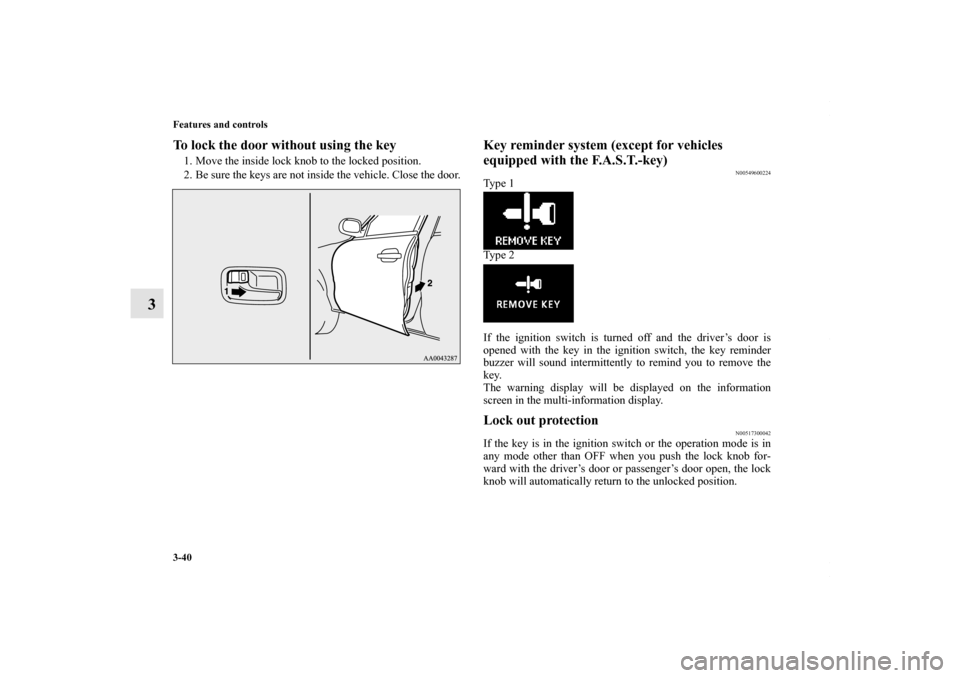

Page 137 of 602
3-40 Features and controls
3
To lock the door without using the key1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehicle. Close the door.
Key reminder system (except for vehicles
equipped with the F.A.S.T.-key)
N00549600224
Ty p e 1
Ty p e 2
If the ignition switch is turned off and the driver’s door is
opened with the key in the ignition switch, the key reminder
buzzer will sound intermittently to remind you to remove the
key.
The warning display will be displayed on the information
screen in the multi-information display.Lock out protection
N00517300042
If the key is in the ignition switch or the operation mode is in
any mode other than OFF when you push the lock knob for-
ward with the driver’s door or passenger’s door open, the lock
knob will automatically return to the unlocked position.
BK0150700US.book 40 ページ ２０１２年３月２２日 木曜日 午後６時４６分

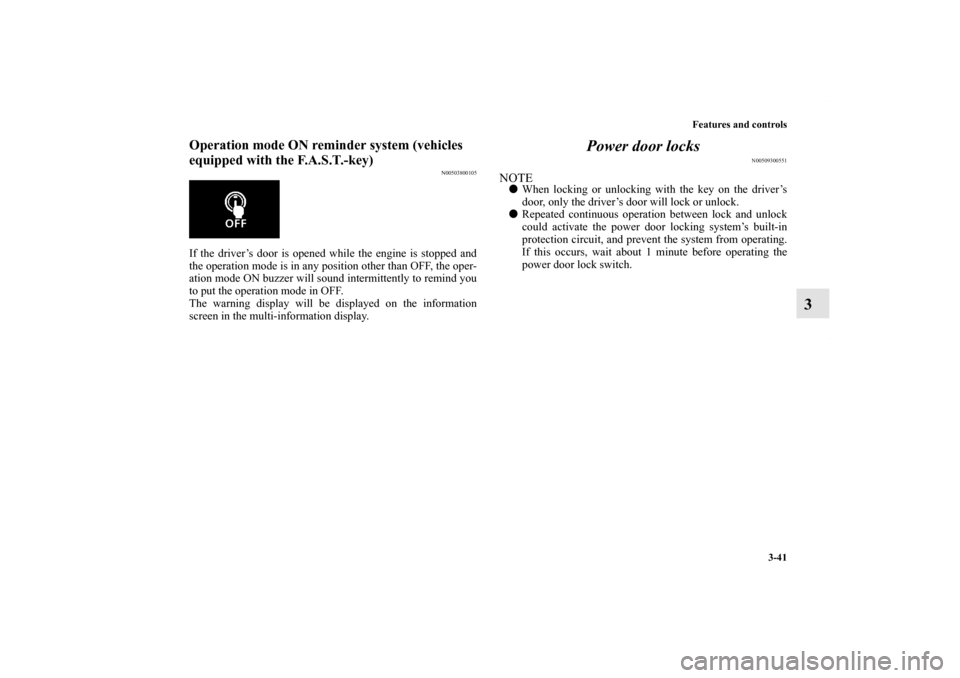

Page 138 of 602
Features and controls3-41
3
Operation mode ON reminder system (vehicles
equipped with the F.A.S.T.-key)
N00503800105
If the driver’s door is opened while the engine is stopped and
the operation mode is in any position other than OFF, the oper-
ation mode ON buzzer will sound intermittently to remind you
to put the operation mode in OFF.
The warning display will be displayed on the information
screen in the multi-information display.
Power door locks
N00509300551
NOTEWhen locking or unlocking with the key on the driver’s
door, only the driver’s door will lock or unlock.
Repeated continuous operation between lock and unlock
could activate the power door locking system’s built-in
protection circuit, and prevent the system from operating.
If this occurs, wait about 1 minute before operating the
power door lock switch.
BK0150700US.book 41 ページ ２０１２年３月２２日 木曜日 午後６時４６分

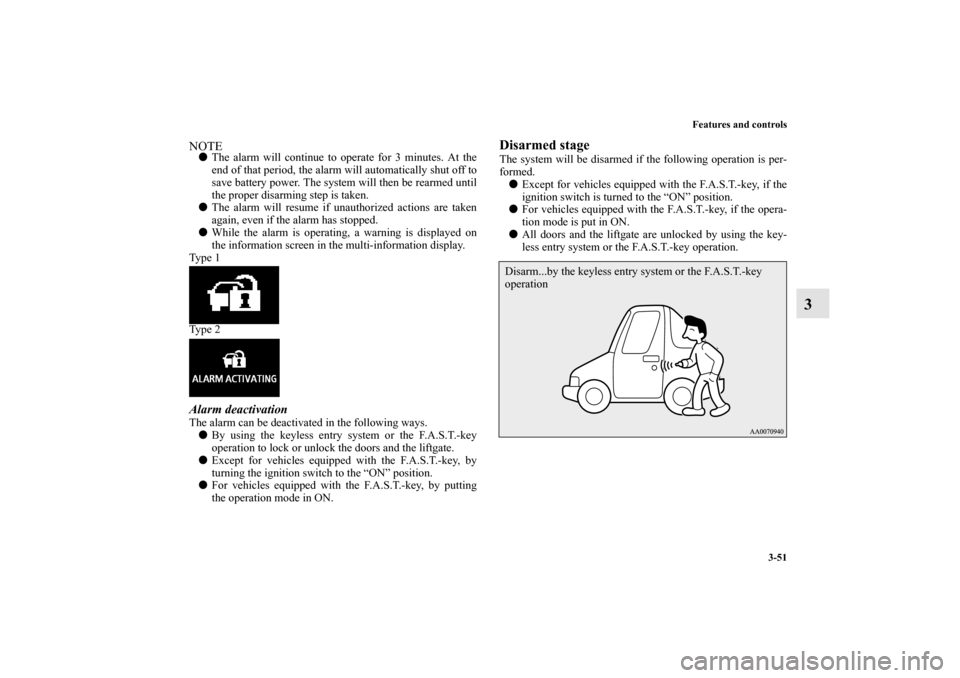

Page 148 of 602
Features and controls3-51
3
NOTEThe alarm will continue to operate for 3 minutes. At the
end of that period, the alarm will automatically shut off to
save battery power. The system will then be rearmed until
the proper disarming step is taken.
The alarm will resume if unauthorized actions are taken
again, even if the alarm has stopped.
While the alarm is operating, a warning is displayed on
the information screen in the multi-information display.
Type 1
Type 2Alarm deactivationThe alarm can be deactivated in the following ways. By using the keyless entry system or the F.A.S.T.-key
operation to lock or unlock the doors and the liftgate.
Except for vehicles equipped with the F.A.S.T.-key, by
turning the ignition switch to the “ON” position.
For vehicles equipped with the F.A.S.T.-key, by putting
the operation mode in ON.
Disarmed stageThe system will be disarmed if the following operation is per-
formed.
Except for vehicles equipped with the F.A.S.T.-key, if the
ignition switch is turned to the “ON” position.
For vehicles equipped with the F.A.S.T.-key, if the opera-
tion mode is put in ON.
All doors and the liftgate are unlocked by using the key-
less entry system or the F.A.S.T.-key operation.Disarm...by the keyless entry system or the F.A.S.T.-key
operation
BK0150700US.book 51 ページ ２０１２年３月２２日 木曜日 午後６時４６分

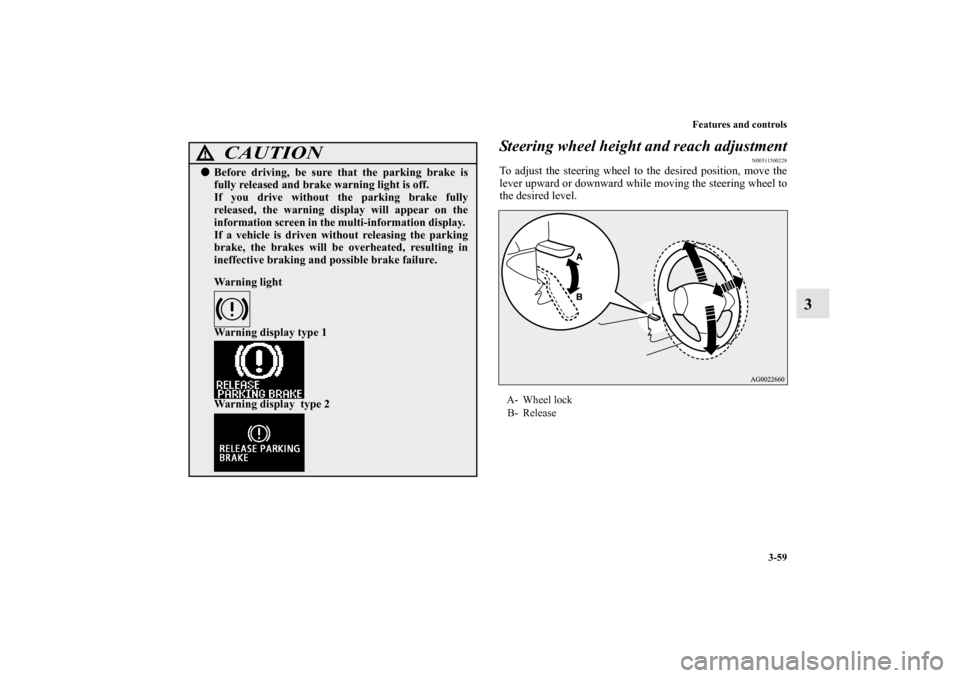

Page 156 of 602
Features and controls3-59
3
Steering wheel height and reach adjustment
N00511500228
To adjust the steering wheel to the desired position, move the
lever upward or downward while moving the steering wheel to
the desired level.
CAUTION
!
Before driving, be sure that the parking brake is
fully released and brake warning light is off.
If you drive without the parking brake fully
released, the warning display will appear on the
information screen in the multi-information display.
If a vehicle is driven without releasing the parking
brake, the brakes will be overheated, resulting in
ineffective braking and possible brake failure.
Warning light
Warning display type 1
Warning display type 2
A- Wheel lock
B- Release
BK0150700US.book 59 ページ ２０１２年３月２２日 木曜日 午後６時４６分
