Features and controls3-85
3
NOTE
The drive mode can be switched while driving or stopped.Drive mode indicatorNormally the indicator illuminates when the ignition switch is
turned to the “ON” position or the operation mode is put in
ON, and then the drive mode is displayed a few seconds after
the engine is started.

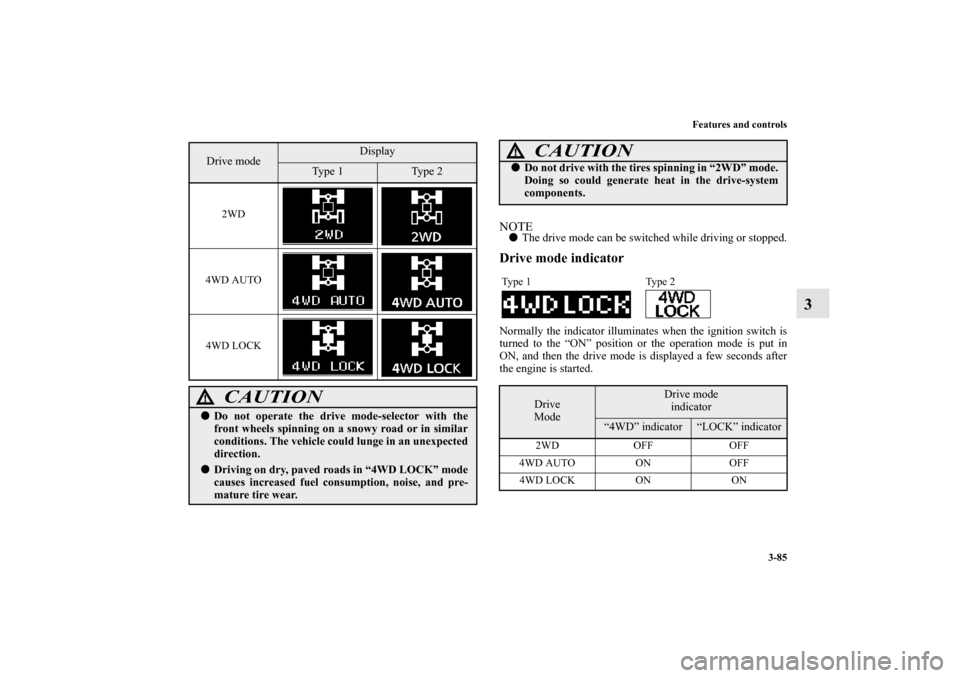

Drive mode
Display
Type 1
Type 2
2WD
4WD AUTO
4WD LOCKCAUTION
!
Do not operate the drive mode-selector with the
front wheels spinning on a snowy road or in similar
conditions. The vehicle could lunge in an unexpected
direction.
Driving on dry, paved roads in “4WD LOCK” mode
causes increased fuel consumption, noise, and pre-
mature tire wear.

Do not drive with the tires spinning in “2WD” mode.
Doing so could generate heat in the drive-system
components.Type 1 Type 2
Drive
Mode
Drive mode indicator
“4WD” indicator
“LOCK” indicator
2WD OFFOFF
4WD AUTO ONOFF
4WD LOCK ONONCAUTION
!
BK0150700US.book 85 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-86 Features and controls
3
CAUTION
!

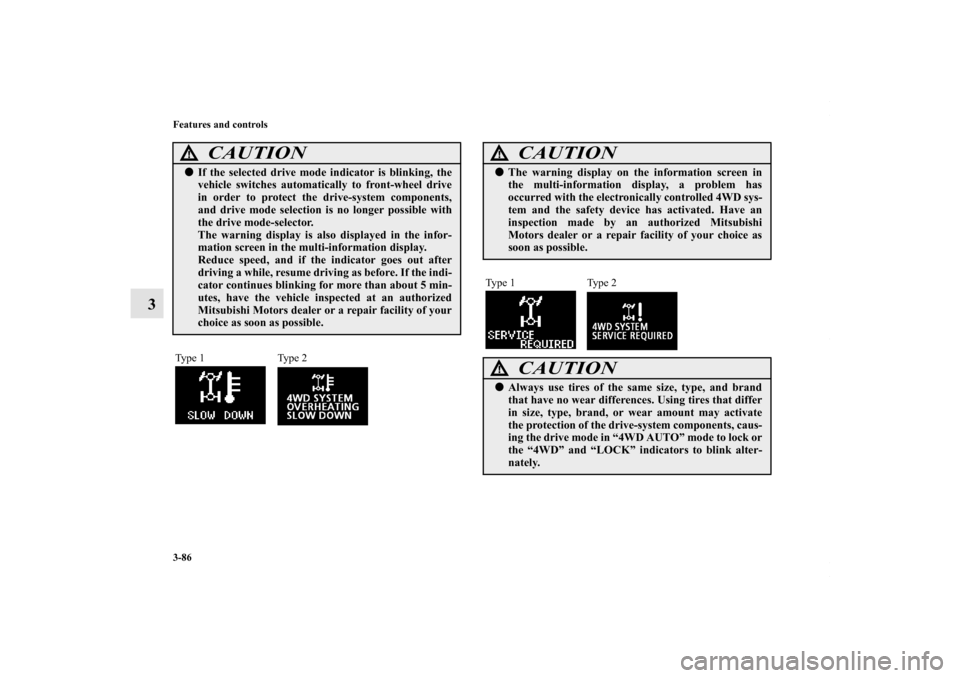

If the selected drive mode indicator is blinking, the
vehicle switches automatically to front-wheel drive
in order to protect the drive-system components,
and drive mode selection is no longer possible with
the drive mode-selector.
The warning display is also displayed in the infor-
mation screen in the multi-information display.
Reduce speed, and if the indicator goes out after
driving a while, resume driving as before. If the indi-
cator continues blinking for more than about 5 min-
utes, have the vehicle inspected at an authorized
Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.Type 1 Type 2
CAUTION
!
The warning display on the information screen in
the multi-information display, a problem has
occurred with the electronically controlled 4WD sys-
tem and the safety device has activated. Have an
inspection made by an authorized Mitsubishi
Motors dealer or a repair facility of your choice as
soon as possible.Type 1 Type 2
CAUTION
!
Always use tires of the same size, type, and brand
that have no wear differences. Using tires that differ
in size, type, brand, or wear amount may activate
the protection of the drive-system components, caus-
ing the drive mode in “4WD AUTO” mode to lock or
the “4WD” and “LOCK” indicators to blink alter-
nately.
BK0150700US.book 86 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-89
3

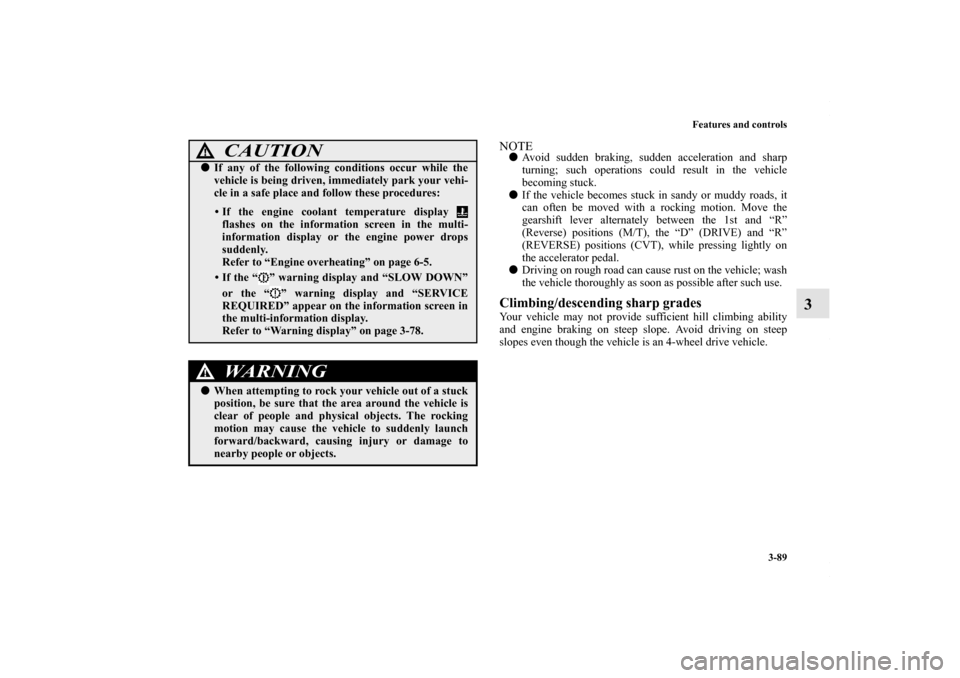

NOTE
Avoid sudden braking, sudden acceleration and sharp
turning; such operations could result in the vehicle
becoming stuck.

If the vehicle becomes stuck in sandy or muddy roads, it
can often be moved with a rocking motion. Move the
gearshift lever alternately between the 1st and “R”
(Reverse) positions (M/T), the “D” (DRIVE) and “R”
(REVERSE) positions (CVT), while pressing lightly on
the accelerator pedal.

Driving on rough road can cause rust on the vehicle; wash
the vehicle thoroughly as soon as possible after such use.Climbing/descending sharp gradesYour vehicle may not provide sufficient hill climbing ability
and engine braking on steep slope. Avoid driving on steep
slopes even though the vehicle is an 4-wheel drive vehicle.

If any of the following conditions occur while the
vehicle is being driven, immediately park your vehi-
cle in a safe place and follow these procedures:
• If the engine coolant temperature display
flashes on the information screen in the multi-
information display or the engine power drops
suddenly.
Refer to “Engine overheating” on page 6-5.
• If the “ ” warning display and “SLOW DOWN”
or the “ ” warning display and “SERVICE
REQUIRED” appear on the information screen in
the multi-information display.
Refer to “Warning display” on page 3-78.WARNING
!
When attempting to rock your vehicle out of a stuck
position, be sure that the area around the vehicle is
clear of people and physical objects. The rocking
motion may cause the vehicle to suddenly launch
forward/backward, causing injury or damage to
nearby people or objects.
CAUTION
!
BK0150700US.book 89 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-93
3

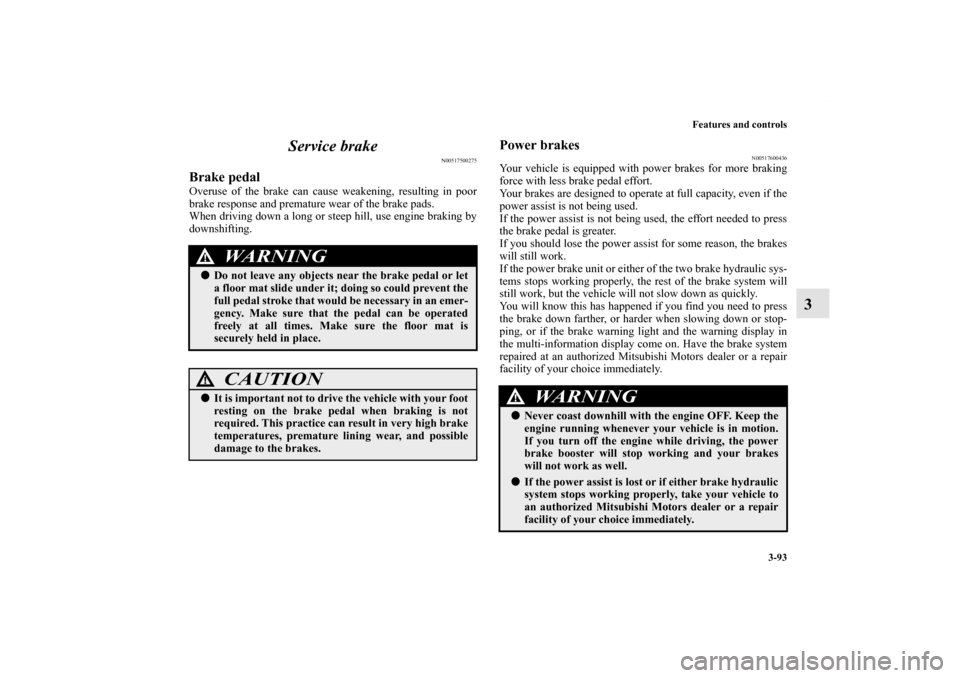

Service brake
N00517500275
Brake pedalOveruse of the brake can cause weakening, resulting in poor
brake response and premature wear of the brake pads.
When driving down a long or steep hill, use engine braking by
downshifting.
Power brakes
N00517600436
Your vehicle is equipped with power brakes for more braking
force with less brake pedal effort.
Your brakes are designed to operate at full capacity, even if the
power assist is not being used.
If the power assist is not being used, the effort needed to press
the brake pedal is greater.
If you should lose the power assist for some reason, the brakes
will still work.
If the power brake unit or either of the two brake hydraulic sys-
tems stops working properly, the rest of the brake system will
still work, but the vehicle will not slow down as quickly.
You will know this has happened if you find you need to press
the brake down farther, or harder when slowing down or stop-
ping, or if the brake warning light and the warning display in
the multi-information display come on. Have the brake system
repaired at an authorized Mitsubishi Motors dealer or a repair
facility of your choice immediately.
WARNING
!

Do not leave any objects near the brake pedal or let
a floor mat slide under it; doing so could prevent the
full pedal stroke that would be necessary in an emer-
gency. Make sure that the pedal can be operated
freely at all times. Make sure the floor mat is
securely held in place.
CAUTION
!
It is important not to drive the vehicle with your foot
resting on the brake pedal when braking is not
required. This practice can result in very high brake
temperatures, premature lining wear, and possible
damage to the brakes.
WARNING
!
Never coast downhill with the engine OFF. Keep the
engine running whenever your vehicle is in motion.
If you turn off the engine while driving, the power
brake booster will stop working and your brakes
will not work as well.
If the power assist is lost or if either brake hydraulic
system stops working properly, take your vehicle to
an authorized Mitsubishi Motors dealer or a repair
facility of your choice immediately.
BK0150700US.book 93 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-95
3
To operate
N00562700059
1. Stop the vehicle completely using the brake pedal.
2. On vehicles equipped with manual transaxle, place thegearshift lever into the 1st positon.
On vehicles equipped with a continuously variable trans-
mission (CVT), place the selector lever into the “D” posi-
tion.NOTE
When reversing on an uphill slope, place the gearshift
lever or the selector lever into the “R” position.
3. Release the brake pedal and the hill start assist will main- tain the braking force applied while stopping for approxi-
mately 2 seconds.
4. Depress the accelerator pedal and the hill start assist grad- ually will decrease the braking force as the vehicle starts
moving.NOTE
The hill start assist is activated when all of the following
conditions are met.
• The engine is running. (The hill start assist will not be activated while the
engine is starting or immediately after the engine is
started.)
• On vehicles equipped with manual transaxle, the gear- shift lever is in the following position.
[When starting an uphill slope forwards.]
The gearshift lever is in any position other than “R”.
(The hill start assist will operate, even if the gearshift
lever is in the “N” position.) [When starting an uphill slope backwards.]
The gearshift lever is in the “R” position.
(The hill start assist will not operate when the gearshift
lever is in the “N” position.)
• On vehicles equipped with CVT, the selector lever is in
any position other than “P” or “N”.
• The vehicle is completely stationary, with the brake pedal depressed.
• The parking brake is released.

The hill start assist will not operate if the accelerator pedal
is depressed before the brake pedal is released.

The hill start assist also operates when reversing on an
uphill slope.
Wa r n i n g d i s p l a y
N00562800050
If an abnormal condition occurs in the system, the following
display/indicator will turn on.
Warning display type 1
Warning display type 2
- ASC indicator
BK0150700US.book 95 ページ
２０１２年３月２２日　木曜日　午後６時４６分

3-96 Features and controls
3
NOTE
The combination of items shown on the display varies
depending on the vehicle model.

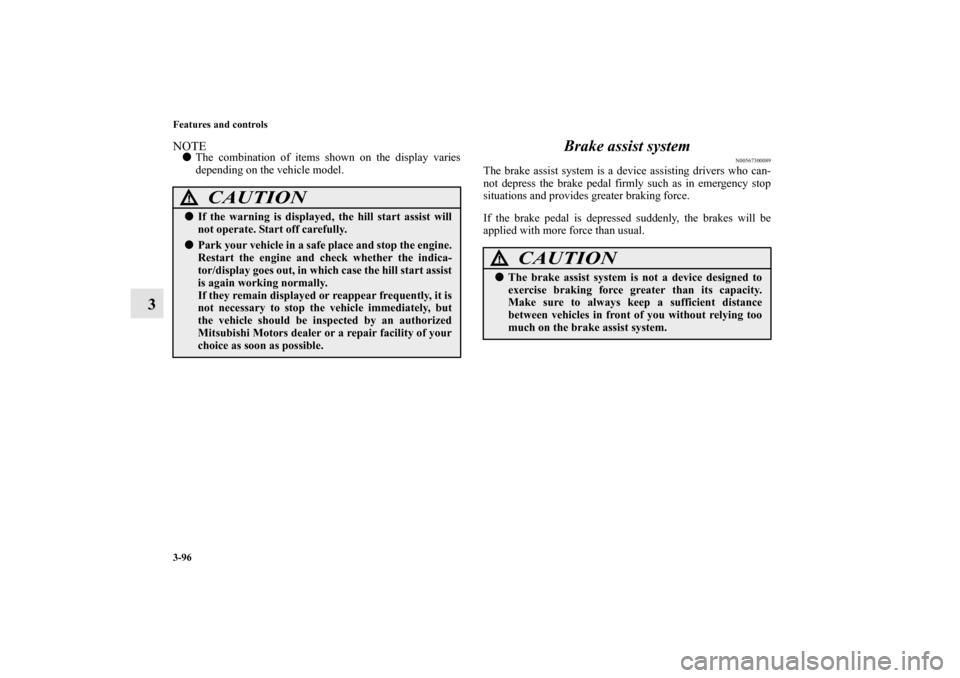

Brake assist system
N00567300089
The brake assist system is a device assisting drivers who can-
not depress the brake pedal firmly such as in emergency stop
situations and provides greater braking force.
If the brake pedal is depressed suddenly, the brakes will be
applied with more force than usual.
CAUTION
!
If the warning is displayed, the hill start assist will
not operate. Start off carefully.
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the indica-
tor/display goes out, in which case the hill start assist
is again working normally.
If they remain displayed or reappear frequently, it is
not necessary to stop the vehicle immediately, but
the vehicle should be inspected by an authorized
Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.
CAUTION
!
The brake assist system is not a device designed to
exercise braking force greater than its capacity.
Make sure to always keep a sufficient distance
between vehicles in front of you without relying too
much on the brake assist system.
BK0150700US.book 96 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-98 Features and controls
3
NOTE
A whining sound is emitted from the engine compartment
when driving immediately after starting the engine. These
are the normal sounds the anti-lock braking system makes
when performing a self-check. It does not indicate a mal-
function.

The anti-lock braking system can be used after the vehicle
has reached a speed over approximately 6 mph (10 km/h).
It stops working when the vehicle slows below 3 mph (5
km/h).

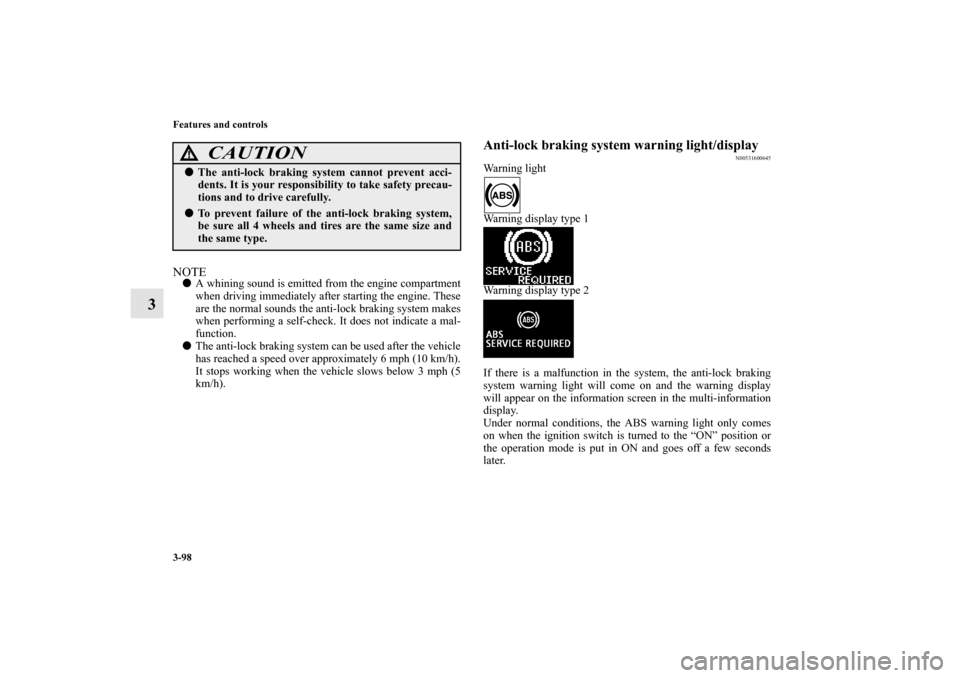

Anti-lock braking system warning light/display
N00531600645
Warning light
Warning display type 1
Warning display type 2
If there is a malfunction in the system, the anti-lock braking
system warning light will come on and the warning display
will appear on the information screen in the multi-information
display.
Under normal conditions, the ABS warning light only comes
on when the ignition switch is turned to the “ON” position or
the operation mode is put in ON and goes off a few seconds
later.
CAUTION
!
The anti-lock braking system cannot prevent acci-
dents. It is your responsibility to take safety precau-
tions and to drive carefully.
To prevent failure of the anti-lock braking system,
be sure all 4 wheels and tires are the same size and
the same type.
BK0150700US.book 98 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-99
3

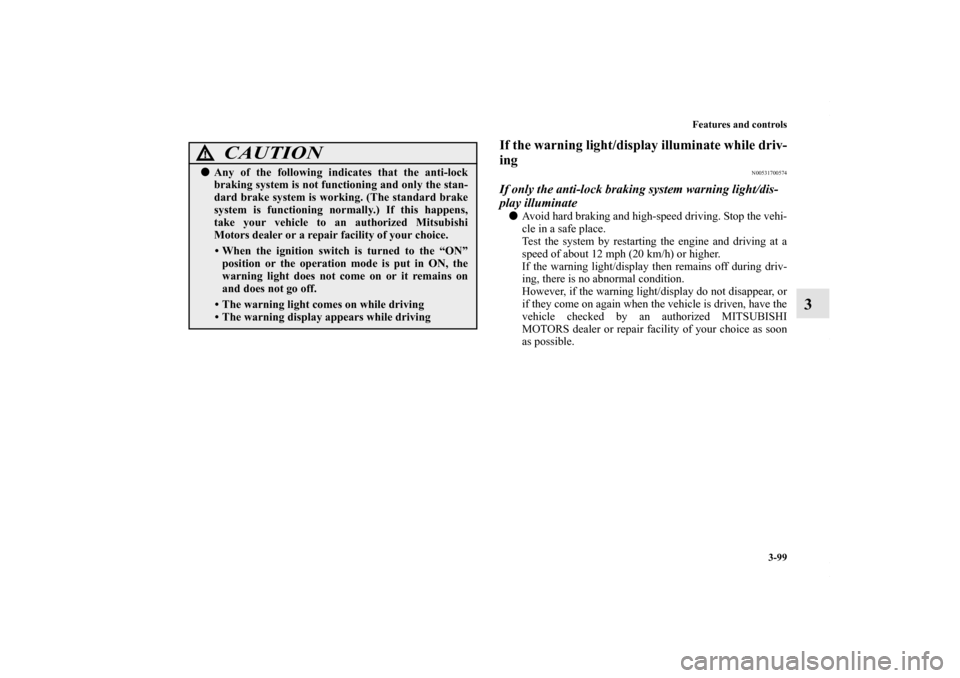

If the warning light/display illuminate while driv-
ing
N00531700574
If only the anti-lock braking system warning light/dis-
play illuminate
Avoid hard braking and high-speed driving. Stop the vehi-
cle in a safe place.
Test the system by restarting the engine and driving at a
speed of about 12 mph (20 km/h) or higher.
If the warning light/display then remains off during driv-
ing, there is no abnormal condition.
However, if the warning light/display do not disappear, or
if they come on again when the vehicle is driven, have the
vehicle checked by an authorized MITSUBISHI
MOTORS dealer or repair facility of your choice as soon
as possible.
CAUTION
!
Any of the following indicates that the anti-lock
braking system is not functioning and only the stan-
dard brake system is working. (The standard brake
system is functioning normally.) If this happens,
take your vehicle to an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
• When the ignition switch is turned to the “ON”
position or the operation mode is put in ON, the
warning light does not come on or it remains on
and does not go off.• The warning light comes on while driving
• The warning display appears while driving
BK0150700US.book 99 ページ ２０１２年３月２２日　木曜日　午後６時４６分
