2013 MITSUBISHI OUTLANDER SPORT display

Seat and restraint systems2-53
2
Driver’s and passenger’s front airbag system
N00407900291
The driver’s airbag is located under the padded cover in the
middle of the steering wheel. The front passenger’s airbag is
contained in the instrument panel above the glove compart-
ment. The driver’s airbag and the front passenger’s airbag are
designed to deploy at the same time. However, the front pas-
senger’s airbag does not deploy when the front passenger seat
is not occupied or when the weight sensor in the front passen-
ger seat senses a weight on the seat of less than approximately
66 pounds (30 kg).
WARNING
!
There may be a system error if the warning
light/display appears as indicated. In such cases, an
SRS airbag or a seat belt equipped with pre-ten-
sioner system may not function properly in a colli-
sion. Have your vehicle checked by an authorized
Mitsubishi Motors dealer:
• Even when the ignition switch or the operation
mode is in ON, the warning light does not come on
or it remains on a few seconds later
• When warning light comes on while driving
• When warning display appears while driving
Driver
Front passenger
BK0150700US.book 53 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . 3- 4
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 8
Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 14
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 38
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 41
Child safety locks for rear door . . . . . . . . . . . . . . . . . . . . . . . . . 3- 43
Liftgate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 44
Inside liftgate release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 47
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 48
Power window control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 52
Sunshade (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 56
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 58
Steering wheel height and reach adjustment . . . . . . . . . . . . . . . 3- 59
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 60
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 64
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 66
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 69
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 71
Continuously variable transmission (CVT) (if so equipped). . . 3- 74
Electronically controlled 4WD system (if so equipped) . . . . . . 3- 84
4-wheel drive operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 87
Inspection and maintenance following rough road operation . . 3- 90
Cautions on the handling of 4-wheel drive vehicles . . . . . . . . . 3- 91
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 93
Hill start assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 94
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 96
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 97
Electric power steering system (EPS) . . . . . . . . . . . . . . . . . . . . 3- 101
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 102 Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 107
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . 3- 115
Rear-view camera (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 3- 121
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 126
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 129
Indicator light, warning light, and
information screen display list . . . . . . . . . . . . . . . . . . . . . . . . 3- 162
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 177
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 177
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 180
Combination headlights and dimmer switch . . . . . . . . . . . . . . . 3- 183
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . 3- 191
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 192
Hazard warning flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 193
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 193
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 194
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . 3- 203
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 204
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 205
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . 3- 205
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . 3- 231
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 236
12 V power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 238
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 240
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 246
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 251
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 252
Cargo area cover (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 253
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 254
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 254
Luggage hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 255
SC00000500-3.fm 1 ページ ２０１２年３月２６日　月曜日　午後５時４２分

3-6 Features and controls
3
NOTE
The key may not operate properly when it is near an
object or facility that emits strong electromagnetic waves.

Electronic immobilizer is not compatible with commer-
cially available remote starting systems. Use of commer-
cially available remote starting systems may result in
vehicle starting problems and a loss of security protection.

A system failure is suspected when the ignition switch is
turned to the “START” position, and the engine does not
start. In such a case, contact an authorized Mitsubishi
Motors dealer.Replacement keysOnly keys that have been programmed to the vehicle’s elec-
tronics can be used to start the vehicle.
If you lose the key, you can order a key from your authorized
Mitsubishi Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the vehicle keys must
be changed.
Take your vehicle and all remaining keys to your authorized
Mitsubishi Motors dealer to have your ID code changed.Additional keysTo add a key, you must already have 2 registered keys. You
need to register the ID code to the vehicle. Registering the ID code can be done by yourself (except for
vehicles sold in Canada), or by your authorized Mitsubishi
Motors dealer.
For you to register the ID code yourself, follow the “Customer
key programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and all remaining
keys to your authorized Mitsubishi Motors dealer.
NOTE

You are provided with 2 keys, but you may register up to 8
keys.Customer key programming (Except for vehicles
sold in Canada)
N00562200126
You can program new keys to the system if you have two valid
(already registered) keys and blank immobilizer key (specially
cut for your vehicle at your Mitsubishi Motors dealer) by doing
the following:
1. Insert the first valid key into the ignition switch and turn the key to the “ON” position for 5 seconds.
2. Turn the key to the “OFF” position and remove the first key.
3. Within 30 seconds of removing the first key, insert the second valid key into the ignition and turn it to the “ON”
position. About 10 seconds later, the immobilizer display
will start to blink.
CAUTION
!
Do not make any alterations or additions to the
immobilizer system. Alterations or additions could
cause failure of the immobilizer.
BK0150700US.book 6 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-7
3
4. When the immobilizer display starts blinking, turn thesecond valid key to the “OFF” position and remove it.
Within 30 seconds after doing so, insert a blank immobi-
lizer key into the ignition switch and turn it to the “ON”
position. Perform this operation no more than 30 seconds
after the immobilizer display starts blinking. When regis-
tration of the ID code is complete, the immobilizer display
will come on for 3 seconds then go off. If an error occurs,
the immobilizer display will go off during the procedure.NOTE
When the key registration is completed, the immobilizer
display will come on within 30 seconds of turning the
ignition switch to the “ON” position with the blank immo-
bilizer key (specially cut for your vehicle at your
Mitsubishi Motors dealer).
5. If you wish to register another key, perform the process again from step 1.NOTE
Perform the operation when the interrupt display screen is
not showing. The interrupt display screen may prevent
you from seeing the immobilizer display.

It is not possible to register a key if:
• the immobilizer display goes off during the procedure
• the immobilizer display does not come on within 30 sec- onds after step 4.

The procedure will be terminated automatically if: • a period of 30 seconds or longer elapses from the
moment when the first key is turned to the “OFF” posi-
tion to the moment when the second key is turned to the
“ON” position
• a period of 30 seconds or longer elapses from the
moment when the second key is turned to the “OFF”
position to the moment when the blank immobilizer key
is turned to the “ON” position

To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Keyless entry system: Customer remote
control transmitter programming” on page 3-11.
General information
N00562300055
Your electronic immobilizer operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with part 15 of
the FCC Rules and RSS-Gen of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0150700US.book 7 ページ ２０１２年３月２２日　木曜日　午後６時４６分

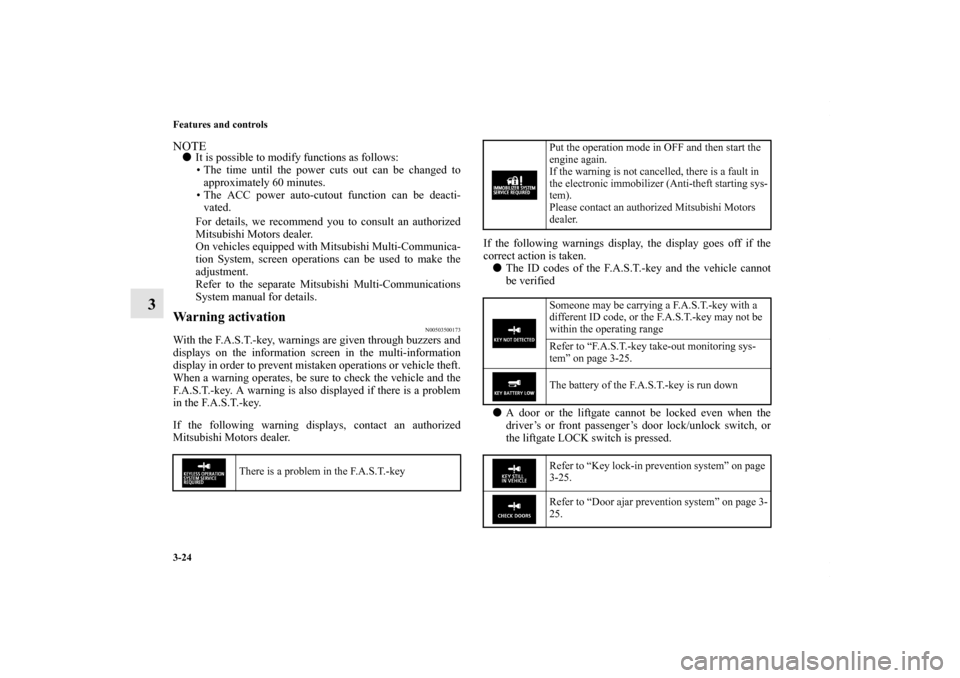

3-24 Features and controls
3
NOTE
It is possible to modify functions as follows:
• The time until the power cuts out can be changed to
approximately 60 minutes.
• The ACC power auto-cutout function can be deacti- vated.
For details, we recommend you to consult an authorized
Mitsubishi Motors dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate Mitsubishi Multi-Communications
System manual for details.Warning activation
N00503500173
With the F.A.S.T.-key, warnings are given through buzzers and
displays on the information screen in the multi-information
display in order to prevent mistaken operations or vehicle theft.
When a warning operates, be sure to check the vehicle and the
F.A.S.T.-key. A warning is also displayed if there is a problem
in the F.A.S.T.-key.
If the following warning displays, contact an authorized
Mitsubishi Motors dealer. If the following warnings display, the display goes off if the
correct action is taken.

The ID codes of the F.A.S.T.-key and the vehicle cannot
be verified

A door or the liftgate cannot be locked even when the
driver’s or front passenger’s door lock/unlock switch, or
the liftgate LOCK switch is pressed.
There is a problem in the F.A.S.T.-key
Put the operation mode in OFF and then start the
engine again.
If the warning is not cancelled, there is a fault in
the electronic immobilizer (Anti-theft starting sys-
tem).
Please contact an authorized Mitsubishi Motors
dealer.
Someone may be carrying a F.A.S.T.-key with a
different ID code, or the F.A.S.T.-key may not be
within the operating range
Refer to “F.A.S.T.-key take-out monitoring sys-
tem” on page 3-25.
The battery of the F.A.S.T.-key is run down
Refer to “Key lock-in prevention system” on page
3-25.
Refer to “Door ajar prevention system” on page 3-
25.
BK0150700US.book 24 ページ ２０１２年３月２２日　木曜日　午後６時４６分

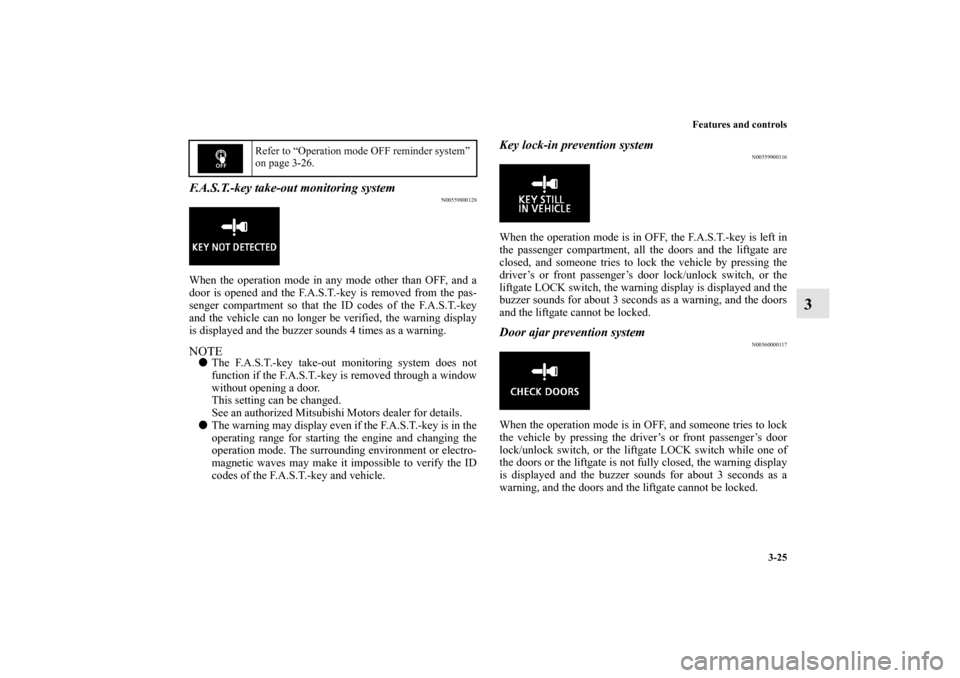

Features and controls3-25
3
F.A.S.T.-key take-out monitoring system
N00559800128
When the operation mode in any mode other than OFF, and a
door is opened and the F.A.S.T.-key is removed from the pas-
senger compartment so that the ID codes of the F.A.S.T.-key
and the vehicle can no longer be verified, the warning display
is displayed and the buzzer sounds 4 times as a warning.NOTE
The F.A.S.T.-key take-out monitoring system does not
function if the F.A.S.T.-key is removed through a window
without opening a door.
This setting can be changed.
See an authorized Mitsubishi Motors dealer for details.

The warning may display even if the F.A.S.T.-key is in the
operating range for starting the engine and changing the
operation mode. The surrounding environment or electro-
magnetic waves may make it impossible to verify the ID
codes of the F.A.S.T.-key and vehicle.
Key lock-in prevention system
N00559900116
When the operation mode is in OFF, the F.A.S.T.-key is left in
the passenger compartment, all the doors and the liftgate are
closed, and someone tries to lock the vehicle by pressing the
driver’s or front passenger’s door lock/unlock switch, or the
liftgate LOCK switch, the warning display is displayed and the
buzzer sounds for about 3 seconds as a warning, and the doors
and the liftgate cannot be locked.Door ajar prevention system
N00560000117
When the operation mode is in OFF, and someone tries to lock
the vehicle by pressing the driver’s or front passenger’s door
lock/unlock switch, or the liftgate LOCK switch while one of
the doors or the liftgate is not fully closed, the warning display
is displayed and the buzzer sounds for about 3 seconds as a
warning, and the doors and the liftgate cannot be locked.
Refer to “Operation mode OFF reminder system”
on page 3-26.
BK0150700US.book 25 ページ ２０１２年３月２２日　木曜日　午後６時４６分

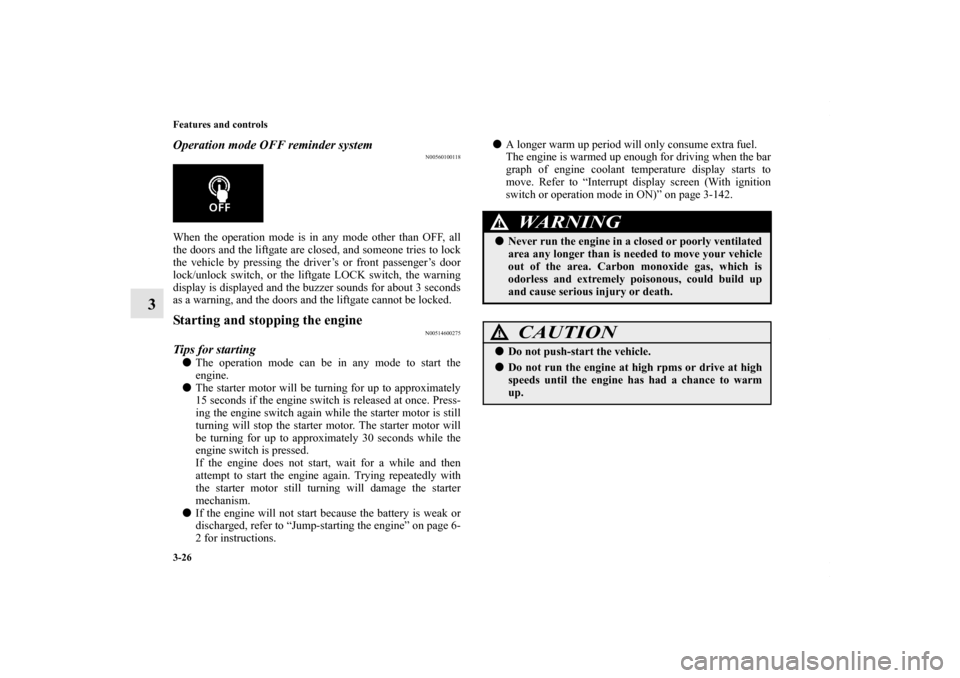

3-26 Features and controls
3
Operation mode OFF reminder system
N00560100118
When the operation mode is in any mode other than OFF, all
the doors and the liftgate are closed, and someone tries to lock
the vehicle by pressing the driver’s or front passenger’s door
lock/unlock switch, or the liftgate LOCK switch, the warning
display is displayed and the buzzer sounds for about 3 seconds
as a warning, and the doors and the liftgate cannot be locked.Starting and stopping the engine
N00514600275
Tips for starting
The operation mode can be in any mode to start the
engine.

The starter motor will be turning for up to approximately
15 seconds if the engine switch is released at once. Press-
ing the engine switch again while the starter motor is still
turning will stop the starter motor. The starter motor will
be turning for up to approximately 30 seconds while the
engine switch is pressed.
If the engine does not start, wait for a while and then
attempt to start the engine again. Trying repeatedly with
the starter motor still turning will damage the starter
mechanism.

If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” on page 6-
2 for instructions.

A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the bar
graph of engine coolant temperature display starts to
move. Refer to “Interrupt display screen (With ignition
switch or operation mode in ON)” on page 3-142.
WARNING
!
Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.
BK0150700US.book 26 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-27
3
Starting the engineYour vehicle is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
fuel injection. There is usually no need to depress the accelera-
tor pedal when starting the engine.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.1. Make sure all occupants are properly seated with seat belts fastened.
2. Make sure the parking brake is applied.
3. Press and hold the brake pedal down with your right foot.
4. Press and hold the clutch pedal all the way down (manual transaxle).
5. On vehicles equipped with manual transaxle, place the gearshift lever in the “N” (Neutral) position.
On vehicles equipped with continuously variable trans-
mission (CVT), make sure the selector lever is in the “P”
(PARK) position.NOTE
On vehicles equipped with continuously variable trans-
mission (CVT), the engine can only be started when the
selector lever is in the “P” (PARK) or “N” (NEUTRAL)
position.
For safety reasons, the engine should be started when the
selector lever is in the “P” (PARK) position in which the
driving wheels lock.
6. Press the engine switch.
7. Confirm that all warning lights and warning displays are functioning properly.
NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.
When the engine is hard to start
After several attempts, you may experience that the engine still
does not start. 1. Make sure that all electric devices, such as lights, air con- ditioning blower and rear window defogger, are turned
off.
2. While depressing the brake pedal {continuously variable transmission (CVT)} or the clutch pedal (manual tran-
saxle), press the accelerator pedal halfway and hold it
there, then crank the engine. Release the accelerator
pedal, immediately after the engine starts.
3. If the engine still will not start, the engine could be flooded with too much gasoline. While depressing the
brake pedal (CVT) or the clutch pedal (manual transaxle),
push the accelerator pedal all the way down and hold it
there, then press the engine switch to crank the engine. If
the engine does not start after 5 to 6 seconds, push the
engine switch to stop cranking the engine, and release the
accelerator pedal. Put the operation mode in OFF. Wait a
few seconds, and then press the engine switch to crank the
engine again while depressing the brake pedal (CVT) or
the clutch pedal (manual transaxle), but do not push the
accelerator pedal. If the engine fails to start, repeat these
procedures. If the engine still will not start, contact your
local Mitsubishi Motors dealer or a repair facility of your
choice for assistance.
SC00000500-3.fm 27 ページ ２０１２年３月２７日　火曜日　午前９時４２分
