2013 MITSUBISHI LANCER EVOLUTION Owners Manual

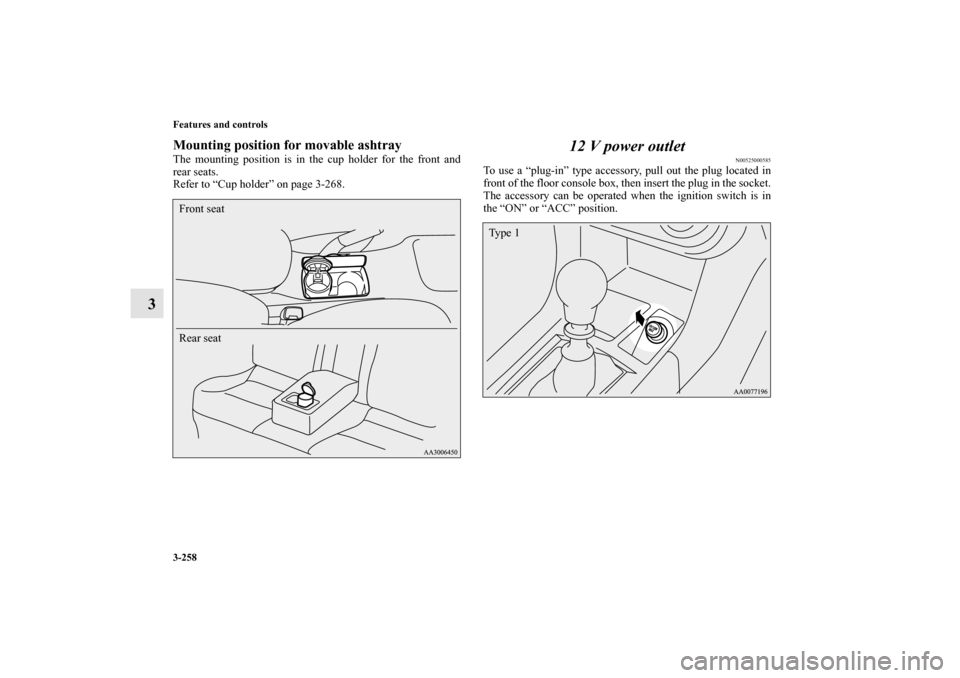

3-258 Features and controls
3
Mounting position for movable ashtrayThe mounting position is in the cup holder for the front and
rear seats.
Refer to “Cup holder” on page 3-268.
12 V power outlet
N00525000585
To use a “plug-in” type accessory, pull out the plug located in
front of the floor console box, then insert the plug in the socket.
The accessory can be operated when the ignition switch is in
the “ON” or “ACC” position.
Front seat
Rear seat
Ty p e 1
BK0150900US.book 258 ページ ２０１２年５月７日　月曜日　午後１２時９分

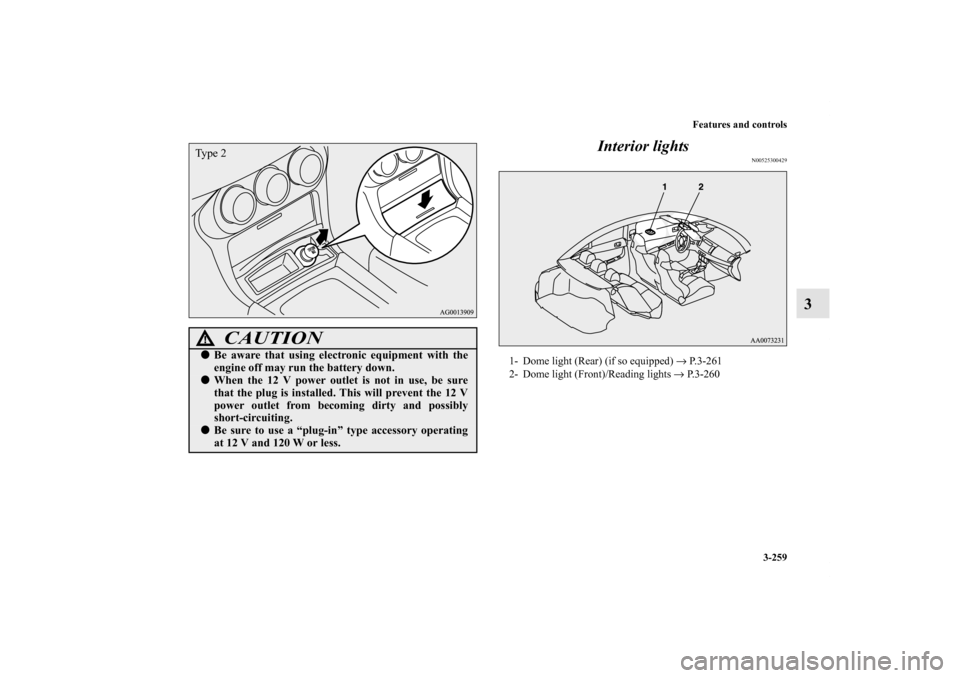

Features and controls
3-259
3 Interior lights
N00525300429
CAUTION
!
Be aware that using electronic equipment with the
engine off may run the battery down.
When the 12 V power outlet is not in use, be sure
that the plug is installed. This will prevent the 12 V
power outlet from becoming dirty and possibly
short-circuiting.
Be sure to use a “plug-in” type accessory operating
at 12 V and 120 W or less.Ty p e 2
1- Dome light (Rear) (if so equipped) → P.3-261
2- Dome light (Front)/Reading lights → P. 3 - 2 6 0
BK0150900US.book 259 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-260 Features and controls
3
Dome light (Front)/Reading lights
N00525800017
Dome light (Front)The dome light can be turned on by sliding the dome light
switch.1- (DOOR)
The dome light comes on when any door is opened. After all
doors are closed, the dome light will stay on for approxi-
mately 30 seconds and then go off.
However, the light goes off immediately if:

The door is closed while the ignition switch is in the
“ON” position.

The driver’s door is closed after all the other doors are
closed while the lock knob of the driver’s door is in the
lock position.

The door is closed and the power door lock switch is
used to lock the doors.

The keyless entry system remote control transmitter is
used to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
are locked using the F.A.S.T.-key.NOTE
When the engine is started using the key while the
doors are closed, if you remove the key, the dome light
will illuminate for approximately 30 seconds then go
off.

When the engine is started using the F.A.S.T.-key while
the doors are closed, if the ignition switch is moved to
the “LOCK” position, the dome light will illuminate
for approximately 30 seconds and then go off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
2- (OFF)
The dome light goes off.
BK0150900US.book 260 ページ ２０１２年５月７日　月曜日　午後１２時９分

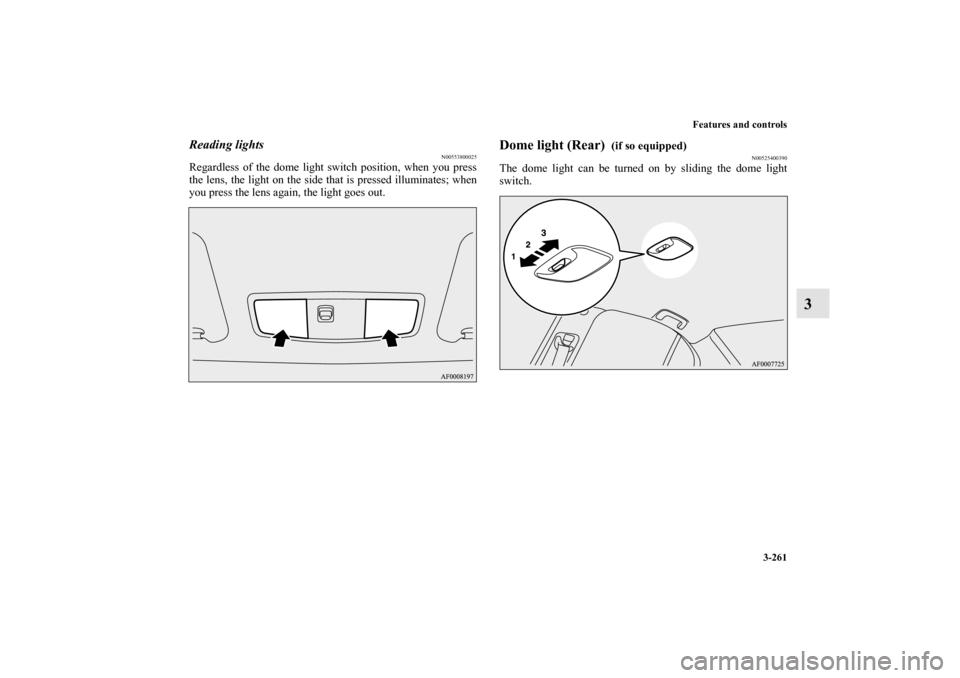

Features and controls
3-261
3
Reading lights
N00553800025
Regardless of the dome light switch position, when you press
the lens, the light on the side that is pressed illuminates; when
you press the lens again, the light goes out.
Dome light (Rear)
(if so equipped)
N00525400390
The dome light can be turned on by sliding the dome light
switch.
BK0150900US.book 261 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-262 Features and controls
3
1- (OFF)
The dome light turns off.
2- (
)
The dome light comes on when any door is opened. After all
doors are closed, the dome light will stay on for approxi-
mately 30 seconds and then go off. However, the light goes
off immediately if:

The door is closed while the ignition switch is in the
“ON” position.

The driver’s door is closed after all the other doors are
closed while the lock knob of the driver’s door is in the
lock position.

The door is closed and the power door lock switch is
used to lock the doors.

The keyless entry system remote control transmitter is
used to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
are locked using the F.A.S.T.-key.
NOTE
When the engine is started using the key while the
doors are closed, if you remove the key, the dome light
will illuminate for approximately 30 seconds then go
off.

When the engine is started using the F.A.S.T.-key while
the doors are closed, if the ignition switch is moved to
the “LOCK” position, the dome light will illuminate for
approximately 30 seconds and then go off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
3- (ON)
The dome light comes on.
BK0150900US.book 262 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-263
3
Interior light auto-cutout function (dome light
and other lights)
N00526300370
If any of the interior lights are left on with the ignition switch
in the “LOCK” position, the lights go off automatically after
about 30 minutes.
The lights come on again if the ignition switch is turned to the
“ON” or “ACC” position, any door or the trunk lid is opened
and closed, or the keyless entry system or F.A.S.T.-key is oper-
ated.NOTE
The interior light auto-cutout function can be deactivated.
The time until the lights automatically go off can be
adjusted. See your authorized Mitsubishi Motors dealer
for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For details, refer to the separate owner’s man-
ual.
Storage spaces
N00526400515
NOTE
Do not leave valuables in any storage space when leaving
the vehicle.
CAUTION
!
Never leave lighters, carbonated drink cans, or spec-
tacles in the cabin when parking the vehicle in hot
sunshine. The cabin will become extremely hot, so
lighters and other flammable items may catch fire
and unopened drink cans (including beer cans) may
rupture. The heat may also deform or crack plastic
spectacle parts.
Keep the lids of storage spaces closed while driving
the vehicle. A lid or the contents of a storage space
could otherwise cause injuries during a sudden stop.
BK0150900US.book 263 ページ ２０１２年５月７日　月曜日　午後１２時９分

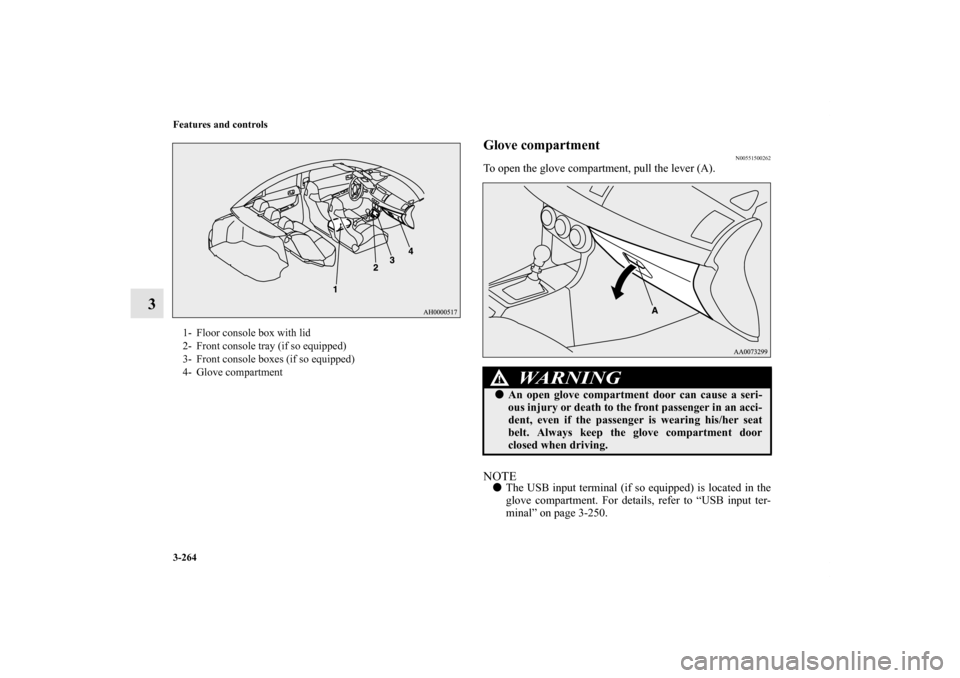

3-264 Features and controls
3
Glove compartment
N00551500262
To open the glove compartment, pull the lever (A).NOTE
The USB input terminal (if so equipped) is located in the
glove compartment. For details, refer to “USB input ter-
minal” on page 3-250.
1- Floor console box with lid
2- Front console tray (if so equipped)
3- Front console boxes (if so equipped)
4- Glove compartment
WA R N I N G
!
An open glove compartment door can cause a seri-
ous injury or death to the front passenger in an acci-
dent, even if the passenger is wearing his/her seat
belt. Always keep the glove compartment door
closed when driving.
BK0150900US.book 264 ページ ２０１２年５月７日　月曜日　午後１２時９分

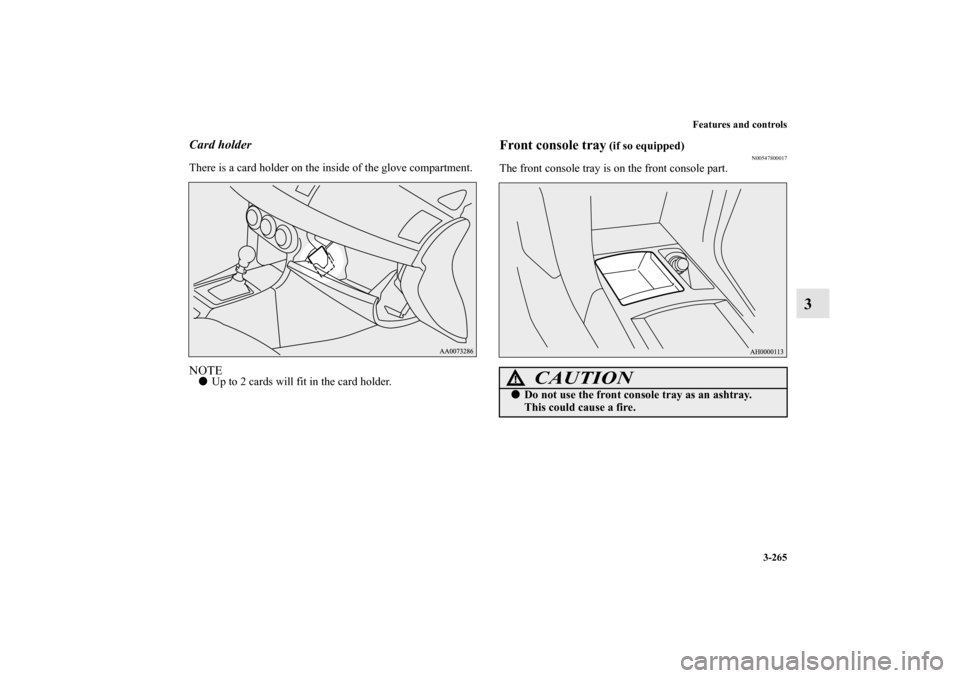

Features and controls
3-265
3
Card holderThere is a card holder on the inside of the glove compartment.NOTE
Up to 2 cards will fit in the card holder.
Front console tray
(if so equipped)
N00547800017
The front console tray is on the front console part.
CAUTION
!
Do not use the front console tray as an ashtray.
This could cause a fire.
