2013 MITSUBISHI LANCER EVOLUTION Owners Manual

5-108 Comfort controls
5Error codes
N00736100692
If an error code (1) appears in the display, take action in accordance with the table below.Error display
Problem
Item
Repair
NO DISC No disc inserted Disc is not in CD player. Insert disc.
ERROR 01 Focus errorDisc is not loaded correctly, or condensation
on disc.Insert disc with label facing up.
Remove moisture from disc.
ERROR 02 Disc errorDisc is dirty, scratched, or deformed; or exces-
sive vehicle vibration.Clean or replace disc. Retry when vibrations
stop.
ERROR 03 Mechanism errorLoading or eject error. Pick-up is out of posi-
tion.Eject disc and reload. If disc will not eject,
bring your vehicle to your authorized
Mitsubishi Motors dealer or a repair facility of
your choice for repair.
BK0150900US.book 108 ページ ２０１２年５月７日　月曜日　午後１２時９分

Comfort controls
5-109
5

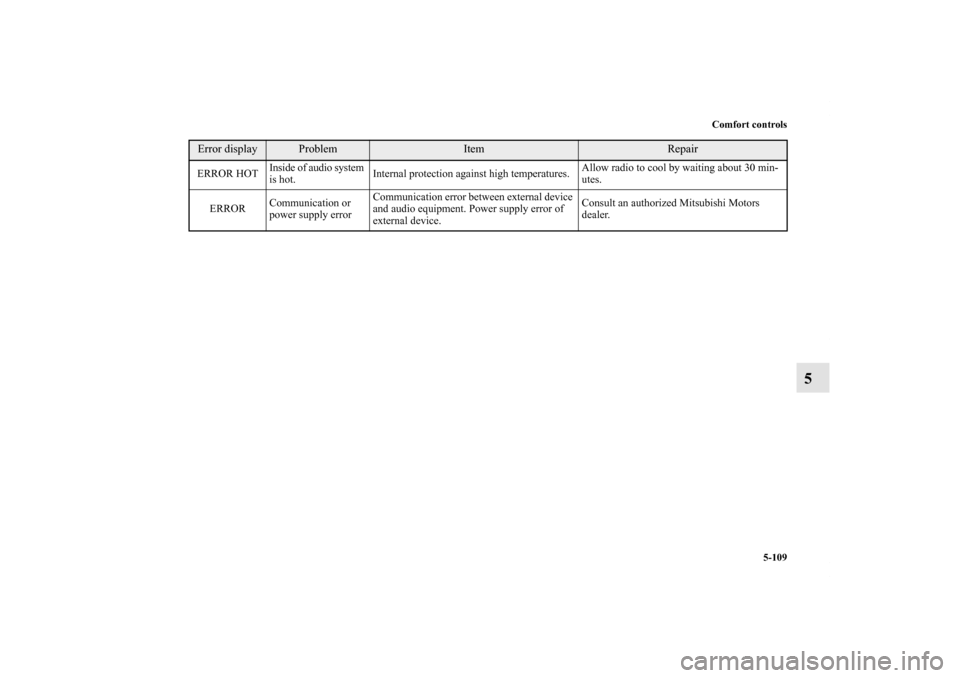

ERROR HOTInside of audio system
is hot.Internal protection against high temperatures.Allow radio to cool by waiting about 30 min-
utes.
ERRORCommunication or
power supply errorCommunication error between external device
and audio equipment. Power supply error of
external device.Consult an authorized Mitsubishi Motors
dealer.Error display
Problem
Item
Repair
BK0150900US.book 109 ページ ２０１２年５月７日　月曜日　午後１２時９分

5-110 Comfort controls
5Error codes (SIRIUS Satellite Radio)
(if so equipped)
N00760300079
If an error code (1) appears in the display, take action in accordance with the table below.
Error display
Problem
Description
Repair
ANTENNA ↔ ERROR Antenna errorThe antenna may be faulty, not securely
connected, or open-circuited.Take the vehicle to your authorized
Mitsubishi Motors dealer or a repair
facility of your choice.
ACQUIRING Cannot pick up signal. The signal is too weak to be received.Move to a place where the signal is
easy to receive.
CALL ↔ 888-539-SIRIUS Unauthorized channelContract does not include reception of this
channel.Contact SIRIUS Satellite Radio and
obtain a contract.
NO CHANNELThere is no selectable
channel.There is no selectable channel. Cancel SKIP settings.
BK0150900US.book 110 ページ ２０１２年５月７日　月曜日　午後１２時９分

Comfort controls
5-111
5
NOTE
Reception may not be possible in a place where the signal is interrupted by a tunnel, by the roof of a garage or other structure,
by woods, or by a tall building. At such times, the audio is muted. This behavior does not indicate a fault.

Reception conditions may vary according to the angle of the satellite used for the satellite radio service.

Reception may deteriorate if a luggage carrier is attached to the roof or snow collects on the antenna.

Satellite radio reception may not be possible in certain regions.INVALID ↔ CHANNEL Channel is invalidNo program is currently being broadcast
on this channel; or reception is not possi-
ble with this channel.Consult SIRIUS Satellite Radio at
888-539-SIRIUS.
SAT ERRORMechanical fault or bad
connectionThere is a mechanical fault or a bad con-
nection.Take the vehicle to your authorized
Mitsubishi Motors dealer or a repair
facility of your choice.
OFF AIR OFF AIRThis channel is not broadcasting at the
present time; or satellite radio broadcast-
ing is suspended.Check the broadcast times with
SIRIUS Satellite Radio.
NOT ACTIVATED ID not registeredThe ID code in the receiver has not been
registered with SIRIUS Satellite Radio.Contact your authorized Mitsubishi
Motors dealer or a repair facility of
your choice.
READING Data reading in progress Reading of received data is in progress.Received data are being read. Please
wait.
UPDATINGChannel data updating
in progressSIRIUS Satellite Radio is presently updat-
ing the channel data.Wait until updating is complete.
SUB UPDATEDContract status updating
completeThe contract status has been updated. Press any audio key.
Error display
Problem
Description
Repair
BK0150900US.book 111 ページ ２０１２年５月７日　月曜日　午後１２時９分

5-112 Comfort controls
5Error codes (iPod)
N00766300013
If an error code (1) appears in the display, take action in accordance with the table below.
Error display
Item
Repair
NO SONG There are no playable music files. Record music files in the iPod.
VER ERROR (Blink) The iPod or its software cannot be recognized. Connect a supported iPod.
USB BUS PWR (Blink)An overcurrent or other power-supply error has
occurred.Remove the iPod.
Have the vehicle inspected at an authorized Mitsubishi
Motors dealer or a repair facility of your choice.BK0150900US.book 112 ページ ２０１２年５月７日　月曜日　午後１２時９分

Comfort controls
5-113
5

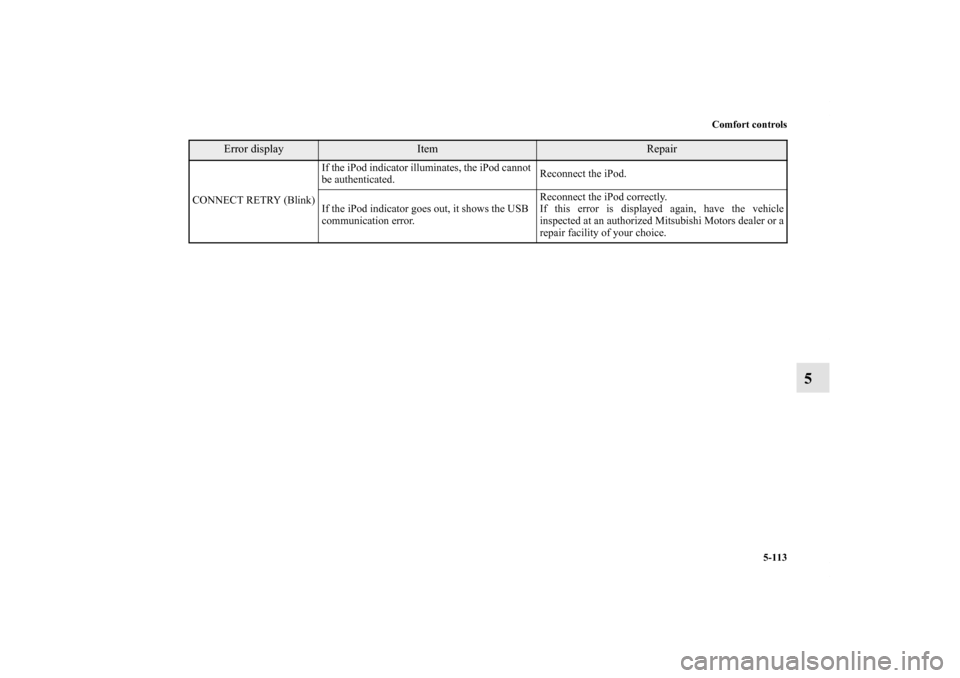

CONNECT RETRY (Blink)If the iPod indicator illuminates, the iPod cannot
be authenticated.Reconnect the iPod.
If the iPod indicator goes out, it shows the USB
communication error.Reconnect the iPod correctly.
If this error is displayed again, have the vehicle
inspected at an authorized Mitsubishi Motors dealer or a
repair facility of your choice.
Error display
Item
Repair
BK0150900US.book 113 ページ ２０１２年５月７日　月曜日　午後１２時９分

5-114 Comfort controls
5Error codes (USB memory device)
N00766400014
If an error code (1) appears in the display, take action in accordance with the table below.
Error display
Item
Repair
U NO SONG There are no playable music files. Record music files in the format supported by the
USB memory device.
U FILE ERROR (Blink) The file cannot be played. The file is protected by copyrights, etc. An error is
displayed for several seconds, and then the next
playable file is played automatically.
UNSUPPORTED DEVICE (Blink)The USB memory device cannot be recog-
nized. Remove the USB memory device.
UNSUPPORTED FORMAT (Blink)The USB memory device format cannot be
recognized. Remove the USB memory device.BK0150900US.book 114 ページ ２０１２年５月７日　月曜日　午後１２時９分

Comfort controls
5-115
5

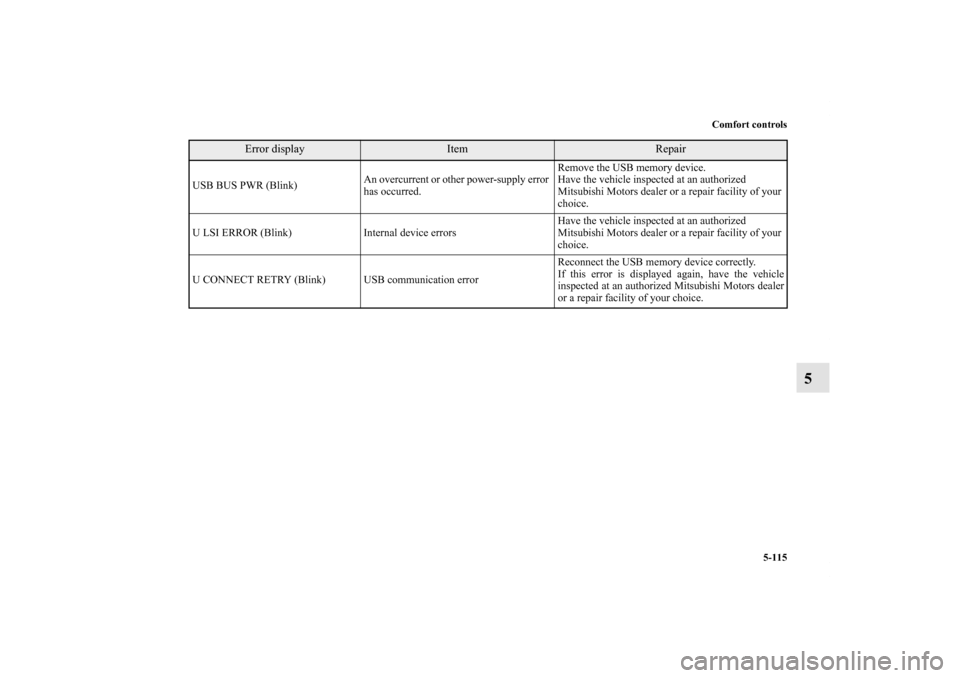

USB BUS PWR (Blink)An overcurrent or other power-supply error
has occurred.Remove the USB memory device.
Have the vehicle inspected at an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
U LSI ERROR (Blink) Internal device errors Have the vehicle inspected at an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
U CONNECT RETRY (Blink) USB communication error Reconnect the USB memory device correctly.
If this error is displayed again, have the vehicle
inspected at an authorized Mitsubishi Motors dealer
or a repair facility of your choice.
Error display
Item
Repair
BK0150900US.book 115 ページ ２０１２年５月７日　月曜日　午後１２時９分
