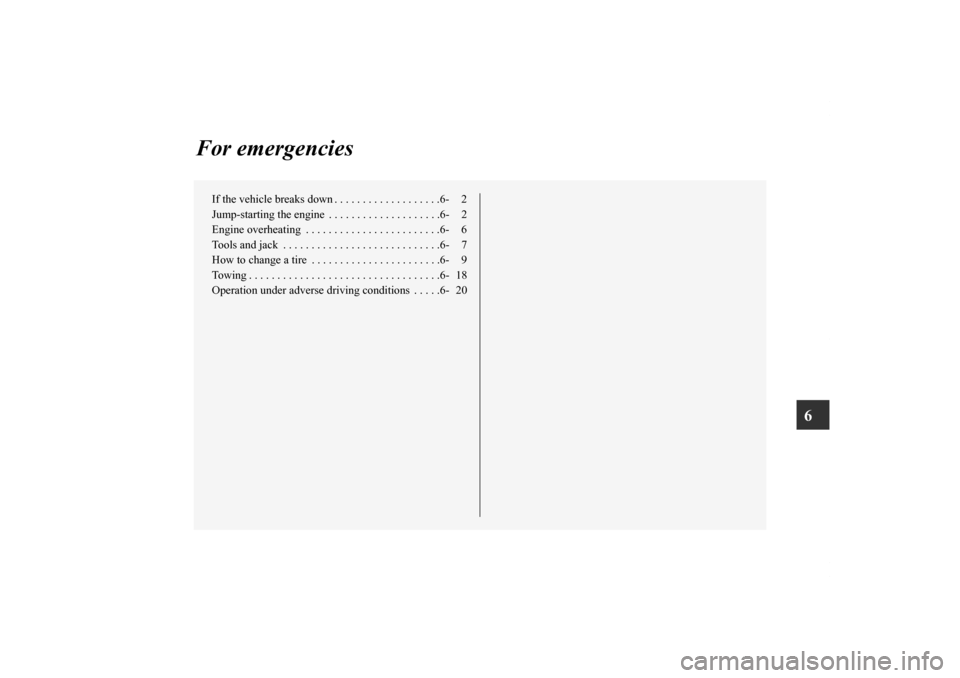

For emergencies
If the vehicle breaks down . . . . . . . . . . . . . . . . . . .6- 2
Jump-starting the engine . . . . . . . . . . . . . . . . . . . .6- 2
Engine overheating . . . . . . . . . . . . . . . . . . . . . . . .6- 6
Tools and jack . . . . . . . . . . . . . . . . . . . . . . . . . . . .6- 7
How to change a tire . . . . . . . . . . . . . . . . . . . . . . .6- 9
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6- 18
Operation under adverse driving conditions . . . . .6- 20
BK0150900US.book 1 ページ ２０１２年５月７日　月曜日　午後１２時９分

6-2 For emergencies
6If the vehicle breaks down
N00836300190
If your vehicle breaks down on the road, move to the shoulder
and turn on the hazard warning flashers. If there is no shoulder,
or the shoulder is not safe, drive in the right lane slowly, with
the hazard lights flashing, until you come to a safe stopping
place. Keep the flashers flashing. If the engine stops/fails If the engine stops, there will be no power assist to the steering
and brakes, making these difficult to use.

The brake booster will not work, so the brakes will not
grip well. The brake pedal will be harder to press than
usual.

Since there is no power steering assist, the steering wheel
will be hard to turn.When the engine fails at the intersection Get help from your passengers, bystanders, etc. to push the
vehicle and move it to a safe zone.
Jump-starting the engine
N00836400670
If the engine cannot be started because the battery is weak or
dead, you can start it with the battery from another vehicle
using jumper cables. NOTE
Although the battery in your vehicle is located in the trunk
(refer to page 7-18), use the joint terminal in the engine
compartment to jump start the engine.
1. Take off any metal jewelry such as watch bands or brace-
lets that might make an accidental electrical contact.
WA R N I N G
!
Follow the procedure described in this section when
using the jump cable to start the engine. Failure to
follow these instructions can cause serious injury or
death.
CAUTION
!
Do not try to start your vehicle by pushing or tow-
ing. Vehicles with Twin Clutch SST cannot be
started this way. Pushing or towing a vehicle that
has a manual transaxle may overheat and damage
the catalytic converter. Also, there is more risk of an
accident when a vehicle is being pushed or towed.
BK0150900US.book 2 ページ ２０１２年５月７日　月曜日　午後１２時９分

For emergencies
6-3
6

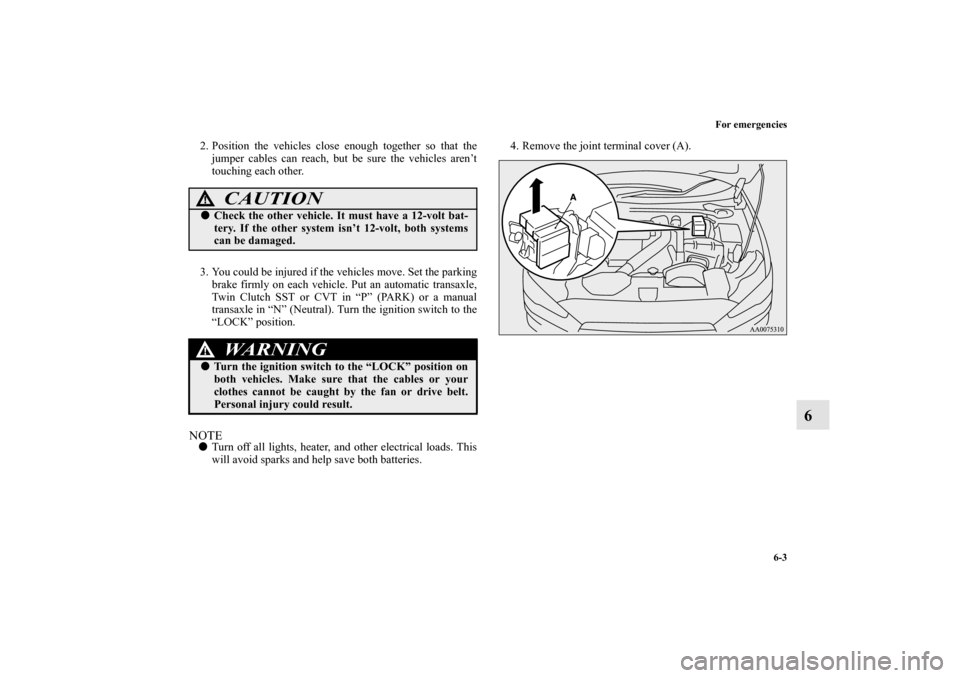

2. Position the vehicles close enough together so that the
jumper cables can reach, but be sure the vehicles aren’t
touching each other.
3. You could be injured if the vehicles move. Set the parking
brake firmly on each vehicle. Put an automatic transaxle,
Twin Clutch SST or CVT in “P” (PARK) or a manual
transaxle in “N” (Neutral). Turn the ignition switch to the
“LOCK” position. NOTE
Turn off all lights, heater, and other electrical loads. This
will avoid sparks and help save both batteries. 4. Remove the joint terminal cover (A).
CAUTION
!
Check the other vehicle. It must have a 12-volt bat-
tery. If the other system isn’t 12-volt, both systems
can be damaged.
WA R N I N G
!
Turn the ignition switch to the “LOCK” position on
both vehicles. Make sure that the cables or your
clothes cannot be caught by the fan or drive belt.
Personal injury could result.
BK0150900US.book 3 ページ ２０１２年５月７日　月曜日　午後１２時９分

6-4 For emergencies
6
5. Connect one end of one jumper cable to the positive (+)
terminal of the joint terminal, and the other end to the pos-
itive (+) terminal of the booster battery.NOTE
Open the joint terminal cover before connecting the
jumper cable to the positive terminal of the joint terminal.

Use the proper cables suitable for the battery size.
Otherwise heat damage to the cables could result.

Check the jumper cables for damage and corrosion before
use.6. Connect one end of the other jumper cable to the negative
(-) terminal of the booster battery, and the other end to the
engine block of the vehicle with the low battery.
7. Start the engine in the vehicle providing the boost. Let the
engine idle a few minutes, then start the engine in the
vehicle with the low battery.
Booster
battery
Joint terminal
WA R N I N G
!
Be sure to follow the proper order when connecting
the batteries, of: →→→.
Make sure that the connection is made to the
engine properly. If the connection is directly made to
the negative side of the battery, the flammable gases
from inside the battery might catch fire and explode,
causing personal injury.
When connecting the jumper cable, do not connect
the positive (+) cable to the negative (-) terminal.
Otherwise sparks can make the battery explode.
CAUTION
!
Make sure that the jumper cable will not be caught
in the cooling fans or other moving parts in the
engine compartment.
BK0150900US.book 4 ページ ２０１２年５月７日　月曜日　午後１２時９分

For emergencies
6-5
6
8. After the engine is started, disconnect the cables in the
reverse order from the way you connected them.
As your vehicle has anti-lock brakesIf you drive your vehicle with a low battery charge, after the
engine has been started by using jumper cables, the engine may
misfire. This can cause the anti-lock braking system warning
light to blink on and off. This is only due to the low battery
voltage. It is not a problem with the brake system. If this hap-
pens, fully charge the battery and ensure the charging system is
operating properly.
WA R N I N G
!
Be sure to have an authorized Mitsubishi Motors
dealer charge the battery. Do not charge the battery
yourself.
Flammable gases may leak from the battery and
explode.
Electrolyte (battery acid) is corrosive diluted sulfu-
ric acid. If electrolyte comes in contact with your
hands, eyes, clothes, or the painted surface of your
vehicle, thoroughly flush with water. If electrolyte
gets in your eyes, flush them immediately and thor-
oughly with water, and get prompt medical atten-
tion.
Always wear protective clothing and goggles when
working near the battery.
Keep the battery out of the reach of children.
Never remove the battery label, upper cover,
exhaust tube, or pipe. Flammable gases may leak
and explode.
This vehicle is equipped with a maintenance-free
battery located in the trunk.
To assure proper battery installation and venting of
flammable gases, the battery must be serviced
and/or replaced by an authorized Mitsubishi dealer
only.
BK0150900US.book 5 ページ ２０１２年５月７日　月曜日　午後１２時９分

6-6 For emergencies
6Engine overheating
N00836500033
When the engine is overheating, the information screen in the
multi-information display will be interrupted and the engine
coolant temperature warning display will appear. Also “ ”
will blink. If this happens:
1. Stop the vehicle in a safe place. Turn on the hazard warn-
ing flashers.
2. With the engine still running, carefully raise the engine
hood to vent the engine compartment.
3. Check that the cooling fans is running. If the fan is not
turning, stop the engine immediately and contact an
authorized Mitsubishi Motors dealer or a repair facility of
your choice for assistance.
4. If you see steam or spray coming from under the hood,
turn off the engine.5. If you do not see steam or spray coming from under the
hood, leave the engine on until the bar graph for the
engine coolant temperature warning display on the multi-
information display goes down. When it is in the middle
of the normal zone, you can start driving again. If the bar
graph stays in the red zone, turn off the engine.
6. When you do not see any more steam or spray, open the
hood. Look for obvious leaks, such as a split radiator
hose. Be careful as components will be hot. Any leak
source must be repaired.
7. If there is no obvious leak source, check the coolant level
in the reserve tank. If there is none, or if it is too low,
slowly add coolant.
WA R N I N G
!
To avoid personal injury, keep hands, hair, jewelry
and clothes away from the cooling fans. The cooling
fans can start at any time.
WA R N I N G
!
Before raising the engine hood, check to see if there
is steam or spray coming from under the hood.
Steam or spray coming from an overheated engine
could seriously scald you.
Do not open the hood until there is no steam or
spray.
BK0150900US.book 6 ページ ２０１２年５月７日　月曜日　午後１２時９分

For emergencies
6-7
6
8. If the reserve tank needs coolant, you will probably also
need to add coolant to the radiator. Do not loosen or
remove the radiator cap until the engine has cooled down.
9. Start the engine, and slowly add coolant, up to the bottom
of the filler neck. Use plain water if you have to (and
replace it with the right coolant as soon as possible).
10. Replace the radiator cap and tighten it fully. Check the
engine coolant temperature display on the multi-informa-
tion display. You can start driving again when the bar
graph for the engine coolant temperature display returns
to the normal zone.
11. Have your vehicle checked by your authorized Mitsubishi
Motors dealer or a repair facility of your choice.
Tools and jack
N00836600311
StorageThe tools and jack are stowed in the trunk.
WA R N I N G
!
Removing the radiator cap could scald you with
escaping hot water or steam. When checking the
radiator level, cover the cap with a cloth before try-
ing to remove it. Turn it slowly counterclockwise,
without pressing down, to the first notch. The pres-
sure in the system will then be let out. When the
pressure is COMPLETELY LET OUT, press down
and keep turning the cap counterclockwise until it
will come off.
1- Tools
2- Jack
