2013 MITSUBISHI LANCER EVOLUTION Owners Manual

3-138 Features and controls
3
Cruise control switchesA- “ON OFF” switch
Used to turn on and off the cruise control.
B- “COAST SET” switch
Used to reduce the set speed and to set the desired speed.
C- “ACC RES” switch
Used to increase the set speed and to return to the original set
speed.
D- “CANCEL” switch
Used to deactivate the set speed driving.
NOTE
When operating the cruise control switches, press the
cruise control switches correctly. The set speed driving
may be deactivated automatically if two or more switches
of the cruise control are pressed at the same time.
BK0150900US.book 138 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-139
3
To activate
N00518400327
1. With the ignition switch in the “ON” position, press the
“ON OFF” switch (A) to turn on the cruise control. The
“CRUISE” indicator light in the meter cluster will come
on.
NOTE
If the cruise control is on when the ignition switch is
turned to “LOCK” or “ACC” position, cruise control will
be on automatically the next time you start the engine.
The “CRUISE” indicator light will also be on.

If the battery voltage is insufficient, the memory data for
the cruise control may be erased.
As a result, the “CRUISE” indicator light may not come
on when you restart the engine.
If this happens, press the “ON OFF” switch once again to
turn on the cruise control.
2. Confirm that the Twin Clutch SST control mode is set to
“Normal”.
Refer to “Twin Clutch SST control mode” on page 3-105.NOTE
The cruising speed cannot be set when the Twin Clutch
SST control mode is set to “Sport” mode or “S-Sport”
mode.
BK0150900US.book 139 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-140 Features and controls
3
3. Accelerate or decelerate to your desired speed, then press
and release the “COAST SET” switch (B) when the
“CRUISE” indicator light is illuminated. The vehicle will
then maintain the desired speed.NOTE
When you release the “COAST SET” switch, the vehicle
speed will be set.
To increase the set speed
N00518500298
There are 2 ways to increase the set speed.“ACC RES” switchPress and hold the “ACC RES” switch (C) while driving at the
set speed, and your speed will then gradually increase.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.
To increase your speed in small amounts, press the “ACC
RES” switch for less than about 1 second and release it.
Each time you press the “ACC RES” switch, your vehicle will
go about 1 mph (1.6 km/h) faster.
BK0150900US.book 140 ページ ２０１２年５月７日　月曜日　午後１２時９分

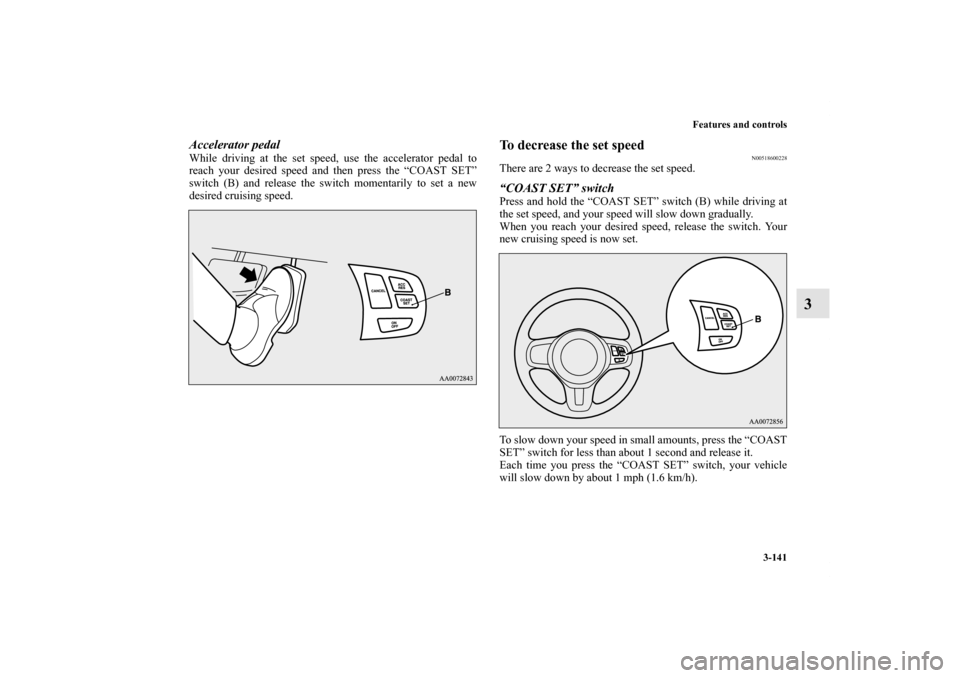

Features and controls
3-141
3
Accelerator pedalWhile driving at the set speed, use the accelerator pedal to
reach your desired speed and then press the “COAST SET”
switch (B) and release the switch momentarily to set a new
desired cruising speed.
To decrease the set speed
N00518600228
There are 2 ways to decrease the set speed.“COAST SET” switchPress and hold the “COAST SET” switch (B) while driving at
the set speed, and your speed will slow down gradually.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.
To slow down your speed in small amounts, press the “COAST
SET” switch for less than about 1 second and release it.
Each time you press the “COAST SET” switch, your vehicle
will slow down by about 1 mph (1.6 km/h).
BK0150900US.book 141 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-142 Features and controls
3
Brake pedalWhile driving at the set speed, use the brake pedal, which dis-
engages the cruise control, then press the “COAST SET”
switch (B) and release the switch momentarily to set a new
desired cruising speed.
To temporarily increase or decrease the speed
N00541700014
To temporarily increase the speedDepress the accelerator pedal as you would normally. When
you release the pedal, you will return to your set speed.
BK0150900US.book 142 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-143
3
To temporarily decrease the speedDepress the brake pedal to decrease the speed. To return to the
previously set speed, press the “ACC RES” switch (C).
Refer to “To resume the set speed” on page 3-145.
To deactivate
N00518800507
The set speed driving can be deactivated as follows:

Press the “ON OFF” switch (A). (Cruise control will be
turned off.)

Press the “CANCEL” switch (D).

Depress the brake pedal.
BK0150900US.book 143 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-144 Features and controls
3
The set speed driving is deactivated automatically in any of the
following ways.

When you depress the clutch pedal (on vehicles with man-
ual transaxle).

When your speed slows to about 10 mph (15 km/h) or
more below the set speed because of a hill, etc.

When your speed slows to about 25 mph (40 km/h) or
less.

When the Twin Clutch SST control mode is set to “Sport”
mode.
Refer to “Twin Clutch SST control mode” on page 3-105.

When the active stability control (ASC) starts operating.
Refer to “Active stability control (ASC)” on page 3-130.Also, the set speed driving may be deactivated as follow:

When the engine speed rises and approaches the tachome-
ter’s red zone (the red-colored part of the tachometer dial).
WA R N I N G
!
On vehicles with Twin Clutch SST, although the set
speed driving will be deactivated when shifting to
the “N” (NEUTRAL) position, never move the gear-
shift lever to the “N” (NEUTRAL) position while
driving.
You would have no engine braking and could cause
a serious accident.
CAUTION
!
When the set speed driving is deactivated automati-
cally in any situation other than those listed above,
there may be a system malfunction.
Press the “ON OFF” switch to turn off the cruise
control and have your vehicle inspected by an autho-
rized Mitsubishi Motors dealer.
BK0150900US.book 144 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-145
3
To resume the set speed
N00518900234
If the set speed driving is deactivated by the condition
described in “To deactivate” on page 3-143, you can resume
the previously set speed by pressing the “ACC RES” switch
(C) while driving at a speed of about 25 mph (40 km/h) or
higher.
Under either of the following conditions, however, using the
switch does not allow you to resume the previously set speed.
In these situations, repeat the speed setting procedure:

The “ON OFF” switch is pressed.

The ignition switch is turned OFF.

“CRUISE” indicator light is turned OFF.
Tire pressure monitoring system
N00530200400
The tire pressure monitoring system uses tire inflation pressure
sensors (A) on the wheels to monitor the tire inflation pres-
sures. The system only indicates when a tire is significantly
under-inflated.
WA R N I N G
!
The spare wheel does not have a tire inflation pres-
sure sensor.
When the spare tire is used, the tire pressure moni-
toring system will not work properly.
See an authorized Mitsubishi Motors dealer as soon
as possible to replace or repair the original tire.
