2013 MITSUBISHI LANCER EVOLUTION Owners Manual

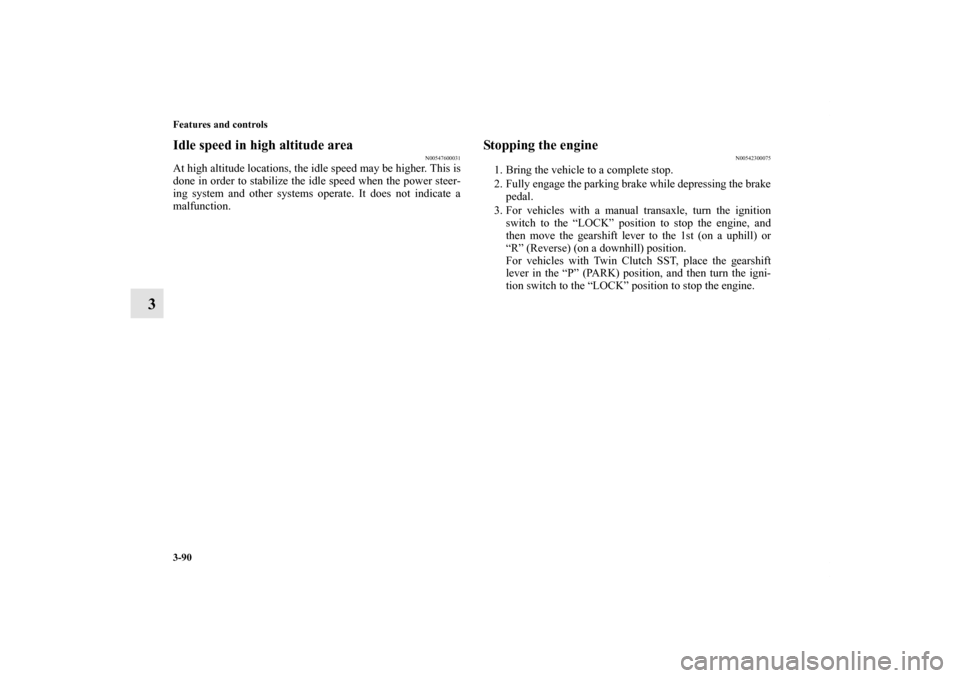

3-90 Features and controls
3
Idle speed in high altitude area
N00547600031
At high altitude locations, the idle speed may be higher. This is
done in order to stabilize the idle speed when the power steer-
ing system and other systems operate. It does not indicate a
malfunction.
Stopping the engine
N00542300075
1. Bring the vehicle to a complete stop.
2. Fully engage the parking brake while depressing the brake
pedal.
3. For vehicles with a manual transaxle, turn the ignition
switch to the “LOCK” position to stop the engine, and
then move the gearshift lever to the 1st (on a uphill) or
“R” (Reverse) (on a downhill) position.
For vehicles with Twin Clutch SST, place the gearshift
lever in the “P” (PARK) position, and then turn the igni-
tion switch to the “LOCK” position to stop the engine.
BK0150900US.book 90 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-91
3
NOTE
For vehicles with Twin Clutch SST, the engine will stop
and the vehicle power will turn off approximately 1 sec-
ond after the ignition switch is turned to the “LOCK”
position.
The reason for this is that, in the time from when the igni-
tion switch is turned to the “LOCK” position until the
engine stops, the gears inside the Twin Clutch SST disen-
gage so that the engine will start smoothly the next time it
is started.
Two clutches installed in the Twin Clutch SST alternately
engage and disengage to achieve smooth shifting.
In addition, the gear on the side with the free clutch is
engaged, therefore, quick shifting is performed.
If the engine was stopped with the gear engaged like this,
it would provide resistance the next time the engine is
started. Therefore, the gear disengages in the approxi-
mately 1-second period until the engine stops.

For vehicles with Twin Clutch SST, do not operate the
gearshift lever or the accelerator pedal for approximately
1 second until the engine stops.
If the temperature inside the engine compartment is high,
the cooling fans (A) will continue to operate for some
time even if the engine is stopped.
Therefore, the operation sound of the cooling fans may be
heard even after the engine is stopped. This sound is nor-
mal and does not indicate a malfunction.
After operating for a period of time, the cooling fans will
stop automatically.
BK0150900US.book 91 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-92 Features and controls
3Turbocharger operation
N00537300077
TurbochargerThe turbocharger increases engine power by pushing large
amounts of air into the engine’s cylinders. The finned parts
inside the turbocharger turn at extremely high speeds and are
subjected to extremely high temperatures. They are lubricated
by engine oil and cooled by engine oil and coolant. If the
engine oil is not replaced at the specified intervals, the bearings
may seize or emit abnormal noise.
CAUTION
!
Do not run the engine at high speeds (for example,
by revving it or by accelerating rapidly) immedi-
ately after starting it.
Do not stop the engine immediately after high-speed
or uphill driving. First allow the engine to idle to
give the turbocharger a chance to cool down.
Engine oil must be properly maintained to avoid
engine and/or turbocharger damage. To better pro-
tect your engine and turbocharger, use fully syn-
thetic engine oil.
1- Air compressor
2- Compressed air
3- Cylinder
4- Turbo fin
5- Turbine
6- Exhaust gas
BK0150900US.book 92 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-93
3 Clutch pedal operation
(if so equipped)
N00537700042
Observe the following cautions when using the clutch pedal.
Not observing them could result in rapid clutch wear or in
clutch damage.

Press the clutch pedal all the way down while shifting
gears.

Press and hold the clutch pedal all the way down before
starting the engine.

Do not rest your foot on the clutch pedal.

On hills and other gradients, do not hold the vehicle in
position by slipping the clutch without using the brakes.

Make sure the space under the clutch pedal is free of
objects that could obstruct the pedal.NOTE
Your vehicle has a special feature to reduce the impact
into the power train and to reduce the load of the clutch
disk; the engine revolution doesn’t rise more than around
5,500 rpm while the vehicle is stationary and the clutch
pedal has been depressed.
If either of the following occurs, the clutch should be
inspected by a Mitsubishi Motors dealer or a repair facil-
ity of your choice:
• The pedal stroke until clutch disengagement suddenly
increases.
• The engine revs when the clutch is not disengaged.
CAUTION
!
If the clutch is engaged suddenly while the engine
revolution is high, an extremely large load will be
applied instantaneously to the power train, possibly
leading to the breakage of that component. Please
ensure, therefore, that the clutch pedal is always
applied in a slow yet firm manner.
BK0150900US.book 93 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-94 Features and controls
3Manual transaxle
(if so equipped)
N00512700139
The shift pattern below is shown on the gearshift lever. Press
the clutch pedal all the way down while shifting gears.NOTE
During cold weather, shifting may be difficult until the
transaxle lubricant has warmed up. This is normal and not
harmful to the transaxle.To startPress the clutch pedal all the way down and shift into 1st. Then
gradually release the clutch pedal while depressing the acceler-
ator pedal.
NOTE
If it is hard to shift into 1st, depress the clutch pedal a sec-
ond time; the shift will then be easier.Proper shift points
N00537400049
Always use care to change the gear with the vehicle speed
matched to the engine speed. Proper shifting will improve fuel
economy and prolong engine life.
CAUTION
!
Do not rest your foot on the clutch pedal because
this will cause premature clutch wear or damage.
Do not coast in the “N” (Neutral) position (illegal in
many states).
Do not use the gearshift lever as a handrest, because
this can result in premature wear of the transaxle
shift forks.
CAUTION
!
Avoid downshifting that may cause the tachometer
pointer to enter the red zone.
This puts the engine at risk of being damaged.
BK0150900US.book 94 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-95
3
Upshifting
N00512900144
For the best fuel economy and performance in using your man-
ual transaxle, upshift as listed below.
Downshifting
N00513000096
It is recommended that you downshift to a lower gear when
needed to maintain the desired speed, according to the table.
Avoid downshifting at too high a speed. The engine may suffer
damage.
To maintain a safe speed and prolong brake life, shift down to
2nd or 1st when descending a steep hill.
Downshifting is also important to avoid “lugging” the engine
at too low a speed, such as when turning a corner or when driv-
ing up a steep hill.Recommended downshifting speed
Shift point
Upshift speeds
1st gear to 2nd gear 15 mph (24 km/h)2nd gear to 3rd gear 25 mph (40 km/h)3rd gear to 4th gear 40 mph (64 km/h)4th gear to 5th gear 45 mph (72 km/h)
Downshifting speed
Shift point
Under 20 mph (32 km/h)Shift down from current gear to
2nd gear.20 to 30 mph (32 to 48 km/h)Shift down from current gear to
3rd gear.
BK0150900US.book 95 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-96 Features and controls
3
Driving precautions
N00513100156

The table below shows the maximum recommended driv-
ing speed for in each gear. Do not drive near or at these
speeds for prolonged periods of time.Maximum possible driving speed
Do not use the gearshift lever as a handrest. This can
result in premature wear of the transaxle shift forks.
Twin Clutch SST (Sportronic Shift Trans-
mission)
(if so equipped)
N00539700017
The Twin Clutch SST is a transmission that, through integrated
control of the engine and transmission, is able to achieve both
the smooth shifting of an automatic transaxle and the accelera-
tion and fuel economy close to a manual transaxle. In addition,
the control mode can be selected from three types to suit the
driving conditions.
Together with manual shifting, the transmission is capable of
responding to a variety of driving circumstances.
Twin Clutch SST control mode→ P. 3 - 1 0 5
Manual shift → P.3-107
Shift points
Maximum possible driving speed
1st gear 37 mph (60 km/h)2nd gear 55 mph (90 km/h)3rd gear 74 mph (120 km/h)4th gear 99 mph (160 km/h)
BK0150900US.book 96 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-97
3
Gearshift lever operation
N00539800063
As an additional safety precaution, models equipped with a
Twin Clutch SST have a shift-lock device that holds the gear-
shift lever in the “P” (PARK) position. To move the gearshift
lever from the “P” (PARK) position to another position, follow
the steps below.
1. Press and hold the brake pedal down.
2. Move the gearshift lever to the desired position.NOTE
The gearshift lever cannot be moved from “P” (PARK) to
another position if the ignition switch is at the “LOCK” or
“ACC” position, or the key has been removed, or if the
brake pedal is not pressed and held down.The Twin Clutch SST has 6 forward gears and 1 reverse gear.
The individual gears are selected automatically, depending on
the position of the gearshift lever, the speed of the vehicle and
the position of the accelerator pedal.
The gearshift lever (A) has 2 gates; the main shift gate (B) and
the manual shift gate (C).
NOTE
In the main shift gate, the gearshift lever has 4 positions.

For information on manual shift gate operation, please
refer to “Manual shift” on page 3-107.
BK0150900US.book 97 ページ ２０１２年５月７日　月曜日　午後１２時９分
