2013 MERCEDES-BENZ SL-CLASS ROADSTER display

The search results display the following
information:
R
an arrow
that shows the linear direction to
the point of interest
R the linear distance to the point of interest
R the name of the point of interest
i The arrow and linear distance to the
destination are not visible if you have
entered a POI after entering another city.
The arrow is also not shown when
searching for a POI in the vicinity of the
destination.
Depending on the POI selected, COMAND
uses different reference points in
determining the linear distance to the
destination:
R vicinity of current position: the linear
distance is the distance of the point of
interest from the current vehicle
position.
R vicinity of destination: the linear distance
is the distance from the destination
entered to the point of interest.
Selecting a point of interest :
Point of interest with address
; To start route calculation
= To store an address in the destination
memory
? To display details
A To make a call (when available)
B To cancel selection
C To display a point of interest's position on
the map The example has been selected in the
BAR
& RESTAURANT POI category. Further
information on searching via POI categories
(Y page 313).
X Select the POI in the POI list by turning
cVd the COMAND controller and press
W to confirm.
The complete address of the point of
interest selected is shown.
X To start route calculation: select
Start; and press W to confirm.
X To store an address in the destination
memory: select Save= and press W to
confirm. You can now select storing
options (Y page 340).
X To show the detailed view: select
Details? and press W to confirm.
X To make a call: select CallA and press
W to confirm. COMAND switches to
telephone mode ( Y page 364).
i This menu

item is available if the POI has
a telephone number and a mobile phone is
connected to COMAND (Y page 359).
X To call up the map: select MapC and
press W to confirm.
X You can move the map and select the
destination (Y page 306).
Point of interest list with character bar Search by name in the vicinity of the destination
(example)
If you have selected
Search By Name in the
POI menu and then defined the position for 314
Navigation
COMAND

the search, the POI list with character bar
appears
(Y
page 312).
Depending on your selection, you can select
all available points of interest on the digital
map or the points of interest in the vicinity of
the selected position.
X Proceed as described in "Searching for a
phone book entry" (Y page 369).
If COMAND can assign the characters
entered to one entry unambiguously, the
address entry appears automatically.
X To start route calculation: select Start
and press W to confirm.
ZAGAT ®
survey service The Z icon before a search result shows that
a ZAGAT
®
rating is available for this entry. :
ZAGAT ratings
; To display details
X Select an entry with the "Z" icon by turning
cVd the COMAND controller and press
W to confirm.
The ZAGAT evaluations appear. ZAGAT example description
X
To show the information: select
Details and press W to confirm.
Selecting a point of interest using the
map Point of interest on the map
You can select points of interest that are
available in the selected (visible) section of
the map. The POI is highlighted on the map,
you will see further information on the upper
edge of the display.
X
To switch on navigation mode: press
the
Ø function button.
X To show the menu: press W
the COMAND
controller.
X Select Guide in the navigation system
menu bar by turning cVd the COMAND
controller and press W to confirm.
If points of interest are available:
Depending on the map scale selected,
point of interest icons appear on the map.
The scale at which the icons are displayed Navigation
315
COMAND Z

on the map varies according to the icon.
You can select the icons that you want
COMAND to display
(
Y page 344).
If no points of interest are available, you will
see a message to this effect.
i You also see this message if you have
selected the No

Symbols menu item under
"Map display" ( Y page 344).
X To confirm the message: press W the
COMAND controller.
X To select a POI: select Next or Previous
and press W to confirm.
X To show details for the selection: select
Details and press W to confirm.
X To change to the map: slide ZV the
COMAND controller.
You can

move the map and select the map
section.
X To start route calculation: select Start
and press W to confirm.
A prompt

appears asking whether the point
of interest should be used as the
destination.
X Select Yes or No and press W to confirm.
If you select Yes, route guidance starts.
If you

select No, you can choose a new point
of interest.
i Continue is displayed instead of Start
when Calculate Alternative

Routes is
activated in the navigation menu
(Y page 327). Personal points of interest
Settings Calling up the "Personal POIs" menu
"Personal POIs" menu
X
To switch on navigation mode: press
the
Ø function button.
X To show the menu:
press W
the COMAND
controller.
X Select Navi in the main function bar by
sliding ZV and

turning cVd the COMAND
controller and press W to confirm.
X Select Personal POIs and press W to
confirm.
Displaying personal POIs on the map The personal POIs are shown on the map with
an icon according to their category.316
Navigation
COMAND

X
Call up the "Personal POIs" menu
(Y page 316).
X Select Display Personal POIs On Map
in the menu and press W to confirm.
You can select different categories. Selection Explanation
ªNot
Classified Standard entry for
personal POIs
ªCOMAND Personal POIs
(destinations,
routes)
that
you have imported via the
online function
(Y page 392). If you have created your own categories (e.g.
"Fishing", "Hotels"), they are also displayed
(Y page 317).
X
Select a category and press W to confirm.
The icon display is switched on O or off
ª, depending on the previous status.
i The icons will be displayed in the following
map scales:
R 1/16 mile (50 m)
R 1/8 mile (100 m)
R 1/4 mile (200 m)
R 1/2 mile (500 m)
Visual warning for personal POIs Example: visual warning for a personal POI
If the vehicle is approaching a personal POI,
this
is

highlighted on the map. The display for the corresponding category must be
activated for this.
X
Call up the "Personal POIs" menu
(Y page 316).
X In the "Personal POIs" menu, select
Visual Warning For Personal POIs
and press W to confirm.
The menu

displays the available categories.
X Select a category and press W to confirm.
This will switch the visual warning for all
personal POIs

of this category on O or off
ª, depending on the previous setting.
Acoustic notification for personal POIs
A gong sounds when the vehicle is
approaching a

personal POI. The function for
the corresponding category must be
activated for this.
X Call up the "Personal POIs" menu
(Y page 316).
X In the "Personal POIs" menu, select
Acoustic Notification For
Personal POIs and press W to confirm.
The menu

displays the available categories.
X Select a category and press W to confirm.
This will

switch the acoustic notification for
all personal POIs of this category on O or
off ª, depending on the previous setting.
Creating categories for personal POIs Navigation
317
COMAND Z

X
Call up the "Personal POIs" menu
(Y page 316).
X In the "Personal POIs" menu, select
Manage Categories For Personal
POIs and press W to confirm. X
To create a new category: select New and
press W to confirm.
X Enter the name of the category. Character
entry (Y page 281).
X Select the ¬ icon and press W to
confirm.
A list

with icons appears. You can assign an
icon to the category.
X Select an symbol by turning cVd the
COMAND controller and press W to
confirm.
You have created a new category with a
name and icon. This category appears
when selecting the display on the map or
when selecting the destination.
X To rename a category, to change an
icon: select Rename or Change Icon and
press W to confirm.
X Proceed as described under "To create a
new category".
X To delete a category: select Delete and
press W to confirm.
A prompt appears asking whether the
category should be deleted.
i If you delete a category, all points of
interest of this category are also deleted. X
Select Yes and press W to confirm.
If you select Yes, the category will be
deleted.
If you select No, the process will be
canceled.
Managing personal POIs
X Call up the "Personal POIs" menu
(Y page 316).
X Select Manage Personal POIs in the
menu and press W to confirm.
X Select Not Classified, COMAND or your
own category and press W to confirm.
X Select a personal POI and press W to
confirm.
The personal

point of interest is displayed.
Other functions:
R renaming (Y page 319)
R changing the category (Y page 319)
R deleting ( Y page 319)
Saving personal POIs There are three ways to save personal points
of interest. You must insert an SD memory
card
to

do so. The No Memory Card message
otherwise appears.
Personal POIs and routes are saved on the
memory card in the same data format in
which the geographical data is stored. This
format is based on the open GPX ( GPS
Exchange) format.
Option 1
X Insert the SD memory card (Y page 424).
X To switch on navigation mode: press
the
Ø function button.
X Hide the menu to display the map in full
screen mode (Y page 296).
X Press W the COMAND controller for longer
than two seconds.
The

current position of the vehicle is saved
as a personal POI on the SD memory card
in the Not Classified category. 318
Navigation
COMAND

In the example, the Coffee Shops category
is selected.
The personal points of interest for this
category are shown.
X
Select a personal POI and press W to
confirm.
X To rename a personal POI: select
Rename and press W to confirm.
X To change the category: select Change
Category and press W to confirm.
X To change to the map: select Map and
press W to confirm.
The position of the personal point of
interest is shown in the map.
i An icon is displayed according to the
"Displaying personal POIs on the map"
setting ( Y page 316).
X To start route calculation: select Start
and press W to confirm.
If route guidance has been activated, a
prompt will appear asking whether you
wish to accept the personal point of
interest as the destination. If route guidance has not been activated,
route calculation for the personal point of
interest will start immediately.
X Select Yes or No and press W to confirm.
If you select Yes, the personal POI is
accepted as the destination.
If you select No, the process will be
canceled.
X To make a call: select Call and press W
to confirm. COMAND switches to
telephone mode ( Y page 366).
i Call is
available if the personal POI has a
phone number and a mobile phone is
connected to COMAND (Y page 359).
X To delete a personal POI: select Delete
and press W to confirm.
A prompt

appears asking whether you wish
to delete the point of interest.
X Select Yes or No and press W to confirm.
If you select Yes, the personal POI is
deleted.
If you select No, the process will be
canceled. Search && Send
Notes i
To use

Search & Send, your vehicle needs
to be equipped with mbrace, a navigation
system and a valid mbrace subscription.
Search & Send is a service assisting you in
entering destinations for the navigation
system. This mbrace service can send a
destination address directly from the Google
Maps ®
website to the navigation system of
your vehicle.
Selecting and sending a destination
address Please also refer to the notes about address
entry online:
maps.google.com.320
Navigation
COMAND

Route guidance begins once a route has been
calculated
(
Y page 303).
COMAND guides you to your destination by
means of navigation announcements in the
form of audible navigation announcements
and route guidance displays.
The route guidance displays can only be seen
if the display is switched to navigation mode.
If you do not follow the navigation
announcements or if you leave the calculated
route, COMAND automatically calculates a
new route to the destination.
If the digital map contains the corresponding
information, the following applies:
R when selecting a route, COMAND tries to
avoid roads that only have limited access,
e.g. roads closed to through traffic.
R roads that have time restrictions (e.g.
closed on Sundays and public holidays) are
considered for route guidance on days
when they are open. For this purpose, the
relevant times must be correctly stored in
the database.
Displays during route guidance Change of direction
Changes of direction have three phases:
R
preparation phase
R announcement phase
R change-of-direction phase Example: preparation phase
:
Next road
; Point at which the change of direction
takes place (light blue dot)
= Current vehicle position (the tip of the
triangle indicates the vehicle’s direction
of travel)
? Current road
Display ? depends on the setting selected
for "Map information in the display"
(Y page 345).
COMAND prepares you for the upcoming
change of direction. Based on the example
display below, the change of direction is
announced by the Prepare to turn
right message.

You see the full-screen map. Example: announcement phase
:
Next road
; Change of direction (turn right here)
= Graphic representation of the distance to
the next change of direction
? Distance to the next change of direction322
Navigation
COMAND

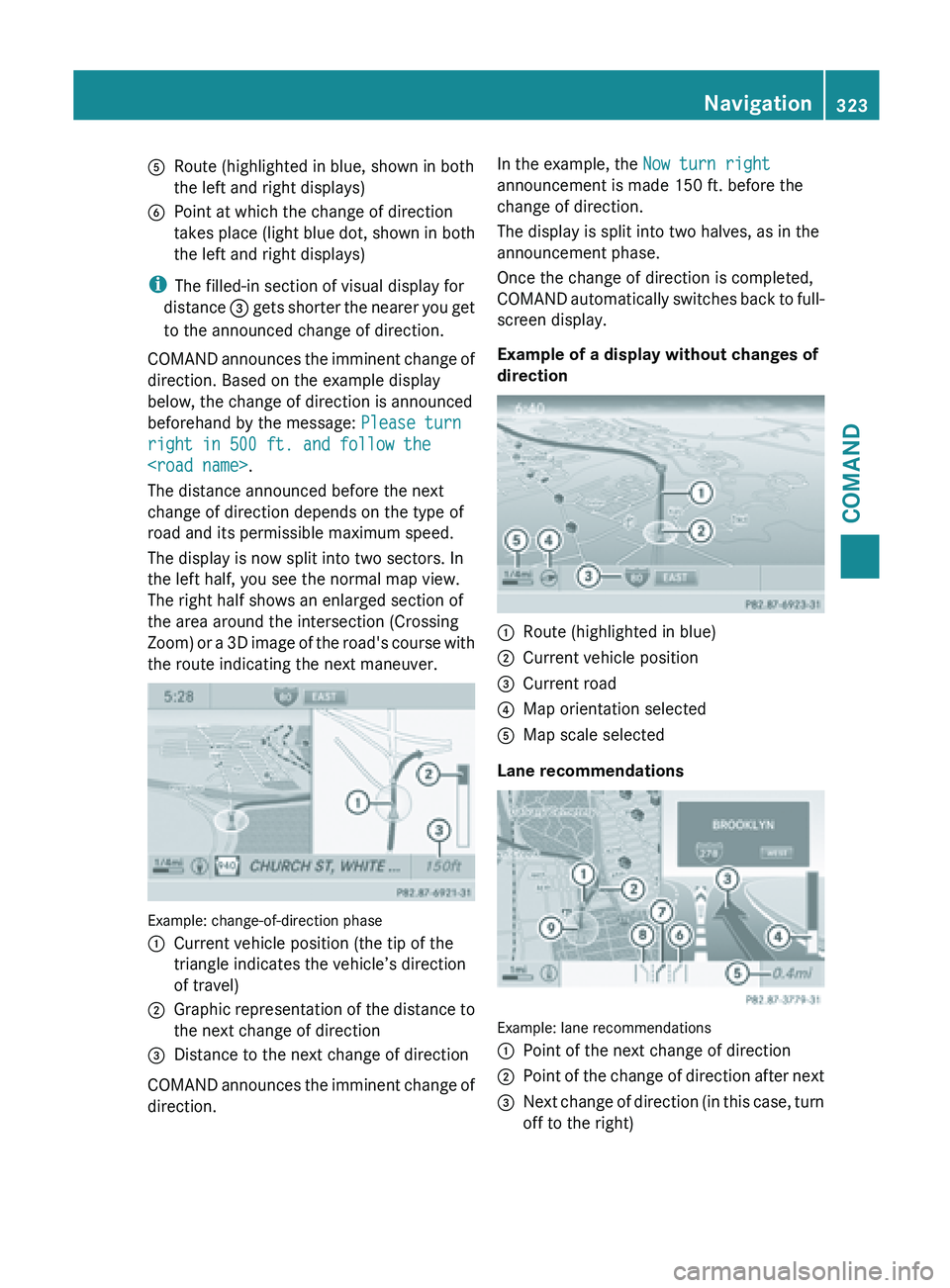

A
Route (highlighted in blue, shown in both
the left and right displays)
B Point at which the change of direction
takes place
(light blue dot, shown in both
the left and right displays)
i The filled-in section of visual display for
distance = gets

shorter the nearer you get
to the announced change of direction.
COMAND announces the imminent change of
direction. Based on the example display
below, the change of direction is announced
beforehand by the message: Please turn
right in 500 ft. and follow the
.
The distance announced before the next
change of direction depends on the type of
road and its permissible maximum speed.
The display is now split into two sectors. In
the left half, you see the normal map view.
The right half shows an enlarged section of
the area around the intersection (Crossing
Zoom) or a 3D image of the road's course with
the route indicating the next maneuver. Example: change-of-direction phase
:
Current vehicle position (the tip of the
triangle indicates the vehicle’s direction
of travel)
; Graphic representation of the distance to
the next change of direction
= Distance to the next change of direction
COMAND announces the imminent change of
direction. In the example, the Now turn right
announcement is made 150 ft.
before the
change of direction.
The display is split into two halves, as in the
announcement phase.
Once the change of direction is completed,
COMAND

automatically switches back to full-
screen display.
Example of a display without changes of
direction :
Route (highlighted in blue)
; Current vehicle position
= Current road
? Map orientation selected
A Map scale selected
Lane recommendations Example: lane recommendations
:
Point of the next change of direction
; Point of the change of direction after next
= Next change of direction (in this case, turn
off to the right) Navigation
323
COMAND Z
