Page 313 of 408

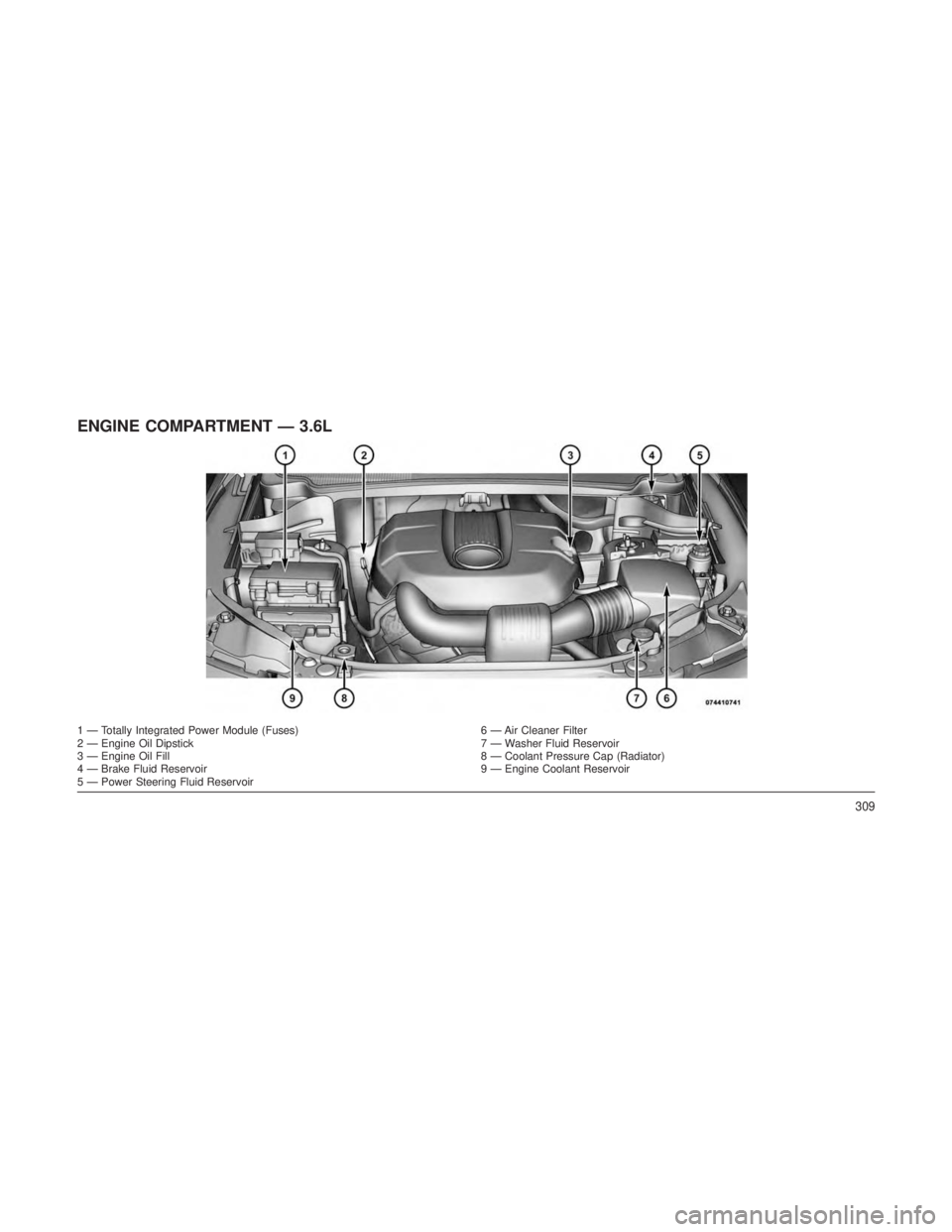

ENGINE COMPARTMENT — 3.6L
1 — Totally Integrated Power Module (Fuses)6 — Air Cleaner Filter
2 — Engine Oil Dipstick 7 — Washer Fluid Reservoir
3 — Engine Oil Fill 8 — Coolant Pressure Cap (Radiator)
4 — Brake Fluid Reservoir 9 — Engine Coolant Reservoir
5 — Power Steering Fluid Reservoir
309
Page 314 of 408
ENGINE COMPARTMENT — 5.7L
1 — Totally Integrated Power Module (Fuses)6 — Washer Fluid Reservoir
2 — Automatic Transmission Dipstick 7 — Engine Oil Dipstick
3 — Engine Oil Fill 8 — Coolant Pressure Cap (Radiator)
4 — Brake Fluid Reservoir 9 — Engine Coolant Reservoir
5 — Air Cleaner Filter
310
Page 315 of 408
ENGINE COMPARTMENT — 3.0L DIESEL
1 — Engine Oil Dipstick5 — Washer Fluid Reservoir
2 — Engine Oil Fill 6 — Engine Coolant Reservoir
3 — Brake Fluid Reservoir 7 — Totally Integrated Power Module (Fuses)
4 — Engine Air Cleaner Filter
311
Page 316 of 408

ONBOARD DIAGNOSTIC
SYSTEM (OBD II)
Your vehicle is equipped with a sophisticated
onboard diagnostic system called OBD II. This
system monitors the performance of the emis-
sions, engine, and automatic transmission con-
trol systems. When these systems are operat-
ing properly, your vehicle will provide excellent
performance and fuel economy, as well as
engine emissions well within current govern-
ment regulations.
If any of these systems require service, the
OBD II system will turn on the “Malfunction
Indicator Light (MIL).” It will also store diagnos-
tic codes and other information to assist your
service technician in making repairs. Although
your vehicle will usually be drivable and not
need towing, see your authorized dealer for
service as soon as possible.
CAUTION!
•
Prolonged driving with the MIL on could
cause further damage to the emission con-
trol system. It could also affect fuel economy
and drivability. The vehicle must be serviced
before any emissions tests can be per-
formed.
•If the MIL is flashing, while the engine is
running, severe catalytic converter dam-
age and power loss will soon occur. Imme-
diate service is required.
Loose Fuel Filler Cap Message
If the vehicle diagnostic system de-
termines that the fuel filler cap is
loose, improperly installed, or dam-
aged, a loose gascap indicator will
display in the EVIC telltale display
area. Refer to “Electronic Vehicle
Information Center (EVIC) in “Understanding
Your Instrument Panel” for further information.
Tighten the fuel filler cap properly and press the SELECT button to turn off the message. If the
problem continues, the message will appear the
next time the vehicle is started.
A loose, improperly installed, or damaged fuel
filler cap may also turn on the Malfunction
Indicator Light (MIL).
REPLACEMENT PARTS
Use of genuine MOPAR® parts for normal/
scheduled maintenance and repairs is highly
recommended to ensure the designed perfor-
mance. Damage or failures caused by the use
of non-MOPAR® parts for maintenance and
repairs will not be covered by the manufactur-
er’s warranty.
MAINTENANCE PROCEDURES
The pages that follow contain the
required
maintenance services determined by the engi-
neers who designed your vehicle.
Besides those maintenance items specified in
the fixed maintenance schedule, there are other
components which may require servicing or
replacement in the future.
312
Page 317 of 408

CAUTION!
•
Failure to properly maintain your vehicle or
perform repairs and service when necessary
could result in more costly repairs, damage
to other components or negatively impact
vehicle performance. Immediately have po-
tential malfunctions examined by an autho-
rized dealer or qualified repair center.
•Your vehicle has been built with improved
fluids that protect the performance and
durability of your vehicle and also allow
extended maintenance intervals. Do not
use chemical flushes in these components
as the chemicals can damage your engine,
transmission, power steering or air condi-
tioning. Such damage is not covered by
the New Vehicle Limited Warranty. If a
flush is needed because of component
malfunction, use only the specified fluid for
the flushing procedure.
Engine Oil – Gasoline Engines
Checking Oil Level
To assure proper lubrication of your vehicle’s
engine, the engine oil must be maintained at the
correct level. The best time to check the engine
oil level is about five minutes after a fully
warmed up engine is shut off or before starting
the engine after it has sat overnight.
Checking the oil while the vehicle is on level
ground will improve the accuracy of the oil level
readings. Maintain the oil level in the SAFE level
range. Adding 1 U.S. Quart (0.95L) of oil when
the level is at the bottom of the SAFE range will
result in the level being at the top of the SAFE
range.
CAUTION!
Overfilling or underfilling the crankcase will
cause aeration or loss of oil pressure. This
could damage your engine. Change Engine Oil
Refer to the “Maintenance Schedule” for the
proper maintenance intervals.
Engine Oil Selection – Non ACEA
Categories
For best performance and maximum protection
under all types of operating conditions, we
recommend you use MOPAR® API Certified
SAE 5W-20 engine oil, meeting the require-
ments of Chrysler Material Standard MS-6395.
American Petroleum Institute (API) Engine
Oil Identification Symbol
This symbol means
that the oil has
been certified by
the American Petro-
leum Institute (API).
The manufacturer
only recommends
API Certified engine
oils.
313
Page 318 of 408

CAUTION!
Do not use chemical flushes in your engine
oil as the chemicals can damage your en-
gine. Such damage is not covered by the
New Vehicle Limited Warranty.
Engine Oil Selection – ACEA Categories
For countries that use the ACEA European Oil
Categories for Service Fill Oils, we recommend
you use 5W-20 engine oils that meet the re-
quirements of ACEA C3.
Engine Oil Viscosity – 3.6L Engine
SAE 5W-20 engine oil is recommended for all
operating temperatures. This engine oil im-
proves low temperature starting and vehicle fuel
economy.
The engine oil filler cap also shows the recom-
mended engine oil viscosity for your engine. For
information on engine oil filler cap location, refer
to the “Engine Compartment” illustration in this
section. NOTE:
SAE 5W-30 engine oil approved to Fiat
9.55535-S1 or Fiat 9.55535-S3 may be used
when SAE 5W-20 engine oil meeting MS-
6395 is not available.
Engine Oil Viscosity – 5.7L Engine
SAE 5W-20 engine oil is recommended for all
operating temperatures. This engine oil im-
proves low temperature starting and vehicle fuel
economy.
The engine oil filler cap also shows the recom-
mended engine oil viscosity for your engine. For
information on engine oil filler cap location, refer
to the “Engine Compartment” illustration in this
section.
NOTE:
SAE 5W-30 engine oil approved to Fiat
9.55535-S1 or Fiat 9.55535-S3 may be used
when SAE 5W-20 engine oil meeting MS-
6395 is not available.Engine Oil – Diesel Engine
Engine Oil Selection
For best performance and maximum protection
under all types of operating conditions, the
manufacturer recommends you use SAE 5W-30
Synthetic Low Ash Engine Oil meeting the re-
quirements of Chrysler Material Standard
MS-11106 and approved ACEA C3.
Engine Oil Viscosity
CAUTION!
Your vehicle is equipped with an advanced
technology Diesel Engine and an emission
device designed to limit Diesel Particulate
Emissions from being released into the at-
mosphere. The durability of your engine and
life expectancy of this diesel particulate filter
emission device is highly dependent on the
use of the correct engine oil.
314
Page 319 of 408

SAE 5W-30 Synthetic Low Ash Engine Oil is
recommended for all operating temperatures.
This engine oil improves low temperature start-
ing and vehicle fuel economy.
The engine oil filler cap also shows the recom-
mended engine oil viscosity for your engine. For
information on engine oil filler cap location, refer
to “Engine Compartment” in “Maintaining Your
Vehicle” for further information.
Synthetic Engine OilsYou may use synthetic engine oils provided the
recommended oil quality requirements are met,
and the recommended maintenance intervals
for oil and filter changes are followed.
Materials Added To Engine OilThe manufacturer strongly recommends
against the addition of any additives (other than
leak detection dyes) to the engine oil. Engine oil
is an engineered product and its performance
may be impaired by supplemental additives.
Disposing Of Used Engine Oil And
Oil Filters
Care should be taken in disposing of used
engine oil and oil filters from your vehicle. Used
oil and oil filters, indiscriminately discarded, can
present a problem to the environment. Contact
your authorized dealer, service station or gov-
ernmental agency for advice on how and where
used oil and oil filters can be safely discarded in
your area.
Engine Oil FilterThe engine oil filter should be replaced with a
new filter at every engine oil change.
Engine Oil Filter Selection
This manufacturer’s engines have a full-flow
type disposable oil filter. Use a filter of this type
for replacement. The quality of replacement
filters varies considerably. Only high quality
filters should be used to assure most efficient
service. MOPAR® engine oil filters are high
quality oil filters and are recommended.
Engine Air Cleaner FilterRefer to the “Maintenance Schedule” for the
proper maintenance intervals.
WARNING!
The air induction system (air cleaner, hoses,
etc.) can provide a measure of protection in
the case of engine backfire. Do not remove
the air induction system (air cleaner, hoses,
etc.) unless such removal is necessary for
repair or maintenance. Make sure that no
one is near the engine compartment before
starting the vehicle with the air induction
system (air cleaner, hoses, etc.) removed.
Failure to do so can result in serious per-
sonal injury.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner
filters varies considerably. Only high quality
filters should be used to assure most efficient
service. MOPAR® engine air cleaner filters are
a high quality filter and are recommended.
315
Page 320 of 408

Maintenance-Free BatteryYour vehicle is equipped with a maintenance-
free battery. You will never have to add water,
nor is periodic maintenance required.
WARNING!
•Battery fluid is a corrosive acid solution
and can burn or even blind you. Do not
allow battery fluid to contact your eyes,
skin, or clothing. Do not lean over a battery
when attaching clamps. If acid splashes in
eyes or on skin, flush the area immediately
with large amounts of water. Refer to
“Jump-Starting Procedures” in “What To
Do In Emergencies” for further information.
• Battery gas is flammable and explosive.
Keep flame or sparks away from the bat-
tery. Do not use a booster battery or any
other booster source with an output
greater than 12 Volts. Do not allow cable
clamps to touch each other.
(Continued)
WARNING!(Continued)
•Battery posts, terminals, and related ac-
cessories contain lead and lead com-
pounds. Wash hands after handling.
CAUTION!
•It is essential when replacing the cables on
the battery that the positive cable is at-
tached to the positive post and the nega-
tive cable is attached to the negative post.
Battery posts are marked positive (+) and
negative (-) and are identified on the bat-
tery case. Cable clamps should be tight on
the terminal posts and free of corrosion.
• If a “fast charger” is used while the battery
is in the vehicle, disconnect both vehicle
battery cables before connecting the char-
ger to the battery. Do not use a “fast
charger” to provide starting voltage.
Air Conditioner MaintenanceFor best possible performance, your air condi-
tioner should be checked and serviced by an
authorized dealer at the start of each warm
season. This service should include cleaning of
the condenser fins and a performance test.
Drive belt condition should also be checked at
this time.
CAUTION!
Do not use chemical flushes in your air
conditioning system as the chemicals can
damage your air conditioning components.
Such damage is not covered by the New
Vehicle Limited Warranty.
316
