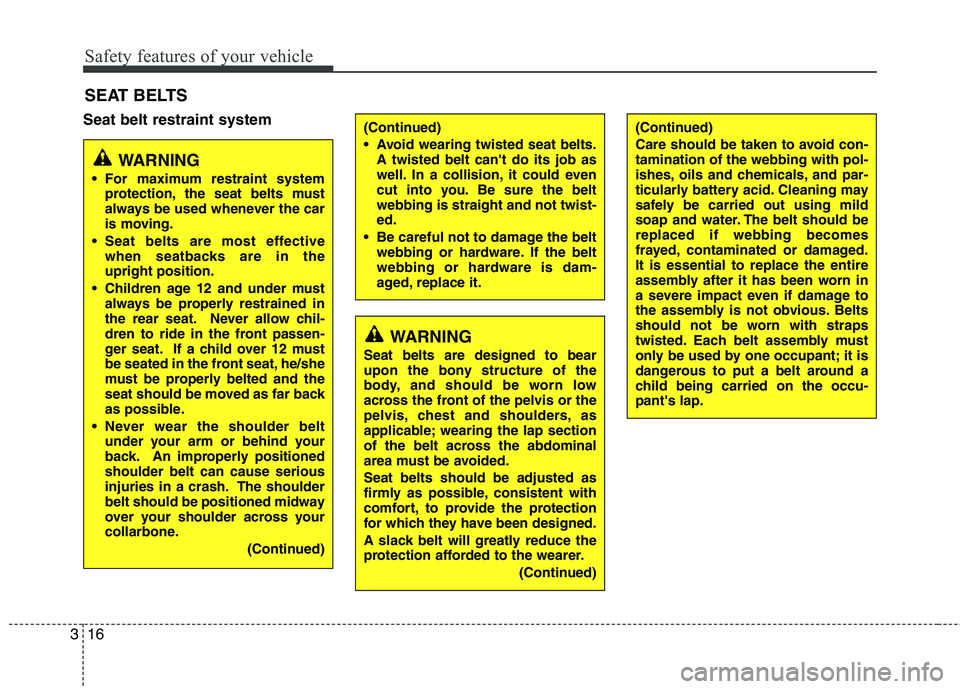

2013 HYUNDAI TUCSON Owners Manual

Page 33 of 397

HYUNDAI TUCSON 2013  Owners Manual Safety features of your vehicle
16
3
(Continued)
Care should be taken to avoid con- tamination of the webbing with pol-
ishes, oils and chemicals, and par-
ticularly battery acid. Cleaning may
safel

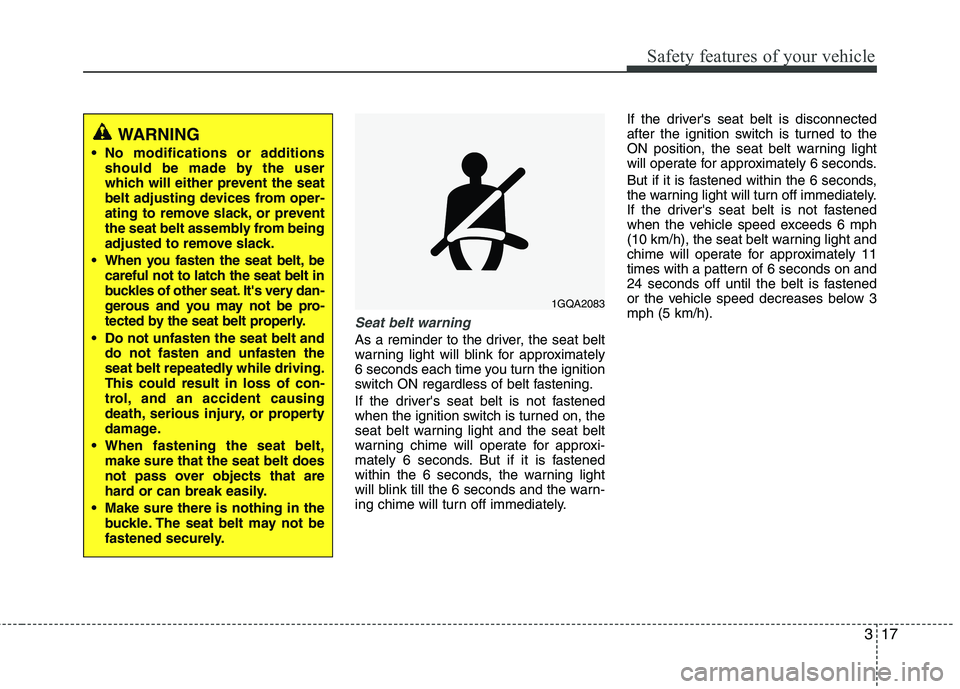

Page 34 of 397

HYUNDAI TUCSON 2013  Owners Manual 317
Safety features of your vehicle
Seat belt warning
As a reminder to the driver, the seat belt
warning light will blink for approximately
6 seconds each time you turn the ignition
switch ON regardl

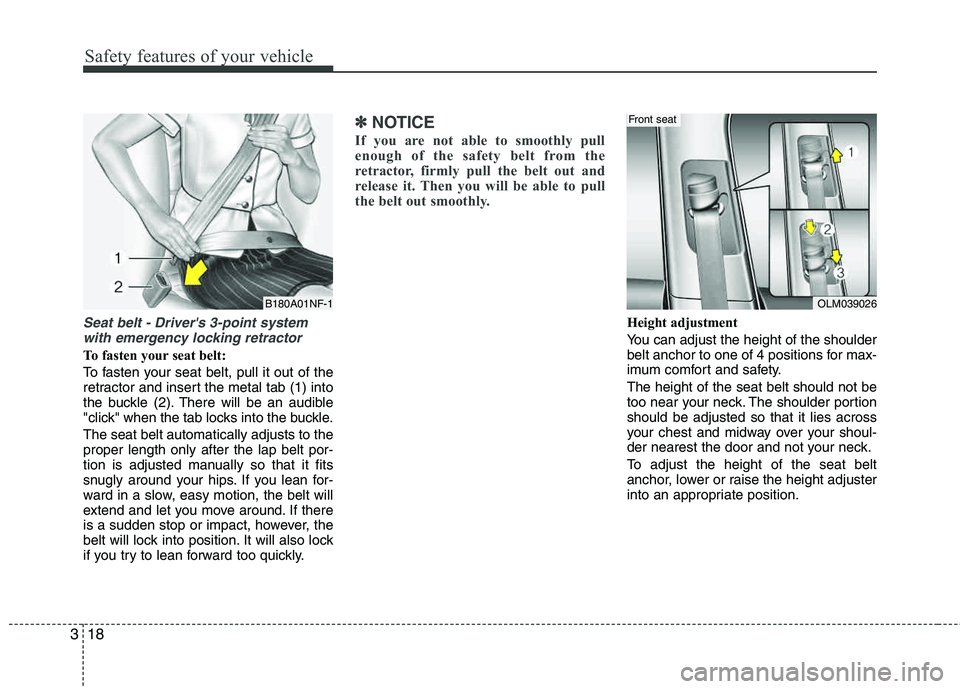

Page 35 of 397

HYUNDAI TUCSON 2013  Owners Manual Safety features of your vehicle
18
3
Seat belt - Drivers 3-point system
with emergency locking retractor
To fasten your seat belt:
To fasten your seat belt, pull it out of the
retractor and insert

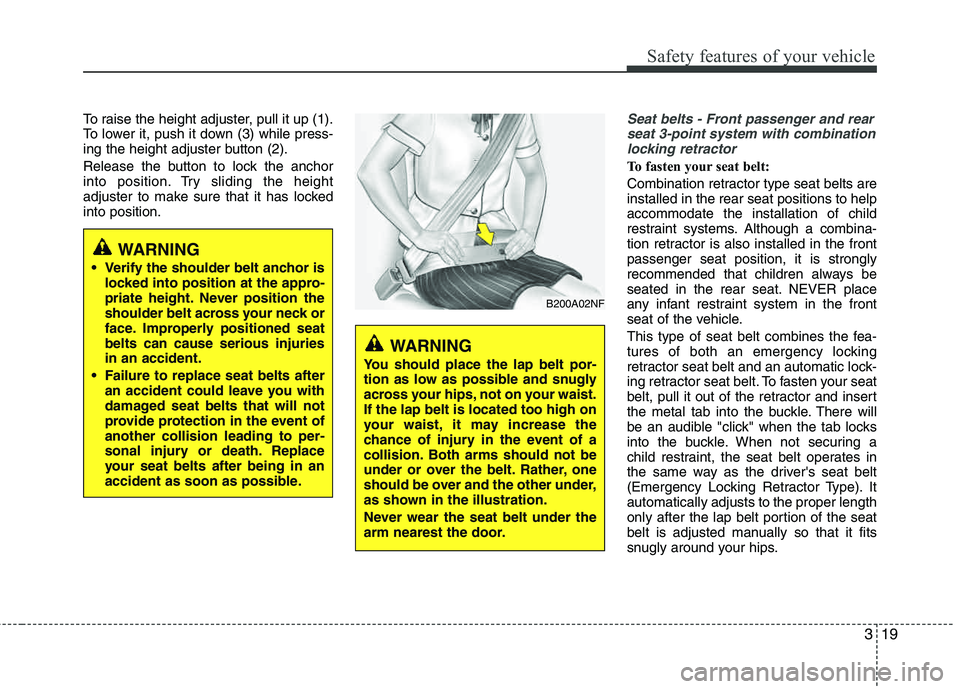

Page 36 of 397

HYUNDAI TUCSON 2013  Owners Manual 319
Safety features of your vehicle
To raise the height adjuster, pull it up (1).
To lower it, push it down (3) while press-
ing the height adjuster button (2).
Release the button to lock the ancho

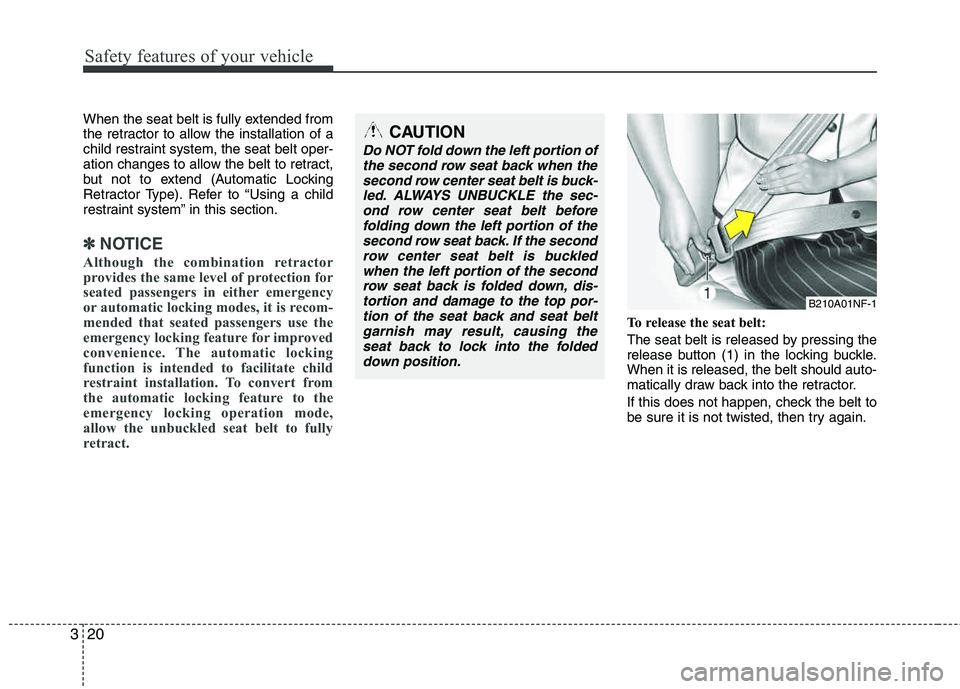

Page 37 of 397

HYUNDAI TUCSON 2013  Owners Manual Safety features of your vehicle
20
3
When the seat belt is fully extended from
the retractor to allow the installation of a
child restraint system, the seat belt oper-
ation changes to allow the bel

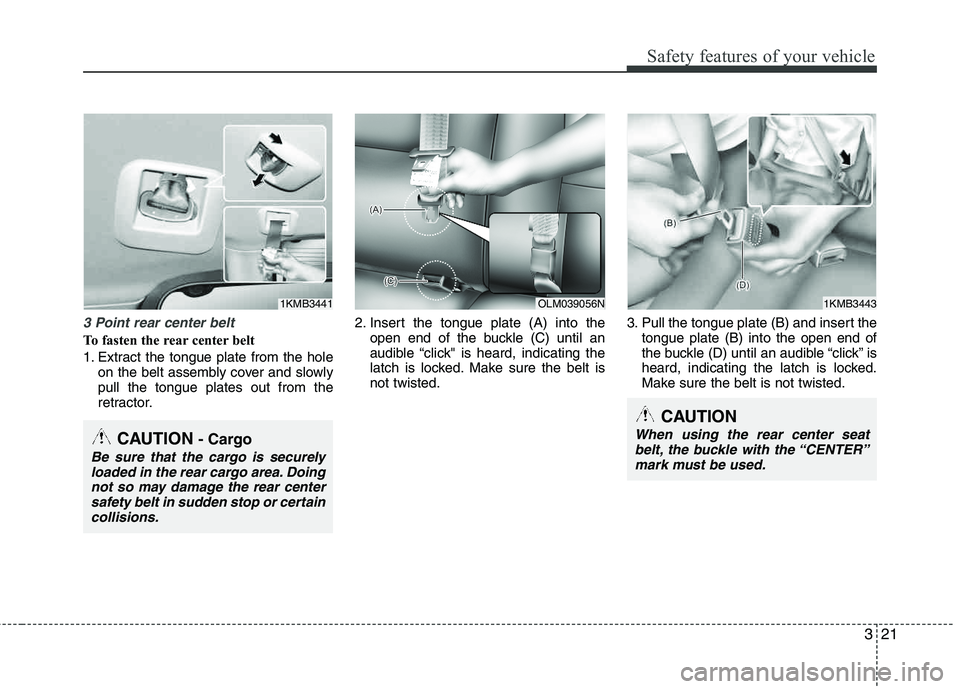

Page 38 of 397

HYUNDAI TUCSON 2013  Owners Manual 321
Safety features of your vehicle
3 Point rear center belt
To fasten the rear center belt
1. Extract the tongue plate from the holeon the belt assembly cover and slowly pull the tongue plates out

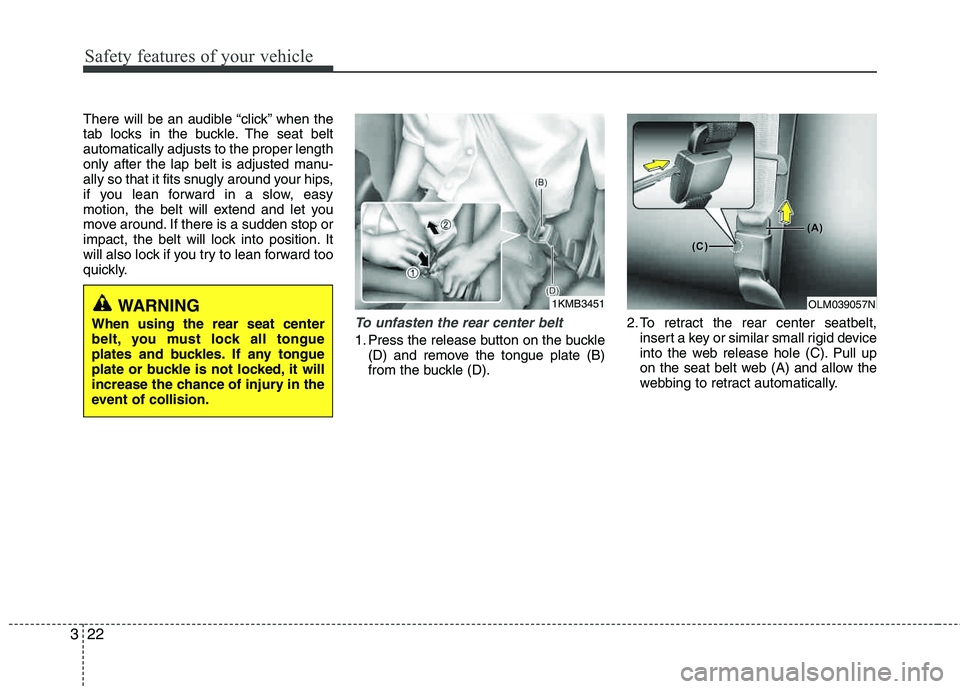

Page 39 of 397

HYUNDAI TUCSON 2013  Owners Manual Safety features of your vehicle
22
3
There will be an audible “click” when the
tab locks in the buckle. The seat belt automatically adjusts to the proper length
only after the lap belt is adjuste

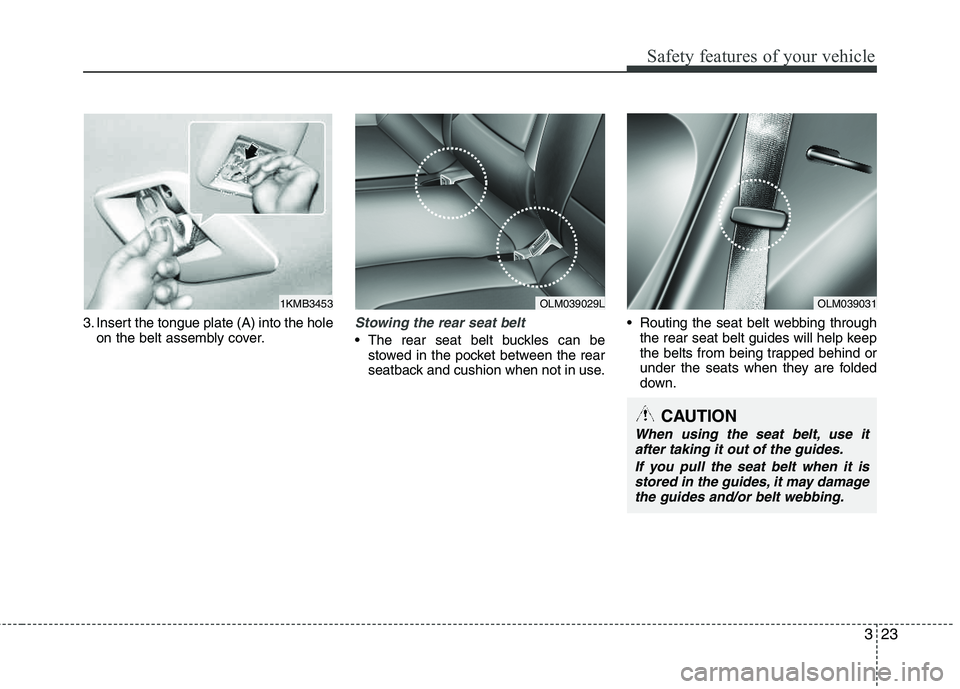

Page 40 of 397

HYUNDAI TUCSON 2013  Owners Manual 323
Safety features of your vehicle
3. Insert the tongue plate (A) into the holeon the belt assembly cover.Stowing the rear seat belt
 The rear seat belt buckles can bestowed in the pocket between th
