2013 HYUNDAI TUCSON Owners Manual

Page 233 of 397

HYUNDAI TUCSON 2013  Owners Manual 525
Driving your vehicle
For safe all-wheel drive operation
 Do not try to drive in deep standingwater or mud since such conditions
can stall your engine and clog your
exhaust pipes. Do not drive d

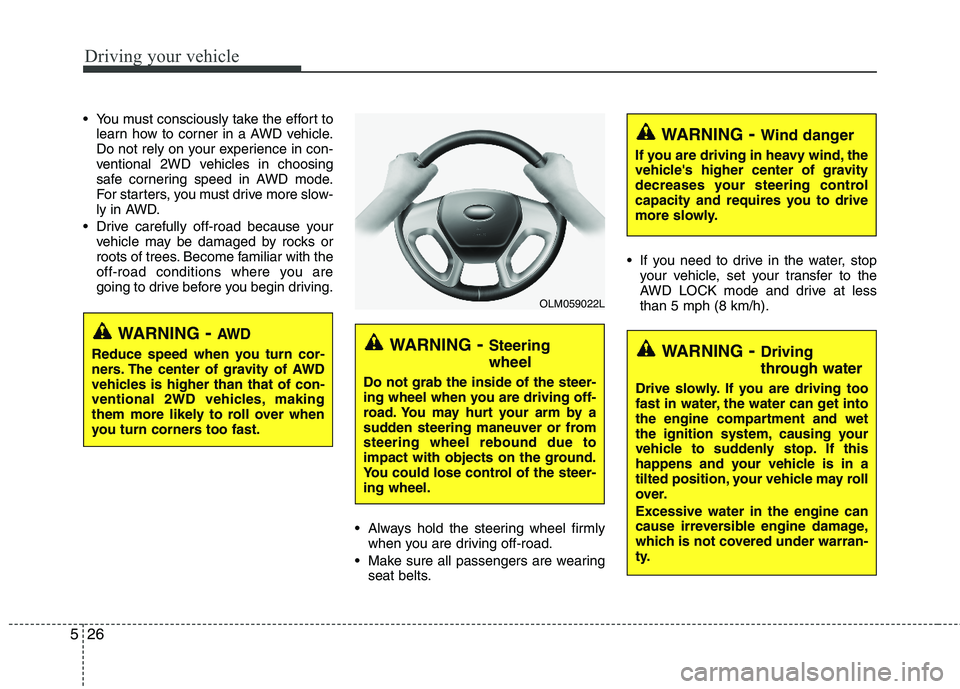

Page 234 of 397

HYUNDAI TUCSON 2013  Owners Manual Driving your vehicle
26
5
 You must consciously take the effort to
learn how to corner in a AWD vehicle.
Do not rely on your experience in con-
ventional 2WD vehicles in choosing
safe cornering speed

Page 235 of 397

HYUNDAI TUCSON 2013  Owners Manual 527
Driving your vehicle
✽✽NOTICE
 Do not drive in water if the level is higher than the bottom of the vehicle.
 Check your brake condition once you
are out of mud or water. Press the
brake ped

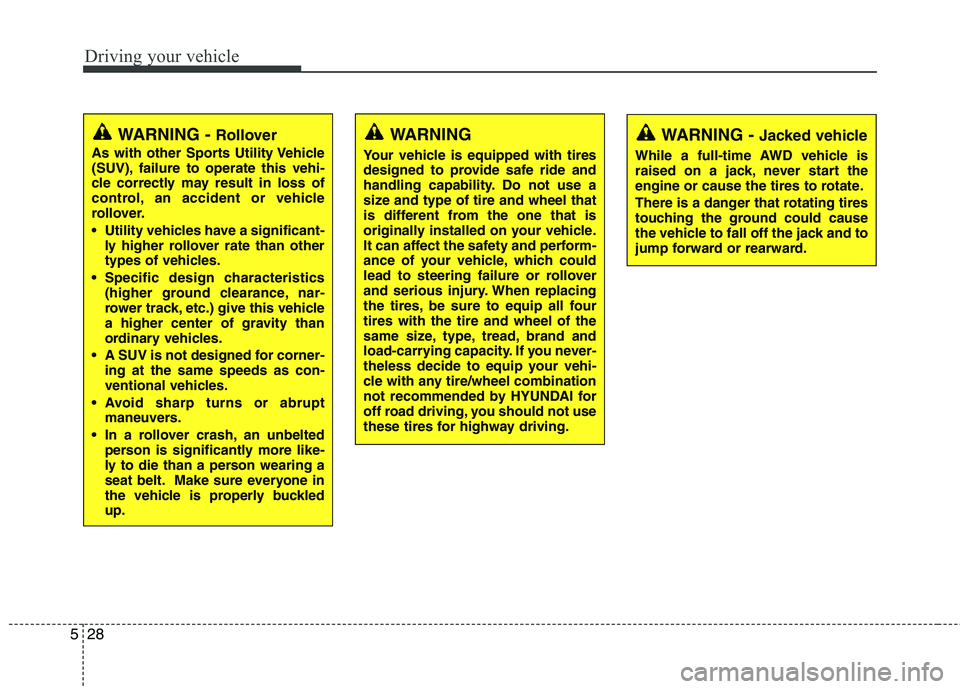

Page 236 of 397

HYUNDAI TUCSON 2013  Owners Manual Driving your vehicle
28
5
WARNING - Jacked vehicle
While a full-time AWD vehicle is
raised on a jack, never start the
engine or cause the tires to rotate.
There is a danger that rotating tires
touc

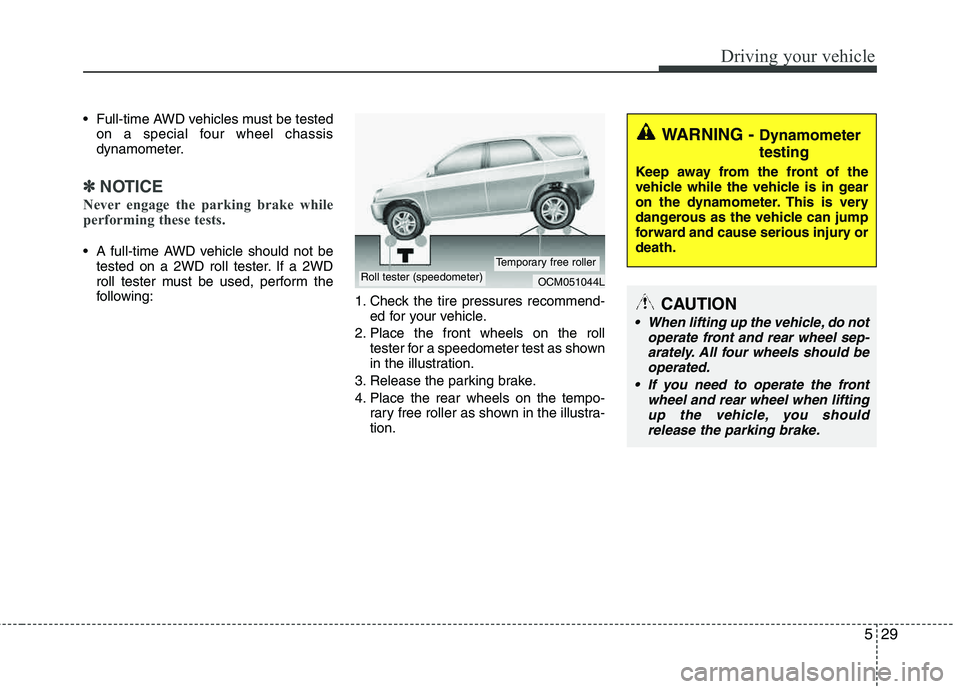

Page 237 of 397

HYUNDAI TUCSON 2013  Owners Manual 529
Driving your vehicle
 Full-time AWD vehicles must be testedon a special four wheel chassis
dynamometer.
✽✽ NOTICE
Never engage the parking brake while
performing these tests.
 A full-time AW

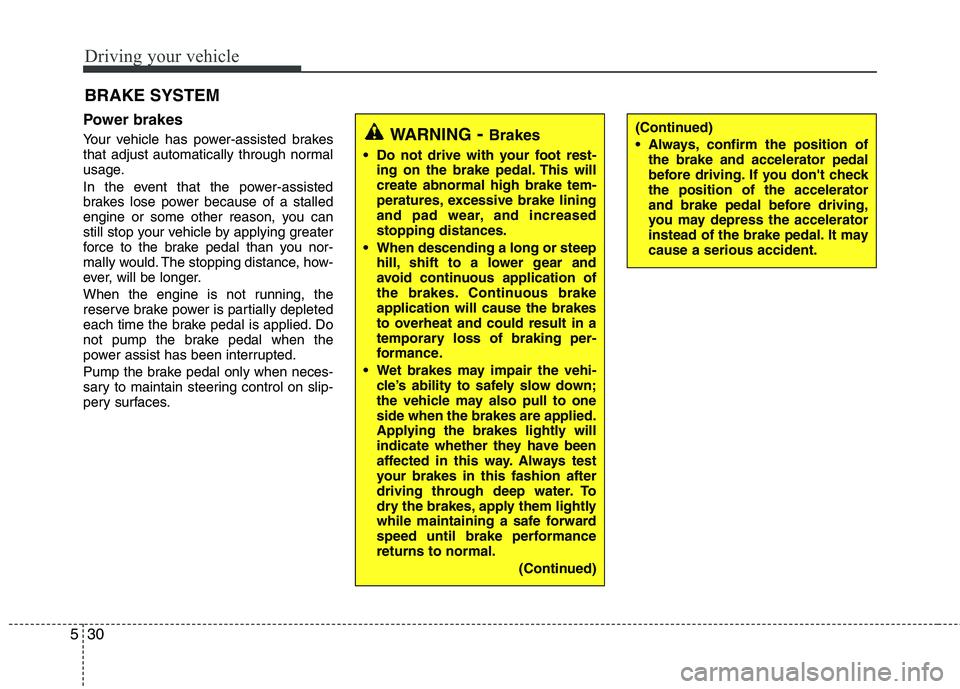

Page 238 of 397

HYUNDAI TUCSON 2013  Owners Manual Driving your vehicle
30
5
Power brakes
Your vehicle has power-assisted brakes
that adjust automatically through normal
usage.
In the event that the power-assisted
brakes lose power because of a

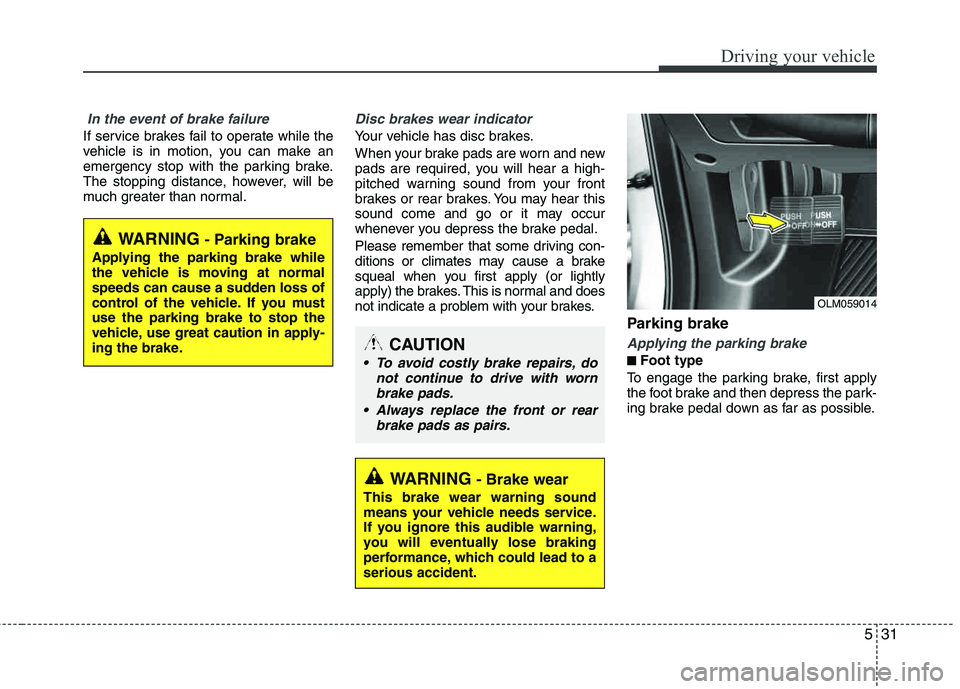

Page 239 of 397

HYUNDAI TUCSON 2013  Owners Manual 531
Driving your vehicle
In the event of brake failure
If service brakes fail to operate while the
vehicle is in motion, you can make an
emergency stop with the parking brake.
The stopping distance

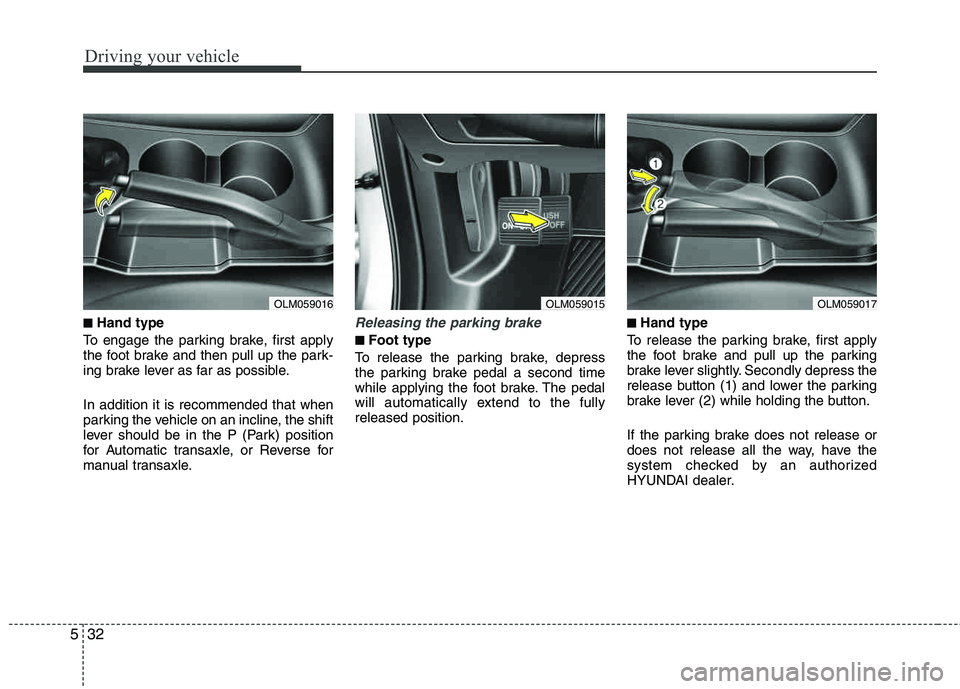

Page 240 of 397

HYUNDAI TUCSON 2013  Owners Manual Driving your vehicle
32
5
■■Hand type
To engage the parking brake, first apply
the foot brake and then pull up the park-
ing brake lever as far as possible. In addition it is recommended that wh
