2013 HYUNDAI TUCSON Owners Manual

Page 281 of 397

HYUNDAI TUCSON 2013  Owners Manual 65
What to do in an emergency

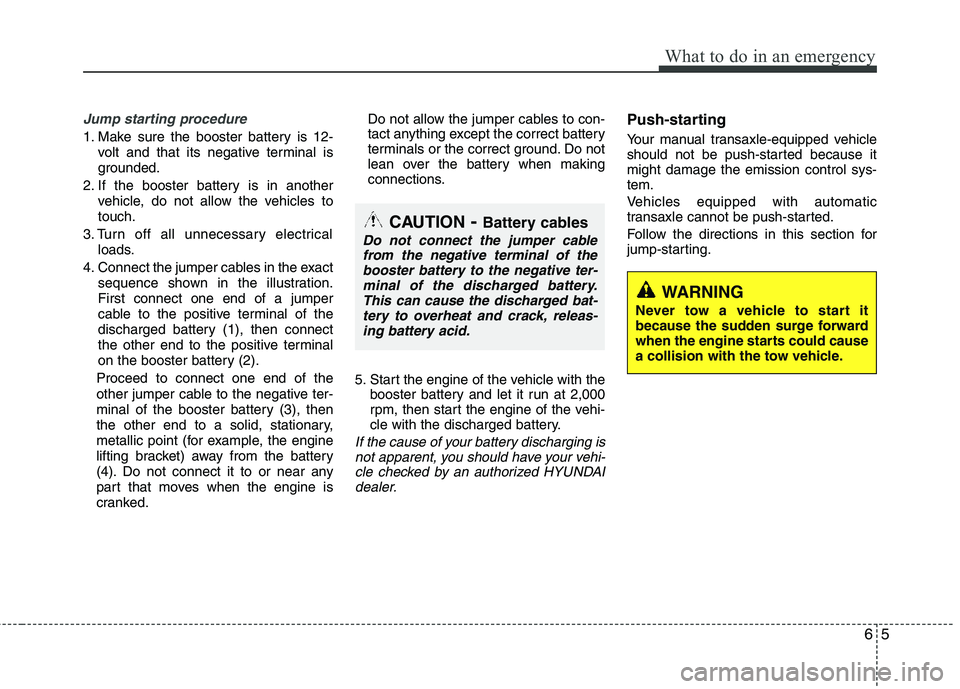

Jump starting procedure
1. Make sure the booster battery is 12-volt and that its negative terminal is
grounded.
2. If the booster battery is in another vehicle, do not

Page 282 of 397

HYUNDAI TUCSON 2013  Owners Manual What to do in an emergency
6
6

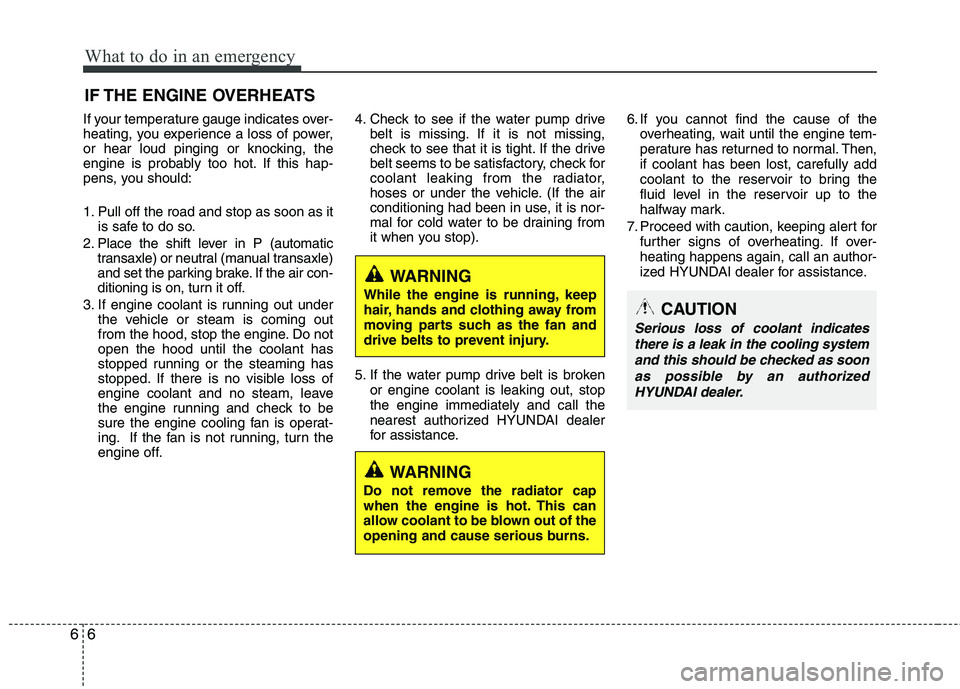

IF THE ENGINE OVERHEATS
If your temperature gauge indicates over-
heating, you experience a loss of power,
or hear loud pinging or knocking, the
engine is probably too

Page 283 of 397

HYUNDAI TUCSON 2013  Owners Manual 67
What to do in an emergency

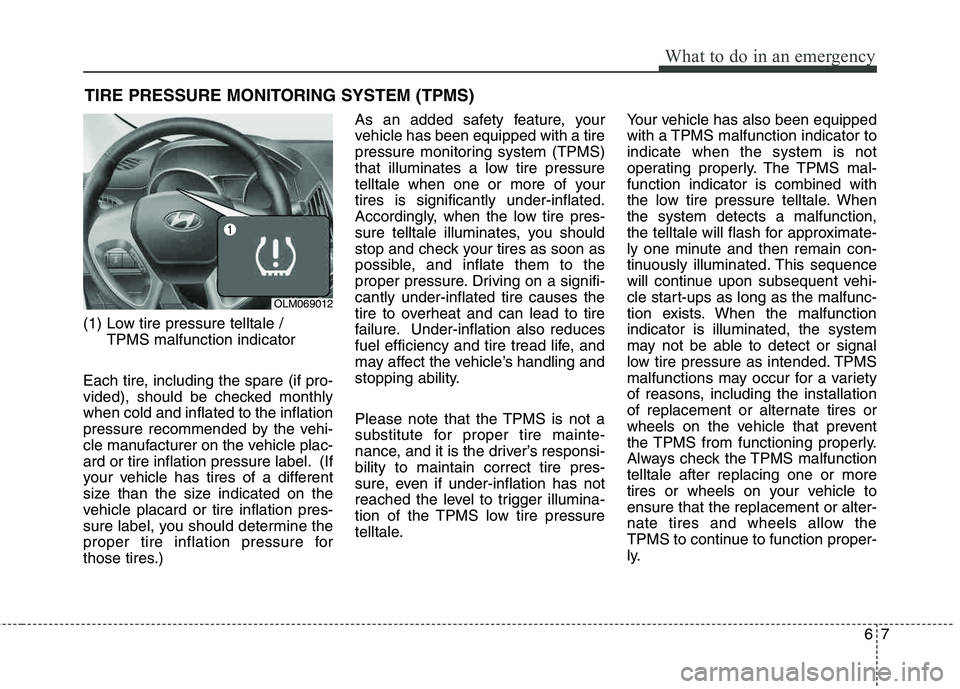

TIRE PRESSURE MONITORING SYSTEM (TPMS)
(1) Low tire pressure telltale / TPMS malfunction indicator
Each tire, including the spare (if pro-
vided), should be checked mont

Page 284 of 397

HYUNDAI TUCSON 2013  Owners Manual What to do in an emergency
8
6
✽✽

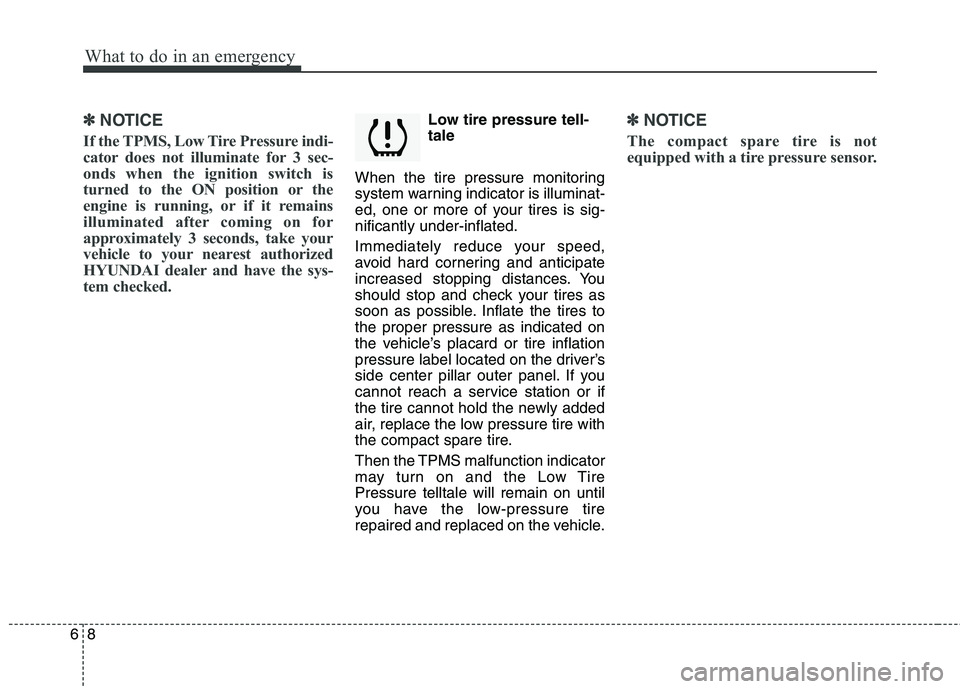

NOTICE
If the TPMS, Low Tire Pressure indi-
cator does not illuminate for 3 sec-
onds when the ignition switch is
turned to the ON position or the
engine is runn

Page 285 of 397

HYUNDAI TUCSON 2013  Owners Manual 69
What to do in an emergency

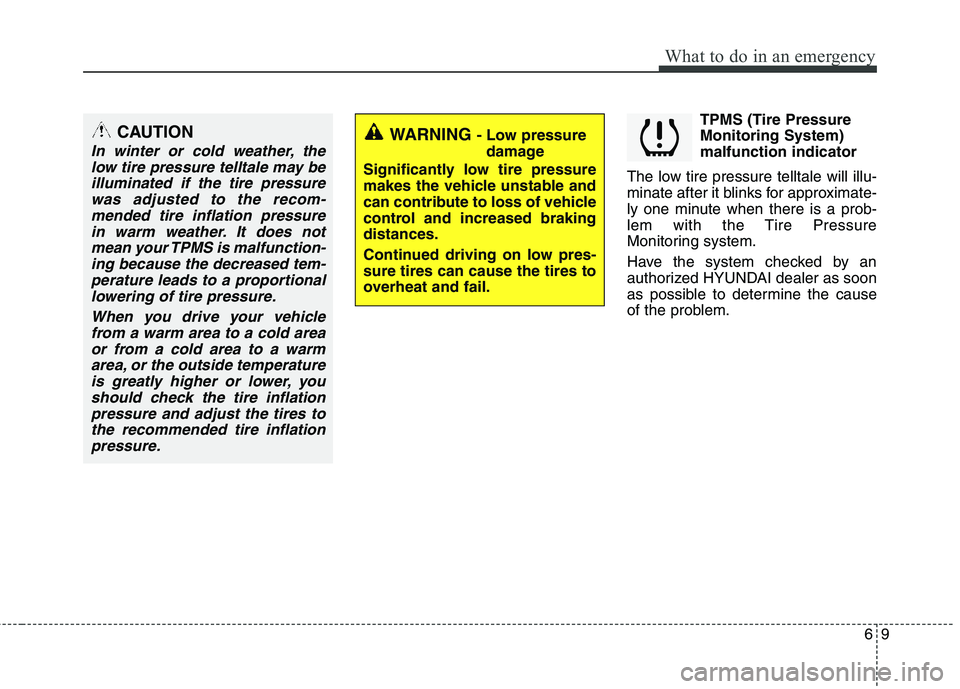

TPMS (Tire Pressure Monitoring System)malfunction indicator
The low tire pressure telltale will illu-
minate after it blinks for approximate-
ly one minute when there is

Page 286 of 397

HYUNDAI TUCSON 2013  Owners Manual What to do in an emergency
10
6

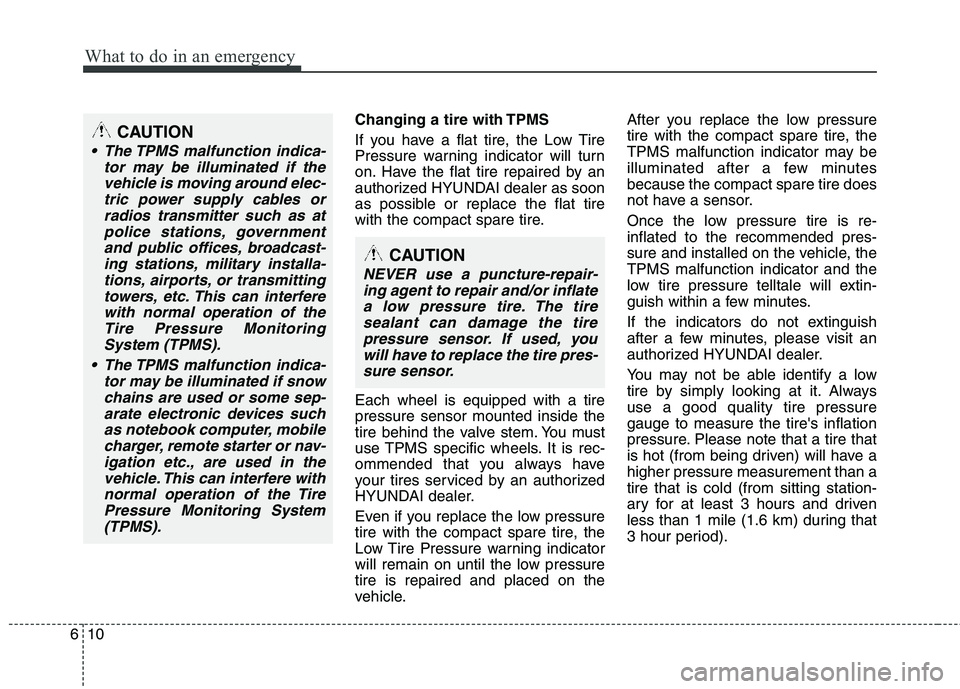

Changing a tire with TPMS
If you have a flat tire, the Low Tire
Pressure warning indicator will turn
on. Have the flat tire repaired by an
authorized HYUNDAI dealer

Page 287 of 397

HYUNDAI TUCSON 2013  Owners Manual 611
What to do in an emergency

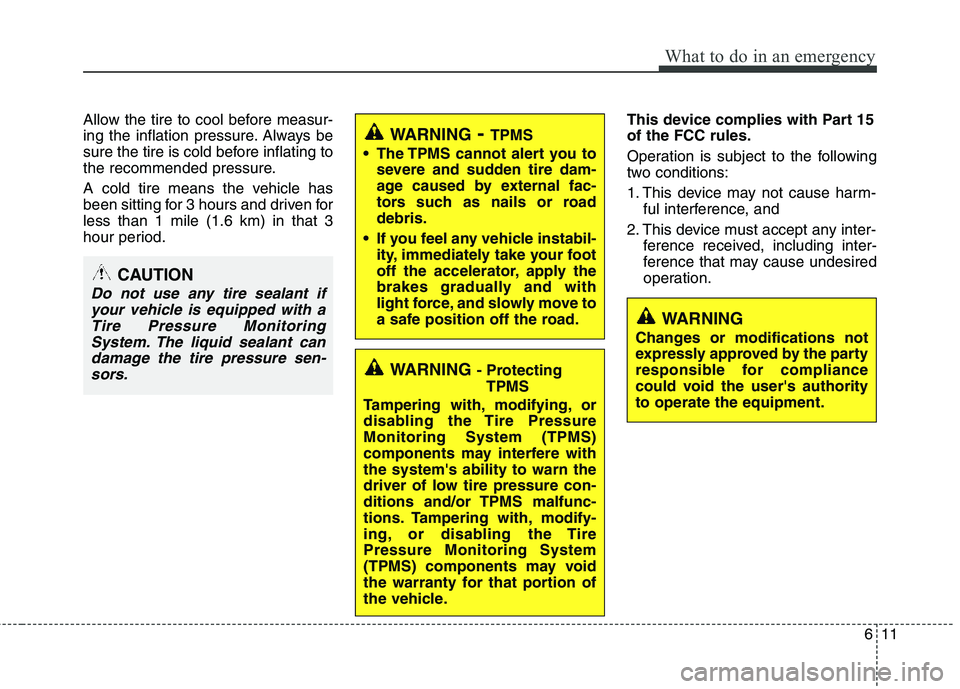

Allow the tire to cool before measur-
ing the inflation pressure. Always be
sure the tire is cold before inflating to
the recommended pressure.
A cold tire means the v

Page 288 of 397

HYUNDAI TUCSON 2013  Owners Manual What to do in an emergency
12
6

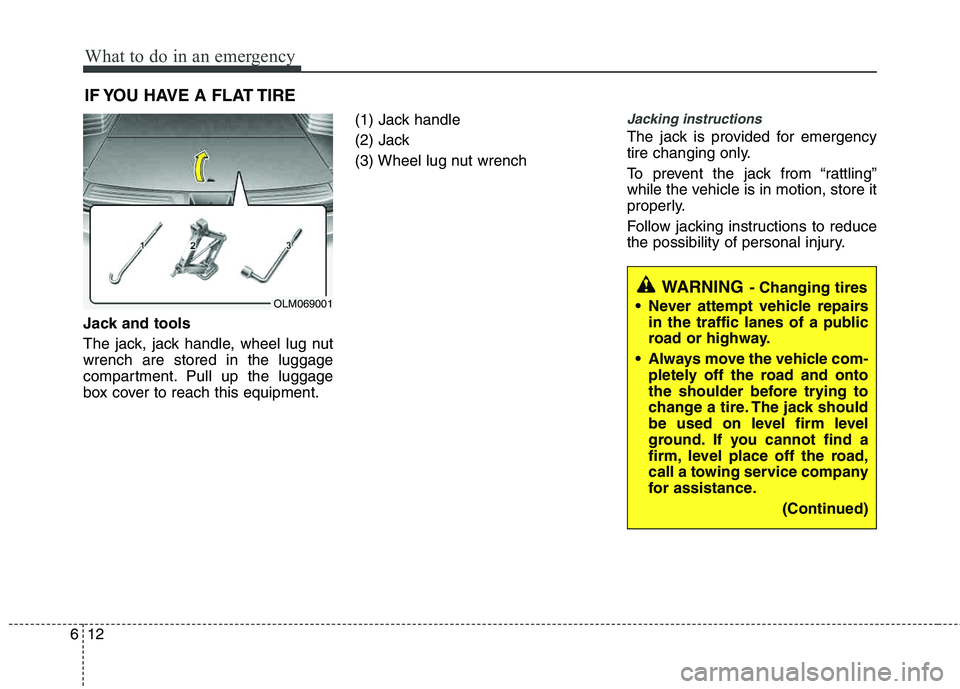

IF YOU HAVE A FLAT TIRE
Jack and tools
The jack, jack handle, wheel lug nut wrench are stored in the luggage
compartment. Pull up the luggage
box cover to reach this e
