2013 HYUNDAI TUCSON Owners Manual

Page 353 of 397

HYUNDAI TUCSON 2013  Owners Manual 753
Maintenance

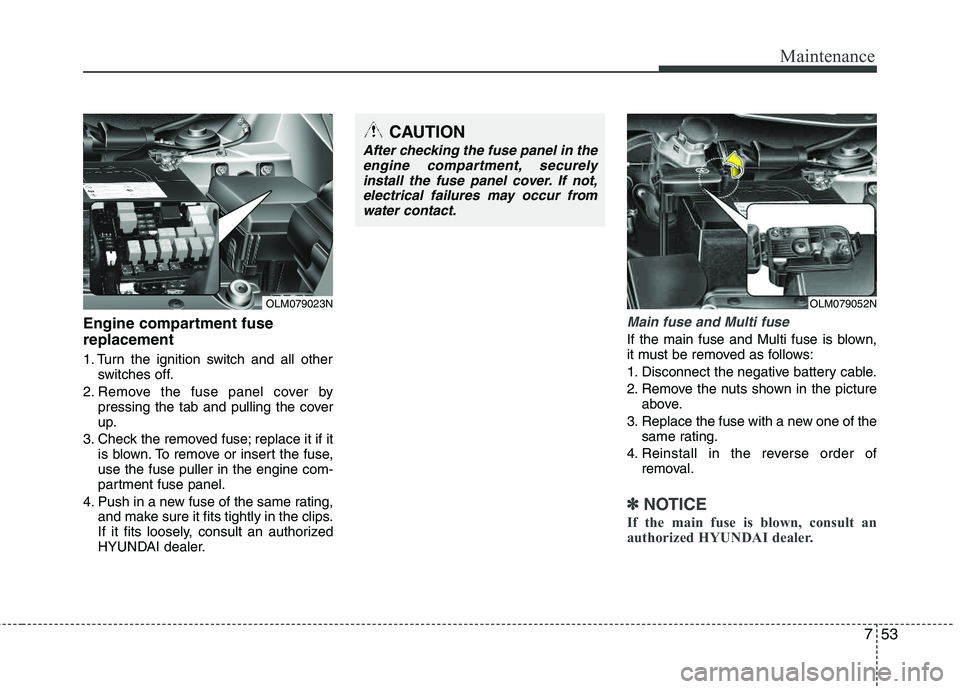

Engine compartment fuse replacement
1. Turn the ignition switch and all otherswitches off.
2. Remove the fuse panel cover by pressing the tab and pulling the cover
up.
3. Check the re

Page 354 of 397

HYUNDAI TUCSON 2013  Owners Manual Maintenance
54
7
✽✽

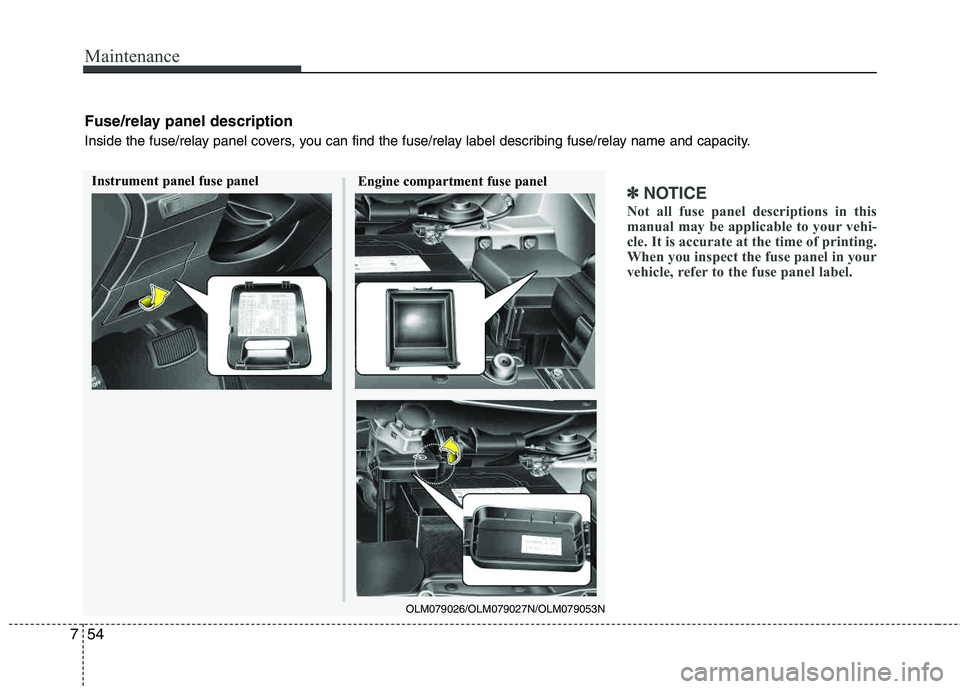

NOTICE
Not all fuse panel descriptions in this
manual may be applicable to your vehi-
cle. It is accurate at the time of printing.
When you inspect the fuse panel in your
veh

Page 355 of 397

HYUNDAI TUCSON 2013  Owners Manual 755
Maintenance

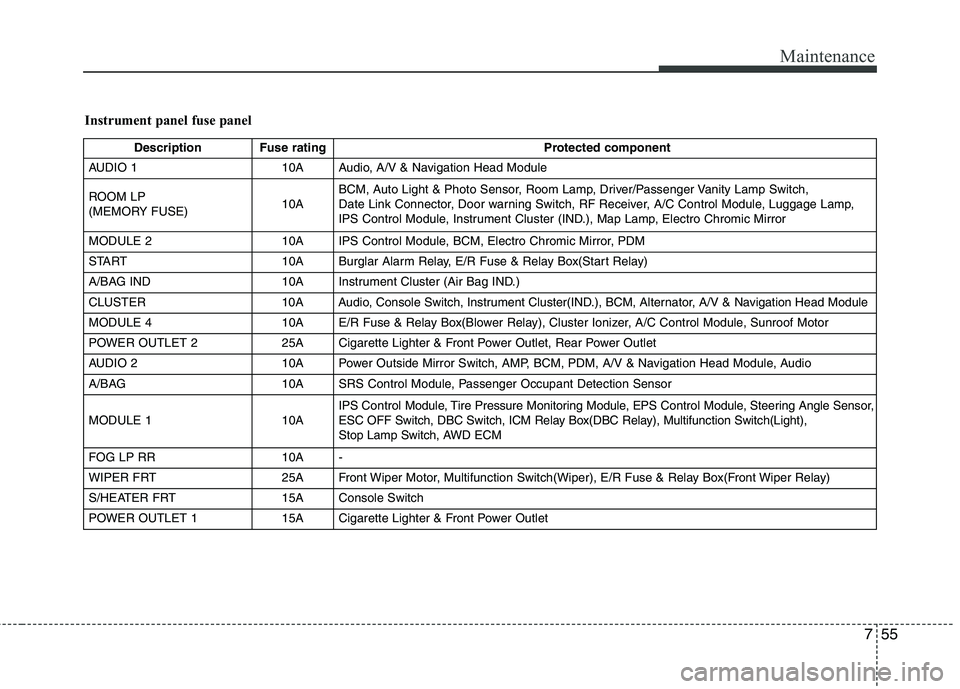

Instrument panel fuse panel
Description Fuse ratingProtected component
AUDIO 1 10A Audio, A/V & Navigation Head Module
ROOM LP
(MEMORY FUSE) 10ABCM, Auto Light & Photo Sensor, Room L

Page 356 of 397

HYUNDAI TUCSON 2013  Owners Manual Maintenance
56
7

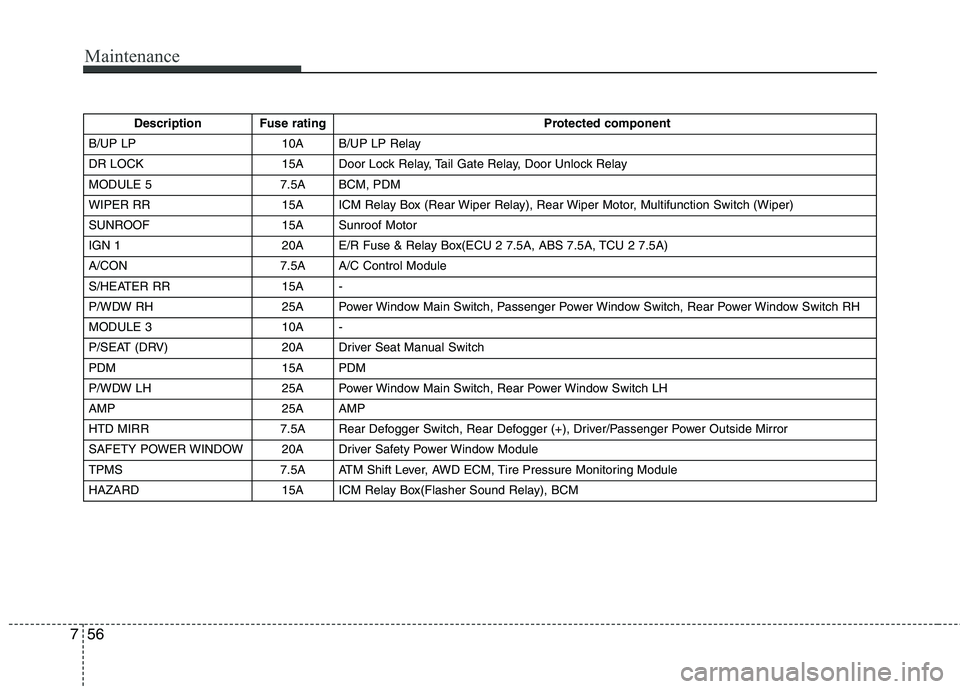

Description Fuse rating Protected component
B/UP LP 10A B/UP LP Relay
DR LOCK 15A Door Lock Relay, Tail Gate Relay, Door Unlock Relay
MODULE 5 7.5A BCM, PDM
WIPER RR 15A ICM Relay Bo

Page 357 of 397

HYUNDAI TUCSON 2013  Owners Manual 757
Maintenance

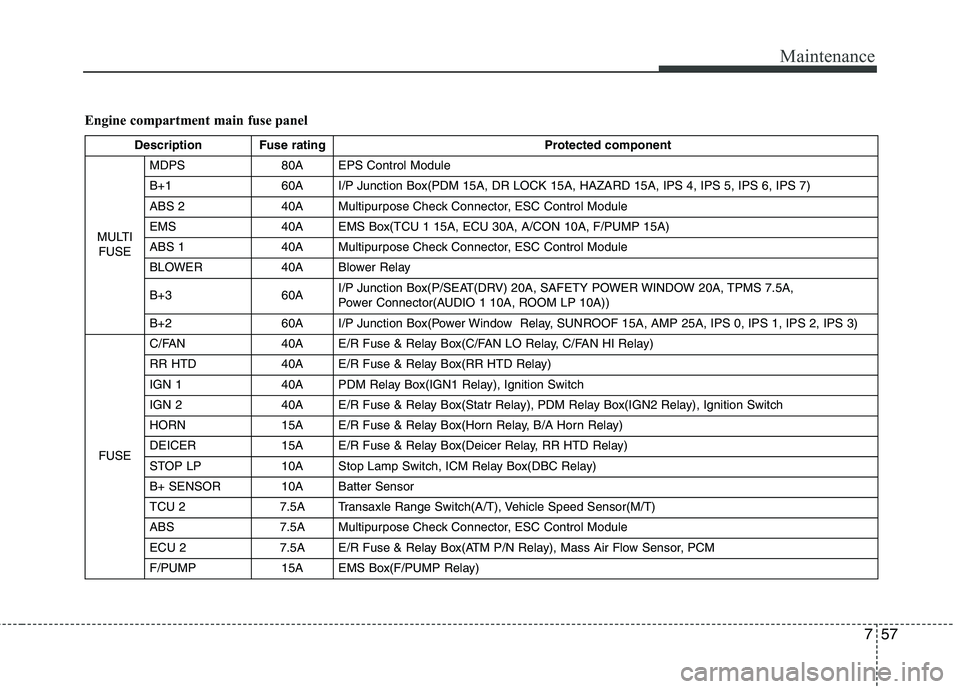

Engine compartment main fuse panel
Description Fuse ratingProtected component
MULTI FUSE MDPS 80A EPS Control Module
B+1 60A I/P Junction Box(PDM 15A, DR LOCK 15A, HAZARD 15A, IPS 4,

Page 358 of 397

HYUNDAI TUCSON 2013  Owners Manual Maintenance
58
7

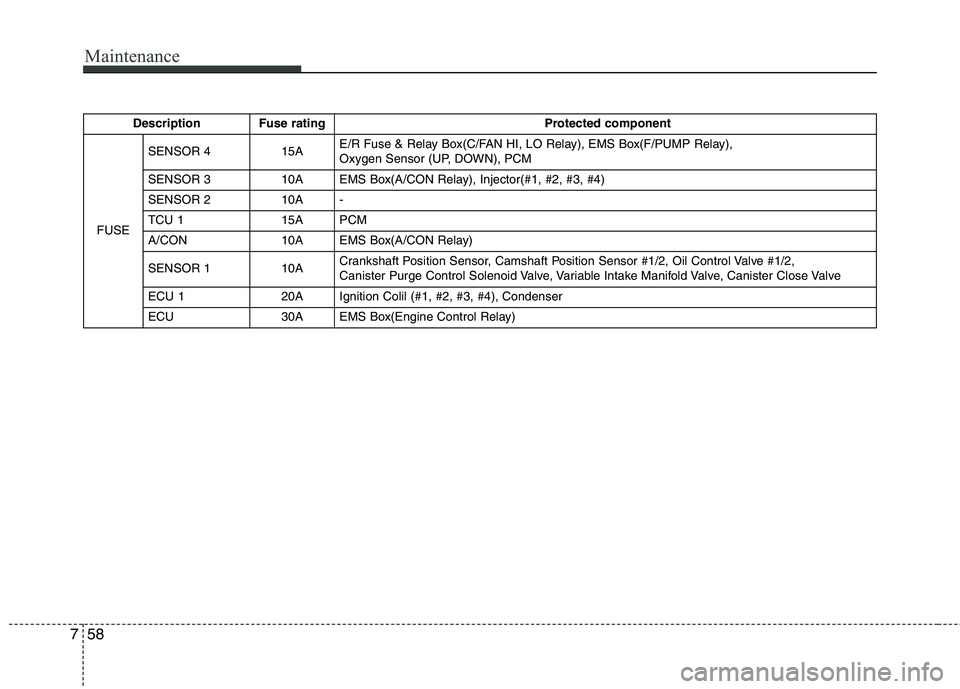

Description Fuse rating Protected component
FUSE SENSOR 4 15A
E/R Fuse & Relay Box(C/FAN HI, LO Relay), EMS Box(F/PUMP Relay),
Oxygen Sensor (UP, DOWN), PCM
SENSOR 3 10A EMS Box(A/C

Page 359 of 397

HYUNDAI TUCSON 2013  Owners Manual 759
Maintenance

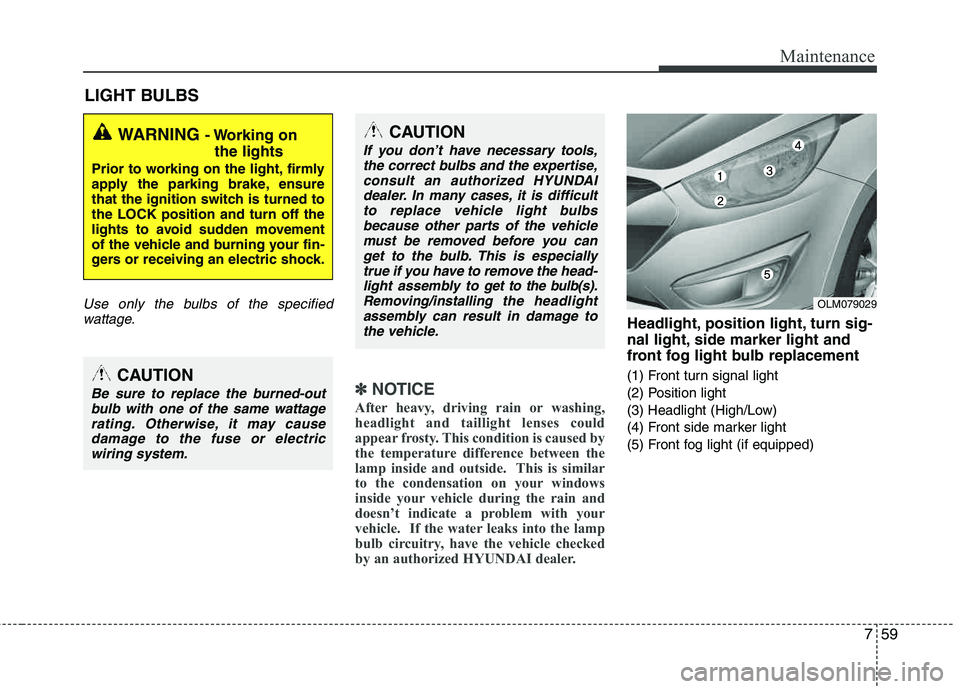

LIGHT BULBS
Use only the bulbs of the specifiedwattage.
✽✽ NOTICE
After heavy, driving rain or washing,
headlight and taillight lenses could
appear frosty. This condition is caus

Page 360 of 397

HYUNDAI TUCSON 2013  Owners Manual Maintenance
60
7

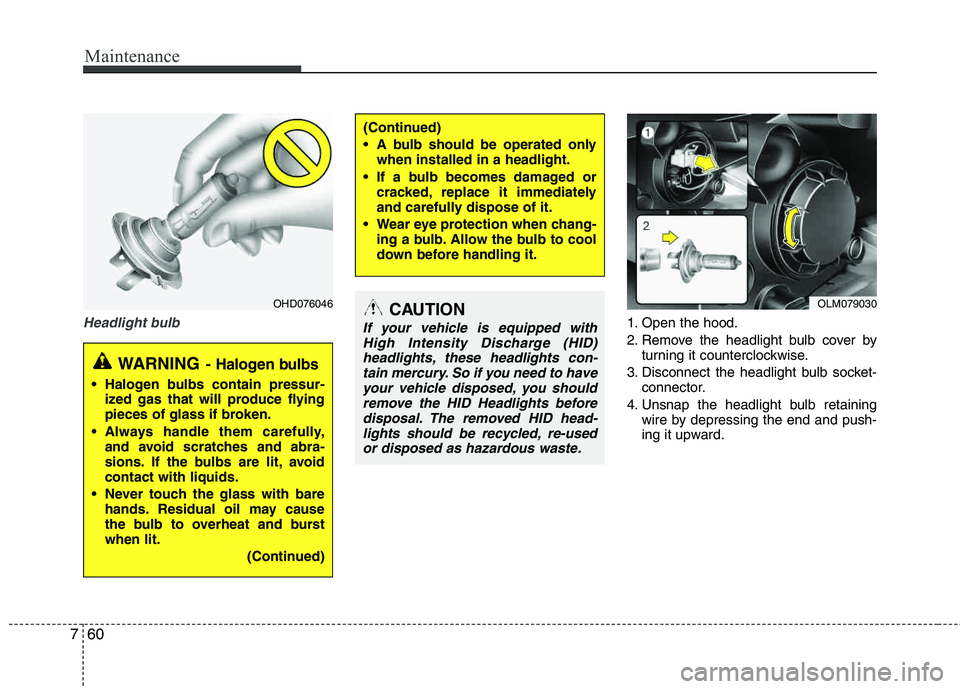

Headlight bulb1. Open the hood.
2. Remove the headlight bulb cover by
turning it counterclockwise.
3. Disconnect the headlight bulb socket- connector.
4. Unsnap the headlight bulb re
