HYUNDAI TUCSON 2013  Owners Manual 745
Maintenance

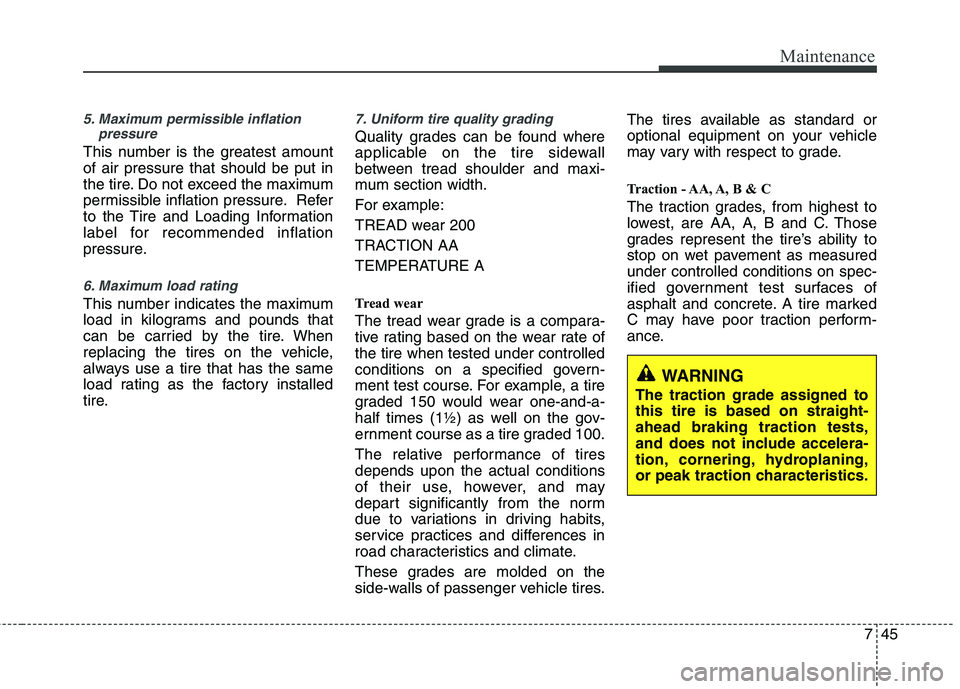

5. Maximum permissible inflationpressure
This number is the greatest amount of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure. Re

Page 346 of 397

HYUNDAI TUCSON 2013  Owners Manual Maintenance
46
7
Temperature -A, B & C
The temperature grades are A (the highest), B and C representing the
tire’s resistance to the generation ofheat and its ability to dissipate heatwhen tested u

Page 347 of 397

HYUNDAI TUCSON 2013  Owners Manual 747
Maintenance

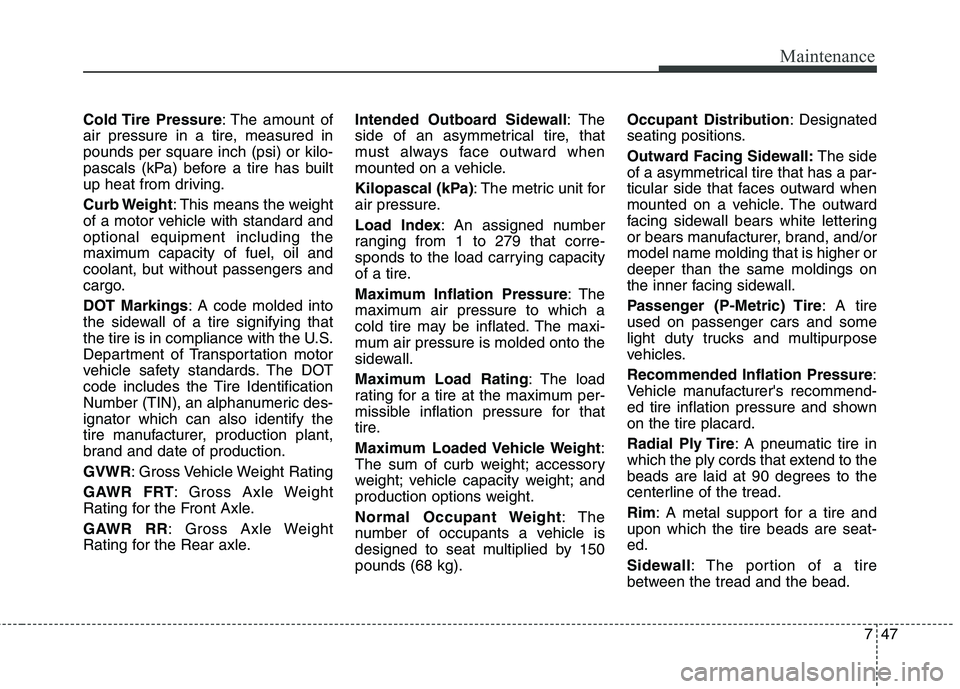

Cold Tire  Pressure: The amount of
air pressure in a tire, measured in pounds per square inch (psi) or kilo-
pascals (kPa) before a tire has built
up heat from driving.
Curb Weight :

Page 348 of 397

HYUNDAI TUCSON 2013  Owners Manual Maintenance
48
7

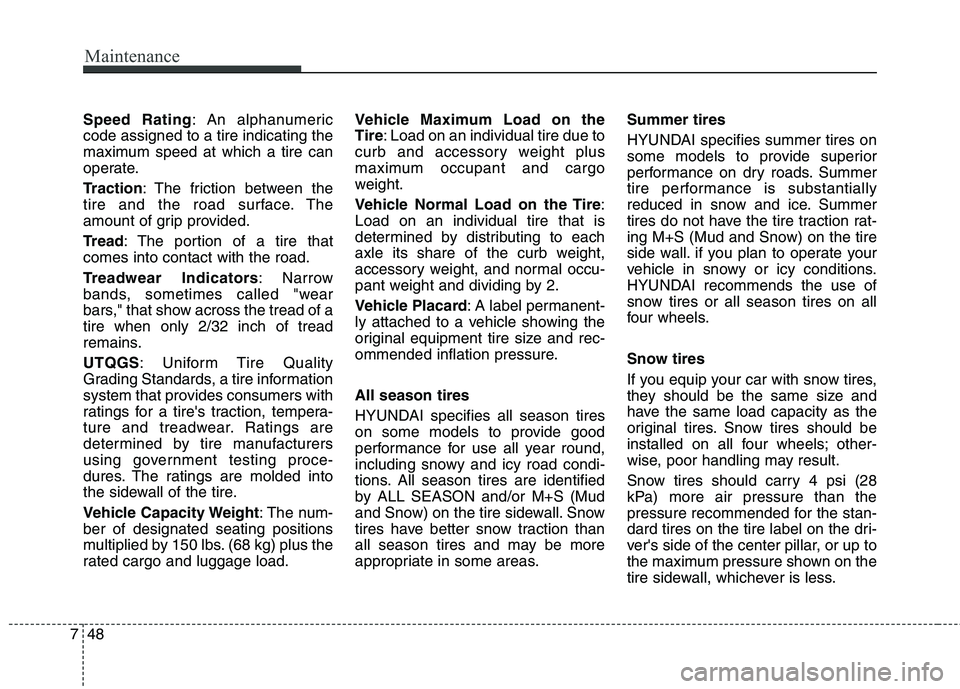

Speed Rating : An alphanumeric
code assigned to a tire indicating the
maximum speed at which a tire can
operate.
Traction : The friction between the
tire and the road surface. The

Page 349 of 397

HYUNDAI TUCSON 2013  Owners Manual 749
Maintenance

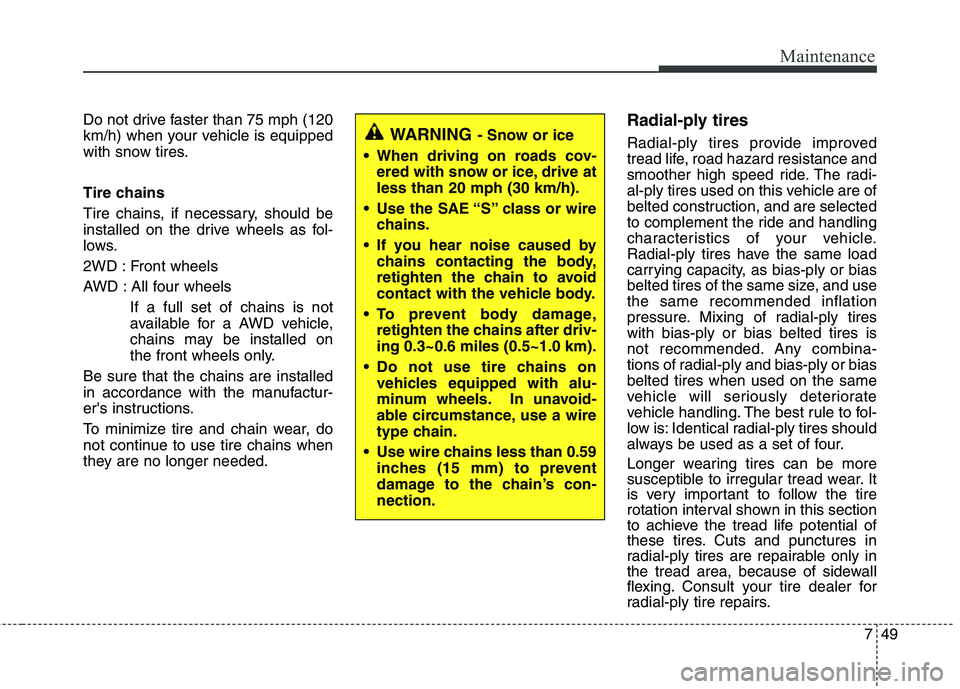

Do not drive faster than 75 mph (120
km/h) when your vehicle is equipped
with snow tires.
Tire chains
Tire chains, if necessary, should be
installed on the drive wheels as fol-
low

Page 350 of 397

HYUNDAI TUCSON 2013  Owners Manual Maintenance
50
7
FUSES
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 3 fuse panels, one locat-
ed in the driver’s side panel bolster, th

Page 351 of 397

HYUNDAI TUCSON 2013  Owners Manual 751
Maintenance

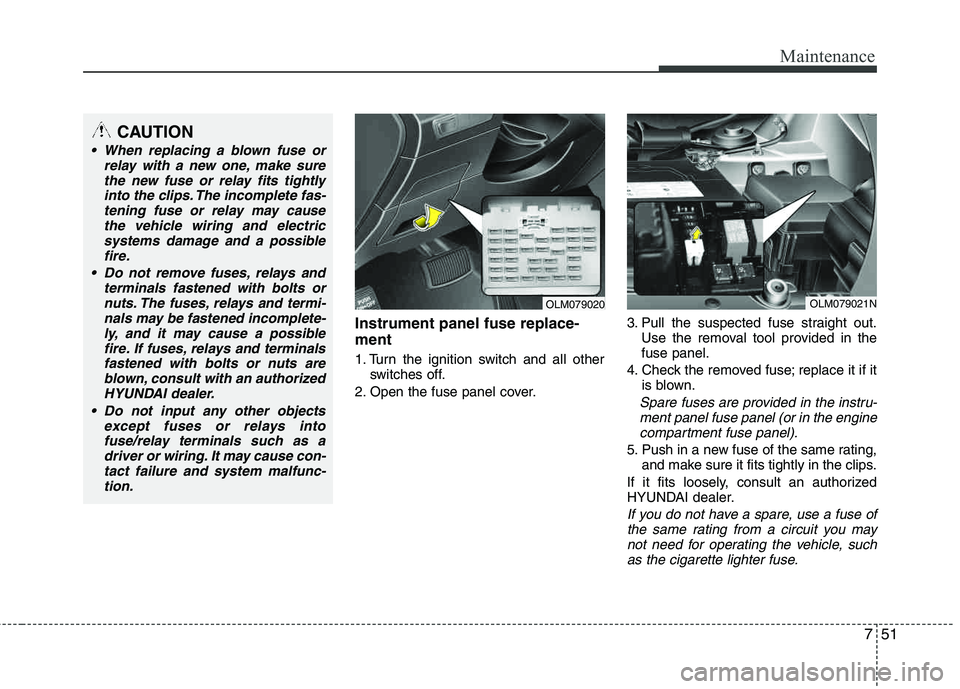

Instrument panel fuse replace- ment
1. Turn the ignition switch and all otherswitches off.
2. Open the fuse panel cover. 3. Pull the suspected fuse straight out.
Use the removal tool p

Page 352 of 397

HYUNDAI TUCSON 2013  Owners Manual Maintenance
52
7

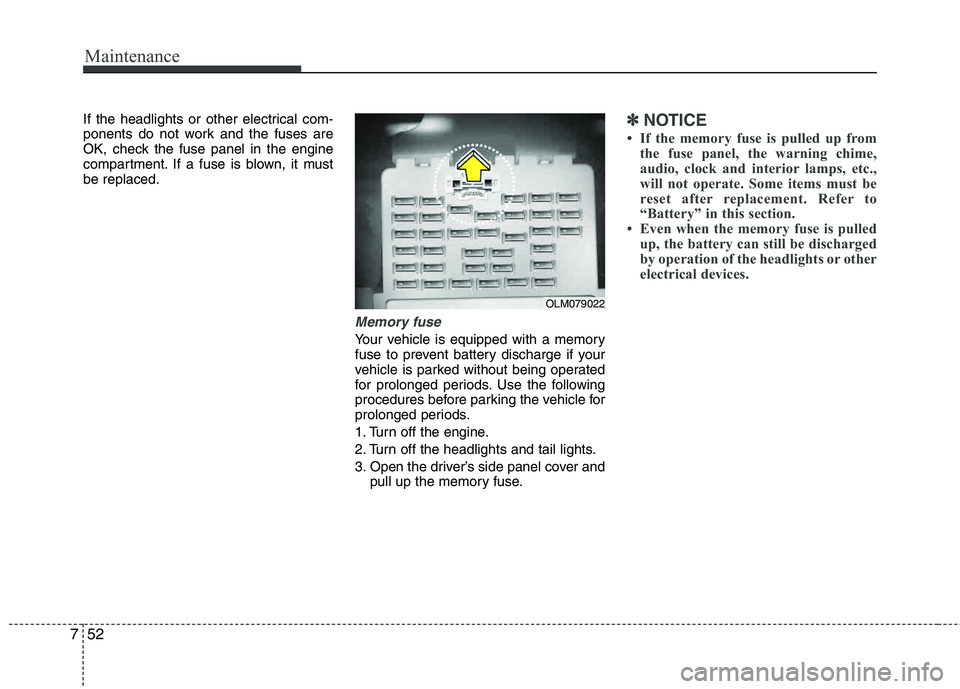

If the headlights or other electrical com-
ponents do not work and the fuses are
OK, check the fuse panel in the engine
compartment. If a fuse is blown, it mustbe replaced.
Memory f
