2013 HYUNDAI TUCSON Owners Manual

Page 97 of 397

HYUNDAI TUCSON 2013  Owners Manual 417
Features of your vehicle

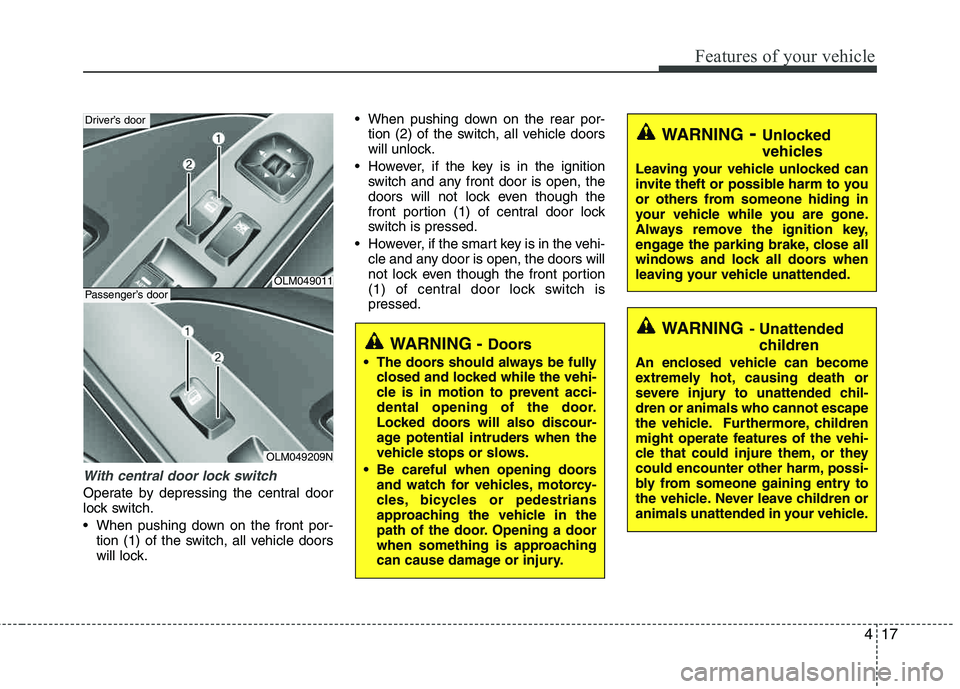

With central door lock switch
Operate by depressing the central door
lock switch.
 When pushing down on the front por-tion (1) of the switch, all vehicle doors
will loc

Page 98 of 397

HYUNDAI TUCSON 2013  Owners Manual Features of your vehicle
18
4

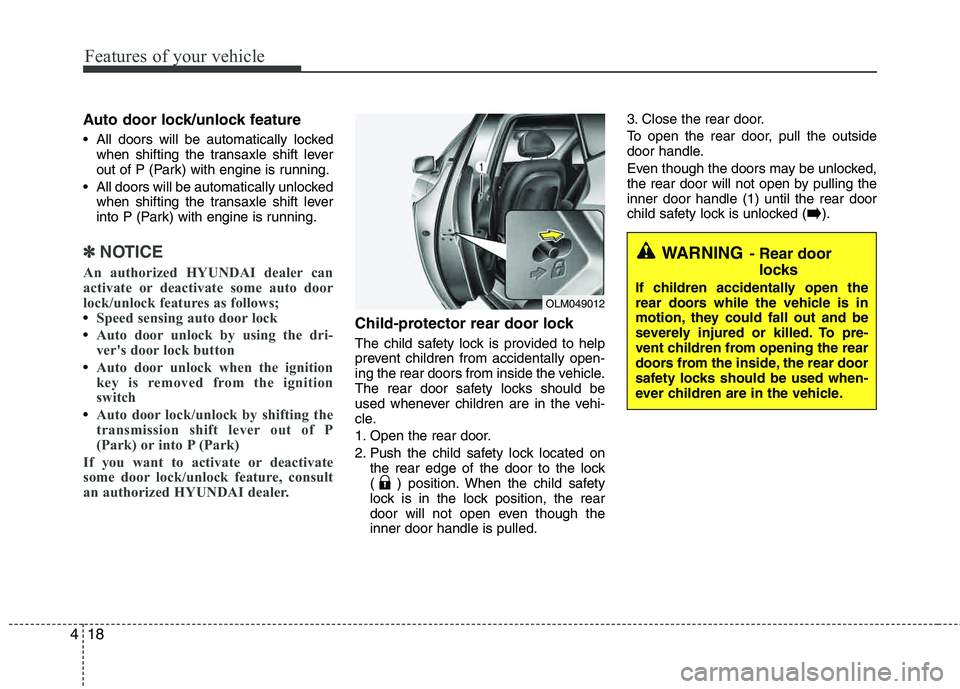

Auto door lock/unlock feature
 All doors will be automatically locked
when shifting the transaxle shift lever
out of P (Park) with engine is running.
 All doors will be

Page 99 of 397

HYUNDAI TUCSON 2013  Owners Manual 419
Features of your vehicle

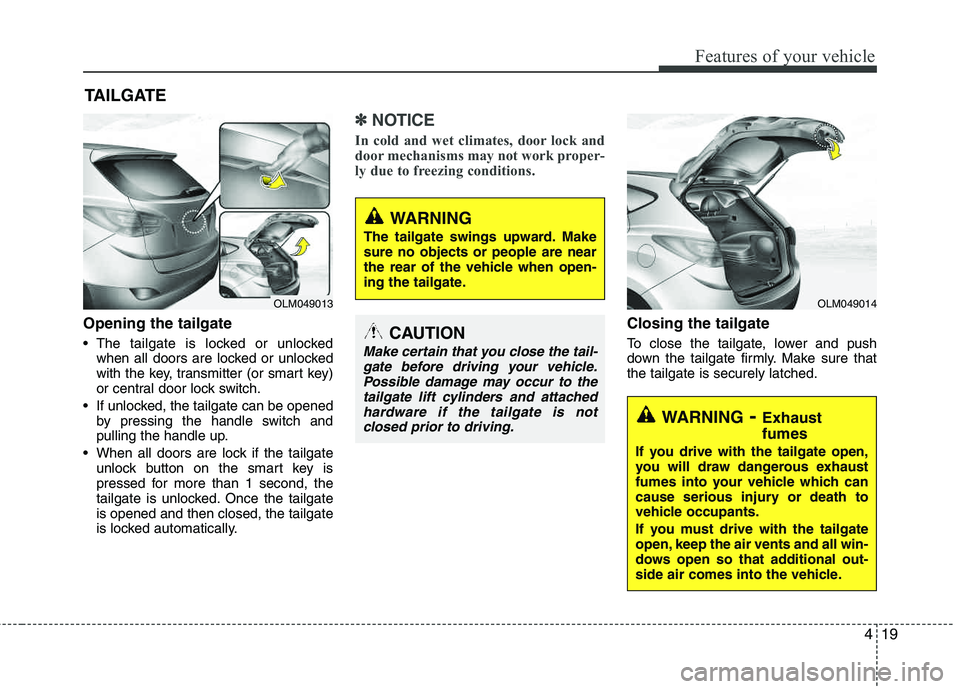

Opening the tailgate
 The tailgate is locked or unlockedwhen all doors are locked or unlocked
with the key, transmitter (or smart key)
or central door lock switch.
 If u

Page 100 of 397

HYUNDAI TUCSON 2013  Owners Manual Features of your vehicle
20
4

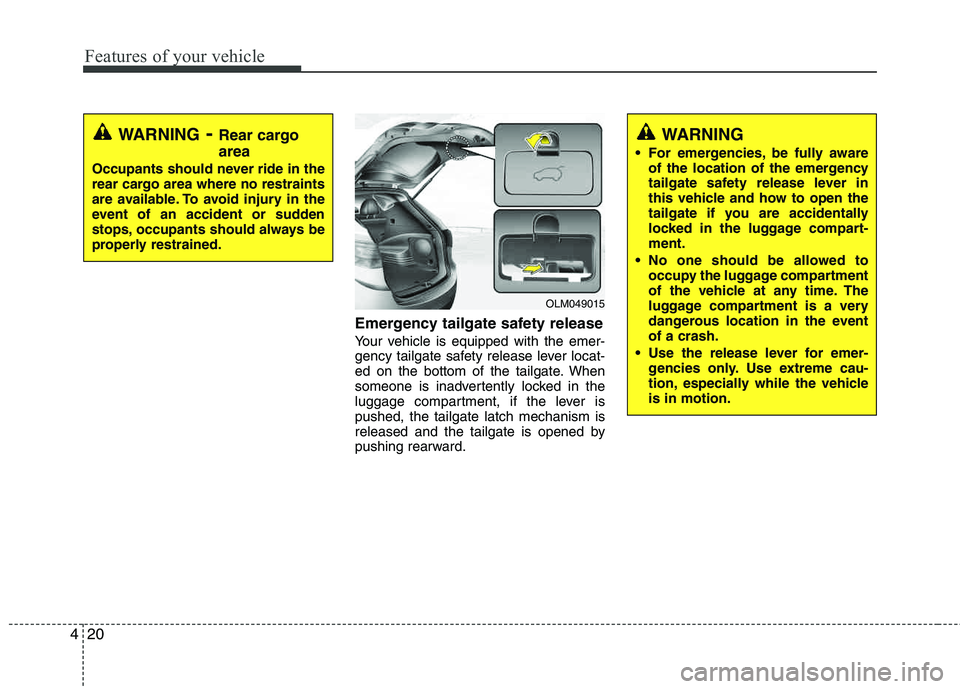

Emergency tailgate safety release
Your vehicle is equipped with the emer-
gency tailgate safety release lever locat-
ed on the bottom of the tailgate. When
someone is i

Page 101 of 397

HYUNDAI TUCSON 2013  Owners Manual 421
Features of your vehicle

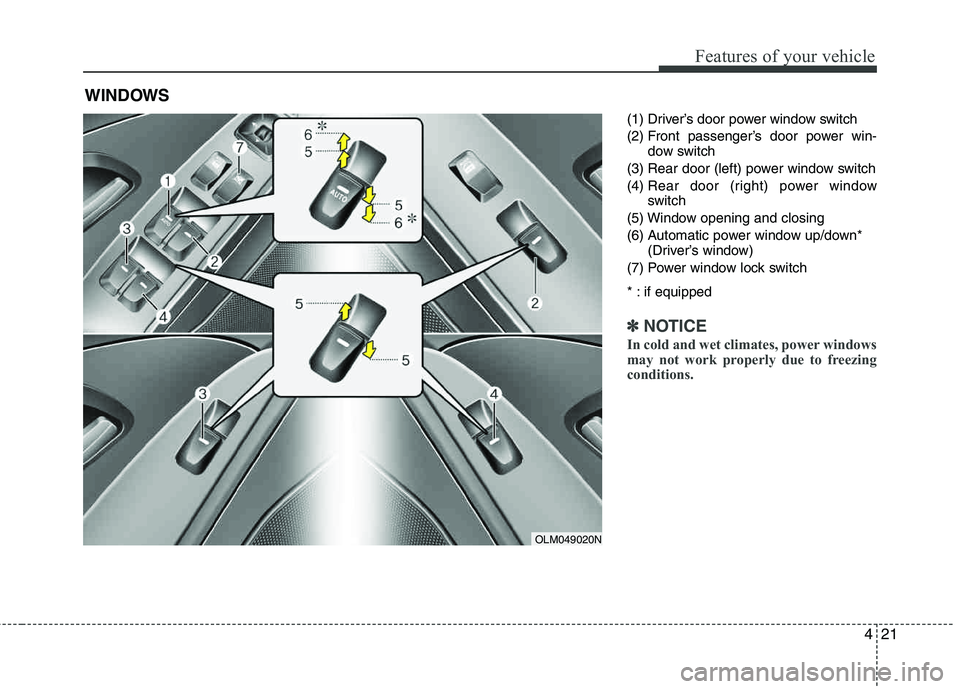

(1) Driver’s door power window switch
(2) Front passenger’s door power win-dow switch
(3) Rear door (left) power window switch (4)  Rear door (right) power window
sw

Page 102 of 397

HYUNDAI TUCSON 2013  Owners Manual Features of your vehicle
22
4

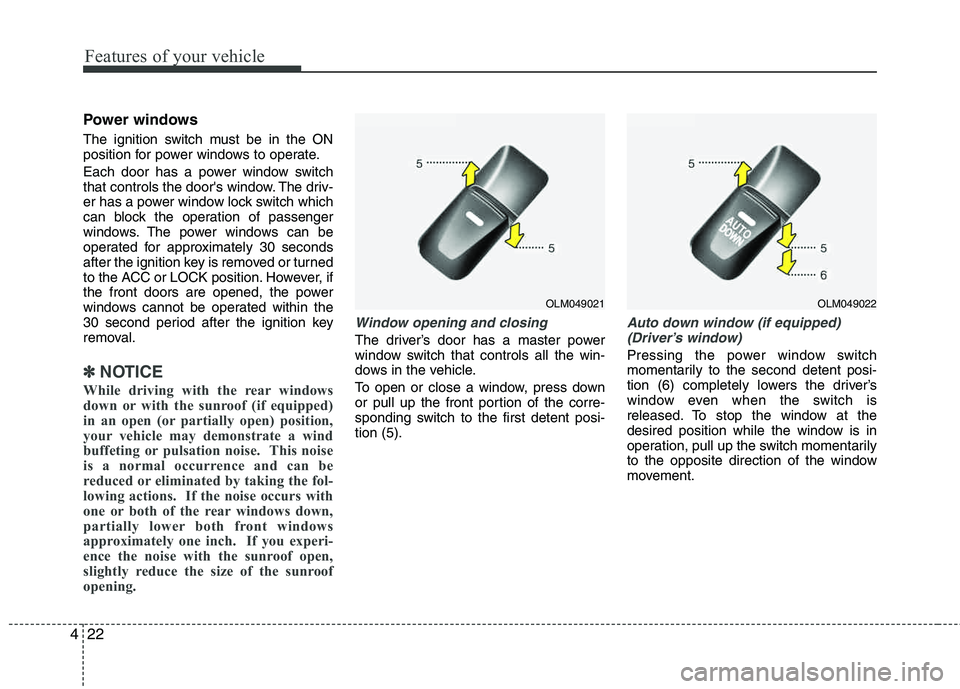

Power windows
The ignition switch must be in the ON
position for power windows to operate.
Each door has a power window switch
that controls the doors window. The dri

Page 103 of 397

HYUNDAI TUCSON 2013  Owners Manual 423
Features of your vehicle

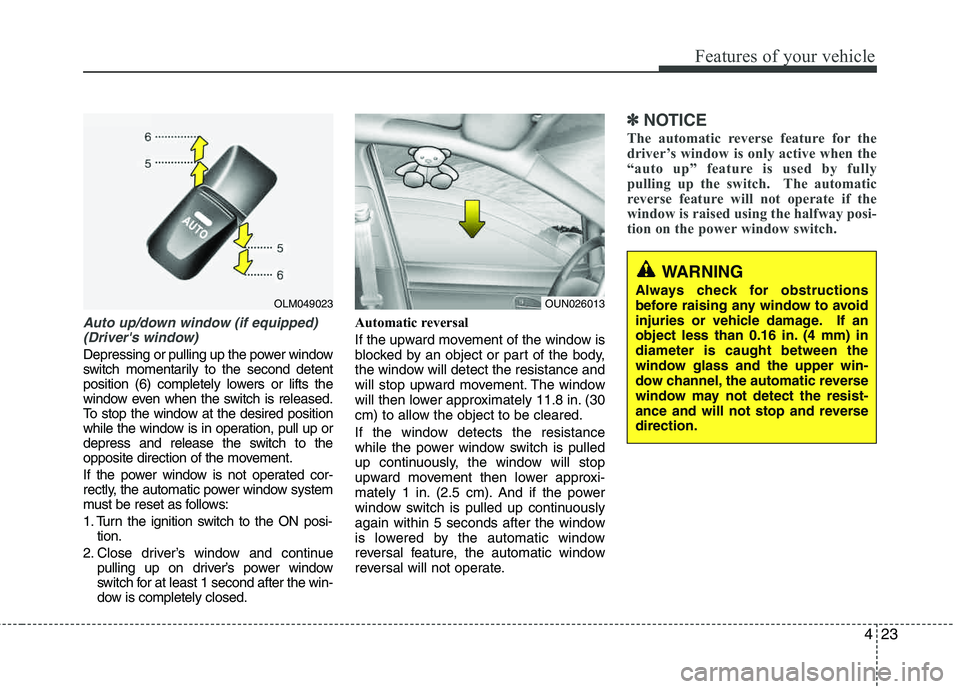

Auto up/down window (if equipped)  (Drivers window)
Depressing or pulling up the power window
switch momentarily to the second detent
position (6) completely lowers or l

Page 104 of 397

HYUNDAI TUCSON 2013  Owners Manual Features of your vehicle
24
4

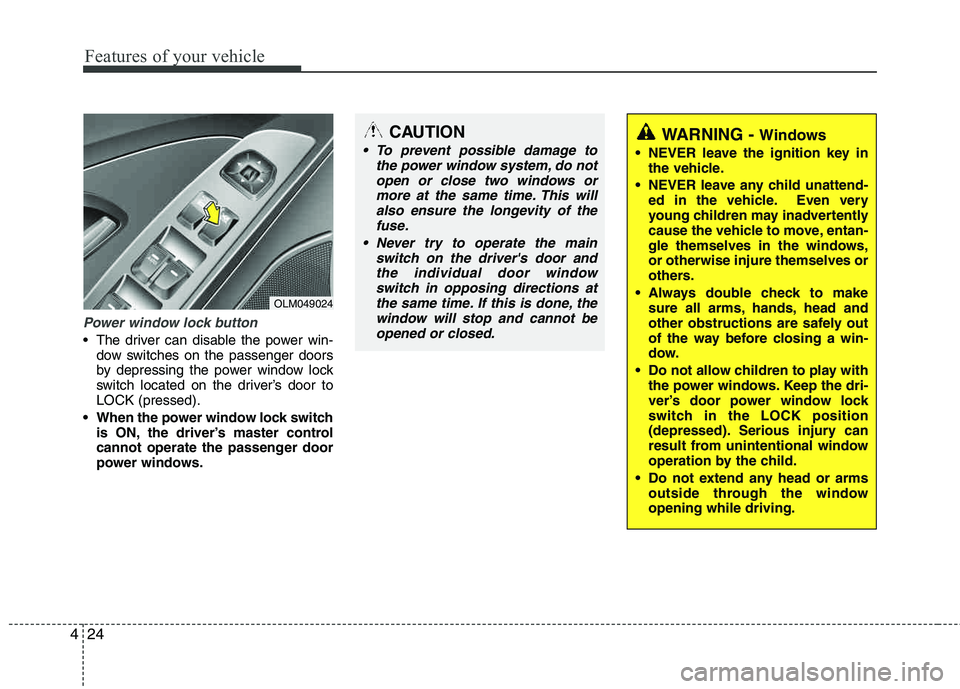

Power window lock button
 The driver can disable the power win-
dow switches on the passenger doors
by depressing the power window lock
switch located on the driver’s
