2013.5 Citroen C4 DAG Owner's Manual

05
311
USING THE TELEPHONE


Directory



The system accesses the telephone's contacts directory, depending
on compatibility, and while the Bluetooth connection with it is
maintained.

With certain telephones connected by Bluetooth you can send a
contact to the directory of the audio system.
Contacts imported in this way are saved in a permanent directory
visible to all, whatever the telephone connected.
The menu for the directory is not accessible if it is empty.

To modify the contacts saved in the
system, press MENU
then select
" Telephone
" and confi rm.
Select " Directory management
" and
confi rm.
You can:


- " Consult an entry
",

- " Delete an entry
",

- " Delete all entries
".


Select " Directory
" to see the list of
contacts.

Make a long press on SOURCE
or SRC

for access to the directory
or press OK
, and
select " Call
" and confi rm.

06
312
AUDIO SETTINGS


Press 
to display the audio settings
menu.

Press 
or 
to modify the selected
setting.


Screen A


Press 
or 
for the previous or next
setting in the list.

The Ambience, Treble and Bass audio settings are separate and
independent for each sound source.

06
313
Press 
to display the audio settings
menu.

The settings available are:


- Ambience,

- Bass,

- Treble,

- Loudness,

- Distribution: Personalised or Driver,

- Left / right balance,

- Fader (front / rear balance),

- Auto. volume.



Screen C


The distribution (or spatialisation using the Arkamys© system), is
an audio process which allows the sound quality to be improved
according to the setting chosen, corresponding to the position of the
listeners in the vehicle.

AUDIO SETTINGS


Select and confi rm " Other settings…
"
to display the next setting in the list.
The Ambience, Treble and Bass audio settings are different and
independent for each sound source.



On-board audio: Arkamys
©
Sound Staging.
With Sound Staging, the driver and passengers are immersed in an
"audio scene" recreating the natural atmosphere of an auditorium:
truly a part of the scene and its surroundings.
This new sensation is made possible by software in the audio
system which processes the digital signals from the media players
(radio, CD, MP3…) without changing the audio settings. This
processing takes account of the characteristics of the passenger
compartment to produce optimum results.
The Arkamys
© software installed in your audio system processes
the digital signal from the media players (radio, CD, MP3, ...) and
recreates a natural musical scene, with harmonious placement of
instruments and voices in the space in front of passengers, level
with the windscreen.

07
314








Screen A



Normal
2

RDS options 1

Infotext 1

Radiotext 1

Français 1








MAIN FUNCTION



Option A1

Option A11


Option A

Option B... 1
2
3
1


RADIO

TRIP COMPUTER
Diagnostics
1


DATE AND TIME
MEDIA
Read mode
1

Random 2

Random all
2






VEHICLE PARAM *


SCREEN MENU MAP(S)


LANGUAGES



Italiano
2


Nederlands
2


Portuguès
2


Portuguès-brasil
2


Deutsch
2


English
2


Español


2

* Depending on vehicle equipment.

07
315
SCREEN MENU MAP(S)




Screen C



Dial


Vehicle diagnosis
2
1
Media parameters



Choice of playback mode

Normal
1
2
3

Random 3

Random all 3

Repeat 3


Choice of track listing

By folders 2
3

By artists 3

By genres 3

By playlists
3

Call 1


Directory
2


Calls list
2


Voice mail box


2


Directory management



Consult an entry

1
2


Delete an entry
2


Delete all entries


2


Telephone management



Telephone status



1
2


Hang up 1

Connections management 1

Search for a device 1


MULTIMEDIA
TRIP COMPUTER

TELEPHONE

BLUETOOTH CONNECTION

Radio parameters
1

07
316
SCREEN MENU MAP(S)






PERSONALISATION -
CONFIGURATION
Define the vehicle
parameters *

1


Choice of language 1

Display configuration



Choice of units

1
2


Date and time adjustment
2


Display parameters
2


Choice of sounds 1


Brightness


2


* Depending on vehicle equipment.

317

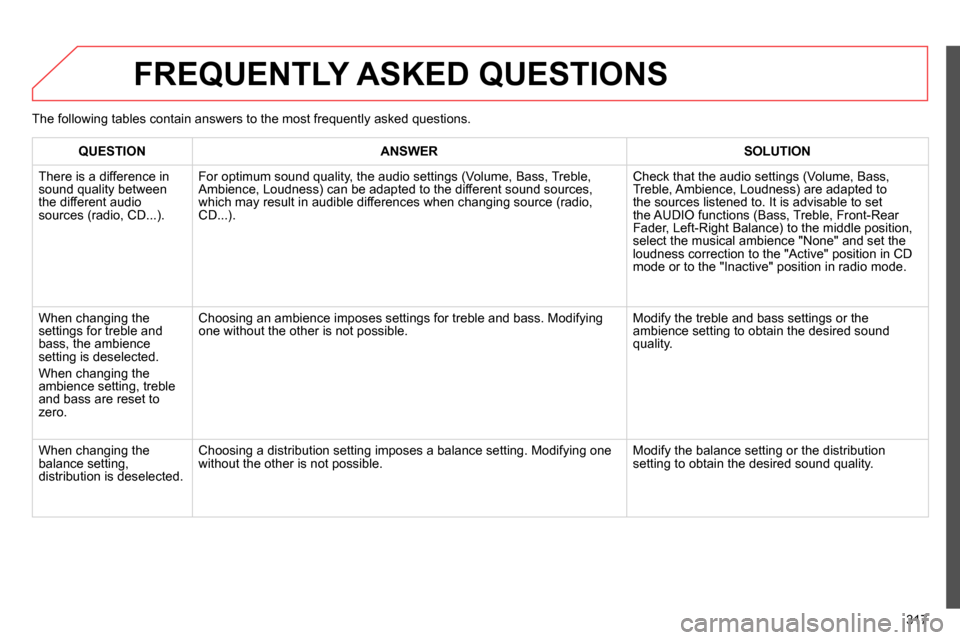

FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


There is a difference in
sound quality between
the different audio
sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio,
CD...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Fader, Left-Right Balance) to the middle position,
select the musical ambience "None" and set the
loudness correction to the "Active" position in CD
mode or to the "Inactive" position in radio mode.
When changing the
settings for treble and
bass, the ambience
setting is deselected.
When changing the
ambience setting, treble
and bass are reset to
zero. Choosing an ambience imposes settings for treble and bass. Modifying
one without the other is not possible. Modify the treble and bass settings or the
ambience setting to obtain the desired sound
quality.
When changing the
balance setting,
distribution is deselected. Choosing a distribution setting imposes a balance setting. Modifying one
without the other is not possible. Modify the balance setting or the distribution
setting to obtain the desired sound quality. The following tables contain answers to the most frequently asked questions.

318
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 MHz is
displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to
2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
The traffi c announcement
(TA) is displayed. I do
not receive any traffi c
information. The radio station does not broadcast traffi c information. Tune to a radio station which broadcasts traffi c
information.
The stored stations are
not found (no sound,
87.5 MHz is displayed...). An incorrect waveband is selected. Press the BAND button to return to the waveband
on which the stations are stored.
